  1. Premio Kaypro C1000E Notebook Training Premio Kaypro C1000E Notebook Training Calvin Chen Technical Director

  2. Agenda • System Overview • Intel Centrino Mobile Technology • Target Market • System Specifications • Integrated Devices and I/O Connectors (Rear View) • Front View • Right and Left View • Summary

  3. System Overview • The Kaypro C1000E is based on the Intel Centrino Mobile Technology platform with a 15.0" LCD display • The C1000E supports both the Pentium M (1MB) and Celeron M (512K) Mobile processors • The C1000E uses the Intel 855GME chipset with Intel Extreme Graphics 2 video • The onboard video uses Intel DVMT (Dynamic Video Memory Technology) memory architecture • Systems with 128MB, DMVT will allocate up to 32MB for video memory; systems with >=256MB, DVMT will allocate up to 64MB of video memory • Wireless 802.11B/G, USB 2.0, and Firewire (IEEE1394) support is standard

  4. Target Market • The target market of the Kaypro C1000E is the education, home, or business market segment that needs a slim and high performance notebook with integrated wireless support • Since the C1000E is based on the Intel Centrino Mobile platform, it is optimized for extended battery life and performance • This notebook is intended for users who want the mobility and convenience of a notebook without sacrificing the performance of a high-end desktop • Extended battery life (up to 5 hours) means less time recharging and more time on the road

  5. System Specifications • Chassis - 15.0” TFT LCD display (1024x768 @ 16 million colors) - 6.5 lbs (with HDD and optical drive) - 12.77” W x 10.64” L x 1.18” H • Chipset / Processor - Intel 855GME with Intel Extreme Graphics 2 - Supports Intel Pentium M (400FSB) - Supports Intel Celeron M (400FSB) - Pentium M/1.3, 1.4, 1.5, 1.6, and 1.7GHz (1MB cache) - Celeron M/1.2, 1.3, and 1.4GHz (512K cache) Memory - 2 x SO-DIMM DDR333/PC2700 slots - 1.0GB maximum (2 x 512MB) • Slots - 1 x type-II Cardbus slot - 1 x Sony Memory Stick or Secure Digital (SD) module • Drives / Drive Bays - 1 x 2.5" IDE HDD drive bay (20, 30, or 40GB capacity) - 1 x front swappable optical drive bay (no drive or 24x CDRW/8x DVD combo) • Battery - 8 cell Li+ for approximately 5.0 hrs of normal usage - 1.5 hrs rapid charge

  6. Integrated Devices and I/O Connectors • Intel Extreme Graphics 2 share video w/ DVMT (1024x768 @ 16 million colors) 1 x VGA port 1 x S-video TV out • AC97 audio 1 x line-out/external speakers 1 x line-in/microphone • Broadcom 440x 10/100Mbps LAN 1 x RJ-45 • V.92 56K soft-modem 1 x RJ-11 • Firewire IEEE1394 1 x Firewire port • USB 2.0 3 x USB ports • Legacy Port 1 x LPT/printer port

  7. Front View The C1000E as seen from the front. Note the absence of a floppy disk drive; if you require a FDD, you will need to get an external USB FDD

  8. Left and Right View The C1000E as seen from the left side. The volume control is located here, as well as the Sony Memory Stick or Secure Digital card (these two cards are used for storing images from digital cameras). The single type-II Cardbus slot is located to the right of that. The IR (infra-red) port is to the right of the Cardbus slot The C1000E as seen from the right side. A Keningston compatible keylock is provided for extra security

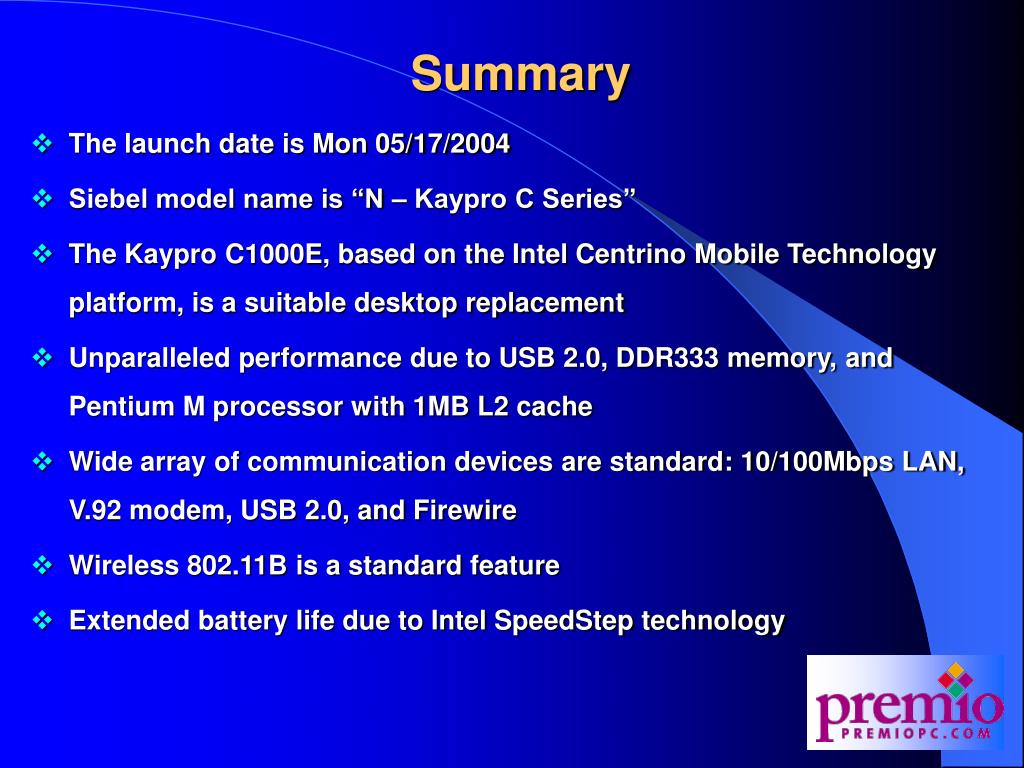

  9. Summary • The launch date is Mon 05/17/2004 • Siebel model name is “N – Kaypro C Series” • The Kaypro C1000E, based on the Intel Centrino Mobile Technology platform, is a suitable desktop replacement • Unparalleled performance due to USB 2.0, DDR333 memory, and Pentium M processor with 1MB L2 cache • Wide array of communication devices are standard: 10/100Mbps LAN, V.92 modem, USB 2.0, and Firewire • Wireless 802.11B is a standard feature • Extended battery life due to Intel SpeedStep technology

  10. The End
