  1. Pediatric CRRTTerms and Nomenclature Timothy E. Bunchman

  2. How does dialysis work? • Solute clearance is related to • Sieving coefficient • Molecular weight of the solute • Charge of the solute • Gradient across the membrane • This can be convective or diffusive

  3. Solute Molecular Weight and clearance Solute (MW) Convective Coefficient Diffusion Coefficient Urea (60) 1.01 ± 0.05 1.01 ± 0.07 Creatinine (113) 1.00 ± 0.09 1.01 ± 0.06 Uric Acid (168) 1.01 ± 0.04 0.97 ± 0.04* Vancomycin (1448) 0.84 ± 0.10 0.74 ± 0.04** Cytokines (large) adsorbed minimal clearance *P<0.05 **P<0.01

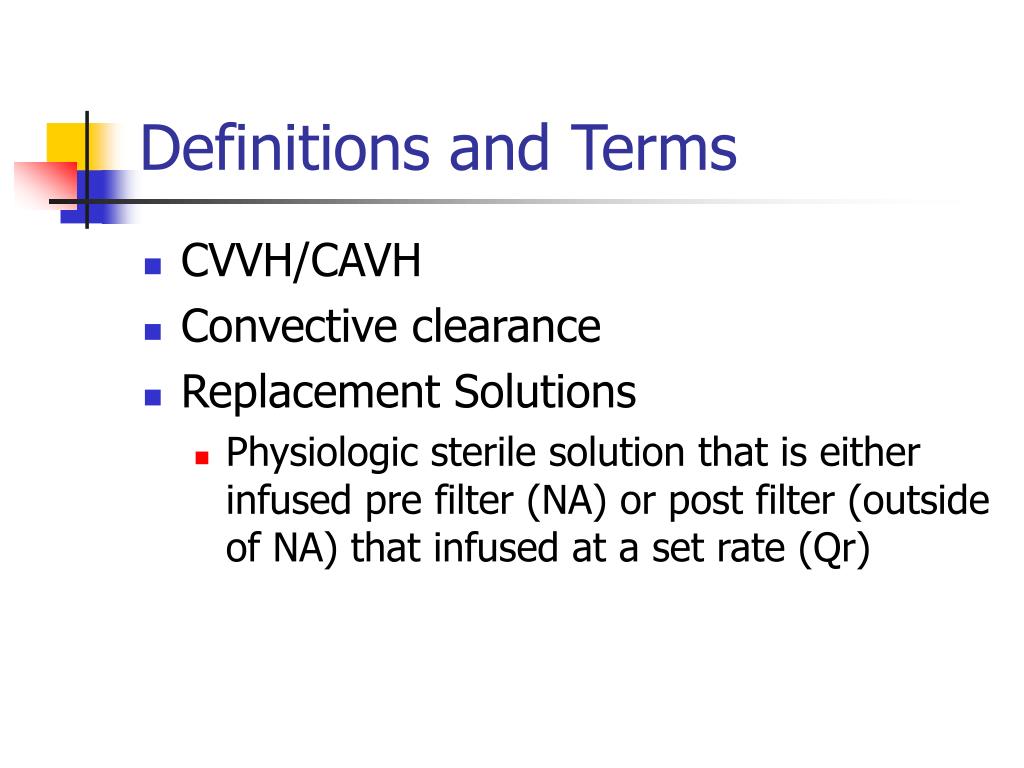

  4. Definitions and Terms • CVVH/CAVH • Convective clearance • Replacement Solutions • Physiologic sterile solution that is either infused pre filter (NA) or post filter (outside of NA) that infused at a set rate (Qr)

  5. CAVH/CVVH: Convective Clearance

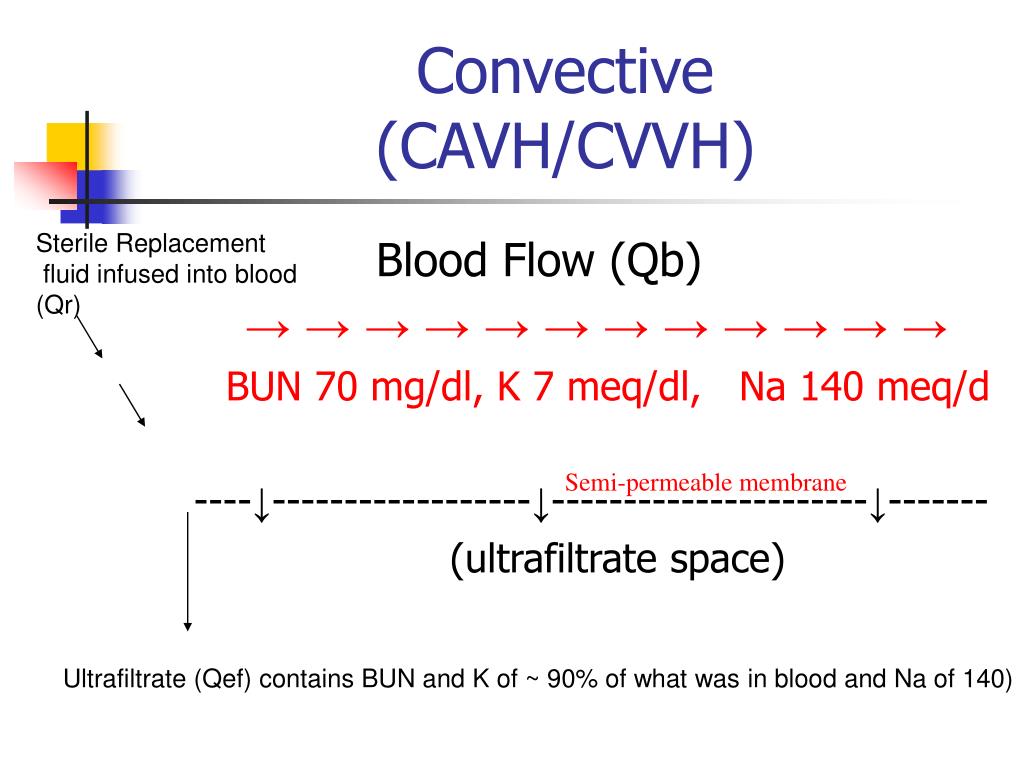

  6. Convective (CAVH/CVVH) Sterile Replacement fluid infused into blood (Qr) Blood Flow (Qb) → → → → → → → → → → → → BUN 70 mg/dl, K 7 meq/dl, Na 140 meq/d ----↓------------------↓----------------------↓------- (ultrafiltrate space) Semi-permeable membrane Ultrafiltrate (Qef) contains BUN and K of ~ 90% of what was in blood and Na of 140)

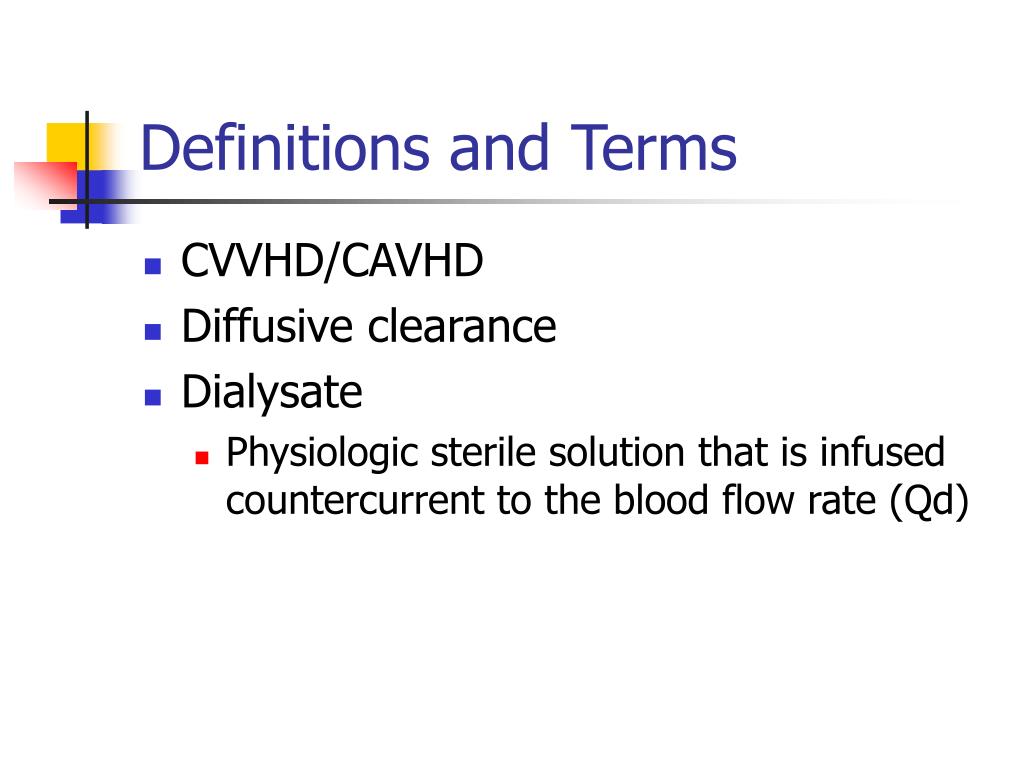

  7. Definitions and Terms • CVVHD/CAVHD • Diffusive clearance • Dialysate • Physiologic sterile solution that is infused countercurrent to the blood flow rate (Qd)

  8. CAVHD/CVVHDDiffusive Clearance

  9. Diffusive (CAVHD/CVVHD) Blood Flow (Qb) → → → → → → → → → → → → → BUN 70 mg/dl, K 7 meq/dl, Na 140 meq/d ----↓------------------↓--------------------------↕--- Bun 0 mg/dl, K 0 meq/dl, Na 140 meq/dl ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← Dialysis Flow (Qd) Semi-permeable membrane Ultrafiltrate (Qef) contains BUN and K of ~ 90% of what was in blood and Na of 140)

  10. Definitions and Terms • CVVHDF/CAVHDF • Convective clearance • Replacement Solutions • Diffusive clearance • Dialysis solution

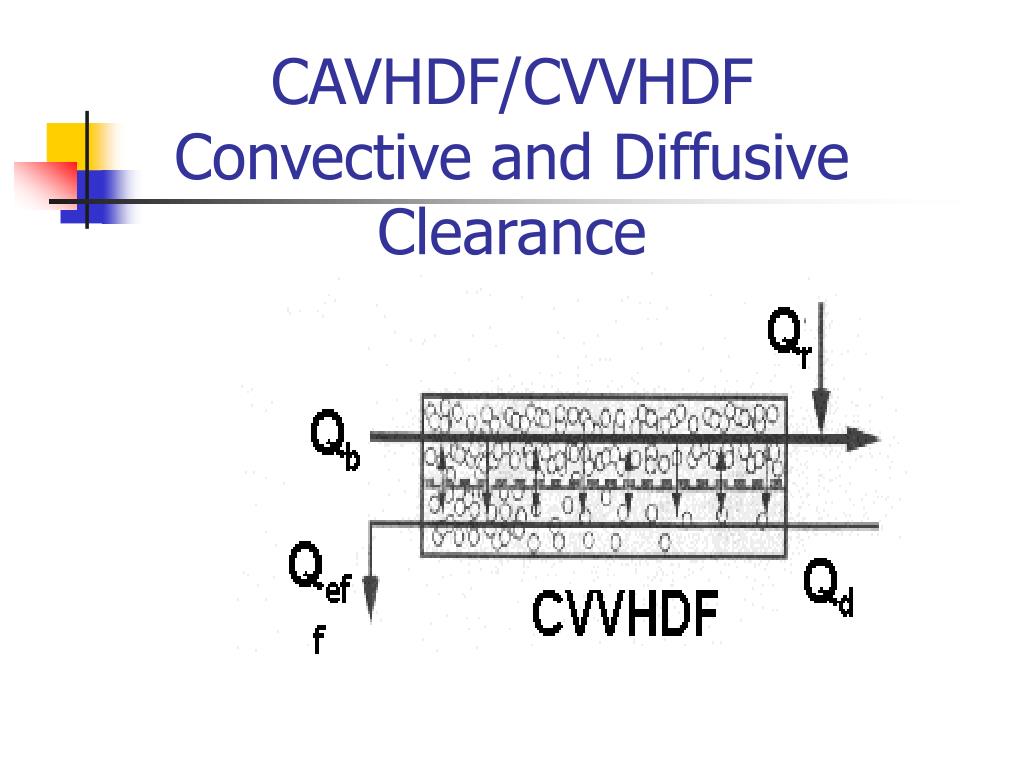

  11. CAVHDF/CVVHDFConvective and Diffusive Clearance

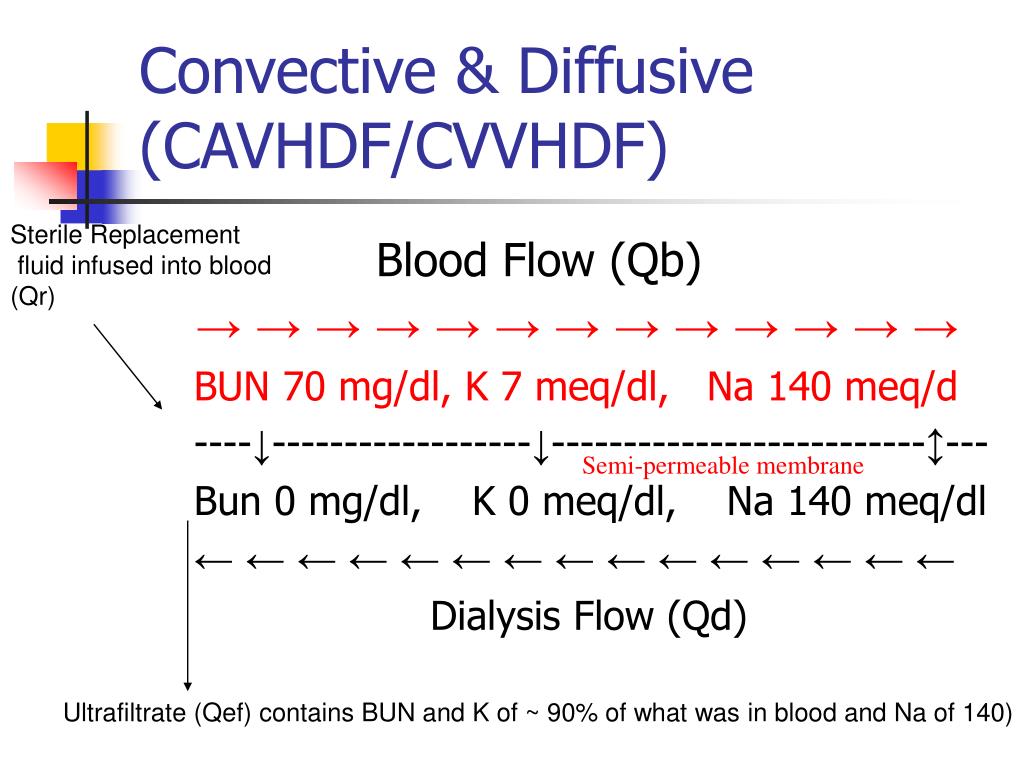

  12. Convective & Diffusive (CAVHDF/CVVHDF) Sterile Replacement fluid infused into blood (Qr) Blood Flow (Qb) → → → → → → → → → → → → → BUN 70 mg/dl, K 7 meq/dl, Na 140 meq/d ----↓------------------↓--------------------------↕--- Bun 0 mg/dl, K 0 meq/dl, Na 140 meq/dl ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← Dialysis Flow (Qd) Semi-permeable membrane Ultrafiltrate (Qef) contains BUN and K of ~ 90% of what was in blood and Na of 140)

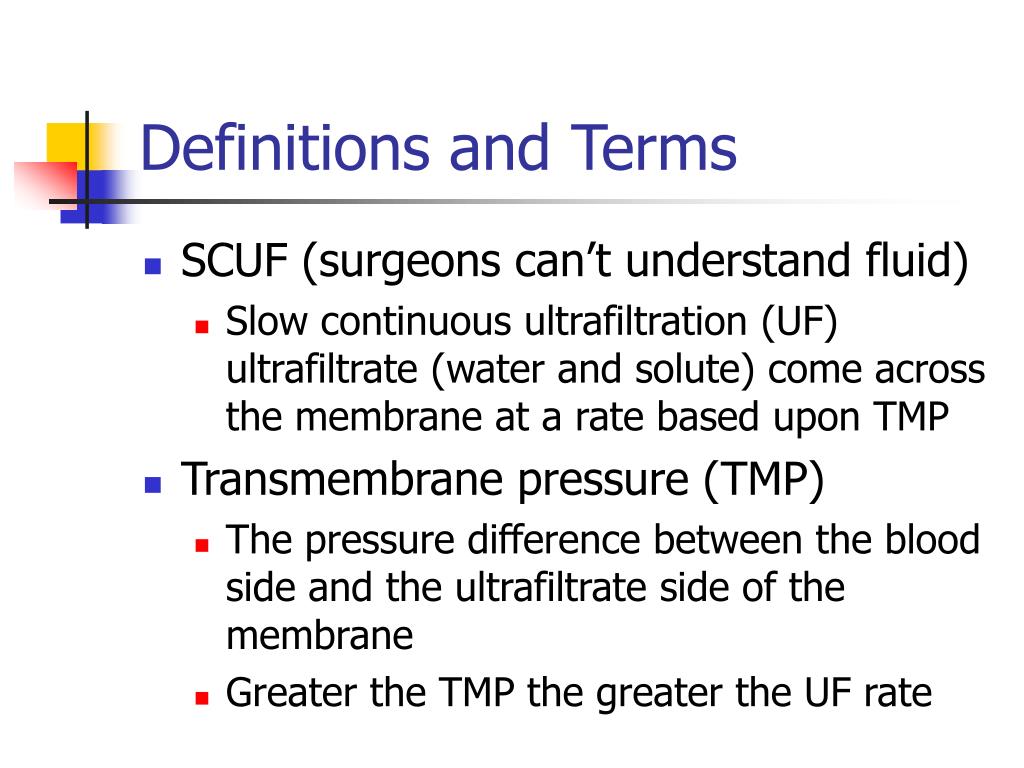

  13. Definitions and Terms • SCUF (surgeons can’t understand fluid) • Slow continuous ultrafiltration (UF) ultrafiltrate (water and solute) come across the membrane at a rate based upon TMP • Transmembrane pressure (TMP) • The pressure difference between the blood side and the ultrafiltrate side of the membrane • Greater the TMP the greater the UF rate

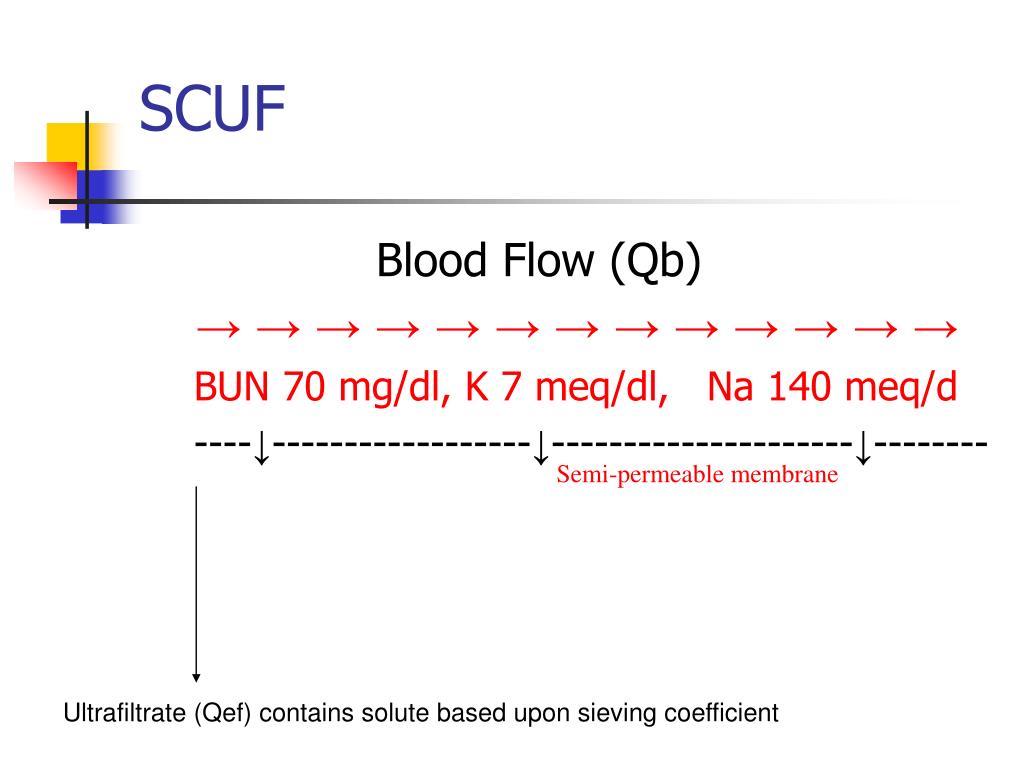

  14. SCUF Blood Flow (Qb) → → → → → → → → → → → → → BUN 70 mg/dl, K 7 meq/dl, Na 140 meq/d ----↓------------------↓---------------------↓-------- Semi-permeable membrane Ultrafiltrate (Qef) contains solute based upon sieving coefficient

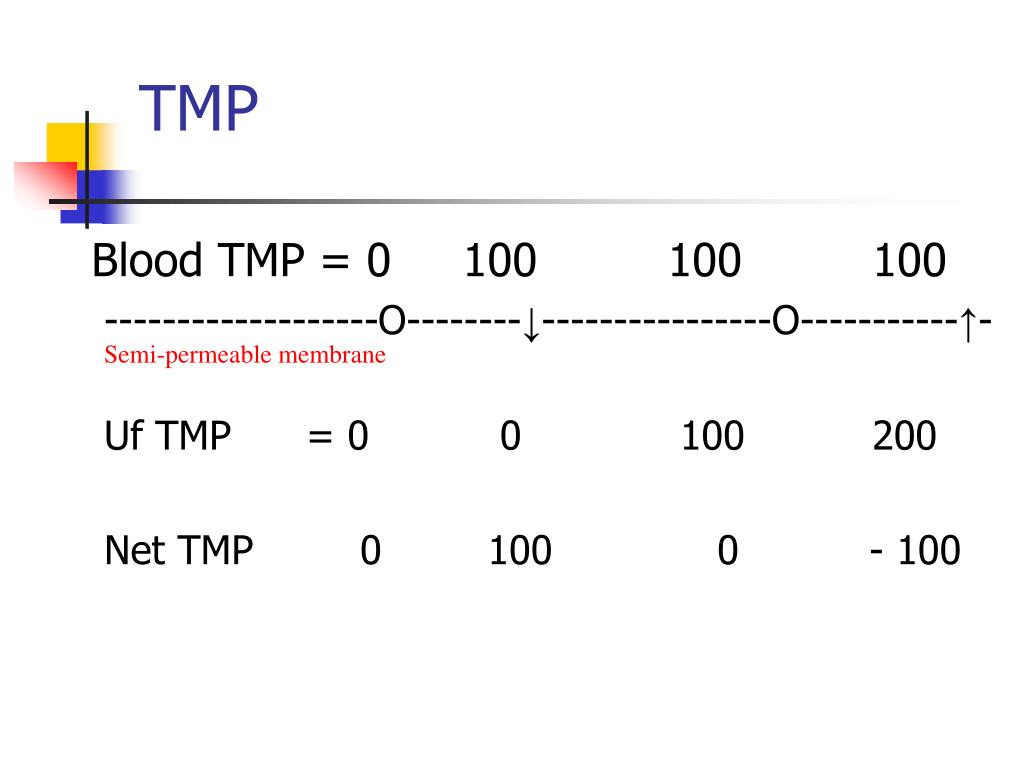

  15. TMP Blood TMP = 0 100 100 100 -------------------O--------↓----------------O-----------↑- Uf TMP = 0 0 100 200 Net TMP 0 100 0 - 100 Semi-permeable membrane

  16. Adsorption • Concept when solute (e.g. plasma proteins) adhere or get adsorbed to a membrane • Commonly discussed with column plasma-adsorption or the “clearance” of cytokines during SIRS

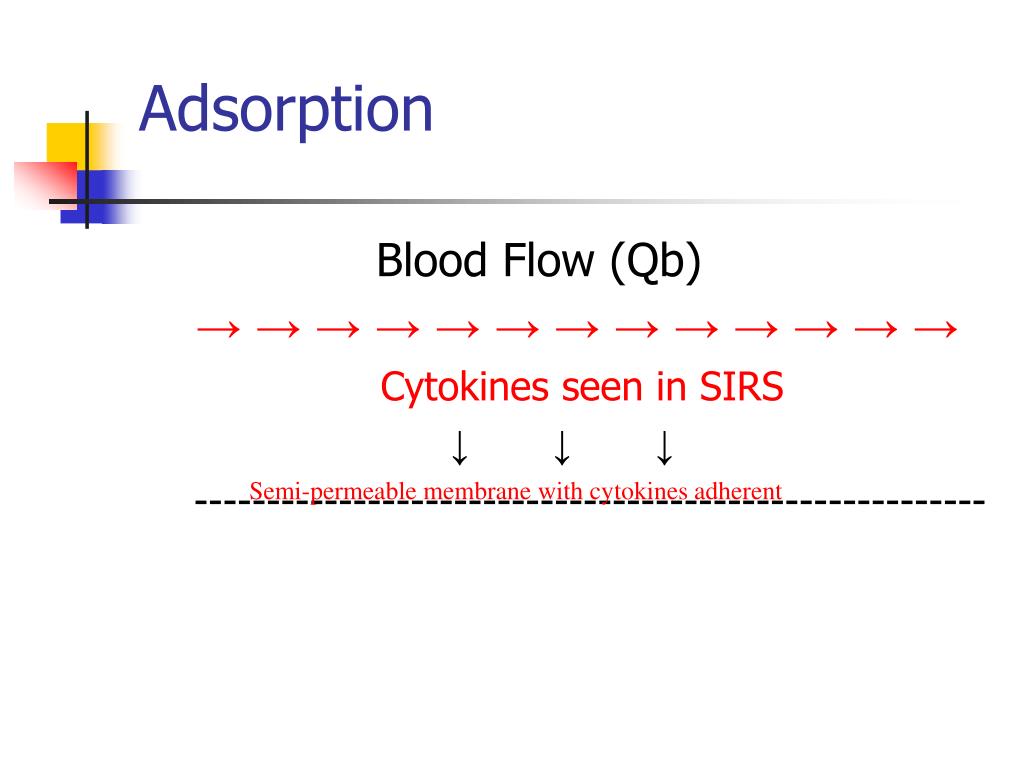

  17. Adsorption Blood Flow (Qb) → → → → → → → → → → → → → Cytokines seen in SIRS ↓ ↓ ↓ ------------------------------------------------------- Semi-permeable membrane with cytokines adherent

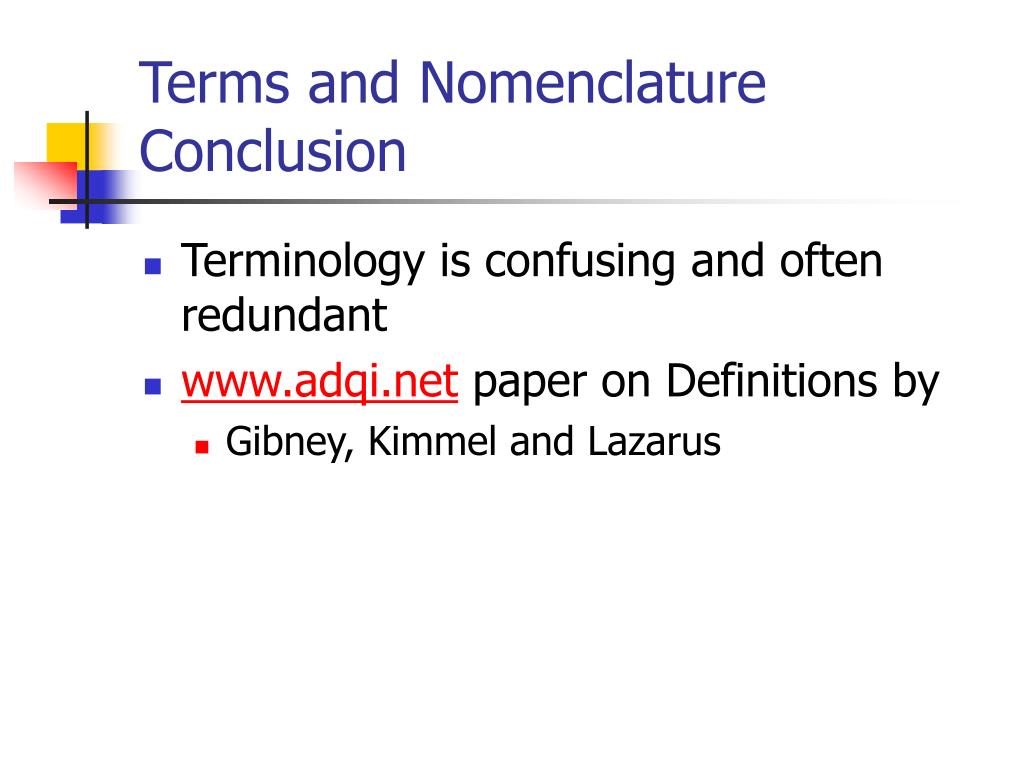

  18. Terms and NomenclatureConclusion • Terminology is confusing and often redundant • www.adqi.net paper on Definitions by • Gibney, Kimmel and Lazarus
