  1. santramengineers.com A Complete Guide to Helical Gearboxes Santram Engineer PVT. LTD

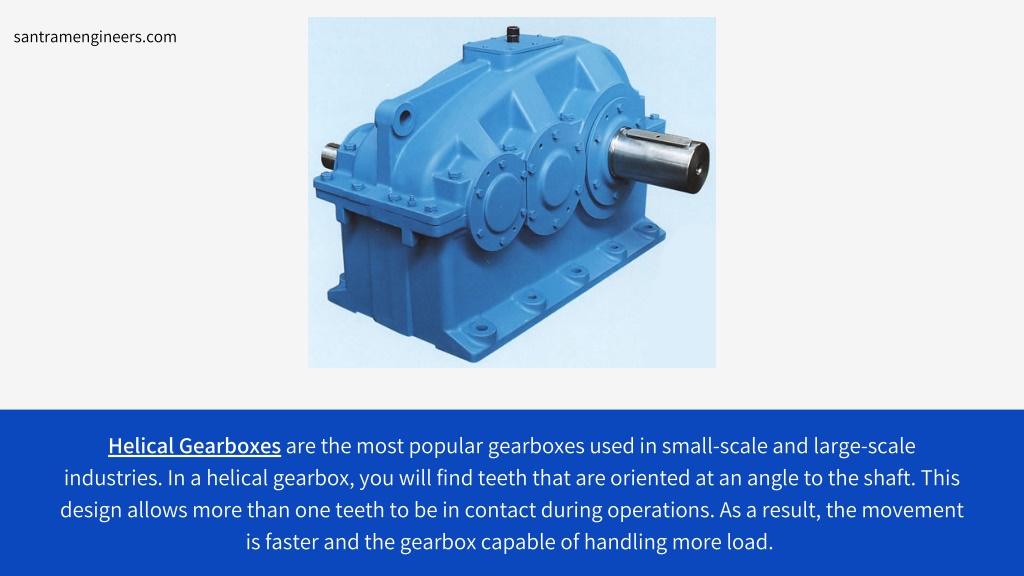

  2. santramengineers.com Helical Gearboxes are the most popular gearboxes used in small-scale and large-scale industries. In a helical gearbox, you will find teeth that are oriented at an angle to the shaft. This design allows more than one teeth to be in contact during operations. As a result, the movement is faster and the gearbox capable of handling more load.

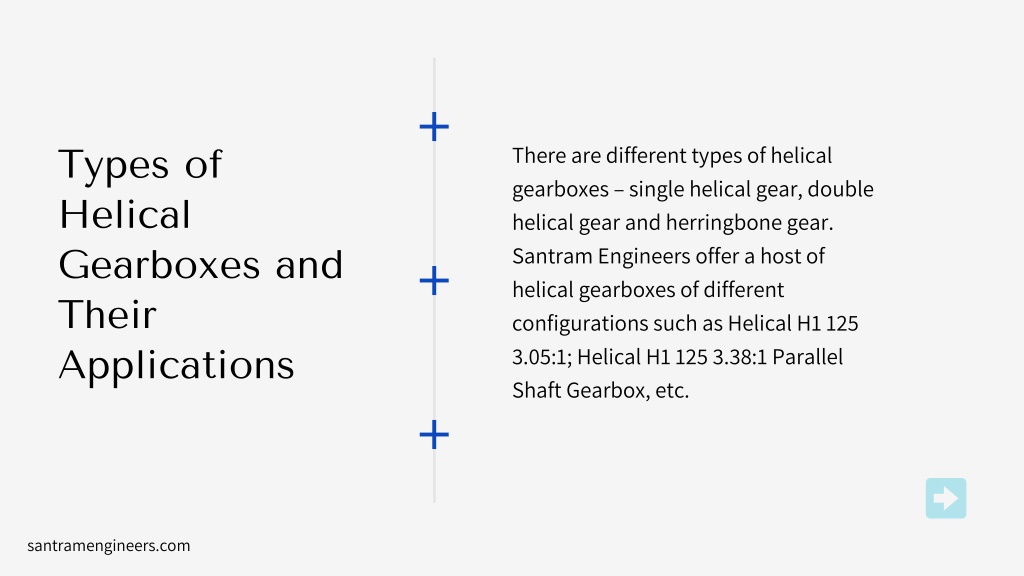

  3. There are different types of helical gearboxes – single helical gear, double helical gear and herringbone gear. Santram Engineers offer a host of helical gearboxes of different configurations such as Helical H1 125 3.05:1; Helical H1 125 3.38:1 Parallel Shaft Gearbox, etc. Types of Helical Gearboxes and Their Applications santramengineers.com

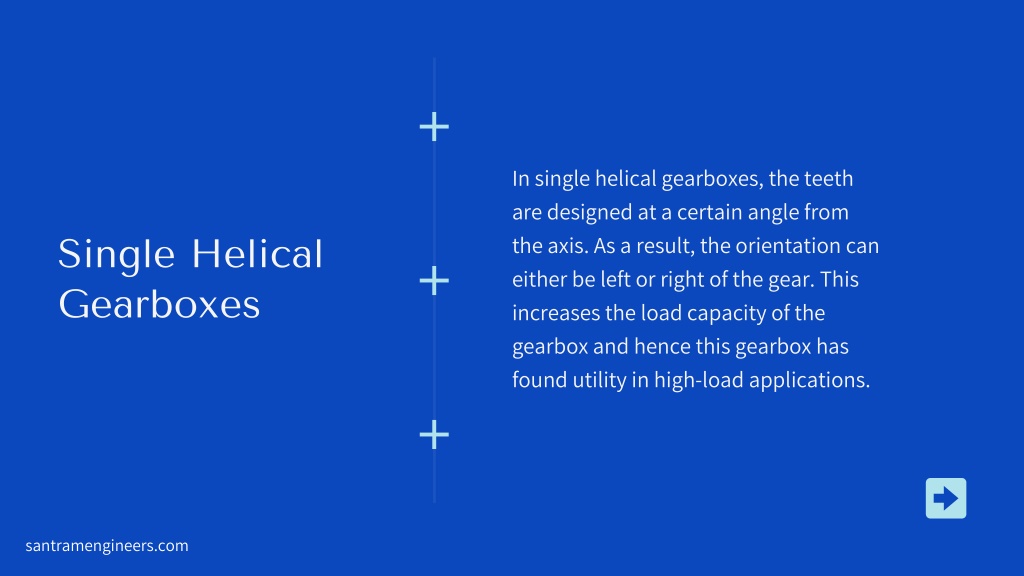

  4. In single helical gearboxes, the teeth are designed at a certain angle from the axis. As a result, the orientation can either be left or right of the gear. This increases the load capacity of the gearbox and hence this gearbox has found utility in high-load applications. Single Helical Gearboxes santramengineers.com

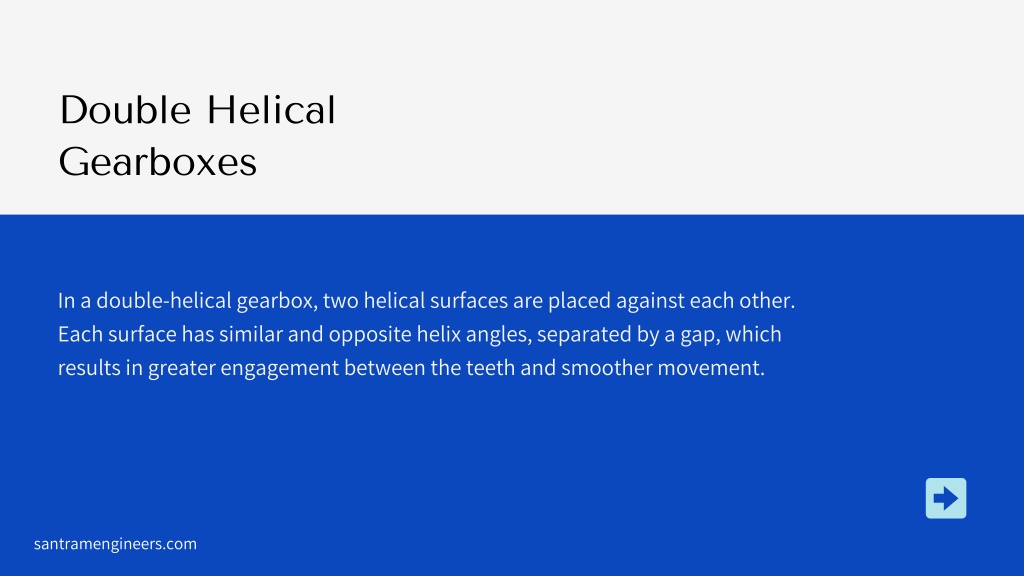

  5. Double Helical Gearboxes In a double-helical gearbox, two helical surfaces are placed against each other. Each surface has similar and opposite helix angles, separated by a gap, which results in greater engagement between the teeth and smoother movement. santramengineers.com

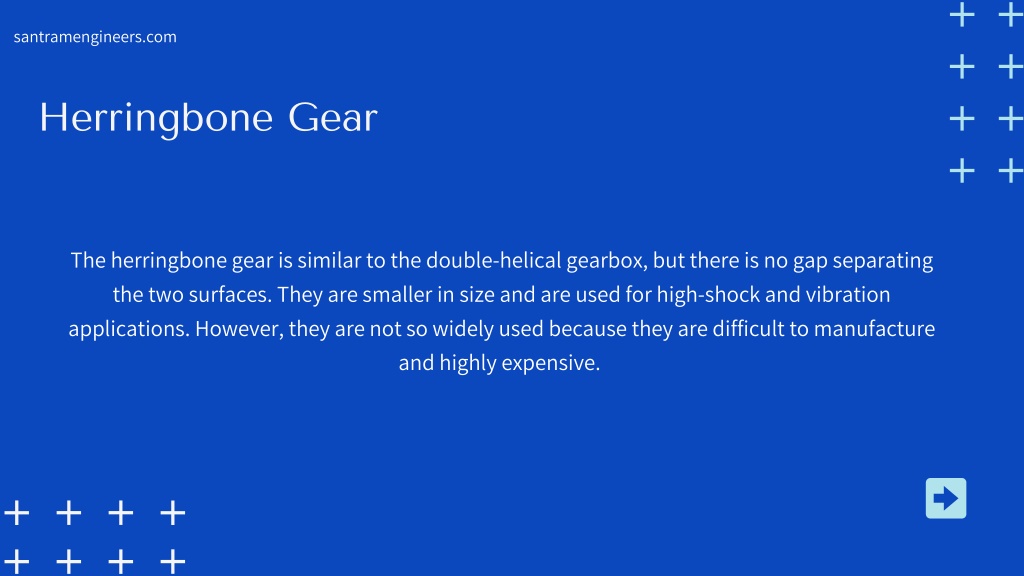

  6. santramengineers.com Herringbone Gear The herringbone gear is similar to the double-helical gearbox, but there is no gap separating the two surfaces. They are smaller in size and are used for high-shock and vibration applications. However, they are not so widely used because they are difficult to manufacture and highly expensive.

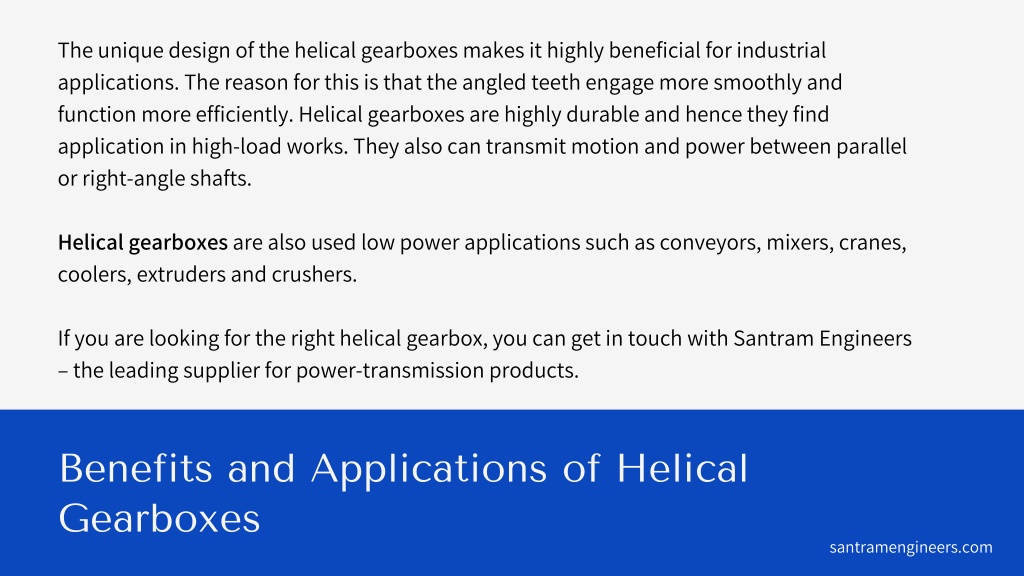

  7. The unique design of the helical gearboxes makes it highly beneficial for industrial applications. The reason for this is that the angled teeth engage more smoothly and function more efficiently. Helical gearboxes are highly durable and hence they find application in high-load works. They also can transmit motion and power between parallel or right-angle shafts. Helical gearboxes are also used low power applications such as conveyors, mixers, cranes, coolers, extruders and crushers. If you are looking for the right helical gearbox, you can get in touch with Santram Engineers – the leading supplier for power-transmission products. Benefits and Applications of Helical Gearboxes santramengineers.com

  8. 808, 8th Floor, Iscon Elegance, Prahladnahar Cross Road, S.G. Highway, Ahmedabad, 380051, Gujarat, India 9624739393 Contact Us sarang@santramengineers.com santramengineers.com santramengineers.com
