1 / 70

Access Chapter 1

Access Chapter 1. Creating and Using a Database. Objectives. Describe databases and database management systems Design a database to satisfy a collection of requirements Start Access Describe the features of the Access window Create a database. Objectives. Create a table and add records

santos
Download Presentation

Access Chapter 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Access Chapter 1 Creating and Using a Database

  2. Objectives • Describe databases and database management systems • Design a database to satisfy a collection of requirements • Start Access • Describe the features of the Access window • Create a database Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  3. Objectives • Create a table and add records • Close a table • Close a database and quit Access • Open a database Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  4. Objectives • Print the contents of a table • Create and print custom reports • Create and use a split form • Use the Access Help system Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  5. Plan Ahead • Identify the tables • Determine the primary keys • Determine the additional fields • Determine relationships among the tables • Determine data types for the fields • Identify and remove any unwanted redundancy • Determine a location for your database Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  6. Starting Access • Click the Start button on the Windows Vista taskbar to display the Start menu • Click All Programs at the bottom of the left pane on the Start menu to display the All Programs list • Click Microsoft Office in the All Programs list to display the Microsoft Office list • Click Microsoft Office Access 2007 to start Access and display the Getting Started with Microsoft Office Access screen • If the Access window is not maximized, click the Maximize button next to the Close button on its title bar to maximize the window Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  7. Starting Access Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  8. Creating a Database • With a USB flash drive connected to one of the computer’s USB ports, click Blank Database to create a new blank database • Repeatedly press the DELETE key to delete the default name of Database1 • Type JSP Recruiters in the File Name text box to replace the default file name of Database1 (your screen may show Database1.accdb). Do not press the ENTER key after typing the file name • Click the ‘Browse for a location to put your database’ button to display the File New Database dialog box • If the Navigation Pane is not displayed in the Save As dialog box, click the Browse Folders button to expand the dialog box Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  9. Creating a Database • If a Folders list is displayed below the Folders button, click the Folders button to remove the Folders list • If Computer is not displayed in the Favorite Links section, drag the top or bottom edge of the Save As dialog box until Computer is displayed • Click Computer in the Favorite Links section to display a list of available drives • If necessary, scroll until UDISK 2.0 (E:) appears in the list of available drives Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  10. Creating a Database • Double-click UDISK 2.0 (E:) in the Computer list to select the USB fl ash drive, Drive E in this case, as the new save location • Click the OK button to select the USB flash drive as the location for the database and to return to the Getting Started with Microsoft Office Access screen • Click the Create button to create the database on the USB flash drive with the file name, JSP Recruiters • If a Field List appears, click its Close button to remove the Field List from the screen Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  11. Creating a Database Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  12. Defining the Fields in a Table • Right-click Add New Field to display a shortcut menu • Click Rename Column on the shortcut menu to display an insertion point • Type Client Number to assign a name to the new field • Press the DOWN ARROW key to complete the addition of the field • Right-click Add New Field to display a shortcut menu, click Rename Column on the shortcut menu to display an insertion point, type Client Name to assign a name to the new field, and then press the DOWN ARROW key to complete the addition of the field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  13. Defining the Fields in a Table • Using the same technique add the fields in the Client table up through and including the Amount Paid field • Click the Data Type box arrow to display the Data Type box menu • Click Currency to select Currency as the data type for the Amount Paid • Click the right scroll arrow to shift the fields to the left and display the Add New Field column • Make the remaining entries from the Client table structure shown in the figure on the following slide to complete the structure. Be sure to select Currency as the data type for the Current Due field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  14. Defining the Fields in a Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  15. Saving a Table • Click the Save button on the Quick Access Toolbar to save the structure of the table • Type Client to change the name to be assigned to the table • Click the OK button to save the structure with the name, Client • If you have an additional record between the field names and the asterisk, click the record selector (the box at the beginning of the record), press the DELETE key, and then click the Yes button when Access asks you if you want to delete the record Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  16. Saving a Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  17. Changing the Primary Key • Click the Design View button on the status bar to move to Design view • Confirm that your data types match those shown in figure 1-35 on page AC 28. Make any necessary corrections to the data types • Click the row selector for the ID field to select the field • Press the DELETE key to delete the field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  18. Changing the Primary Key • Click the Yes button to complete the deletion of the field • With the Client Number field selected, click the Primary Key button to designate the Client Number field as the primary key • Click the Save button to save the changes • Close the Client table by clicking the Close ‘Client’ button Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  19. Changing the Primary Key Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  20. Adding Records to a Table • Right-click the Client table in the Navigation Pane to display the shortcut menu • Click Open on the shortcut menu to open the Client table in Datasheet view • Click the Shutter Bar Open/Close Button to hide the Navigation pane • Click in the Client Number field and type AC34 to enter the first client number. Be sure you type the letters in uppercase so they are entered in the database correctly Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

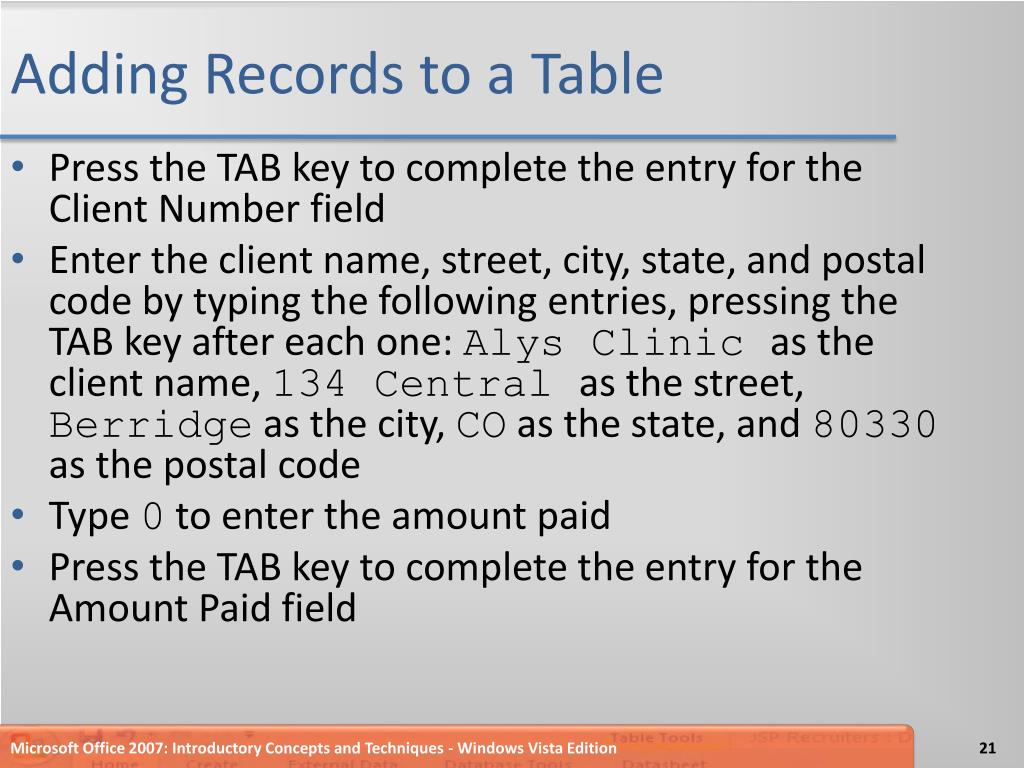

  21. Adding Records to a Table • Press the TAB key to complete the entry for the Client Number field • Enter the client name, street, city, state, and postal code by typing the following entries, pressing the TAB key after each one: Alys Clinic as the client name, 134 Central as the street, Berridge as the city, CO as the state, and 80330 as the postal code • Type 0 to enter the amount paid • Press the TAB key to complete the entry for the Amount Paid field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  22. Adding Records to a Table • Type 17500 to enter the current due amount and then press the TAB key to move to the next field • Type 21 as the Recruiter number to complete data entry for the record • Press the TAB key to complete the entry of the first record • Use the techniques shown previously to enter the data for the second record in the Client table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  23. Adding Records to a Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  24. Closing a Table • Click the Close ‘Client’ button, shown in Figure 1–46 on page AC 33, to close the table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  25. Quitting Access • Click the Close button on the right side of the Access title bar, shown in Figure 1–47 on page AC 35 to quit Access Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  26. Starting Access • Click the Start button on the Windows Vista taskbar to display the Start menu • Click All Programs at the bottom of the left pane on the Start menu to display the All Programs list and then click Microsoft Office in the All Programs list to display the Microsoft Office list • Click Microsoft Office Access 2007 on the Microsoft Office submenu to start Access and display the Getting Started with Microsoft Office Access window • If the Access window is not maximized, click the Maximize button on its title bar to maximize the window Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  27. Starting Access Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  28. Opening a Database from Access • With your USB flash drive connected to one of the computer’s USB ports, click the More button to display the Open dialog box • If the Folders list is displayed below the Folders button, click the Folders button to remove the Folders list • If necessary, click Computer in the Favorite Links section • Double-click UDISK 2.0 (E:) to select the USB flash drive, Drive E in this case, as the new open location • Click JSP Recruiters to select the file name Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  29. Opening a Database from Access • Click the Open button to open the database • If a Security Warning appears, as shown in Figure 1–50 on page AC 37, click the Options button to display the Microsoft Office Security Options dialog box • Click the ‘Enable this content’ option button • Click the OK button to enable the content Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  30. Opening a Database from Access Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

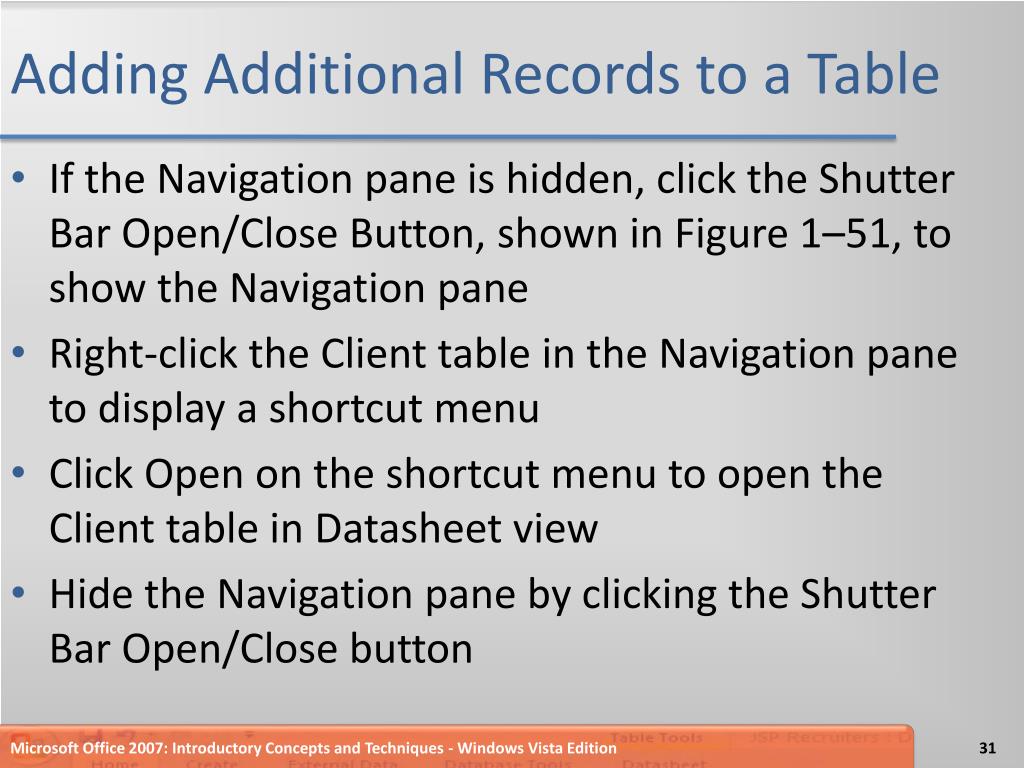

  31. Adding Additional Records to a Table • If the Navigation pane is hidden, click the Shutter Bar Open/Close Button, shown in Figure 1–51, to show the Navigation pane • Right-click the Client table in the Navigation pane to display a shortcut menu • Click Open on the shortcut menu to open the Client table in Datasheet view • Hide the Navigation pane by clicking the Shutter Bar Open/Close button Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  32. Adding Additional Records to a Table • Click the New (blank) record button to move to a position to enter a new record • Add the records shown in Figure 1–52, using the same techniques you used to add the first two records • Click the Close ‘Client’ button to close the table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  33. Adding Additional Records to a Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  34. Previewing and Printing the Contents of a Table • If the Navigation pane is hidden, show the Navigation pane by clicking the Shutter Bar Open/Close Button • Be sure the Client table is selected • Click the Office Button to display the Office Button menu • Point to the Print command arrow to display the Print submenu • Click Print Preview on the Print submenu to display a preview of the report Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  35. Previewing and Printing the Contents of a Table • Click the mouse pointer in the position shown in Figure 1–60 on page AC 42 to magnify the upper-right section of the report • Click the Landscape button to change to landscape orientation • Click the Print button on the Print Preview tab to print the report • When the printer stops, retrieve the hard copy of the Client table • Click the Close ‘Client’ button to close the Print Preview window Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  36. Previewing and Printing the Contents of a Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  37. Creating an Additional Table • Click Create on the Ribbon to display the Create tab • Click the Table button on the Create tab to create a new table • Right-click Add New Field to display a shortcut menu • Click Rename Column on the shortcut menu to display an insertion point • Type Recruiter Number to assign a name to the new field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  38. Creating an Additional Table • Press the DOWN ARROW key to complete the addition of the field • Using the same technique, add the Last Name, First Name, Street, City, State, Postal Code, and Rate fields • Click the Data Type box arrow to display the Data Type box menu • Click Number on the Data Type box menu to select the Number data type and assign the Number data type to the Rate field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  39. Creating an Additional Table • Add the Commission field and assign it the Currency data type • Click the Save button to display the Save As dialog box • Type Recruiter to assign a name to the table • Click the OK button Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  40. Creating an Additional Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  41. Modifying the Primary Key and Field Properties • Click the Design View button on the status bar to move to Design view • Click the row selector for the ID field to select the field • Press the DELETE key to delete the field • Click the Yes button to complete the deletion of the field • With the Recruiter Number field selected, click the Primary Key button to designate the Recruiter Number field as the primary key Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  42. Modifying the Primary Key and Field Properties • Click the row selector for the Rate field to select the field • Click the Field Size box to display the Field Size box arrow • Click the Field Size box arrow to display the Field Size box menu • Click Single to select single precision as the field size Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  43. Modifying the Primary Key and Field Properties • Click the Format box to display the Format box arrow • Click the Format box arrow to open the Format box menu • Click Fixed to select fixed as the format • Click the Decimal Places box to display the Decimal Places box arrow Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  44. Modifying the Primary Key and Field Properties • Click the Decimal Places box arrow to enter the number of decimal places • Click 2 to select 2 as the number of decimal places • Click the Save button to save your changes • Close the Recruiter table by clicking the Close ‘Recruiter’ button Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  45. Modifying the Primary Key and Field Properties Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  46. Adding Records to an Additional Table • Open the Recruiter table in Datasheet view by right-clicking the Recruiter table in the Navigation pane and then clicking Open on the shortcut menu • Enter the Recruiter data from Figure 1–74 on page AC 49 • Click the Close ‘Recruiter’ button to close the table and remove the datasheet from the screen Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  47. Adding Records to an Additional Table Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  48. Creating a Report • Be sure the Client table is selected in the Navigation pane • Click Create on the Ribbon to display the Create tab • Click the Report Wizard button to display the Report Wizard dialog box • Click the Add Field button to add the Client Number field • Click the Add Field button to add the Client Name field Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  49. Creating a Report • Click the Amount Paid field, and then click the Add Field button to add the Amount Paid field • Click the Add Field button to add the Current Due field • Click the Add Field button to add the Recruiter Number field • Click the Next button to display the next Report Wizard screen • Because you will not specify any grouping, click the Next button in the Report Wizard dialog box to display the next Report Wizard screen Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition

  50. Creating a Report • Click the box arrow in the text box labeled 1 to display a list of available fields for sorting • Click the Client Number field to select the field as the sort key • Click the Next button to display the next Report Wizard screen • Make sure that Tabular is selected as the Layout. (If it is not, click the Tabular option button to select Tabular layout.) • Make sure Portrait is selected as the Orientation. (If it is not, click the Portrait option button to select Portrait orientation.) Microsoft Office 2007: Introductory Concepts and Techniques - Windows Vista Edition
