Why Cold Drawn Welded Tubes Are Recommended in Precision Engineering

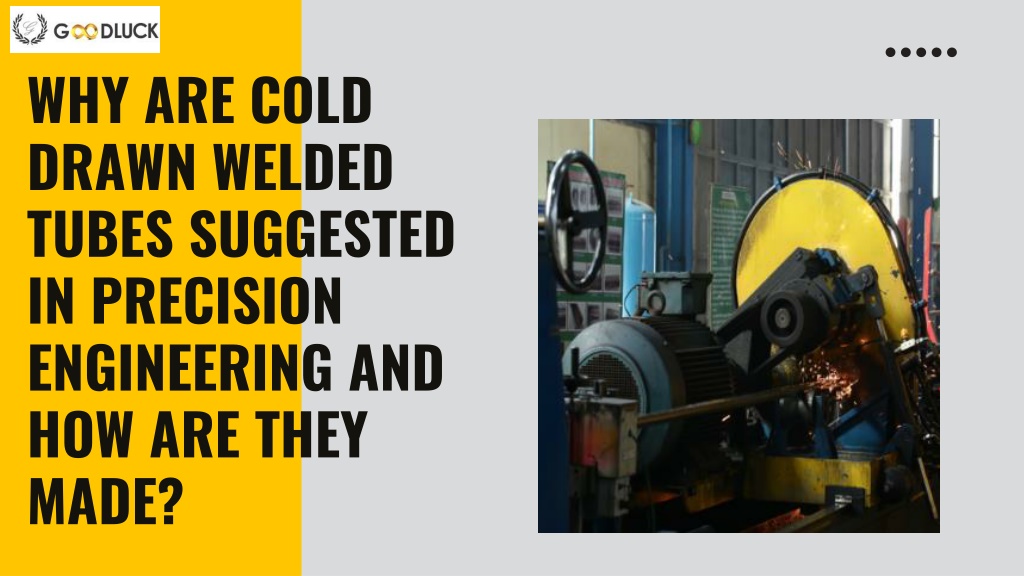

1. WHY ARE COLD DRAWN WELDED TUBES SUGGESTED IN PRECISION ENGINEERING AND HOW ARE THEY MADE?

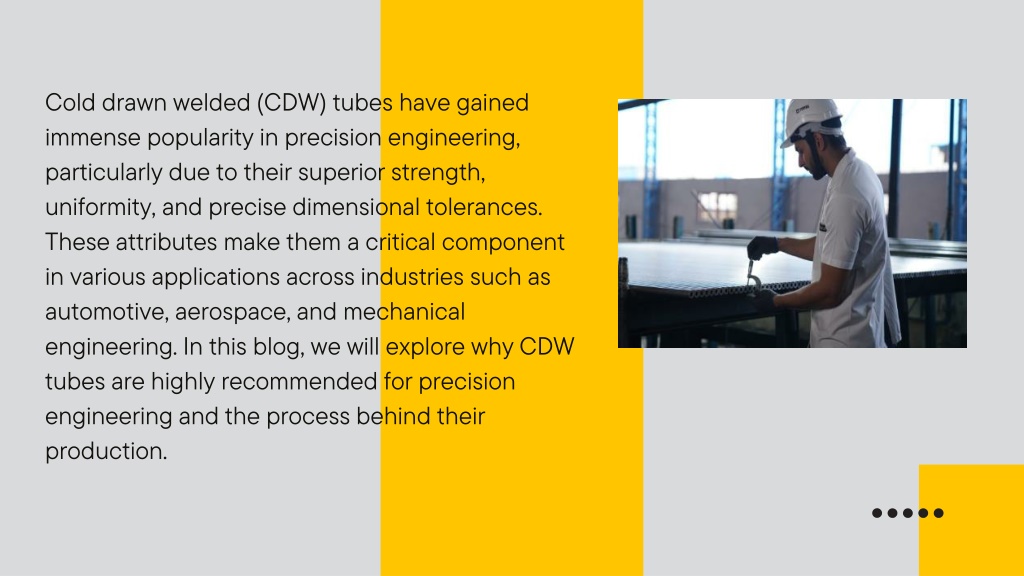

2. Cold drawn welded (CDW) tubes have gained immense popularity in precision engineering, particularly due to their superior strength, uniformity, and precise dimensional tolerances. These attributes make them a critical component in various applications across industries such as automotive, aerospace, and mechanical engineering. In this blog, we will explore why CDW tubes are highly recommended for precision engineering and the process behind their production.

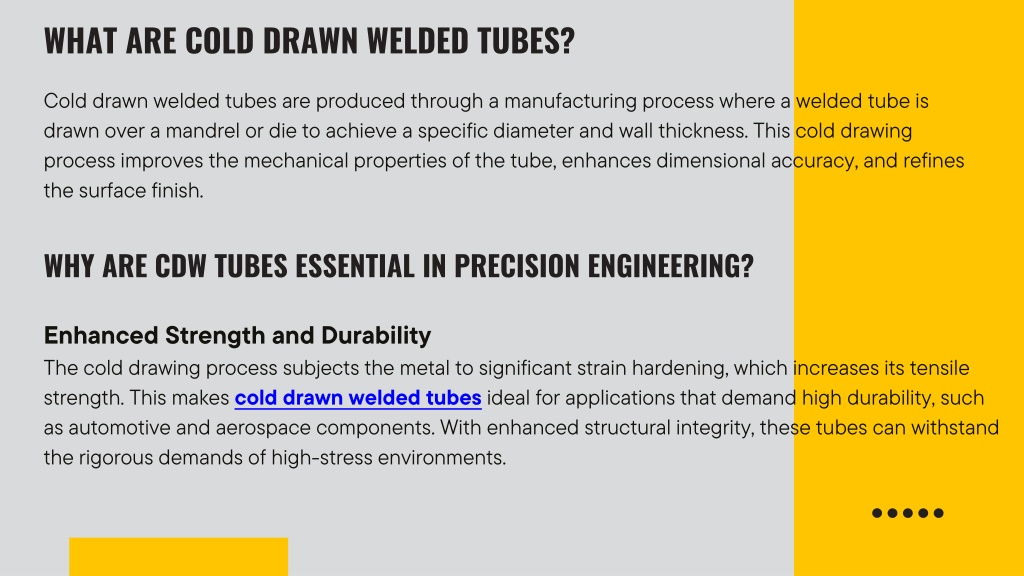

3. WHAT ARE COLD DRAWN WELDED TUBES? Cold drawn welded tubes are produced through a manufacturing process where a welded tube is drawn over a mandrel or die to achieve a specific diameter and wall thickness. This cold drawing process improves the mechanical properties of the tube, enhances dimensional accuracy, and refines the surface finish. WHY ARE CDW TUBES ESSENTIAL IN PRECISION ENGINEERING? Enhanced Strength and Durability The cold drawing process subjects the metal to significant strain hardening, which increases its tensile strength. This makes cold drawn welded tubes ideal for applications that demand high durability, such as automotive and aerospace components. With enhanced structural integrity, these tubes can withstand the rigorous demands of high-stress environments.

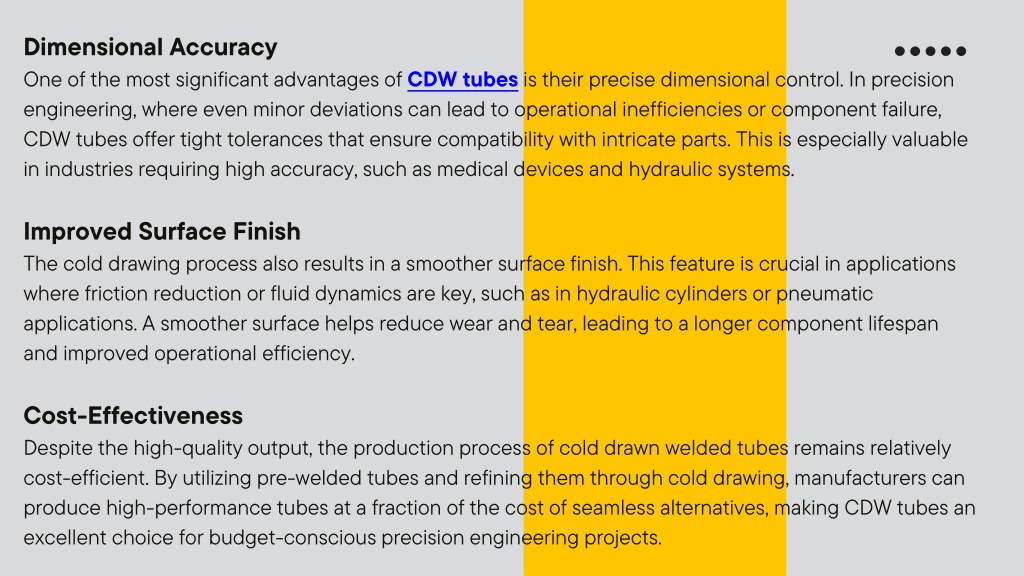

4. Dimensional Accuracy One of the most significant advantages of CDW tubes is their precise dimensional control. In precision engineering, where even minor deviations can lead to operational inefficiencies or component failure, CDW tubes offer tight tolerances that ensure compatibility with intricate parts. This is especially valuable in industries requiring high accuracy, such as medical devices and hydraulic systems. Improved Surface Finish The cold drawing process also results in a smoother surface finish. This feature is crucial in applications where friction reduction or fluid dynamics are key, such as in hydraulic cylinders or pneumatic applications. A smoother surface helps reduce wear and tear, leading to a longer component lifespan and improved operational efficiency. Cost-Effectiveness Despite the high-quality output, the production process of cold drawn welded tubes remains relatively cost-efficient. By utilizing pre-welded tubes and refining them through cold drawing, manufacturers can produce high-performance tubes at a fraction of the cost of seamless alternatives, making CDW tubes an excellent choice for budget-conscious precision engineering projects.

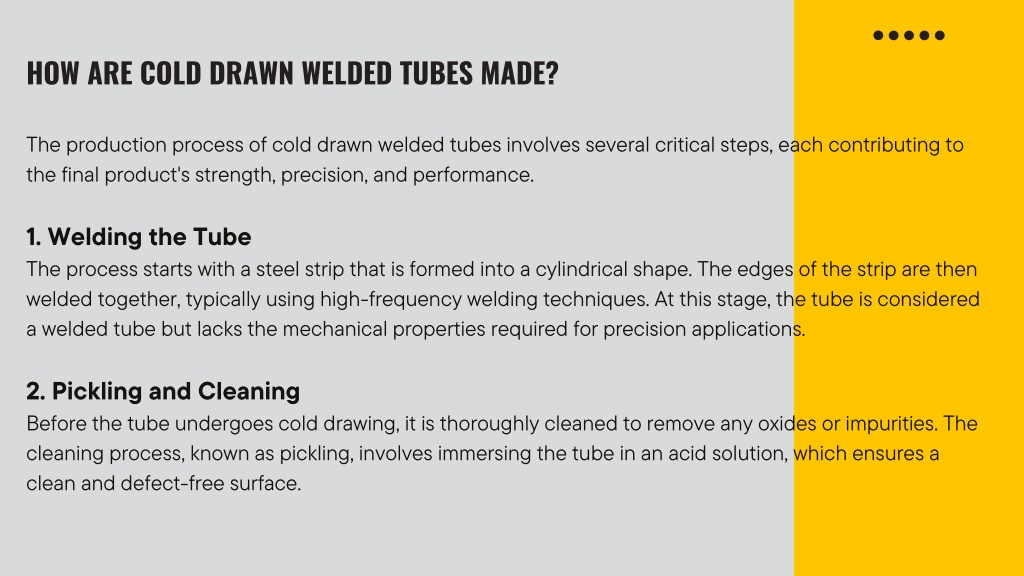

5. HOW ARE COLD DRAWN WELDED TUBES MADE? The production process of cold drawn welded tubes involves several critical steps, each contributing to the final product's strength, precision, and performance. 1. Welding the Tube The process starts with a steel strip that is formed into a cylindrical shape. The edges of the strip are then welded together, typically using high-frequency welding techniques. At this stage, the tube is considered a welded tube but lacks the mechanical properties required for precision applications. 2. Pickling and Cleaning Before the tube undergoes cold drawing, it is thoroughly cleaned to remove any oxides or impurities. The cleaning process, known as pickling, involves immersing the tube in an acid solution, which ensures a clean and defect-free surface.

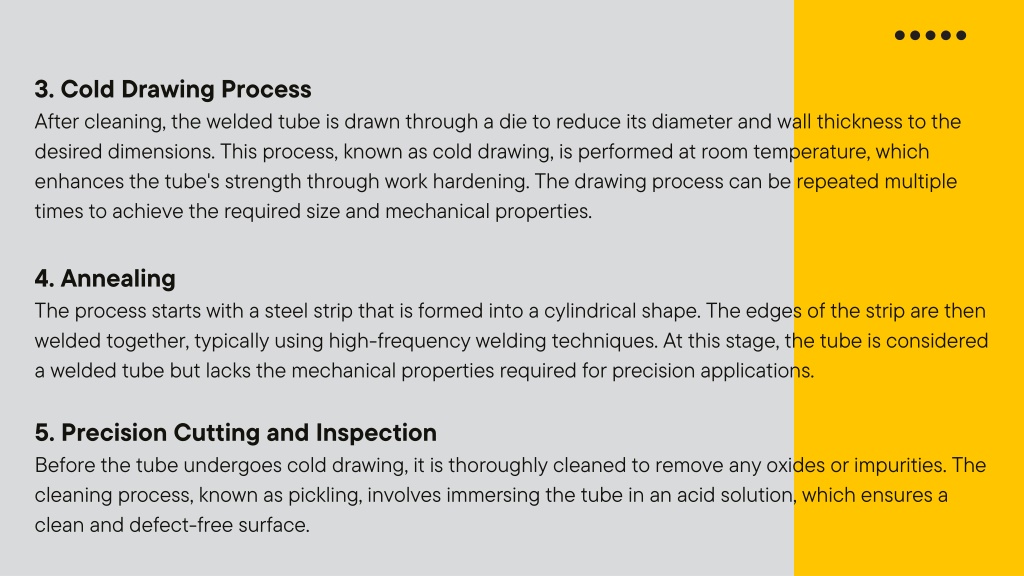

6. 3. Cold Drawing Process After cleaning, the welded tube is drawn through a die to reduce its diameter and wall thickness to the desired dimensions. This process, known as cold drawing, is performed at room temperature, which enhances the tube's strength through work hardening. The drawing process can be repeated multiple times to achieve the required size and mechanical properties. 4. Annealing The process starts with a steel strip that is formed into a cylindrical shape. The edges of the strip are then welded together, typically using high-frequency welding techniques. At this stage, the tube is considered a welded tube but lacks the mechanical properties required for precision applications. 5. Precision Cutting and Inspection Before the tube undergoes cold drawing, it is thoroughly cleaned to remove any oxides or impurities. The cleaning process, known as pickling, involves immersing the tube in an acid solution, which ensures a clean and defect-free surface.

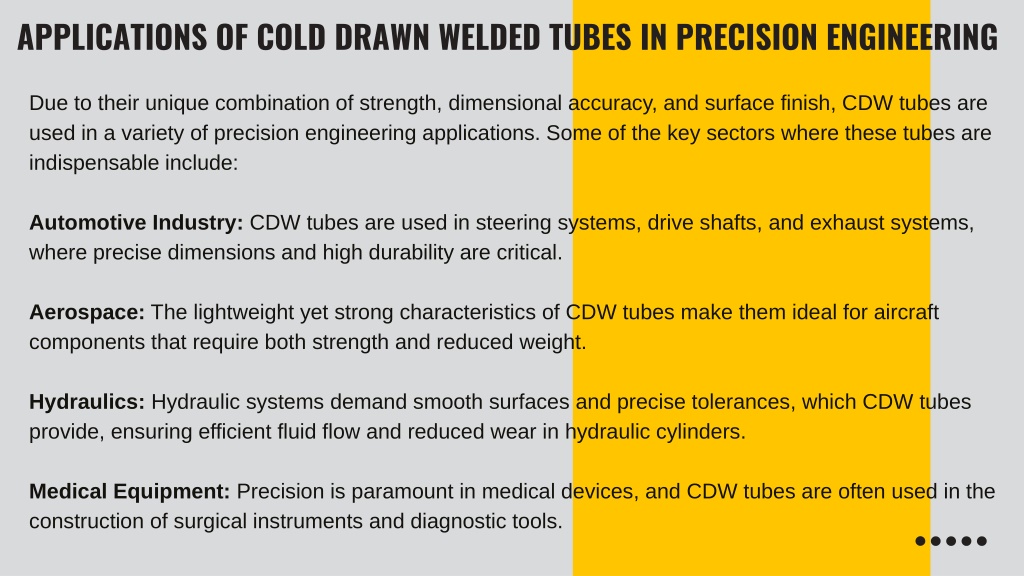

7. APPLICATIONS OF COLD DRAWN WELDED TUBES IN PRECISION ENGINEERING Due to their unique combination of strength, dimensional accuracy, and surface finish, CDW tubes are used in a variety of precision engineering applications. Some of the key sectors where these tubes are indispensable include: Automotive Industry: CDW tubes are used in steering systems, drive shafts, and exhaust systems, where precise dimensions and high durability are critical. Aerospace: The lightweight yet strong characteristics of CDW tubes make them ideal for aircraft components that require both strength and reduced weight. Hydraulics: Hydraulic systems demand smooth surfaces and precise tolerances, which CDW tubes provide, ensuring efficient fluid flow and reduced wear in hydraulic cylinders. Medical Equipment: Precision is paramount in medical devices, and CDW tubes are often used in the construction of surgical instruments and diagnostic tools.

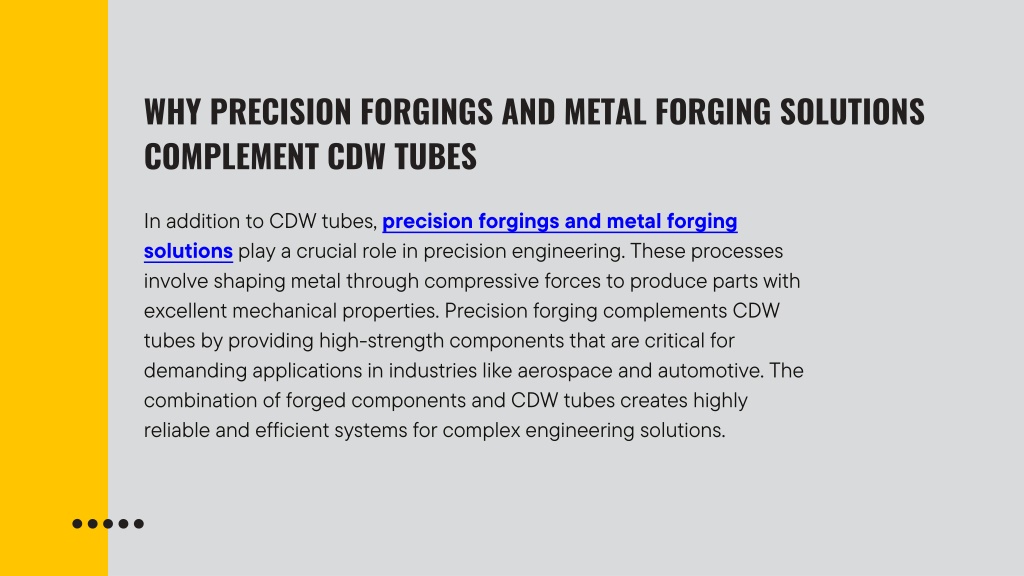

8. WHY PRECISION FORGINGS AND METAL FORGING SOLUTIONS COMPLEMENT CDW TUBES In addition to CDW tubes, precision forgings and metal forging solutions play a crucial role in precision engineering. These processes involve shaping metal through compressive forces to produce parts with excellent mechanical properties. Precision forging complements CDW tubes by providing high-strength components that are critical for demanding applications in industries like aerospace and automotive. The combination of forged components and CDW tubes creates highly reliable and efficient systems for complex engineering solutions.

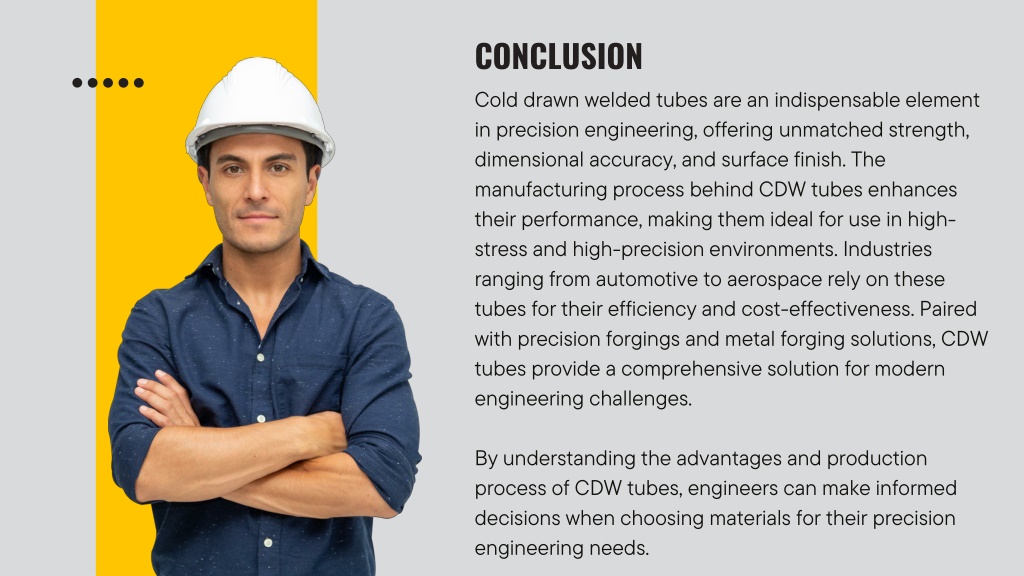

9. CONCLUSION Cold drawn welded tubes are an indispensable element in precision engineering, offering unmatched strength, dimensional accuracy, and surface finish. The manufacturing process behind CDW tubes enhances their performance, making them ideal for use in high-stress and high-precision environments. Industries ranging from automotive to aerospace rely on these tubes for their efficiency and cost-effectiveness. Paired with precision forgings and metal forging solutions, CDW tubes provide a comprehensive solution for modern engineering challenges. By understanding the advantages and production process of CDW tubes, engineers can make informed decisions when choosing materials for their precision engineering needs.
