Fire Apparatus Pump Theory. Section 180. Introduction . Types of pressure encountered in the fire service Identify the types of fire pumps & components of pumps Identify the function, theory, principles of operation of fire pumps. 180-1.00.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Fire Apparatus Pump Theory' - sandra_john


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
introduction
Introduction
  • Types of pressure encountered in the fire service
  • Identify the types of fire pumps & components of pumps
  • Identify the function, theory, principles of operation of fire pumps

180-1.00

types of pressures encountered in the fire service
Types of pressures encountered in the fire service
  • Static pressure
  • Residual pressure
  • Flow pressure
  • Normal operating pressure
  • Negative pressure

180-1.01

static pressure
Static pressure
  • The pressure exerted in all directions

at a point in a fluid at rest

Static pressure is stored potential

energy that is available to force water

through a pipe, fittings, fire hose

& adapters

180-1.01a

residual pressure
Residual pressure
  • The pressure remaining in a system while water is flowing

The total available pressure not used

to overcome friction or gravity while

forcing water through pipes, fittings,

fire hose & adapter

180-1.01c

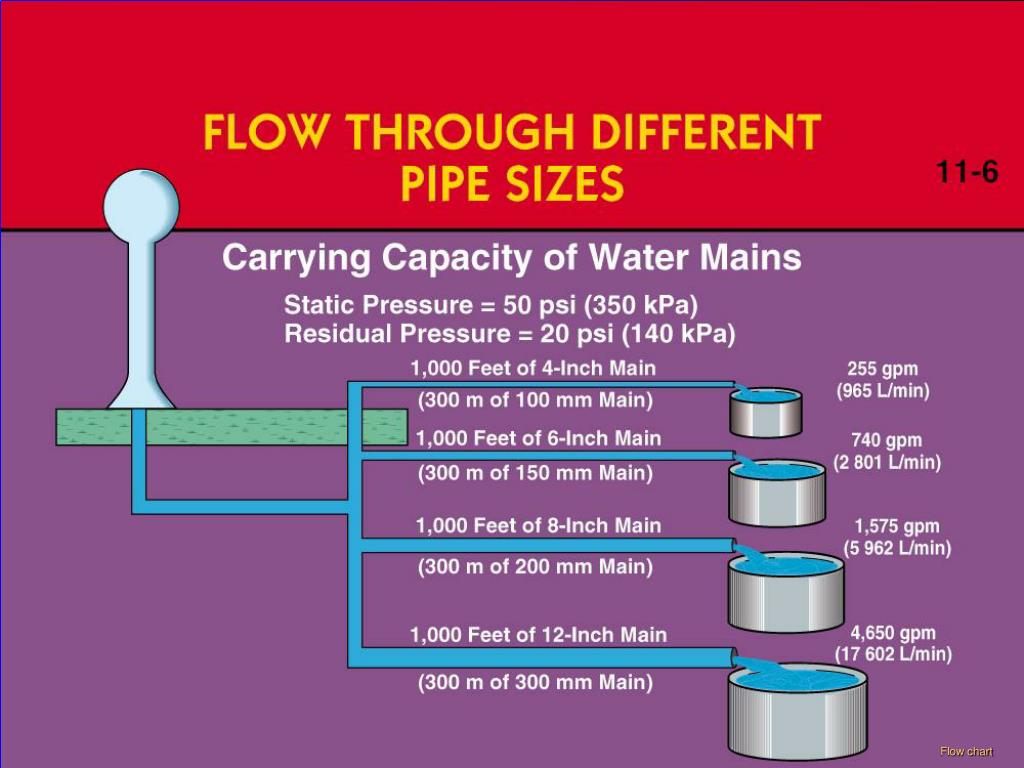

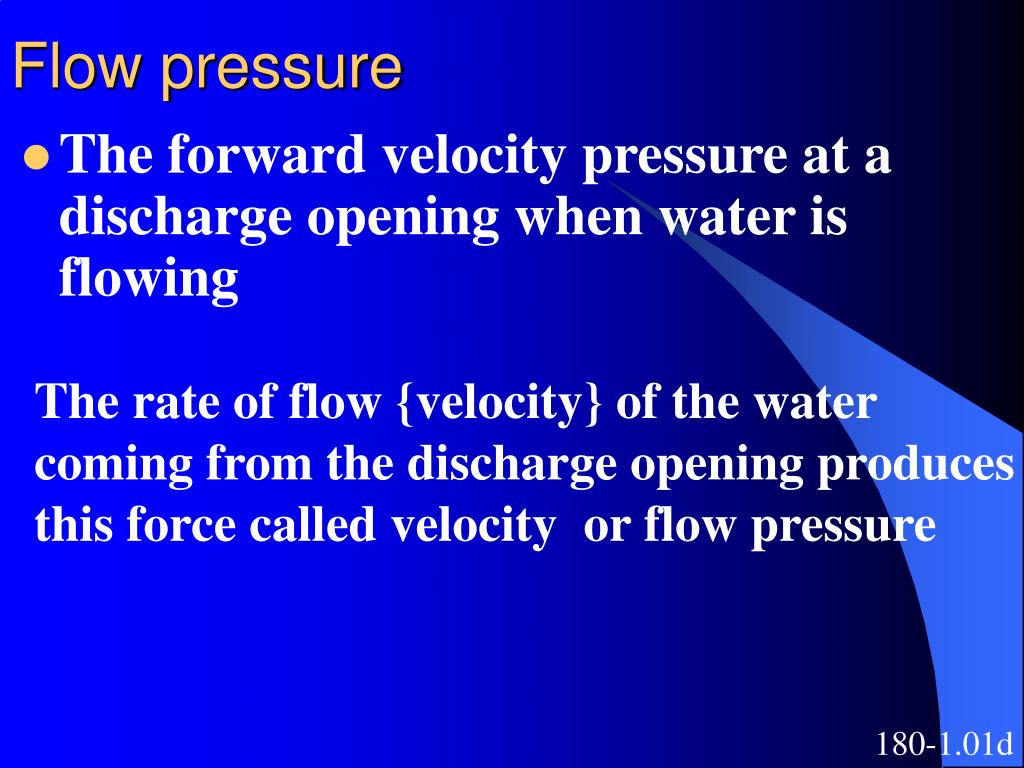

flow pressure
Flow pressure
  • The forward velocity pressure at a discharge opening when water is flowing

The rate of flow {velocity} of the water

coming from the discharge opening produces

this force called velocity or flow pressure

180-1.01d

normal operating pressure
Normal operating pressure
  • The pressure found in the water distribution system during normal consumption demands

Occurs when some water is flowing in

the system

180-1.01b

negative pressure
Negative pressure
  • Also called vacuum . Pressure that is less than atmospheric pressure

Negative pressure in the fire service is the

result of drafting operations, which results

from removing all the air from the pump

& using atmospheric pressure to lift water

from a source lower than the pump

180-1.01e

terms related to the basic principles of fire service hydraulics
Terms related to the basic principles of fire service hydraulics

Atmospheric pressure – the atmosphere that surrounds the earth has depth & density & exerts pressure upon everything on earth

Capacity – The maximum amount of water

a pump will deliver at the indicated pressure

slide12

Displacement – Movement of a given amount

of a fluid w/ each stoke of a pump

Flow {GPM} – Gallons per minute, the

measurement of the amount of water

moved through a fire pump

Friction loss – Loss of pressure created by the

turbulence of water moving against the

interior walls of the hose or pipe.

slide15

Head Pressure (gain of loss) – Water pressure

due to elevation. For every 1’ increase in

elevation, 0.434 psi is gained. 1 M in

height 10 kPa is gained

Hydrant pressure – The force of water when

it enters the pump from the

distribution system

Net engine pressure – The actual amount of

pressure being produced by the pump

slide16

Nozzle reaction – The counterforce directed

against the people or device holding a nozzle

by the velocity of water being discharged

Pound per square inch PSI -

Pump discharge pressure – The actual

velocity pressure (measured in PSI) if the

water as it leaves the pump & enters the

hose line.

slide17

Vacuum – A pressure that is less than

normal atmospheric pressure

Velocity – The rate of motion of a particle

in a given direction, speed

Water hammer – When the flow of water is

suddenly stopped, the resulting surge is

referred to as a water hammer

break
Break

Break Time!!

Thank Goodness

the firefighter shall identify describe the following guages
The firefighter shall identify & describe the following guages:

Compound gauge – A gauge connected to the

intake side of the pump that is capable of

measuring positive & negative intake

pressures

Discharge/pressure gauge – A gauge on the

discharge side of the pump that registers the

pump discharge pressure

180-1.03

slide22

Suction

Pressure
