comparison of sip proxy and redirect servers

Comparison of SIP Proxy and Redirect Servers

Presented By: Greg Osterhout

Sr. Mgr, SIP Services Development and Evolution

sip reference architecture

PSTN

SIP Reference Architecture

I2004

EtherSets

User

Proxy

SIP Soft Client

  • Terminal Endpoints
  • SIP User Agent for
  • user devices

SIP

User

Proxy

SIP

USB Phone

  • Network/User Proxy
  • Registration of SIP endpoints
  • Provides endpoint mobility
  • User specific services
  • Domain resolution

SIP Network Nodes

SIP

SIP

SIP

Mobil Oil

Network

User

Proxy

  • PSTN Gateway
  • SIP User Agent for PSTN Trks
  • SIP services for PSTN terminations

SS7/PRI

sip user proxy

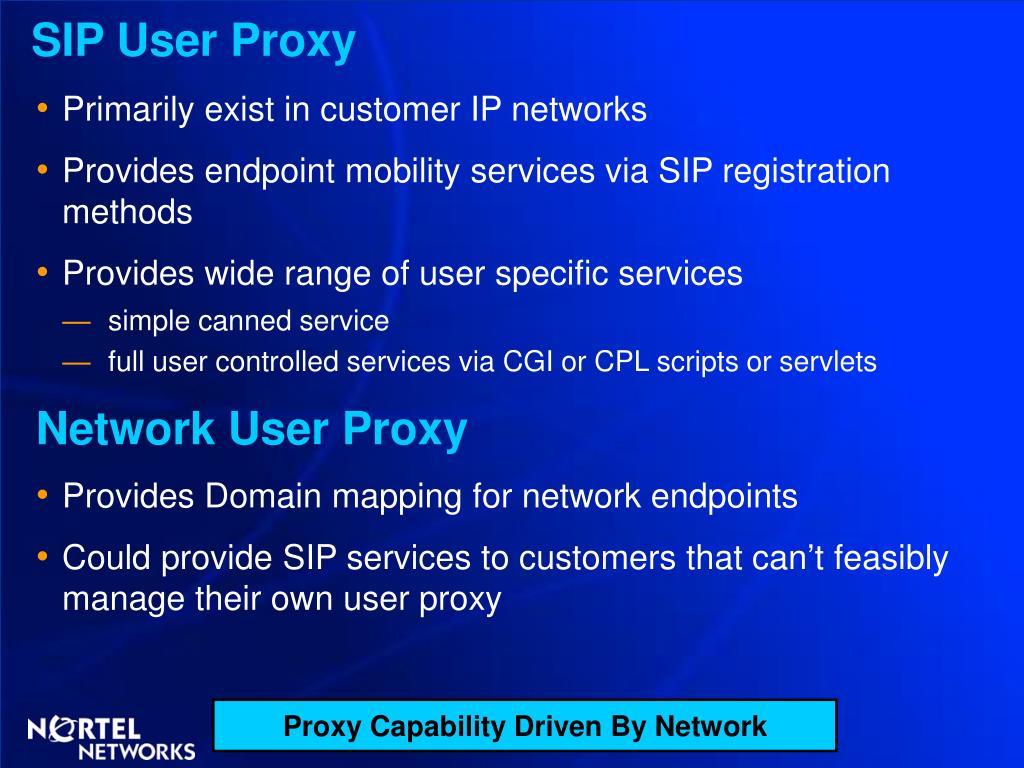

SIP User Proxy
  • Primarily exist in customer IP networks
  • Provides endpoint mobility services via SIP registration methods
  • Provides wide range of user specific services
    • simple canned service
    • full user controlled services via CGI or CPL scripts or servlets

Network User Proxy

  • Provides Domain mapping for network endpoints
  • Could provide SIP services to customers that can’t feasibly manage their own user proxy

Proxy Capability Driven By Network

slide4

Sip Proxy Mode

pulver.com

nortel.com

jeff.pulver

pulver@von1

user@nortel.com

pulver@von1

Proxy server

1. INVITE sip:jeff.pulver@pulver.com SIP/2.0

From: sip:user@nortel.com

2. INVITE sip:pulver@von1 SIP/2.0

From: sip:user@nortel.com

3. SIP/2.0 200 ok

From: sip:pulver@von1

Location Server

4. SIP/2.0 100 OK

From: sip:jeff.pulver@pulver.com

5. ACK sip:jeff.pulver@pulver.com SIP/2.0

From: sip:user@nortel.com

6. ACK sip:pulver@von1 SIP/2.0

From: sip:user@nortel.com

sip proxy servers

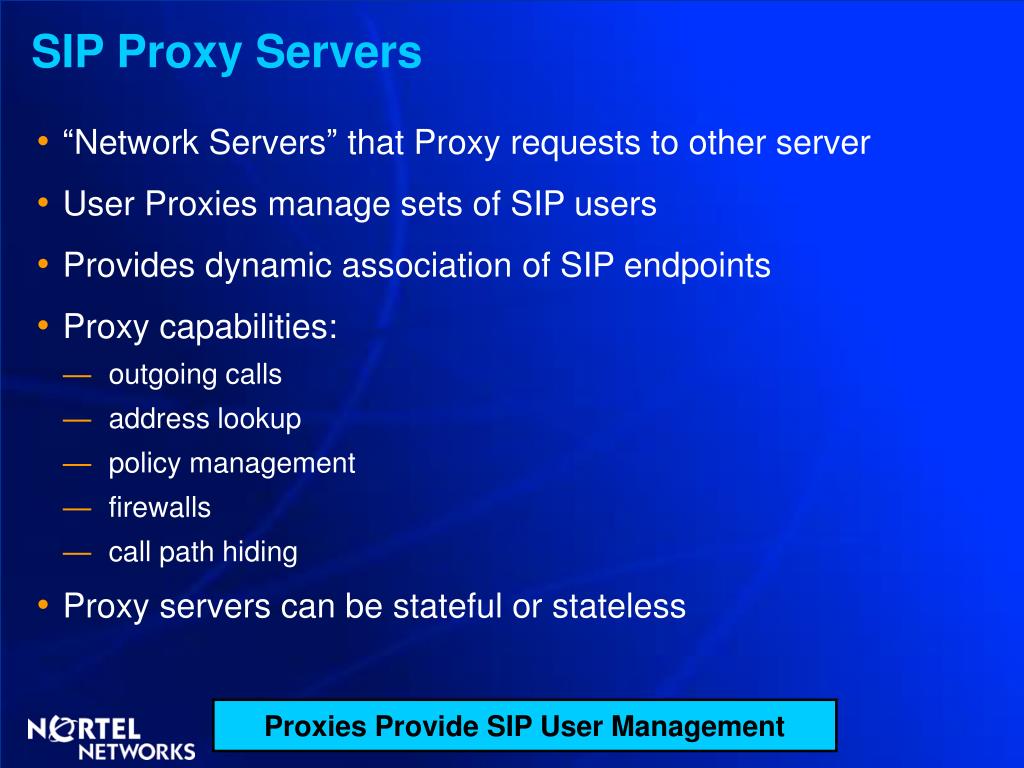

SIP Proxy Servers
  • “Network Servers” that Proxy requests to other server
  • User Proxies manage sets of SIP users
  • Provides dynamic association of SIP endpoints
  • Proxy capabilities:
    • outgoing calls
    • address lookup
    • policy management
    • firewalls
    • call path hiding
  • Proxy servers can be stateful or stateless

Proxies Provide SIP User Management

stateful proxy servers

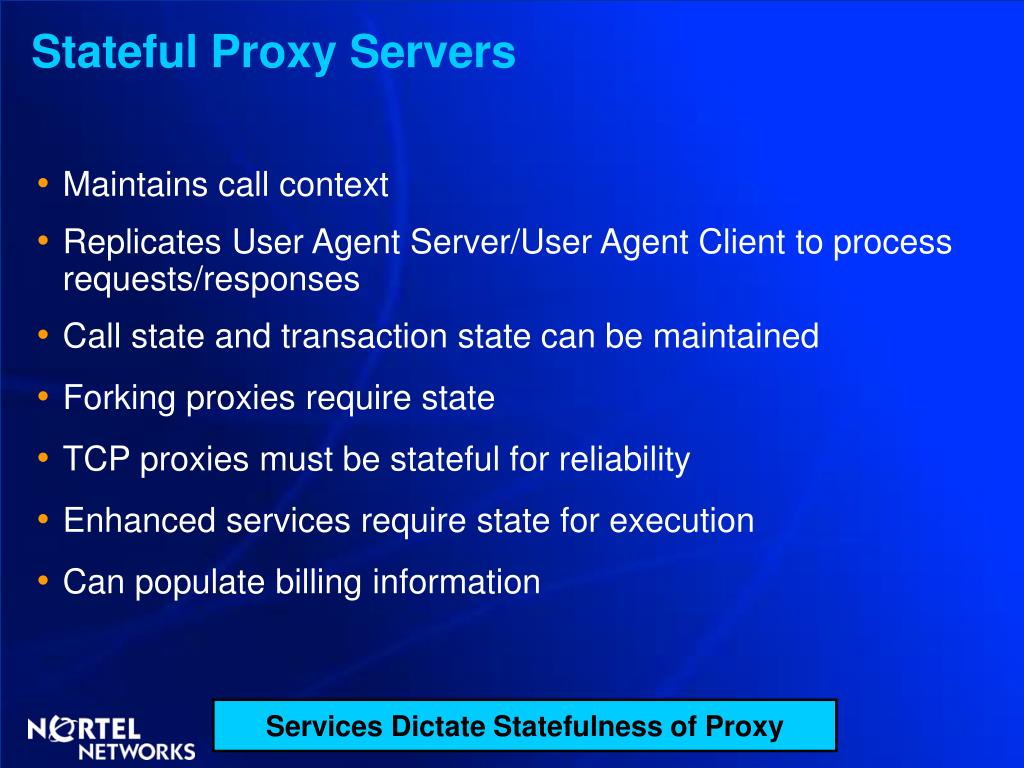

Stateful Proxy Servers
  • Maintains call context
  • Replicates User Agent Server/User Agent Client to process requests/responses
  • Call state and transaction state can be maintained
  • Forking proxies require state
  • TCP proxies must be stateful for reliability
  • Enhanced services require state for execution
  • Can populate billing information

Services Dictate Statefulness of Proxy

stateless proxy servers

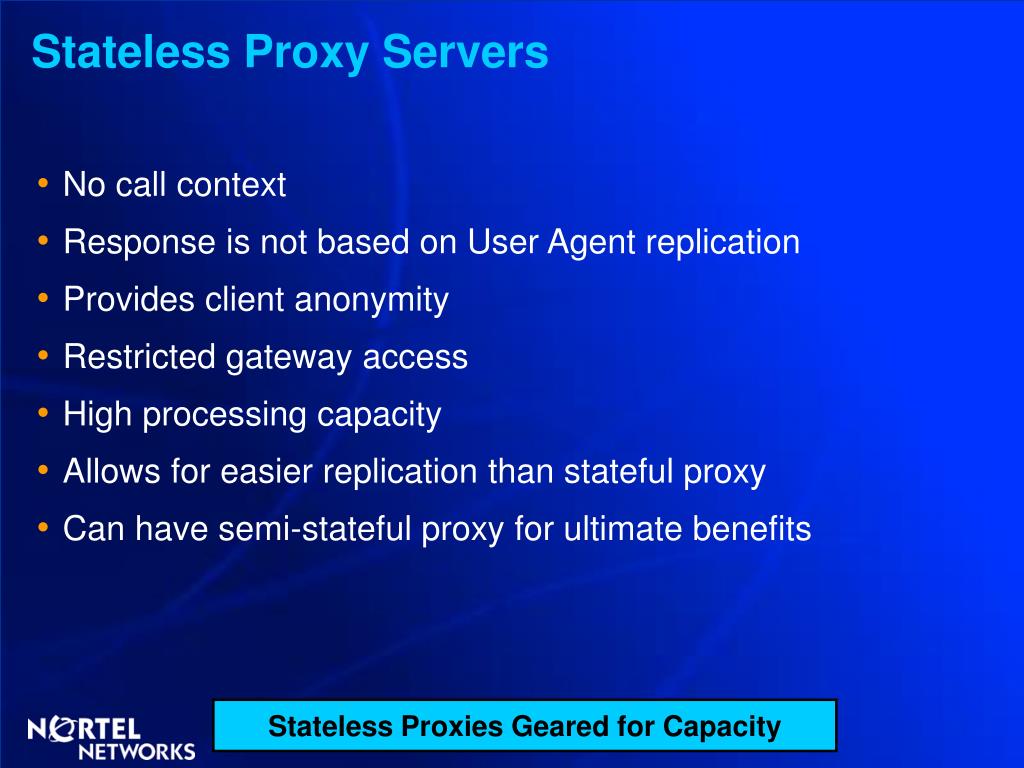

Stateless Proxy Servers
  • No call context
  • Response is not based on User Agent replication
  • Provides client anonymity
  • Restricted gateway access
  • High processing capacity
  • Allows for easier replication than stateful proxy
  • Can have semi-stateful proxy for ultimate benefits

Stateless Proxies Geared for Capacity

slide8

Sip Redirect Mode

pulver.com

nortel.com

pulver@von1

Jeff.pulver

user@nortel.com

Pulver@von1

RedirectServer

Location Server

1. INVITE sip:jeff.pulver@pulver.com

From: sip:user@nortel.com

4. INVITE sip:pulver@von1.pulver.com

From: user@nortel.com

5. SIP/2.0 200 OK

To: user@nortel.com

2. SIP/2.0 320 Moved temporarily

Contact: sip:pulver@von1.pulver.com

6. ACK sip:pulver@von1.pulver.com

From: sip:user@nortel.com

3. ACK sip:jeff.pulver@pulverr.com

From: sip:user@nortel.com

sip redirect servers
SIP Redirect Servers
  • Accept SIP requests, map the address into new addresses, and return these addresses to the client
  • Do not initiate requests
  • Do not accept calls
  • Lower state overhead required than proxy servers
  • High processing capacity due to fewer messages to process
  • Services are client device dependent

Service Dependence on Client

slide10
Can be stateful or stateless

Redirect Server

Proxy Server

  • High capacity
  • Flexible, network service implemenations
  • Minimal state overhead
  • Service execution pushed to client
  • Reliability achieved through replication
  • Scalability achieved through partitioning
  • Overload potential if not properly scaled
  • Hybrid (semi-stateful) model provides maximum benefits

Hybrid Proxy Is Best Alternative
