  1. CADSoftTools ABViewer version 7

  2. ABViewer provides: 1 ViewingCAD files, raster and vector graphic files 2 Converting intoTIFF/PDF/PLT/SVG/JPEG/GIF/BMP/EMF/ AutoCAD™ DXF 3 Printing the drawings of the А2-А0 format on the printers of the A4 format 4 Tools for selecting any rectangle part of the drawing, its copying, printingandsaving to the file 5 And many other features

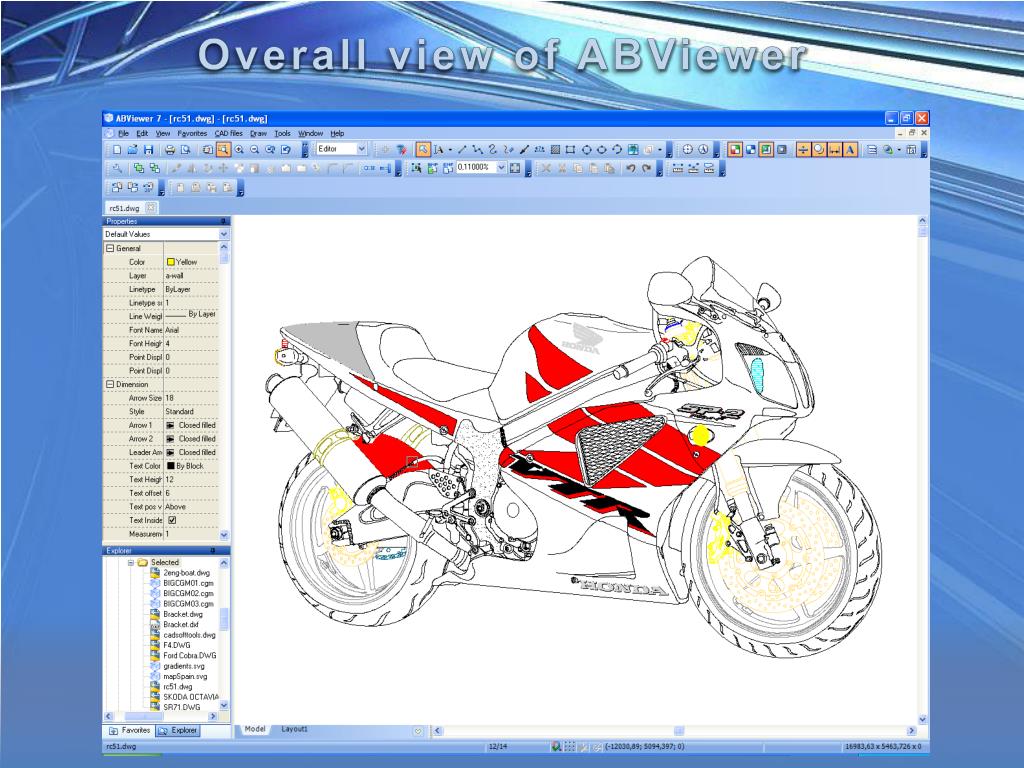

  3. Overall view of ABViewer

  4. Overall view of ABViewer (Several files open at the same time)

  5. Detailed features of ABViewer • Supports DWG and DXF formats up to 2009 version inclusive. • Supports more than 30 vector and raster formats including PLT, SVG, CGM, HPGL, EMF,BMP, JPG and others. • Supports3D rotation for DWG and DXF formats.

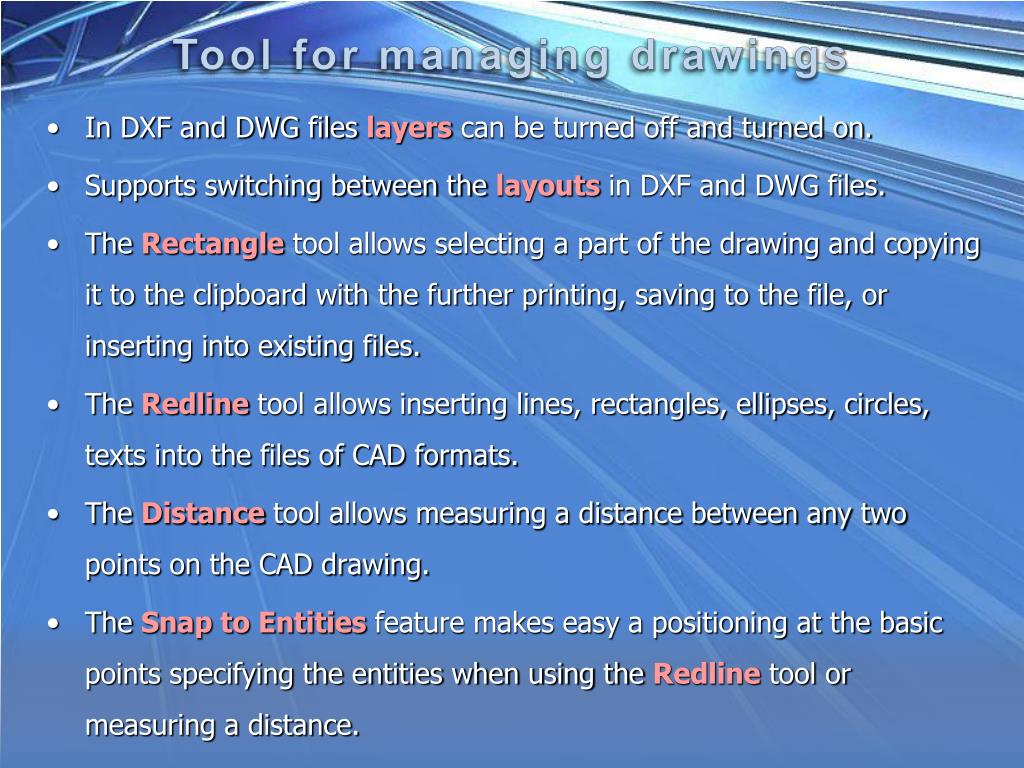

  6. Tool for managing drawings • In DXF and DWG files layers can be turned off and turned on. • Supports switching between the layouts in DXF and DWG files. • The Rectangle tool allows selecting a part of the drawing and copying it to the clipboard with the further printing, saving to the file, or inserting into existing files. • The Redline tool allows inserting lines, rectangles, ellipses, circles, texts into the files of CAD formats. • The Distance tool allows measuring a distance between any two points on the CAD drawing. • The Snap to Entities feature makes easy a positioning at the basic points specifying the entities when using the Redline tool or measuring a distance.

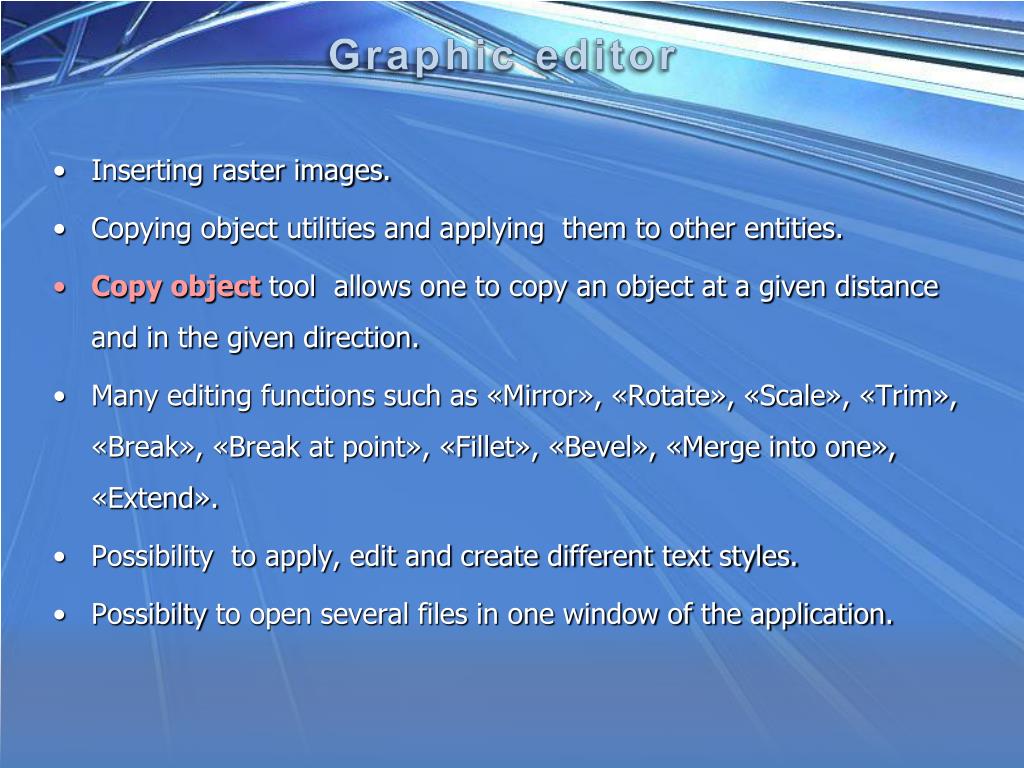

  7. Graphic editor • Inserting raster images. • Copying object utilities and applying them to other entities. • Copy object tool allows one to copy an object at a given distance and in the given direction. • Many editing functions such as «Mirror», «Rotate», «Scale», «Trim», «Break», «Break at point», «Fillet», «Bevel», «Merge into one», «Extend». • Possibility to apply, edit and create different text styles. • Possibilty to open several files in one window of the application.

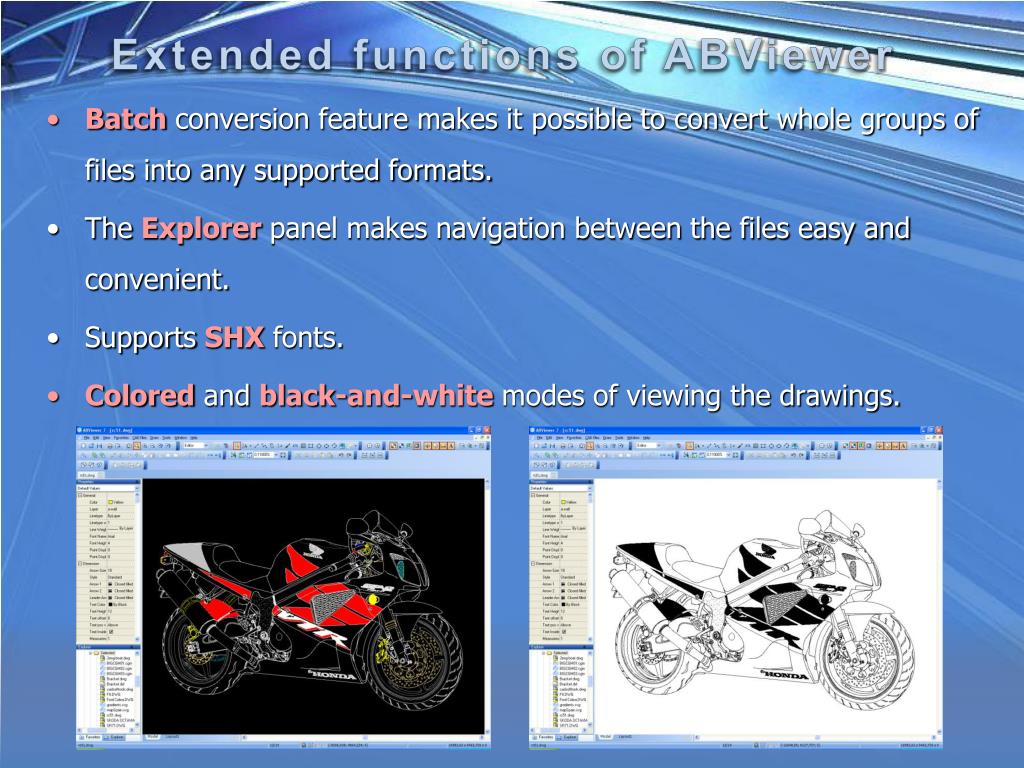

  8. Extended functions of ABViewer • Batch conversion feature makes it possible to convert whole groups of files into any supported formats. • The Explorerpanel makes navigation between the files easy and convenient. • Supports SHX fonts. • Colored and black-and-white modes of viewing the drawings.

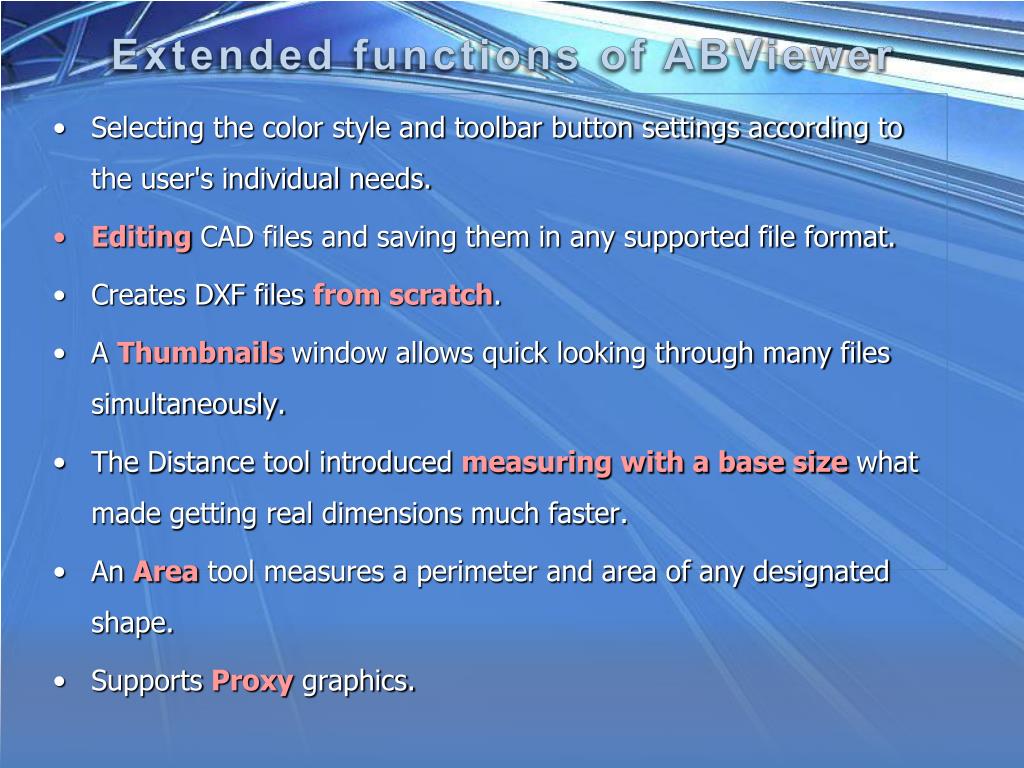

  9. Extended functions of ABViewer • Selecting the color style and toolbar button settings according to the user's individual needs. • Editing CAD files and saving them in any supported file format. • Creates DXF files from scratch. • A Thumbnails window allows quick looking through many files simultaneously. • The Distance tool introduced measuring with a base size what made getting real dimensions much faster. • An Area tool measures a perimeter and area of any designated shape. • Supports Proxy graphics.

  10. Supported languages Brazilian Portuguese French Romanian Bulgarian German Russian Chinese Hebrew Slovak Czech Hungarian Slovenian Danish Italian Spanish Dutch Korean Swedish English Norwegian Taiwanese Estonian Polish Turkish Finnish Portuguese Ukrainian

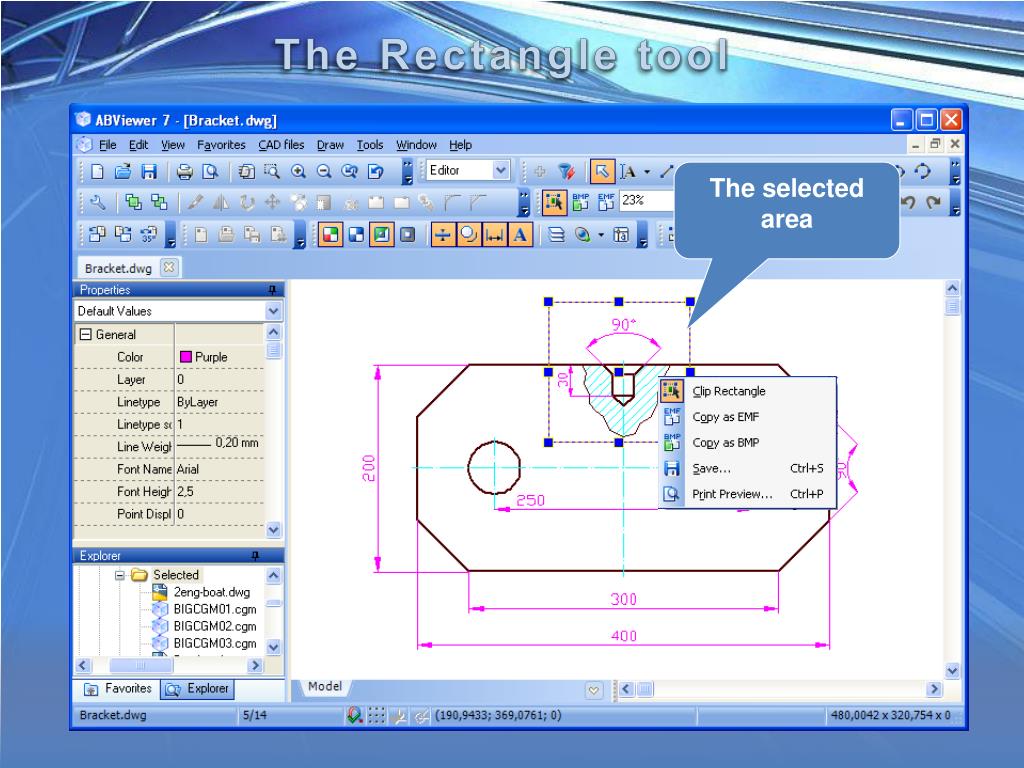

  11. The Rectangle tool The selected area

  12. Inserting the selected image area into Microsoft Word document

  13. Inserting the selected image area into Microsoft Word document

  14. Print preview of the selected area of the CAD drawing

  15. Converting CAD files TIFF, JPG, GIF, BMP, EMF, AutoCAD™ DXF DXF, DWG, HPGL,CGM, SVG Your Text here Preview A file on the disk Open Save As…

  16. Batch mode of converting the files

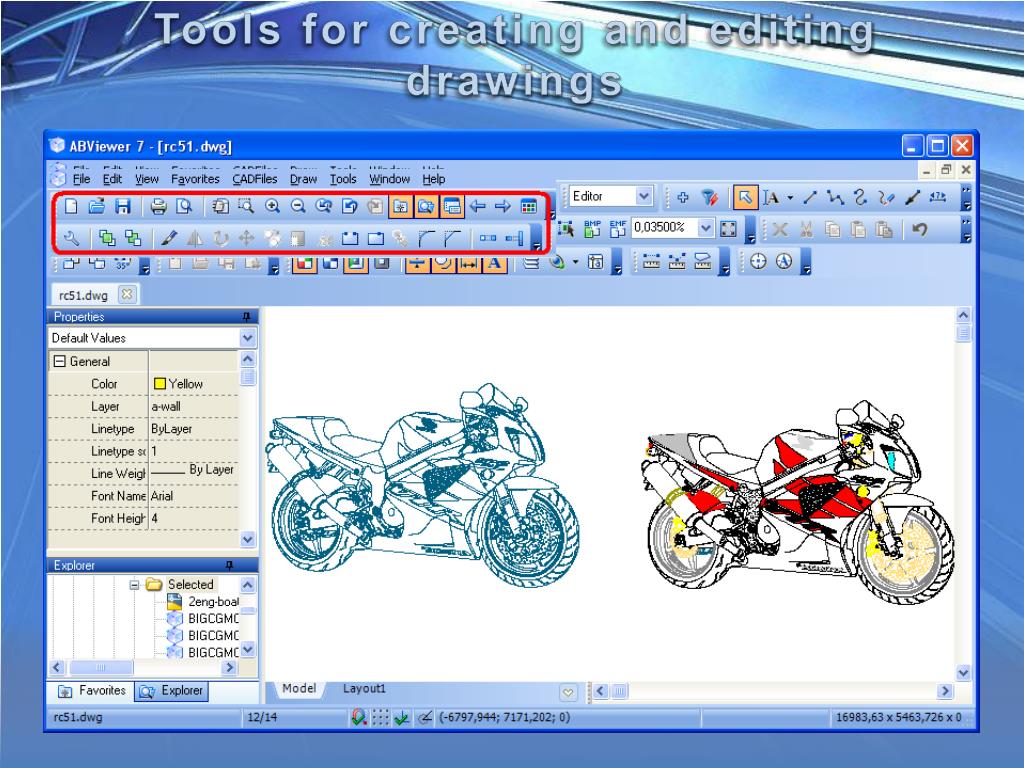

  17. Tools for creating and editing drawings

  18. Editing an existing entity

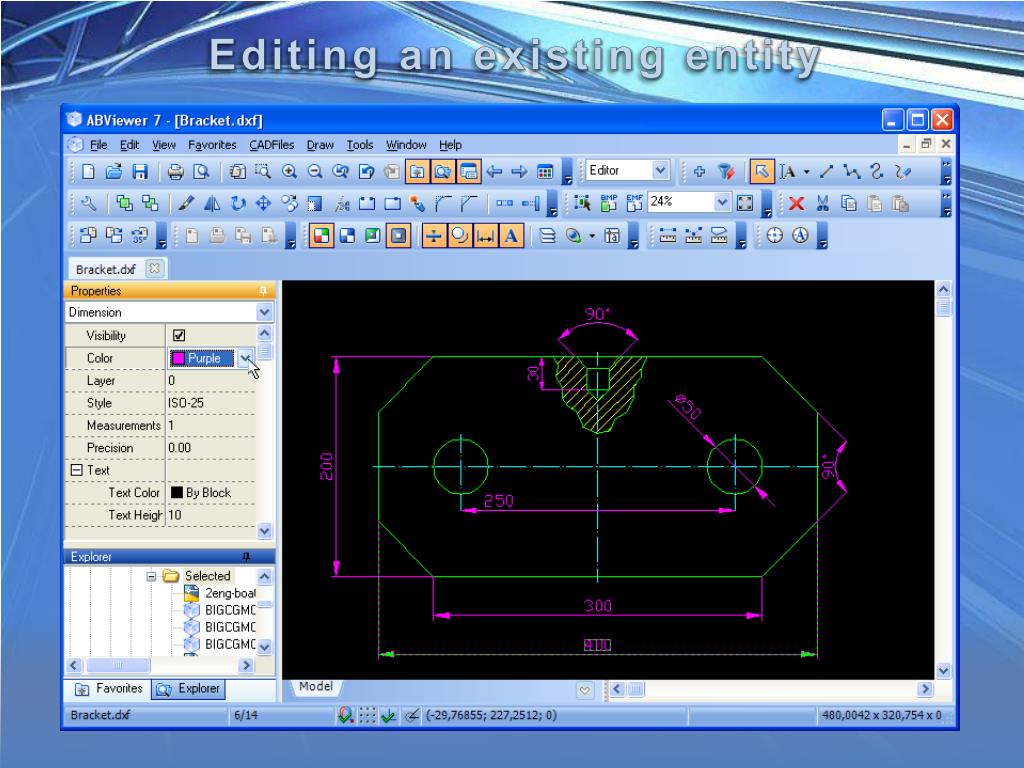

  19. Editing an existing file Editing an existing entity

  20. Editing an existing file Editing an existing entity

  21. Editing an existing file Editing an existing entity

  22. Editing an existing file Editing an existing entity

  23. Editing an existing file Editing an existing entity

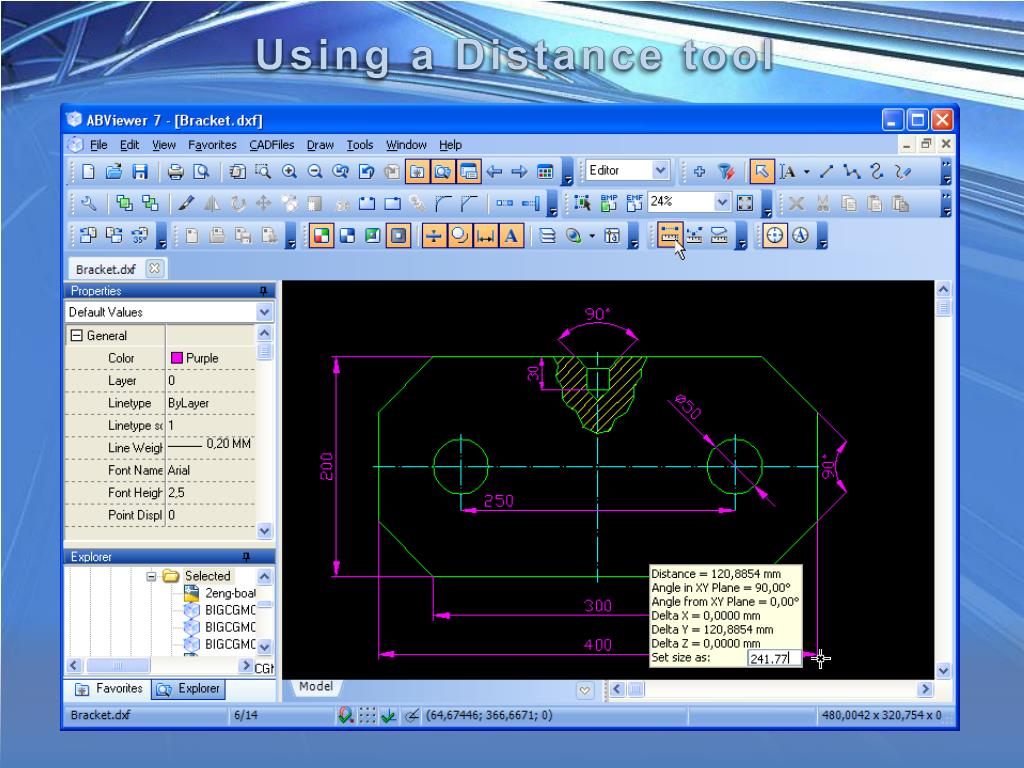

  24. Editing an existing file Using a Distance tool

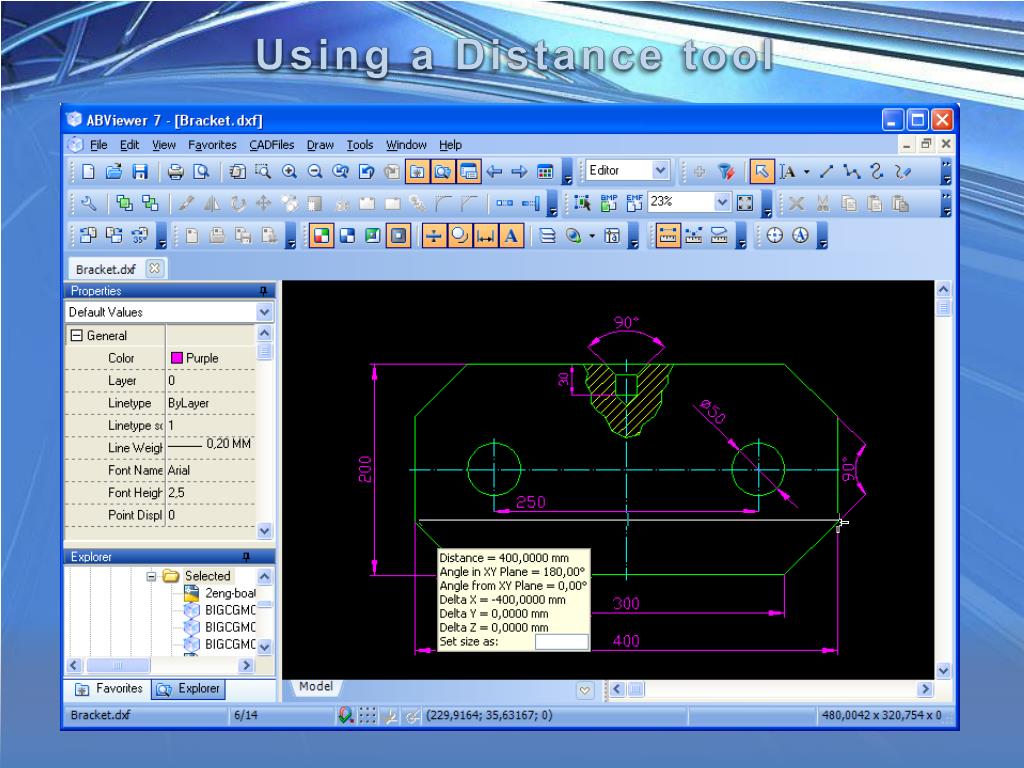

  25. Editing an existing file Using a Distance tool

  26. Thumbnails window

  27. Other products from CADSoftTools CAD Import VCL CAD Import .NET DXF Export VCL DXF Export .NET CADViewX CAD Importer DLL CAD Image DLL DXF Export Java

  28. Thank You for Your attention Soft Gold Ltd. Malye Gonchary, 14, Tula, Russia 300057 Tel.: +7 4872 34-82-95 Fax: +7 4872 34-87-65 info@cadsofttools.com www.cadsofttools.com
