attention and perception of attentive behaviours for emotive interaction

Attention and Perceptionof Attentive Behavioursfor Emotive Interaction

Christopher Peters

LINC

University of Paris 8

virtual humans
Virtual Humans
  • Computer models of people
  • Can be used as…
    • substitutes for the real thing in ergonomic evaluations
    • Conversational agents
  • Display and Animation:
    • Two layers: skeletal layer and skin layer
    • Skeleton is hierarchy of positions and orientations
    • Skin layer provides the visual appearance
animating characters
Animating Characters
  • Animation Methods
    • Low level: rotate leye01 by 0.3 degrees around axis (0.707,0.707,0.0) at 0.056 seconds into the animation
    • High level: ‘walk to the shops’
      • Character must know where shop is, avoid obstacles on the way there, etc. Must also be able to walk …
  • Autonomy
    • Direct animation  automatic generation
    • Autonomy requires character to animate itself based on simulation models
    • Models should result in plausible behaviour
our focus
Our Focus
  • Attention and related behaviours
    • (a) Where to look
    • (b) How to generate gaze behaviour
  • Perception of attentive behaviours and emotional significance
    • How to interpret attention behaviours of others
    • Conversation initialisation

in Virtual Environments…

why ve
Why VE?
  • Cheap!
    • No need for expensive equipment (facilities, robots, etc)
    • Duplication at the click of a mouse
  • Quick
    • Changes to environment can be made quickly and easily, at no extra cost
  • But…
    • Things we take for granted in RL need to be programmed into the virtual environment
      • Physics
    • And will only ever be approximations of reality
1 attention and gaze
1. Attention and Gaze
  • Our character is walking down a virtual street
  • Where should the character look and how should the looking behaviours be generated?
foundation
Foundation
  • Humans need to look around
    • An ecological approach to visual perception, J.J. Gibson, 1979.
    • Eyes in the front of our head
    • Poor acuity over most of visual field
    • Even for places where we have been before, memory is far from perfect
    • Virtual humans should look around too!

Ilab, University of Southern California

significance to virtual humans
Significance to Virtual Humans
  • Viewer perception
    • The impact of eye gaze on communication using humanoid avatars, Garau et al., 2001.
    • Plausibility
    • “If they don’t look around, then how do they know where things are?” Human viewer
significance to virtual humans1
Significance to Virtual Humans
  • Functional purposes
    • Navigation for digitial actors based on synthetic vision, memory and learning, Noser et al., 1995.
    • Autonomy
    • If they don’t look around, then they won’t know where things are
our focus1
Our Focus
  • Gaze shifts versus saccadic eye movements
  • General looking behaviours
    • Where to Look? Automating Certain Visual Attending Behaviors of Human Characters, Chopra-Khullar, 1999.
    • Practical Behavioural Animation Based On Vision and Attention, Gillies, 2001.
  • Two problems:
    • Where to look
    • How to look
approach
Approach
  • Use appropriately simplified models from areas such as psychology, neuroscience, artificial intelligence …
    • Appropriate = fast, allowing real-time operation
    • Capture the high-level salient aspects of such models without the intricate detail
  • Components
    • Sensing
    • Attention
    • Memory
    • Gaze Generator

Where to look

How to look

system overview
System Overview

Input environment through synthetic vision component

  • Process visual field using spatial attention model
  • Modulate attended object details using memory component
  • Generate gaze behaviours towards target locations
visual sensing
Visual Sensing
  • Three renderings taken per visual update
    • One full-scene rendering (  to attention module)
    • Two false-colour renderings (  to memory module)
false colour renderings
False-colour Renderings
  • Approximate acuity of the eye with two renderings
    • Fovea
    • Periphery

Viewpoint

Fovea

Periphery

renderings
Renderings
  • Renderings allow both spatial/image and object based operations to take place
1 a where to look
1(a) Where to look
  • Model of Visual Attention
    • Two-component theory of attention
  • “Bottom-up”
    • Endogenous
    • Voluntary, task driven
    • ‘Look for the coke can’
  • “Top-down”
    • Exogenous
    • Environment appears to ‘grab’ our attention
    • Colour, intensity, orientation, motion, texture, sudden onset, etc
bottom up attention
Bottom-up Attention

Orientation, intensity and colour contrast

bottom up attention1
Bottom-up Attention
  • Model
    • Cognitive engineering
    • Itti et al. 2000
      • http://ilab.usc.edu/bu/
    • Biologically inspired
    • Inputs an image, outputs encoding of attention allocation
    • Peters and O’ Sullivan 2003
slide19

Input Image

Intensity

RG Colour

BY Colour

gaussian pyramid
Gaussian Pyramid
  • Each channel acts as the first level in a Gaussian or Gabor pyramid
    • Each subsequent level is a

blurred and decimated version

of the previous level

  • Image processing techniques simulate early visual processing
center surround processing
Center-Surround Processing
  • Early visual processing
    • Ganglion cells
    • Respond to light in a center-surround pattern
    • Contrast a central area with its neighbours
  • Simulated by comparing different levels in image pyramids
    • Contrast important, not amplitude (CONTEXT)
saliency map
Saliency Map
  • Conspicuity Maps
    • Result of center-surround calculations for each feature type
    • Define the ‘pop-out’ for each feature type
  • Integrated into saliency map
    • Attention directed preferably to lighter areas

Input

Intensity

Colour

Orientation

Saliency Map

memory
Memory
  • Differentiate between what an agent has and hasn’t observed
    • Agents should only know about objects that they have witnessed
    • Agents won’t have exact knowledge about world
    • Used to modulate output of attention module (saliency map)
    • Object-based, taking input from synthetic vision module
stage theory
Stage Theory
  • The further information goes, the longer it is retained
  • Attention acts as a filter
stimulus representations
Stimulus Representations
  • Two levels of detail representation for objects
    • Proximal stimuli
      • Early representation of the stimulus
      • Data discernable only from retinal image
    • Observations
      • Later representation of stimuli after resolution with the world database
stage theory1
Stage Theory
  • Short-term Sensory Storage (STSS)
    • From distal to proximal stimuli
    • Objects have not yet been resolved with world database
stage theory2
Stage Theory
  • Short-term memory (STM) and Long-Term Memory (LTM)
    • Object-based
    • Contains resolved object information
      • From proximal stimuli to observations
    • Observations store information for attended objects
      • Object pointer
      • World-space transform
      • Timestamp
    • Virtual humans are not completely autonomous from the world database
memory uncertainty map
Memory Uncertainty Map
  • Can now create a memory uncertainty map for any part of the scene the agent is looking at
    • The agent is uncertain of parts of the scene it has not looked at before
  • Depends on scene object ‘granularity’
attention map
Attention Map
  • Determines where attention will be allocated to
    • Bottom-up components
    • Top-down (see 2)
    • Memory
  • Modulating the saliency map by the uncertainty map
    • Here, sky and road have low uncertainty levels
human scanpaths
Human Scanpaths

Eye movements and fixations

inhibition of return

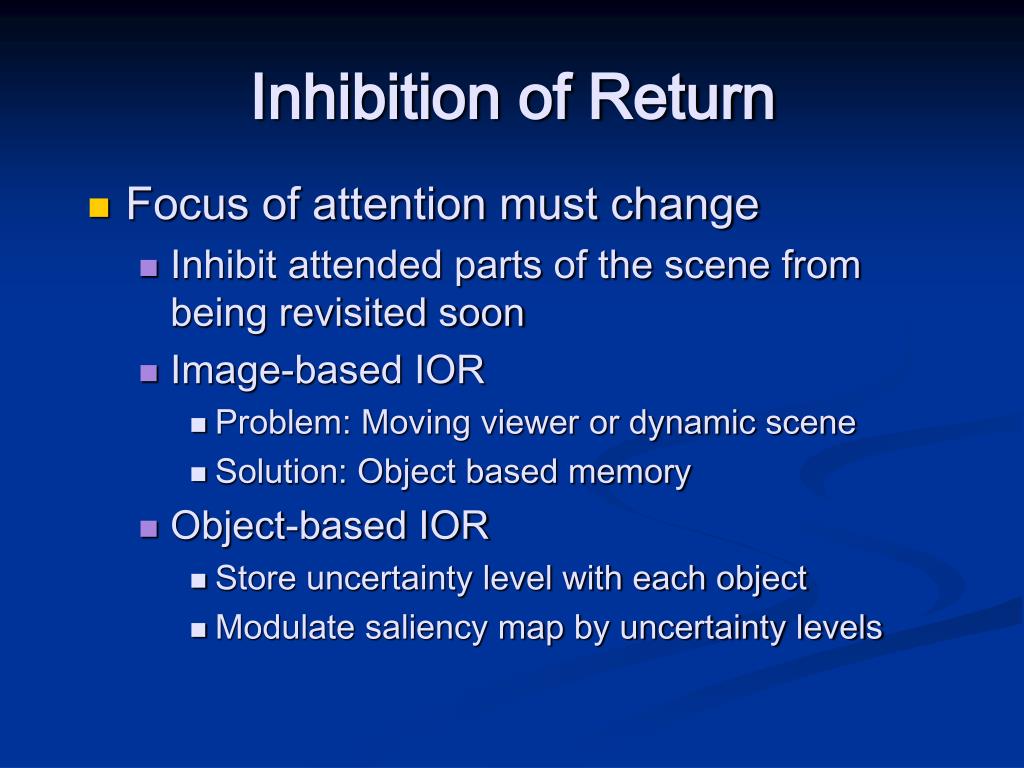

Inhibition of Return
  • Focus of attention must change
    • Inhibit attended parts of the scene from being revisited soon
    • Image-based IOR
      • Problem: Moving viewer or dynamic scene
      • Solution: Object based memory
    • Object-based IOR
      • Store uncertainty level with each object
      • Modulate saliency map by uncertainty levels
artificial regions of interest
Artificial Regions of Interest
  • Attention map at lower resolution than visual field
  • Generate AROIs from highest values of current attention map to create scanpath
    • Assume simple one-to-one mapping from attention map to overt attention
1 b how to look
1(b) How to look
  • Generate gaze animation given a target location
  • Gaze shifts
    • Combined eye-head gaze shifts to visual and auditory targets in humans, Goldring et al., 1996.
    • Targets beyond oculomotor range
gaze shifts
Gaze Shifts
  • Contribution of head movements
    • Head Movement Propensity, J. Fuller, 1992.
    • ‘Head movers’ Vs. ‘Eye movers’
    • ±40 degree orbital threshold
      • Innate behavioural tendancy for subthreshold head moving
    • Midline-attraction and Resetting
blinking
Blinking
  • Subtle and often overlooked
    • Not looking while leaping: the linkage of blinking and saccadic gaze shifts, Evinger et al., 1994.
    • Gaze-evoked blinking
    • Amplitude of gaze shift influences blink probability and magnitude
2 perception of attention
2. Perception of Attention
  • Attention behaviours may elicit attention from others
    • Predator-prey
    • Gaze-following
    • Goals
    • Intentions
gaze in infants
Gaze in Infants
  • Infants
    • Notice gaze direction as early as 3 months
    • Gaze-following
      • Infants are faster at looking at targets that are being looked at by a central face
    • Respond even to circles that look like eyes

www.mayoclinic.org

theory of mind
Theory of Mind
  • Baron-Cohen (1994)
    • Eye Direction and Intentionality Detectors
    • Theory of Mind Module
  • Perrett and Emery (1994)
    • More general Direction of Attention Detector
    • Mutual Attention Mechanism
our model
Our Model
  • ToM for conversation initiation
    • Based on attention behaviours
  • Key metrics in our system are Attention Levels and Level of Interest
    • Metrics represent the amount of attention perceived to have been paid by another
    • Based primarily on gaze
      • Also body direction, locomotion, directed gestures and facial expressions
      • Emotional significance of gaze
implementation in progress
Implementation (in progress)
  • Torque game engine
    • http://www.garagegames.com
    • Proven engine used for number of AAA titles
    • Useful basis providing fundamental functionality
      • Graphics exporters
      • In-simulation editing
      • Basic animation
      • Scripting
      • Terrain rendering
      • Special effects
synthetic vision
Synthetic Vision
  • Approximated human vision for computer agents
  • Why?
    • Inexpensive – no special hardware required
    • Bypasses many computer vision complexities
      • Segmentation of images, recognition
    • Enables characters to receive visual information in a way analogous to humans
  • How?
    • Updated in a snapshot manner
    • Small, simplified images rendered from agents perspective
      • Textures, lighting and sfx disabled
    • False-colouring
slide44
False-colours provide a look-up scheme for acquiring objects from the database
    • False colour defined (r,g,b) where
      • Red is the object type identifier
      • Green is the object instance identifier
      • Blue is the sub-object identifier
    • Allows quick retrieval of objects
intentionality detector id
Intentionality Detector(ID)
  • Represents behaviour in terms of volitional states (goal and desire)
  • Based on visual, auditory and tactile cues
    • Our version only based on vision
  • Attributes intentionality characteristic to objects based on the presence of certain cues
  • Implemented as a filter on objects from visual system
    • Only “agent” objects can pass the filter
direction of attention

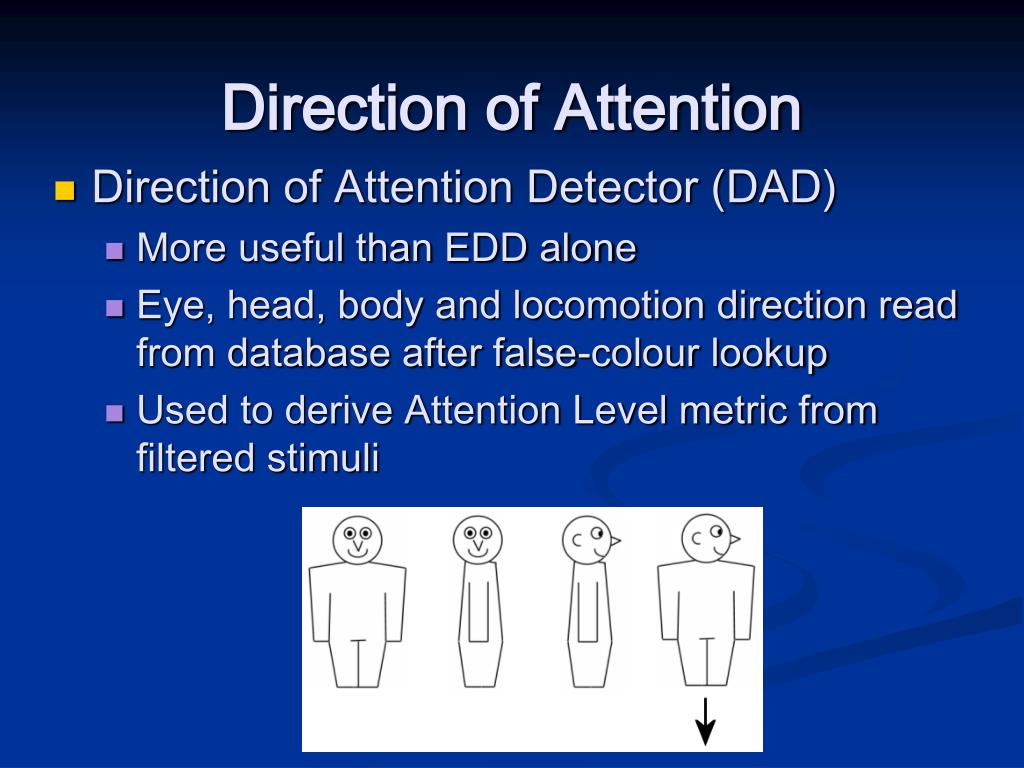

Direction of Attention
  • Direction of Attention Detector (DAD)
    • More useful than EDD alone
    • Eye, head, body and locomotion direction read from database after false-colour lookup
    • Used to derive Attention Level metric from filtered stimuli
direction of attention1
Direction of Attention
  • What happens when eyes aren’t visible?
    • Hierarchy of other cues
      • Head direction > Body direction > Locomotion direction
mutual attention
Mutual Attention
  • Comparison between:
    • Eye direction read from other agent
    • Focus of attention of this agent
      • See 1. Generating Attention Behaviours
    • If agents are focus of each others attention, Mutual Attention Mechanism (MAM) is activated
attention levels
Attention Levels
  • Perception of attention paid by another
    • At instant of time
  • Based on orientation of body parts
    • Eyes, head, body, locomotion direction
attention levels1
Attention Levels
  • Direction is weighted for each segment
    • Eyes provide largest contribution

Less attention

attention levels2
Attention Levels
  • Also
    • Locomotion direction
    • Directed gestures
  • Support for
    • Directed facial expressions
  • Gestures and expressions convey emotion
attention profiles
Attention Profiles
  • Attention levels over a time period are stored in memory
  • Attention Profile
    • Consideration of all attention levels of another agent over a certain time frame
    • Analysis can provide a higher level description of their amount of interest in me
level of interest
Level of interest
  • General descriptor of amount of interest that another is perceived to be paying…
    • …over a time period
    • Error prone process due to reliance on perception
      • Were they actually looking at you?
      • Human gaze perception is good, but not perfect
    • Links between gaze and interest
      • Gaze does not necessarily mean attention e.g. blank stare
    • Inherently probabilistic
      • Theories of Mind are theories
application
Application
  • Conversation initiation scenarios
    • Subtle negotation involving gaze
      • Avoid social embarrassment of engaging in discourse with an unwilling participant
our tomm
Our ToMM
  • Stores simple, high-level theories
    • Useful for conversation initialisation behaviours
  • Have they seen me?
    • ID, DAD and MAM modules
  • Have they seen me looking?
    • ID, DAD and MAM modules
  • Are they interested in interacting?
    • Level of Interest metric
future work
Future Work
  • Finish implementation of the model
  • Further links between attention/memory and emotion
  • Hardware based bu attention implementation
  • Integration of facial expression and gestures from Greta
