Presentation Transcript
safety code assessment in qsc model t p n klapka lucie k rn magdal na harlenderov

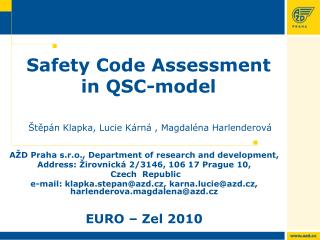

Safety Code Assessment in QSC-modelŠtěpánKlapka, Lucie Kárná , Magdaléna Harlenderová

AŽD Praha s.r.o., Department of research and development,

Address: Žirovnická 2/3146, 106 17 Prague 10,

Czech Republic

e-mail: klapka.stepan@azd.cz, karna.lucie@azd.cz, harlenderova.magdalena@azd.cz

EURO – Zel 2010

contents
Contents
  • IntroductionNew version - FprEN 50159
  • Non-binary linear codes
  • The probability of undetected errors
  • Binary Symmetrical Channel (BSC)
  • q-nary Symmetrical Channel (QSC)
  • Good and proper codes
  • Reed-Solomon code example
  • Conclusion
slide3

New version - FprEN 50159

  • Mergingtwo parts of the former standard (for open and close transmission systems)
  • Modifications of the standard
    • Common terminology
    • Classification of transmission systemsthree categories of transmission systems are defined
    • More precise requirements for safety codesstandard recommends BSC and QSC model
non binary linear codes
Non-binary linear codes
  • T: finite field with q elements (code alphabet).
  • q-nary linear (n,k)-code: k-dimensional linear subspace C of the space Tn
  • codewords: elements of C.
  • Usually T=GF(2m). In this case every symbol from GF(2m) can be substituted by its linear expansion and given 2m-nary (n,k)-code can be analysed as a binary (nm,km)-code.
  • most popular non-binary codes: Reed-Solomon (RS) codes
undetected errors
Undetected Errors
  • Structure of undetected errors
    • all undetected errors of a linear (n,k)-code = all nonzero codewords of the code
  • Probability of an undetected error

Ai: number of codewords with exactly i nonzero symbols

Pi: probability that there are exactly i wrong symbols in the word.

binary symmetric al channel bsc
Binary Symmetrical Channel (BSC)
  • BSC: model based on the bit (binary symbol) transmission
  • The probability pe that the bit changes its value during the transmission (bit error rate) is the same for both possibilities (0→1, 1→0).
q nary symmetric al channel q sc
Q-nary Symmetrical Channel (QSC)

QSC: model based on the q- symbols transmission

e: probability that a symbol changes value during the transmission

undetected errors probability bsc q sc
Undetected Errors Probability (BSC/QSC)

BSC model – Pud(1/2)

QSC model – Pud((q-1)/q)

good and proper codes
Good and proper codes
  • ”good” q-nary linear (n,k)-code:inequality Pud(e) < qk-n is valid for every e [0,(q-1)/q].
  • ”proper” q-nary linear (n,k)-code:function Pud(e) is monotone fore [0,(q-1)/q].
  • Unfortunately goodness and properness are relatively rare conditions.
  • example: perfect codes, MDS codes
example
Example

Objective: to show how different results is possible to get in QSC and BSC models

Example: RS code on GF(256) with generator polynomial:

g(x)=x4+54x3+143x2+x+214.

RS codes are Maximum Distance Separable codes (MDS)=> they are ”proper” in the QSC model.

rs code x 4 54 x 3 143 x 2 x 21412
RS code x4+54x3+143x2+x+214

Codewords with binary weight 7

w_1=(32, 35, 4, 32, 1)

w_2=(64, 70, 8, 64, 2)

w_3=(128, 140, 16, 128, 4)

w_1=(00100000 00100011 00000100 00100000 00000001)

w_2=(01000000 01000110 00001000 01000000 00000010)

w_3=(10000000 10001100 00010000 10000000 00000100)

12

rs code x 4 54 x 3 143 x 2 x 21414
RS code x4+54x3+143x2+x+214

Binary weight spectrum

14

rs code x 4 54 x 3 143 x 2 x 21418
RS code x4+54x3+143x2+x+214

SUMMARY QSC/BSC

QSC model – proper codefor codeword length255

BSC model – not good code for all codeword length

18

conclusions
Conclusions
  • The analysis of the probability Pud in the BSC model cannot be replaced by the analysis in the QSC model.
  • The QSC model could be a suitable alternative when a character oriented transmission is used.
  • The QSC and BSC models of a communication channel are rather abstract criteria of the linear code structure than the mathematical models, which could describe a real transmission system.
  • For the code over the GF(2m), it is possible to use the both models.
  • Without an a priori information about the transmission channel there is no reason to prefer any one from these models.
safety code assessment in qsc model
Safety Code Assessment in QSC-model

Thank You for Your attention!

20
