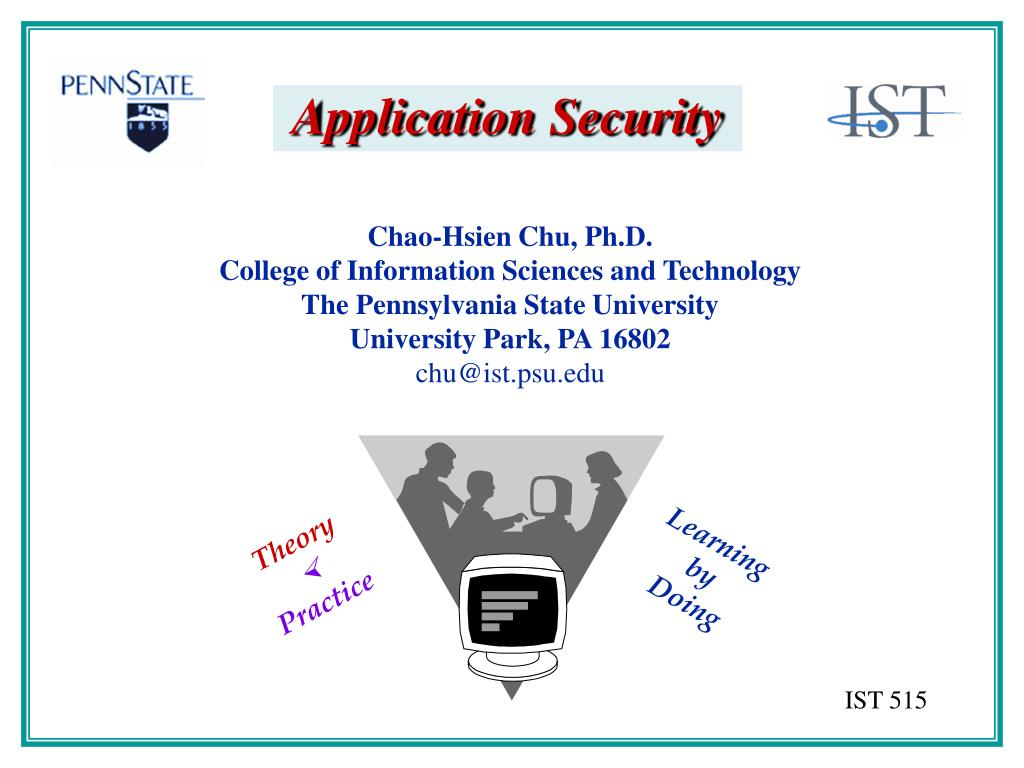

  1. Application Security Chao-Hsien Chu, Ph.D. College of Information Sciences and Technology The Pennsylvania State University University Park, PA 16802 chu@ist.psu.edu Theory  Practice Learning by Doing IST 515

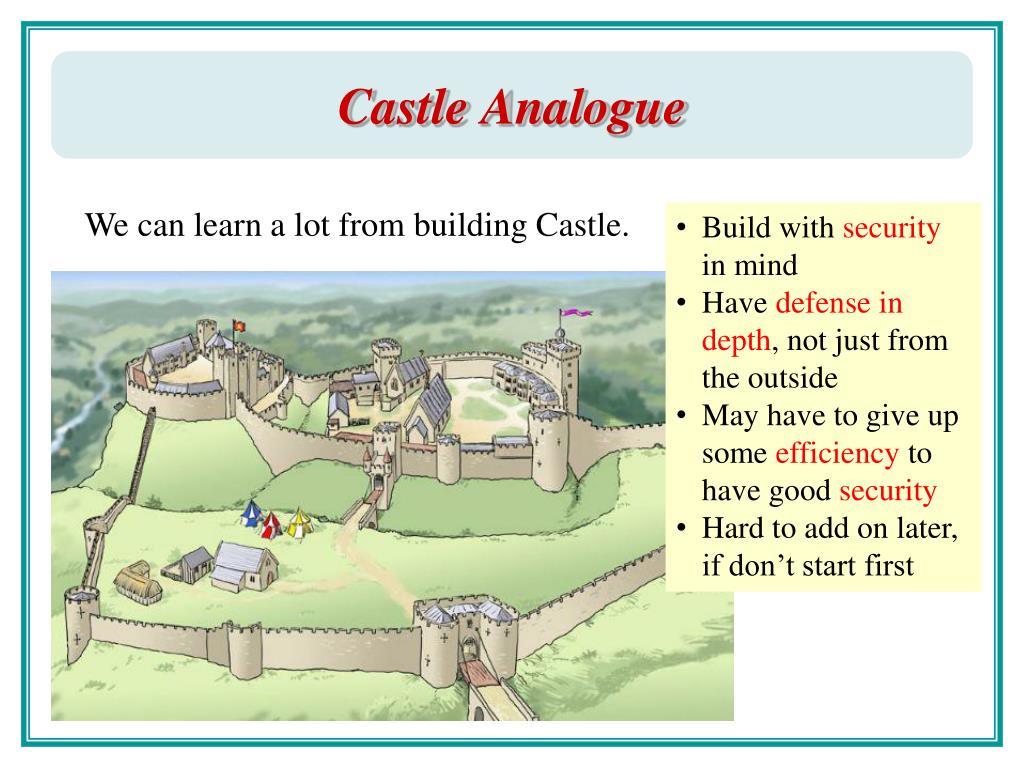

  2. Castle Analogue We can learn a lot from building Castle. • Build with security in mind • Have defense in depth, not just from the outside • May have to give up some efficiency to have good security • Hard to add on later, if don’t start first

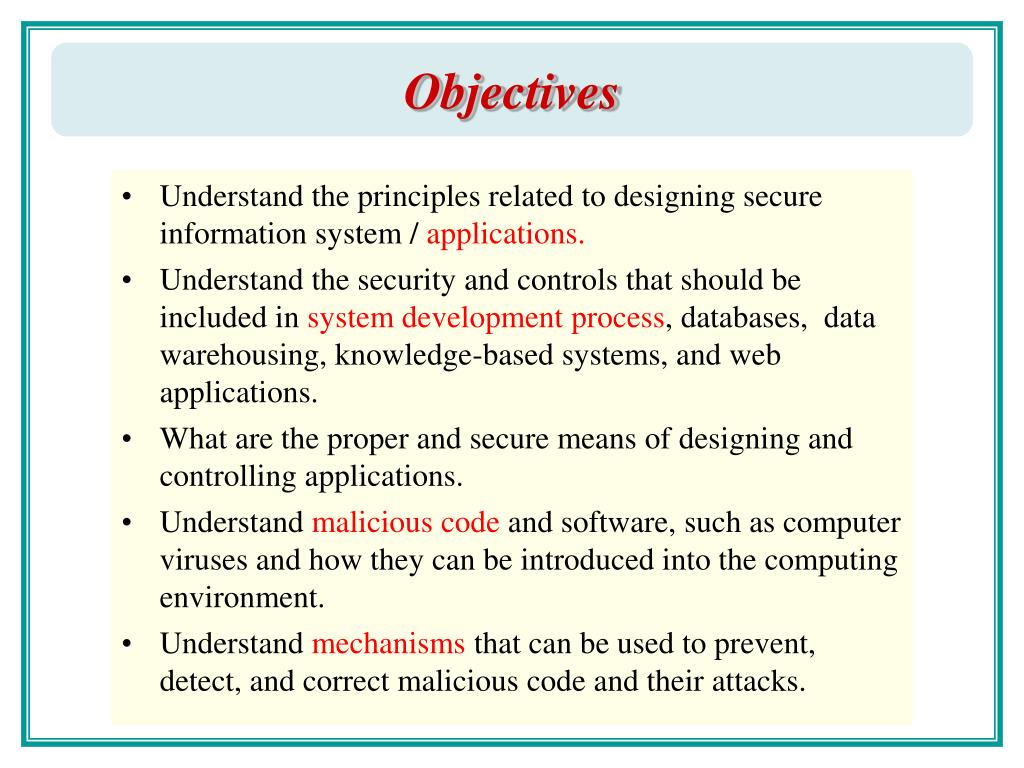

  3. Objectives • Understand the principles related to designing secure information system / applications. • Understand the security and controls that should be included in system development process, databases, data warehousing, knowledge-based systems, and web applications. • What are the proper and secure means of designing and controlling applications. • Understand malicious code and software, such as computer viruses and how they can be introduced into the computing environment. • Understand mechanisms that can be used to prevent, detect, and correct malicious code and their attacks.

  4. Readings (1) • Tipton, H. and Henry, K. (Eds.), Official (ISC)2 Guide to the CISSP CBK, Domain 8 - “Application Security,” (Required). By Robert M. Slade. Auerbach, 2007. • Amer, S. H., Humphries, J. W. and Hamilton, Jr, J. A., “Survey: Security in the System Development Life Cycle,” Proceedings of the 2005 IEEE Workshop on lnfomation Assurance and Security, United States Military Academy, West Point, NY, pp. 310-316. (Required). • Baskerville, R., “Information Systems Security Design Methods: Implications for Information Systems Development,” ACM Computing Surveys, Vol. 25, No 4, December 1993, pp. 375-414. • Wikipedia, “Application Security.” (Required) http://en.wikipedia.org/wiki/Application_security.

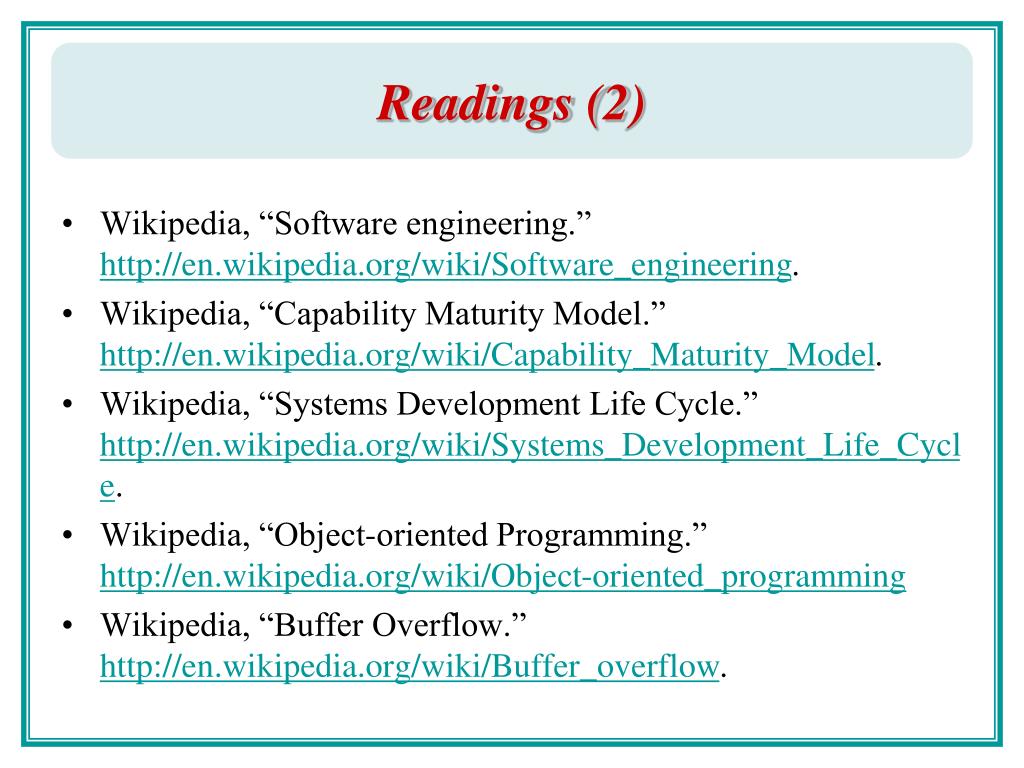

  5. Readings (2) • Wikipedia, “Software engineering.” http://en.wikipedia.org/wiki/Software_engineering. • Wikipedia, “Capability Maturity Model.” http://en.wikipedia.org/wiki/Capability_Maturity_Model. • Wikipedia, “Systems Development Life Cycle.” http://en.wikipedia.org/wiki/Systems_Development_Life_Cycle. • Wikipedia, “Object-oriented Programming.” http://en.wikipedia.org/wiki/Object-oriented_programming • Wikipedia, “Buffer Overflow.” http://en.wikipedia.org/wiki/Buffer_overflow.

  6. Readings (3) • Wikipedia, “Covert Channel.” http://en.wikipedia.org/wiki/Covert_channel. • Wikipedia, “Malware”. http://en.wikipedia.org/wiki/Malware • The Department of Homeland Security and SRI International, “The Crimeware Landscape: Malware, Phishing, Identity Theft and Beyond,” http://www.antiphishing.org/reports/APWG_CrimewareReport.pdf • Wikipedia, “Database security.” http://en.wikipedia.org/wiki/Database_security.

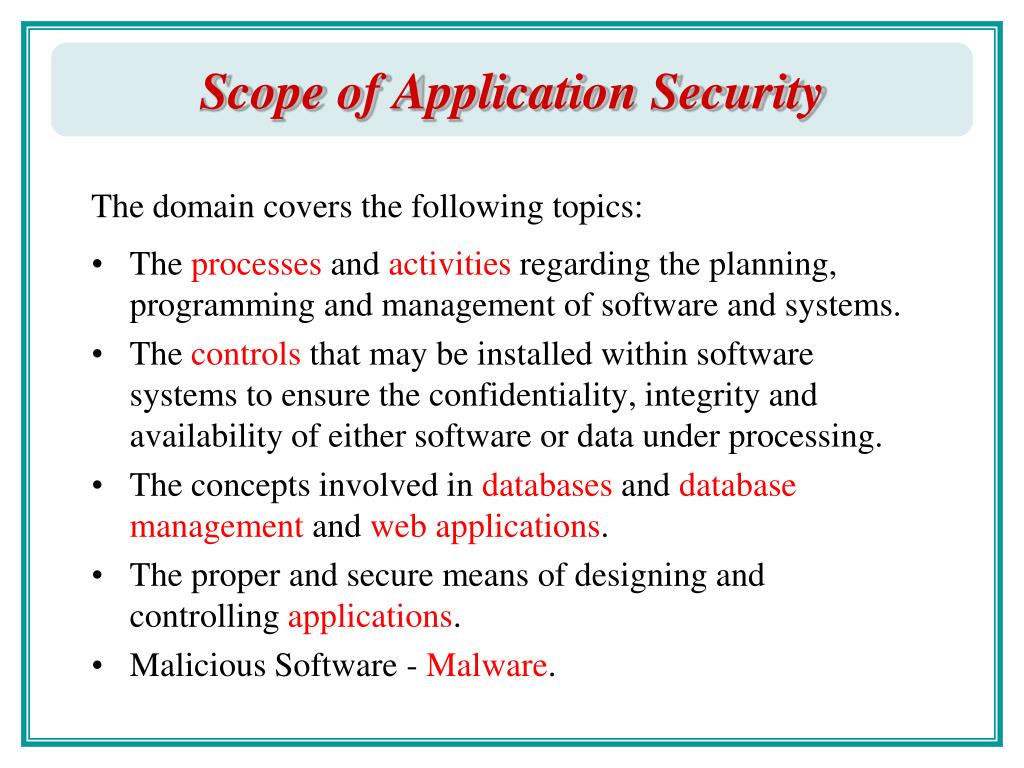

  7. Scope of Application Security The domain covers the following topics: • The processes and activities regarding the planning, programming and management of software and systems. • The controls that may be installed within software systems to ensure the confidentiality, integrity and availability of either software or data under processing. • The concepts involved in databases and database management and web applications. • The proper and secure means of designing and controlling applications. • Malicious Software - Malware.

  8. Current Situations (1) • Information security has traditionally emphasized the system level access controls, recent has focused attention on applications. • Software security is a major problem. A great many of information security incidents involve software vulnerabilities in one form or another. • Few security professionals have significant systems development or programming background. At the same time, training in programming and development tends to emphasize speed and productivity over quality, let alone considerations of security.

  9. Current Situations (2) • A troublesome characteristic of application software may affect the computing and business environment broadly. • Legacy code, as well as design decisions taken decades ago, are still involved in current systems and interact with new technologies and operations in ways that may open additional vulnerabilities. • Malware is much more than a mere nuisance: it is now a major security risk. A recent FBI computer crime survey indicated that malware accounted for a third of the total cost to business of all reported incidents.

  10. Threats to the Software Environment • Buffer Overflow. • Citizen Programmers. • Covert Channel. • Malicious Code/Malware. • Memory Reuse (Object Reuse). • Executable Content/Mobile Code. • Social Engineering. • Time of Check/Time of Use (TOC/TOU). • Trapdoor/Backdoor.

  11. Buffer Overflow Buffer overflow problem occurs when a program fills up its buffer of memory with more data than the buffer can hold. When the program begins to write beyond the end of the buffer, the program’s execution path can be changed. This can lead to the insertion of malicious code (e.g., patch the kernel) that can be used to destroy data or to gain administrative privileges on the program or machine.

  12. How a Buffer Overflow Works • A program that is the target of an attack is provided with more data than the application was intended or expected to handle. • The attacked program (target) overruns the memory allocated for input data, and writes the excess data into the system memory. • The excess data can contain machine language instructions so that when the next step is executed, the attack code, like a Trojan horse or other type of malicious code, is run.

  13. Citizen Programmers • Citizen programmers refer to the cases in which casual users are allowed access to programming languages in order to modify the software program. Visual Basic, included in the Microsoft Office suite, is often used by citizen programmers to develop their applications or extend existing ones. • Citizen programmers are unlikely to be trained in, or bound by, system development practices that involve proper application design, change control, and support for the application. Therefore, application development in such a manner is likely to be chaotic and lack any form of assurance in regard to security.

  14. Covert Channel • A covert channel or confinement problem is an information flow issue. It is a communication channel allowing two cooperating processes to transfer information in such a way that it violates the system’s security policy. • It is any flow of information -- intentional or inadvertent -- that enables an observer not authorized to have the information to infer what it is or that it exists. This is primarily a concern in systems containing highly sensitive information.

  15. Types of Covert Channels • A covert storage channel involves the direct or indirect reading of a storage location by one process and a direct or indirect reading of the same storage location by another process. Typically, a covert storage channel involves a finite resource, such as a sector on a disk that is shared by two subjects at different security levels. • A covert timing channel depends upon being able to influence the rate that some other process is able to acquire resources such as the CPU, memory, or I/O devices. The variation in rate may be used to pass signals. Timing channels are normally considerably less efficient than storage channels because they have reduced bandwidth and are usually more difficult to control.

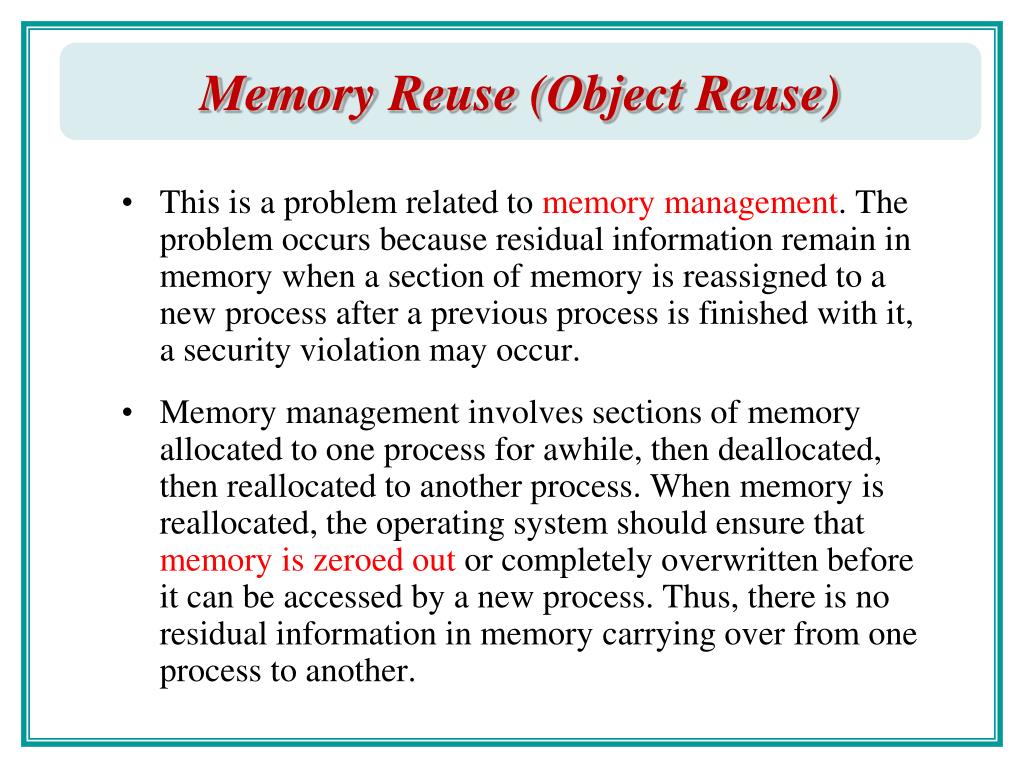

  16. Memory Reuse (Object Reuse) • This is a problem related to memory management. The problem occurs because residual information remain in memory when a section of memory is reassigned to a new process after a previous process is finished with it, a security violation may occur. • Memory management involves sections of memory allocated to one process for awhile, then deallocated, then reallocated to another process. When memory is reallocated, the operating system should ensure that memory is zeroed out or completely overwritten before it can be accessed by a new process. Thus, there is no residual information in memory carrying over from one process to another.

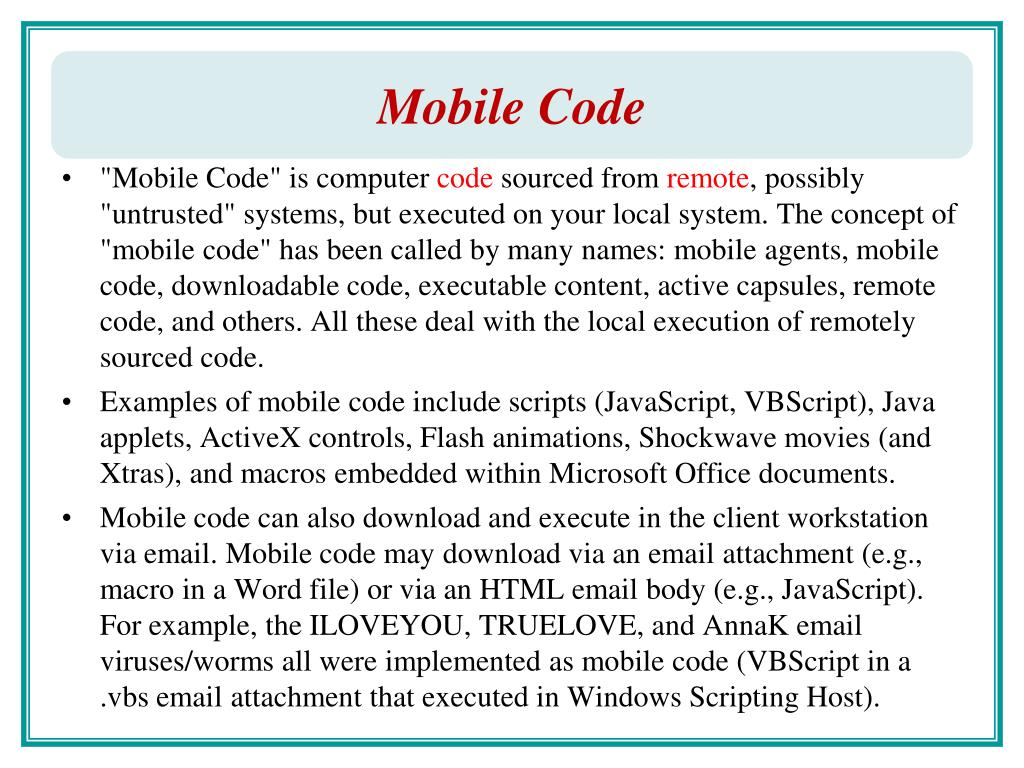

  17. Mobile Code • "Mobile Code" is computer code sourced from remote, possibly "untrusted" systems, but executed on your local system. The concept of "mobile code" has been called by many names: mobile agents, mobile code, downloadable code, executable content, active capsules, remote code, and others. All these deal with the local execution of remotely sourced code. • Examples of mobile code include scripts (JavaScript, VBScript), Java applets, ActiveX controls, Flash animations, Shockwave movies (and Xtras), and macros embedded within Microsoft Office documents. • Mobile code can also download and execute in the client workstation via email. Mobile code may download via an email attachment (e.g., macro in a Word file) or via an HTML email body (e.g., JavaScript). For example, the ILOVEYOU, TRUELOVE, and AnnaK email viruses/worms all were implemented as mobile code (VBScript in a .vbs email attachment that executed in Windows Scripting Host).

  18. Social Engineering • Social engineering is the act of manipulating a person to accomplish goals that may or may not be in the target’s best interest. This may include obtaining information, gaining access, or getting the target to take certain action. • Every time you try to get someone to do something that is in your interest, you are engaging in social engineering. From children trying to get a toy from their parents to adults trying to land a job or score the big promotion, all of it is a form of social engineering. • Due to the mystery surrounding this dark art many people are afraid of it, or they feel they will never be able to accomplish a successful social engineering test.

  19. Time of Check/Time of Use (TOC/TOU) • This is a type of asynchronous attack that occurs when some control information is changed between the time the system security functions check the contents of variables and the time the variables actually are used during operations. • For example, a user logs on to a system in the morning and is fired later in the day. As a result of the termination, the security administrator removes the user from the user database. Because the user did not log off, he or she still has access to the system and might try to disrupt operations or cause damage.

  20. Trapdoor/Backdoor (1) A trapdoor or backdoor is a hidden mechanism that bypasses access control measures. It is an entry point into a program that is inserted in software by programmers during the program’s development to provide a method of gaining access into the program for modification if the access control mechanism malfunctions and locks them out. (In this situation, it may also be called a maintenance hook.)

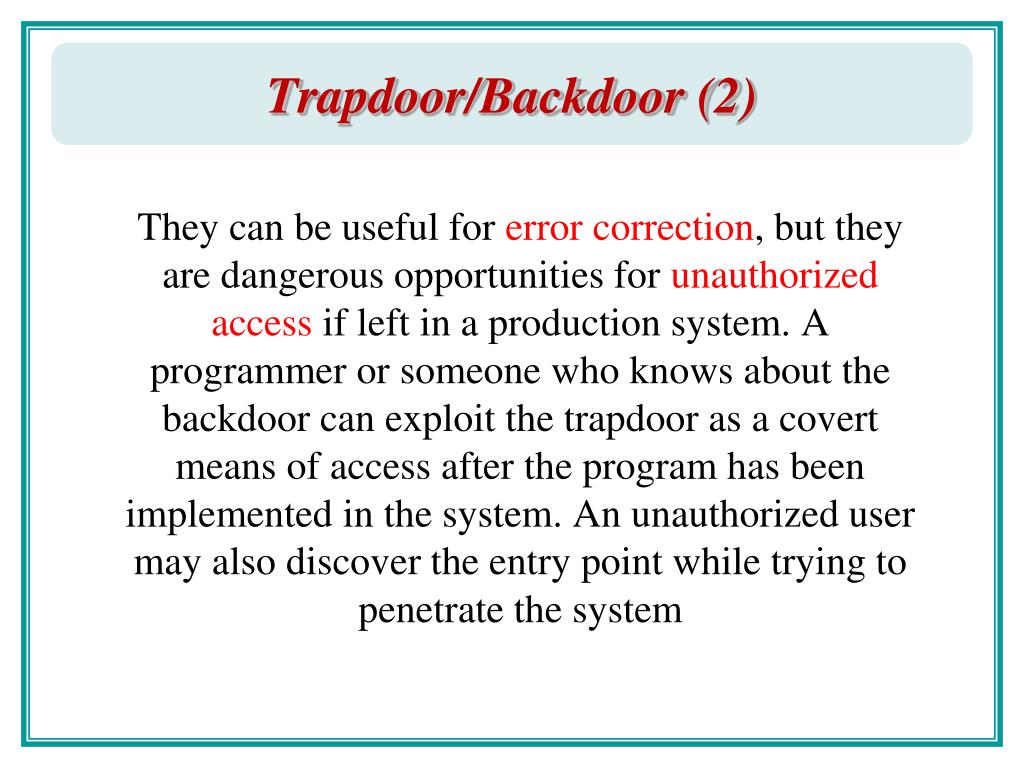

  21. Trapdoor/Backdoor (2) They can be useful for error correction, but they are dangerous opportunities for unauthorized access if left in a production system. A programmer or someone who knows about the backdoor can exploit the trapdoor as a covert means of access after the program has been implemented in the system. An unauthorized user may also discover the entry point while trying to penetrate the system

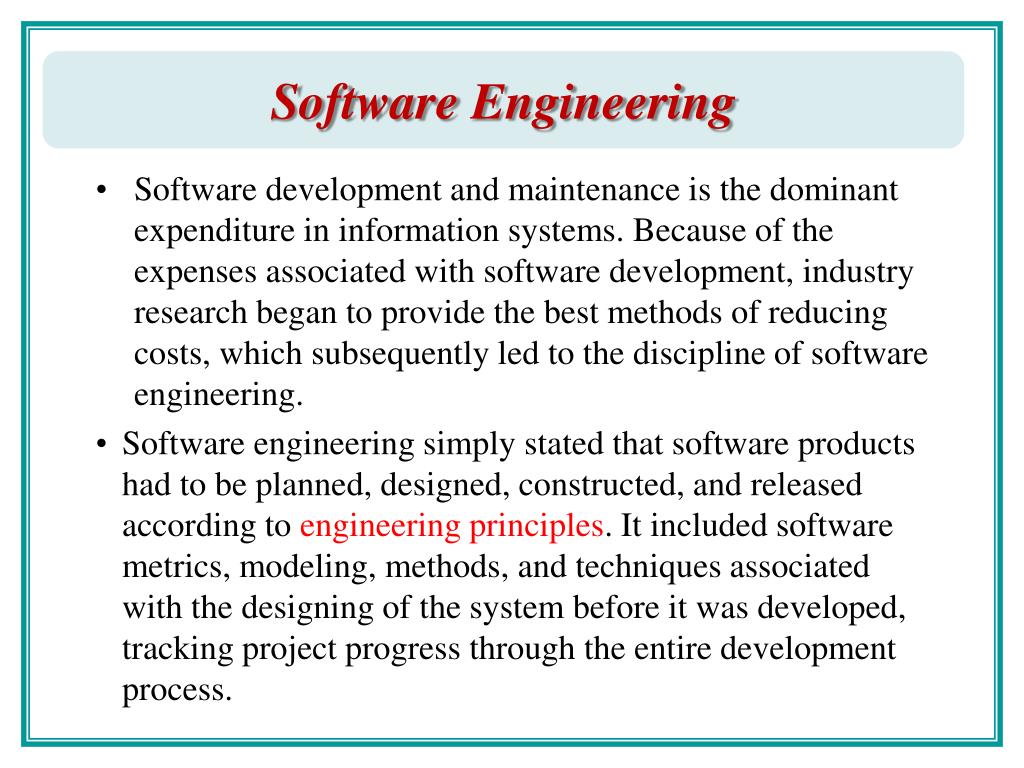

  22. Software Engineering • Software development and maintenance is the dominant expenditure in information systems. Because of the expenses associated with software development, industry research began to provide the best methods of reducing costs, which subsequently led to the discipline of software engineering. • Software engineering simply stated that software products had to be planned, designed, constructed, and released according to engineering principles. It included software metrics, modeling, methods, and techniques associated with the designing of the system before it was developed, tracking project progress through the entire development process.

  23. Software Capability Maturity Model (CMM) • Developed by Carnegie Mellon Software Engineering Institute (SEI) in 1986. • The SW-CMM framework establishes a basis for evaluation of the reliability of the development environment. • It is assumed that good practices can be repeated. If an activity is not repeated, there is no reason to improve it. • Theory suggests that the more mature the development process, the more likely it is to have more robust and security software.

  24. Software Capability Maturity Model • Organizations must commit to having policies, procedures, and practices and to using them so that the organization can perform in a consistent manner. • Practices need to be defined in such a manner as to allow for transfer across project boundaries. • Quantitative objectives are established for tasks. Measures are established, done, and maintained to form a baseline from which an assessment is possible. • Practices are continuously improved to enhance capability (optimizing).

  25. Five CMM Maturity Levels • Level 1 - Initiating - Informal processes, ad hoc development, competent people and heroics. • Level 2 - Repeatable - Project management process and practices are institutionalized. • Level 3 - Defined - Integration of technical and management processes, organizational support. • Level 4 - Managed - Product and process improvement, quantitatively controlled. • Level 5 - Optimizing - Continuous process improvement is institutionalized.

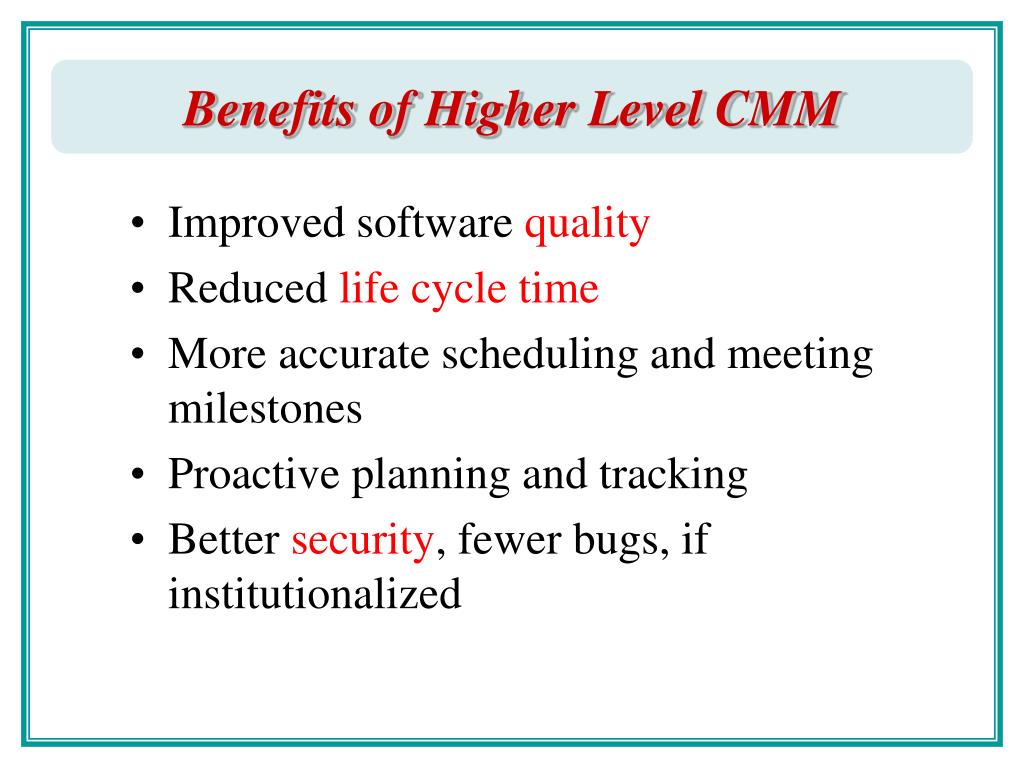

  26. Benefits of Higher Level CMM • Improved software quality • Reduced life cycle time • More accurate scheduling and meeting milestones • Proactive planning and tracking • Better security, fewer bugs, if institutionalized

  27. Software Development Phases • Project initiation and planning • Functional requirements definition • System design specifications • Build (develop) and document • Acceptance • Transition to production (installation) • Operations and maintenance support (post-installation) • Revisions and system replacement

  28. Security in Project Initiation Phase • Identify Security Needs: • Classification and criticality of • information/applications • Basic security objectives • Security controls workload Identify User Needs • Initial Risk Analysis: • Threats/Vulnerabilities/Risks • Analyze technical, operational, and economical feasibility of security alternatives • Estimate security-related costs/benefits Evaluate Alternatives • Identify Security Framework: • Essential security issues and risks • Determination of service level agreements Select/Approve Approach

  29. Notice Because of the time constraint, I will not continue to cover the remaining slides. As you can see, there are more materials that we can cover in a class lesson. If you are interested in the topic, please read the materials by yourself

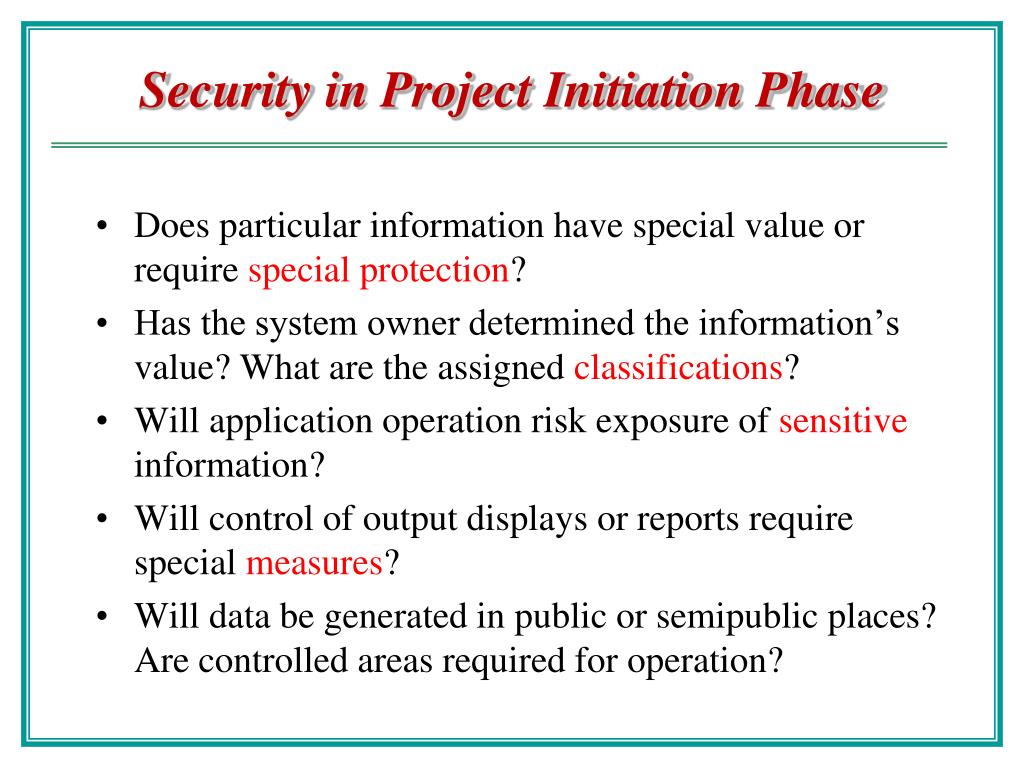

  30. Security in Project Initiation Phase • Does particular information have special value or require special protection? • Has the system owner determined the information’s value? What are the assigned classifications? • Will application operation risk exposure of sensitive information? • Will control of output displays or reports require special measures? • Will data be generated in public or semipublic places? Are controlled areas required for operation?

  31. Security in Functional Requirements Phase • Security Areas in Project Plan: • Configuration and access controls • Audit trails Prepare Project Plan • Define Security Requirements: • Tied into the risk analysis and contingency plan • Threats, vulnerabilities, risks • Security control points • Preliminary contingency planning Develop Functional Requirements • Preliminary Security Test Plan: • Test methods and resources • Identify evaluation criteria and controls to be tested Preliminary Test Plan • Include Security Requirements in RFP and Contracts: • Ensure service level agreement and maintenance contracts meet security • Hardware and software backups and escrow Select Acquisition Strategy Establish Formal Functional Baseline Functional Baseline Has Security Requirements

  32. Security in Design Phase • Define Security Specifications : • System/subsystem/interface • Program/database/hardware and firmware/ network Develop Detailed Design • Update Security Test Plan : • Develop security test procedure • Test security under abnormal and illegal circumstances Update Testing Goals and Plans Establish Formal Baseline/quality Controls and Requirements Include security area in formal baseline documentation and quality assurances

  33. Security in Deployment Phase • Write or procure and install security-related code: • Control access to code • Identify/document code Construct Source Code From Detailed Design Specifications Perform unit tests and evaluate security-related code Perform and Evaluate Unit Tests Implement Detailed Design into Final System Ensure approved security components in formal baseline are included

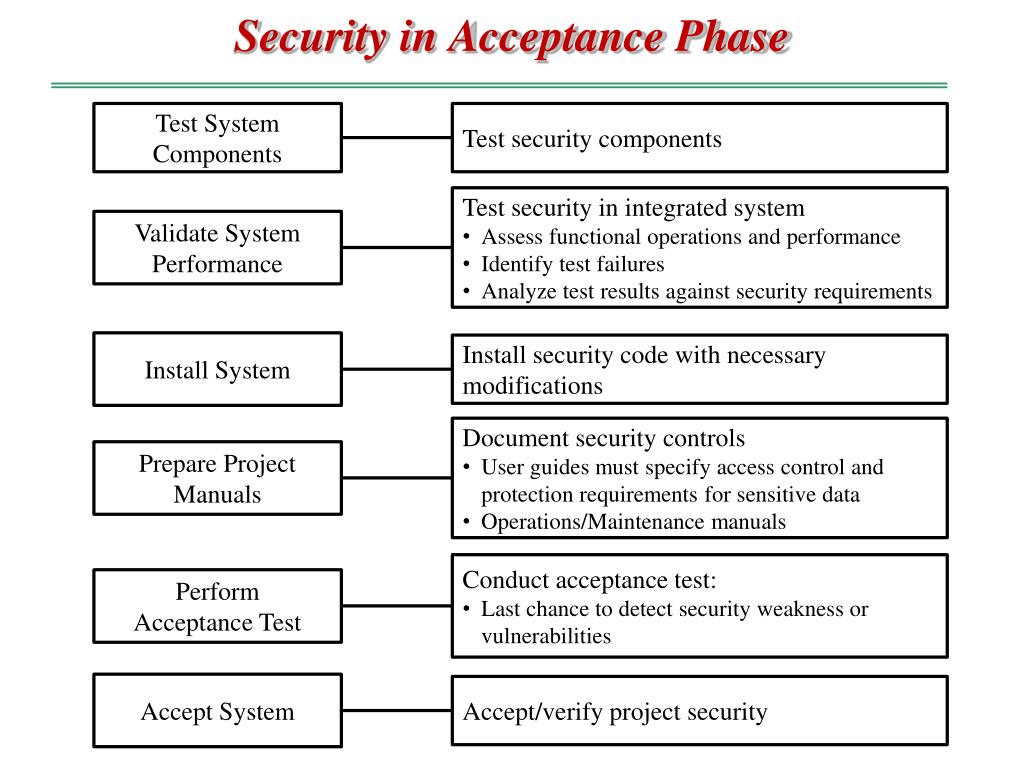

  34. Security in Acceptance Phase Test System Components Test security components • Test security in integrated system • Assess functional operations and performance • Identify test failures • Analyze test results against security requirements Validate System Performance Install System Install security code with necessary modifications • Document security controls • User guides must specify access control and protection requirements for sensitive data • Operations/Maintenance manuals Prepare Project Manuals • Conduct acceptance test: • Last chance to detect security weakness or vulnerabilities Perform Acceptance Test Accept System Accept/verify project security

  35. System Development Methods • Waterfall Models: • - Structured programming development (SDM). • - Spiral Model. • - Cleanroom • Iterative Development: • - Prototyping. • - Modified Prototype Model (MPM). • - Rapid Application Development (RAD). • - Joint Analysis Development (JAD). • - Exploratory Model.

  36. System Development Methods • Other Methods and Models: - Computer-aided Software Engineering (CASE). - Component-based Development. - Reuse Model. - Extreme Programming.

  37. Waterfall Model • The waterfall method is the oldest method for developing software systems. • Each phase contains a list of activities that must be performed and documented before the next phase begins. • The disadvantage of the model is that it demands a heavy overhead in planning and administration, and requires patience in the early stages of a project. Also, because each phase must be completed before the next, it can inhibit a development team from pursuing concurrent phases or activities.

  38. Waterfall Model • Usually, this method is not good for projects that must be developed in quick turnaround time periods (generally less than six months). • The waterfall model is considered to be the paradigm for the styles known as noniterative models. • From the perspective of security, noniterative models are preferred for systems development.

  39. Waterfall Method SDLC • System requirements (Validation) • Software requirements (Validation) • Analysis (Verification) • Program design (Verification) • Coding (Unit test) • Product Integration (Verification) • Implementation (System test) • Operations & maintenance (Revalidation)

  40. Spiral Model • Progress – Angular dimension • Cost – Radial dimension • Plans – Lower left quadrant • Objectives, means and constrains - Upper left quadrant • Prototyping, modeling and simulations – Upper right quadrant • Final development stages - Lower right quadrant

  41. Threats to the Software Environment • Buffer Overflow. • Citizen Programmers. • Covert Channel. • Malicious Code/Malware. • Memory Reuse (Object Reuse). • Executable Content/Mobile Code. • Social Engineering. • Time of Check/Time of Use (TOC/TOU). • Trapdoor/Backdoor.

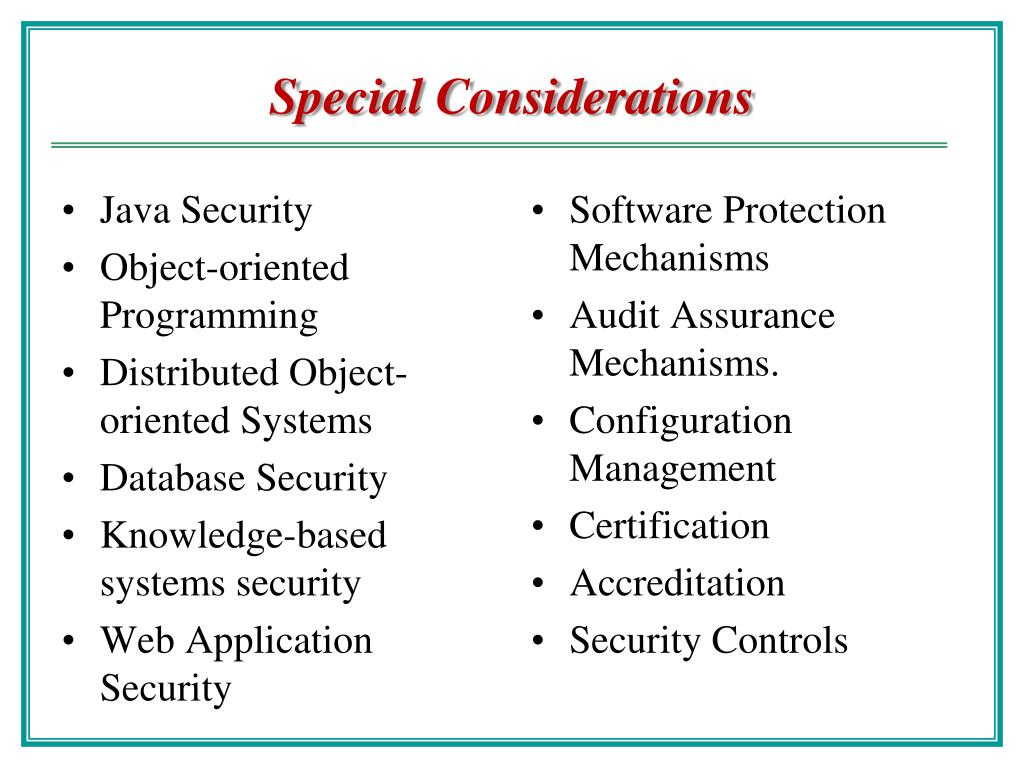

  42. Special Considerations • Java Security • Object-oriented Programming • Distributed Object-oriented Systems • Database Security • Knowledge-based systems security • Web Application Security • Software Protection Mechanisms • Audit Assurance Mechanisms. • Configuration Management • Certification • Accreditation • Security Controls

  43. Java Security (1) • The Java programming language implements some specific security provisions. • Verifier (or interpreter), which helps to ensure type safety. It is primarily responsible for memory and bounds checking. • Class loader, which loads and unloads classes dynamically from the Java runtime environment. • Security manager, which acts as a security gatekeeper protecting against rogue functionality.

  44. Java Security (2) • Java Certification Path API for building and validating certification paths and managing certificate revocation lists. • Java GSS-API for securely exchanging messages between communication applications using Kerberos. Support for single sign-on using Kerberos is also included. • Java Authentication and Authorization Service (JASS), which enables services to authenticate and enforce access controls upon users.

  45. Java Security (3) • Java Cryptography Extension (JCE) provides a framework and implementation for encryption, key generation, and key agreement, and message authentication code (MAC) algorithms. • Java Secure Socket Extension (JSSE) enables secure Internet connections. It implements a Java version of the Secure Socket Layer (SSL) and Transport Layer Security (TLS) protocols and includes functionality for data encryption, server authentication, message integrity, and optional client authentication.

  46. Object Oriented Programming • OOP is a programming method that makes a self-sufficient object. • The object is a block of preassembled programming code in a self-contained module. • The module encapsulates both data and the processing instructions that may be called to process the data. Once a block of programming code is written, it can be reused in any number of programs.

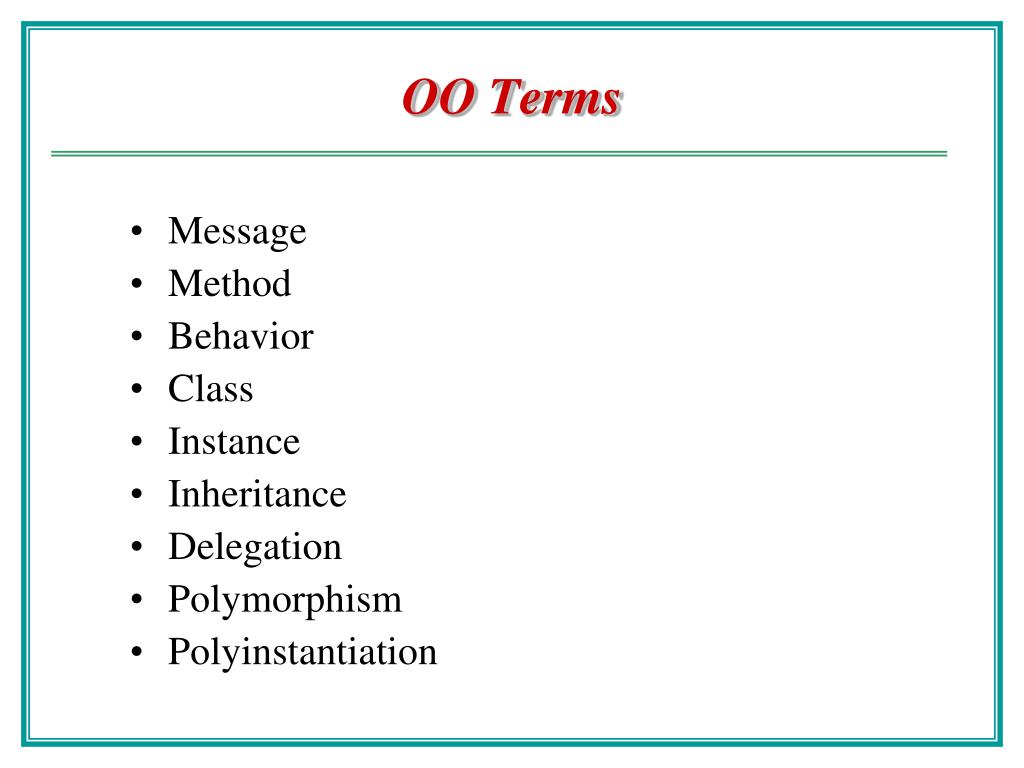

  47. OO Terms • Message • Method • Behavior • Class • Instance • Inheritance • Delegation • Polymorphism • Polyinstantiation

  48. Object-Oriented Security (1) • In object-oriented systems, objects are encapsulated. Encapsulation protects the object by denying access to view what is located inside the object. • Encapsulation of the object does provide protection of private data from outside access. For security purposes, no object should be able to access another object’s internal data. • On the other hand, it could be difficult for system administrators to apply the proper policies to an object if they cannot identify what the object contains.

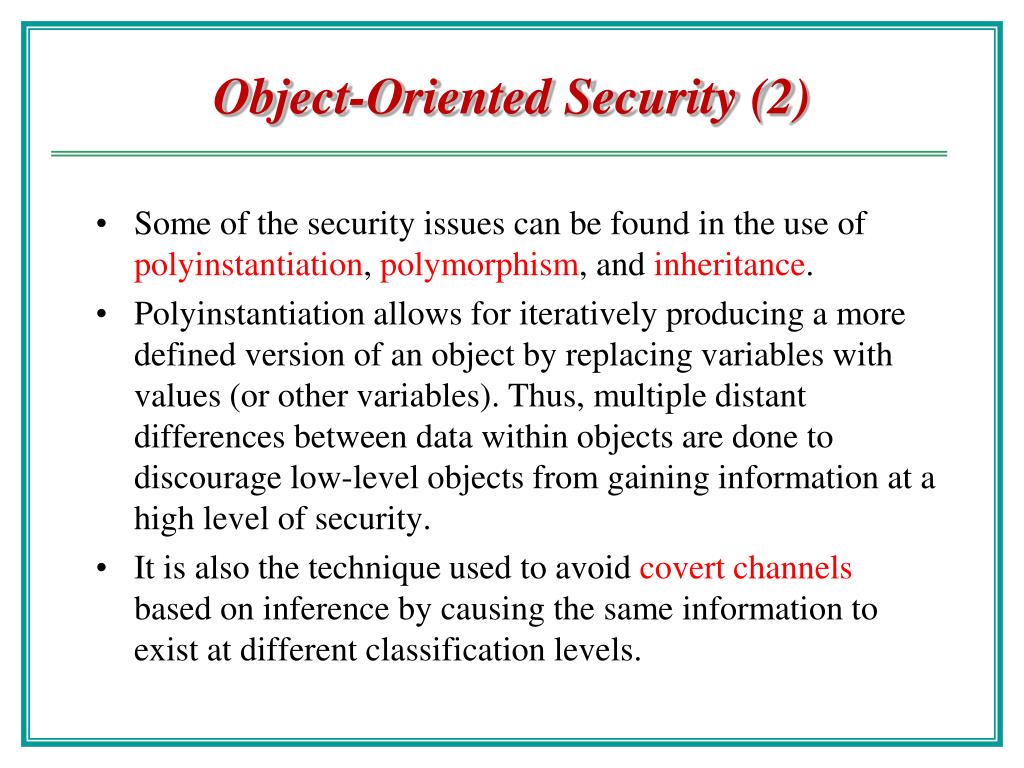

  49. Object-Oriented Security (2) • Some of the security issues can be found in the use of polyinstantiation, polymorphism, and inheritance. • Polyinstantiation allows for iteratively producing a more defined version of an object by replacing variables with values (or other variables). Thus, multiple distant differences between data within objects are done to discourage low-level objects from gaining information at a high level of security. • It is also the technique used to avoid covert channels based on inference by causing the same information to exist at different classification levels.
