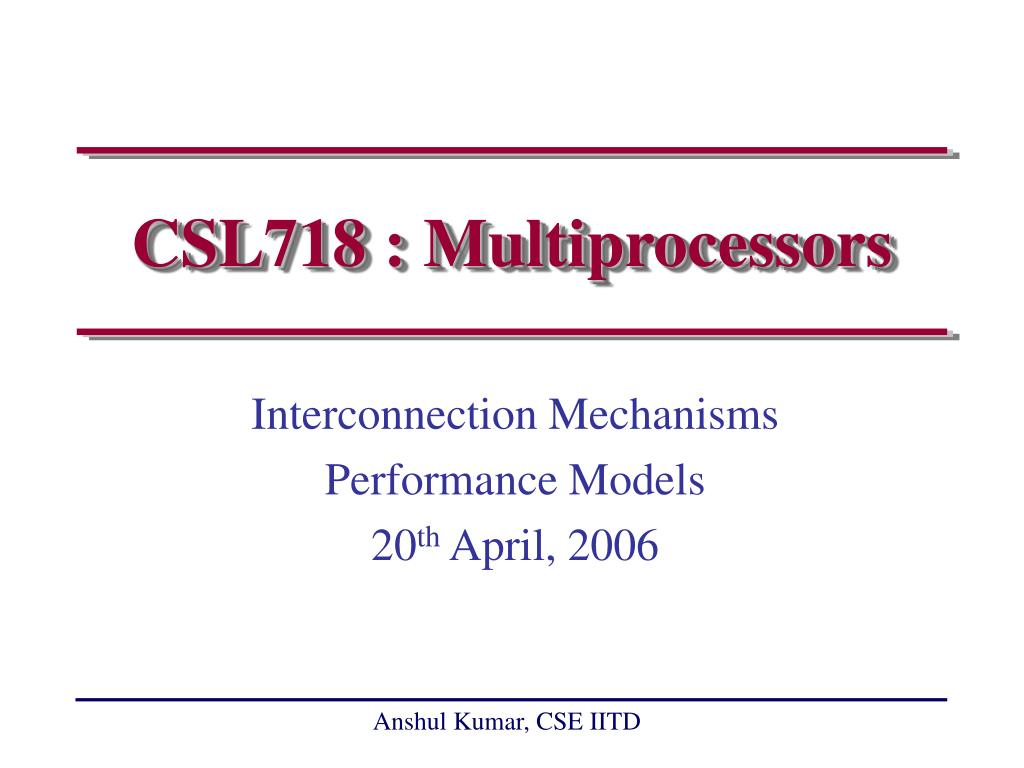

  1. CSL718 : Multiprocessors Interconnection Mechanisms Performance Models 20th April, 2006 Anshul Kumar, CSE IITD

  2. M M M M M M M M P P P P P P P P Interconnection Network Interconnection Network M M M M M M Global Interconnection Network M M M Connecting Processors and Memories • Shared Buses • Interconnection Networks • Static Networks • Dynamic Networks Anshul Kumar, CSE IITD

  3. Shared Bus each processor sees this picture: processing bus access prob of a processor using the bus =  prob of a processor not using the bus = 1 –  prob of none of the n processors using the bus= (1 – )n prob of at least one processor using the bus = 1 – (1 – )n achieved BW on a relative scale = 1 – (1 – )n required BW = n available BW = 1 Anshul Kumar, CSE IITD

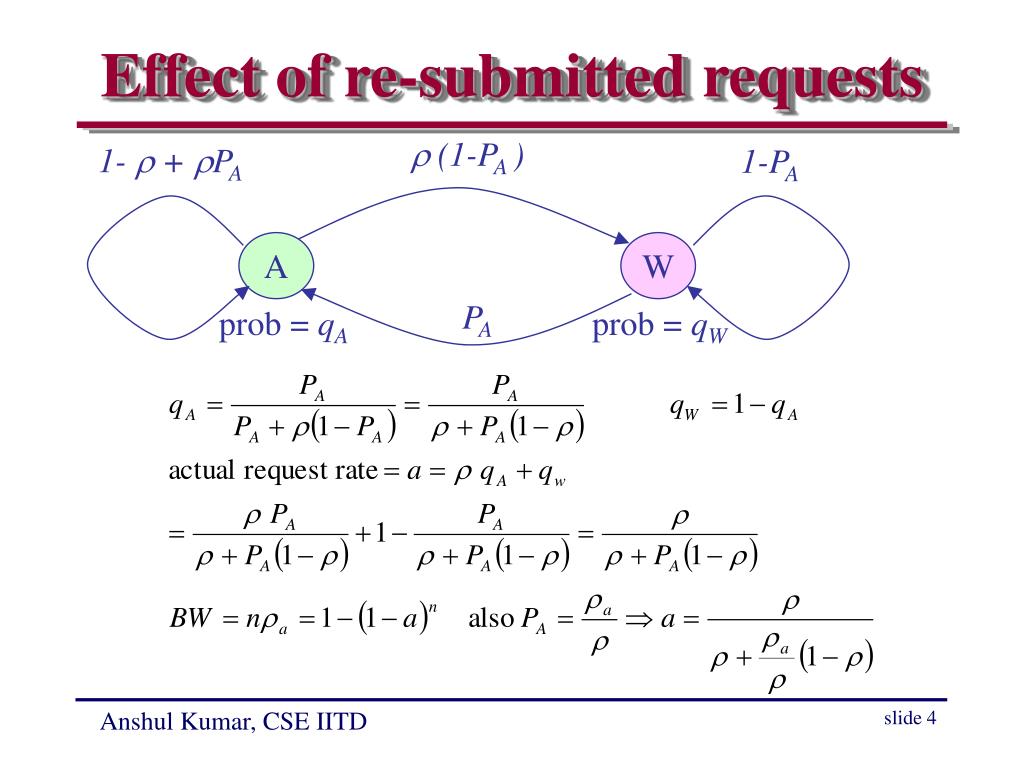

  4. Effect of re-submitted requests  (1-PA ) 1-  + PA 1-PA A W PA prob = qA prob = qW Anshul Kumar, CSE IITD

  5. Waiting time Anshul Kumar, CSE IITD

  6. BUS Shared media Lower Cost Lower throughput Scalability poor Switched Network Switched paths Higher cost Higher throughput Scalability better Switched Networks Anshul Kumar, CSE IITD

  7. Interconnection Networks • Topology : who is connected to whom • Direct / Indirect : where is switching done • Static / Dynamic : when is switching done • Circuit switching / packet switching : how are connections established • Store & forward / worm hole routing : how is the path determined • Centralized / distributed :how is switching controlled • Synchronous/asynchronous : mode of operation Anshul Kumar, CSE IITD

  8. P M P M P M P M Direct and Indirect Networks link node node P M S node P M S link node SWITCH link link link link link node node S M P node S M P link node DIRECT INDIRECT Anshul Kumar, CSE IITD

  9. Static and Dynamic Networks • Static Networks • fixed point to point connections • usually direct • each node pair may not have a direct connection • routing through nodes • Dynamic Networks • connections established as per need • usually indirect • path can be established between any pair of nodes • routing through switches Anshul Kumar, CSE IITD

  10. Static Network Topologies Non-uniform connectivity 2D-Mesh Linear Tree Star Anshul Kumar, CSE IITD

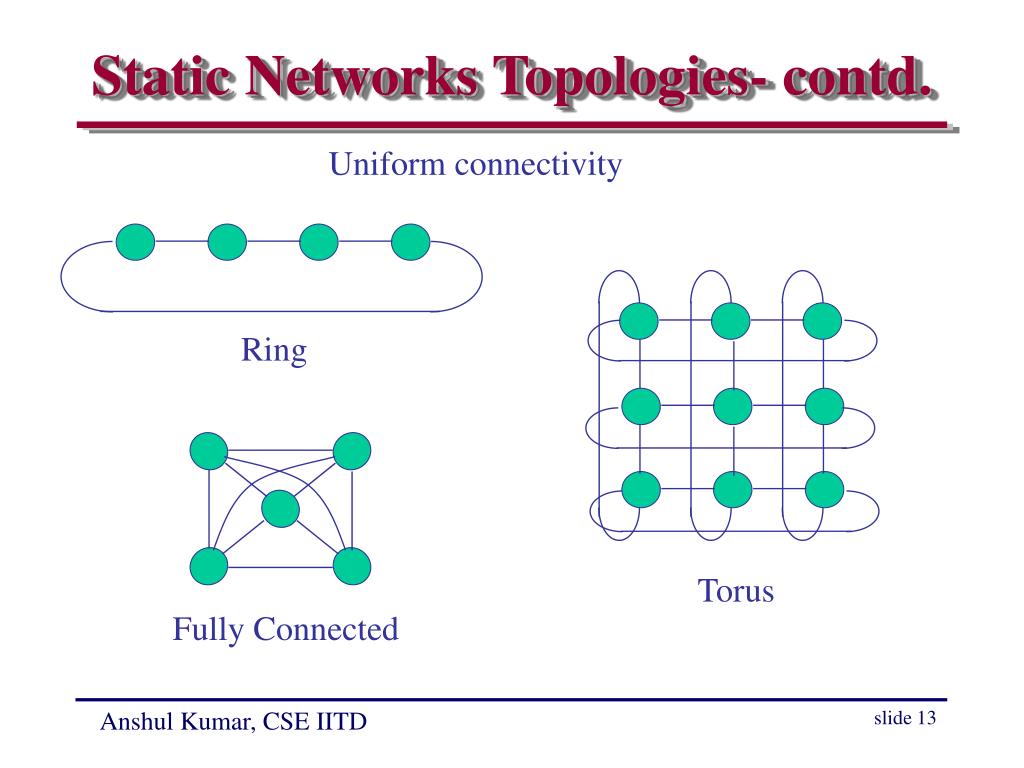

  11. Static Networks Topologies- contd. Uniform connectivity Ring Torus Fully Connected Anshul Kumar, CSE IITD

  12. Illiac IV Mesh Network 0 0 1 2 8 1 3 4 5 7 2 6 7 8 6 3 5 4 neighbors of node r : (r  1) mod 9 and (r  3) mod 9 Chordal Ring Anshul Kumar, CSE IITD

  13. Fat Tree Network Anshul Kumar, CSE IITD

  14. Dynamic Networks k  k cross -bar switch building block for multi-stage dynamic networks simplest cross-bar 2  2 switch straight exchange upper broadcast lower broadcast Anshul Kumar, CSE IITD

  15. Baseline Network 000 000 001 001 010 010 011 011 100 100 101 101 110 110 111 111 blocking can occur Anshul Kumar, CSE IITD

  16. Benes Network non-blocking Anshul Kumar, CSE IITD

  17. Switching Mechanism • Circuit Switching (connection oriented communication) • A circuit is established between the source and the destination • Packet Switching (connectionless communication) • Information is divided into packets and each packet is sent independently from node to node Anshul Kumar, CSE IITD

  18. Routing in Networks node outgoing message incoming message header payload/data store & forward routing time worm hole routing Anshul Kumar, CSE IITD

  19. Routing in presence of congestion • Worm hole routing • When message header is blocked, many links get blocked with the message • Solution: cut-through routing • When message header is blocked, tail is allowed to move, compressing the message into a single node Anshul Kumar, CSE IITD

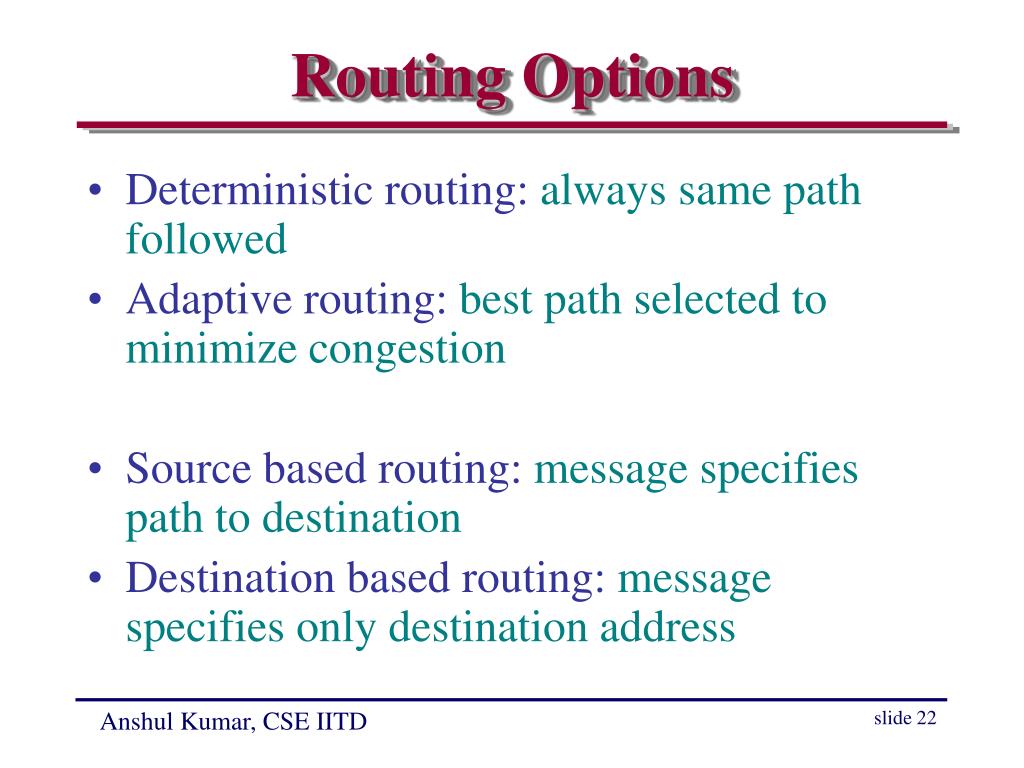

  20. Routing Options • Deterministic routing: always same path followed • Adaptive routing: best path selected to minimize congestion • Source based routing: message specifies path to destination • Destination based routing: message specifies only destination address Anshul Kumar, CSE IITD

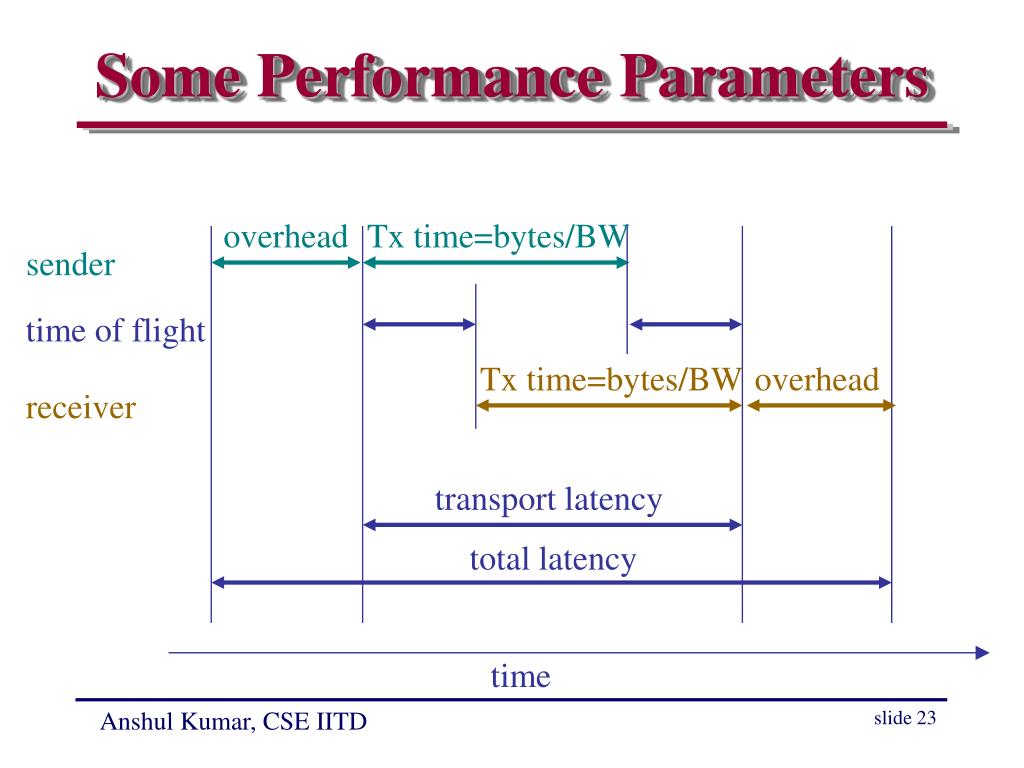

  21. Some Performance Parameters overhead Tx time=bytes/BW sender time of flight Tx time=bytes/BW overhead receiver transport latency total latency time Anshul Kumar, CSE IITD

  22. Other Parameters • Throughput  Bandwidth (no credit for header) • Bisection bandwidth = BW across a bisection • Node degree • Network Diameter • Cost • Fault Tolerance Anshul Kumar, CSE IITD

  23. Multidimensional Grid/Mesh Size =kk …. k (n times) = k n Diameter = (k-1) n without end around connections = kn /2 with end around connections k-ary n-cube for (Binary) Hypercube : k = 2 Anshul Kumar, CSE IITD

  24. Grid/Mesh Performance - 1 kd Anshul Kumar, CSE IITD

  25. Grid/Mesh Performance - 2 Anshul Kumar, CSE IITD

  26. Grid/Mesh Performance - 3 k-ary n-cube Anshul Kumar, CSE IITD

  27. Switch Performance k  m cross -bar switch Anshul Kumar, CSE IITD

  28. Switch Performance – contd. Anshul Kumar, CSE IITD

  29. Switch Performance – contd. Anshul Kumar, CSE IITD

  30. Effect of re-submitted requests Anshul Kumar, CSE IITD

  31. Effect of buffering There are two possibilities • Buffering before switching (k buffers, one at each input port) • Buffering after switching (m buffers, one at each output port) Anshul Kumar, CSE IITD

  32. Switch with input buffers Rate of messages at input and output of each queue is same in steady state - r per cycle Service time includes delays due to conflicts, calculated as earlier. This has an exponential distribution – recall the analysis for a shared bus. M/M/1 open queue model can be used to calculate queuing delay. Details are omitted. Anshul Kumar, CSE IITD

  33. Switch with output buffers Here we assume that all the messages destined for same output are queued in the same buffer, in some order. That is no rejections and no re-submissions. For each queue, Messages arriving per service cycle =  = Prob of a request coming from one of the k sources = p = Apply MB/D/1 model for finding queuing delay Tw Anshul Kumar, CSE IITD
