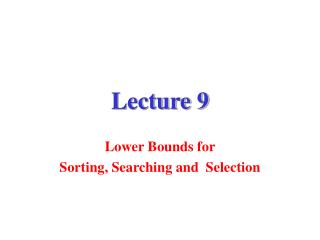

Lecture 9

1. Lecture 9 Lower Bounds for Sorting, Searching and Selection

2. Plan • Finish Heaps • Lower Bounds • Selection (Find Min): adversary arguments • Sorting: information theory lower bound for comparison based algorithms • Searching: ITLB

3. Finish Heaps Building a heap from an array, in O(n) time

4. Number of vertices at height h 3 2 1 0 n/2h+1

5. Finish Heaps • Building a heap from an array, in O(n) time • Idea: • The leaves are already heaps. • Joining two adjacent (sub) heaps with a common root, it suffices to heapify (trickle down from the root). It takes O(h) time (h = distance from the local root to the leaves), for at most n/2h+1 nodes on that level. • Total time: S n h/2h+1 = O(n), because S h/2h <2

6. Recap • Linear Time Algorithms: • Compute Sum, Product of n numbers • Find Min/Max of n numbers • Merge 2 arrays of n elements (total) • Partition an array into 2 around a pivot • O(n log n) Time Algorithms for sorting: • Merge Sort • Heap Sort • Quick Sort (on average) • O(log n) Time algorithms: • Binary search

7. Lower Bounds • Can we do better? Why not? • Lower bounds prove that we cannot hope for a better algorithm, no matter how smart we are. • Only very few lower bound proofs are known • Most notorious open problems in Theoretical Computer Science are related to proving lower bounds for very important problems • Reading: Ch. 13 textbook

8. Input Lower Bound • Compute the sum of n numbers: all numbers must be looked at, otherwise the answer might not be correct • Adversary argument: assume there is a smart algorithm which computes the sum without looking at all the n inputs. An adversary goes and modifies the input not looked at, then run the algorithm again. It should give the same answer (because it didn’t look at the modified input data), but this is not the correct answer.

9. Hmmm… Yes! Is a7 < a9? Adversary Arguments Mr. Algorithm: thinks he has a fast way of solving the problem Ms. Adversary: forces algorithm to work hard by given the worst possible answer

10. This was the input 4 3 5 2 6 Now try again Adversary Arguments The answer is 3

11. Wrong! The input was 4 7 5 2 6 this time! Adversary Arguments The answer is 3 If some questions were not asked, the Adversary tricks the poor Algorithm to try again, on a different input data, with the same answers to the same questions but with a different correct final answer….

12. a1=10 No. a2=3 a3=7 No. a4=6 Yes. a5=5 Adversary Argument for FindMin: need n-1 questions Is a1 < a2? Is a3 < a4? Is a4 > a5? Minimum is a5! Wrong! It is a2!

13. a1 a1 a3 a3 a2 a2 a4 a4 a5 a5 a6 a6 If less than n-1 questions, the graph of comparisons is disconnected The adversary can re-arrange the data so that the answer is different

14. ? Yes No Binary Decision Trees Model algorithms based on successive answers to yes/no questions

15. ? ? ? Yes Yes Yes No No No Answer 1 Answer 2 Answer 3 Answer 4

16. Worst case time: depth of tree • A binary tree of depth h has < 2h leaves • A binary tree with N leaves must have depth at least log2N • This gives a lower bound on the worst case time to find an answer • If the number of possible answers is N, then the algorithm MUST ask at least log N questions

17. Lower Bound for Sorting • Number of possible sorted orders = number of all possible permutations of n elements = n! • Hence any comparison-based algorithm for sorting must take at least log n! = O(n log n) time

18. Lower Bound for Searching In-class exercise How many possible answers for the searching question? What is the log of that? What is the lower bound for searching?
