  1. Laser system for LCGT Norikatsu Mio* and Noriaki Ohmae* and the LCGT collaboration *Department of Advanced Materials Science, University of Tokyo 58th Fujihara seminar

  2. Outline • Power requirement for laser system of LCGT • Design of the laser system • Development of the prototype system • Injection locked laser • Stabilization system • Summary 58th Fujihara seminar

  3. 50 % Power requirement for laser system of LCGT 150 W 75 W 780 W Laser G=11 58th Fujihara seminar

  4. Laser system of LCGT 58th Fujihara seminar

  5. Design concept • Injection-locked laser: Clean and Stable optical mode • Power amplifier: Easy operation, possible expansion for higher power operation • Frequency control element • Intensity control element 58th Fujihara seminar

  6. Injection locked laser • Master laser：２-W NPRO • Innolight Mephisto • Slave：100-W ring laser • Laser module：Mitsubishi • Resonator and Controller：U-Tokyo 58th Fujihara seminar

  7. Laser module （Mitsubishi） Diffusive reflector +LD Two rods and rotator 58th Fujihara seminar

  8. 100-W Injection locked laser Innolight NPRO Mephisto 2000NE EOM 2W 2W FI FI lens 100W 85%,0.2mCX HR HR HR HR PD 100W HR,0.2mCX Piezoelectric transducer Quartz rotator Nd:YAG rod(Side-pumped) f=4mm, L=70mm Slave Laser • 100 W • Continuous wave(cw) • Single frequency • Dn ~ 1kHz • M2 ~ 1.1 • Linear polarization 58th Fujihara seminar

  9. Output power of the slave laser • １２１W by bidirectional oscillation M 2～1.1 58th Fujihara seminar

  10. Realization of single frequency oscillation • Scanning Fabry-Perot output Free 100-W Single Frequency oscillation by injection locking Injection Locking 58th Fujihara seminar

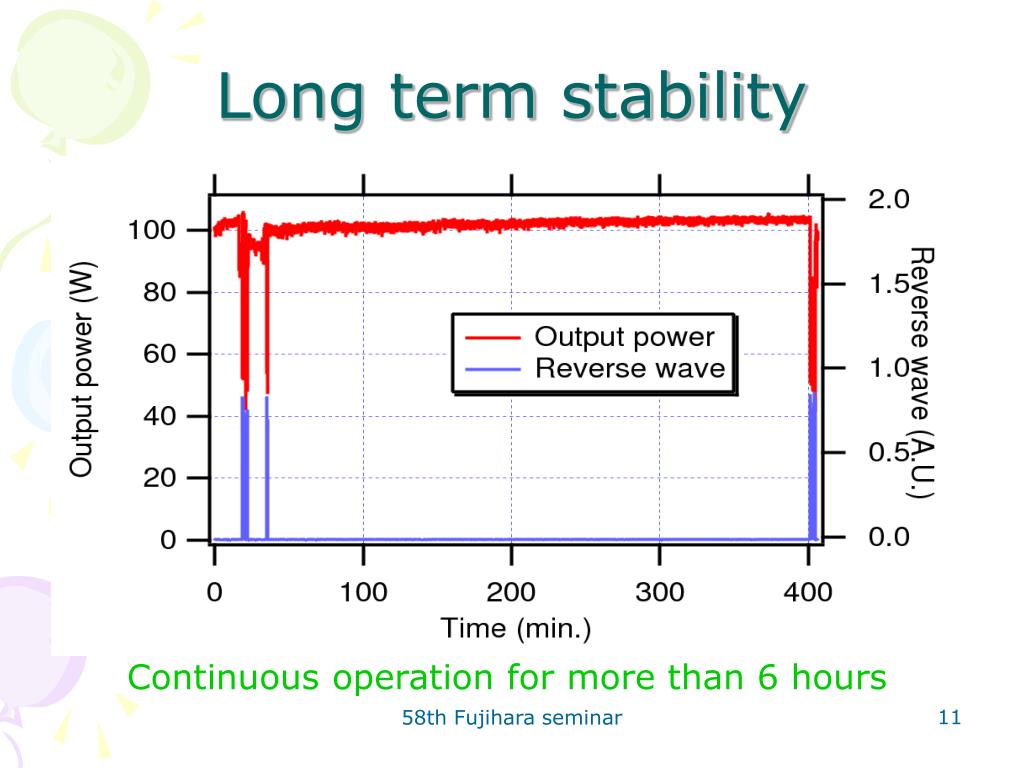

  11. Long term stability Continuous operation for more than 6 hours 58th Fujihara seminar

  12. Frequency stabilization Pound-Drever-Hall technique To crystal temperature To piezoelectric transducer Mixer Reference cavity EOM Old EOM (RTA) Special EOM (Stoichiometric LiNbO3) 0.1W OSC 100W Wideband EOM (Stoichiometric LiNbO3) 100-W injection-locked Nd:YAG laser 58th Fujihara seminar

  13. Bode plot of frequency control 330dB at 100Hz 170dB at 1kHz Piezo loop EOM loop “Wideband (UGF=100 kHz)” and “high-gain (170dB at 1 kHz)” control 58th Fujihara seminar

  14. Opt-coupler Separate high current circuit and small control signal circuit Intensity stabilization using a current shunt • Current Shunt control 58th Fujihara seminar

  15. Transfer function and noise suppression Transfer function of Amplifier Noise spectrum UFG=30 kHz 58th Fujihara seminar

  16. Summary • Basic components for the LCGT laser have been completed. • 100-W single frequency operation has been achieved. • Wide range frequency and intensity control have been done. For a real interferometer, the laser must work for 24 hours a day, 365 days a year Further engineering work is necessary 58th Fujihara seminar

  17. Thank you very much 58th Fujihara seminar

  18. Frequency reference （P-polarization） • Ring resonator • Superinvar spacer • Tunable with PZT • FSR = 714MHz • Finesse~ 2900 （S) ~ 220 （P） • Linewidth（S） ~ 250 kHz • Transmission~ 80% 58th Fujihara seminar
