High Speed UAV Team

This presentation provides an update on the progress of the High-Speed UAV team, including the current schedule and status of critical function prototypes (CFPs). Key highlights include the completion timeline for the carbon fiber shell and airframe, developments in funding with potential donor commitments, and analysis results from wind tunnel tests. Insights into lessons learned from utilizing carbon fiber techniques and CNC methods are also shared. The team aims to advance UAV construction methodologies while addressing critical prototype needs.

sally
Download Presentation

High Speed UAV Team

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. High Speed UAV Team 4th Update Presentation

  2. Introduction • Schedule and Status – Brad • Critical Function Prototypes (CFPs) – Brian • Conclusion - Steve

  3. Schedule/Status • Carbon Fiber Shell • Lay up re-attempted: Behind Schedule • Complete Shell: Mid December • ½ Scale CNC Model • Wing Section Successful • Complete Airframe: Mid December

  4. Schedule/Status • Funding • Potential Donor • Commitment by End of the Year • Fluent Analysis Complete • Parameters • Results Analyzed

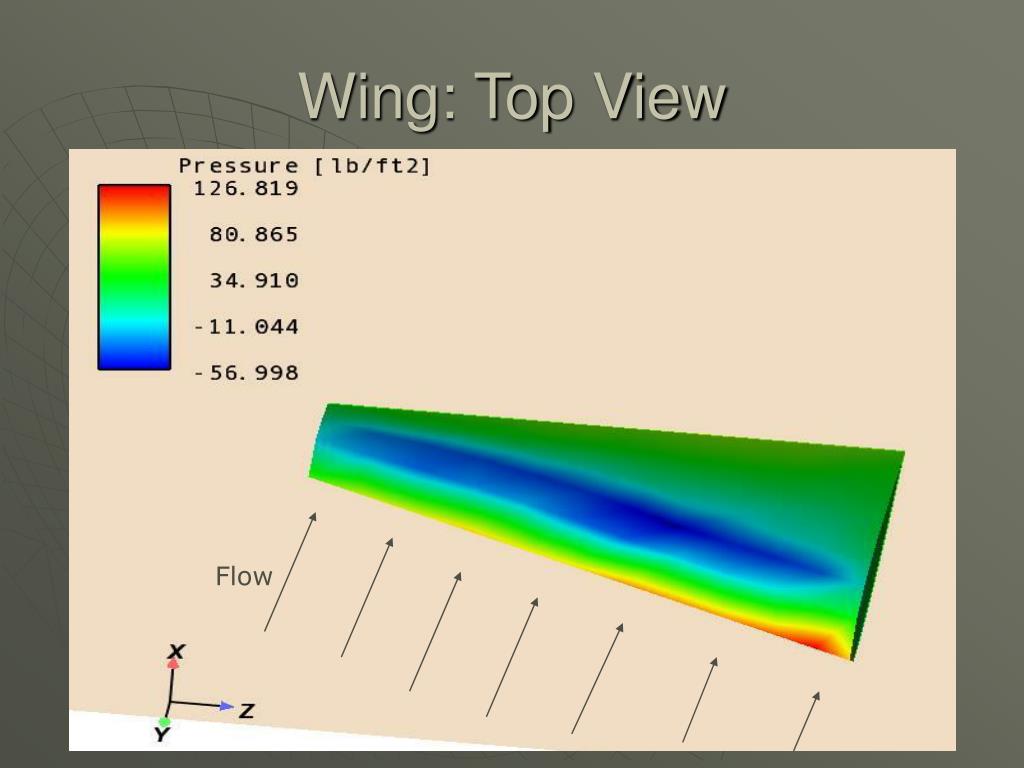

  5. Wing: Top View Flow

  6. Wing: Bottom View

  7. CFPs • Carbon Fiber Body • ½ Scale Wind Tunnel Model • RC Airplane

  8. Carbon Fiber Body • Purpose • Learn Carbon Fiber Techniques • Test Strength • Cost and Time of Manufacturing • Lessons Learned • Molds • Lay Up Techniques

  9. ½ Scale Wind Tunnel Model • Purpose • Verify Results of Fluent Analysis • Wind Tunnel Testing • Lessons Learned • CNC Techniques • ½ Scale vs. ¼ Scale

  10. RC Airplane • Purpose • Learn and Test Controller • Utilize RC Components • Lessons Learned • Small Aircraft Construction • Airplane Ready to Go • Awaiting Purchase of Controller

  11. Conclusion • Schedule/Status • CFPs • Funding • Fluent • CFPs • Purpose • Lessons Learned
