  1. Teknologi Internet Murmer Onno W. Purbo onno@itb.ac.id April 1999

  2. Focus • Experience in Building an AII. • Low Cost Technology To Educate Indonesia. Low cost is the real challenge

  3. Outline • Historical Perspective • Low Cost Internet Access.

  4. Internet Discussion Group • YBNET-L@ITB.ac.id • mail to majordomo@itb.ac.id • message “subscribe ybnet-l” • please confirm on request from majordomo • sysop-l@itb.ac.id • mail to majordomo@itb.ac.id • message “subscribe sysop-l” • please confirm on request from majordomo

  5. Indonesia Topology Jan.1993

  6. CA*net3 AI3 Indonesia STARTAP WIDE TransPAC AI3 S-One / SingaREN APAN vBNS AI3 Indonesia IIX

  7. Success Factor • Community based development. • Human Resource Development • Culture! • Shifting mind set! • Self-financing.

  8. Internet Access Tech

  9. Assumption • PC Multimedia Available .. • VHF / UHF Rig Available .. • You have Rp. 30.000 in your pocket ..

  10. Sound Card Packet Radio

  11. Sound Card Packet Radio • Spec: • 1200-9600bps • PC + Sound Card + Radio • URL: • http://home.pages.de/~flexnet/ • Search Internet: (Keyword) • flexnet

  12. Computer Mic PC Speaker PC Radio / Rig / HT Speaker HT Mic HT PTT SoundCard Connection

  13. PTT FlexNet via Serial

  14. PTT FlexNet via Printer

  15. PTT FlexNet via MIDI

  16. PTT FlexNet via VOX

  17. Assumption • PC DOS Available .. • VHF / UHF Rig Available .. • You have Rp. 300.000 in your pocket ..

  18. BayCom Packet Radio

  19. BayCom Packet Radio • Spec: • 1200 • PC 286 + BayCom Modem + Radio • URL: • http://xxx.itb.ac.id/~yc1dav/beginner/ • ftp://ftp.ucsd.edu/hamradio/packet/tcpip/ • Search Internet: (Keyword) • baycom

  20. Install NOS • /spool/mqueue • /spool/mail • /spool/news • /pub • autoexec.nos • domain.txt • ax25.com

  21. autoexec.nos • hostname yd3fua.ampr.org • ax25 mycall yd3fua • ip address 44.132.136.10 • attach packet 0x60 ax1 2048 1024 • start smtp • smtp gateway 44.132.136.1 • route add default ax1 44.132.136.1

  22. domain.txt • Yb3bdl.ampr.org. IN A 44.132.138.2 • yb1hr.ampr.org. IN A 44.132.18.1 • yc1dav.ampr.org. IN A 44.132.80.1

  23. Baycom Packet Radio

  24. Assumption • PC Available .. • LAN Available .. • Telp Available .. • You can pay Rp. 10.000 / hour • You can buy modem

  25. Shared Web Access

  26. Shared Web Access • Spec: • 33.6Kbps • PC Windows / Linux / FreeBSD + phone • URL: • http://www.download.com • Search Internet: (Keyword) • wingate • proxy • sock

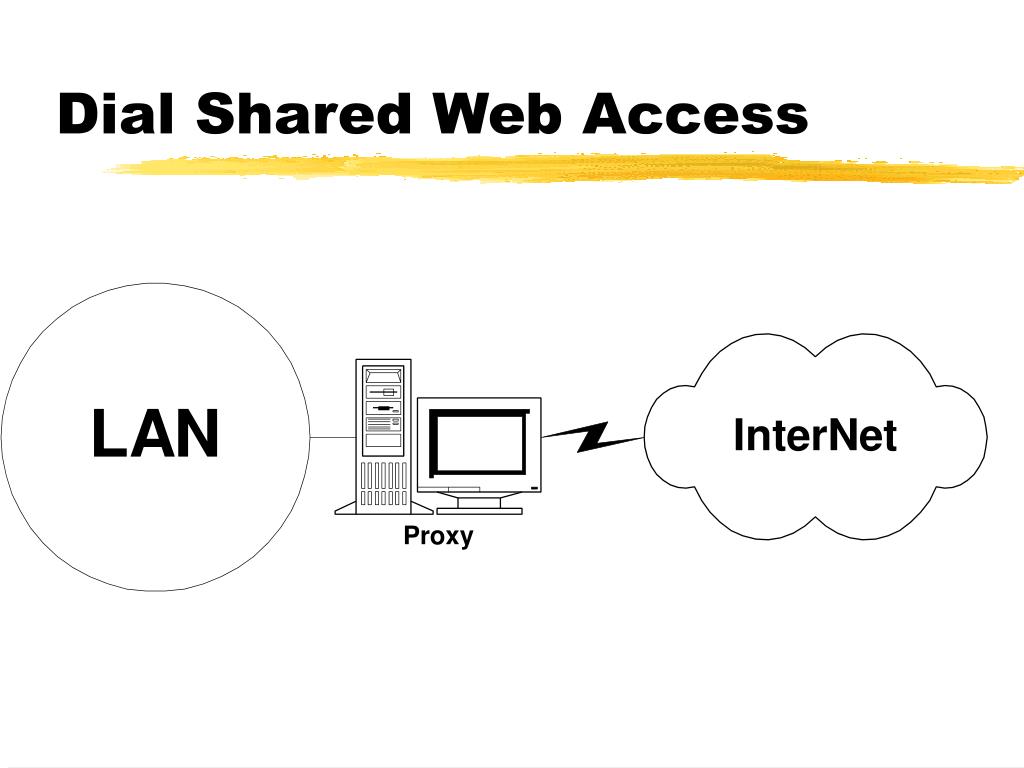

  27. Dial Shared Web Access

  28. Assumption • PC Available .. • LAN Available .. • Telp Available .. • You can pay Rp. 10.000 / 6Mbyte mail • You can buy modem

  29. Virtual Host

  30. Virtual Host • Spec: • 33.6Kbps • PC Windows / Linux / FreeBSD + phone • URL: • http://www.download.com • Search Internet: (Keyword) • vpop • netgate • avirt

  31. Virtual Host

  32. Assumption • PC Available .. • You have Rp. 3.000.000 in your pocket .. • You are able to solder ..

  33. Homebrew 64-200Kbps

  34. 64-200Kbps Packet Radio • Spec: • 64-200Kbps • PC Linux + Homebrew 64-200Kbps • URL: • http://xxx.itb.ac.id/~adnan/

  35. Homebrew 64-256Kbps packet radio • We are prototyping 64-256Kbps packet radio network in the lab by adnan@itb.ac.id. • AX.25 link layer protocol is used. • GMSK MX 589 one chip modem is used. • We drive the modem via parallel port. • MMIC Minicircuit is being build for transverter.

  36. Block Diagram

  37. Homebrew 64-200Kbps Modem

  38. TX & RX BoardVHF CB Frequency

  39. Assumption • You are a large group of people • You can spare US$3000

  40. WaveLAN CDMA

  41. WaveLAN CDMA • Spec: • 2Mbps • 5-10 km distance • Builtin Router + Ethernet connector • URL: • http://hydra.carleton.ca

  42. Homebrew 2Mbps CDMA • Uses CDMA 2Mbps card 915MHz & 2.4GHz • Run on FreeBSD. • Homebrew antenna (cost ~US$150). • Max. distance 15km (use PA for more). • Most of our high speed MAN using this technology.

  43. WaveLAN (CDMA)
