  1. ECEN 248: INTRODUCTION TO DIGITAL SYSTEMS DESIGN Lecture 15 Dr. Shi Dept. of Electrical and Computer Engineering

  2. ANALYSIS OF SEQUENTIAL CIRCUITS

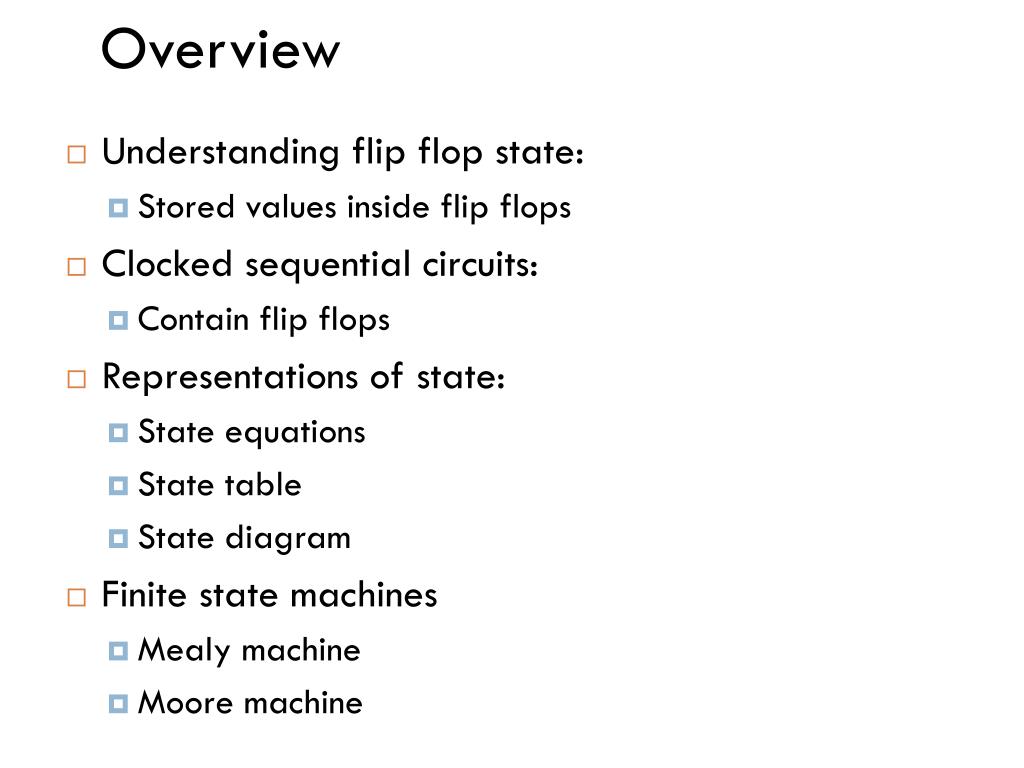

  3. Overview • Understanding flip flop state: • Stored values inside flip flops • Clocked sequential circuits: • Contain flip flops • Representations of state: • State equations • State table • State diagram • Finite state machines • Mealy machine • Moore machine

  4. x D0 Q0 Q1 Q D Q’ y Q Q1 D Q0 Q’ D1 Clk y(t) = x(t)Q1(t)Q0(t) Q0(t+1) = D0(t) = x(t)Q1(t) Q1(t+1) = D1(t) = x(t) + Q0(t) Flip Flop State Behavior of clocked sequential circuit can be determined from inputs, outputs and FF state

  5. x D0 Q0 Q1 Q D Q’ y Q Q1 D Q0 Q’ D1 Clk y(t) = x(t)Q1(t)Q0(t) Q0(t+1) = D0(t) = x(t)Q1(t) Q1(t+1) = D1(t) = x(t) + Q0(t) Output and State Equations Next state dependent on previous state. Output equation State equations

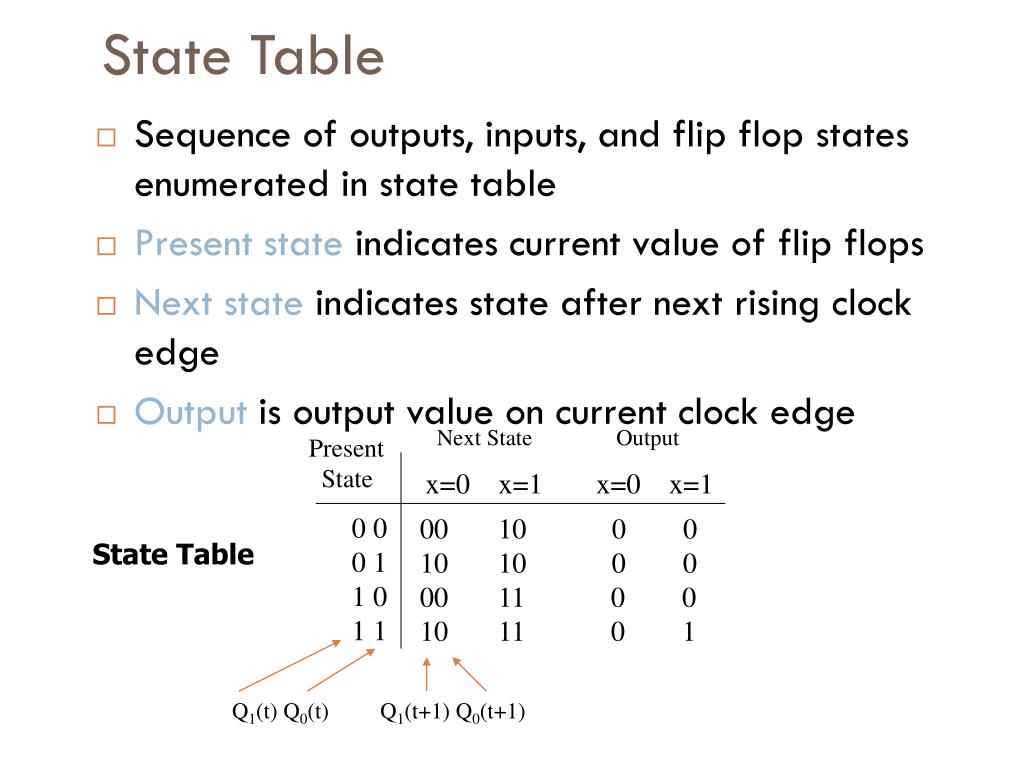

  6. Next State Output Present State x=0 x=1 x=0 x=1 0 0 0 1 1 0 1 1 00 10 0 0 10 10 0 0 00 11 0 0 10 11 0 1 Q1(t) Q0(t) Q1(t+1) Q0(t+1) State Table • Sequence of outputs, inputs, and flip flop states enumerated in state table • Present state indicates current value of flip flops • Next state indicates state after next rising clock edge • Output is output value on current clock edge State Table

  7. Next State Output Present State x=0 x=1 x=0 x=1 Let: s0 = 00 s1 = 01 s2 = 10 s3 = 11 s0 s1 s2 s3 s0s2 0 0 s2s2 0 0 s0s3 0 0 s2s3 0 1 State Table • All possible input combinations enumerated • All possible state combinations enumerated • Separate columns for each output value. • Sometimes easier to designate a symbol for each state.

  8. 1/1 11 Next State Output Present State x=0 x=1 x=0 x=1 0 0 0 1 1 0 1 1 00 100 0 10 100 0 00 110 0 10 110 1 State Diagram • Circles indicate current state • Arrows point to next state • For x/y, x is input and y is output 0/0 0/0 0/0 00 01 10 1/0 1/0 0/0 1/0

  9. 1/1 0/0 0/0 0/0 s0 s1 s2 1/0 s3 0/0 1/0 1/0 State Diagram • Each state has two arrows leaving • One for x = 0 and one for x = 1 • Unlimited arrows can enter a state • Note use of state names in this example • Easier to identify

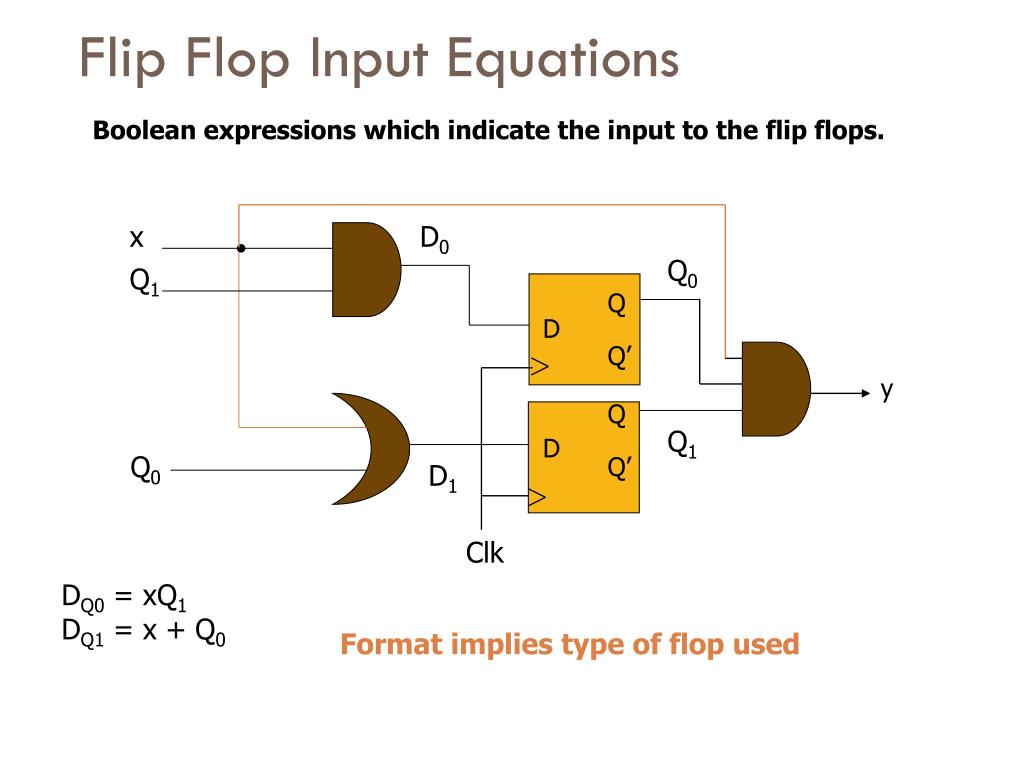

  10. Flip Flop Input Equations Boolean expressions which indicate the input to the flip flops. x D0 Q0 Q1 Q D Q’ y Q Q1 D Q0 Q’ D1 Clk DQ0 = xQ1 DQ1 = x + Q0 Format implies type of flop used

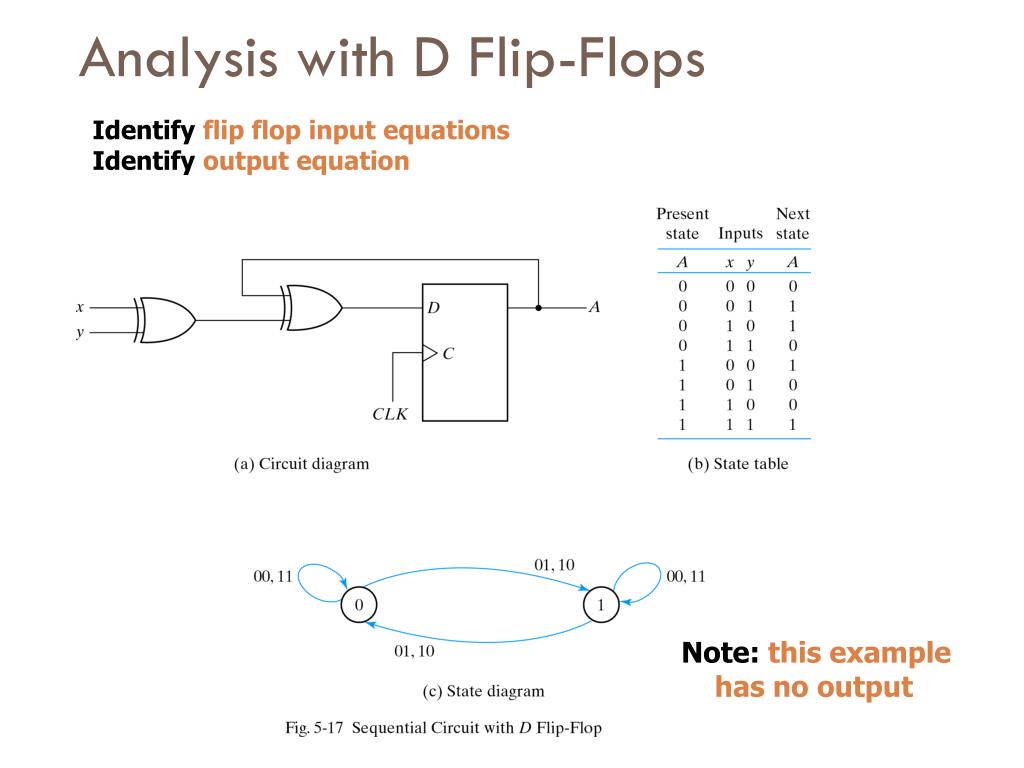

  11. Analysis with D Flip-Flops Identify flip flop input equations Identify output equation Note: this example has no output

  12. Mealy Machine • Output based on state and present input Comb. Logic Comb. Logic Q(t+1) Flip Flops next state Q(t) Y(t) present state X(t) present input clk

  13. Moore Machine • Output based on state only Comb. Logic Comb. Logic Y(t) Q(t+1) Flip Flops next state Q(t) present state X(t) present input clk

  14. Mealy versus Moore

  15. State Diagram with One Input & One Mealy Output • State transitions are shown as a function of inputs and current outputs. e.g. 1 0/0 Input(s)/Output(s) shown in transition S1 1/0 1/1 S4 S2 0/0 0/0 0/0 1/0 S3 1/0

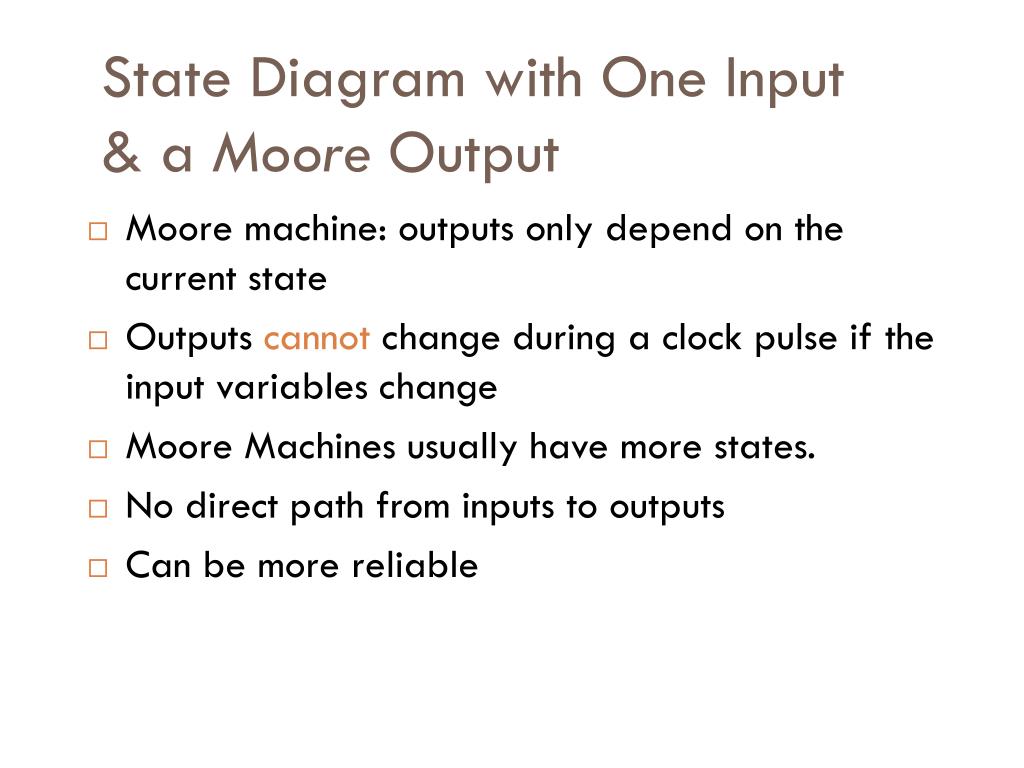

  16. State Diagram with One Input & a Moore Output • Moore machine: outputs only depend on the current state • Outputs cannot change during a clock pulse if the input variables change • Moore Machines usually have more states. • No direct path from inputs to outputs • Can be more reliable

  17. Summary • Flip flops contain state information • State can be represented in several forms: • State equations • State table • State diagram • Possible to convert between these forms • Circuits with state can take on a finite set of values • Finite state machine • Two types of “machines” • Mealy machine • Moore machine
