where does data integration fit essential ingredient for information agility

Data Integration

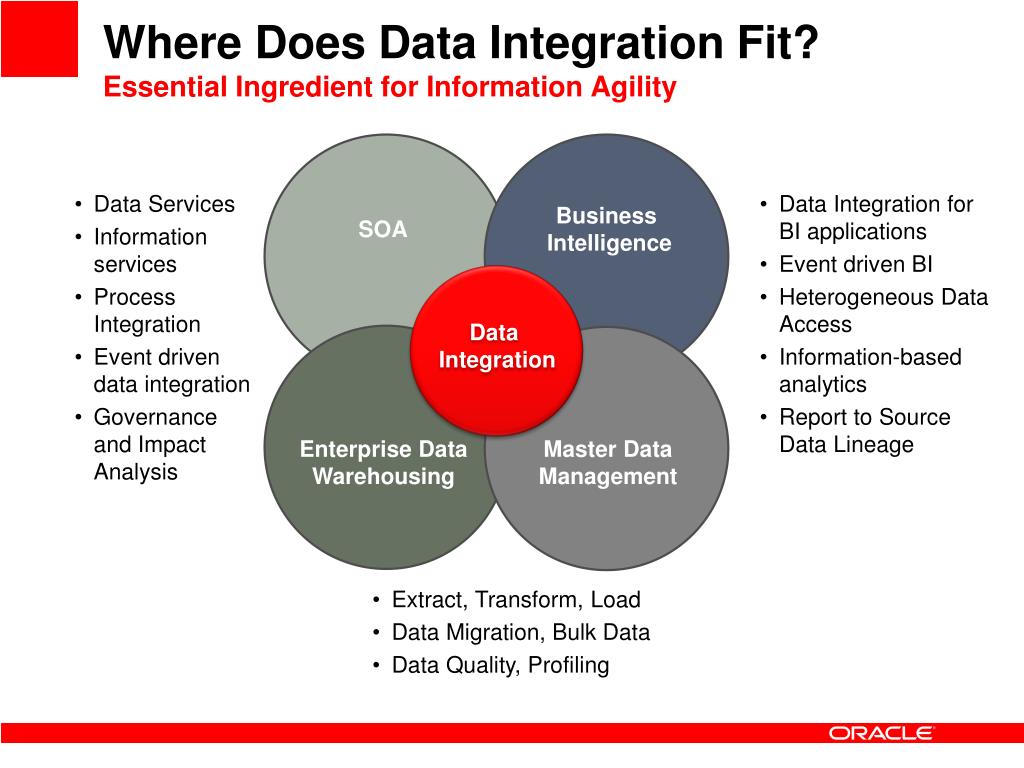

Where Does Data Integration Fit?Essential Ingredient for Information Agility

Business Intelligence

  • Data Services
  • Information services
  • Process Integration
  • Event driven data integration
  • Governance and Impact Analysis
  • Data Integration for BI applications
  • Event driven BI
  • Heterogeneous Data Access
  • Information-based analytics
  • Report to Source Data Lineage

SOA

Enterprise DataWarehousing

Master Data Management

  • Extract, Transform, Load
  • Data Migration, Bulk Data
  • Data Quality, Profiling
oracle data warehouse breaks data bandwidth bottlenecks

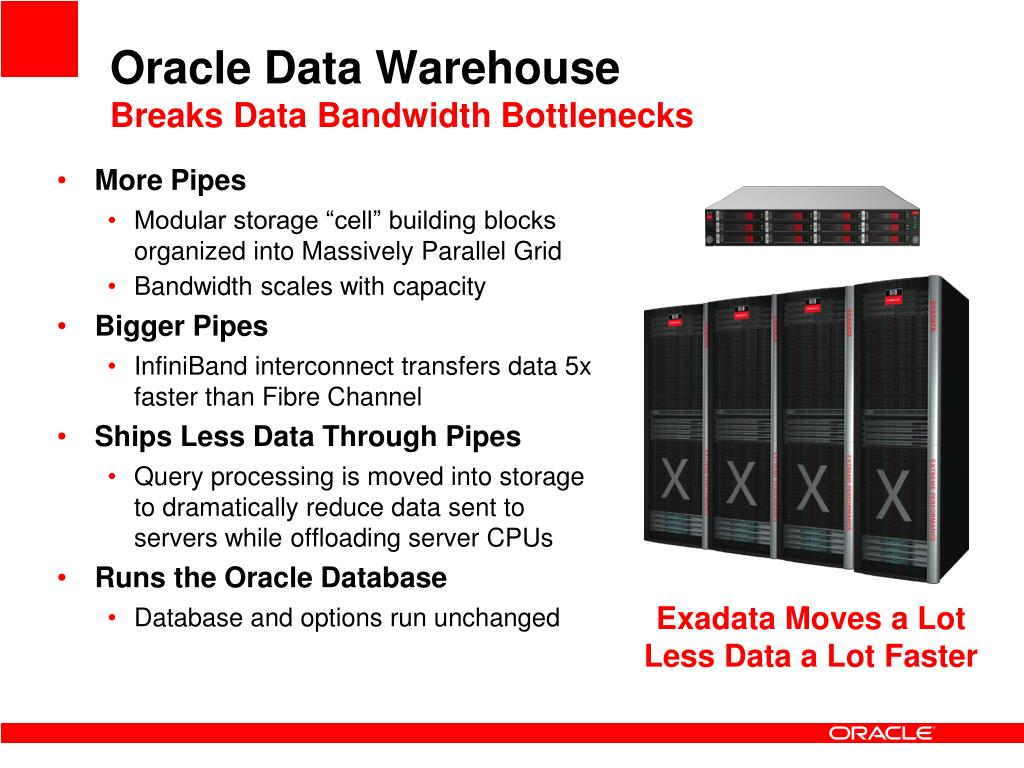

Oracle Data WarehouseBreaks Data Bandwidth Bottlenecks
  • More Pipes
    • Modular storage “cell” building blocks organized into Massively Parallel Grid
    • Bandwidth scales with capacity
  • Bigger Pipes
    • InfiniBand interconnect transfers data 5x faster than Fibre Channel
  • Ships Less Data Through Pipes
    • Query processing is moved into storage to dramatically reduce data sent to servers while offloading server CPUs
  • Runs the Oracle Database
    • Database and options run unchanged

Exadata Moves a Lot Less Data a Lot Faster

oracle master data management comprehensive mdm application solutions

EBS

Financial

Analytical

Install Base

Site

Product

Employee

Customer

Supplier

SAP

Oracle / Hyperion Data Relationship Management

Custom Apps

External

Apps

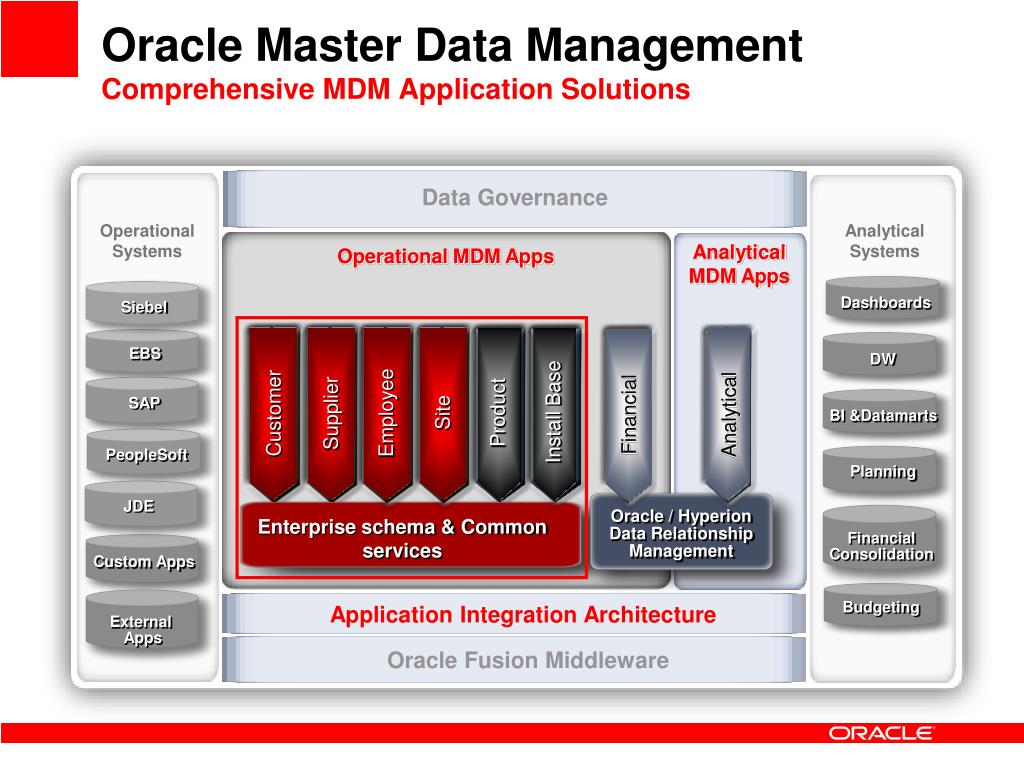

Oracle Master Data ManagementComprehensive MDM Application Solutions

Data Governance

Operational

Systems

Analytical

Systems

Analytical MDM Apps

Operational MDM Apps

Dashboards

Siebel

DW

BI &Datamarts

PeopleSoft

Planning

JDE

Enterprise schema & Common services

Financial Consolidation

Budgeting

Application Integration Architecture

Oracle Fusion Middleware

use cases for oracle data integration unified data integration platform for enterprise projects
Use Cases for Oracle Data IntegrationUnified Data Integration Platform for Enterprise Projects
key data integration products
Key Data Integration Products
  • Comprehensive Integration
  • ELT/ETL for Bulk Data
  • Data Delivery Services
  • Process Orchestration
  • Service Bus
  • Human Workflow
  • Data Federation
  • Replication & Migration
  • Data Governance
  • Data Grid

New

  • ELT/ETL for any DB
  • Changed Data Capture
  • Native SQL Code Gen
  • Declarative Design
  • ELT for Oracle DB
  • Database Modeling
  • PL/SQL Code Gen
  • Flow-based Design
  • Business Data / Metadata
  • Statistical Analysis
  • Time Series Reporting
  • Integrated Data Quality
  • Cleansing & Parsing
  • De-duplication
  • High Performance
  • Integrated w/ODI
oracle core features comprehensive data integration platform
Oracle Core FeaturesComprehensive Data Integration Platform
  • E-LT Data Processing
    • Set-based Transformation
    • Configurable Deployment (E-LT, E-T-L, or others)
    • Native Code Generation
  • Declarative Integration Designer
    • Reverse Engineering of Sources
    • Intuitive Data Mapping
    • Built-in Reporting
  • Metadata Lineage
    • Graphical Impact Analysis
  • Native SOA Interoperability
    • SOA Sources, Targets, or Invoke-able E-LT Jobs, SOA Workflow, etc.
  • Automatic Error Handling with Data Recycling
  • Changed Data Capture
    • Built-in Support for Realtime Data Capture and Streaming
    • Log-based or Trigger-based
  • Inline Data Quality
  • Extensible Knowledge Module Framework
data integration core use case comprehensive lightweight data integration

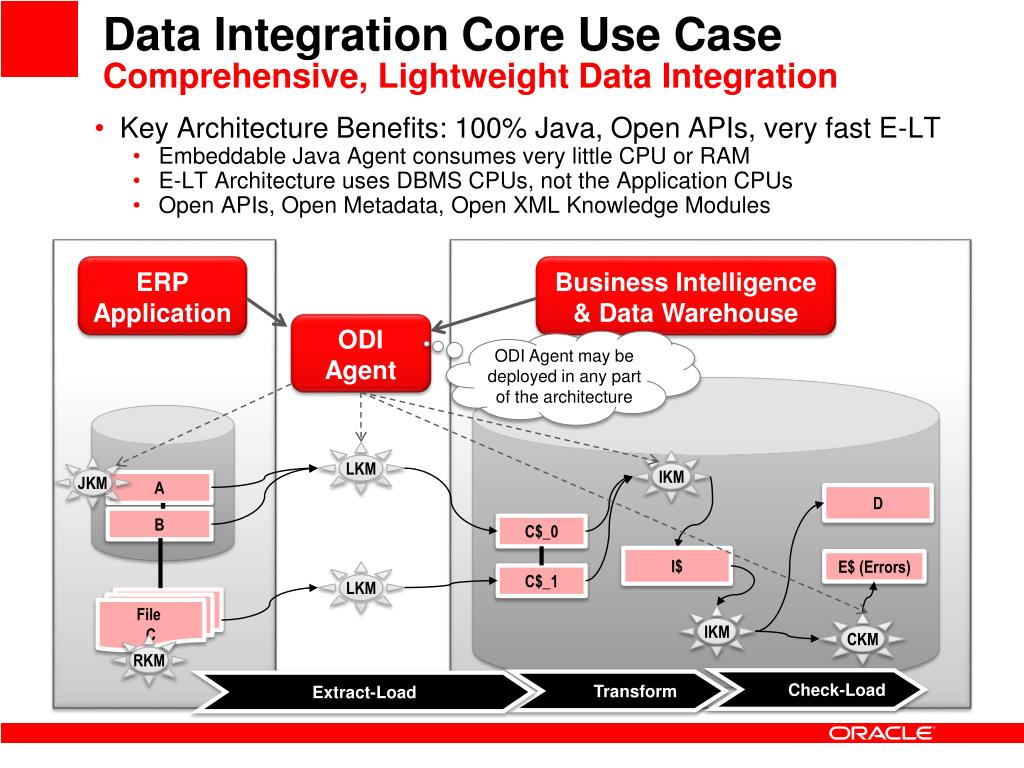

Data Integration Core Use CaseComprehensive, Lightweight Data Integration
  • Key Architecture Benefits: 100% Java, Open APIs, very fast E-LT
    • Embeddable Java Agent consumes very little CPU or RAM
    • E-LT Architecture uses DBMS CPUs, not the Application CPUs
    • Open APIs, Open Metadata, Open XML Knowledge Modules

ERPApplication

Business Intelligence& Data Warehouse

ODI Agent

ODI Agent may be deployed in any part of the architecture

LKM

IKM

JKM

A

D

B

C$_0

I$

E$ (Errors)

LKM

C$_1

File

C

IKM

CKM

RKM

Check-Load

Transform

Extract-Load

odi ee value proposition agile data integration
Move and transform data. Mixed sources and targets. ODI-EE Value PropositionAgile Data Integration

BENEFITS

KEY DIFFERENTIATED FEATURES

  • Performance>>> Heterogeneous “E-LT”
  • Flexibility >>> Event-Driven Platform
  • Productivity>>> Declarative Design
  • Open>>> 100% Java and SOA Native
  • Hot-Pluggable>>> Knowledge Modules

11

differentiator e lt architecture high performance

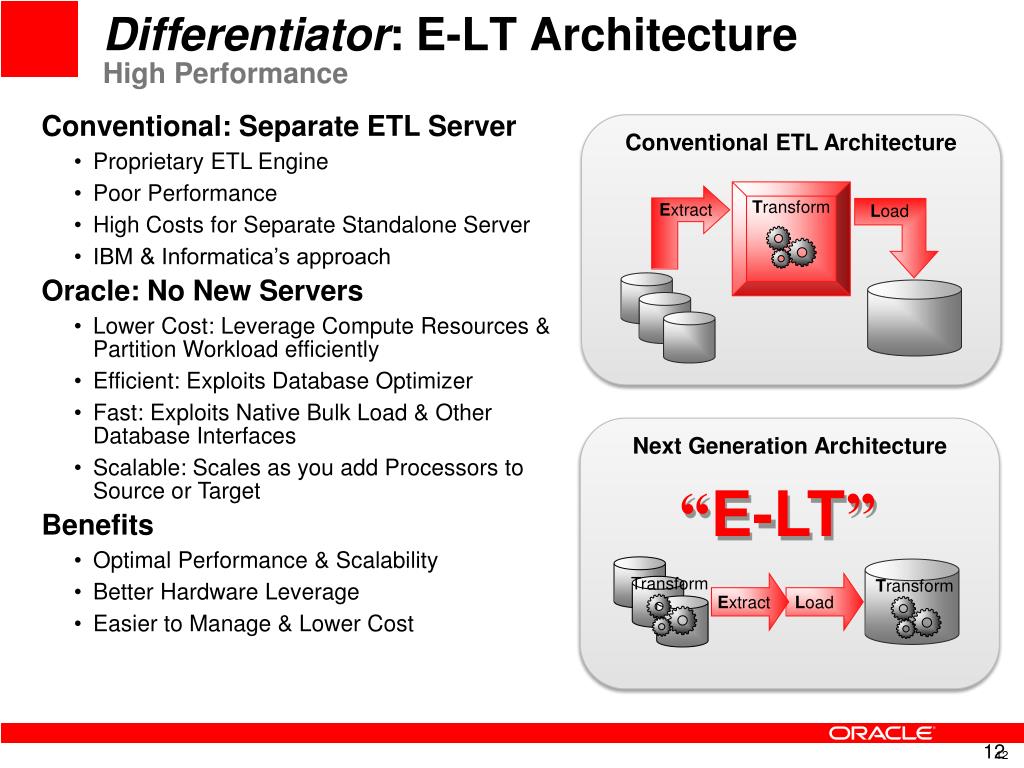

Differentiator: E-LT ArchitectureHigh Performance

Transform

Extract

Load

  • Conventional: Separate ETL Server
    • Proprietary ETL Engine
    • Poor Performance
    • High Costs for Separate Standalone Server
    • IBM & Informatica’s approach
  • Oracle: No New Servers
    • Lower Cost: Leverage Compute Resources & Partition Workload efficiently
    • Efficient: Exploits Database Optimizer
    • Fast: Exploits Native Bulk Load & Other Database Interfaces
    • Scalable: Scales as you add Processors to Source or Target
  • Benefits
    • Optimal Performance & Scalability
    • Better Hardware Leverage
    • Easier to Manage & Lower Cost

Conventional ETL Architecture

Next Generation Architecture

“E-LT”

Transform

Transform

Extract

Load

12

slide13

Real Time Data Warehouse

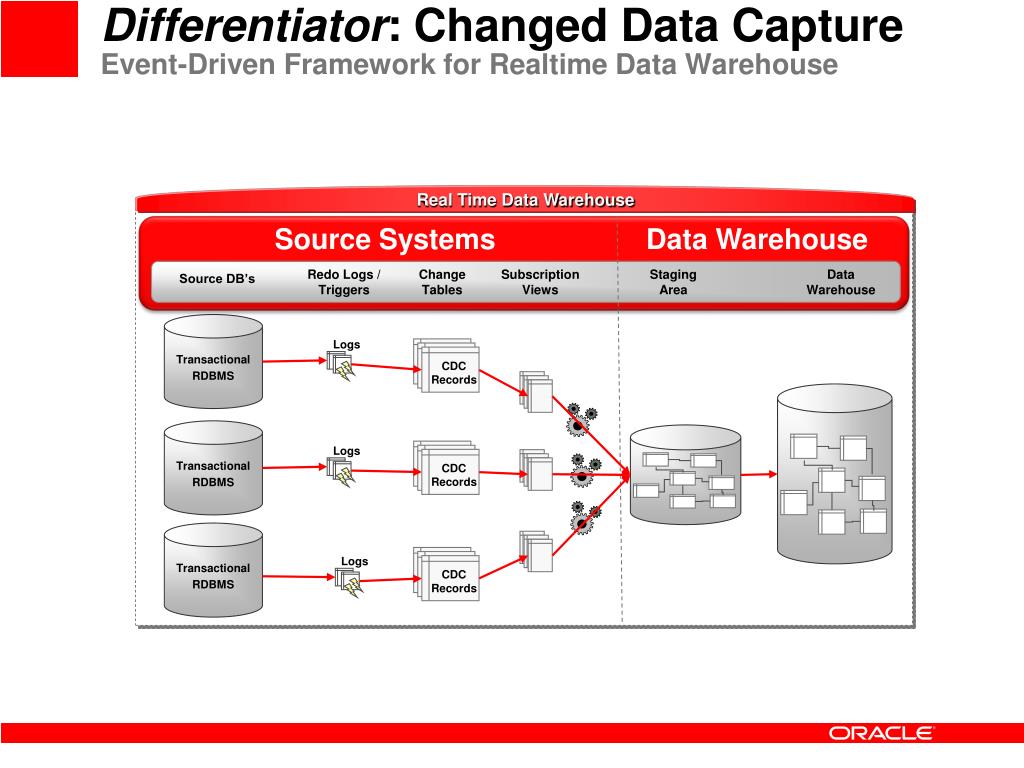

Differentiator: Changed Data CaptureEvent-Driven Framework for RealtimeData Warehouse

Logs

Logs

Logs

Source Systems

Data Warehouse

Redo Logs /

Triggers

Change Tables

Subscription

Views

Staging Area

Data Warehouse

Source DB’s

Transactional

RDBMS

CDC

Records

CDC

Records

CDC

Records

CDC

Records

CDC

Records

CDC

Records

CDC

Records

CDC

Records

CDC

Records

Transactional

RDBMS

Transactional

RDBMS

focus on oracle biee suite plus unify data integration with business intelligence
Integrated with Oracle BIEE Plus

Support for relational, R-OLAP, OLAP sources & targets

Report-to-source lineage

Drill-in from a Report

Get query, DW schema, source tables, transforms

Gain confidence in analytics

Unified infrastructure

Unified metadata & lineage

Integrated Data Quality

Unified data access,

Common administration & monitoring

Integrated scheduling & security

Common auditing & tracing

Common error handling

Focus on Oracle BIEE Suite PlusUnify Data Integration with Business Intelligence

Oracle BIEE Suite Plus

InteractiveDashboards

Ad hocAnalysis

ProactiveAlerts

MicrosoftOffice

Reporting

& Publishing

Common Enterprise Information Model

Oracle Business Intelligence Server

Data Flow

Design & Drill

Enterprise Data Warehouse

  • Oracle RAC
  • Teradata
  • Netezza…etc

Oracle Data Integration Suite

Data Distribution & Delivery APIs

Metadata Lineage

Bulk/Trickle Loading

Changed DataCapture

MasterData

Data Quality& Profiling

ODI Knowledge Module Framework

Bulk and Real-Time Data Processing

Oracle EBS

Data Warehouse

Information Assets

CDC

SAP/R3

Other Sources

PeopleSoft

MessageQueues

14

focus on obi analytic applications overview
Pre-Built BI Analytic Applications

Pre-built Metrics, 5000+ Dashboards, Data Warehouse 350+ Star Schema

Implementation Time: 3-4 Weeks

Works with EBS, PSFT, SAP, SEBL, JD-Edwards Sources

Biggest Savings: Pre-built ETL

Faster & Lower Cost to Build & Maintain ETLs

Knowledge Module Architecture Enables Efficient Development of Packaged ETL

Reduce Complexity and Size of Code

Reuse DW Creation, Update, Load Times

Value-add Modules (e.g. SOX)

Extensible by Customers & System Integrators

Data Flow

Oracle Data Integrator

ODI Knowledge Modules for BI Analytic Applications

Pre-Built ODI Interfaces and Transformation Packages for Analytic Applications

Metadata Repository

Bulk Transform.

Changed Data Capture

Data Integrity

Data Quality

ODI Connectivity Framework

Bulk and Real-Time Data Processing

Focus on OBI Analytic ApplicationsOverview

Oracle BI Analytic Applications

Sales

Contact Center

Order Mgt

MKting

Supply Chain

HR

Finance

Analytics Data Warehouse

Oracle BI Server and Semantic Layer

Build from Scratch

Pre-built BI Apps

Training

Metrics & Dashbrds

DW Design

ETL Mapping

50%

Oracle EBS

Data Warehouse

SAP/R3

CDC

Information Assets

Other Sources

People Soft

Message Queues

Weeks or months

Years or quarters

slide17

Authentication

Data Services

Logging Services

API Layer

Focus on Oracle | Hyperion ApplicationsLeveraging EPM with Embedded Data Integration

Oracle Hyperion Planning

Oracle Hyperion Financial Mgt

Oracle Hyperion Essbase

Oracle Hyperion Application Adapters

Planning API

HFM API

Essbase API

Oracle | Hyperion Data Access

Oracle Data Integration Suite

Data Distribution & Delivery APIs

Metadata Lineage

Bulk/Trickle Loading

Changed DataCapture

MasterData

Data Quality& Profiling

ODI Knowledge Module Framework

Bulk and Real-Time Data Processing

Oracle EBS

Data Warehouse

Information Assets

CDC

SAP/R3

Other Sources

PeopleSoft

MessageQueues

focus on hyperion mdm foundation for data relationship management drm
Hierarchy management

Derivation/inheritance

Classification, categorization

Attribute management

Change management

Streamlined, automated

Valid-from, Valid-to ranges

Compare any 2 versions

Business-user driven

Easy user declarative tool

Specify business rules

Multi-user collaboration

What-if & historical analysis

Meets IT requirements

Synchronize with operational systems

Complete auditing, fine-grained security

Configurable, no coding

DRM Import/Export Profiles

Oracle Data Integrator

ODI Knowledge Modules for DRM

Metadata Repository

Bulk Transform.

Changed Data Capture

Data Integrity

Data Quality

ODI Connectivity Framework

Bulk and Real-Time Data Processing

Oracle EBS

Data Warehouse

SAP/R3

CDC

Other Sources

People Soft

Message Queues

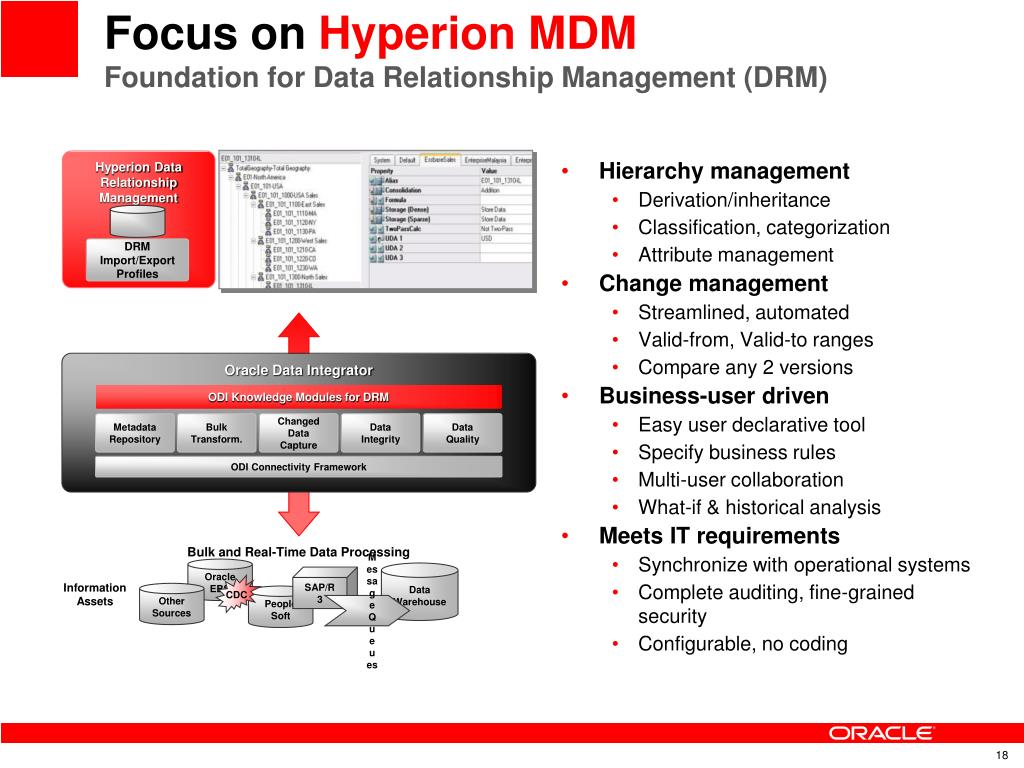

Focus on Hyperion MDMFoundation for Data Relationship Management (DRM)

Hyperion Data Relationship Management

Information Assets

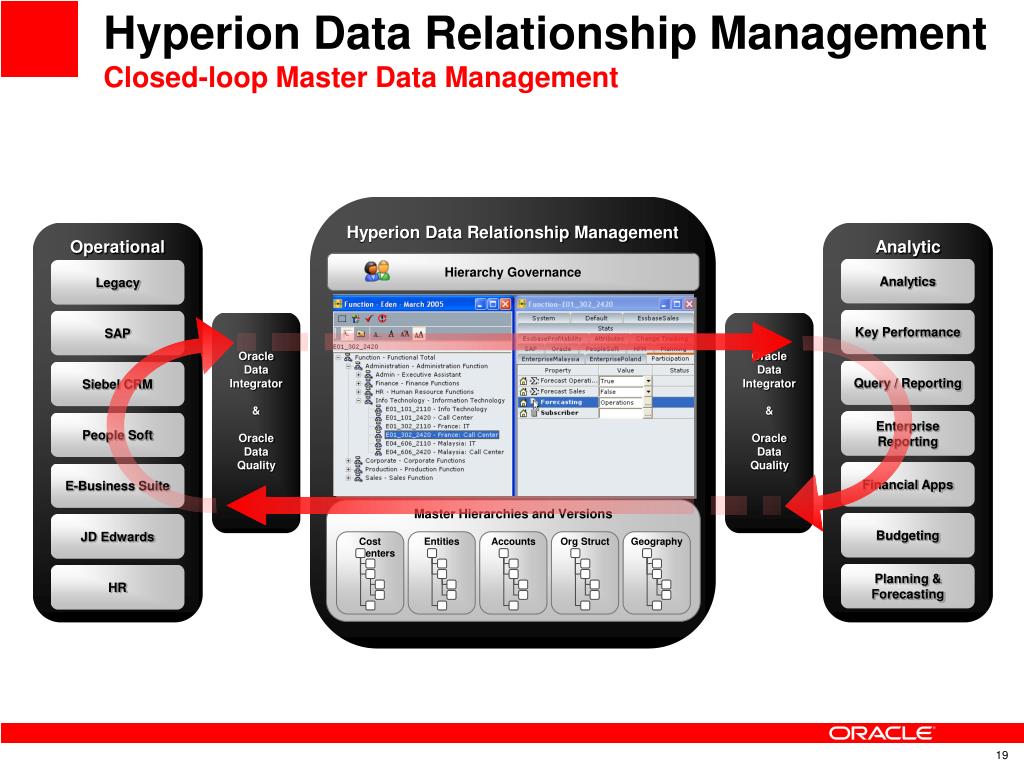

hyperion data relationship management closed loop master data management

Operational

Analytic

Legacy

Hyperion Data Relationship Management

Analytics

Hierarchy Governance

SAP

Key Performance

Siebel CRM

Query / Reporting

People Soft

Enterprise Reporting

E-Business Suite

Financial Apps

JD Edwards

Budgeting

HR

Planning & Forecasting

Master Hierarchies and Versions

Org Struct

Accounts

Entities

Cost Centers

Geography

Hyperion Data Relationship ManagementClosed-loop Master Data Management

Oracle Data Integrator

&

Oracle Data Quality

Oracle Data Integrator

&

Oracle Data Quality

odi for oracle fusion data integration as a key fusion differentiator
ODI for Oracle FusionData Integration as a Key Fusion Differentiator
  • Fusion Applications
    • Built-in, Automated Data Replication among ERP Applications
  • Fusion Business Intelligence
    • Pre-built Analytics from Fusion ERP Applications
    • Automatic Mapping and Model Updates (Application-driven)
  • Fusion Master Data Management
    • Data Replication, Conflict Detection and Conflict Resolution
  • Fusion w/Essbase
    • Fusion Financials (Automatic Financial Consolidation)
    • Pre-built Essbase Content with Apps and Business Intelligence
high level data integration roadmap towards a unified etl platform
High-Level Data Integration RoadmapTowards a Unified ETL Platform

UnifiedTeam

2009

2011

UnifiedPlatform

  • OWB/ODI Investments are Fully Protected
  • No Forced Migrations
  • Natural Upgrade Path
  • Unified Platform aims to be a Superset of Existing Products – no regression

2009

2010

odi j2ee deployment architecture logical architecture overview

MBeans Server Registry

Any Application Container

Web Service Container

Servlet Container

Any Java App

JDeveloper

Any Application

Any Application

Any MBeans App

ODI Transform. Service

ODI Agent

ODI in JDev

ODI Data Services

ODI Thin Client

ODI SDK APIs

ODI MBeans for ODI Agent

ODI SDK APIs

Data Sources Connection Pool

Sources and Targets

Designer

Operator

Security

Topology

Repository Data Sources

Sources Data Sources

Target Data Sources

- - -

Repository Data Sources

Sources Data Sources

Target Data Sources

Repository Data Sources

Sources Data Sources

Target Data Sources

---

---

---

---

---

---

---

---

---

---

---

---

Best-of-Breed Applications

Legacy

ERP

PLM

CRM

---

---

---

---

---

---

ODI J2EE Deployment ArchitectureLogical Architecture Overview

Any Web App

WLS

Any Java App

RDBMS – ODI Repositories

ODI Work Repository

ODI Work Repository

ODI Master Repository

ODI Work Repository

odi 11gr1 new features availability planned for 1hcy10 timeframe
ODI 11gR1 New FeaturesAvailability Planned for 1HCY10 Timeframe

JDeveloper-based Tooling

J2EE deployment option (using Weblogic Server)

Standalone Option is Preserved – using Jetty

JPS-based Security (external password management)

Enterprise Scheduler (ESS) Integration

Enterprise Manager Integration

New Thin Client (consolidated + more mgmt features)

Set-based Operators and Temporary Index Management

Java SDK APIs for Improved Embedability

JDE Enterprise One Knowledge Modules (v8.x and higher)

SAP ERP Knowledge Modules (v4.6 and ECC 6.0)

SAP iDocs Knowledge Modules (v4.6 and ECC 6.0)

SAP BW Knowledge Modules (v3.5 and v7.0)

24

enterprise data warehouse raiffeisen bank
Enterprise Data WarehouseRaiffeisen Bank

Meets legal requirements for data consolidation in the head office (Basel II, Investor reporting)

Seamless and realtime Capital Market reporting to investors and stakeholders

Single-source of truth for business information – supports Business Intelligence and EDW

One standardized enterprise data model over the whole RZB Group

Reduction of core integration/development costs through central development practice

Reduced time to market for new Group applications through central interface development

Performance Issues with existing ETL Tool (IBM DataStage)

New functions required for the next DWH releases (realtime, replication, etc)

Business Challenges

  • Costs for Enterprise Data Warehouse infrastructure were growing too fast
  • EDW processes not keeping up with 24x7 operations, ETL batches too slow

IT Challenges

Oracle Data Integration Solution Benefits

order replenishment online catalog j crew
Order Replenishment, Online CatalogJ. Crew

Simplified the end-to-end data integration with all their core IT systems and database platforms to reduce the total cost of ownership of their order replenishment and cataloging

Benefited from the Oracle advantage in batch processing, bulk data transformation for increased performance

Successfully leveraged SAP and Teradata integration to phase out legacy systems and ultimately reduce costs

Order replenishment for online catalog system

Define new corporate standard for data integration

Better integrate data across 175 retail stores and 52 outlet chains

Business Challenges

IT Challenges

  • Replace antiquated home-grown solution of scripts
  • Teradata bulk data support, and help integrate data across SAP, Red Prairie Inventory systems

Oracle Data Integration Solution Benefits

financial services reinsurance new reinsurance division of the munich re group
Financial Services, ReinsuranceNew Reinsurance, Division of the Munich Re Group

Seamlessly integrated across (Oracle applications (E-business Suite, Siebel CRM) SAP, IBM, etc) to manage the regeneration of all code, scripts, and metadata across the different environments.

Lowered the cost of development by taking advantage of ODI’s declarative model, ease of use, and team collaboration capabilities.

NRC benefited from the flexibility and standards based approach of ODI, helped leverage the existing environment.

Needed quality of data but uncompromising on the cost to meet that objective.

Data interactions between multiple complex systems, including both SAP and homegrown insurance applications

Business Challenges

IT Challenges

  • Hard to modify and maintain manually-developed data transfer programs.
  • Data transfers as part of reinsurance, risk transactions

Oracle Data Integration Solution Benefits

improve inventory control ross
Improve Inventory ControlRoss

Seamless data integration from heterogeneous sources leveraging SOA helped to create a more flexible, standards based integration approach

73% Bulk data transfer performance improvement

Together with Oracle SOA Suite (Oracle BPEL PM) provided business optimization, process visibility, exception handling

Closed loop processing using BAM and Data Integration combined eliminated ordering/replenishing inventory errors by reducing inaccurate data

Hard to consolidate consistent, accurate inventory information across over 800 multiple store chains

Lack of visibility to errors to the business

Higher cost and time to delivery of new value

Business Challenges

IT Challenges

  • Current state was complex, didn’t scale, and difficult to manage
  • Non-standard approach required coding paradigm, inconsistent error handling

Oracle Data Integration Solution Benefits

Dain Hansen

shared data services verizon
Shared Data ServicesVerizon

ODI + SOA helped to build out a shared services layer which helped provide greater flexibility

These shared services consolidate database (DB2, Sybase, Informix to Oracle), consolidate ERP (PeopleSoft HR/Payroll, Decommissioning SAP), consolidate middleware (Oracle FMW) and consolidate BI/ETL

In addition the program helped to decommission Cystal and Cognos and adopt Oracle BIEE

Streamline and automate business processes around new hire on boarding

Provide better business insight and manage FiOS supply chain

Business Challenges

IT Challenges

  • Lower the cost of rewriting SAP, PSFT & Legacy interfaces (about 209) through custom code
  • Lower the cost of IT infrastructure from multiple systems

Oracle Data Integration Solution Benefits

Dain Hansen

sales and marketing data warehouse nestle
Sales and Marketing Data Warehouse Nestle

Replaced weekly insertion with daily recording of change in status with time imprint for all clients—allowing for more effective client follow-up, for example

Improved response times by transferring reporting processes to the data warehouse

Improved reactivity for restocking requirements thanks to daily updates on stock quantity and value for each store

Provided overall view of the status of business processes, resulting in improved user communication

Hard to consolidate consistent, accurate inventory information across over 800 multiple store chains

Lack of visibility to errors to the business

Higher cost and time to delivery of new value

Business Challenges

  • Enable the marketing and CRM team to better target its campaigns and activities across 50 countries
  • Anticipate future reporting challenges, in light of the strong increase in the volume of production data

IT Challenges

  • Manage a data warehouse for operational transactions and marketing information
  • Scale available for high-value-added actionable data on clients, orders, stock, etc.

Oracle Data Integration Solution Benefits

Dain Hansen

slide34

The preceding is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions.The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle.
