structure of heart and great vessels in ct

STRUCTURE OF HEART AND GREAT VESSELS IN CT

CT SERIES KINDLY DONATED BY DR. MICHAEL HENSLEY (Brian's Dad)

LABELING BY MATT HARPER (JCESOM CLASS 2010)

slide2

R Brachiocephalic vein

Brachiocephalic trunk

L Common carotid artery

L Subclavian artery

Trachea

Esophagus

Lamina of T4

slide3

R Brachiocephalic vein

Brachiocephalic trunk

L Common carotid artery

L Subclavian artery

Trachea

Esophagus

slide4

R Brachiocephalic vein

Brachiocephalic trunk

L Common carotid artery

L Subclavian artery

Trachea

Esophagus

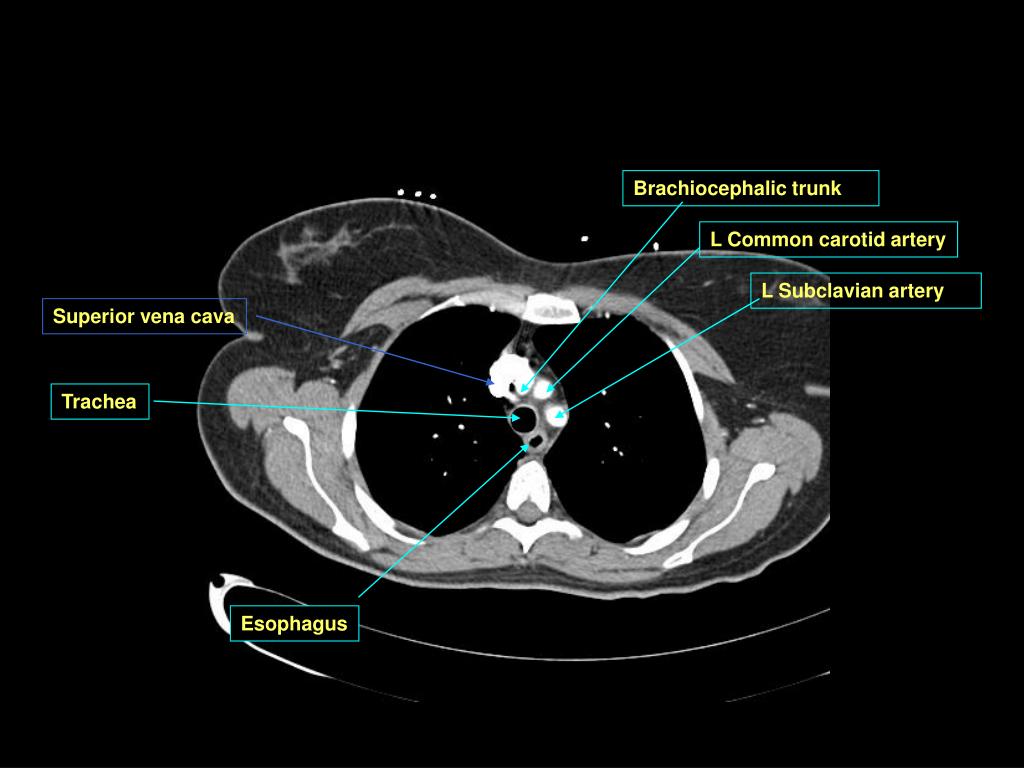

slide5

Brachiocephalic trunk

L Common carotid artery

L Subclavian artery

Superior vena cava

Trachea

Esophagus

slide6

Arch of aorta

Pectoralis major

Superior vena cava

Trachea

Teres minor

Esophagus

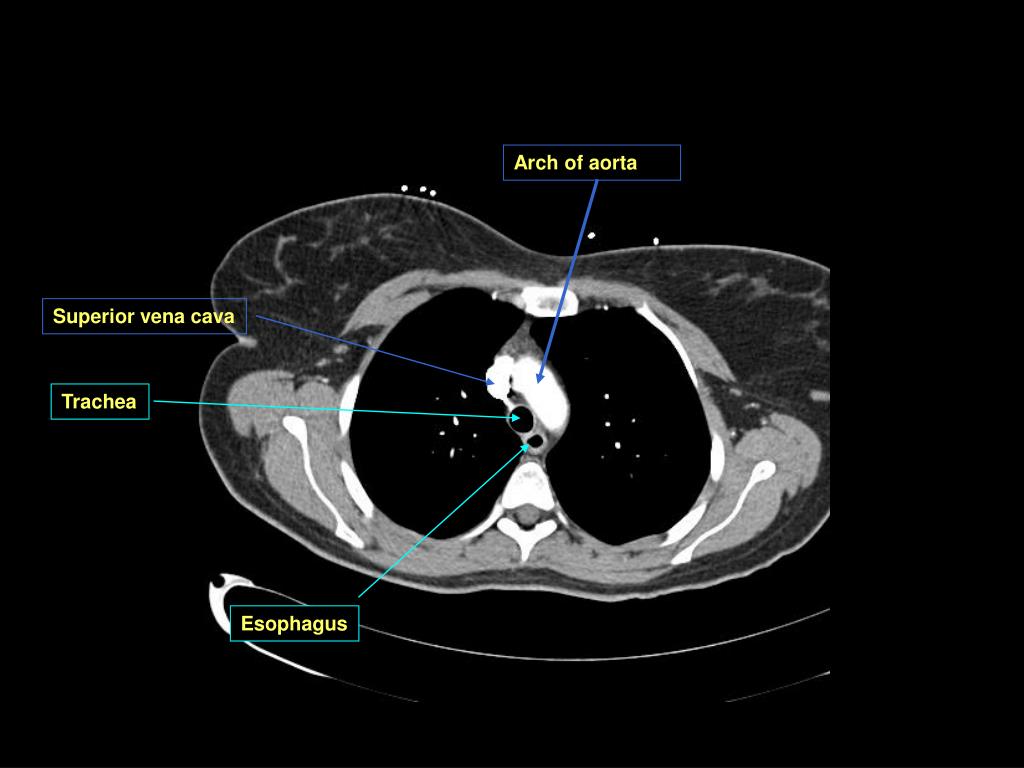

slide7

Arch of aorta

Superior vena cava

Trachea

Esophagus

slide8

Second Rib

Arch of aorta

Superior vena cava

Trachea

Scapula

Esophagus

slide9

Arch of aorta

Superior vena cava

Trachea

Esophagus

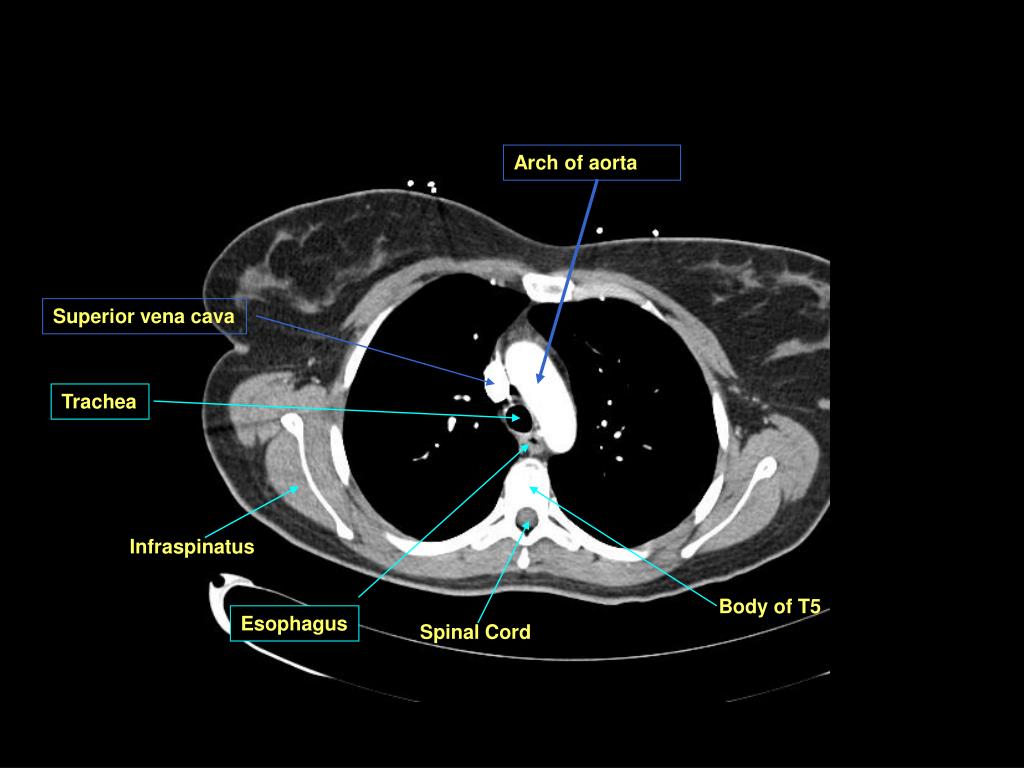

slide10

Arch of aorta

Superior vena cava

Trachea

Infraspinatus

Body of T5

Esophagus

Spinal Cord

slide11

Arch of aorta

Superior vena cava

Trachea

Esophagus

slide12

Internal thoracic artery

Arch of aorta

Serratus anterior

Superior vena cava

Trachea

Arch of azygous vein

Fourth Rib

slide13

Ascending aorta

Superior vena cava

Trachea

Thoracic (descending) aorta

Esophagus

slide14

Ascending aorta

Third Rib

Superior vena cava

Bifurcation of trachea

Azygous vein

Thoracic (descending) aorta

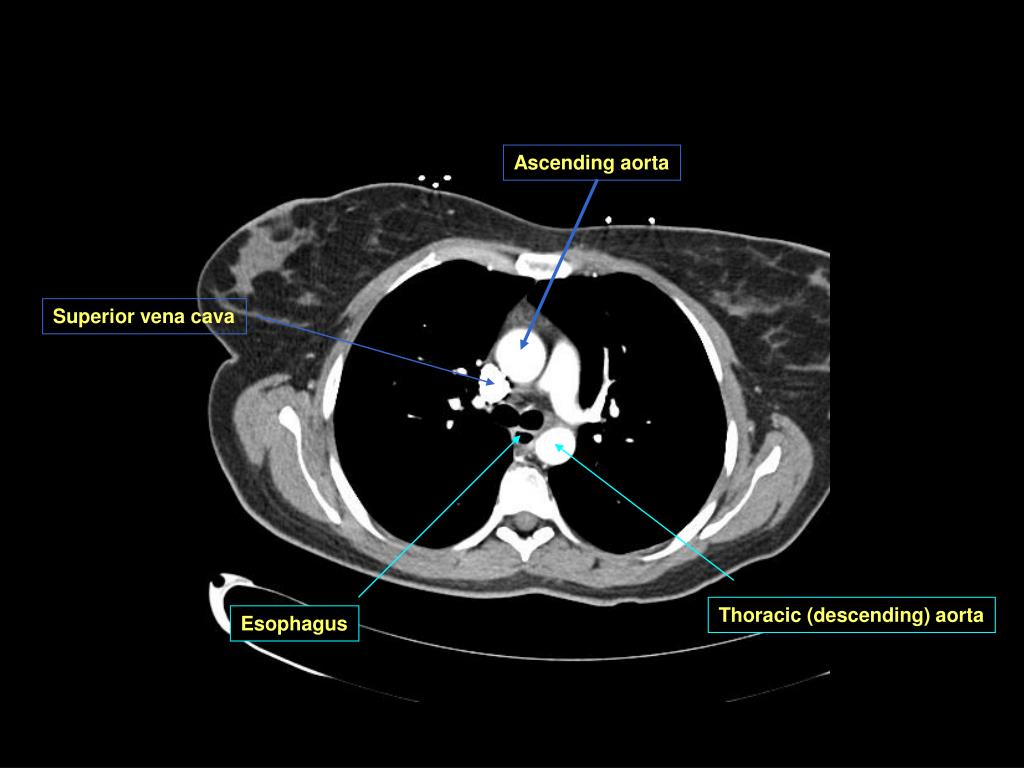

slide15

Ascending aorta

Superior vena cava

Thoracic (descending) aorta

Esophagus

slide16

Ascending aorta

Pulmonary trunk

Superior vena cava

L pulmonary artery

R main bronchus

Sixth Rib

L main bronchus

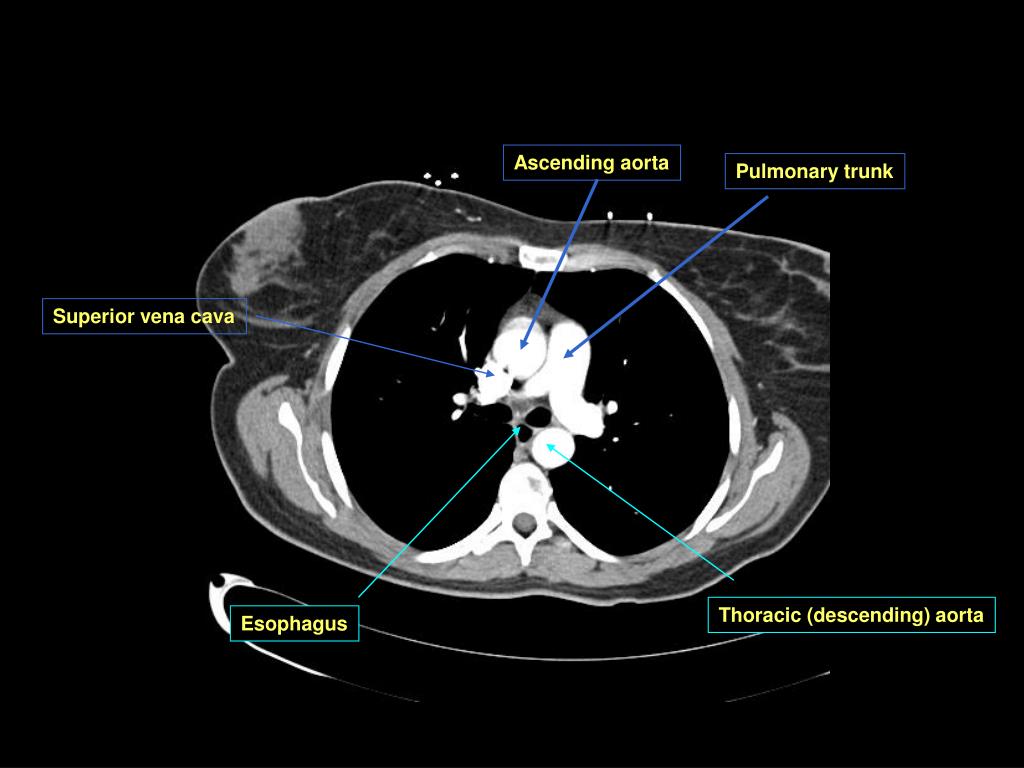

slide17

Ascending aorta

Pulmonary trunk

Superior vena cava

Thoracic (descending) aorta

Esophagus

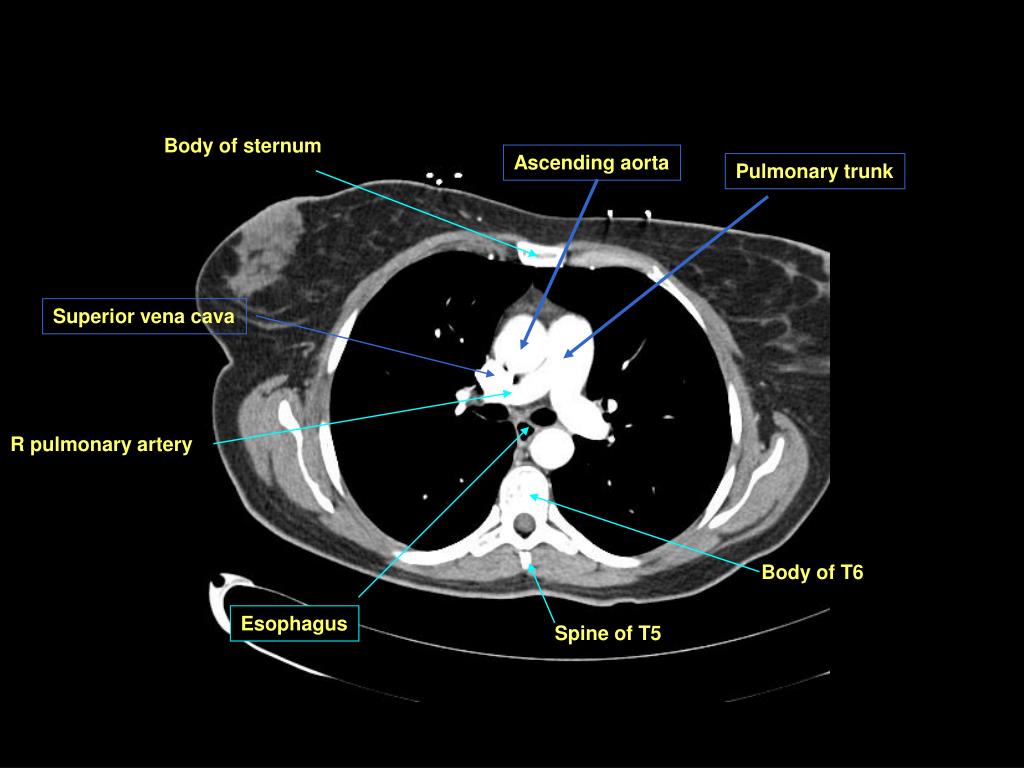

slide18

Body of sternum

Ascending aorta

Pulmonary trunk

Superior vena cava

R pulmonary artery

Body of T6

Esophagus

Spine of T5

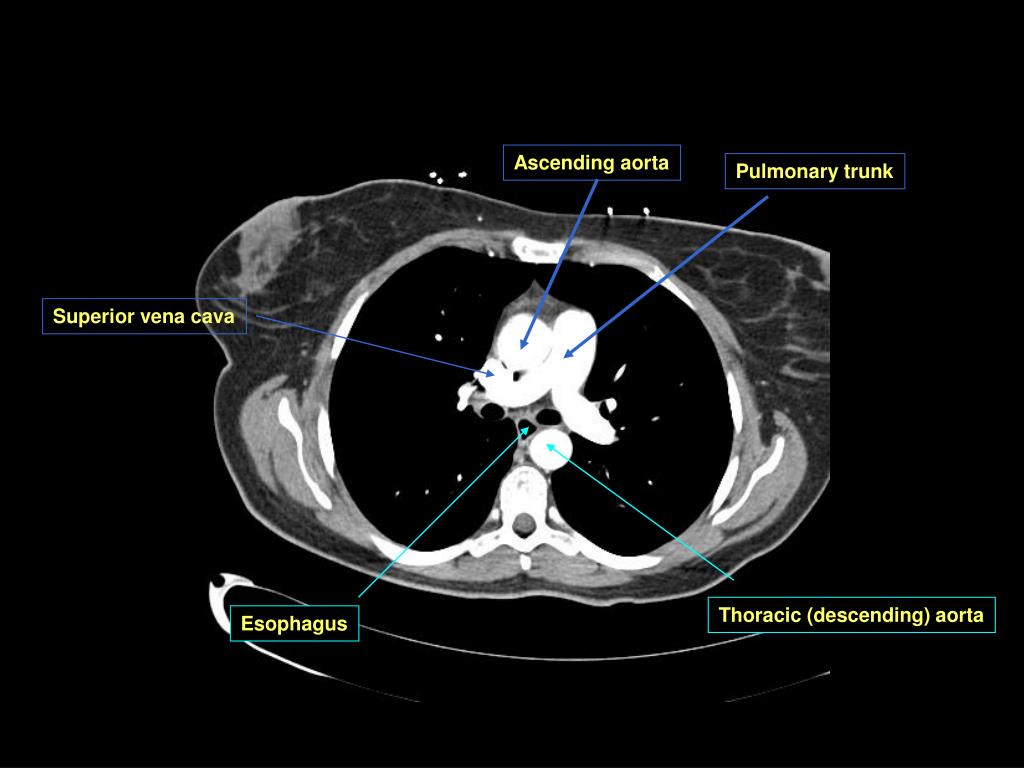

slide19

Ascending aorta

Pulmonary trunk

Superior vena cava

Thoracic (descending) aorta

Esophagus

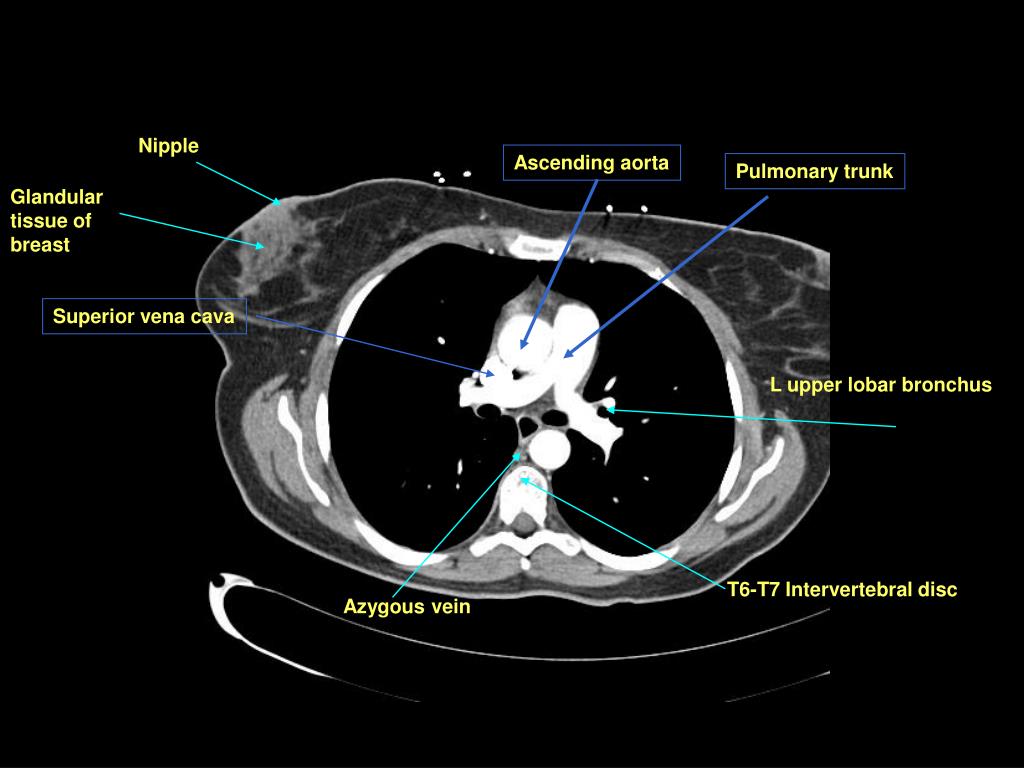

slide20

Nipple

Ascending aorta

Pulmonary trunk

Glandular tissue of breast

Superior vena cava

L upper lobar bronchus

T6-T7 Intervertebral disc

Azygous vein

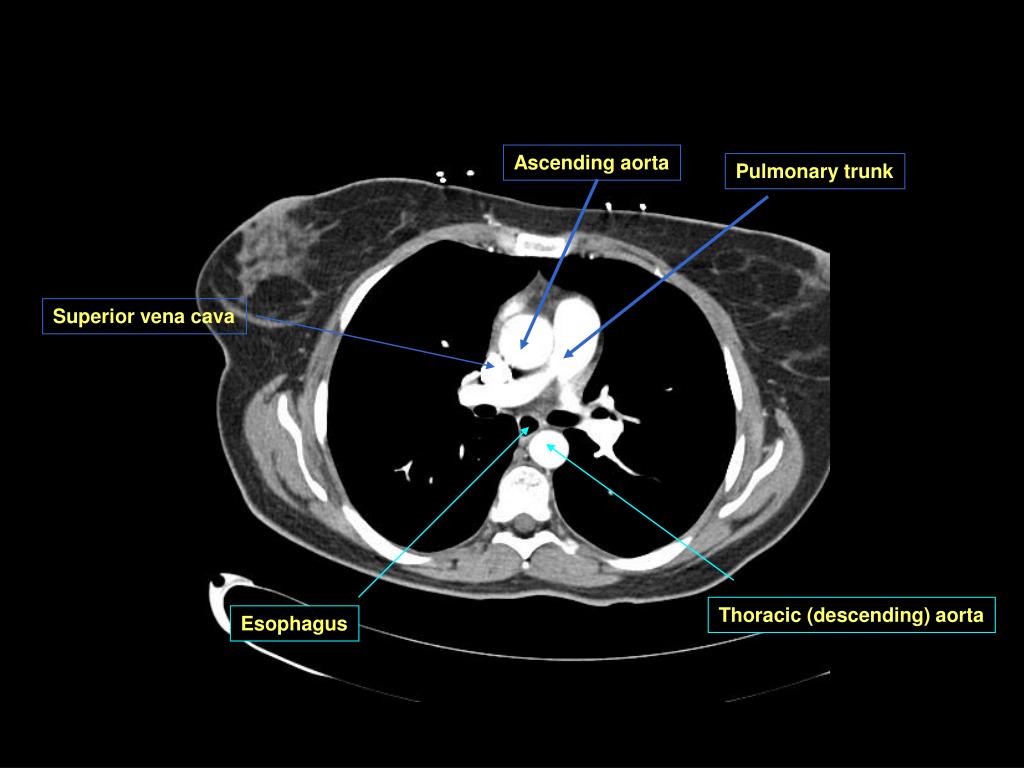

slide21

Ascending aorta

Pulmonary trunk

Superior vena cava

Thoracic (descending) aorta

Esophagus

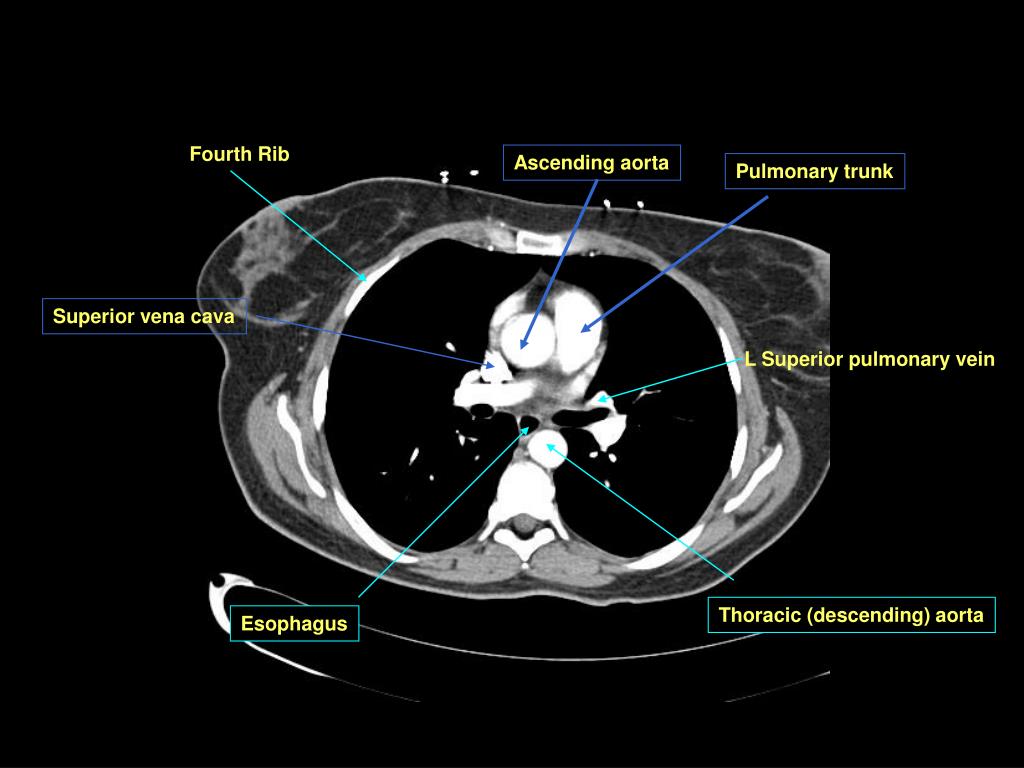

slide22

Fourth Rib

Ascending aorta

Pulmonary trunk

Superior vena cava

L Superior pulmonary vein

Thoracic (descending) aorta

Esophagus

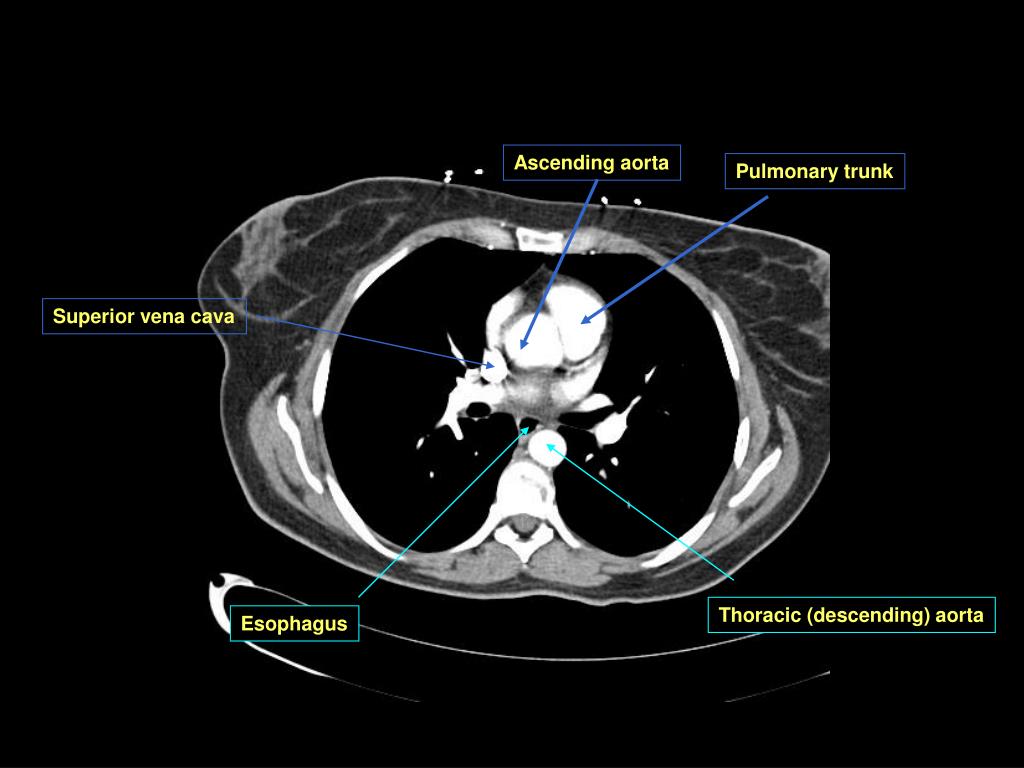

slide23

Ascending aorta

Pulmonary trunk

Superior vena cava

Thoracic (descending) aorta

Esophagus

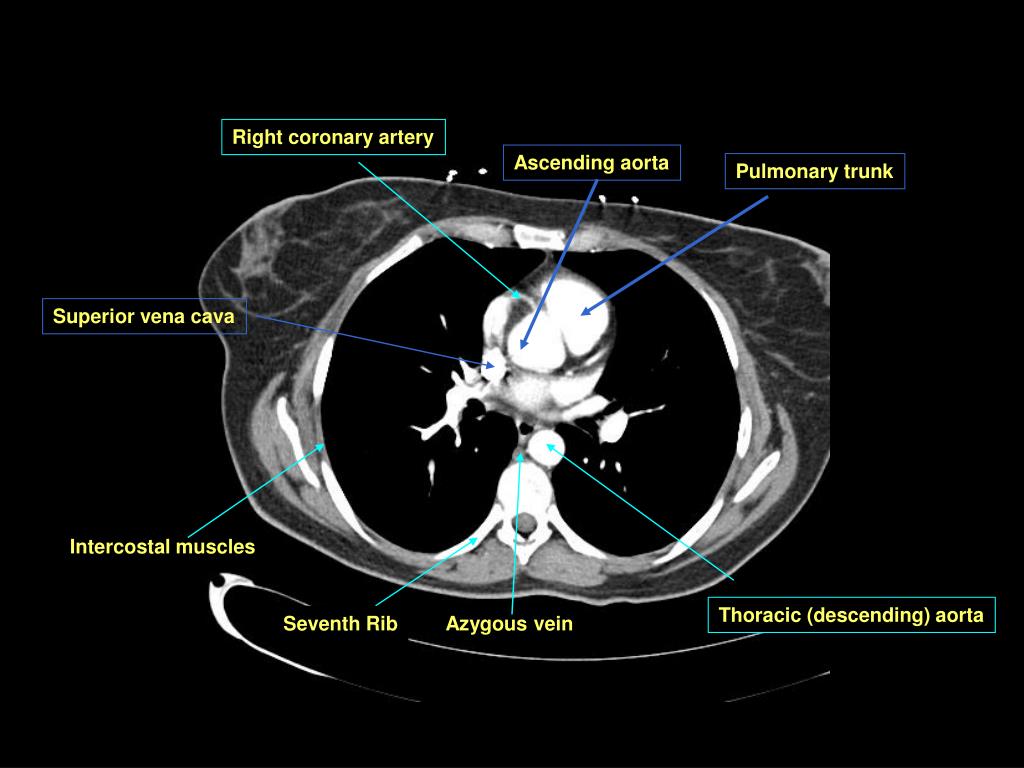

slide24

Right coronary artery

Ascending aorta

Pulmonary trunk

Superior vena cava

Intercostal muscles

Thoracic (descending) aorta

Seventh Rib

Azygous vein

slide25

Superior vena cava

Thoracic (descending) aorta

Esophagus

slide26

Right atrium

Superior vena cava

Left atrium

Left coronary artery

Thoracic (descending) aorta

Esophagus

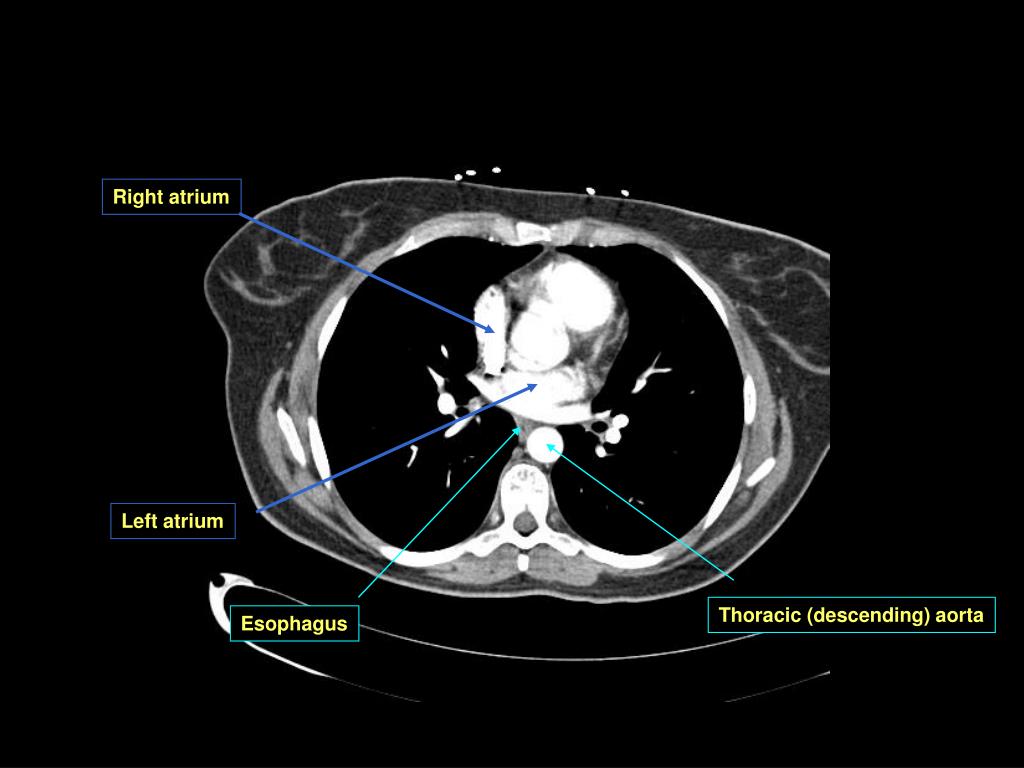

slide27

Right atrium

Left atrium

Thoracic (descending) aorta

Esophagus

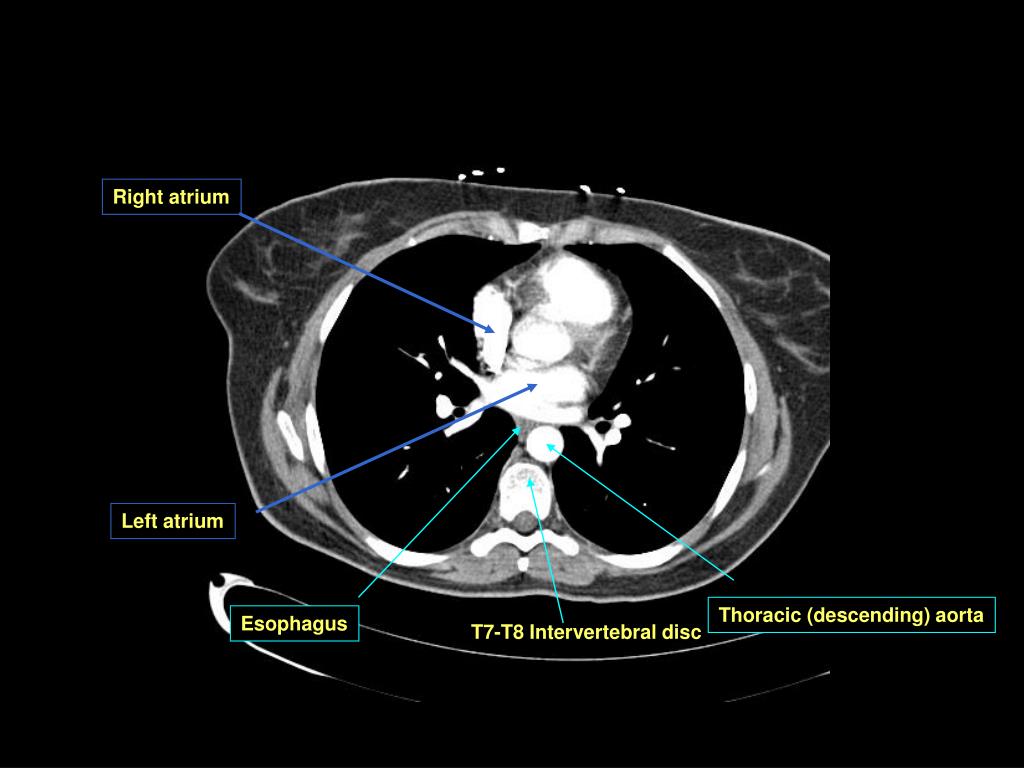

slide28

Right atrium

Left atrium

Thoracic (descending) aorta

Esophagus

T7-T8 Intervertebral disc

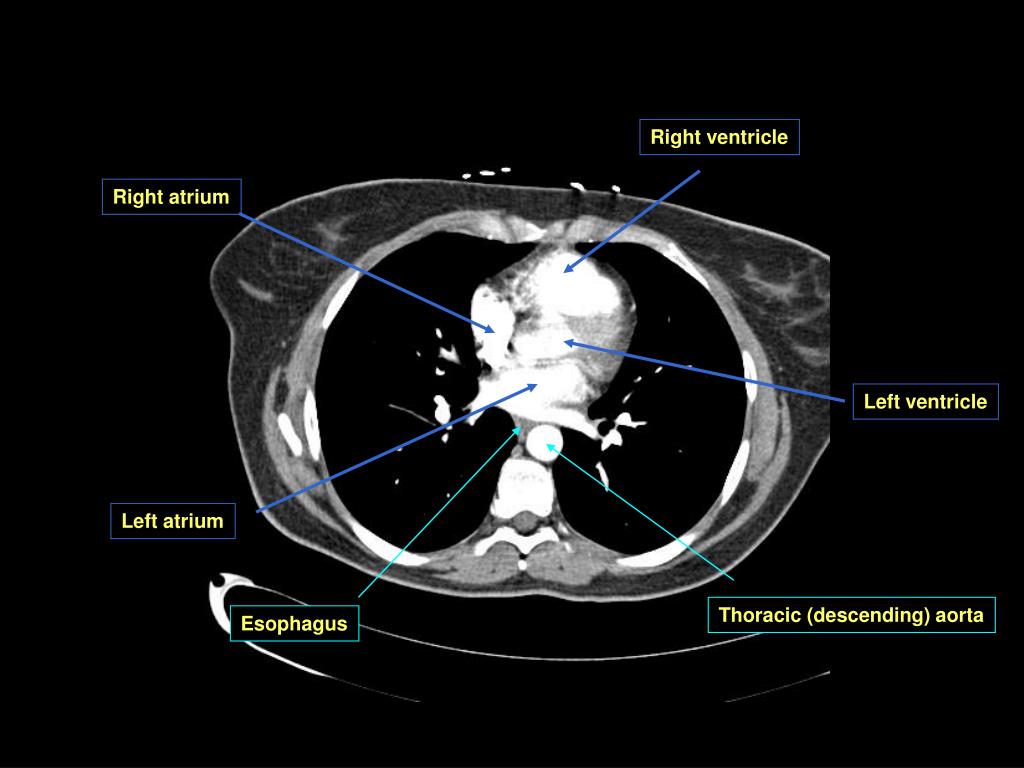

slide29

Right ventricle

Right atrium

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

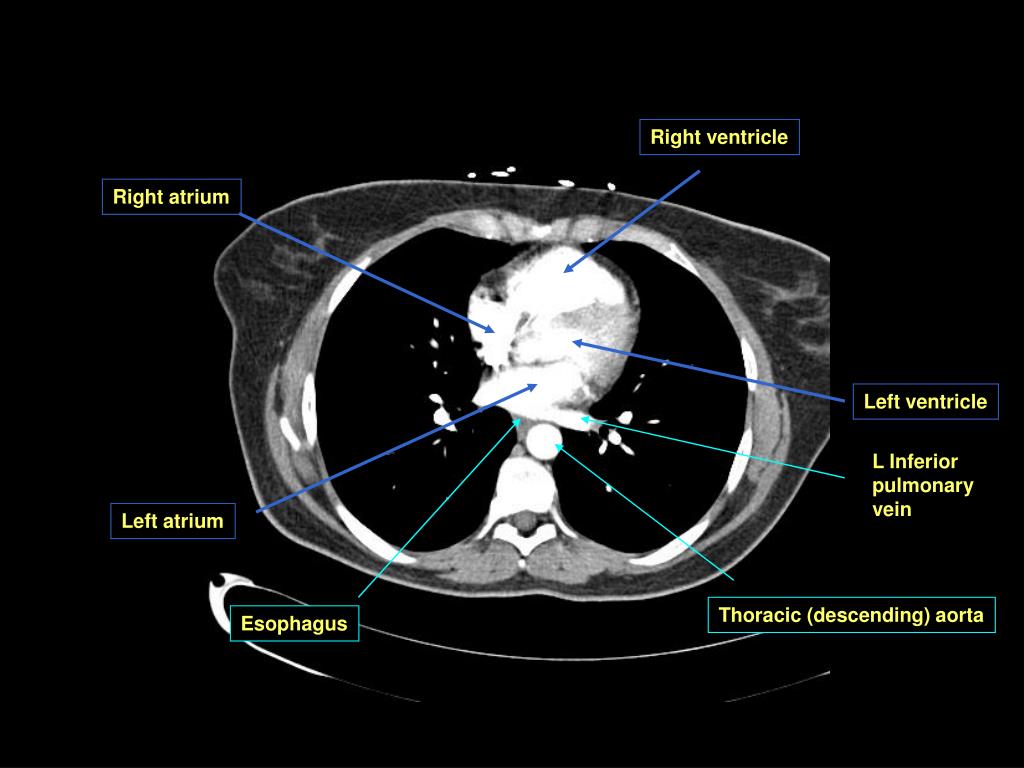

slide30

Right ventricle

Right atrium

Left ventricle

L Inferior pulmonary vein

Left atrium

Thoracic (descending) aorta

Esophagus

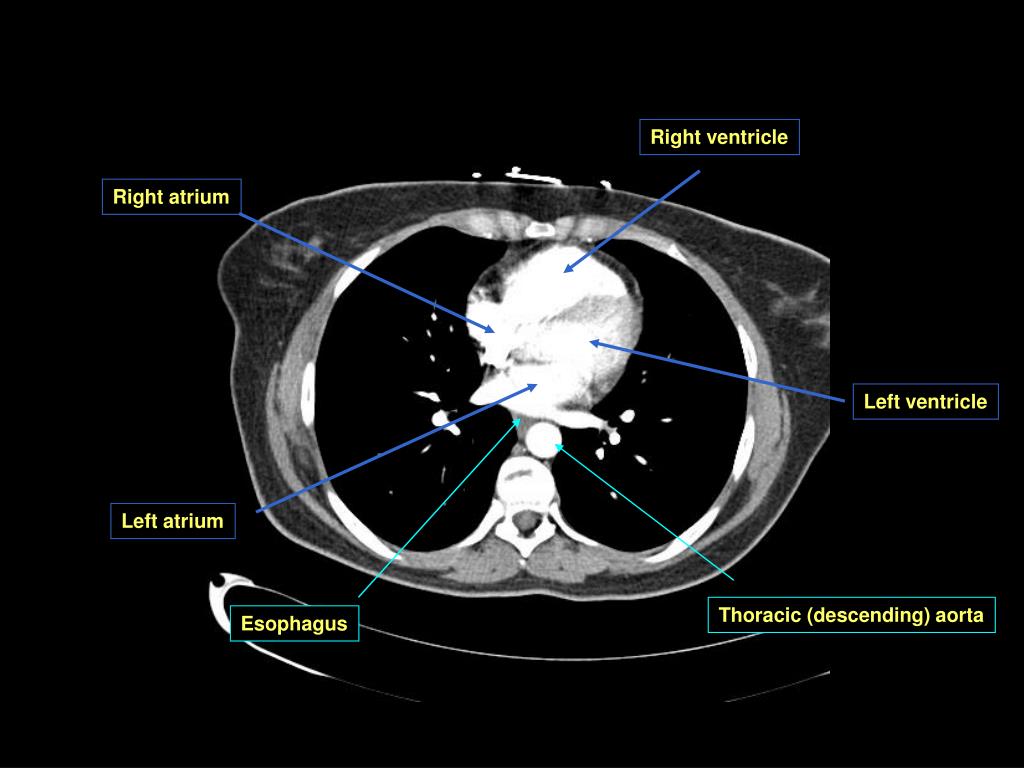

slide31

Right ventricle

Right atrium

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

slide32

Right ventricle

Right atrium

R Inferior pulmonary vein

Left ventricle

Left atrium

Latissimus dorsi

Thoracic (descending) aorta

Esophagus

Body of T8

slide33

Right ventricle

Right atrium

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

slide34

Body of sternum

Right ventricle

Right atrium

Muscular wall of left ventricle

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

Eighth Rib

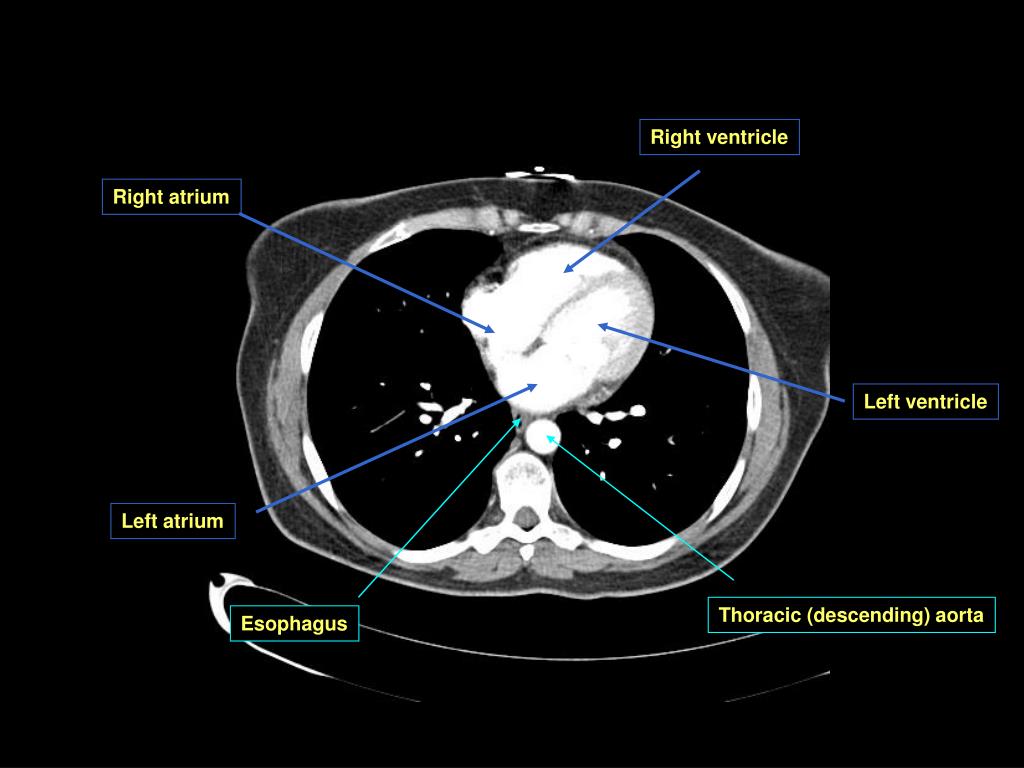

slide35

Right ventricle

Right atrium

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

slide36

Right ventricle

Right atrium

Interventricular

septum

Left ventricle

Left atrium

Thoracic (descending) aorta

Esophagus

slide37

Right ventricle

Left ventricle

Thoracic (descending) aorta

Esophagus

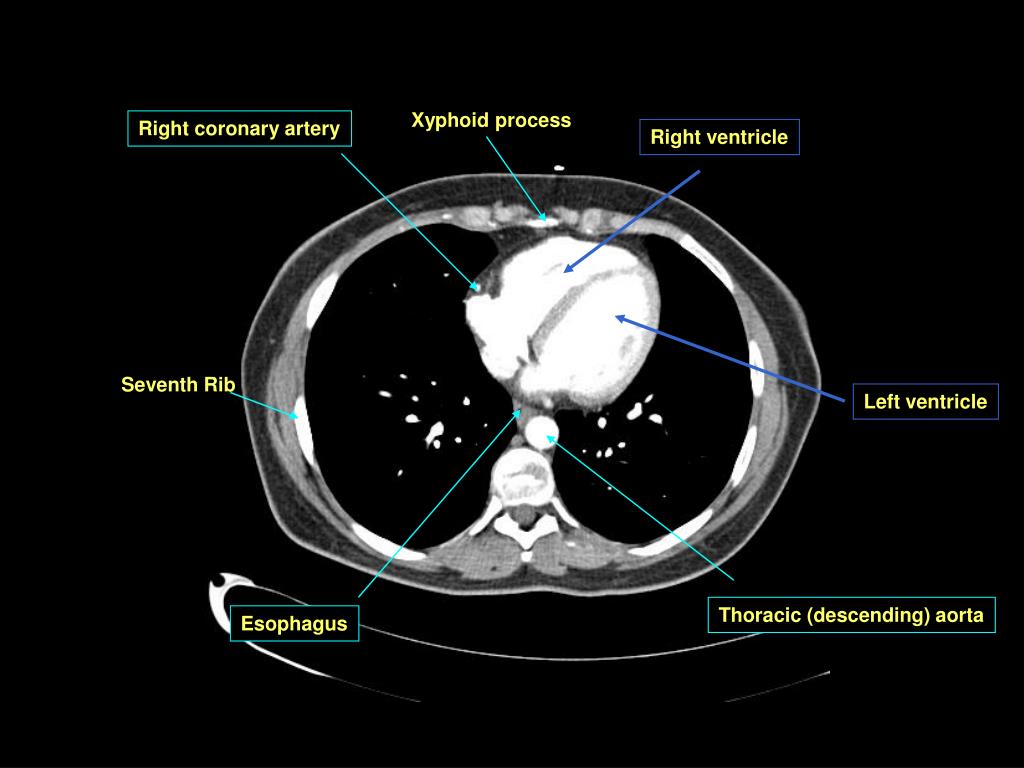

slide38

Xyphoid process

Right coronary artery

Right ventricle

Seventh Rib

Left ventricle

Thoracic (descending) aorta

Esophagus

slide39

Right ventricle

Left ventricle

Thoracic (descending) aorta

Esophagus

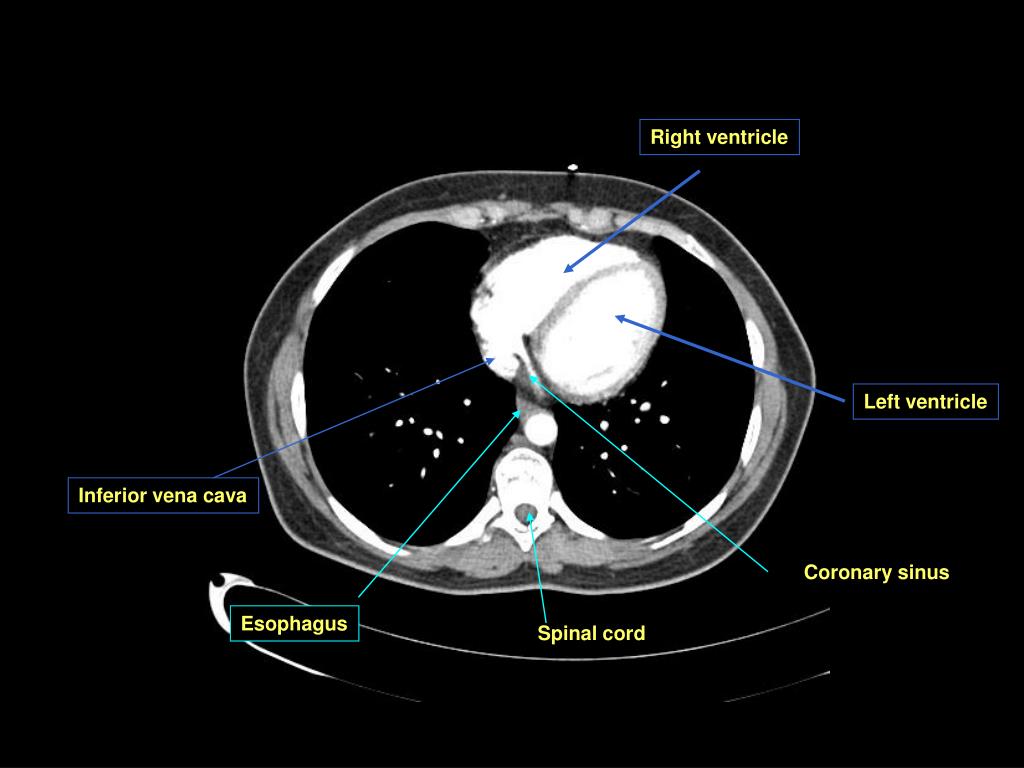

slide40

Right ventricle

Left ventricle

Inferior vena cava

Coronary sinus

Esophagus

Spinal cord

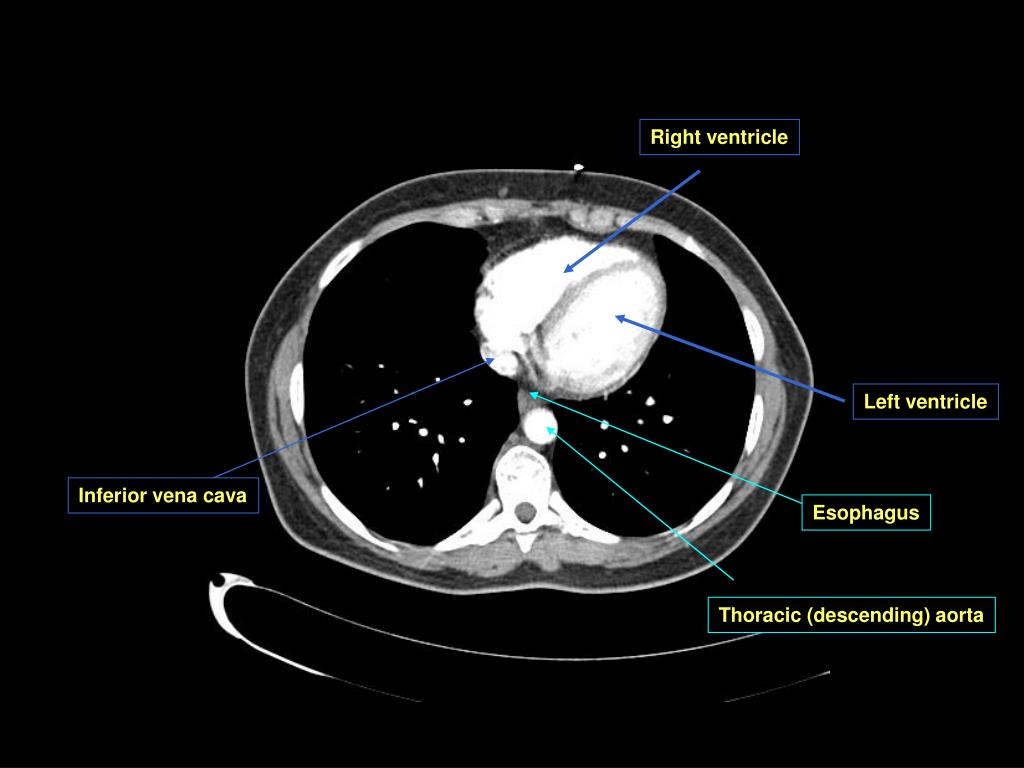

slide41

Right ventricle

Left ventricle

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide42

Right ventricle

Interventricular

septum

Left ventricle

Inferior vena cava

Esophagus

Spine of T8

Body of T9

slide43

Right ventricle

Left ventricle

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide44

Right ventricle

Left ventricle

Inferior vena cava

Hemiazygous vein

slide45

Right ventricle

Left ventricle

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide46

Right ventricle

Diaphragm

Apex of heart

Left ventricle

Inferior vena cava

Esophagus

Azygous vein

Thoracic (descending) aorta

Posterior intercostal artery

slide47

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide48

Lingula of left lung

Inferior vena cava

Esophagus

Thoracic (descending) aorta

Body of T10

slide49

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide50

Linea alba

Right lobe of liver

Inferior vena cava

Esophagus

Spine of T9

Thoracic (descending) aorta

slide51

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide52

Costodiaphragmatic recess

Seventh Rib

Hemiazygous vein

Tenth Rib

Intercostal muscles

slide53

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide54

Left lobe of liver

Right lobe of liver

Eighth Rib

Esophagus

Thoracic (descending) aorta

T10-T11 Intervertebral disc

slide55

Inferior vena cava

Esophagus

Thoracic (descending) aorta

slide56

Internal thoracic artery

Fundus of stomach

Caudate lobe of liver

Spleen

Spinal cord

Thoracic (descending) aorta

mri of thorax t1 weighted w o contrast

MRI of Thorax:T1 Weighted w/o contrast

MRI SERIES PROVIDED BY DR. PETER CHIIRICO, DEPARTMENT OF RADIOLOGY, JCESOM

LABELING BY MATT HARPER (JCESOM CLASS 2010)

slide58

Apex of R lung

Trachea

Right common carotid

Left common carotid

Esophagus

slide59

Right internal jugular vein

Right subclavian artery

Pectoralis major

Spine of vertebra

Left subclavian artery

slide60

Brachiocephalic artery

Right brachiocephalic vein

Pectoralis minor

Trapezius

Transversospinalis

slide61

Left brachiocephalic vein

Right lung

Trachea

Esophagus

Left common carotid

slide62

Brachiocephalic trunk

Subscapularis

Axillary Fossa

Body of vertebra

Trapezius

slide63

Superior vena cava

Pectoralis minor

Left subclavian artery

Scapula

Spinal cord

slide64

Arch of aorta

Superior vena cava

Teres major

Teres minor

Trachea

slide65

Body of sternum

Arch of aorta

Latissimus dorsi

Spinal cord

Body of vertebra

slide66

Ascending aorta

Thoracic (descending) aorta

Serratus anterior

Azygous vein

Esophagus

slide67

Pulmonary Trunk

Right pulmonary artery

Left pulmonary artery

Thoracic (descending) aorta

Carina at tracheal bifurcation

slide68

Internal thoracic artery

Ascending aorta

Right main bronchus

Spinal cord

Azygous vein

slide69

Superior vena cava

Ascending aorta

Right ventricle

Esophagus

Left main bronchus

slide70

Right ventricle

Right atrium

Left atrium

Body of vertebra

Thoracic (descending) aorta

slide71

Right ventricle

Right atrium

Left ventricle

Left atrium

slide72

Interventricular septum

Interatrial septum

Bronchi in left lung

Spinal cord

Trapezius

slide73

Apex of heart

Muscular wall of left ventricle

Azygous vein

Thoracic (descending) aorta

Left pulmonary vein

slide74

Right ventricle

Fossa ovalis or possible atrial septal defect

Left ventricle

Latissimus dorsi

Subcutaneous fat

slide75

Left ventricle

Right atrium

Bronchi and vessels in lung

Body of vertebra

Thoracic (descending) aorta

slide76

Interventricular septum

Inferior vena cava

Right coronary artery

Azygous vein

Trapezius

slide77

Inferior vena cava

Diaphragm

Esophagus

Spinal cord

Thoracic (descending) aorta
