Smart Dust. Mohammad Rahimi CSCI599-Spring2002. Back to future!. Colonies of smart ultra small size network Interaction of advances in technology VLSI more condense silicon processing VLSI more silicon speed VLSI low power short range communication

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Smart Dust' - salena


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
smart dust

Smart Dust

Mohammad Rahimi

CSCI599-Spring2002

back to future
Back to future!
  • Colonies of smart ultra small size network
  • Interaction of advances in technology
    • VLSI more condense silicon processing
    • VLSI more silicon speed
    • VLSI low power short range communication
    • MEMS Micro-Electromechanical Systems
    • Networking : Ad hoc wireless Network
    • Distributed Processing : Operating system, Database
applications
Applications
  • It is a special class of sensor network
  • Fine sensing granularity
  • Applications :
    • Forest fire warning
    • Enemy troop monitoring
    • Large scale Biology or Geology
    • Smart office spaces
    • Defense-related sensor networks
    • Inventory Control
slide7

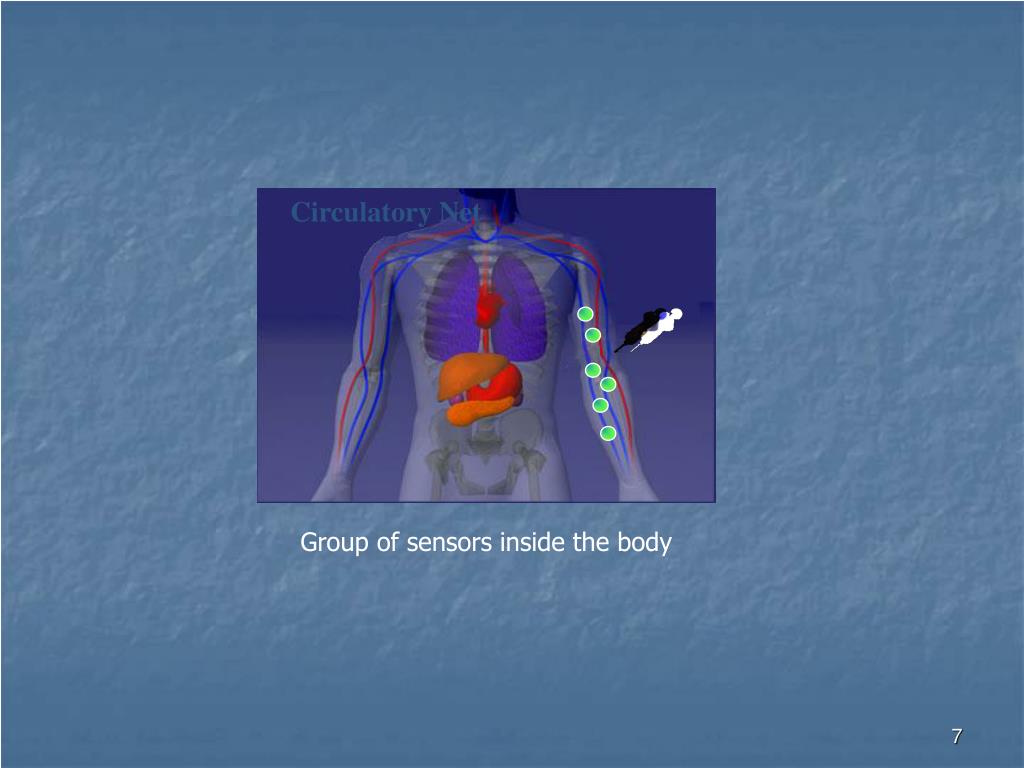

Circulatory Net

Group of sensors inside the body

key features of these electronic particles
Key Features of these electronic particles
  • Power
    • Survive for extended amount of time
  • Computation
    • Process Sensor Data and Communicate
  • Sensors
    • To Interface to the environment
  • Communication
    • To glue the pieces of information
what is really behind the race computer science

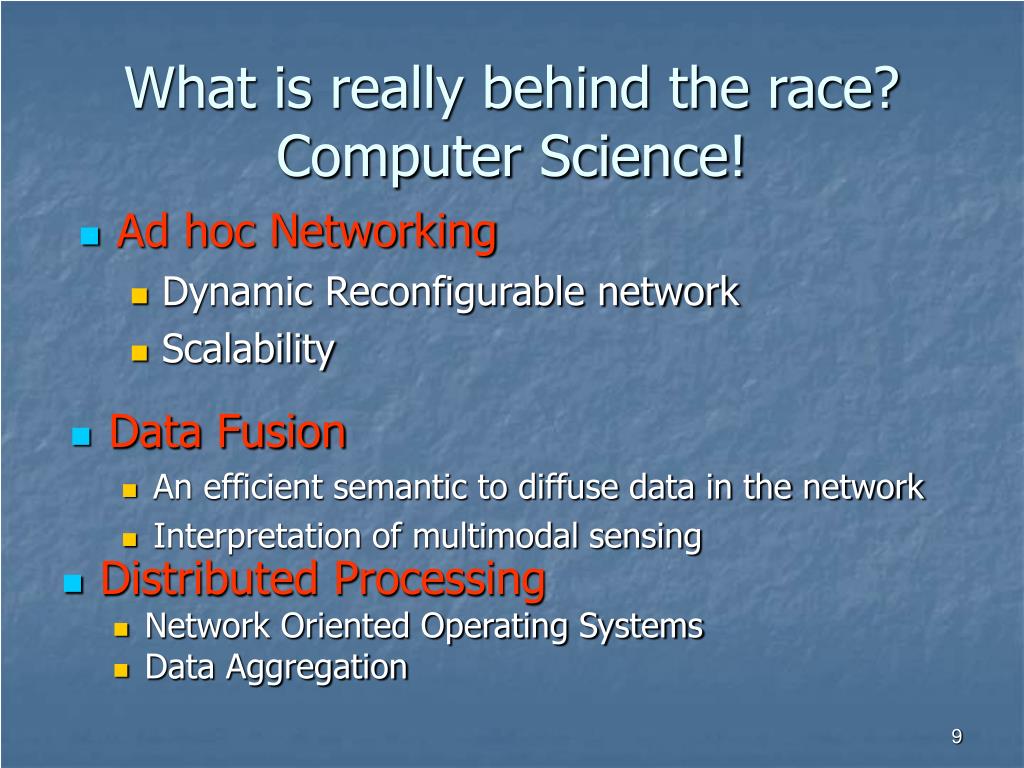

What is really behind the race?Computer Science!
  • Ad hoc Networking
    • Dynamic Reconfigurable network
    • Scalability
  • Data Fusion
    • An efficient semantic to diffuse data in the network
    • Interpretation of multimodal sensing
  • Distributed Processing
    • Network Oriented Operating Systems
    • Data Aggregation
come back to reality cots dust
Come Back to Reality!COTS Dust
  • Commercial Off-The-Shelf Components Dust
    • To enable us the research about the algorithms and semantics
architecture
Architecture

Low Power

Communication Front End

1-Acoustic

2-RF

3-Optical

Computation Brain

1-MCU

2-FPGA

Sensors

1-Magnetometer2- Light

3-temperature

4-pressure

5-Hmidity

6-Acceleration

Power

1-Bat

2-Sollar

3-Vibration

4-Acoustic Noise

power
Power
  • Power: Lithium Battery
    • Big Problem
    • Low capacity per unit of mass and volume
    • Needs support by sleep mechanism and low power techniques
    • Not really so much innovation after Volta!
      • Solar
      • Vibration
      • Acoustic noise
      • Thermal conversion
      • Nuclear Reaction
      • Fuel Cells
computation

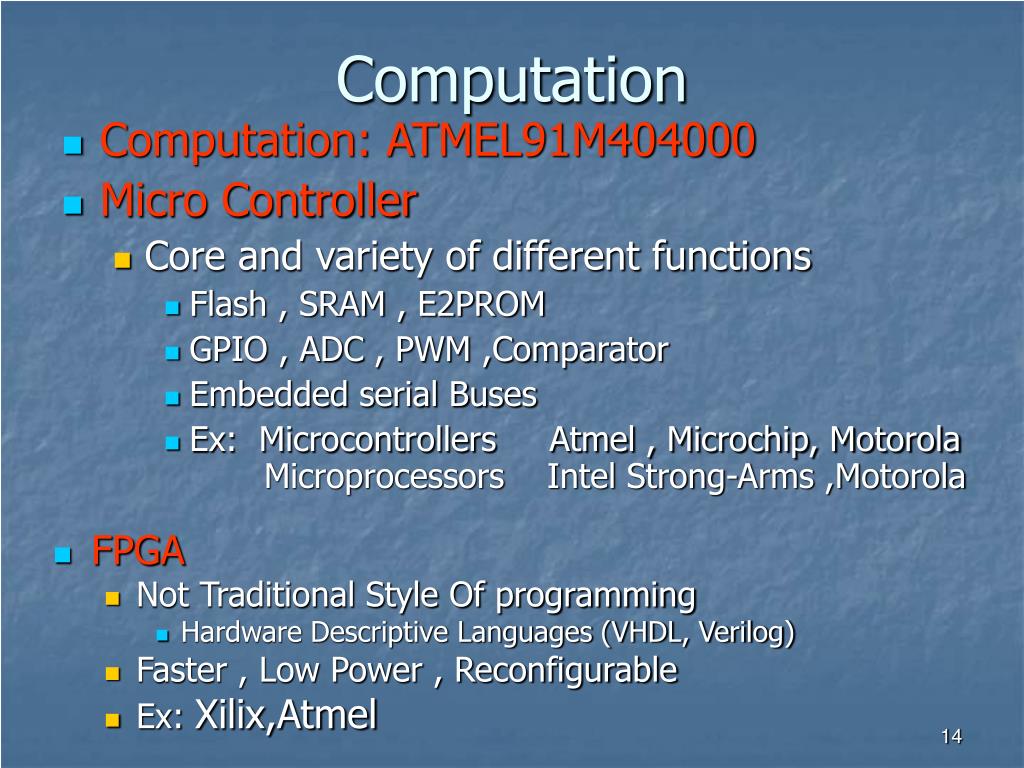

Computation
  • Computation: ATMEL91M404000
  • Micro Controller
    • Core and variety of different functions
      • Flash , SRAM , E2PROM
      • GPIO , ADC , PWM ,Comparator
      • Embedded serial Buses
      • Ex: Microcontrollers Atmel , Microchip, Motorola Microprocessors Intel Strong-Arms ,Motorola
  • FPGA
    • Not Traditional Style Of programming
      • Hardware Descriptive Languages (VHDL, Verilog)
    • Faster , Low Power , Reconfigurable
    • Ex: Xilix,Atmel
sensors
Sensors
  • Motion Sensing
    • Magnetometer
      • Study 3 Element of Earth Magnetic field (Compass)
    • Accelerometer
      • To measure Local vertical (tilt switch) or measure motion vectors
  • Environmental Sensing(Weather Monitoring)
    • Pressure
      • Barometer
    • Temperature
    • Light
    • Humidity
communication
Communication
  • Acoustic
  • RF radio
  • Optical
    • Passive
    • Active
acoustic communication

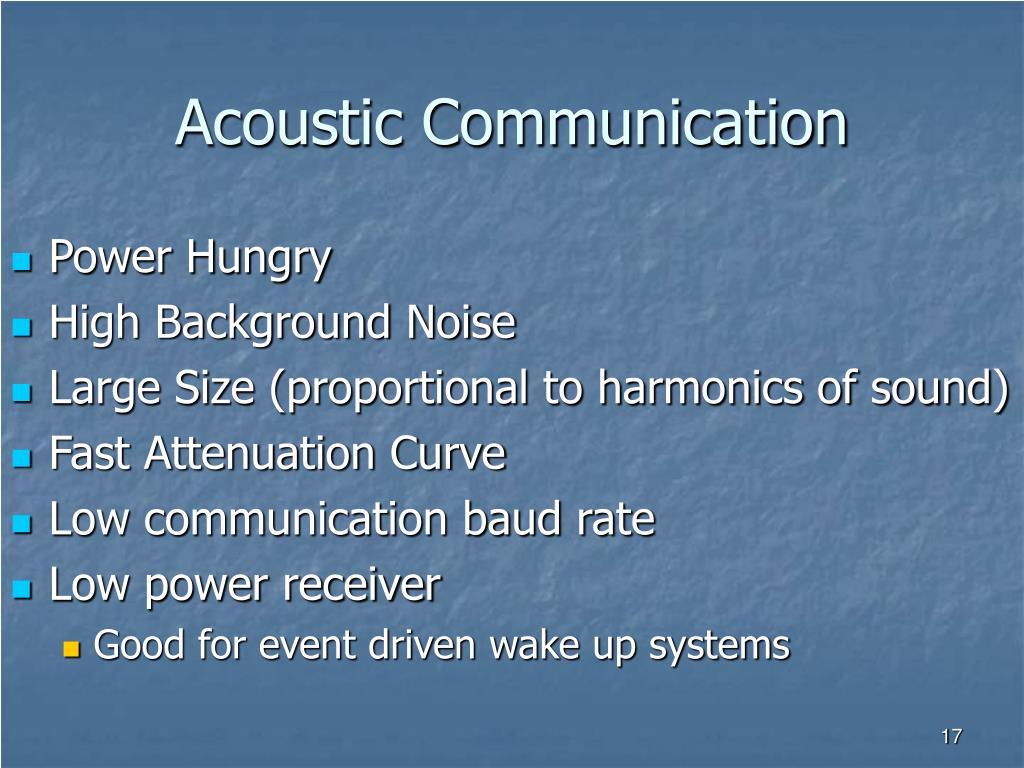

Acoustic Communication
  • Power Hungry
  • High Background Noise
  • Large Size (proportional to harmonics of sound)
  • Fast Attenuation Curve
  • Low communication baud rate
  • Low power receiver
    • Good for event driven wake up systems
rf communication
RF Communication
  • New low power techniques
    • Not robust (No fancy Spread Spectrum)
  • ISM Band
  • For practical frequencies large ANT Size(~λ)
    • It may have a tail!!
  • Only one RF front end
    • MCU acts as base band controller
      • CRC,Encoding(Manchester),DC Balance,Header
rf communication19
RF Communication

Train Sequence

Flag Byte

Number OF Byte

DATA

CRC

  • No Addressing
optical communication
Optical Communication
  • Active
    • High power laser source
    • Transmission of modulated laser beam
  • Passive
    • MEMS Corner Cube Reflector
    • Emit modulated ambient light
    • Extremely low power
optical vs rf
Optical Vs. RF
  • Both mature technology
  • Both Electromagnetic waves
  • light is quiet short wavelength compared to RF
    • Potential of smaller sizes
  • light techniques are extremely directional
    • Peer-Peer
  • RF techniques can be more omni directional
  • Directionality Brings the problem of alignment
future work

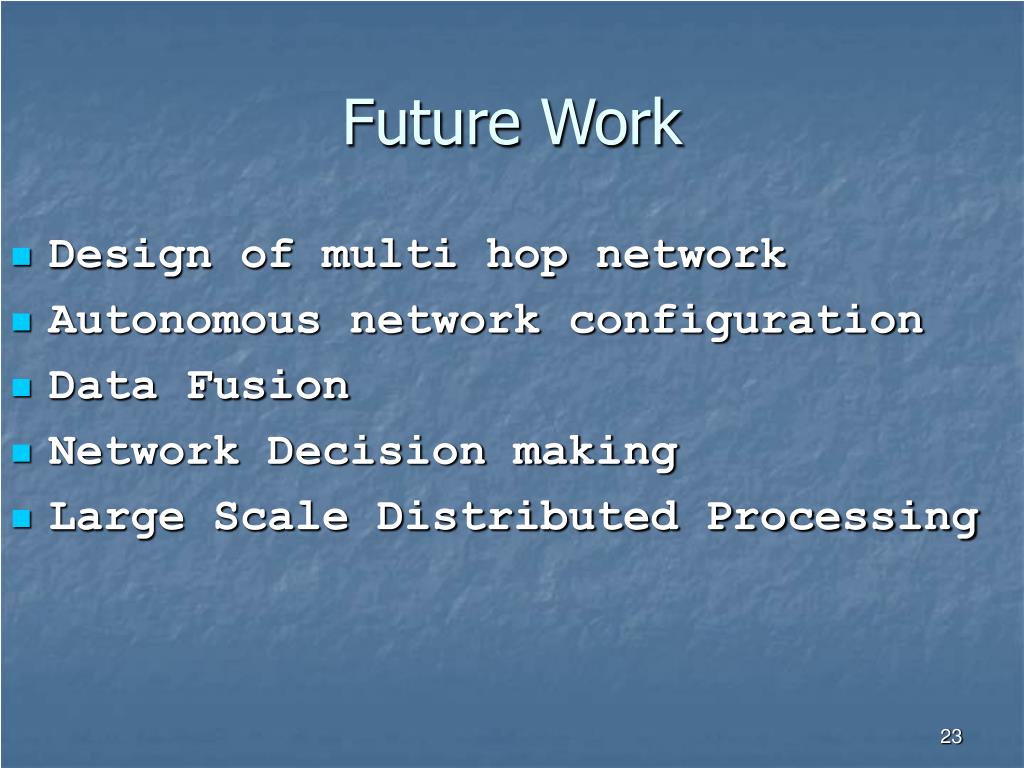

Future Work
  • Design of multi hop network
  • Autonomous network configuration
  • Data Fusion
  • Network Decision making
  • Large Scale Distributed Processing
links

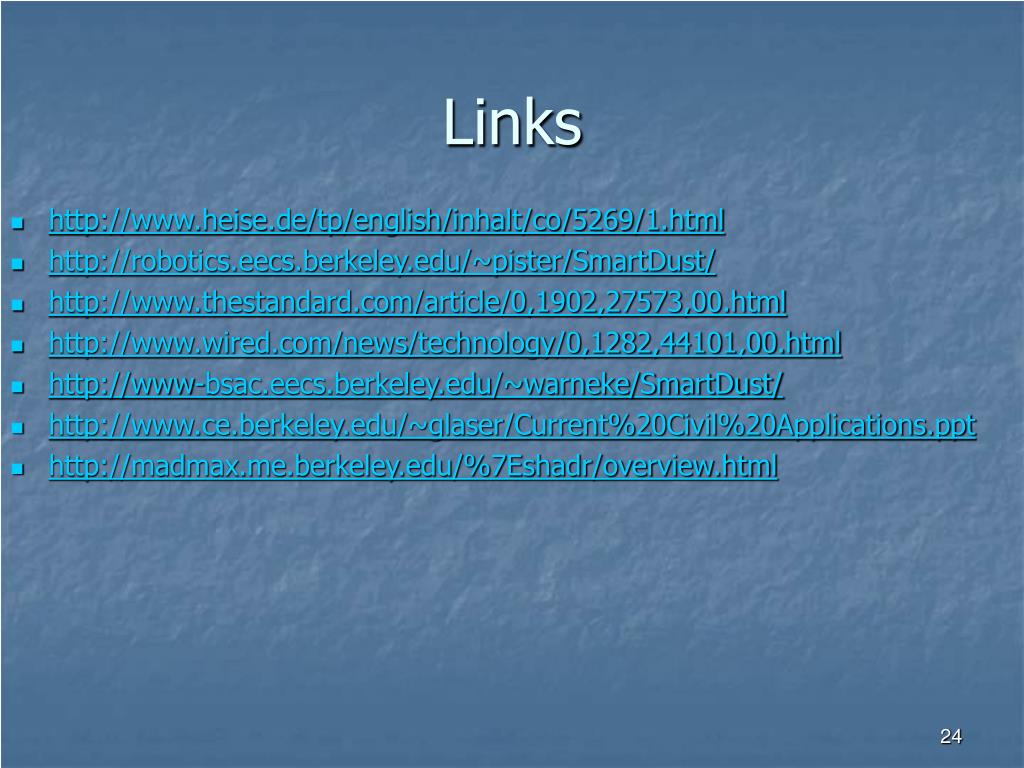

Links
  • http://www.heise.de/tp/english/inhalt/co/5269/1.html
  • http://robotics.eecs.berkeley.edu/~pister/SmartDust/
  • http://www.thestandard.com/article/0,1902,27573,00.html
  • http://www.wired.com/news/technology/0,1282,44101,00.html
  • http://www-bsac.eecs.berkeley.edu/~warneke/SmartDust/
  • http://www.ce.berkeley.edu/~glaser/Current%20Civil%20Applications.ppt
  • http://madmax.me.berkeley.edu/%7Eshadr/overview.html
