overview building information models

National Institute of

Building Sciences

National Building Information Model Standard

Industry Foundation Classes

Information Delivery Manuals

and International Framework for Dictionaries

Based on and supporting

Overview Building Information Models

NIBS National BIM Standard Project Committee

November 2006

This presentation is a collaborative product of the NIBS NBIMS Project Committee.

bim what is it and why use it
BIM - What is it and why use it?
  • A BIM is a lifecycle information collection point for a facility
  • A BIM allows for the creation of facility information relationships
  • A BIM is focused on saving resources (dollars, time and materials) during each phase of the facility life cycle
  • The more mature the model the more usable it is – but any collected data is better that how we do business today
building information model definition
Building Information Model Definition

National BIM Standard Definition of BIM – buildingSMART

A Building Information Model (BIM) is a digital representation of physical and functional characteristics of a facility.  As such it serves as a shared knowledge resource for information about a facility forming a reliable basis for decisions during its life-cycle from inception onward.

A basic premise of BIM is collaboration by different stakeholders at different phases of the life cycle of a facility to insert, extract, update or modify information in the BIM process to support and reflect the roles of that stakeholder. The BIM is a shared digital representation founded on open standards for interoperability.

The National BIM Standard is part of the global buildingSMART Information Delivery Manual Initiative.

slide4

Dispose

Conceive

Renovate

Plan

Operate

Design

Build

Lifecycle Phases

© AEdgar 2006

The building process is not linear…

Building is a Verb

National Building Information Model Standard

each cycle should add knowledge

Information Exchanges

Knowledge over time

Dispose

Conceive

Renovate

Plan

Operate

Design

Build

Lifecycle Phases

© AEdgar 2006

Each cycle should add knowledge

Learn and Improve

National Building Information Model Standard

share and re use information easily

Information Backbone

Information Exchanges

Knowledge over time

Dispose

Conceive

Renovate

Plan

Operate

Design

Build

Lifecycle Phases

© AEdgar 2006

Share and re-use information easily

Interoperability

National Building Information Model Standard

projects create buildings lots of information

Information Backbone

Information Exchanges

Knowledge over time

Dispose

Conceive

Renovate

Plan

Operate

Design

Build

Lifecycle Phases

© AEdgar 2006

Projects create buildings + lots of information

Lifecycle Information

National Building Information Model Standard

Vendor

Project Team

what is building information modeling bim
What is Building Information Modeling [BIM]?
  • 2D Lines and Text

Building Is a Verb

  • 3D Polygons
  • BIM
  • Virtual Construction
  • 3D Visual
  • Coordinated dataset
  • Interoperable

Lifecycle Knowledge

Readily Exchanged

Real Objects

  • Installation photo
  • Built to the model

Images courtesy FacilityGenetics, LLC and Ghafari Associates

how does bim work

Accurate steel members

- Size, weight, performance, cost.

Accurate connections

Accurate 3D position

Simulation of

- Installation process & equipment requirements

- lighting

- structural performance

- etc.

Overlap with other 3D elements to identify collisions.

- Mech, elec, plbg,

- Walls, ceilings, FF&E

- Access for maint. & repair

How Does BIM Work?

For Example…

Building Is a Verb

Courtesy: Kling

Lifecycle Knowledge

Readily Exchanged

Real Objects

Lifelike Properties

how does bim work10

Lifecycle Knowledge

Readily Exchanged

Real Objects

Lifelike Properties

Ongoing Uses

How Does BIM Work?

Data Commissioning for Facilities Operations & Management

Building Is a Verb

DATA

FUNCTION

  • Real Property
  • Space
  • Equipment
  • Utilities
  • Maint. Tasks
  • Instructions
  • Schedules
  • Cost
  • 3D Geometry
  • Employees
  • Legal
  • Fiduciary
  • Store Ops
  • Bldg. Ops
  • Fac. Mgmt
  • Asset Mgmt

COBIE

Courtesy:Bentley Systems, Inc.

[ Construction to Operations Building Information Exchange ]

how does bim work all stakeholders participate

Lifecycle Knowledge

Readily Exchanged

Real Objects

Lifelike Properties

Ongoing Uses

How Does BIM Work? All Stakeholders Participate

Legal

Data

Financial

Data

Geospatial

Data

Building Is a Verb

Designer

Data

BIM

Specifier Data

Owner / Occupier

Data

Sustainers

Data

Environmentalist

Data

Courtesy of NIBS National Building Information Modeling Standards Committee

influence vs cost curve

Typical

‘Value’ Engineering !

Virtual Building Design

Proposed Entry

25%

75%

Lifecyclecost

Strategy

Design

Construction

Operation

Influence vs Cost Curve

Cost of Changes

Ability to Change

Effort

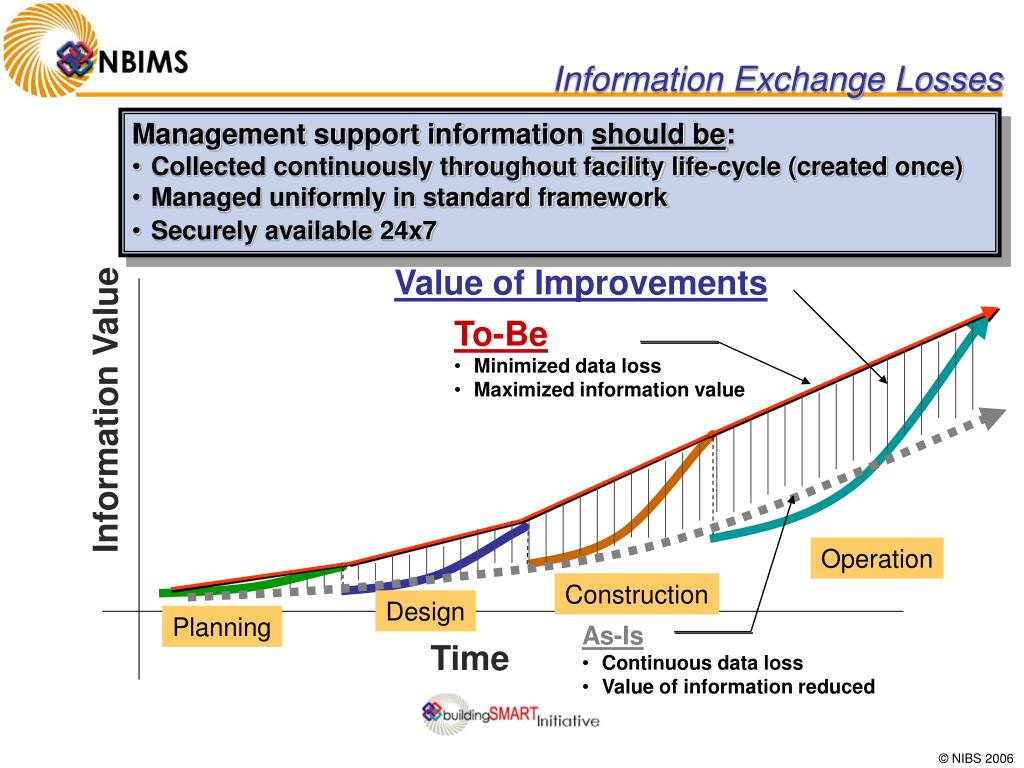

information exchange losses

Value of Improvements

  • To-Be
  • Minimized data loss
  • Maximized information value

Information Value

Operation

Construction

Design

Planning

  • As-Is
  • Continuous data loss
  • Value of information reduced

Time

Information Exchange Losses
  • Management support information should be:
  • Collected continuously throughout facility life-cycle (created once)
  • Managed uniformly in standard framework
  • Securely available 24x7
notional bim project savings curve
Notional BIM Project Savings Curve

This is a draft – a team is working to put actual numbers to these notional curves

Procurement Stage

Execution Stage

Project Delivery Selection Stage

Conception Stage

Design Stage

Construction Documents Stage

Utilization

Stage

Closure

Stage

Optimized approach with virtual modeling and analysis with reduced change orders & delivery time and lower operating and sustainment costs

Typical approach failing to do routine maintenance and having to replace items earlier and more often

Typical design/build approach with required maintenance

The savings we are currently experiencing with faster delivery and fewer change orders

The yet untapped $avings

IAI “BuildingSMART” model supports lifecycle data

typical bim benefits

Lifecycle Knowledge

Readily Exchanged

Real Objects

Lifelike Properties

Ongoing Uses

VALUE

Typical BIM Benefits

Building Is a Verb

  • Better understanding of design concepts – shared understanding of issues
  • More focus on value-added tasks
  • Faster cycle times
  • Reduced errors and omissions
  • Less waste: rework, materials, time
  • Fewer translation errors and losses
  • Increased site safety
  • Better estimates – cost and time
who benefits from bim implementation
Facility Information ViewsOwnersPlannersRealtorsAppraisersMortgage BankersDesignersEngineersCost & Quantity EstimatorsSpecifiersContracts & LawyersConstruction ContractorsSub-ContractorsFabricatorsCode OfficialsFacility ManagersMaintenance & SustainmentRenovation & RestorationDisposal & Recycling

Scoping, Testing, SimulationSafety & Occupational HealthEnvironmental & NEPAPlant OperationsEnergy, LEEDSpace & SecurityNetwork ManagersCIO’sRisk ManagementOccupant SupportFirst Responders

Graphisoft

Who Benefits From BIM Implementation

BIM

facility data that could be included in bim
Planning scenarios and site information

Architectural program

Floor plans

Space functions

Classified areas, vaults etc.

Area calculations

Volume calculations

Engineering calculations

Specifications

Contract documents

Legal description

Change orders

Supporting documentation for litigation

Shop drawings

Procurement documents

Progress photographs

Alarm diagrams

Warranty data

Invoices

Purchase requests

Cost Estimates

Organizational occupants

Personnel lists

Seating plans

Handicap designation

Network diagrams

Hazardous materials

Operating manuals

Maintenance records

Inspection records

Electronic 3D model

Simulations

Continuation of operations plans

Disaster Recovery Plans

Contingency plans

Furniture inventory

Facility Data That Could Be Included in BIM
hierarchical information relationships

Theatre / World

Geospatial Information

(GIS)

Country

Installation /

Region

State / Province

Natural Asset

County

Air / Space

City

Underground

IAI-IFC Usage

Site

Water / Sea

Real

Property Asset

Land / Parcel

Facility / Built

Building

System

Sub-Systems

Space

Components

Level

Overlay

Room

Structure

System

Sub-Systems

Components

Space

Level

Overlay

Building information

(Building Information Models)

Room

Linear Structure

Node

Segment

Hierarchical Information Relationships
slide19

Hierarchical Building Information Relationships

Systemsrepresent the physical entities of the building. Systems use NA classifications such as Omni-Class and Uniformat and are transported/exchanged via IFCs

Attributes

BUILDING

Or Structure

Metrics

IFC objects, relationships, space

SYSTEMS –Ex. Structural, MEP, Flooring, Ceiling, Exterior, Walls

Spaceis physical in nature, but can be unbounded (have no or cross physical boundaries) but it will always be tied to the physical structure or systems in some way

Attributes

Attributes

Metrics

Sub-Systems

(part of systems)

Metrics

Components

Overlaysare more abstract data - organizational, operational, functional, financial, non-fixed assets, resources, personnel, etc. that is data tied to the Systems and Space

SPACE-Vertical Horizontal, Empty

Example

SUI,CI

Metrics

Level (Stories)

Room

Attributes

Standards

Void

Metrics

Vertical

Reports or Extracted Data from BIM

(examples from all classifications)

Attributes

Area

Gross

OVERLAYS – Typically associated with building hierarchy elements.

Example

Furniture

Equipment

Phone

Net

Example

Rentable Space

Circulation Area

Volume

Financial

Classifications

Assets

Usable

Surface

Example

Space Assignment

Business Group

Sq. Ftg.

Example

Secure Areas

Systems

Quantities

Personnel

Zones

Linear Ft.

Materials & Types

Example

Marketing

Administration

Example

FCA,MDI

Business

Groups

Metrics

information exchanges
Information Exchanges
  • Programmatic and Project Requirements or Constraints (LEED Silver requested by owner)
  • Normative standards by which data is collected or managed
  • (Such as the IBC, NCS, IFC’s and OmniClass™)

Control

The reason for the information exchange (i.e. Desire to buy doors)

Report on Door Objects

BIM

Output

Input

The product of the information exchange (i.e. The quantity and specification data used to purchase and deliver doors.

The information exchange

BIM

Existing information already in the BIM is used as input and information that is gleaned from the exchange is also stored in the model (i.e. Attributes about the doors purchased, size, material, cost, instructions, fire rating, etc.) NCS, IFC’s, OmniClass

More information is added to the building information model in its appropriate spatially related location

use of information exchanges to support bim
Use of Information Exchanges to Support BIM
  • Requirement & Goal
    • Standardize on information needed for specific tasks within the building lifecycle
    • Development based upon open data standards used by all
    • Provides requirements to software companies
  • North America data standards
    • CSI, OMNICLASS, Uniformat
    • International Bldg Code
    • CIS/2 and other authorities
case study letterman digital arts center
Case Study – Letterman Digital Arts Center
  • “Despite numerous design layout changes that were required by Lucas Film Ltd. due to company restructuring, the LDAC project was completed on time and below the estimated budget….over two hundred design and construction conflicts were identified, most of which were corrected before construction, resulting in an

estimated savings of over

$10 million on this $350

million project.”

Courtesy of AECbytes "Building the Future" Article (September 30, 2006)

Building Owners Driving BIM: The "Letterman Digital Arts Center" StoryMieczyslaw (Mitch) Boryslawski, Associate AIA

Founder, View By View, Inc.

multiple types of analysis from the same model
Multiple Types of Analysis from the Same Model

Global V6 engine plant for General Motors – Flint, MI (Courtesy: GHAFARI Associates)

uscg integrated bim mission support approach
USCG Integrated BIM/Mission Support Approach

Identifying Mission Requirements…

…Using BIM, Web Services and

IFC’s to Support Decisions and

Cost Effectively Plan for the Future…

…To Provide the Right Products to their Customers based on Mission Requirements

philosophical change in approach
Philosophical changein approach

Planned information relationships

Current Lack of Interoperability

B

A

2

3

1

3

1

Building A

Building B

Building C

2

4

4

3

1

2

Subject 1

Subject 2

Subject 3

Subject 4

4

C

Start with a “BIM Blob”

Add shape

Add additional information

End up with a mature BIM or

obtain a complete BIM with

new construction

Information is available about a subject across all facilities but not about all subjects across all facilities

emerging building smart na initiative
EmergingbuildingSMART-NAInitiative
  • Draft Role
  • A Strategy for Improving Facilities
  • The buildingSMART Alliance will:
  • Act as a focal point for improving facilities efficiency
  • Establish consortia arrangements for conducting research,
  • Conduct forums and workshops,
  • Manage research and research-related projects,
  • Disseminate information,
  • Review work performed by others.
  • Develop and recommend standards, guidelines and certification programs;
  • Stimulate innovation in the industry
  • Promote increased understanding and communications
to read more about it
To Read More About It …
  • WBDG BIM Resource Page:
    • http://www.wbdg.org/design/bim.php
    • Intro/overview & list of associations and resources.
  • NIBS National BIM Standard Committee website:
    • http://www.facilityinformationcouncil.org/bim/index.php
    • Join the listserv and/or join the Committee and a Task Team
  • Assoc. General Contractors (AGC), Contractors’ Guide to BIMhttp://www.agc.org/galleries/marketing-gallery/BIM_ad3.jpg
  • GSA 3D & 4D Building Information Modeling:
    • http://www.gsa.gov/Portal/gsa/ep/contentView.do?P=PM&contentId=20917&contentType=GSA_OVERVIEW
  • Integrated Practice in Architecture, Elvin, Feb.’07
    • Mastering Design-Build, Fast-Track, and BIM
    • http://www.wiley.com/WileyCDA/WileyTitle/productCd-0471998494.html
  • BSU College of Architecture & Planning: http://www.bsu.edu/cap
for more information
For More Information
  • Contact Information
    • NIBS: Earle Kennett - ekennett@nibs.org
    • Chairman: Deke Smith - deke@dksic.net
    • Task Team Chairpersons
      • Fundraising: Ric Jackson - jackson@fiatech.org
      • Business Process Integration: Dave Jordani - djordani@jordani.com
      • Scoping: Dianne Davis - d.davis@aecinfosystems.com
      • Development: Bill East - Bill.W.East@erdc.usace.army.mil
      • Testing: Patrick Suermann - suermann@ufl.edu
      • Communications: Alan Edgar – aredgar@facilitygenetics.com
    • NBMIS: www.facilityinformationcouncil.org/bim/index.php

Thank You
