  1. Obstruction Surveys and Airport Airspace Analysis Bob Vander Meer Director of Aviation Programs

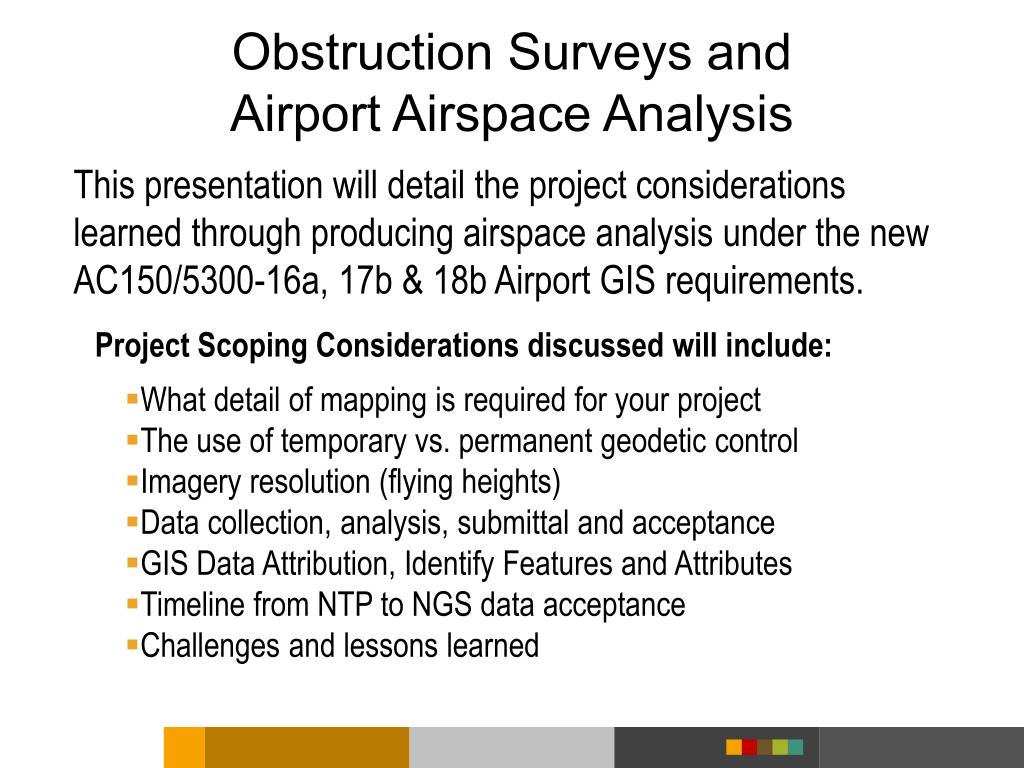

  2. Obstruction Surveys and Airport Airspace Analysis • This presentation will detail the project considerations learned through producing airspace analysis under the new AC150/5300-16a, 17b & 18b Airport GIS requirements. • Project Scoping Considerations discussed will include: • What detail of mapping is required for your project • The use of temporary vs. permanent geodetic control • Imagery resolution (flying heights) • Data collection, analysis, submittal and acceptance • GIS Data Attribution, Identify Features and Attributes • Timeline from NTP to NGS data acceptance • Challenges and lessons learned

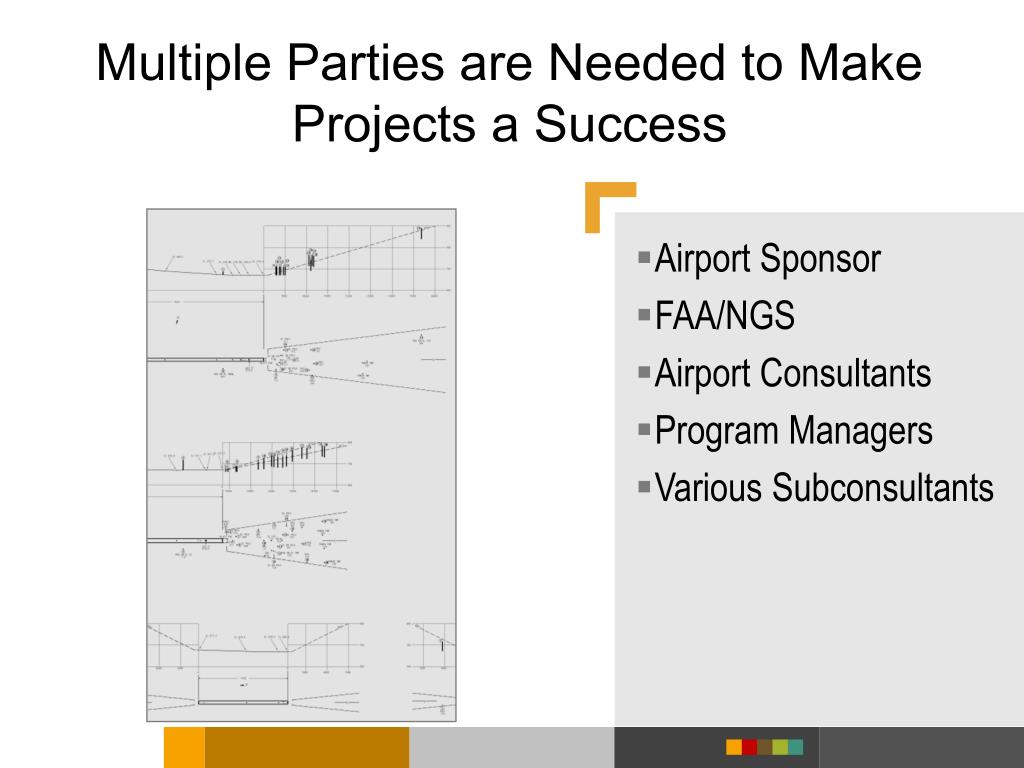

  3. Multiple Parties are Needed to Make Projects a Success • Airport Sponsor • FAA/NGS • Airport Consultants • Program Managers • Various Subconsultants

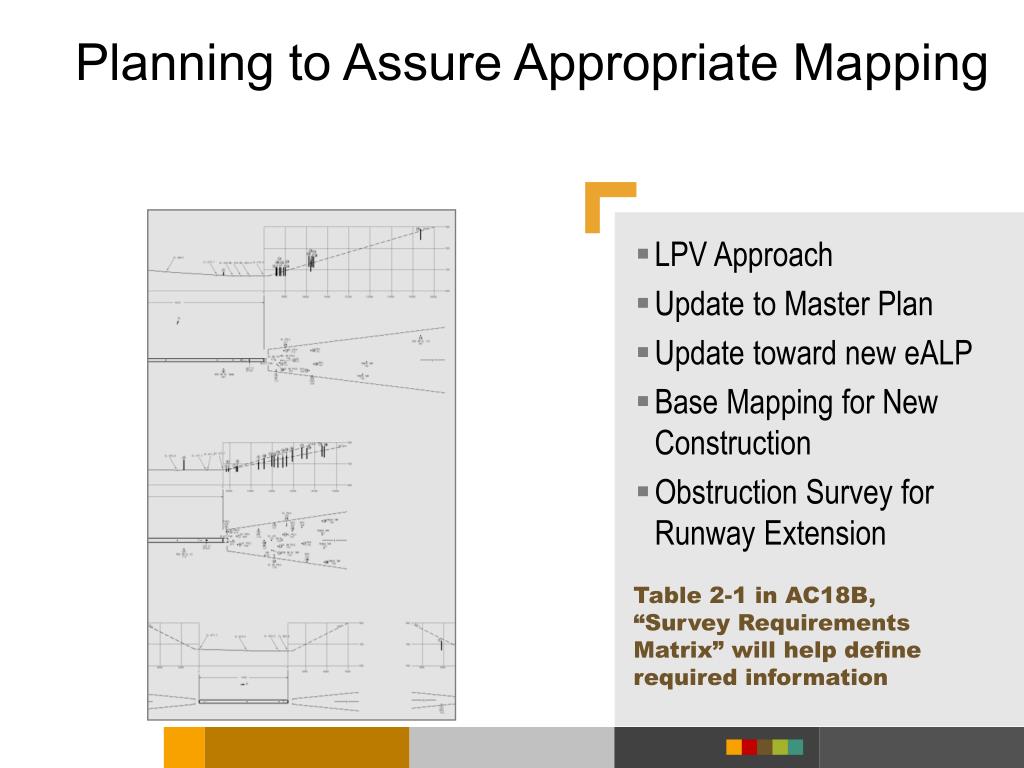

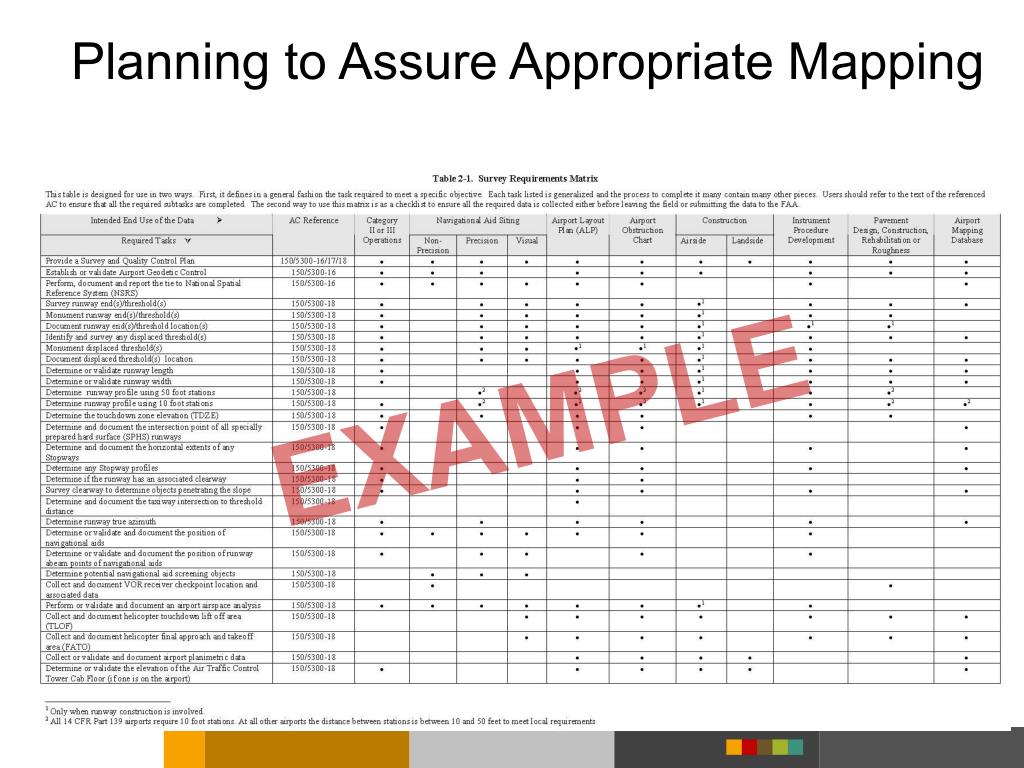

  4. Planning to Assure Appropriate Mapping • LPV Approach • Update to Master Plan • Update toward new eALP • Base Mapping for New Construction • Obstruction Survey for Runway Extension Table 2-1 in AC18B, “Survey Requirements Matrix” will help define required information

  5. Planning to Assure Appropriate Mapping EXAMPLE

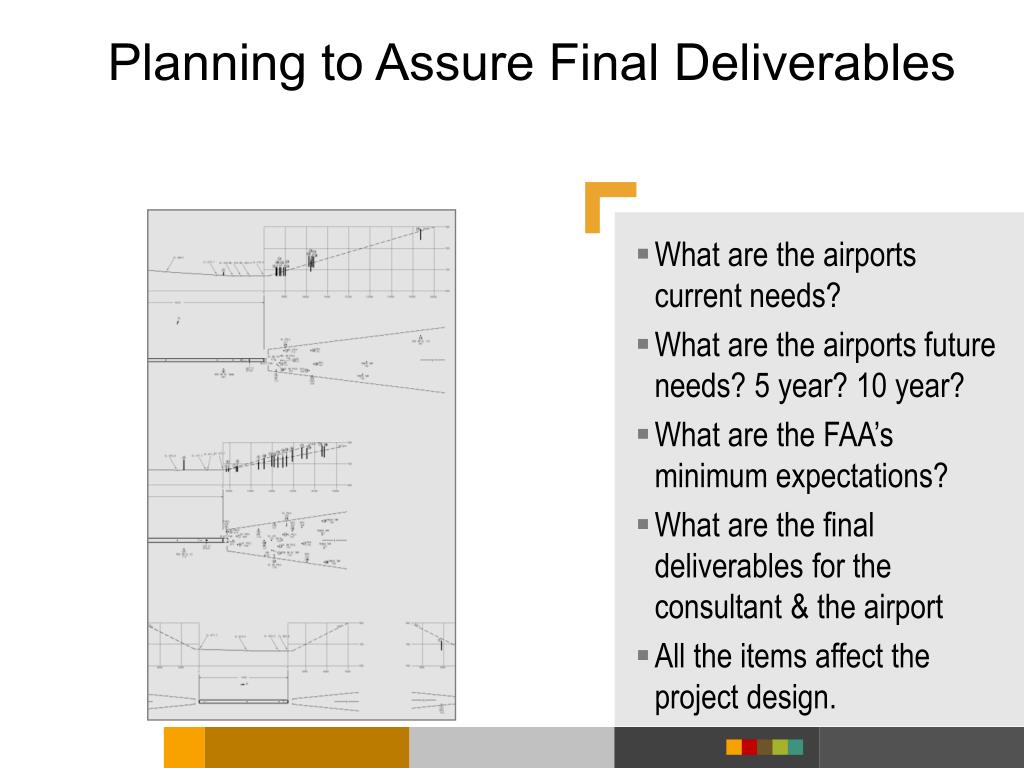

  6. Planning to Assure Final Deliverables • What are the airports current needs? • What are the airports future needs? 5 year? 10 year? • What are the FAA’s minimum expectations? • What are the final deliverables for the consultant & the airport • All the items affect the project design.

  7. Planning to Ensure the Airports Needs are Met Now & for Future Purposes Sponsors must consider project requirements: • Minimum of 1’ pixel resolution quality required • Higher accuracy is typically necessary • Does your project require topography? • 1’ Contours • 2’ Contours • Does your project need engineering quality planimetric mapping? • Imagery limits for obstruction analysis may not cover other project parameters The answers to these questions impact the whole project

  8. Impacts of Design The Design Criteria May Impact: • Multiple Flights • Leaf on for obstructions • Possibly leaf off for specific mapping needs • Ground Survey • High accuracy data requires significantly more survey control points • Detailed runway profiles • Detailed planimetrics may require survey field checks • Orthophotos • 1’ color orthophotos will be required for the obstruction surfaces • .5’ or .25’ orthos may be generated for airport property • All decisions will have an impact on cost and schedule

  9. What is the Process? • Develop a Project Scope • Work with consultants to ensure both the AIRPORTS, FAA, & NGS’s needs are met • Sponsor (Airport) Must Create a Project on the AGIS Website • Consultant Must Submit a Statement of Work (SOW) • The language in the SOW must support the project scope submitted by sponsor • Consultant Must Submit the 3 Plans • The plans MUST support the SOW • Field Work to be Completed • Acquire aerial imagery • Acquire field survey • Sponsor to provide existing data that maybe required • Submit Scanned Imagery & Survey to NGS for Review • Generate Final Mapping & Submit to FAA & NGS for Review • Mapping & attribution of required features

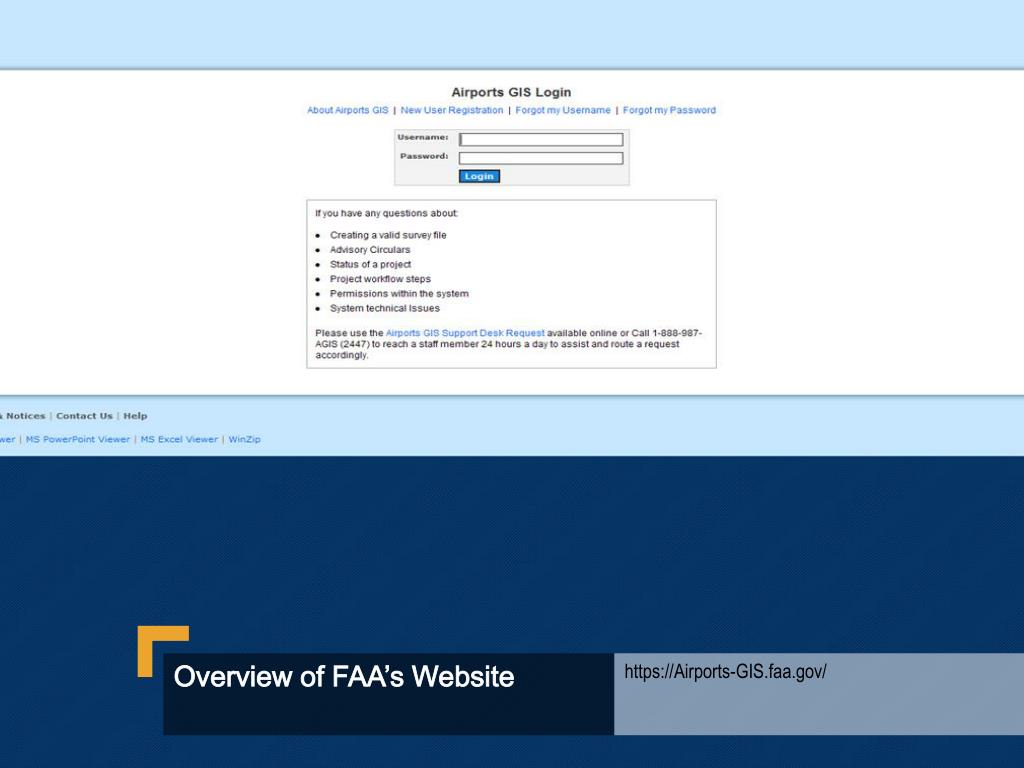

  10. Overview of FAA’s Website https://Airports-GIS.faa.gov/

  11. Data Upload Process Airport Sponsor or Consultant Roles • Create Log In for Airport Project on the FAA GIS/TPSS Systems • Allows for Project Tracking by FAA, Sponsor & Consultants • All Data must be uploaded through System • Data remains on system to allow future use of existing data Federal Aviation Administration https://airports-gis.faa.gov/airportsgis/

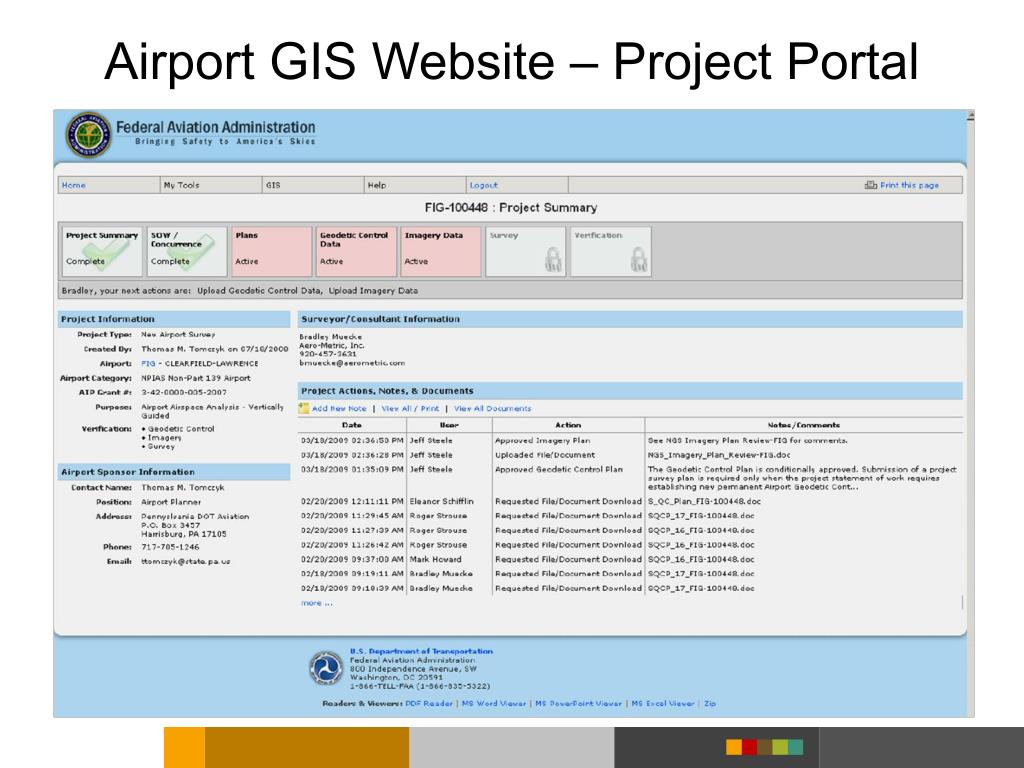

  12. Airport GIS Website – Project Portal

  13. What is the Purpose of SOW & Plans? • The Statement of Work Sets Up the Plot of the Story • SOW explains WHAT you are going to do • FAA is requiring more detail to be added to SOW • The Plans Expand on the “What” and Explain the “How” • Explains in further detail what you are going to do • Explains your methodologies in detail • Advisory Circular Requirements • What are the AC requirements for your particular project? • How do your methodologies ensure required accuracies? • Together, Project Plans Tell the Story From Beginning to End • Provides background and purpose • Provides a timeline • Provides a work plan • Defends methodologies and ties to Advisory Circulars

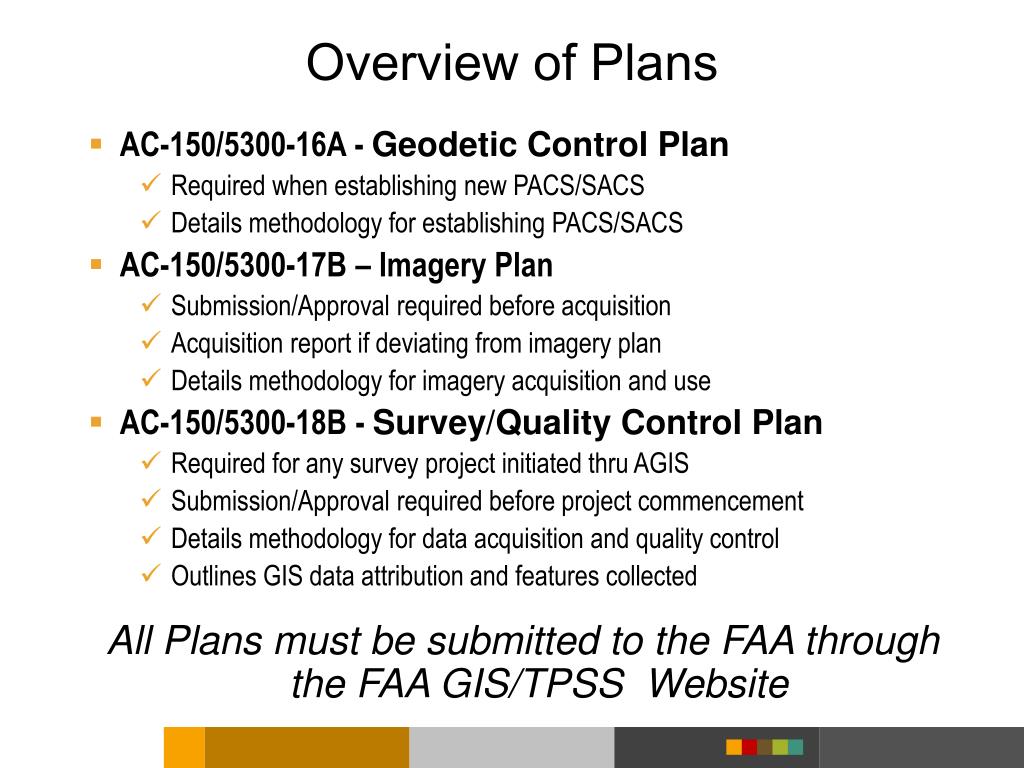

  14. Overview of Plans • AC-150/5300-16A - Geodetic Control Plan • Required when establishing new PACS/SACS • Details methodology for establishing PACS/SACS • AC-150/5300-17B – Imagery Plan • Submission/Approval required before acquisition • Acquisition report if deviating from imagery plan • Details methodology for imagery acquisition and use • AC-150/5300-18B - Survey/Quality Control Plan • Required for any survey project initiated thru AGIS • Submission/Approval required before project commencement • Details methodology for data acquisition and quality control • Outlines GIS data attribution and features collected All Plans must be submitted to the FAA through the FAA GIS/TPSS Website

  15. Sample Project Process • Sample process from the point that a Statement of Work has been uploaded, through project upload • What happens & when? • How long will the process take?

  16. Submission of Statement of Work • Provides Project Scope • Outlines Project Deliverables • Project Plans Overview • Must Submit SOW to the FAA through the FAA AGIS Website Project Time Frames Creation: 2-4 weeks FAA Approval: 2-4 weeks (FAA workload dependant)

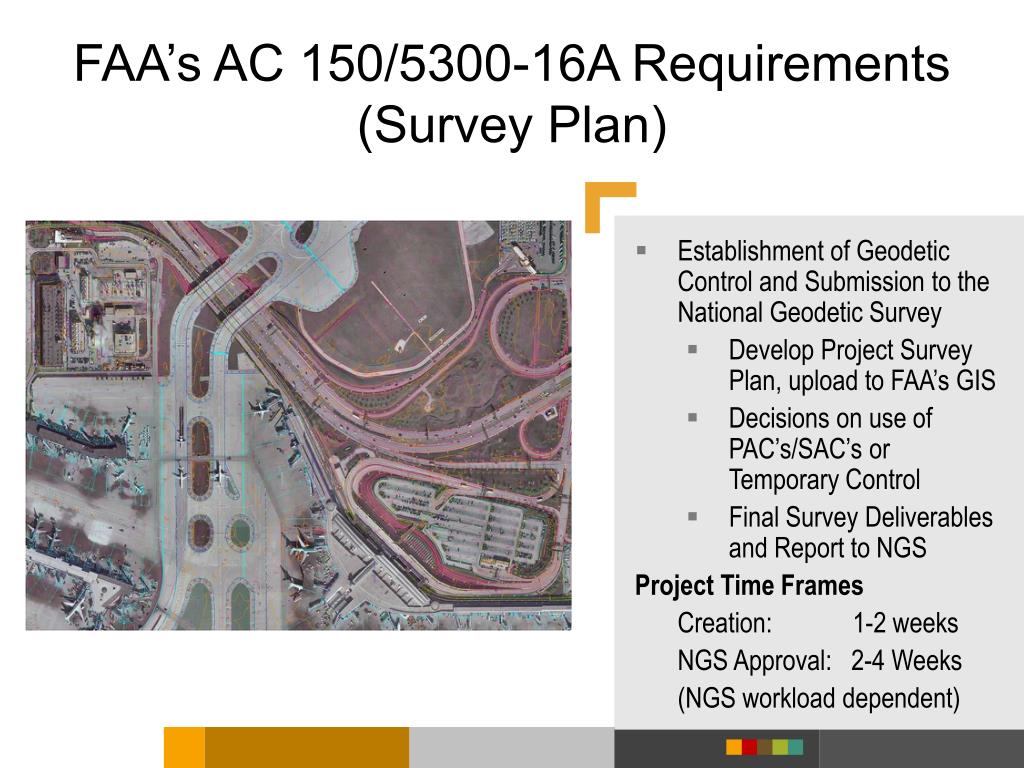

  17. FAA’s AC 150/5300-16A Requirements(Survey Plan) • Establishment of Geodetic Control and Submission to the National Geodetic Survey • Develop Project Survey Plan, upload to FAA’s GIS • Decisions on use of PAC’s/SAC’s or Temporary Control • Final Survey Deliverables and Report to NGS Project Time Frames Creation: 1-2 weeks NGS Approval: 2-4 Weeks (NGS workload dependent)

  18. FAA’s AC 150/5300-17B Requirements(Imagery Plan) • Airport Imagery Acquisition and Submission to the National Geodetic Survey • Vertically or Non Vertically Guided Surfaces • Imagery purpose • Flight lines, exposure counts, control point layout, photo scales, etc. • Overview of processing and quality assurance procedures Project Time Frames Creation: 1-2 weeks NGS Approval: 2-4 Weeks

  19. FAA’s AC 150/5300-18B Requirements(Survey Work & Quality Control Plan) Provide Detailed Methodologies for • Data Collection • Data Safeguarding • Data Quality Assurance • Describes combined use of field and aerial methods • Defines Features and Attribution Required • Covers Field Verification & QC Project Time Frames Creation: 2-4 weeks FAA Approval: 2-6 weeks (Workload Dependent)

  20. NGS Review of Imagery and Survey Data Acquire Imagery and Survey Control Data Completed Aerial Imagery and Survey Data Submission • Imagery Approval • Consultants must provide scanned imagery on portable media for NGS review and acceptance • Completed Aero-Triangulation Report • Survey Control Approval • Completed Survey Report Project Time Frames Creation: 2-4 weeks Conditional Approval: 30 Days (NGS workload dependent)

  21. FAA’s AC 150/5300-18B Data Submission Airport Obstruction Survey Completion and Submission to FAA/NGS • Consultant must provide the following: • Complete Photogrammetric Mapping • Complete Field Survey including Runway Profiles & Nav Aid Surveys • Complete Field Verification of all survey data • Submit completed survey to FAA’s GIS Website for Approval Project Time Frames • Photogrammetric Mapping…………………. 2-4 weeks • Field Survey and Obstruction Verification… 2 weeks • Final database formatting and • Submission of Final Survey………………….. 2 weeks • NGS Approval: 60-120 Days (NGS workload dependant)

  22. Schedule – After Notice to Proceed 8 WEEKS 4 WEEKS

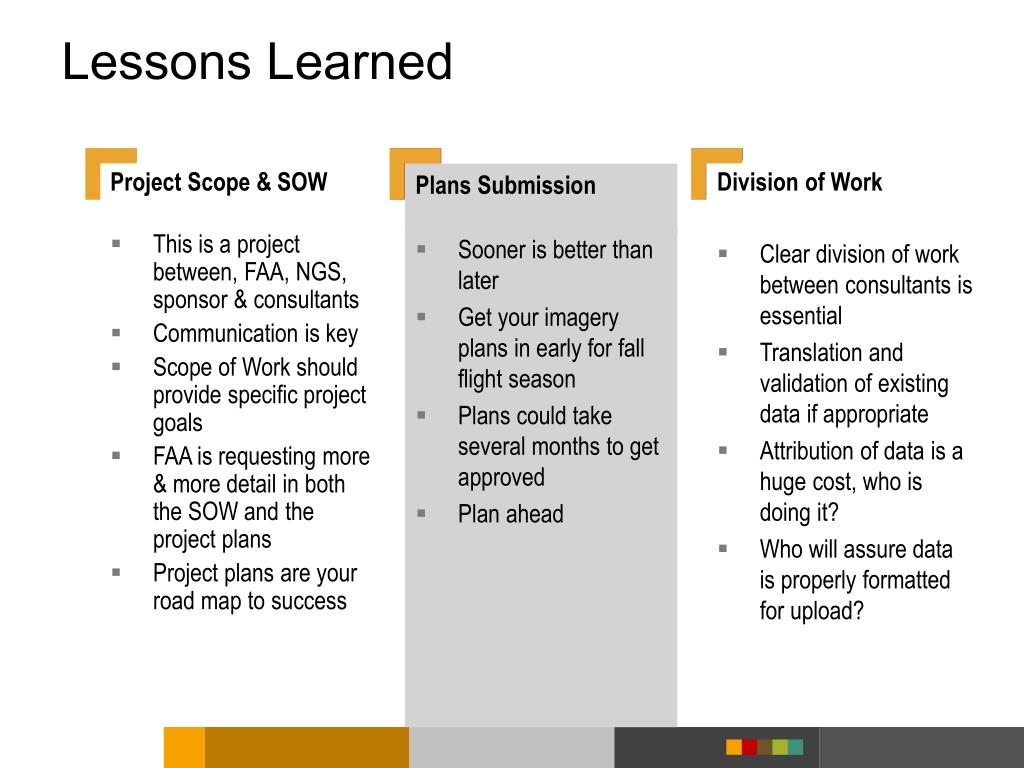

  23. Lessons Learned Project Scope & SOW Plans Submission Sooner is better than later Get your imagery plans in early for fall flight season Plans could take several months to get approved Plan ahead Division of Work Clear division of work between consultants is essential Translation and validation of existing data if appropriate Attribution of data is a huge cost, who is doing it? Who will assure data is properly formatted for upload? • This is a project between, FAA, NGS, sponsor & consultants • Communication is key • Scope of Work should provide specific project goals • FAA is requesting more & more detail in both the SOW and the project plans • Project plans are your road map to success

  24. QUESTIONS
