Presentation Transcript

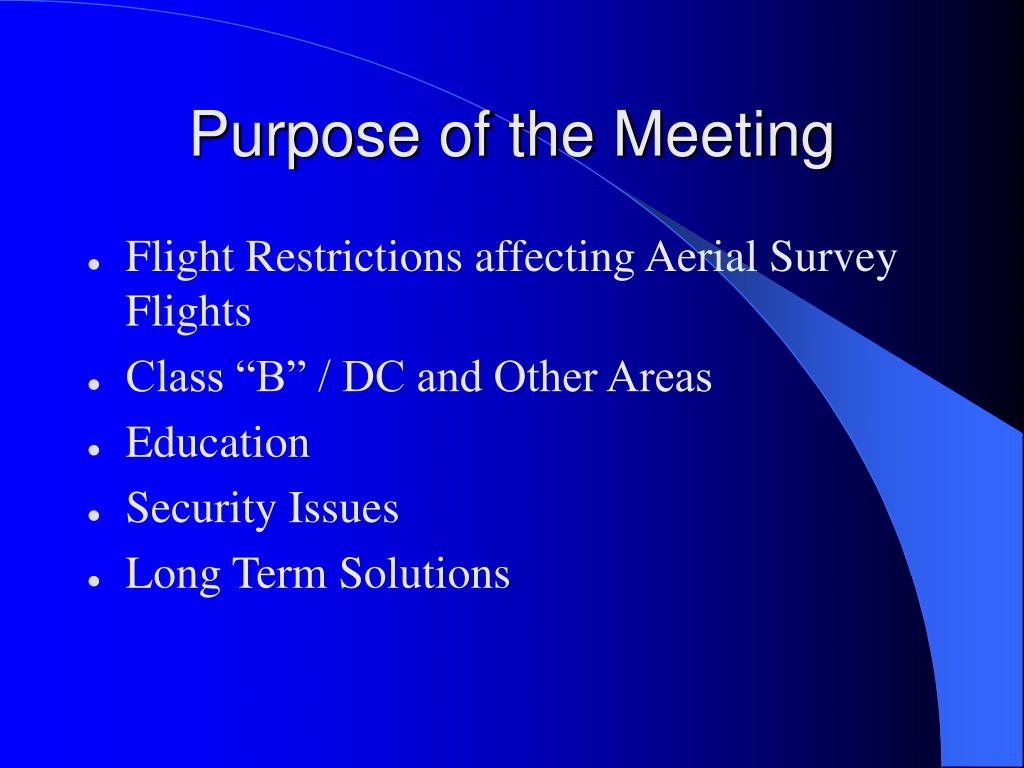

purpose of the meeting
Purpose of the Meeting
  • Flight Restrictions affecting Aerial Survey Flights
  • Class “B” / DC and Other Areas
  • Education
  • Security Issues
  • Long Term Solutions

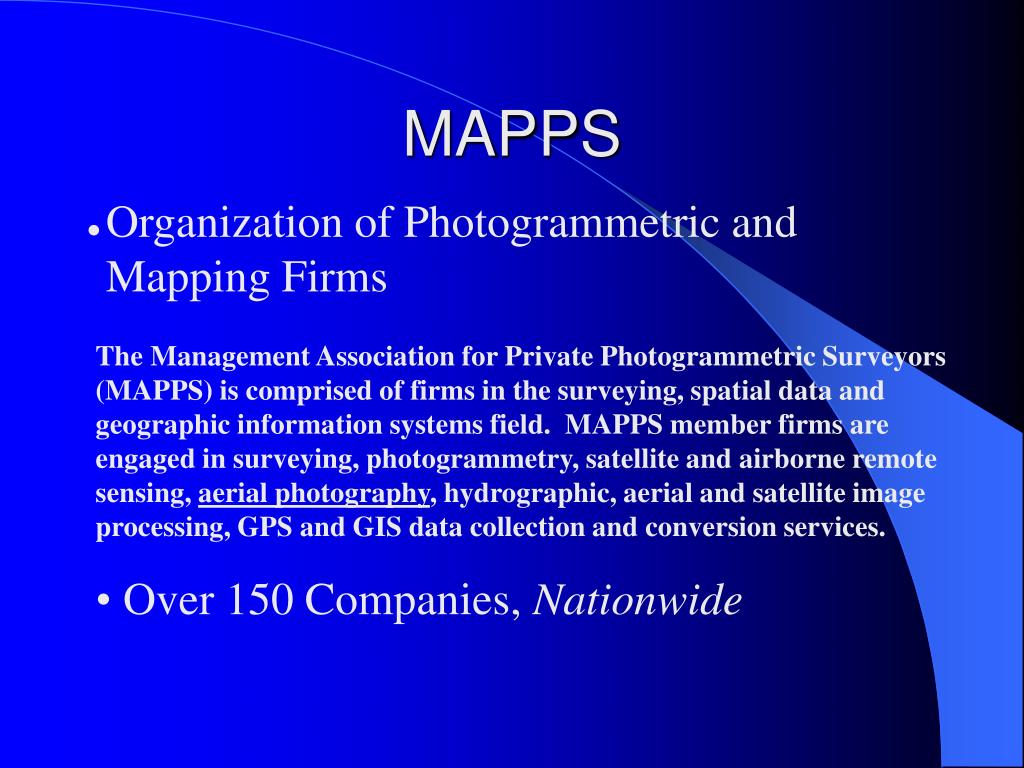

mapps
MAPPS
  • Organization of Photogrammetric and Mapping Firms
  • The Management Association for Private Photogrammetric Surveyors (MAPPS) is comprised of firms in the surveying, spatial data and geographic information systems field. MAPPS member firms are engaged in surveying, photogrammetry, satellite and airborne remote sensing, aerial photography, hydrographic, aerial and satellite image processing, GPS and GIS data collection and conversion services.
  • Over 150 Companies, Nationwide

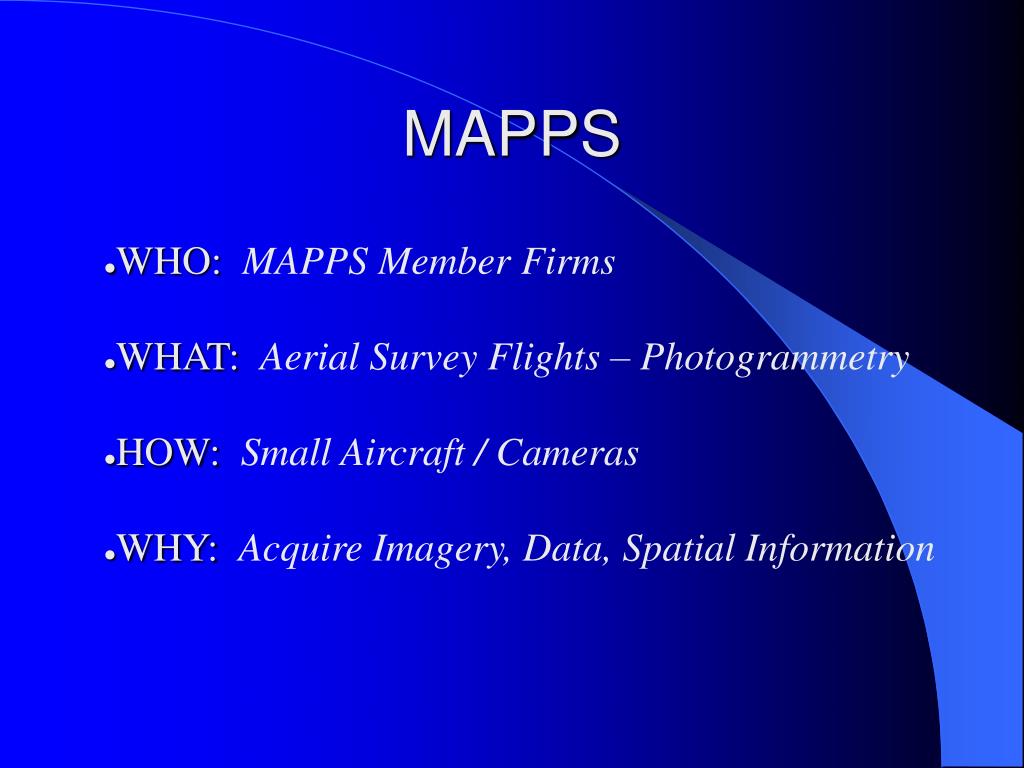

mapps4
MAPPS
  • WHO:MAPPS Member Firms
  • WHAT:Aerial Survey Flights – Photogrammetry
  • HOW:Small Aircraft / Cameras
  • WHY:Acquire Imagery, Data, Spatial Information
mapps5
MAPPS
  • NOT:Scenic Photos
  • NOT:Brochure / Real Estate
  • NOT:Press / Media
  • NOT: Pipeline or Power Line Monitoring Patrols
  • NOT:Traffic Reporting

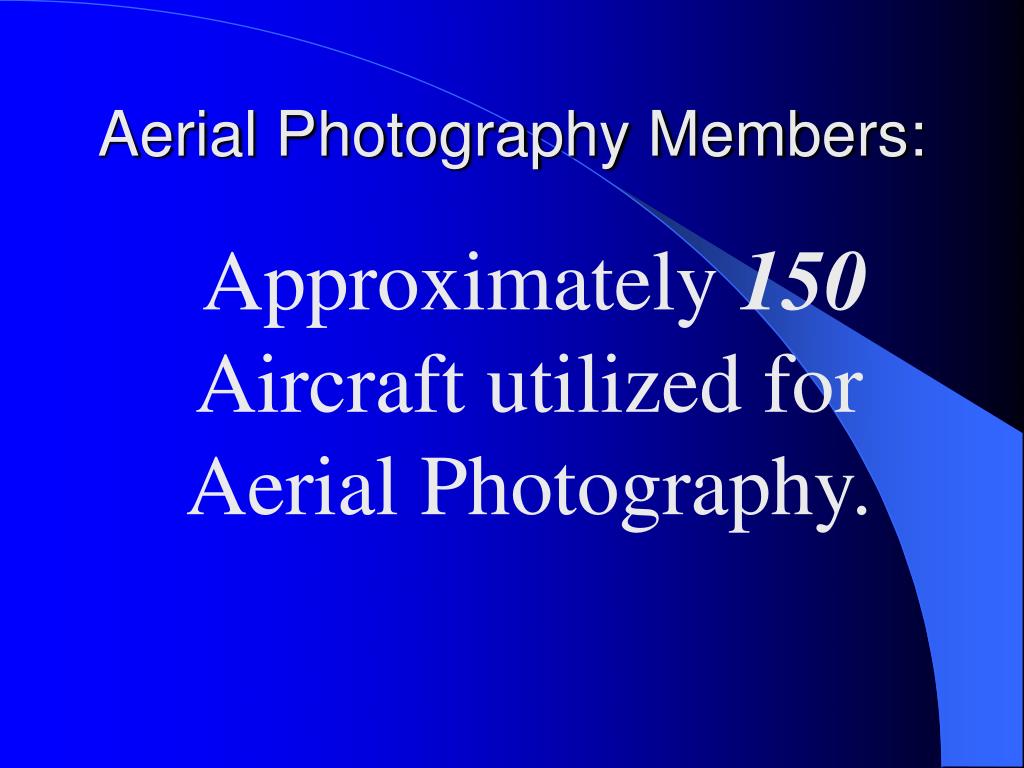

aerial photography members
Aerial Photography Members:

Approximately 150 Aircraft utilized for Aerial Photography.

operations

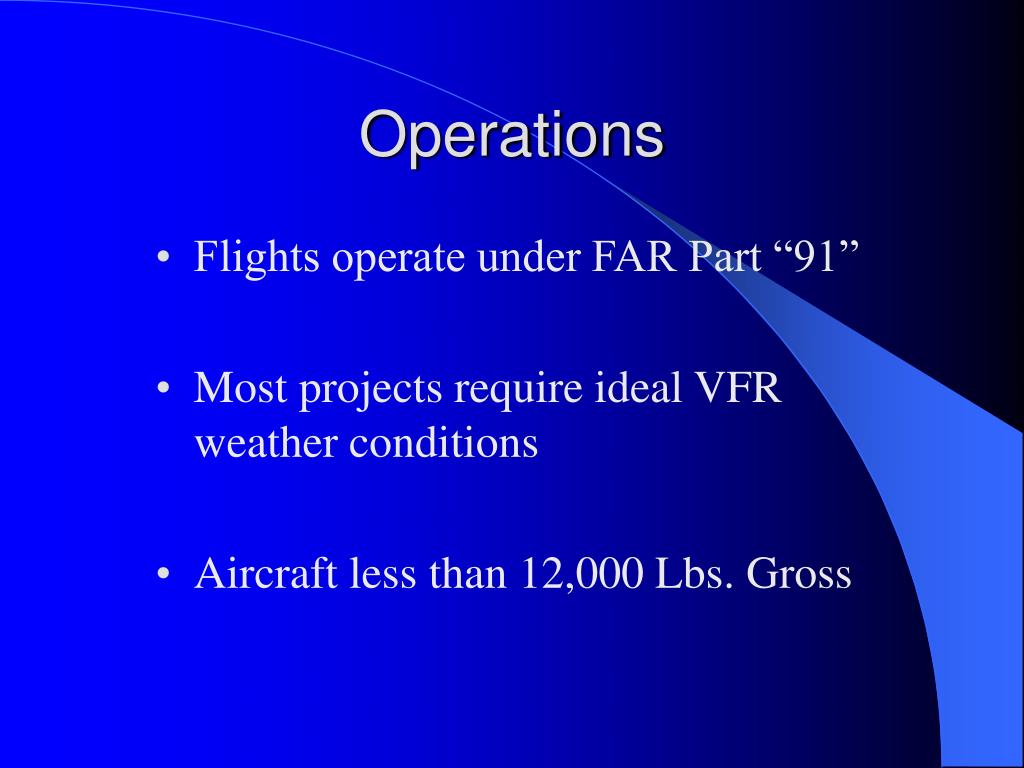

Operations
  • Flights operate under FAR Part “91”
  • Most projects require ideal VFR weather conditions
  • Aircraft less than 12,000 Lbs. Gross
aircraft used
Aircraft Used
  • High Performance Piston Singles
  • Light Piston Twins
  • Small Turboprops (limited)
aerial photo mission crews

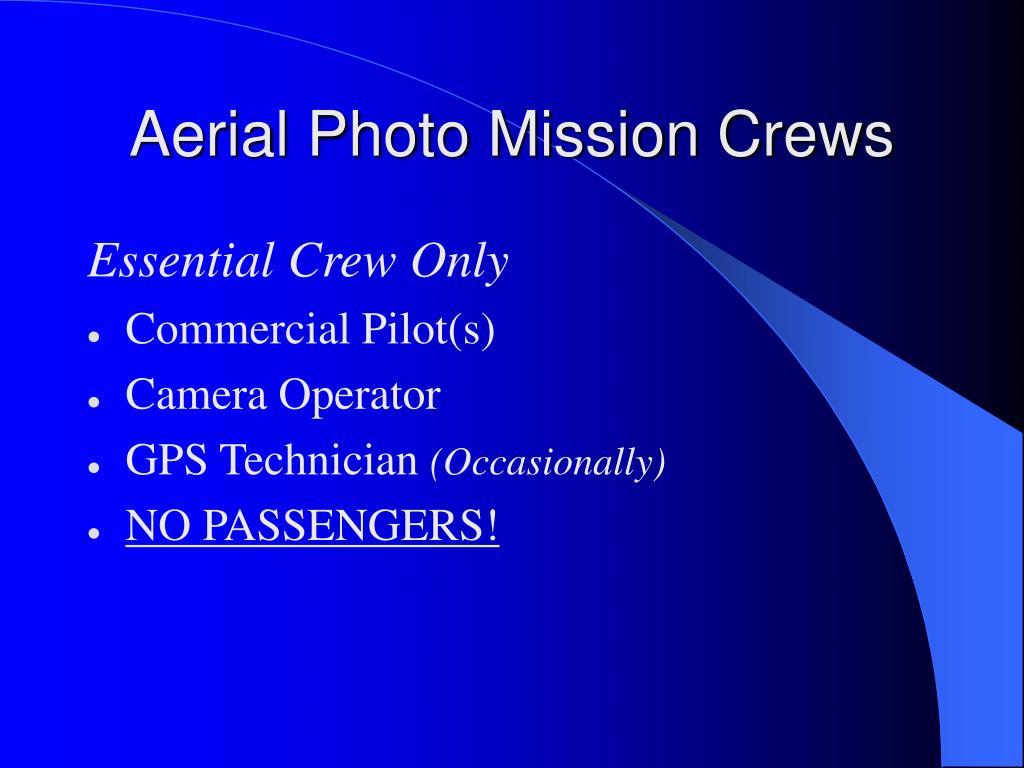

Aerial Photo Mission Crews

Essential Crew Only

  • Commercial Pilot(s)
  • Camera Operator
  • GPS Technician (Occasionally)
  • NO PASSENGERS!

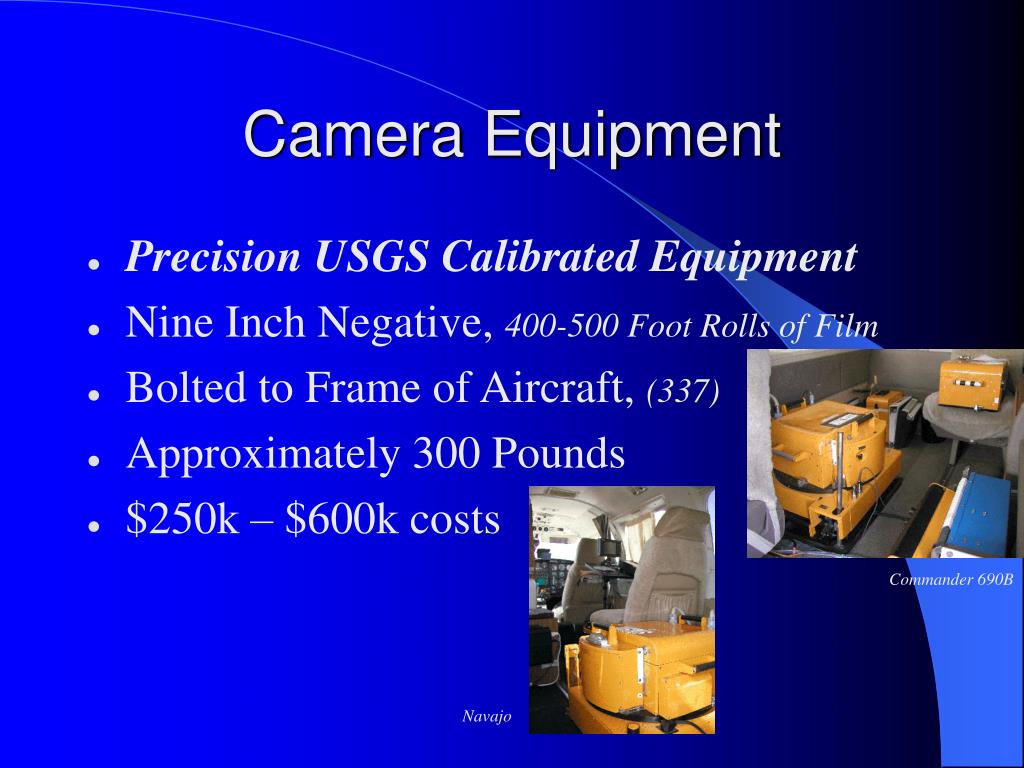

camera equipment
Camera Equipment
  • Precision USGS Calibrated Equipment
  • Nine Inch Negative, 400-500 Foot Rolls of Film
  • Bolted to Frame of Aircraft, (337)
  • Approximately 300 Pounds
  • $250k – $600k costs

Commander 690B

Navajo

additional equipment
Additional Equipment
  • Precise Navigation Systems Interfaced with Camera
  • Inertial Measurement Units (IMU)
  • GPS Units (Survey Grade)
  • Laptop Computers
  • Additional Costs From $250k- $300k
it all starts with the flying

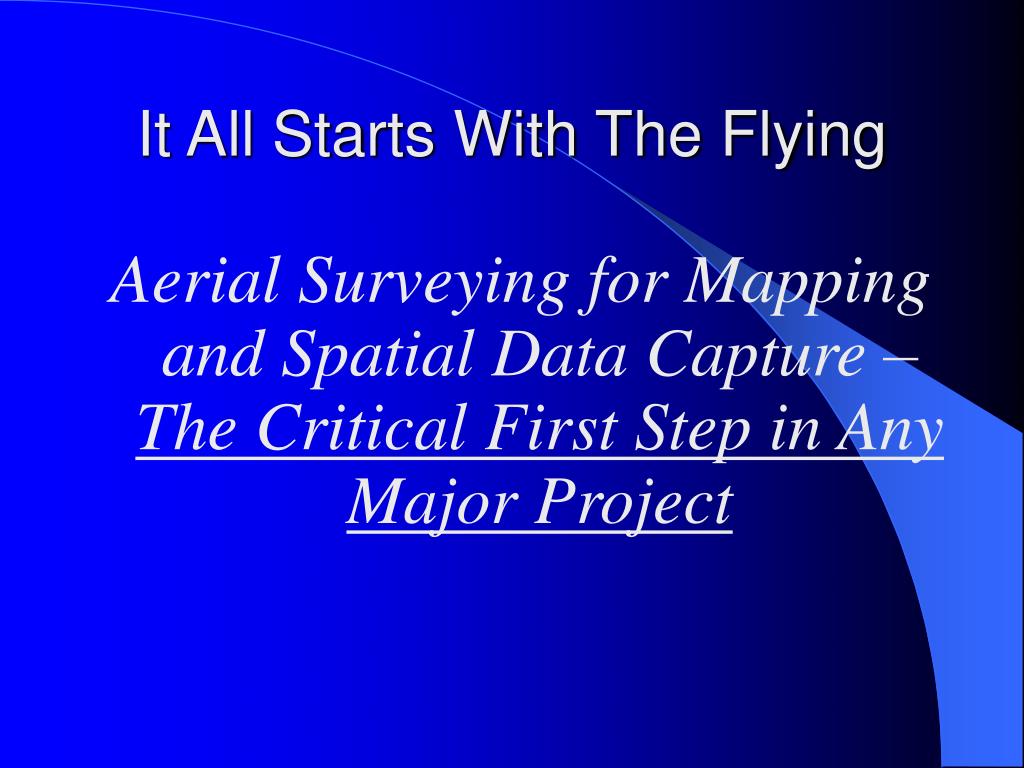

It All Starts With The Flying

Aerial Surveying for Mapping and Spatial Data Capture – The Critical First Step in Any Major Project

applications
Airports

Highways

Environmental

Industrial Sites

Flood Studies

Monitoring

Shoreline

Mining

Utilities

Sea Ports / Marinas

Railroads

Planning

Forestry

Agricultural

Applications
clients
Clients
  • Federal Government
  • State Governments
  • Local Governments
  • Industrial
  • Private
typical clients federal government
Corps of Engineers

EPA

FEMA

Military

USDA

USFS

TVA

USGS

NIMA-NGA

DOT

NOAA

NASA

Typical Clients, Federal Government
typical clients state and local government
Dept of Transportation

Dept of Finance

Dept Natural Resources

Dept Military Affairs

Dams / Waterways

Cities

Counties

Fish and Wildlife

Dept Aeronautics

Airports

Utilities

Landfills

Planning and Zoning

Tax Assessors

Planning

Typical Clients, State and Local Government
typical clients industrial and private
Utilities

Pipeline

Power Line

Water Line

Sewer Line

Telecommunications

Storm Drainage

Industrial Complex

Power Plants

Factories

Land Development

Railroads

Quarries

Mining

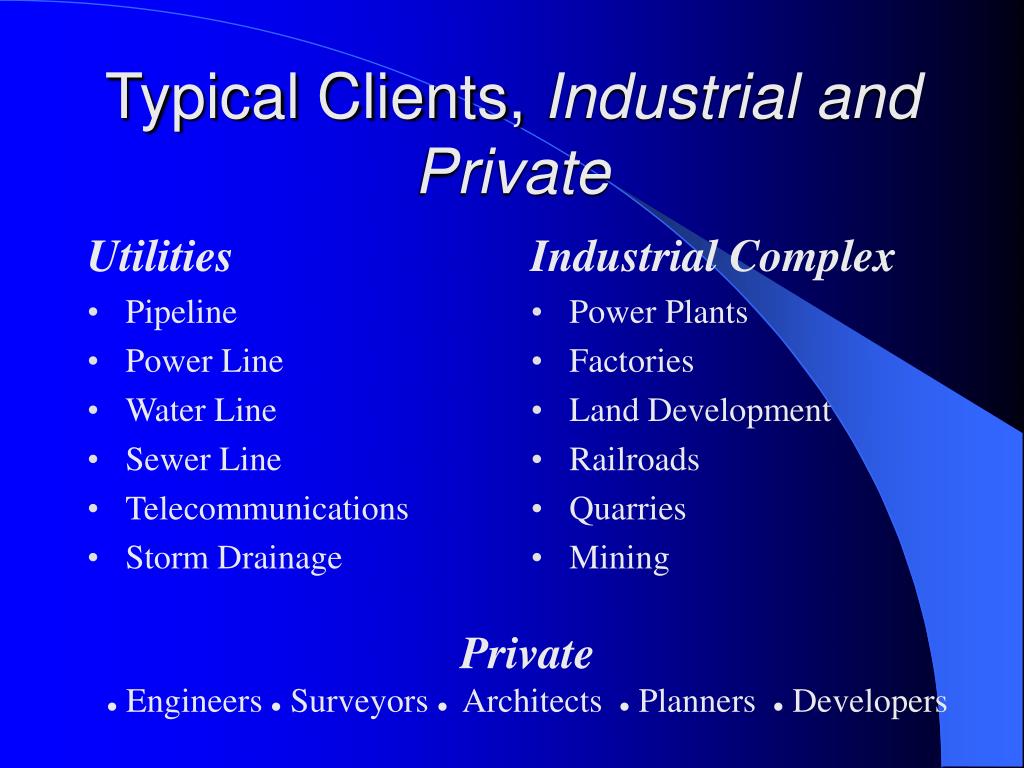

Typical Clients, Industrial and Private

Private

l Engineers l Surveyors l Architects l Planners l Developers

typical aerial photography project
Typical Aerial Photography Project

Planning

  • Coverage Required
  • Lines to be Flown
  • Forward Overlap - Sidelap
  • Altitudes Required for Scale
  • Digitizing of Flight Lines
  • Restricted Areas
  • Prior Coordination with ATC
aerial photography prerequisites

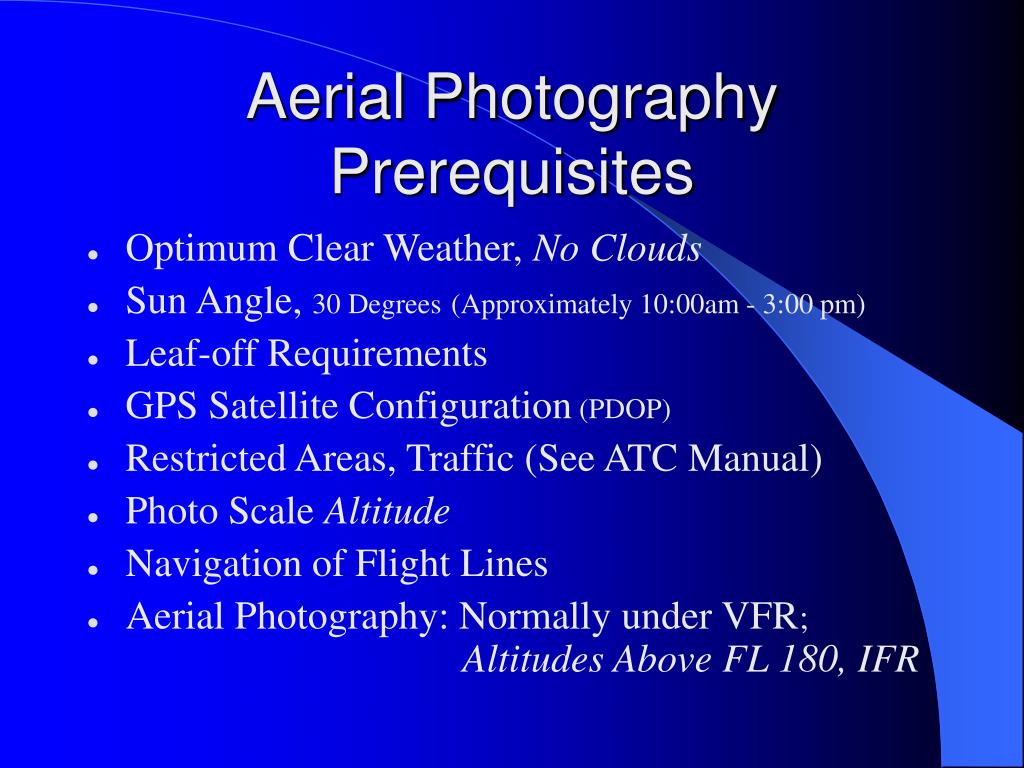

Aerial Photography Prerequisites
  • Optimum Clear Weather, No Clouds
  • Sun Angle, 30 Degrees(Approximately 10:00am - 3:00 pm)
  • Leaf-off Requirements
  • GPS Satellite Configuration (PDOP)
  • Restricted Areas, Traffic (See ATC Manual)
  • Photo Scale Altitude
  • Navigation of Flight Lines
  • Aerial Photography: Normally under VFR; Altitudes Above FL 180, IFR

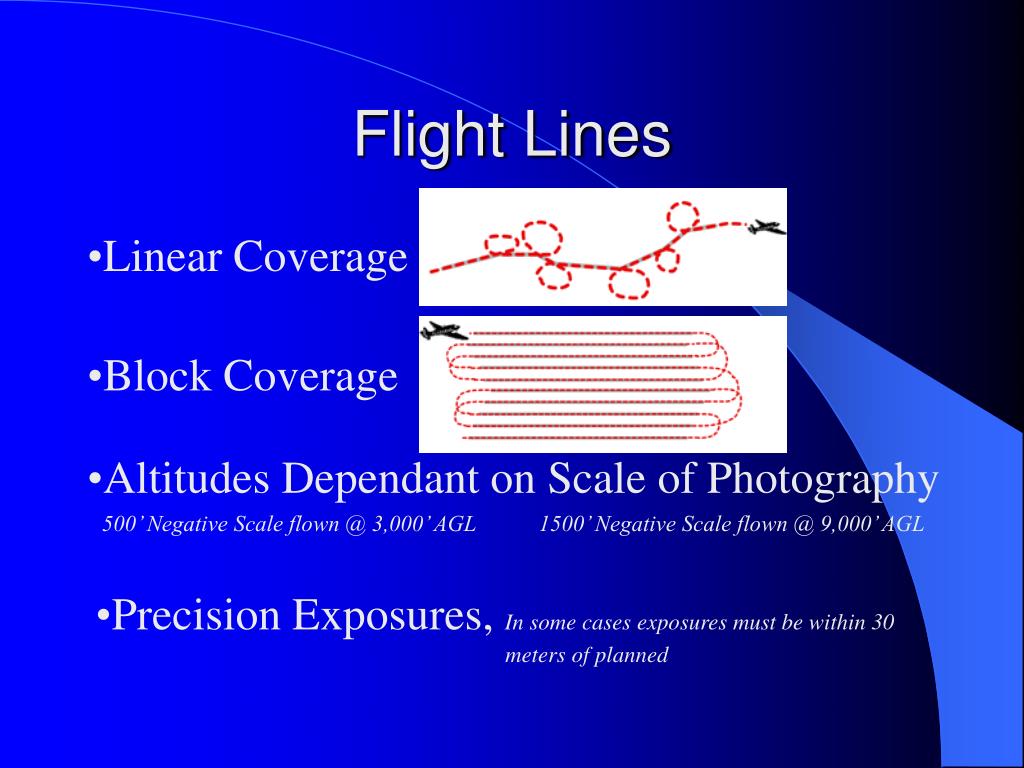

flight lines
Flight Lines
  • Linear Coverage
  • Block Coverage
  • Altitudes Dependant on Scale of Photography
  • 500’ Negative Scale flown @ 3,000’ AGL 1500’ Negative Scale flown @ 9,000’ AGL
  • Precision Exposures, In some cases exposures must be within 30 meters of planned
economic impact

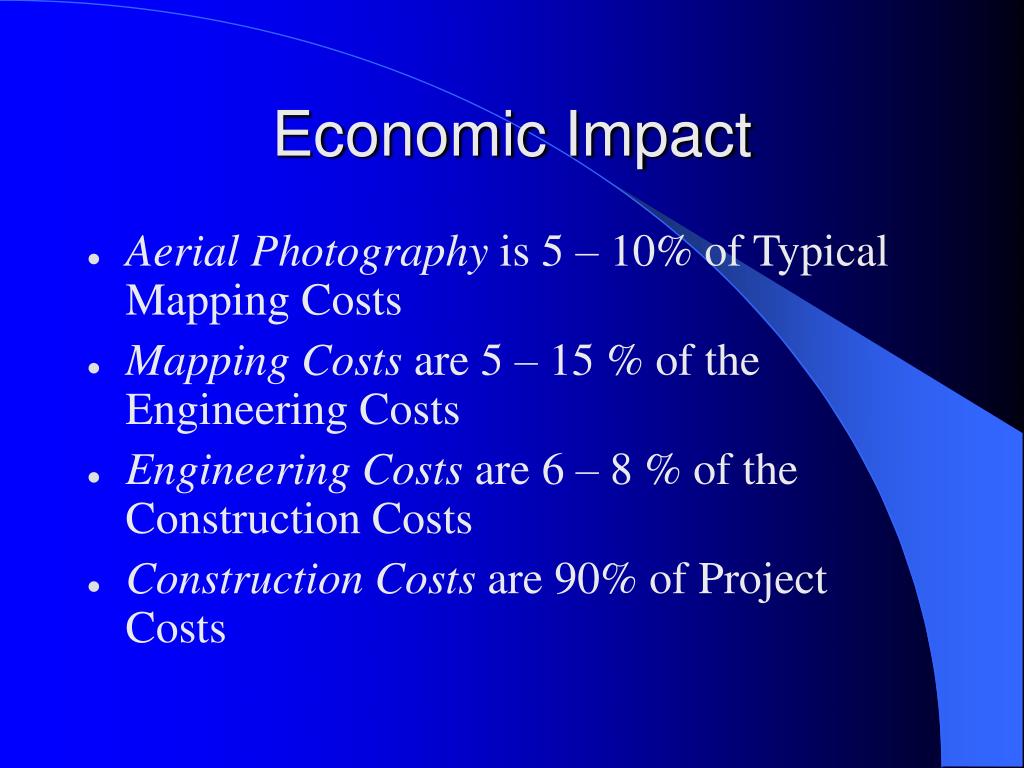

Economic Impact
  • Aerial Photography is 5 – 10% of Typical Mapping Costs
  • Mapping Costs are 5 – 15 % of the Engineering Costs
  • Engineering Costs are 6 – 8 % of the Construction Costs
  • Construction Costs are 90% of Project Costs

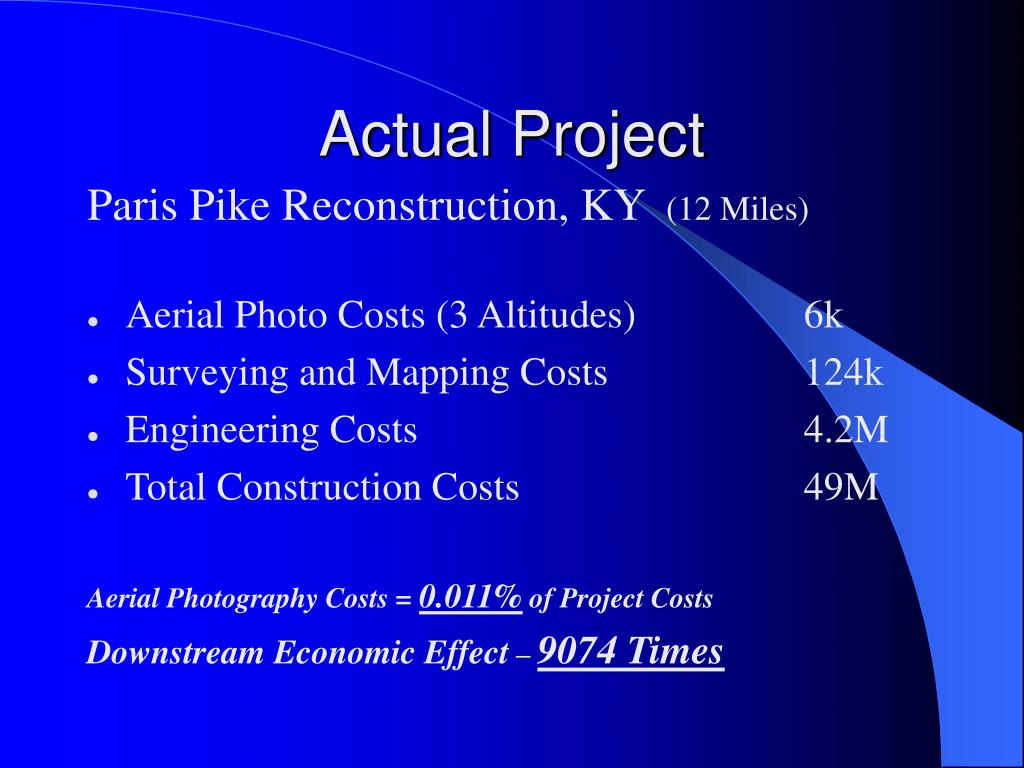

actual project
Actual Project

Paris Pike Reconstruction, KY(12 Miles)

  • Aerial Photo Costs (3 Altitudes) 6k
  • Surveying and Mapping Costs 124k
  • Engineering Costs 4.2M
  • Total Construction Costs 49M

Aerial Photography Costs = 0.011% of Project Costs

Downstream Economic Effect – 9074 Times

critical flights
Critical Flights
  • Natural Disasters
  • Emergencies
  • Terrorism
current restrictions

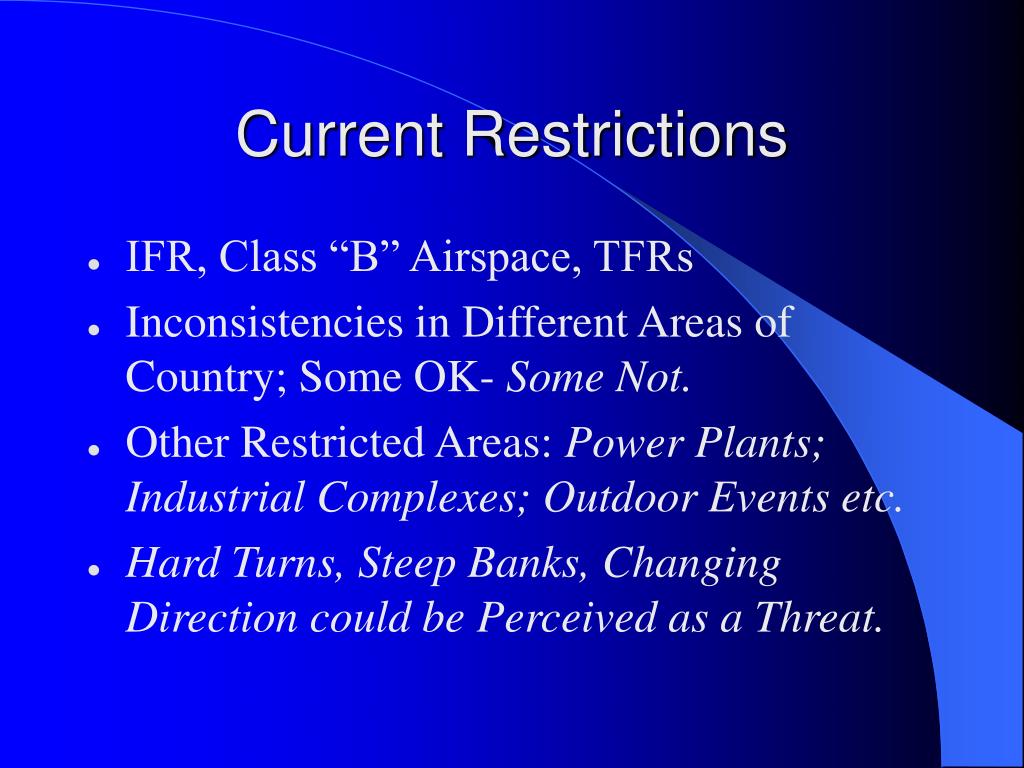

Current Restrictions
  • IFR, Class “B” Airspace, TFRs
  • Inconsistencies in Different Areas of Country; Some OK- Some Not.
  • Other Restricted Areas: Power Plants; Industrial Complexes; Outdoor Events etc.
  • Hard Turns, Steep Banks, Changing Direction could be Perceived as a Threat.
considerations
Considerations
  • Based on Small Number of Aircraft
  • Based on Low Gross Weight
  • No Passengers
  • CriticalEconomic Impact
  • Strictly Defined Flight Projects
recommendations

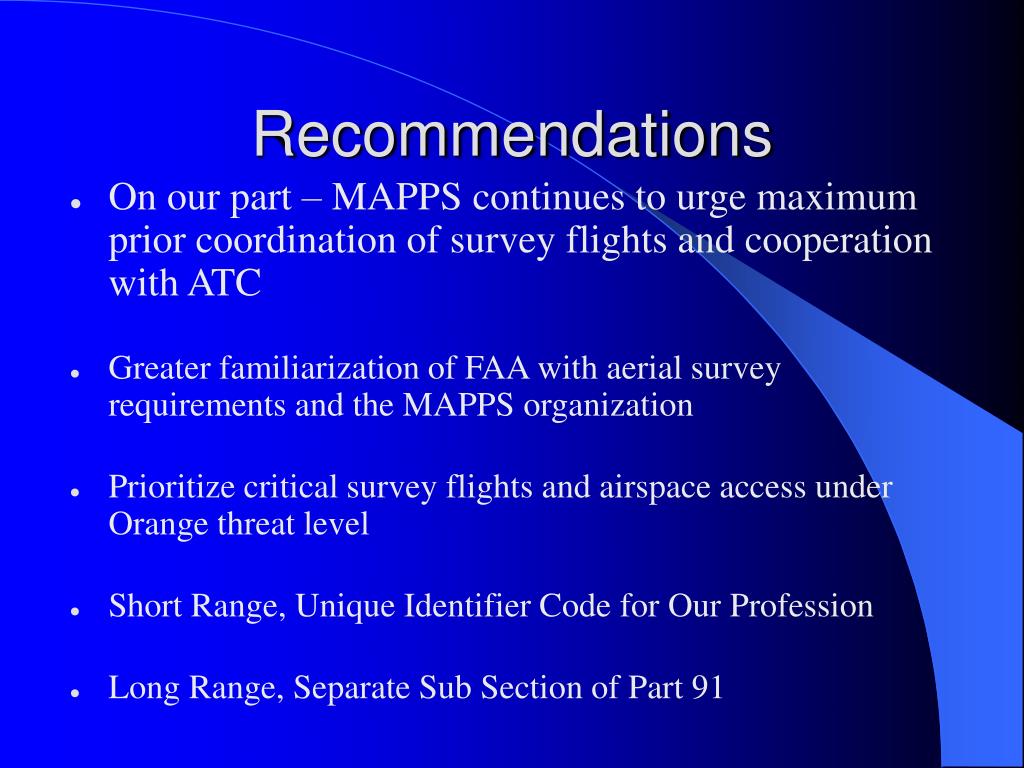

Recommendations
  • On our part – MAPPS continues to urge maximum prior coordination of survey flights and cooperation with ATC
  • Greater familiarization of FAA with aerial survey requirements and the MAPPS organization
  • Prioritize critical survey flights and airspace access under Orange threat level
  • Short Range, Unique Identifier Code for Our Profession
  • Long Range, Separate Sub Section of Part 91
questions comments contact
Questions / Comments? Contact:

MAPPS

1760 Reston Parkway, Suite 515

Reston, VA 20190

Phone: (703)787-6996

Fax: (703) 787-7550

e-mail: info@mapps.org

website: www.mapps.org
