Presentation Transcript
learning user behaviors for advertisements click prediction

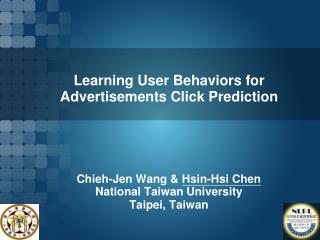

Learning User Behaviors for Advertisements Click Prediction

Chieh-Jen Wang & Hsin-Hsi Chen

National Taiwan University

Taipei, Taiwan

introduction
Introduction
  • The commercial value of advertisements on the web depends on whether users click on the advertisements
  • Predicting potential advertisement clicks of users before target advertisements are displayed is important
    • advertisement recommendation
    • advertisement placement
    • presentation pricing
  • Problem specification
    • Given a current search session (q1, q2, ..., q(i-1)), we will predict if there is an ad click event when query qi is submitted.
related work
Related Work
  • Advertisiment click prediction model
    • Feature representation
      • text features (Richardson et al., 2007)
      • demographics features (Cheng & Cantú-Paz, 2010)
      • mouse trajectory features (Guo & Agichtein, 2010)
    • Machine learning algorithm
      • logistic regression (Richardson, Dominowska, & Ragno, 2007)
      • maximum entropy (Cheng & Cantú-Paz, 2010)
      • support vector machines (Broder et al., 2008)
      • conditional random field (Guo & Agichtein, 2010)
related work1
Related Work
  • User search intent
    • navigational, informational and transactional (Broder, 2002)
    • noncommercial/commercial & navigational/informational (Ashkan et al., 2009)
    • research & purchase (Guo & Agichtein, 2010)
    • receptive & not receptive (Guo & Agichtein, 2010)
      • “receptive” (i.e., an advertisement click is expected in a future search within the current session)
      • “not receptive” (i.e., not any future advertisement clicks are expected within the current session)
microsoft adcenter logs
Microsoft AdCenter Logs
  • Time: 2007-08-10 ~ 2007-11-01(84 days)
  • The Microsoft AdCenter logs include:
    • 101 million impressions
    • 7.82 million clicks
    • 40.6 million sessions (5.06 million sessions contain at least one click)
  • An impression is defined as a single search results page described by a set of attributes
  • A session is defined by a repeated search engine usage of intervals of 10 minutes and less, with a total session not longer then 8 hours
data purify
Data Purify
  • For the purposes of promotions, some specific queries are issued or advertisements are clicked by software robots
  • Filter criteria
    • issue queries more than 7 times in any 10 second interval
    • issue queries at two distinct places at the same time
    • click an advertisement more than one time in any 5 second interval
    • duplicated impression IDs
  • Data partition
    • Training: sessions which contain at least one advertisement click in the first 56 days
    • Testing: sessions in the last 28 days
feature extraction
Feature Extraction
  • Feature representation
    • Every impression qi (1in) in session s = (q1, q2, ..., q(i-1), qi, q(i+1), ..., qn) is represented as a feature vector
    • qi itself (Current Impression Level)
    • the first impression q1 (First Impression Level)
    • the previous n impression q(i-n) (Previous n Impression Level)
    • all the contextual impressions q1, q2, ..., q(i-1) in s (Contextual Impression Level)
  • Labeling
    • click if impression qi contains at least one advertisement click, otherwise non-click.
feature extraction from current impression level
Feature Extraction from Current Impression Level
  • These features aim to capture query information, users’ intent and the similarity between current query an previous one
  • QC (query category)
    • 14 categories (exclusive of “Regional” and “World”) on the 2nd level of the Open Directory Project (ODP) ontology to represent query categories
  • QIntent (query intent)
    • 4,020 intent clusters are learned from MSN Search Query Log excerpt (Wang et al., 2010)
    • QIntent is specified by the distribution of the top 100 similar intent clusters
feature extraction from first impression level
Feature Extraction from First Impression Level
  • These features aim to capture an initial search goal of a session.
feature extraction from previous n impression level
Feature Extraction from Previous n Impression Level
  • These features aim to capture the advertisements clicks information of the previous n impression.
  • In our experiments, n is set to 1 and 2
feature extraction from contextual impression level1
Feature Extraction from Contextual Impression Level
  • These features represent a sequence of users’ behaviors
  • Weight of intent types of submitted queries (CTQIntent) and clicked advertisements (CTAdIntent) in the access history is defined as:
    • Pm is a probability of the type m intent
    • wjdenotes a query or a clicked advertisement in qj
  • Weight of ODP categories (CTQC & CTAdC)

Jelinek-mercer smoothing

click prediction model
Click Prediction Model
  • Four learning algorithms
    • Conditional Random Fields (CRF)
    • Support Vector Machine (SVM)
      • kernel function (RBF, linear kernel)
      • parameter optimization (grid algorithm for c and g)
    • Decision Tree
      • C4.5 Tree
    • Back-Propagation Neural Networks
      • Hidden Layer =2
      • Learning rate = 0.8
      • Momentum = 0.2
feature selection algorithm
Feature Selection Algorithm
  • Random Subspace Method (RS)
    • an ensemble classifier that consists of several classifiers
    • prediction is through a majority vote from the classifiers
  • F-Score (FS) & Information Gain (IG)
    • greedy inclusion algorithm
    • retain a number of the best terms or features for use by the classier
performance of advertisements click prediction
Performance of Advertisements Click Prediction
  • Metrics
    • accuracy (Acc), precision (Prec), recall (Rec), and F-measure (F1)
  • Baseline
    • guessing the majority class (non-click) is one baseline.
    • Markov Model (MM), formulated by query transition.
conclusion and future work
Conclusion and Future Work
  • We explore the effects of various intent-related features on advertisements click prediction
  • CRF model performs better than two baselines and SVM significantly
  • When random subspace method is introduced to feature selection, the precision of click prediction is increased from 0.1663 to 0.1721
  • In the future, we plan to expand our model to consider fine-grained user intent and user interactions
  • In addition, we will extend this approach to predict which advertisements will be clicked
slide25

Thank You

Q & A
