slide1

Introduction to the Brunton Compass

  • Parts of the Compass
  • Uses of the Brunton Compass
  • - Bearing
  • - Strike and Dip
  • - Trend and Plunge
  • Map Symbols

Text: Compton, p. 16-21; 34-39; Measurement of Attitude and Location; Lab 1 (website)

slide2

Parts of the Compass

  • Compass Face
  • - Arrow (white tip North)
  • - Directional Degrees (Quadrant or Azimuth)
  • Clinometer: Scales in Degrees and % Grade
  • Levels
  • - Bullseye Level
  • - Cylindrical Level
  • Mirror
  • Sighting Arm
  • Dampener
  • Magnetic Declination (~6.5° E of N)
slide3

Uses of the Brunton Compass

  • Locate North
  • Sight Angles
  • - measuring height / thickness of a feature
  • Bearing
  • Strike and Dip
  • Trend and Plunge
slide4

Bearing

Bearing: direction from one point to another point.

  • 1-directional line
  • Quadrant Notation: N or S____° E or W
  • Azimuth Notation: _____°

Note: With sighting arm pointing to object, always read the white tip of the needle.

slide5

Strike and Dip

Strike: Direction of the line of intersection between a tilted plane and a horizontal plane.

  • 2-directional line
  • Azimuth Notation: _____ °

Note: Read the end of compass needle that makes dip direction to the right of the strike direction (Right-Hand-Rule).

slide6

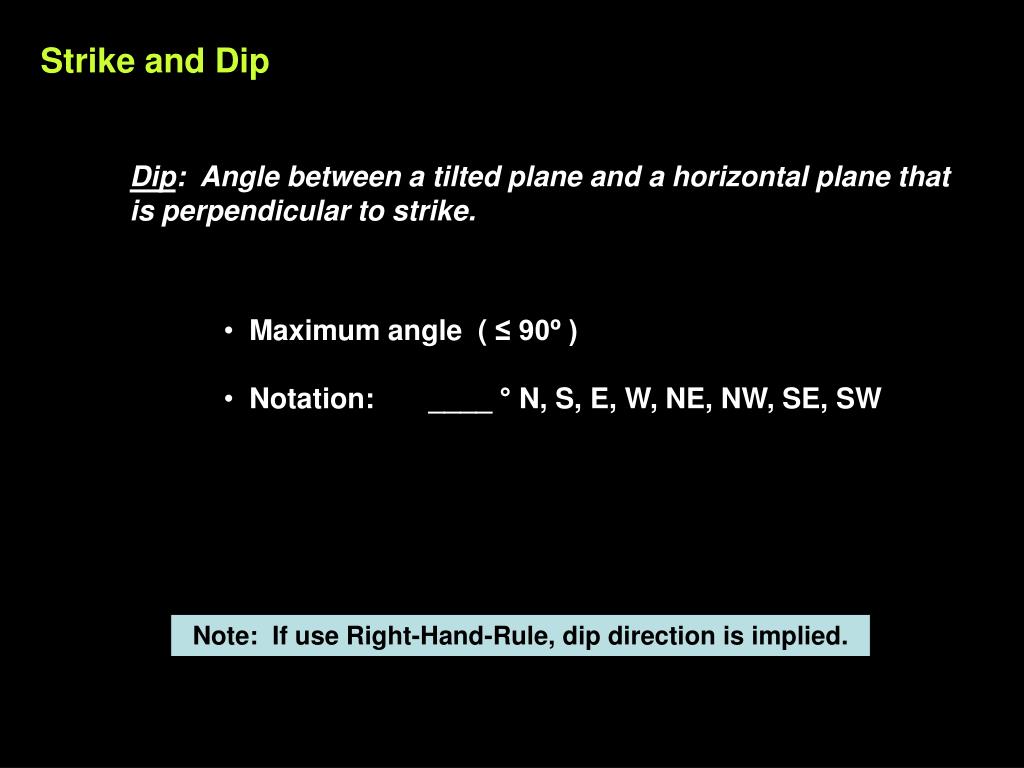

Strike and Dip

Dip: Angle between a tilted plane and a horizontal plane that is perpendicular to strike.

  • Maximum angle ( ≤ 90º )
  • Notation: ____ ° N, S, E, W, NE, NW, SE, SW

Note: If use Right-Hand-Rule, dip direction is implied.

slide7

W

E

Horizontal

Dip Angle

(E. McBride)

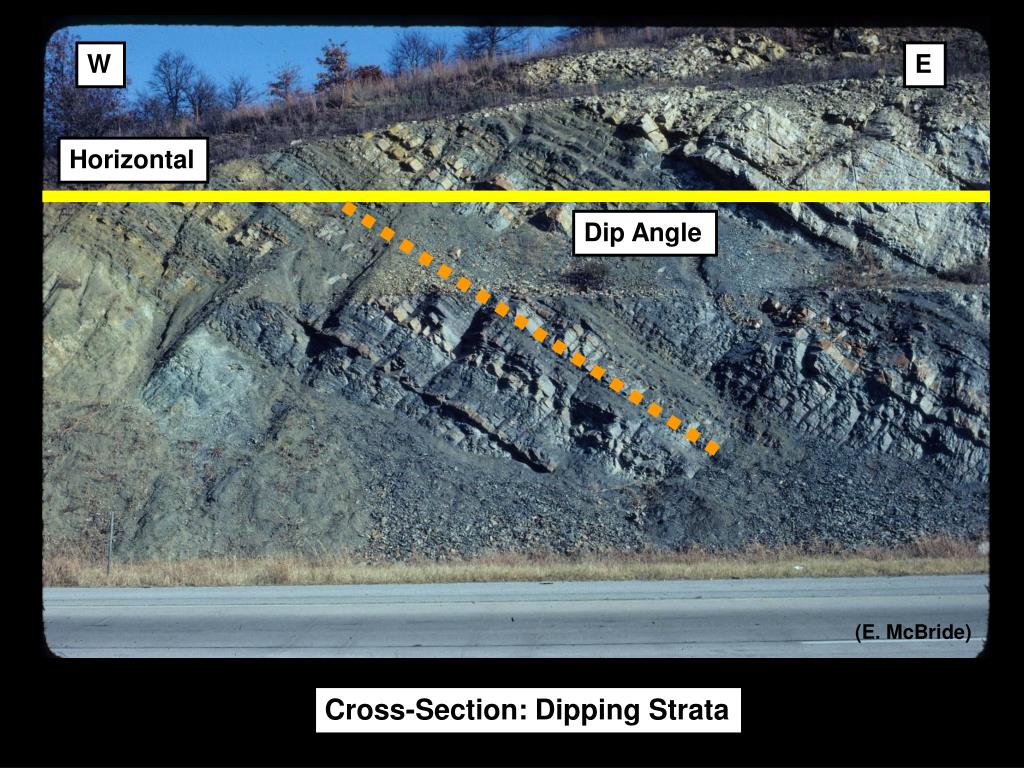

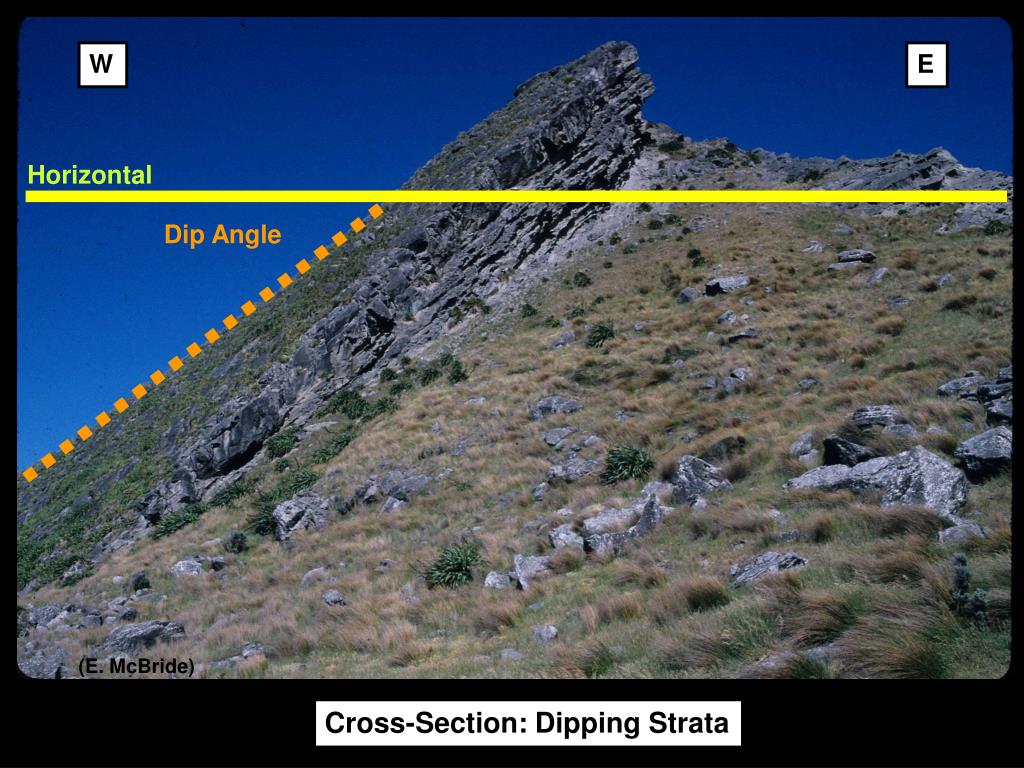

Cross-Section: Dipping Strata

slide8

W

E

Horizontal

Dip Angle

(E. McBride)

Cross-Section: Dipping Strata

slide10

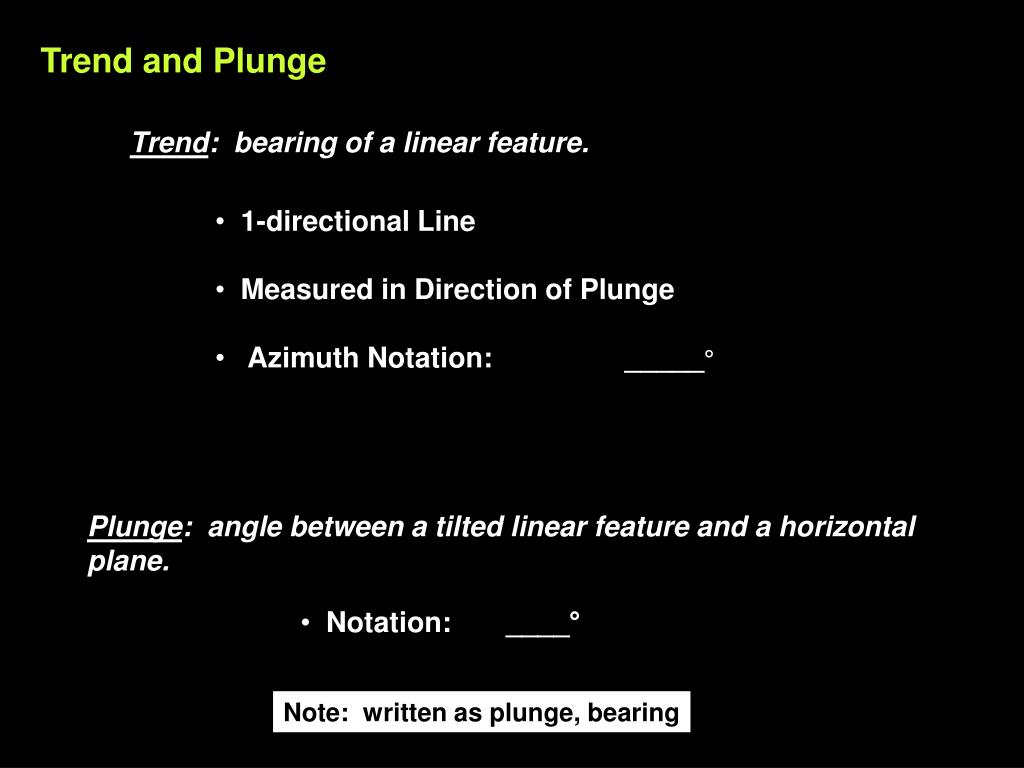

Trend and Plunge

Trend: bearing of a linear feature.

  • 1-directional Line
  • Measured in Direction of Plunge
  • Azimuth Notation: _____°

Plunge: angle between a tilted linear feature and a horizontal plane.

  • Notation: ____°

Note: written as plunge, bearing

slide11

Trend and Plunge

Linear Glacial Striations (Maine)

slide12

strike and dip

strike and dip (vertical)

strike and dip (horizontal)

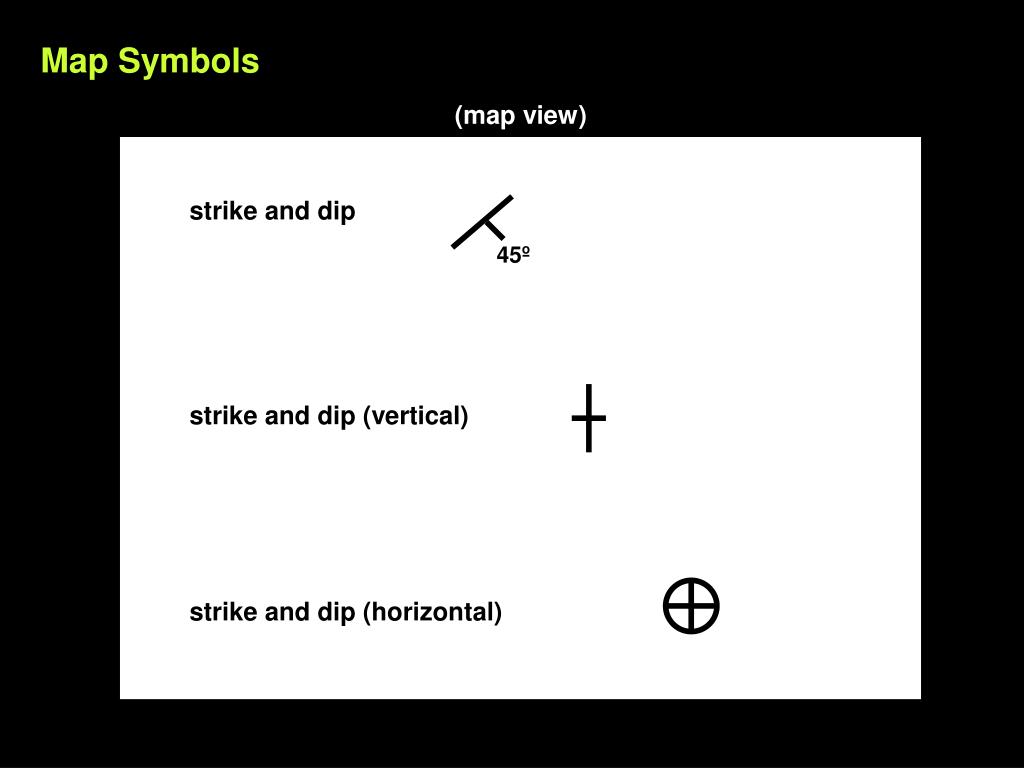

Map Symbols

(map view)

45º

slide13

Bring to Lab

  • Course Packet
  • Brunton Compass
  • Field Notebook
  • Ruler (metric)
  • Protractor
  • Calculator (tangent)
  • Clipboard
