ejb development
EJB Development
  • The EJB Specification define six roles that are involved in the development and deployment of EJB applications
    • Enterprise Bean Provider
    • Application Assembler
    • Deployer
    • System Administrator
    • EJB Server Provider
    • EJB Container Provider
enterprise bean provider
Enterprise Bean Provider
  • A programmer type, who codes the EJB
  • functions done by the Enterprise Bean Provider
    • write a home interface for the bean
    • write a component interface for the bean that declares various methods required by the application
    • write an implementation class that implements the various business methods declared in the remote interface
    • write a deployment descriptor describing the resources required by the bean and various other parameters
    • Package the interfaces and implementation class along with the deployment descriptor into an EJB JAR file
application assembler
Application Assembler
  • A person with the domain knowledge and expertise to be able to gather together the beans written by several Bean Providers (including vendors) and by modifying the deployment descriptors assemble them into an applications that will represent a complete business solution.
  • This assembly activity is usually done via GUI based tools provided by the application server OEM.
  • The assembler should be able to understand the various interfaces declared by the Bean Providers
  • Into pulling together the various Beans the assembler will allso collect together other components, such as JSP, HTML and graphics files.
the deployer
The Deployer
  • The deployer takes an assembled application and deployes it to a specific environment
  • the deployer need to have the detail knowledge required for the specific EJB server to be used and be familiar with the development procedures for that server
  • the deployer must map the resources required for the application onto the current infrastructure (map data sources on the data bases…)
  • the deployer is also responsible for mapping security requirements onto the infrastructure (creating userids, password, user groups…)
system administrator

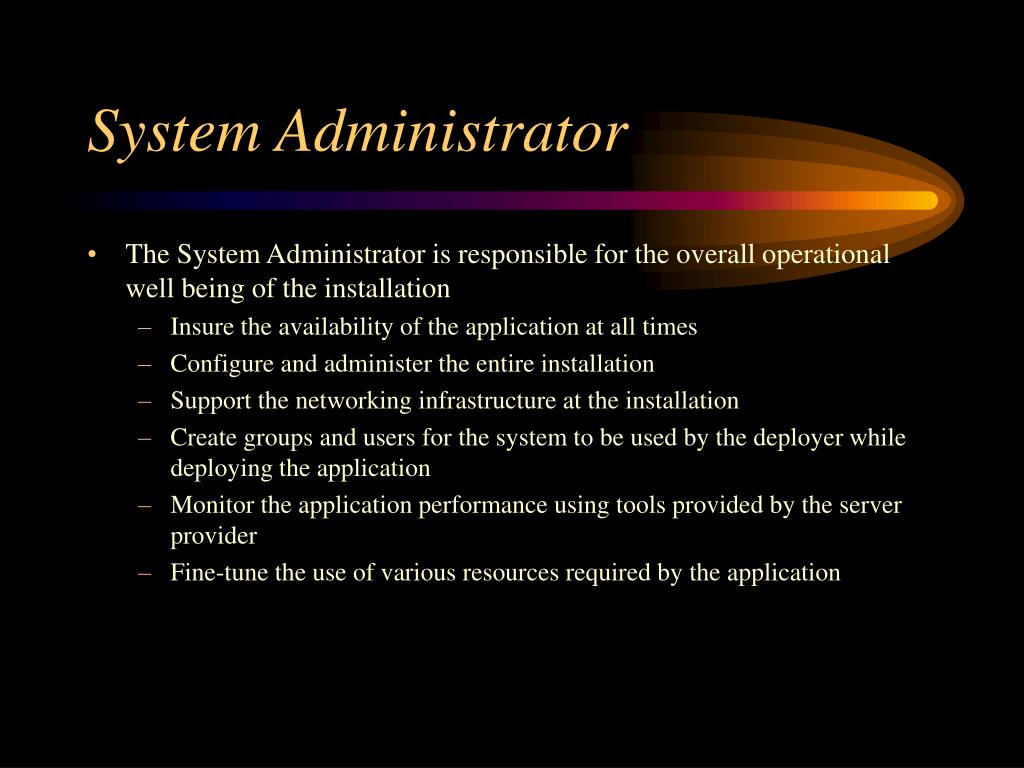

System Administrator
  • The System Administrator is responsible for the overall operational well being of the installation
    • Insure the availability of the application at all times
    • Configure and administer the entire installation
    • Support the networking infrastructure at the installation
    • Create groups and users for the system to be used by the deployer while deploying the application
    • Monitor the application performance using tools provided by the server provider
    • Fine-tune the use of various resources required by the application
ejb server provider
EJB Server Provider
  • A system level expert with expertise in providing low-level support services for distributed object applications and distributed transaction management.
  • Typically an OS vendor or middleware vendor
  • can be assumed thast the same party plays the role of the EJB Container Provider
ejb container provider
EJB Container Provider
  • A system level expert that implements a secure, transaction enabled, and scaleable container that can be integrated with an EJB Server.
  • The container provider is responsible for:
    • run-time environment for the deployed EJBs
    • deployment Tool for deploying EJBs on the container
developing an enterprise bean
Developing an Enterprise Bean
  • At it simplest an EJB consists of four elements:
    • a home interface
    • a component interface
    • a bean implementation class
    • a deployment descripter
  • we’ll develop a simple bean that calculates our monthly net salarybased on annual salary,pension contributions and income tax.
    • It will be a stateless session bean
developing the home interface
Developing the Home Interface
  • The Home Interface is responsible for managing the life-cycle operations upon a bean; creating, removing and locating the bean. The Home interface is the first point of contact that a client has with a bean
  • A client will obtain a reference to the the bean’s Home Interface via JNDI. You will see that each bean is registered in a JNDI server that can be used at run-time to get a reference to the bean’s Home Interface
  • Once a client has a reference to the bean’s home interface it can perform operations on the bean through this interface: these operations are:
    • create a new instance or find an existing instance (local and remote)
    • access the EJBMetaData interface (remote only)
    • get a serializable reference to a bean instance (remote only)
    • remove the bean instance
    • execute home business methods (remote entity beans only)
basic ejbhomeinterface
Basic EJBHomeInterface

package javax.ejb;

import java.rmi.Remote;

import java.rmi.RemoteExecption;

public interface EJBHome extends Remote {

// get a reference to the EJBMetaData object; can later be used to retrieve data about the bean

public abstract EJBMetaData getEJBMetaData( ) throws RemoteExecption;

// get a Handle to the home object; basically a persistent reference to the object

public abstract HomeHandle getHomeHandle( ) throws RemoteExecption;

// remove the bean instance ; in the case of en entity bean this is like deleting a row from the data store

public abstract void remove (Object obj) throws RemoteExecption, RemoveExecption;

public abstract void remove (Handle handle) throws RemoteExecption, RemoveExecption;


basic ejblocalhome interface
Basic EJBLocalHome Interface

package javax.ejb;

public interface EJBLocalHome {

public abstract void remove (Object obj ) throws RemoveException, EJBException;


the salaryhome interface
the SalaryHome Interface

package simpleBean;

public interface SalaryHome extends javax.ejb.EJBHome{

Salary create() throws java.rmi.RemoteException, javax.ejb.CreateException;


the component interface
the Component Interface

package javax.ejb;

import java.rmi.Remote;

import java.rmi.RemoteException;

public interface EJBObject extends Remote {

// get a referenct to the home object

public abstract EJBHome getEJBHome( ) throws RemoteException;

// get a Handle to the home object

public abstract Handle getHandle( ) throws RemoteException;

// for entity beans: get the beans Primary Key

public abstract Object getPrimaryKey( ) throws RemoteException;

public abstract boolean isIdentical (EJBObject ejbobject) throws RemoteException;

public abstract void remove( ) throws RemoteException, RemoveException;


the salary interface
the Salary Interface

package simpleBean;

public interface Salary extends javax.ejb.EJBObject {

double calculateSalary ( int annualSalary, int pensionContrib, double bonus)

throws hava.rmi.RemoteException;


salaryejb implementation

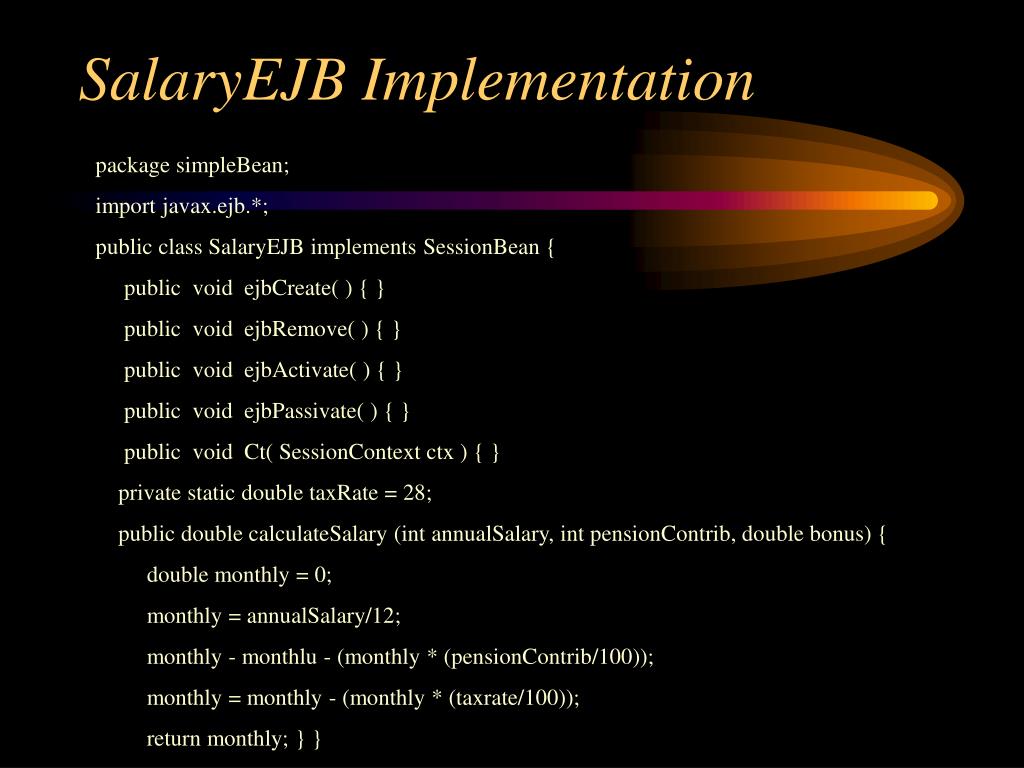

SalaryEJB Implementation

package simpleBean;

import javax.ejb.*;

public class SalaryEJB implements SessionBean {

public void ejbCreate( ) { }

public void ejbRemove( ) { }

public void ejbActivate( ) { }

public void ejbPassivate( ) { }

public void Ct( SessionContext ctx ) { }

private static double taxRate = 28;

public double calculateSalary (int annualSalary, int pensionContrib, double bonus) {

double monthly = 0;

monthly = annualSalary/12;

monthly - monthlu - (monthly * (pensionContrib/100));

monthly = monthly - (monthly * (taxrate/100));

return monthly; } }

limitations to the ejb model
Limitations to the EJB Model
  • Bean must not use read/write static fields
  • bean can’t use threads or the Threading API
  • bean can’t use AWT for input or output
  • bean cannot act as a network server, by listening,accepting or multicasting on a socket
  • bean cannot use java.io package
  • bean can’t load a native driver
  • bean can’t use “this” as an argument or return value
  • bean can’t modify the class loader, stop the JVM, or change the input, output or error streams
  • bean can’t access or modify security settings
  • bean must not attempt to define a class in a package
  • bean must not use the subclass and object substitution features of the serialization protocol
ejb context
EJB Context

package javax.ejb;

import java.security.Identity;

import java.security.Principle;

import java.util.Properties;

import javax.transaction,UserTransaction;

public interface EJBContext {

public abstract Identy getCallerIdentity( );

public abstract Principal getCallerPrincipal( );

public abstract EJBHome getEJBHome( );

public abstract Properties getEnvironment( );

public abstract boolean getRollbackOnly( ) throws IllegalStateException

public abstract UserTransaction getUserTransaction( ) throws IllegalStateException;

public abstract boolean isCallInRole( String s);

public abstract boolean isCallerInRole (Identity identity);

public abstract void setRollbackOnly( ) throws IllegalStateException }

  • In the SalaryBean implementation we had to invoke setSessionContext
    • there are similar methods required for other bean types
      • ex. setEntityContext for Entity Beans
    • each of these methods accepts a subclass of an EJBContext to provide the bean instance with information about the container - the bean’s context
    • The EJBContext interface:
ejbcontext interface
EJBContext Interface
  • Additionally SessionContext and EntityContext (but not MessageDrivenContext) define:

public abstract EJBLocalObject getEJBLocalObject( ) throws IllegalStateException;

public abstract EJBObject getEJBObject( ) throws IllegalStateException;

deployment descriptors
Deployment Descriptors

In the original EJB Specification the deployment descriptor was written as a Java object, in the EJB 1.1 Specification that was changed to be an XML Document.

DTD Element Optional Purpose

<ejb-jar> the root element of the deployment descriptor, all other elements are children of this

<description> Yes textual description of the parent element, many other elements can have their own description elements

<display-name> Yes a name that the deployment tool can use to display the name

<small-icon> Yes relative path to a small (16x16) jpeg or GIF to be used by deployment tools

<large-icon> Yes relative path to a large (32x32) jpeg or GIF to be used by deployment tools

<enterprise-beans> The parent element that contains the declarations for all beans within this application

<assembly-descriptor> Yes the parent element that contains application assembly instructions for the EJB application (includes; transaction attributes, method permissions, security roles and excluded methods)

<ejb-client-jar> Yes a JAR file that contains the classes necessary for a client to access the bean

an ejb deployment descriptor

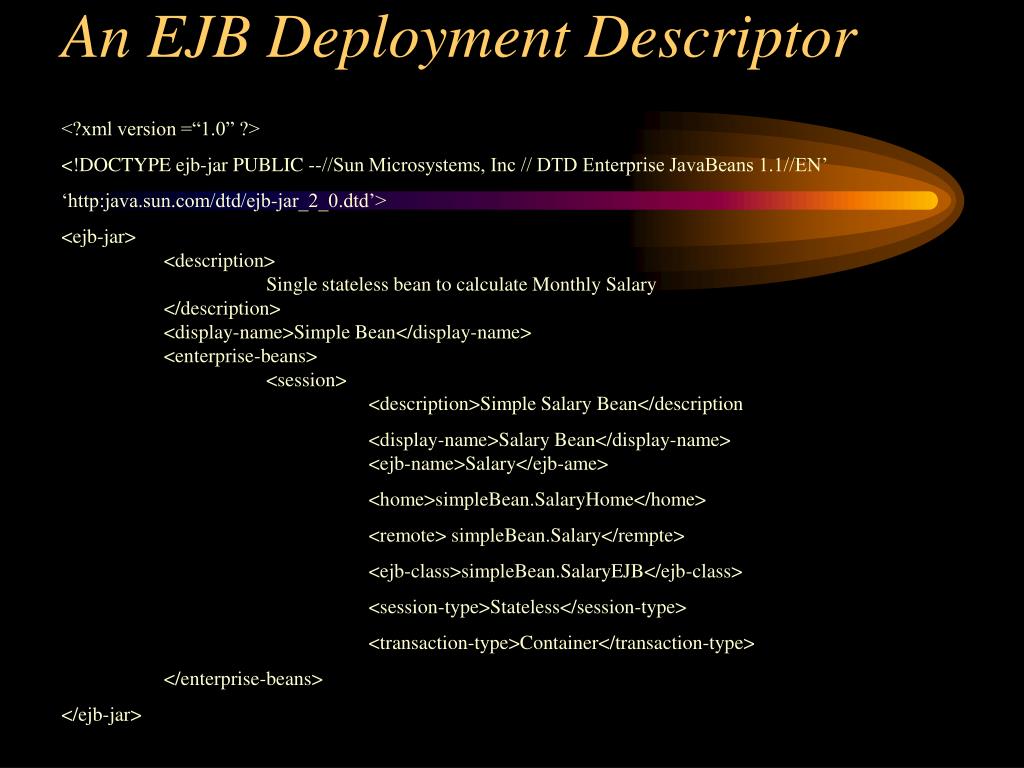

An EJB Deployment Descriptor

<?xml version =“1.0” ?>

<!DOCTYPE ejb-jar PUBLIC --//Sun Microsystems, Inc // DTD Enterprise JavaBeans 1.1//EN’


<ejb-jar> <description> Single stateless bean to calculate Monthly Salary </description> <display-name>Simple Bean</display-name> <enterprise-beans> <session> <description>Simple Salary Bean</description

<display-name>Salary Bean</display-name> <ejb-name>Salary</ejb-ame>


<remote> simpleBean.Salary</rempte>






a salary client

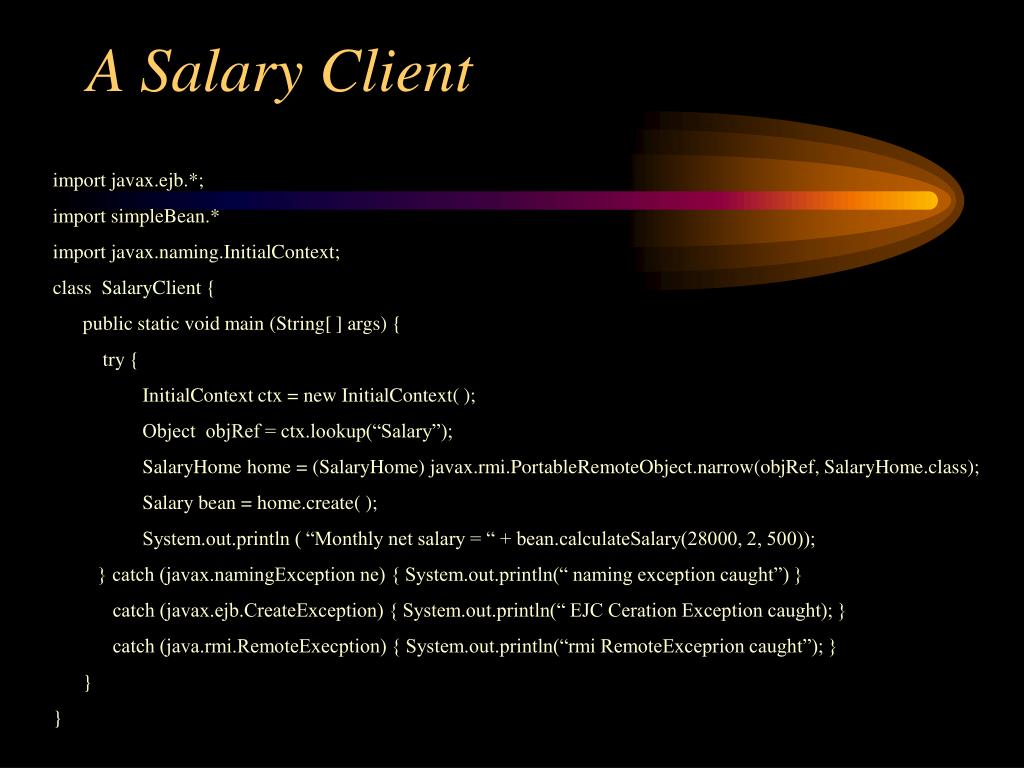

A Salary Client

import javax.ejb.*;

import simpleBean.*

import javax.naming.InitialContext;

class SalaryClient {

public static void main (String[ ] args) {

try {

InitialContext ctx = new InitialContext( );

Object objRef = ctx.lookup(“Salary”);

SalaryHome home = (SalaryHome) javax.rmi.PortableRemoteObject.narrow(objRef, SalaryHome.class);

Salary bean = home.create( );

System.out.println ( “Monthly net salary = “ + bean.calculateSalary(28000, 2, 500));

} catch (javax.namingException ne) { System.out.println(“ naming exception caught”) }

catch (javax.ejb.CreateException) { System.out.println(“ EJC Ceration Exception caught); }

catch (java.rmi.RemoteExecption) { System.out.println(“rmi RemoteExceprion caught”); }



entity beans ver 1 1
Entity Beans ( ver 1.1)
  • Entity beans represent data in a datastore as a Java object, this usually means that the bean represents a row in a relational table.
  • Since the bean and the database record are synonymous, any change in the bean must be synchronized with the database record; this is called persistence
  • there are two types of Entity beans, they are differentiated by how they handle persistence
    • Container-Managed Persistence (CMP)
      • the synchronization (persistence) is handled automatically by the container
    • Bean-Managed Persistence (BMP)
      • we manage the synchronization (persistence) in code in the bean and tell the container to keep its hands off
cmp or bmp
  • One of the services offered by the EJB container is to have the container manage the persistence, at deployment time the container will generate all of the code needed to synchronize the bean with the database.
    • This lets the programmer focus on business logic and not have to be concerned over persistance
    • by using CMP the bean becomes more independent of the database, this can make them easier to re-deploy using another database
  • With BMP we must provide all of the SQL to manage the persistence as part of the bean, its more work but some EJB containers are not fully compliant with the EJB specification as relates to CMP; so, the only option may be to use BMP.
    • This may be only option when trying to use legacy databases (IBM/IMS) that are not SQL oriented
    • to get finer graind control than what CMP provides
primary keys
Primary Keys
  • The identity of an entity bean is its primary key
  • primary key is represented by a primary key class that is defined by the developer, this class contains everthing necessary to find the entity in the datastore
  • for BMP the primary key class must
    • the primary key can be any legal value type in RMI/IIOP, must be serializable
    • must provide suitable implementations of the hashCode( ) and equals( ) methods
    • must have a unique value within the set of all beans of a particular type
  • for CMP these additional rules apply
    • key class must have a no-arguments public constructor
    • must be able to map the beans state to the primary key and vice-versa
