一、範例分析

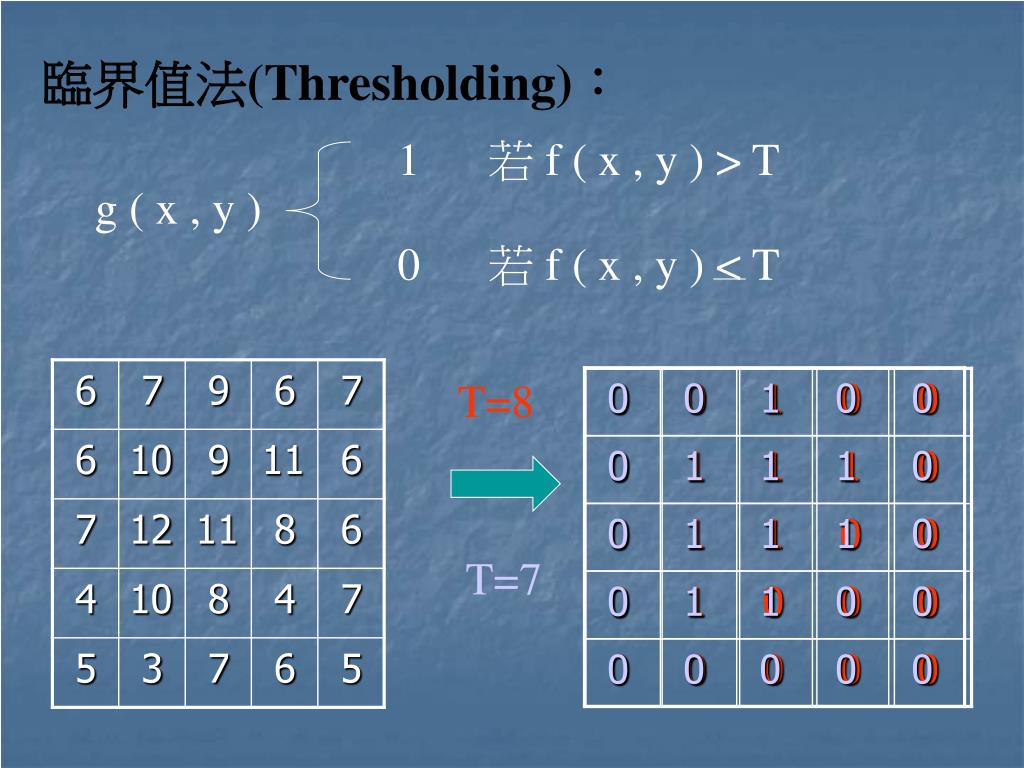

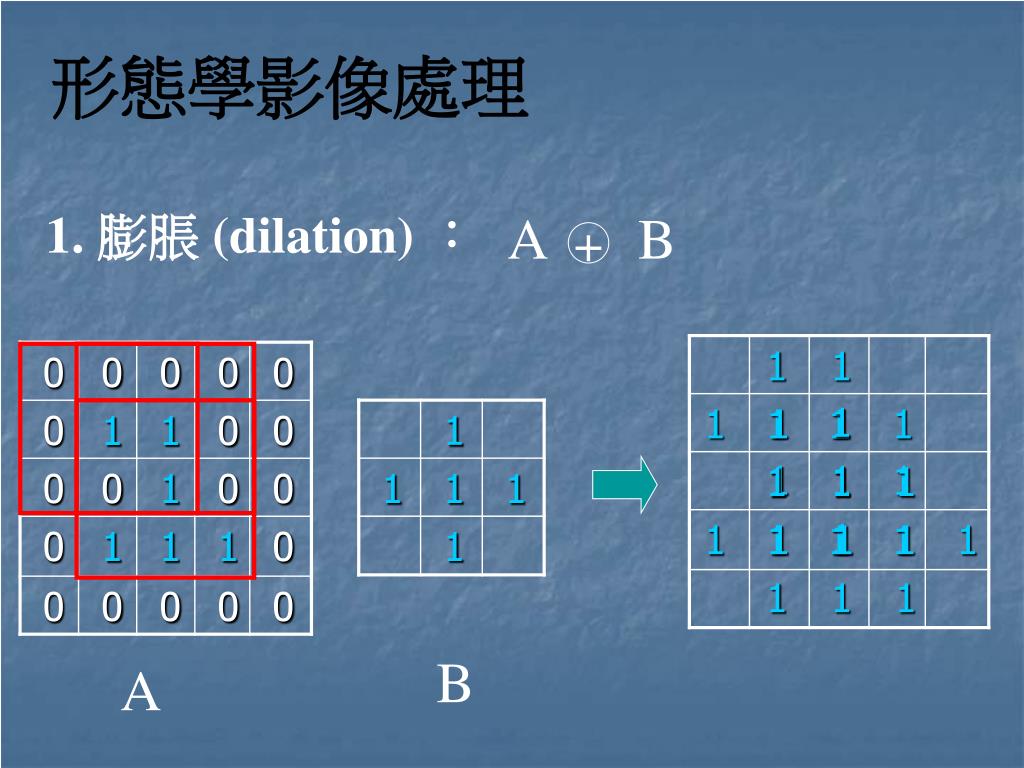

一、範例分析. 1 若 f ( x , y ) > T. g ( x , y ). 0 若 f ( x , y ) < T. 臨界值法 (Thresholding) ：. T=8. T=7. +. 形態學影像處理. 1. 膨脹 (dilation) ：. A. B. B. A. A. B. 2. 侵蝕 (erosion) ：. 0. 0. 0. 1. 0. 0. 0. 0. B. A. A. B. ( ). =. 3. 斷開 (open) ：. +. +.

saleema-soroush
Download Presentation

一、範例分析

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 一、範例分析

  2. 1 若 f ( x , y ) > T g ( x , y ) 0 若 f ( x , y ) < T 臨界值法(Thresholding)： T=8 T=7

  3. + 形態學影像處理 1. 膨脹 (dilation) ： A B B A

  4. A B 2. 侵蝕 (erosion) ： 0 0 0 1 0 0 0 0 B A

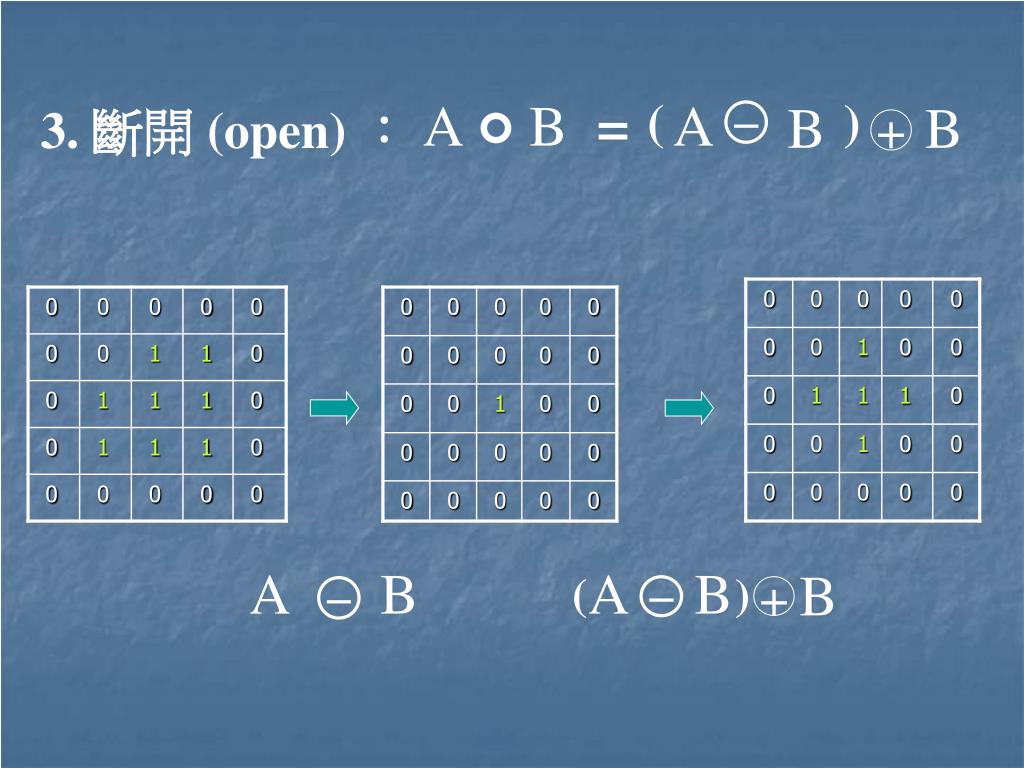

  5. A B ( ) = 3. 斷開 (open) ： + + A B B A B A B B ( )
