a unified approach for assessing agreement

A Unified Approach for Assessing Agreement

Lawrence Lin, Baxter Healthcare

A. S. Hedayat, University of Illinois at Chicago

Wenting Wu, Mayo Clinic

outline

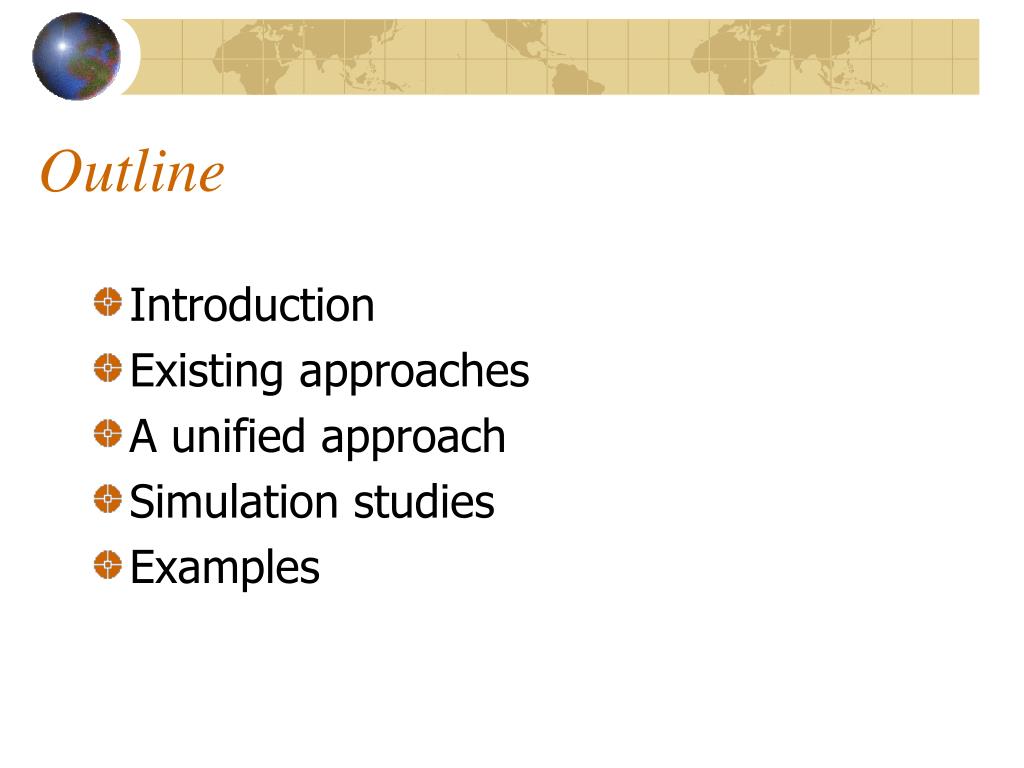

Outline
  • Introduction
  • Existing approaches
  • A unified approach
  • Simulation studies
  • Examples
introduction
Introduction
  • Different situations for agreement
    • Two raters, each with single reading
    • More than two raters, each with single reading
    • More than two raters, each with multiple readings
      • Agreement within a rater
      • Agreement among raters based on means
      • Agreement among raters based on individual readings
existing approaches 1
Existing Approaches (1)
  • Agreement between two raters, each with single reading
    • Categorical data:
      • Kappa and weighted kappa
    • Continuous data:
      • Concordance Correlation Coefficient (CCC)
      • Intraclass Correlation Coefficient (ICC)
existing approaches 2
Existing Approaches (2)
  • Agreement among more than two raters, each with single reading
    • Lin (1989): no inference
    • Barnhart, Haber and Song (2001, 2002): GEE
    • King and Chinchilli (2001, 2001): U-statistics
    • Carrasco and Jover (2003): variance components
existing approaches 3

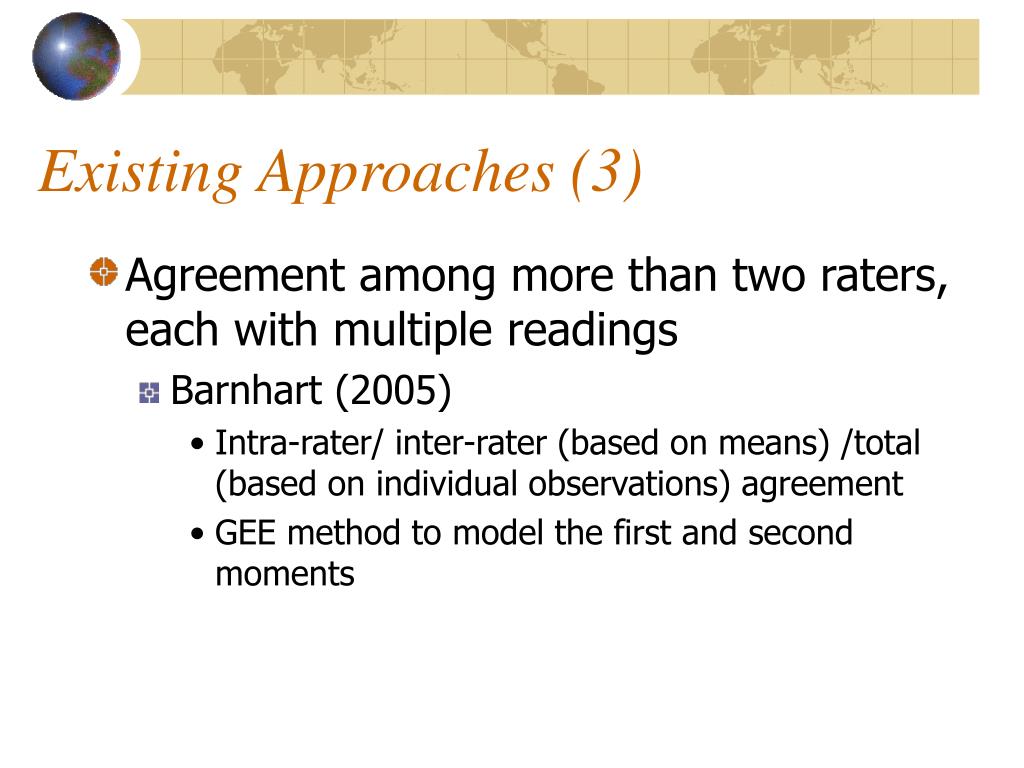

Existing Approaches (3)
  • Agreement among more than two raters, each with multiple readings
    • Barnhart (2005)
      • Intra-rater/ inter-rater (based on means) /total (based on individual observations) agreement
      • GEE method to model the first and second moments
unified approach

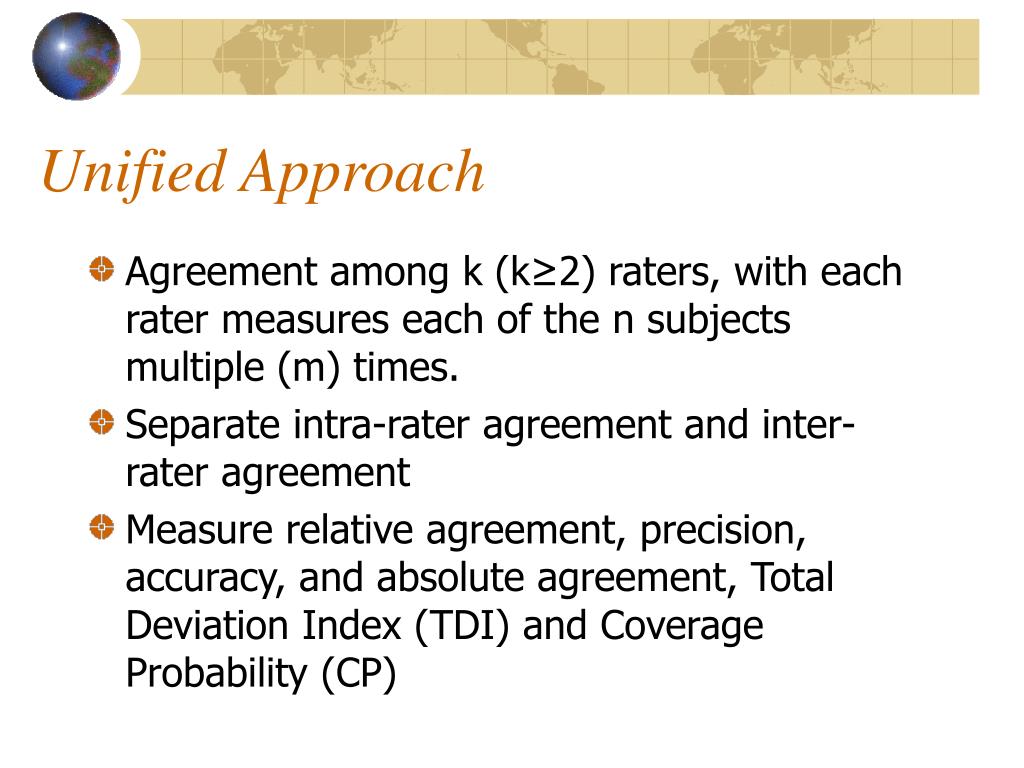

Unified Approach
  • Agreement among k (k≥2) raters, with each rater measures each of the n subjects multiple (m) times.
  • Separate intra-rater agreement and inter-rater agreement
  • Measure relative agreement, precision, accuracy, and absolute agreement, Total Deviation Index (TDI) and Coverage Probability (CP)

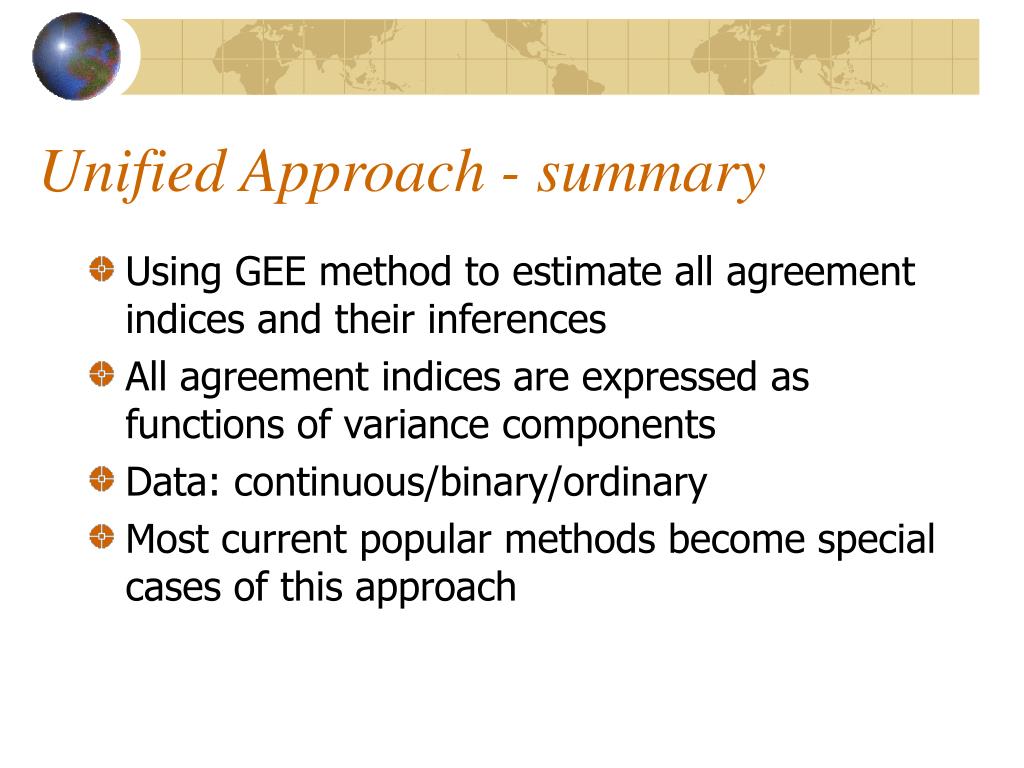

unified approach summary
Unified Approach - summary
  • Using GEE method to estimate all agreement indices and their inferences
  • All agreement indices are expressed as functions of variance components
  • Data: continuous/binary/ordinary
  • Most current popular methods become special cases of this approach
unified approach model
Unified Approach - model
  • Set up
    • subject effect
    • subject by rater effect
    • error effect
    • rater effect

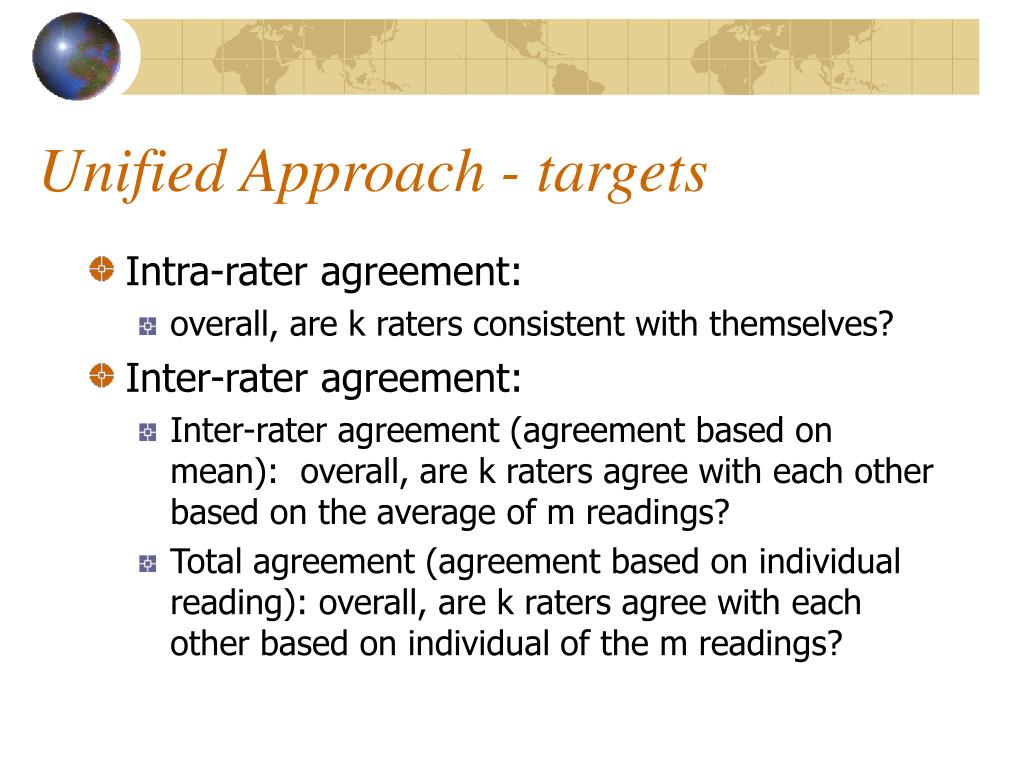

unified approach targets
Unified Approach - targets
  • Intra-rater agreement:
    • overall, are k raters consistent with themselves?
  • Inter-rater agreement:
    • Inter-rater agreement (agreement based on mean): overall, are k raters agree with each other based on the average of m readings?
    • Total agreement (agreement based on individual reading): overall, are k raters agree with each other based on individual of the m readings?
unified approach agreement intra
Unified Approach – agreement(intra)
  • : for over all k raters, how well is each rater in reproducing his readings?
unified approach precision intra and msd
Unified Approach – precision(intra) and MSD
  • : for any rater j, the proportion of the variance that is attributable to the subjects (same as )
  • Examine the absolute agreement independent of the total data range:
unified approach tdi intra
Unified Approach – TDI(intra)
  • : for each rater j, % of observations are within unit of their replicated readings from the same rater.

is the cumulative normal distribution

is the absolute value

unified approach cp intra

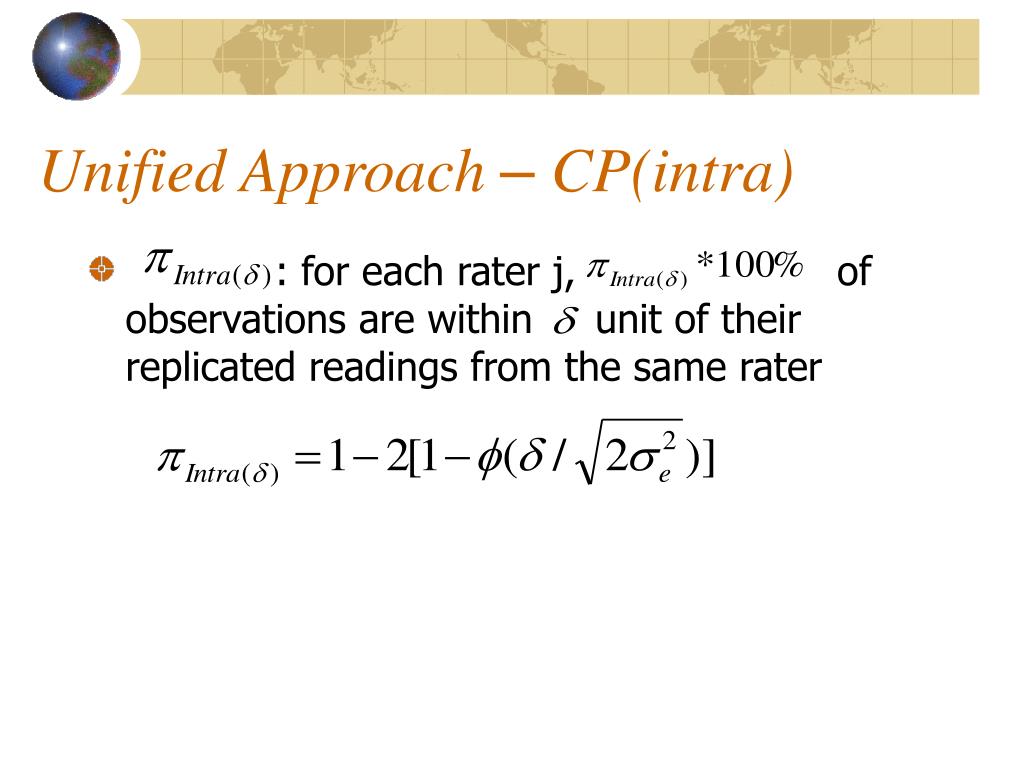

Unified Approach – CP(intra)
  • : for each rater j, of observations are within unit of their replicated readings from the same rater
unified approach agreement inter
Unified Approach – agreement(inter)
  • : for over all k raters, how well are raters in reproducing each others based on the average of the multiple readings?
unified approach precision inter

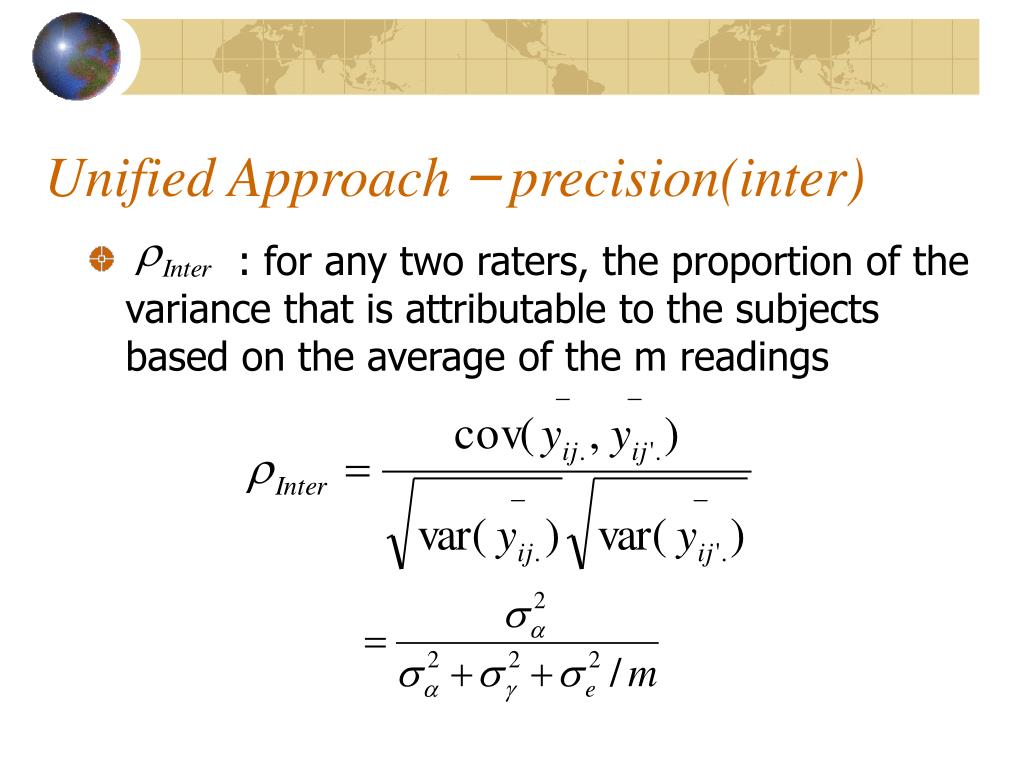

Unified Approach – precision(inter)
  • : for any two raters, the proportion of the variance that is attributable to the subjects based on the average of the m readings
unified approach accuracy inter
Unified Approach – accuracy(inter)
  • : how close are the means of different raters:
unified approach tdi inter
Unified Approach – TDI(inter)
  • : for overall k raters, % of the average readings are within unit of the replicated averaged readings from the other rater.
unified approach cp inter

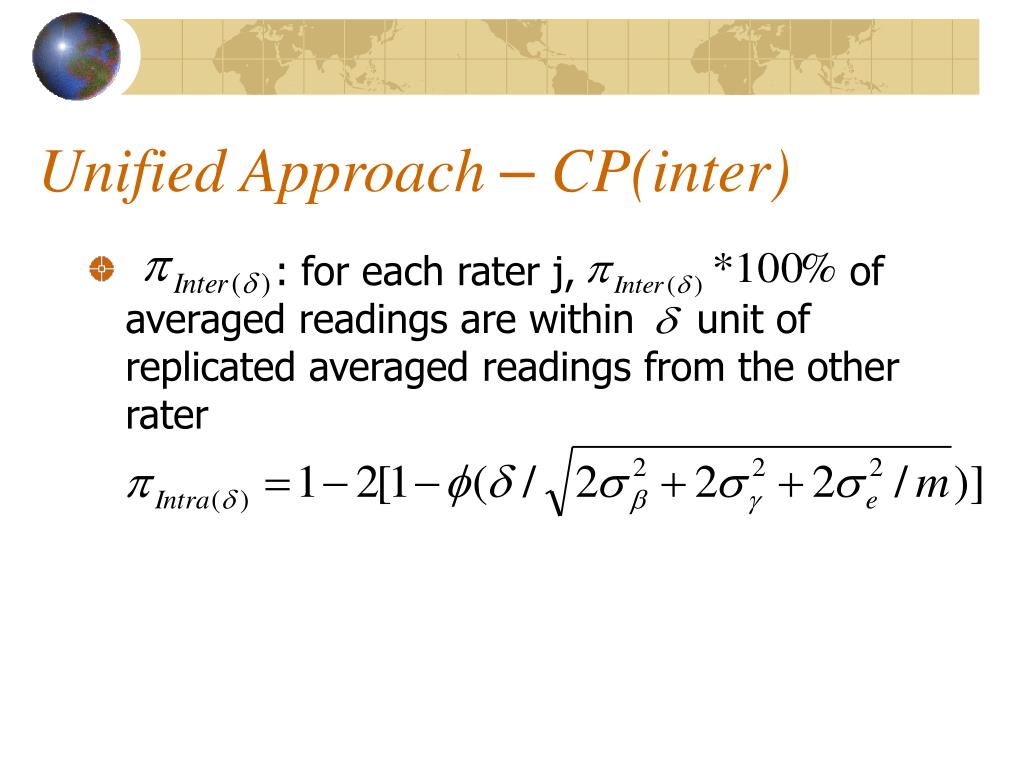

Unified Approach – CP(inter)
  • : for each rater j, of averaged readings are within unit of replicated averaged readings from the other rater
unified approach agreement total
Unified Approach – agreement(total)
  • : for over all k raters, how well are raters in reproducing each others based on the individual readings?
unified approach precision total

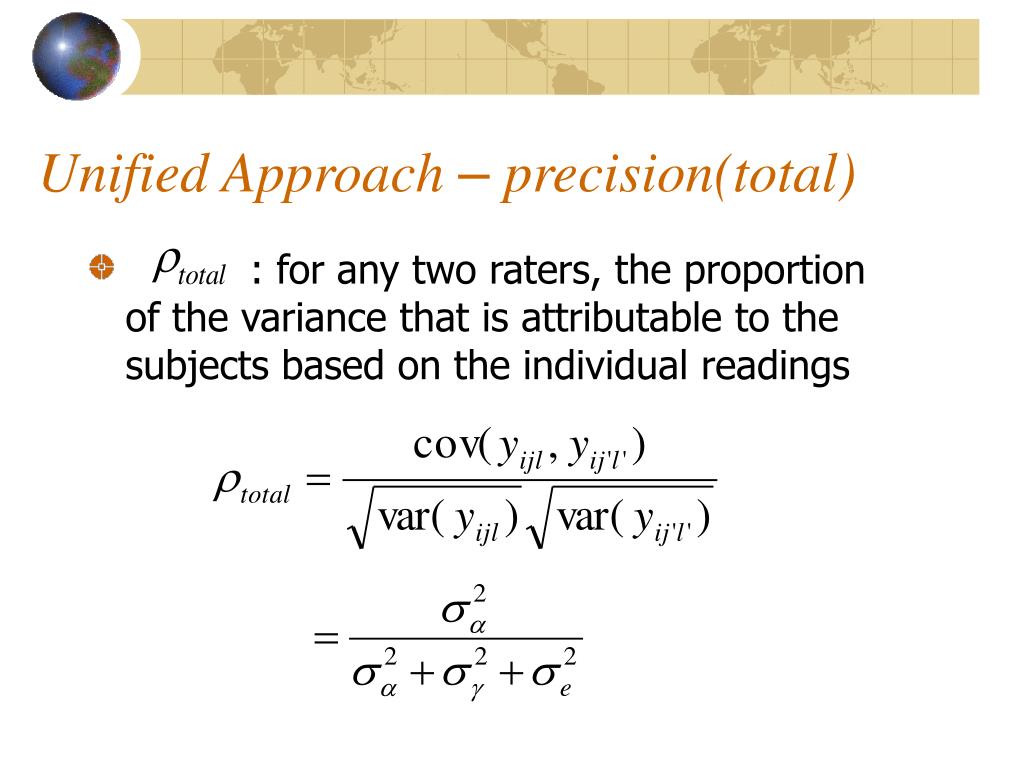

Unified Approach – precision(total)
  • : for any two raters, the proportion of the variance that is attributable to the subjects based on the individual readings
unified approach accuracy total

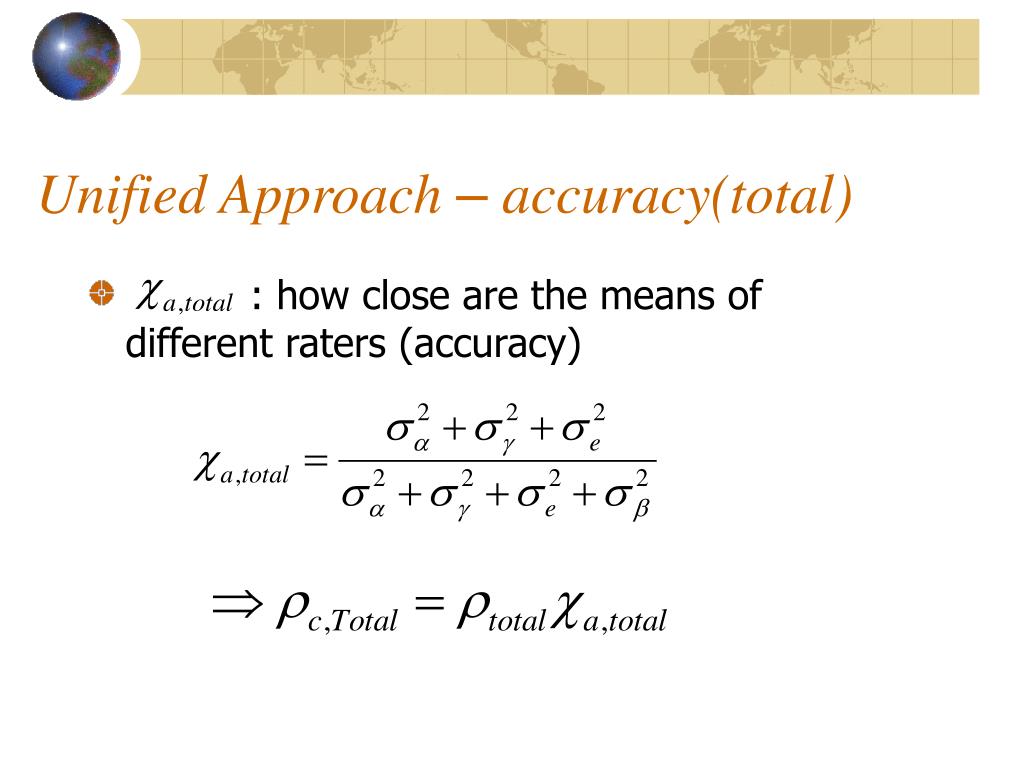

Unified Approach – accuracy(total)
  • : how close are the means of different raters (accuracy)
unified approach tdi total
Unified Approach – TDI(total)
  • : for overall k raters, % of the readings are within unit of the replicated readings from the other rater.
unified approach cp total
Unified Approach – CP(total)
  • : for each rater j, of readings are within unit of replicated readings from the other rater
unified approach1

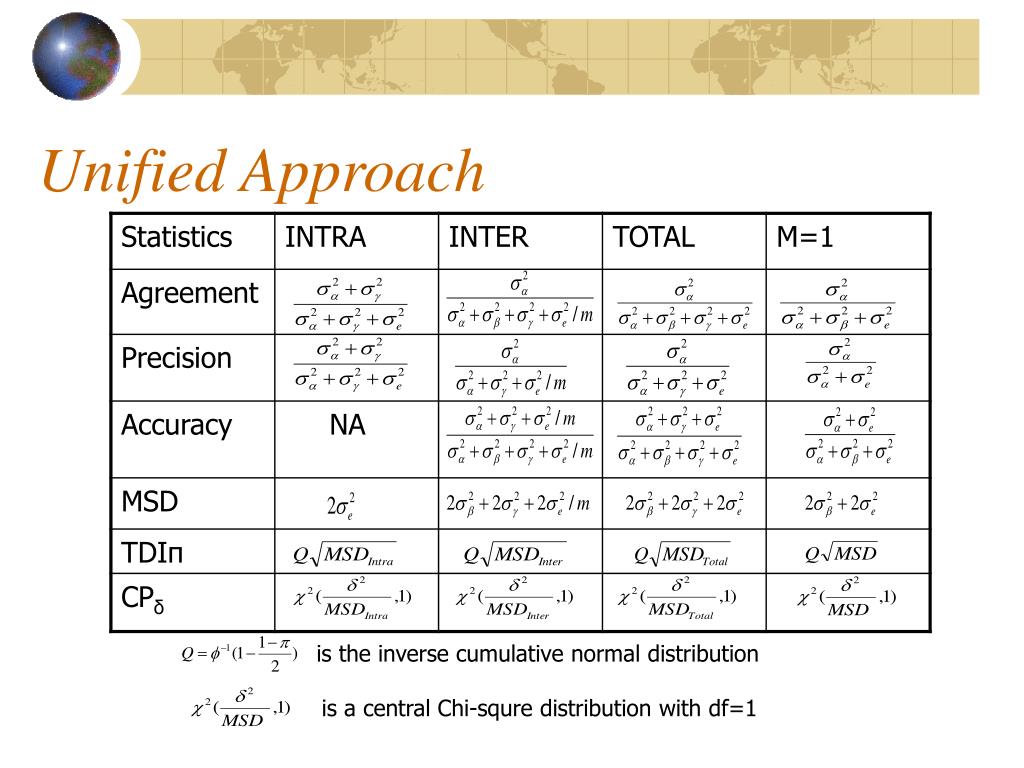

Unified Approach

is the inverse cumulative normal distribution

is a central Chi-squre distribution with df=1

estimation and inference
Estimation and Inference
  • Estimate all means, variance components,

and their variances and covariances by GEE method

  • Estimate all indices using above estimates
  • Estimate variances of all indices using above estimates and delta method

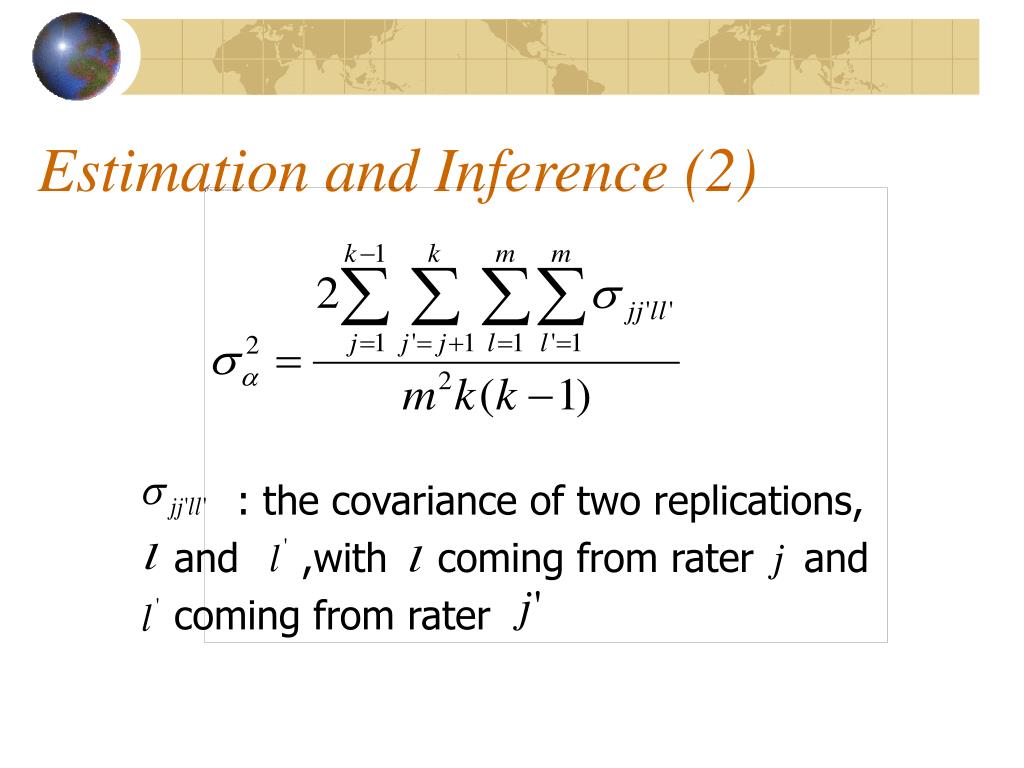

estimation and inference 2
Estimation and Inference (2)

: the covariance of two replications,

and ,with coming from rater and

coming from rater

estimation and inference 3

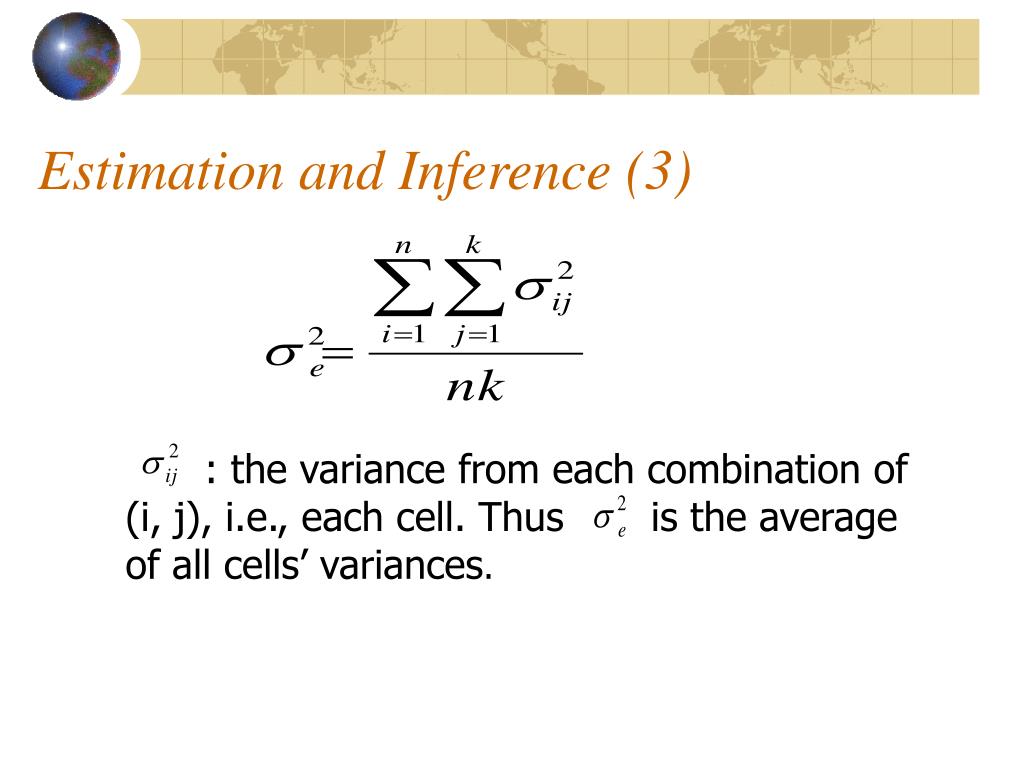

Estimation and Inference (3)

: the variance from each combination of (i, j), i.e., each cell. Thus is the average of all cells’ variances.

estimation and inference 4
Estimation and Inference (4)

: the variance of replication of rater

: the covariance of two replications, and , both of them coming from rater .

estimation and inference 5
Estimation and Inference (5)
  • Using GEE method to estimate all indices through estimating the means and all variance components:

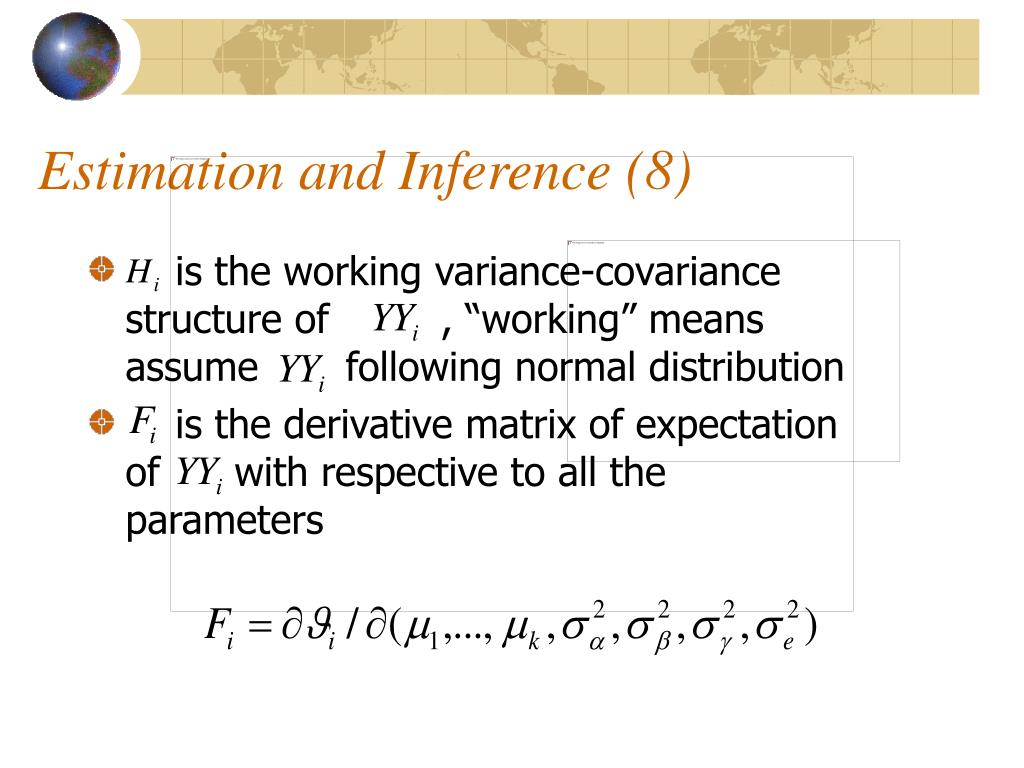

estimation and inference 8
Estimation and Inference (8)
  • is the working variance-covariance structure of , “working” means assume following normal distribution
  • is the derivative matrix of expectation of with respective to all the parameters
estimation and inference 9

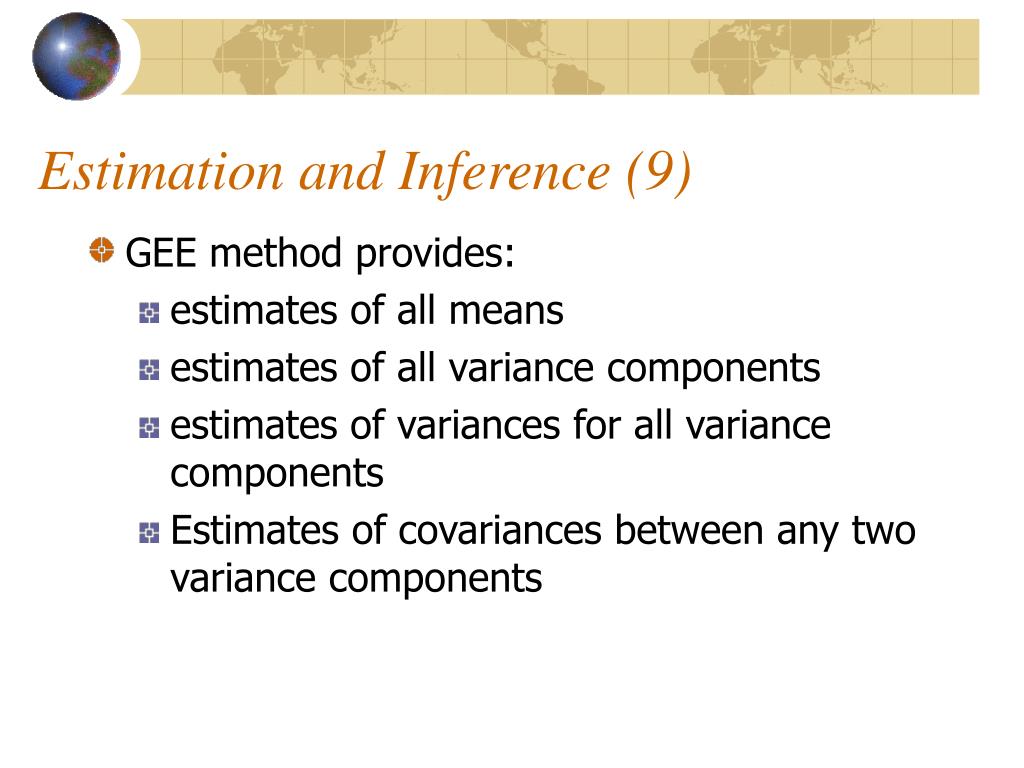

Estimation and Inference (9)
  • GEE method provides:
    • estimates of all means
    • estimates of all variance components
    • estimates of variances for all variance components
    • Estimates of covariances between any two variance components
estimation and inference 10
Estimation and Inference (10)
  • Delta method is used to estimate the variances for all indices
estimation and inference 18
Estimation and Inference (18)
  • Transformations for variances
    • Z-transformation: CCC-indices and precision indices
    • Logit-transformation: accuracy and CP indices
    • Log-transformation: TDI indices
simulation study

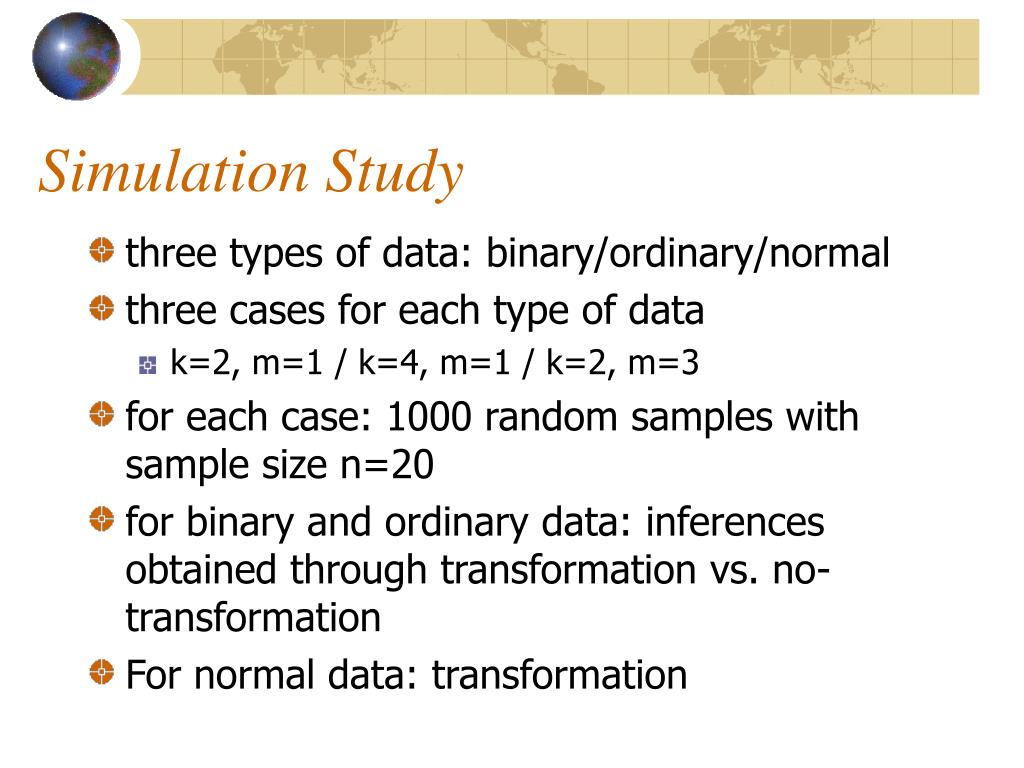

Simulation Study
  • three types of data: binary/ordinary/normal
  • three cases for each type of data
    • k=2, m=1 / k=4, m=1 / k=2, m=3
  • for each case: 1000 random samples with sample size n=20
  • for binary and ordinary data: inferences obtained through transformation vs. no-transformation
  • For normal data: transformation
simulation study 2

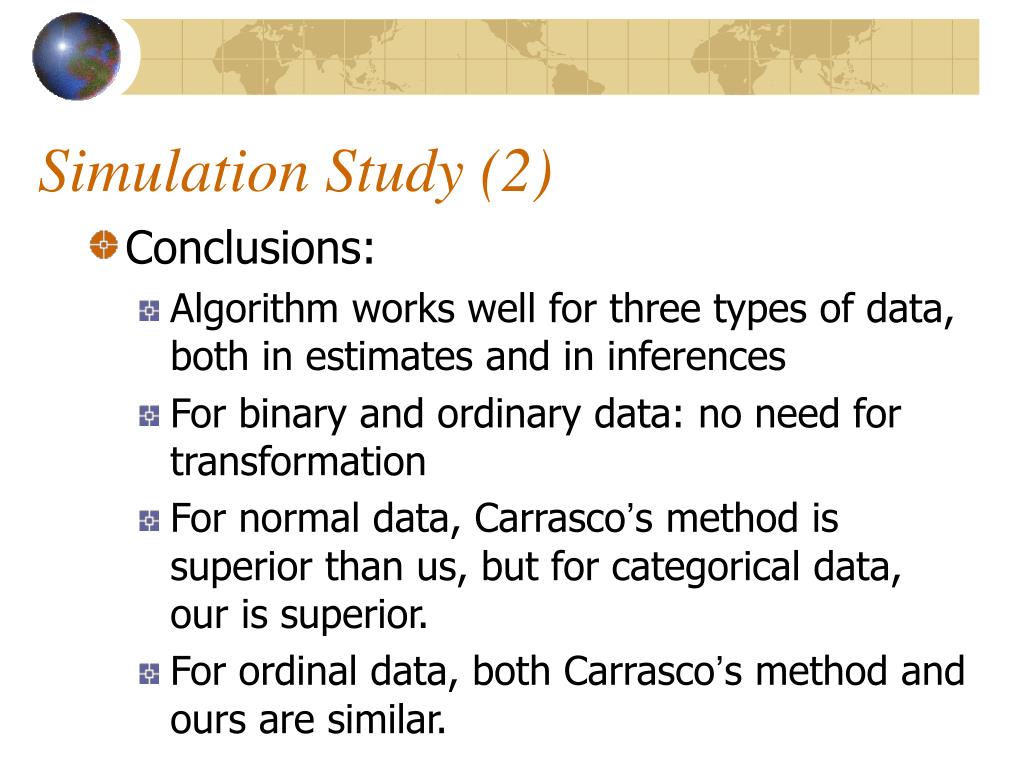

Simulation Study (2)
  • Conclusions:
    • Algorithm works well for three types of data, both in estimates and in inferences
    • For binary and ordinary data: no need for transformation
    • For normal data, Carrasco’s method is superior than us, but for categorical data, our is superior.
    • For ordinal data, both Carrasco’s method and ours are similar.
example one
Example One
  • Sigma method vs. HemoCue method in measuring the DCHLb level in patients’ serum
  • 299 samples: each sample collected twice by each method
  • Range: 50-2000 mg/dL
example one hemocue method
Example One – HemoCue method

HemoCue method first readings vs. second readings

example one sigma method
Example One – Sigma method

Sigma method first readings vs. second readings

example one hemocue vs sigma

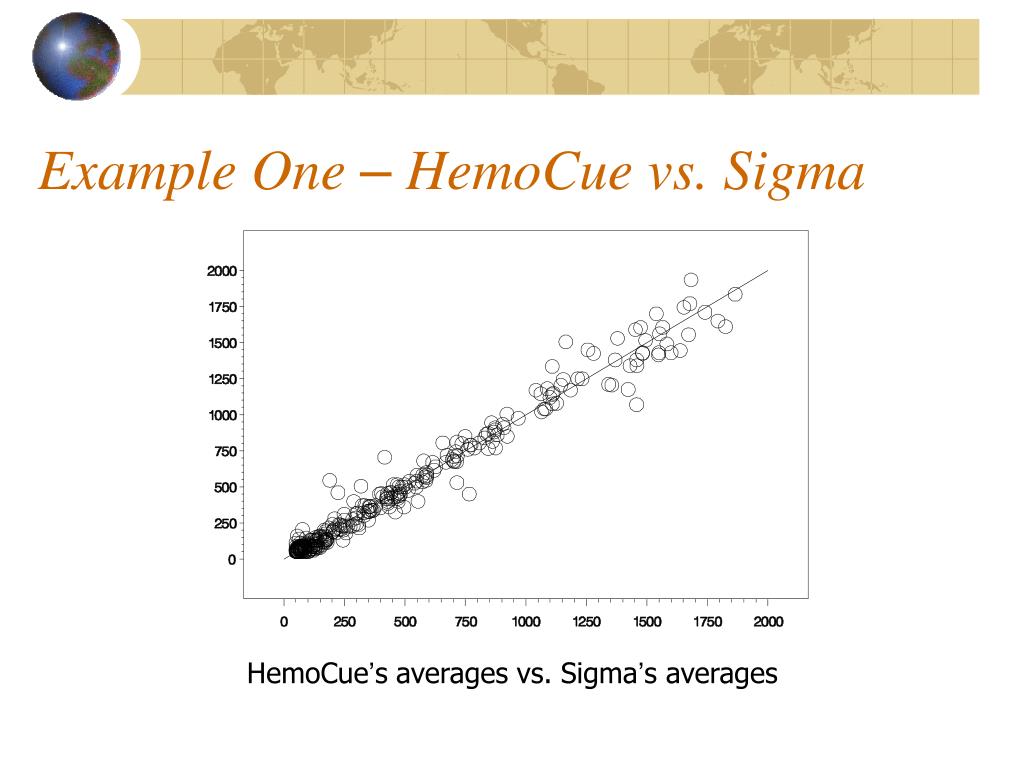

Example One – HemoCue vs. Sigma

HemoCue’s averages vs. Sigma’s averages

example one analysis result 2

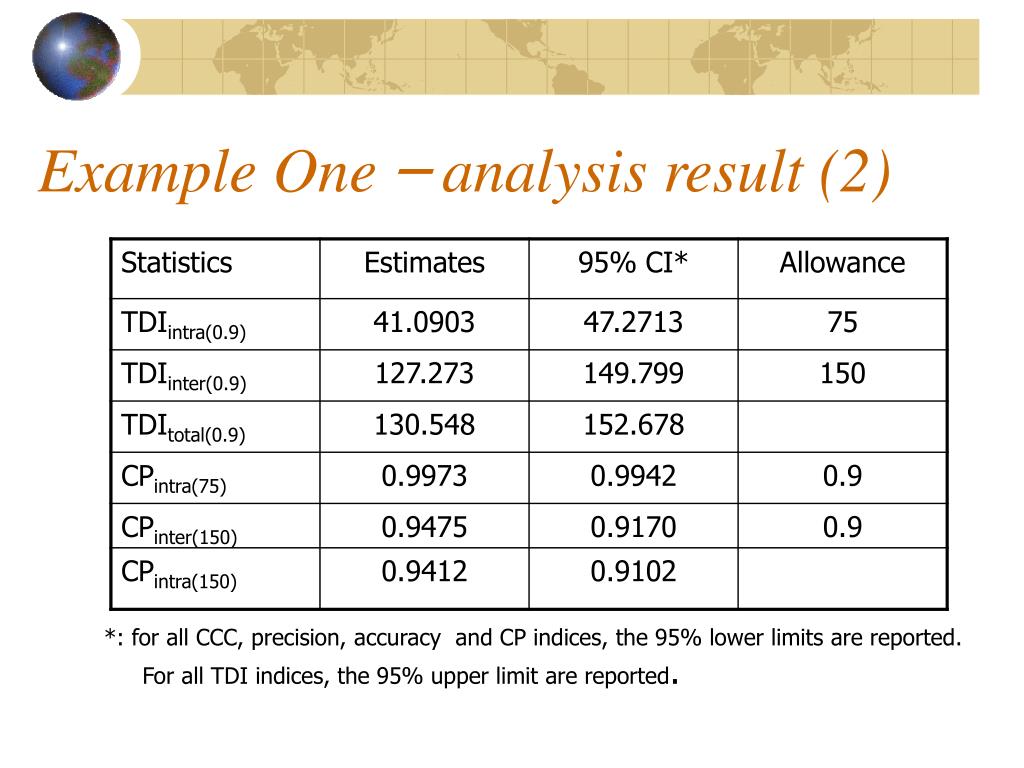

Example One – analysis result (2)

*: for all CCC, precision, accuracy and CP indices, the 95% lower limits are reported. For all TDI indices, the 95% upper limit are reported.

example two
Example Two
  • Hemagglutinin Inhibition (HAI) assay for antibody to Influenza A (H3N2) in rabbit serum samples from two labs
  • 64 rabbit serum samples: measured twice by each lab
  • Antibody level: negative/positive/highly positive
conclusions 1
Conclusions (1)
  • When data are continuous and m goes to ∞:
    • agreement indices are the same as that proposed by Barnhart (2005), both in estimates and inferences
    • improvements
      • Precision indices, accuracy indices TDIs and CP
      • Variance components
conclusions 2
Conclusions (2)
  • When m=1:
    • agreement index degenerates into OCCC as proposed by King (2002), Carrasco (2003) for continuous data
    • Improvements:
      • For categorical data:
        • King’s method: approximates to kappa and weighted kappa, our estimates (without transformation) are exactly the same as kappa and weighted kappa, both in estimate and in inference.
        • Our estimates superior to Carrasco’s estimates when precision and accuracy are high
      • Covariates adjustment become available
conclusions 3
Conclusions (3)
  • When data are continuous, k=2 and m=1:
    • agreement index degenerates to the original CCC by Lin (1989)
  • When data are binary, k=2 and m=1:
    • agreement index degenerates into kappa, both in estimate and inference
conclusions 4
Conclusions (4)
  • When data are ordinary, k=2 and m=1:
    • agreement index degenerates into weighted kappa with below weight set, both in estimate and in inference.
conclusions 5
Conclusions (5)
  • Unified approach
    • Relative agreement indices: CCC with precision and accuracy – data range
    • Absolute agreement: Total deviation indices and Coverage Probability – normal assumption
    • Link function need more work
    • Require balanced data
references
References
  • Barkto, John J (1966): The intraclass correlation coefficient as a measure of reliability. Pshchological Reports 19, 3-11.
  • Barnhart, H. X. and Williamson, J. M. (2001). Modeling concordance correlation via GEE to evaluate reproducibility. Biometrics 57, 931-940.
  • Barnhart, H. X. Song, Jingli and Haber, Michael J. (2005): Assessing intra, inter and total agreement with replicated readings. Statistics in Medicine 19: 255-270.
  • Carrasco, J. L. and Jover, L. (2003). Estimating the generalized concordance correlation coefficient through variance components. Biometrics 59, 849-858.
  • Fleiss, J., Cohen, J. and Everitt, B (1969). Large sample standard errors of kappa and weighted kappa. Psychological Bulletin 72, 323-327.
  • King, Tonya S. and Chinchilli, Vernon M. (2001): A generalized concordance correlation coefficient for continuous and categorical data. Statistics in Medicine 20: 2131-2147.
  • Lin, L. I. (1989). A concordance correlation coefficient to evaluate reproducibility. Biometrics 45, 255-268.
  • Lin, L. I., Hedayat, A. S., Sinha, B., and Yang, M. (2002). Statistical methods in assessing agreement: models, issues & tools. Journal of American Statistical Association 97(457), 257-270.
  • Wu, Wenting. A unified approach for assessing agreement. Ph.D. thesis, UIC, 2006
