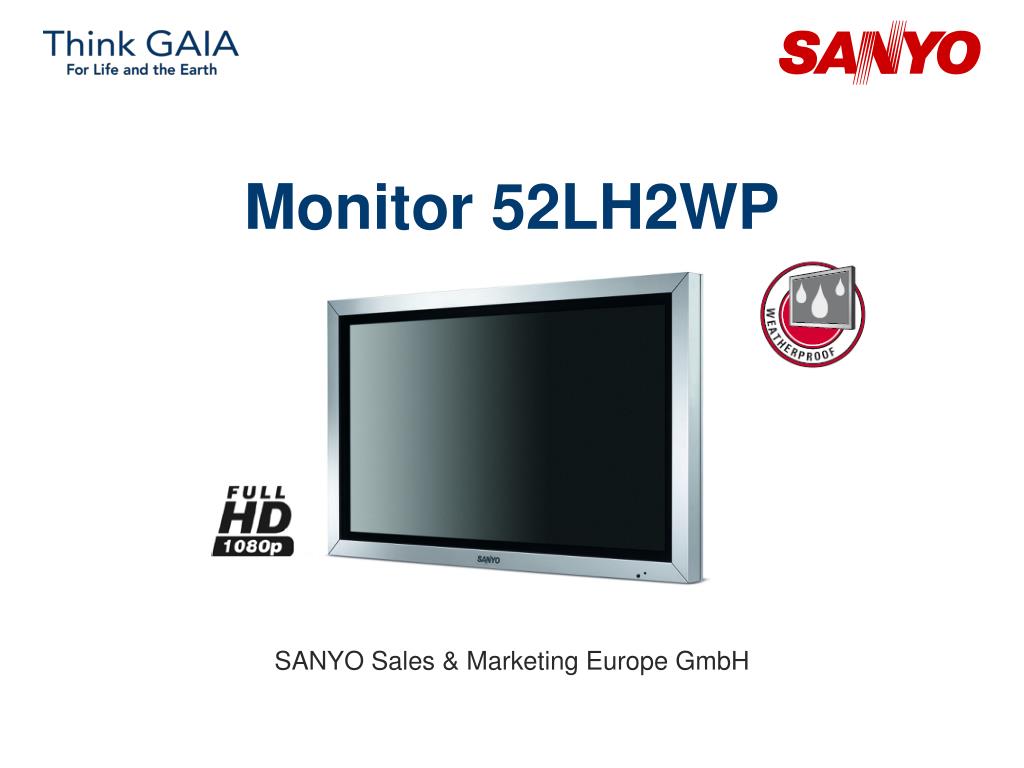

  1. Monitor 52LH2WP SANYO Sales & Marketing Europe GmbH

  2. Fully-approved IP66 weatherresistant, protected against powerful water jets and against short-term flooding Screen size 132 cm (52 inch) Full HD resolution (1,920 x 1,080) in 16 : 9 aspect ratio Winter mode: guaranteed monitor usability at temperatures rangingfrom –20 °C to +45°C Network integration (optional) for maintaining and controlling the monitor on the LAN Picture-in-Picture and Picture-by-Picture function Vandalism- and tamper-proof anti-reflective glass, anti-corrosive cabinet Ideally suited for various indoor and outdoor installations 3 years warranty Highlights

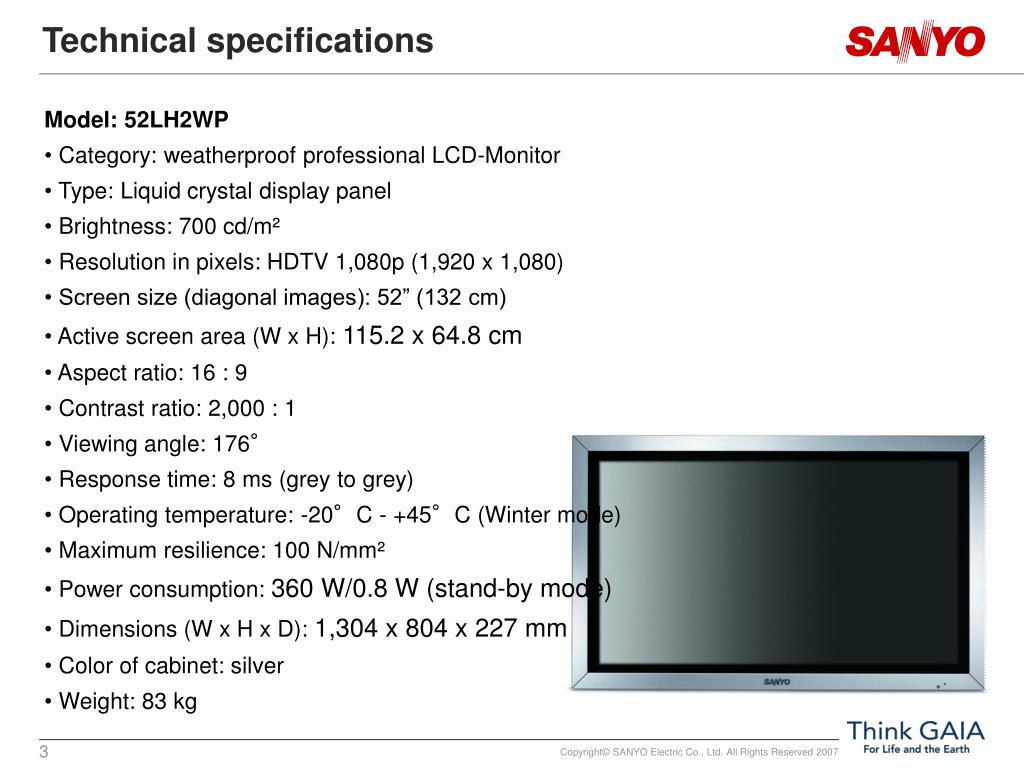

  3. Technical specifications • Model: 52LH2WP • Category: weatherproof professional LCD-Monitor • Type: Liquid crystal display panel • Brightness: 700 cd/m² • Resolution in pixels: HDTV 1,080p (1,920 x 1,080) • Screen size (diagonal images): 52” (132 cm) • Active screen area (W x H): 115.2 x 64.8 cm • Aspect ratio: 16 : 9 • Contrast ratio: 2,000 : 1 • Viewing angle: 176° • Response time: 8 ms (grey to grey) • Operating temperature: -20°C - +45°C (Winter mode) • Maximum resilience: 100 N/mm² • Power consumption: 360 W/0.8 W (stand-by mode) • Dimensions (W x H x D): 1,304 x 804 x 227 mm • Color of cabinet: silver • Weight: 83 kg

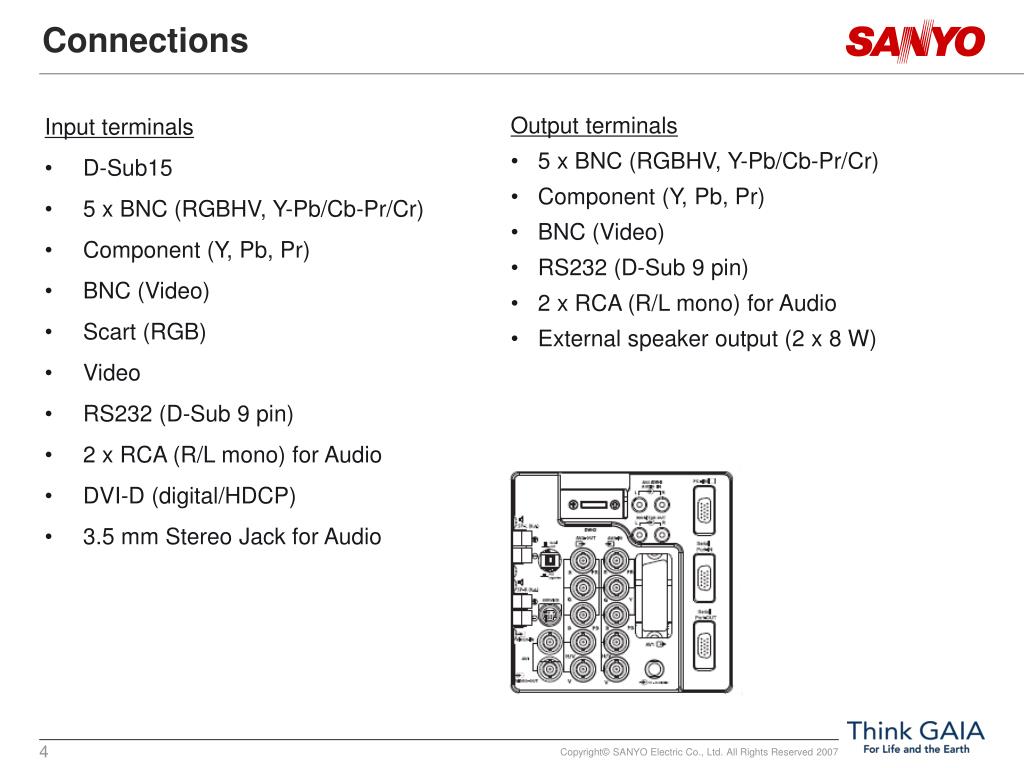

  4. Input terminals D-Sub15 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) Component (Y, Pb, Pr) BNC (Video) Scart (RGB) Video RS232 (D-Sub 9 pin) 2 x RCA (R/L mono) for Audio DVI-D (digital/HDCP) 3.5 mm Stereo Jack for Audio Connections • Output terminals • 5 x BNC (RGBHV, Y-Pb/Cb-Pr/Cr) • Component (Y, Pb, Pr) • BNC (Video) • RS232 (D-Sub 9 pin) • 2 x RCA (R/L mono) for Audio • External speaker output (2 x 8 W)

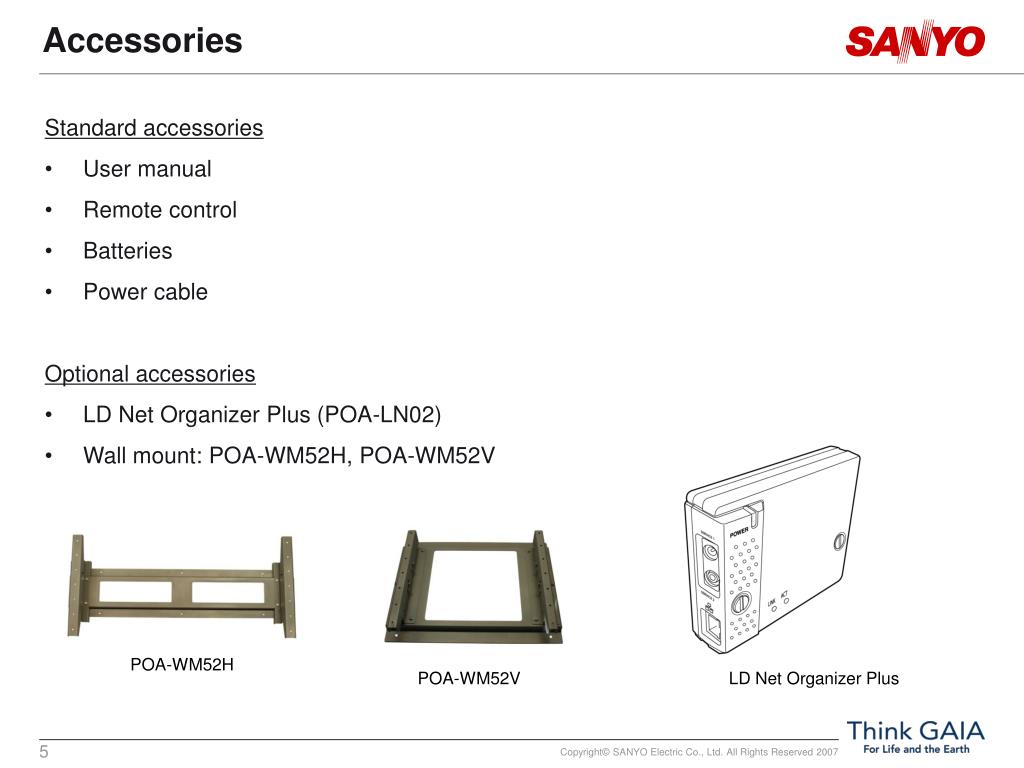

  5. Standard accessories User manual Remote control Batteries Power cable Optional accessories LD Net Organizer Plus (POA-LN02) Wall mount: POA-WM52H, POA-WM52V Accessories POA-WM52H POA-WM52V LD Net Organizer Plus

  6. Accessories for professional monitors LCD monitors POA-WM52H Supports up to: 90 kg Vesa-mounting standard: 997 x 420 mm Dimensions: 110.0 x 48.0 x 15.0 cmWeight (netto): 13.9 kg Color: silver-grey Warranty: 2 years Product features: • Wall mount with tilting function for weatherproof and robust SANYO-Monitors (52") • Angle of inclination of 10° enables optimised positioning of the monitor for a convenient viewing experience • Anti-corrosive aluminium cabinet: Suitable for all indoor- and outdoor-installations • Landscape-function

  7. Accessories for professional monitors LCD monitors POA-WM52V Supports up to: 90 kg Vesa-mounting standard: 420 x 516 mm Dimensions: 51.7 x 12.7 x 63.0 cm Weight (netto): 11.5 kg Color: silver-grey Warranty: 2 years Product features: • Wall mount with tilting function for weatherproof and robust SANYO-Monitors (52") • Angle of inclination of 10° enables optimised positioning of the monitor for a convenient viewing experience • Anti-corrosive aluminium cabinet: Suitable for all indoor- and outdoor-installations • Portrait-function

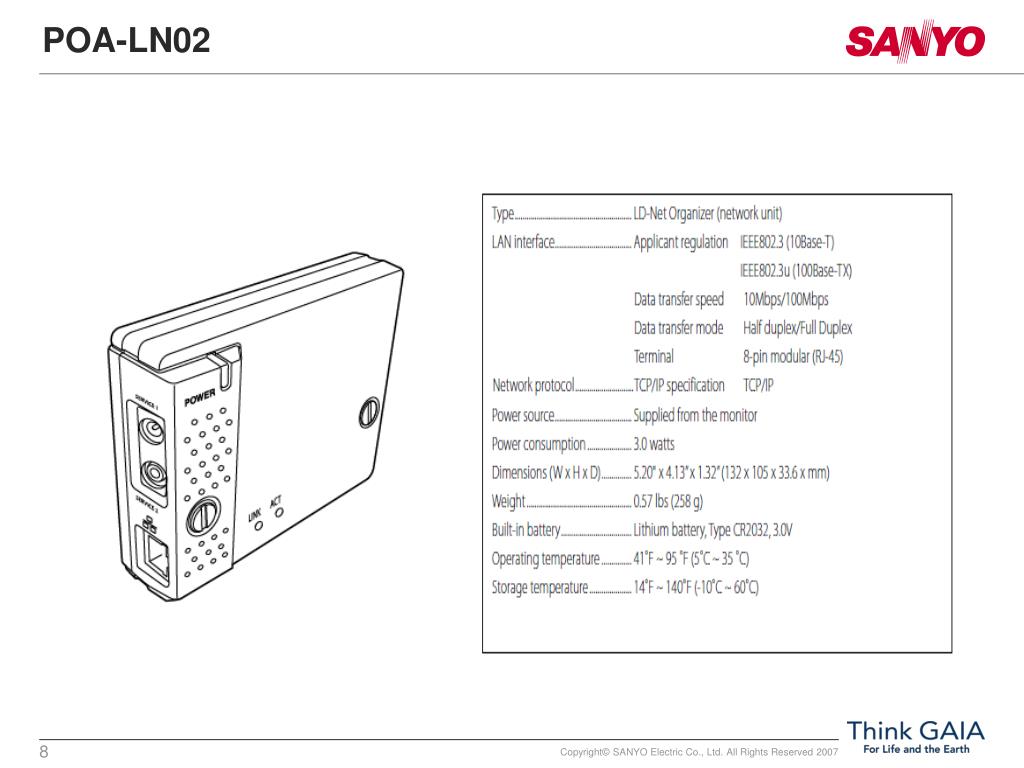

  8. POA-LN02

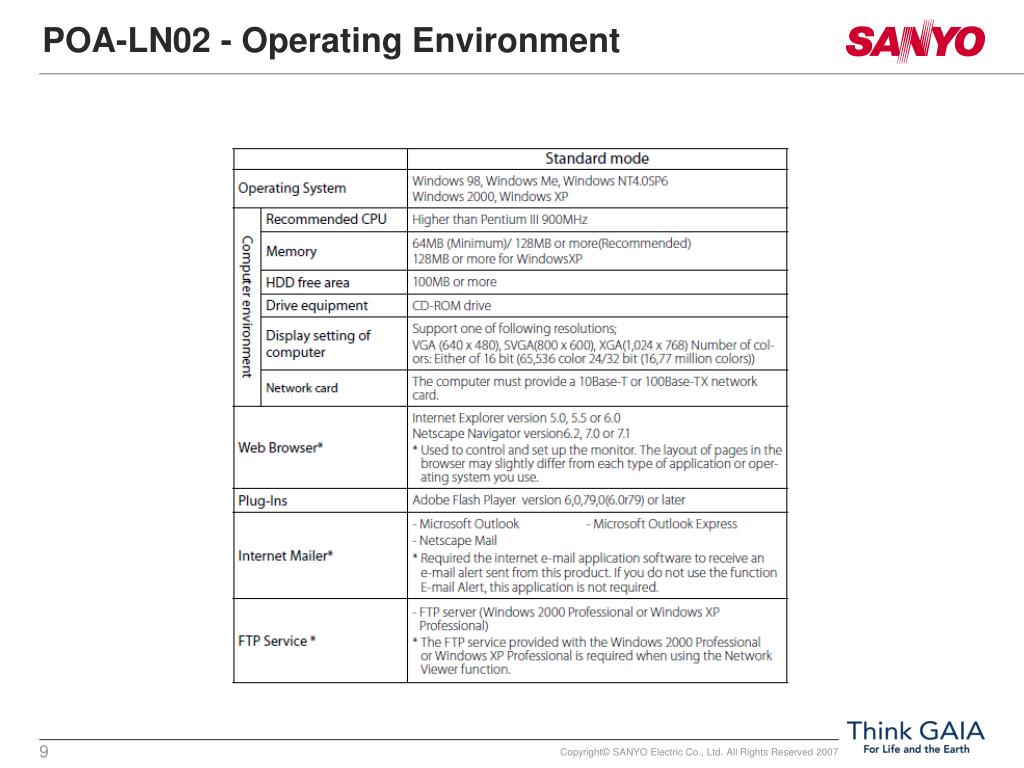

  9. POA-LN02 - Operating Environment

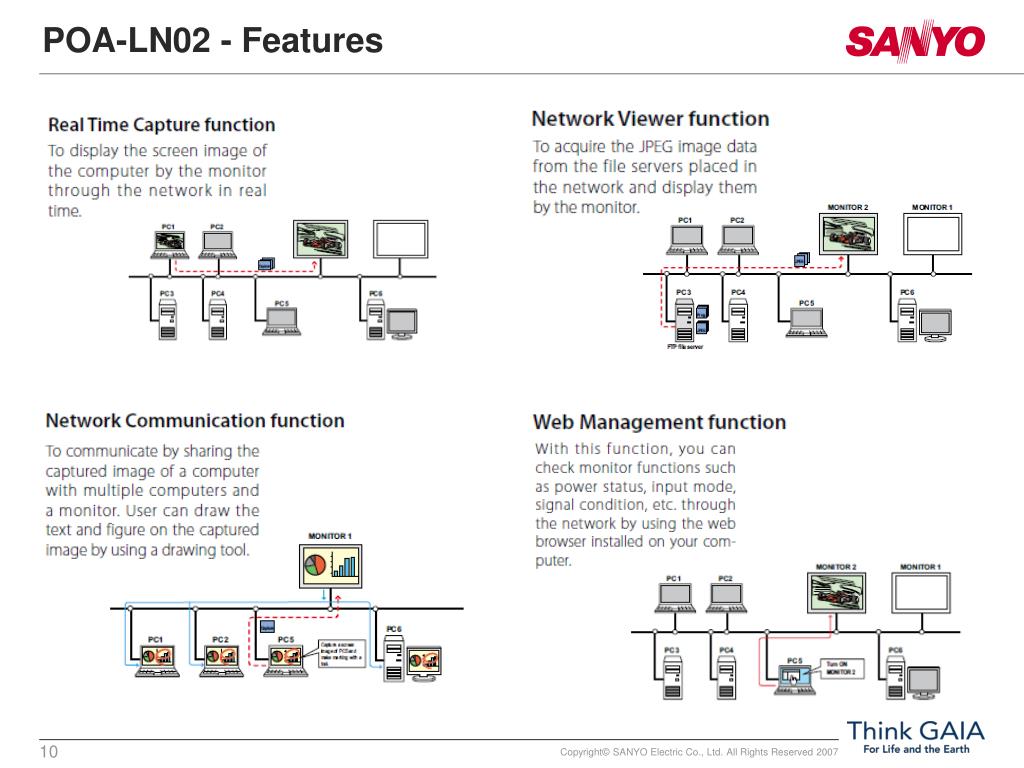

  10. POA-LN02 - Features

  11. POA-LN02 - Features

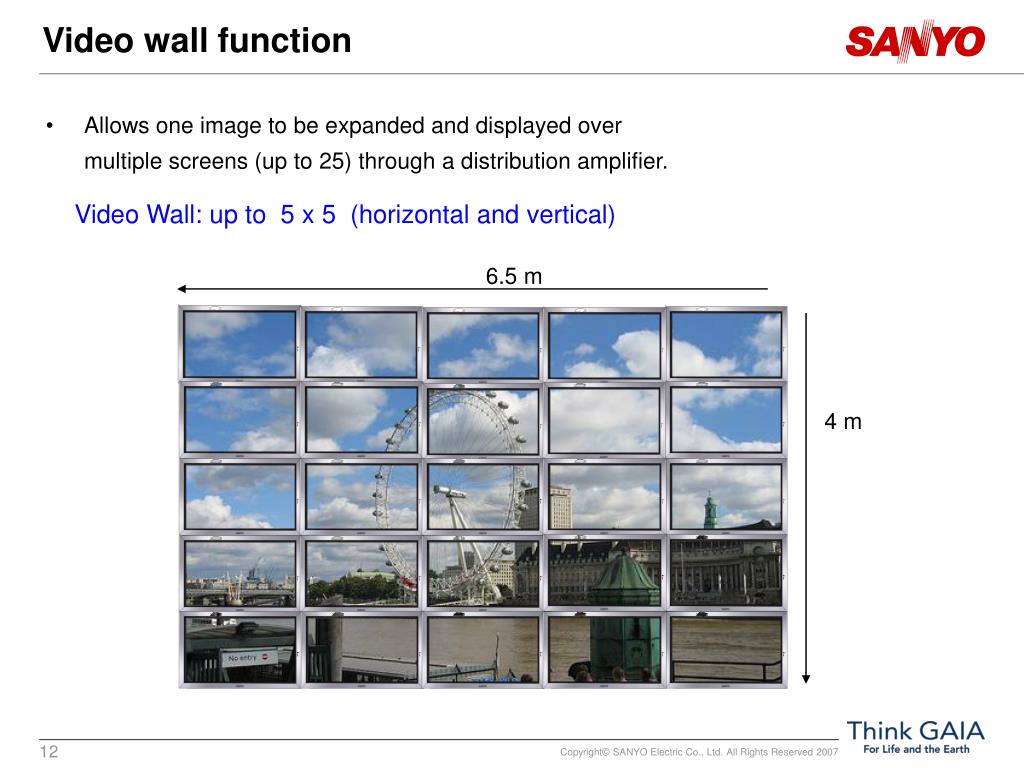

  12. 6.5 m 4 m Video wall function • Allows one image to be expanded and displayed over multiple screens (up to 25) through a distribution amplifier. Video Wall: up to 5 x 5 (horizontal and vertical)

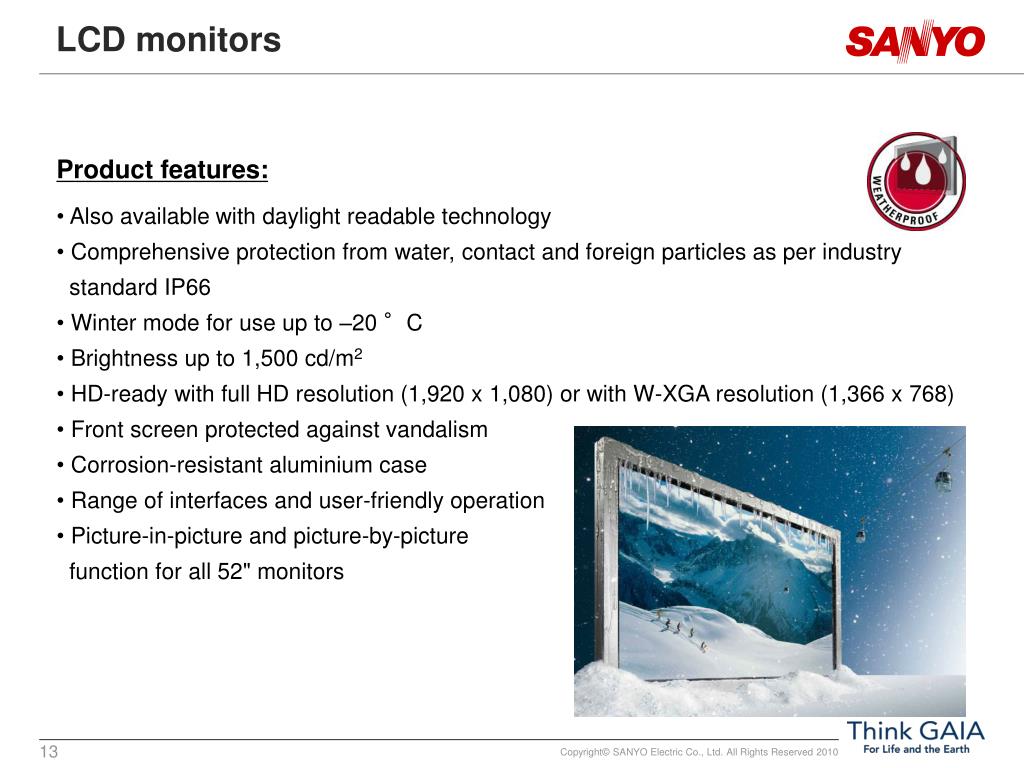

  13. LCD monitors Product features: • Also available with daylight readable technology • Comprehensive protection from water, contact and foreign particles as per industry standard IP66 • Winter mode for use up to –20 °C • Brightness up to 1,500 cd/m2 • HD-ready with full HD resolution (1,920 x 1,080) or with W-XGA resolution (1,366 x 768) • Front screen protected against vandalism • Corrosion-resistant aluminium case • Range of interfaces and user-friendly operation • Picture-in-picture and picture-by-picture • function for all 52" monitors

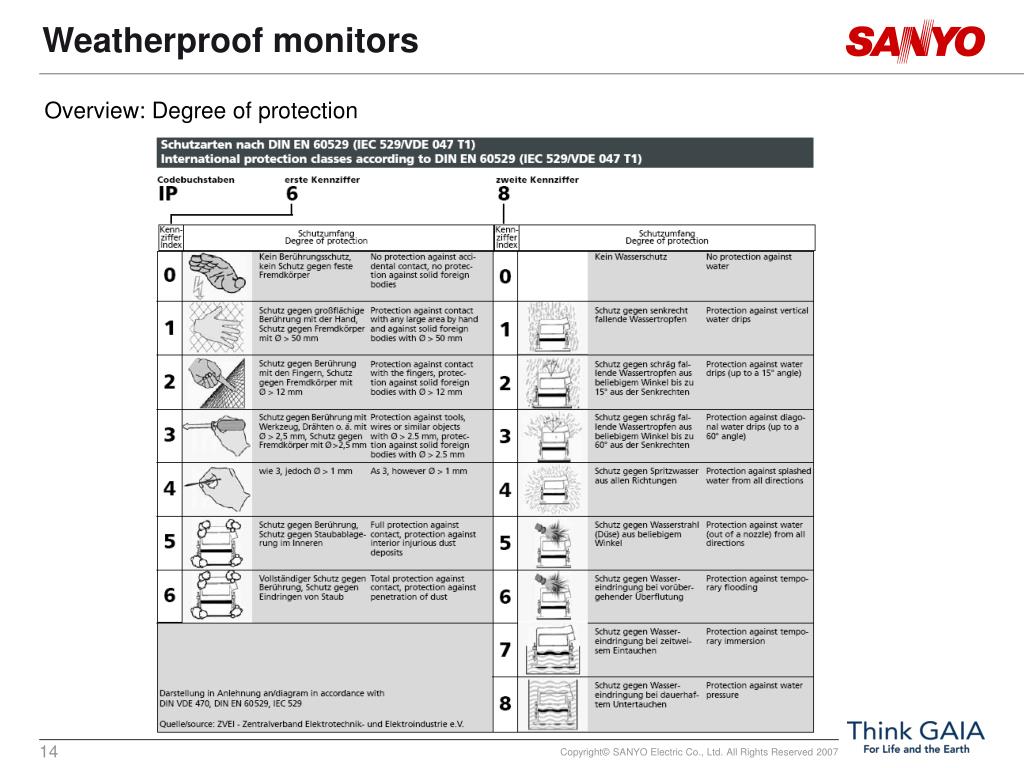

  14. Weatherproof monitors Overview: Degree of protection
