Presentation Transcript

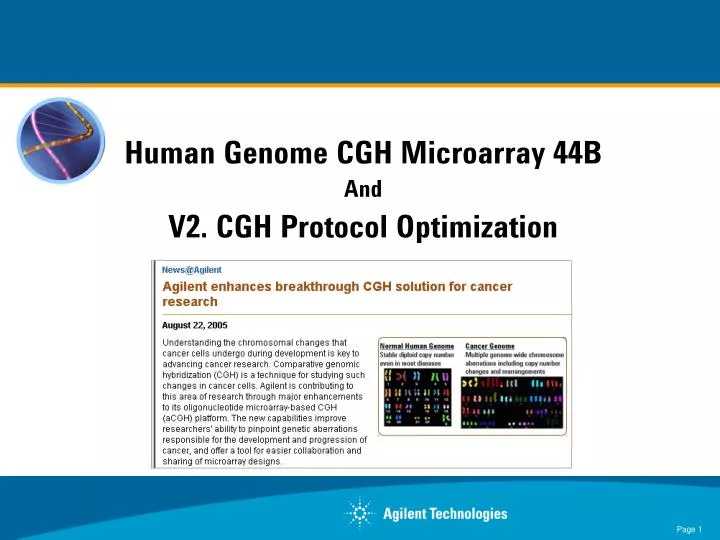

Slide1 l.jpg

Human Genome CGH Microarray 44B

And

V2. CGH Protocol Optimization


Slide2 l.jpg

Agilent Oligo aCGH is the solution

  • Provides higher resolution and accurate measurement

  • Great flexibility in probe design and selection that delivers superior performance which meets the demands of your workflow

  • Integration of gene expression information for better and faster discovery research via novel data analysis software

  • Work with whole genome & ng-level input DNA.

  • Integrated end-to-end solution that supports your entire workflow

Oligo aCGH Hybridization and washing Kits

NEW

NEW

Genome-wide Array Custom Array

Power of Integration – Infrastructure & Knowledge

IMPROVED WORKFLOW (v2.0 Protocol)

CGH Application

CGH Analytics Software

NEW


Human genome cgh microarray kit 44b designed for cgh validated with samples of known aberrations l.jpg
Human Genome CGH Microarray Kit 44BDesigned for CGH, Validated with samples of known aberrations

Designed for genome-wide profiling of genomic aberrations on a single chip.

  • Genome-wide coverage with average resolution ~35kb

  • Based on UCSC Genome Browser hg17 (NCBI Build 35)

  • Probe selection biased toward genes (84% intragenic vs. 16% intergenic)

  • Optimized probe design for aCGH application

    • Compatible with current Agilent microarray platform

      How is different from G4410A ?

    • Add ~2500 biological probes (New genes from Build 35 and additional gap fillers)

    • Retain all biological probes from G4410A with exception of 27 probes

    • Implement CGH eQC grid

Part number: G4410B

List price: $3750/Kit with volume break

Discount: EDU (20%) and VEU

Standard catalog array packaging


Slide4 l.jpg

Probe Design Methodology

Goal: Provide a utility tool for high throughput, high resolution genome-wide survey and molecular profiling of genomic aberrations.

To construct an array with good coverage of the whole human genome with representation of all known genes emphasizing cancer-related genes and expressed sequences with optimal probe performance.


Slide5 l.jpg

Probe Design Methodology

  • Tiled candidate probes across non-repeat masked regions across the genome in 30 bp steps between cut sites for restriction enzymes (RsaI and AluI)

  • Performed homology search and retained highly specific probes

  • Learned rules for probe performance dependencies on in silico parameters (thermodynamics, complexity, etc.) using chrX probes and M/F cell-line samples

  • Filtered homology-searched probe set on in silico parameters

  • Performed empirical validation on 120,000 semifinal probes using normal M/F cell-line samples and outliers were eliminated

  • Selected the best set of probes biasing toward genes & exons

  • Final probe set within a narrow Tm range


Human genome cgh microarray kit 44b designed for cgh validated with samples of known aberrations6 l.jpg
Human Genome CGH Microarray Kit 44BDesigned for CGH, Validated with samples of known aberrations

  • Consisting of ~43,000 60-mer oligonucleotide probes on 1”x3” slide

  • Genome-wide coverage with average resolution ~35kb*

  • Content source: UCSC Genome Browser hg17 (NCBI Build 35)

  • Probe selection biased toward genes

    1 probe per well known gene

    2 or more probes for each of ~1100 cancer genes

    Intragenic probes (84%); intergenic probes (16%)

    • Optimized probe design for CGH application

    • Ability to detect single copy and homozygous deletions as well as low and high level amplifications

    • Compatible with current Agilent microarray platform

* Calculated by using the total size of the non-repeated genome divided by the total # of features


Slide7 l.jpg

Genomic Coverage and Probe Distribution

  • NEW CONTENT FROM PREVIOUS G4410A

  • 1. Add ~2500 biologicial probes

    • increase coverage within genomic gaps

    • cover some missing genes base on Build 35

  • 2. Remove 26 probes from 44A

  • 3. Implement a new eQC grid

Chromosome

Exonic 16406

Intronic 19805

Intergenic 6685

Position on Chromosome


Slide8 l.jpg

Genomic Coverage and Probe Distribution

Total # of Features 44,290

# of Biological Probes 42,896

# of Unique Biological Probes 42,494

# of Replicated Biological Probes 201 x 3

Un-used Probe Space: 24

Total # of Control probes 1,370

___________________________________________

Intragenic probes 36,211 (84%)

Exonic probes 16,406 (45%)

Intronic probes 19,805 (55%)

Intergenic probes 6,685 (16%)


Validation using xy xx model system l.jpg
Validation using XY/XX model system

Two dye-flip pairs of hybridization experiments using 46, XY and 46, XX genomic DNA.

10 pt moving average.

* 3ug, direct labeling


Validation using xy xx model system10 l.jpg
Validation using XY/XX model system

One dye-flip pair of hybridization experiments using 46, XY and 46, XX genomic DNA.

Probability Density

* 100ng, amplification

Log2 Ratios


Validation using xy xx model system11 l.jpg
Validation using XY/XX model system

100ng

Amplification

Two dye-flip pairs of hybridization experiments using 46, XY and 46, XX genomic DNA.

10 pt moving average.

3ug

Direct




Oligo acgh protocol v2 0 l.jpg
Oligo aCGH Protocol (v2.0)

Genomic DNA Isolation from Samples

Reagent Kits

Amplification

(100ng)

Direct

(3ug or more)

REPLI-g Kit*

Whole Genome Amplification (Phi29)

Qiagen Miniprep Kit*

Restriction Digestion and Cleanup

7ug

2ug

BioPrime Kit, Microcon YM-30*

Genomic Labeling, Cleanup

Oligo aCGH Hybridization Kit

Microarray Hybridization (40 hours, 10rpm)

Oligo aCGH Wash Buffer 1, 2 & 3

Wash Procedure B

(no wash 3)

Wash Procedure A

(with ACN, wash 3)

OR

Scan

Ordering Details

Data Analysis

* 3rd party kits


Oligo acgh protocol v2 015 l.jpg
Oligo aCGH Protocol (v2.0)

Customer Benefits

Major Improvements

Sample

Isolation

  • Quality assessment via E-Gel

  • Both Direct and Amplified procedures

  • Hybridization length

  • Hybridization rotation speed

  • Wash 3 and No Wash 3

  • 44k_CGH_0605 FE protocol

  • Minimize adverse effects to downstream results due to poor template quality

  • Minimize any potential bias introduced by amplification, while maintaining the ability to work with small amount of DNA input

  • Increase signal intensity and robustness

  • Increase signal intensity and robustness

  • Operational freedom in standard molecular biology laboratory

  • More accurate CGH data analysis

Sample

Preparation

Array

&

Array

Processing

Data

Analysis


Linear increase of bgsubsignal with increasing rotation speed from 5 to 20 rpm 40 h hybs l.jpg
Linear increase of BGSubSignal with increasing rotation speed from 5 to 20 RPM (40 h hybs)

20 RPM

10 RPM

20 RPM

5 RPM

10 RPM

5 RPM


Slide17 l.jpg

Linear increase of Mean_BGSubSignals with increasing hybridization duration (10 RPM)

25 ng XX,XY DNA

Repli-G amplification

10 rpm, with Wash 3.

Two replicate experiments for each hybridization duration.

17 h

40 h


Slide18 l.jpg

Linear increase of Median_BGSubSignals with increasing hybridization duration (10 RPM)

25 ng XX,XY DNA

Repli-G amplification

10 rpm, with Wash 3.

Two replicate experiments for each hybridization duration.

17 h

40 h


Slide19 l.jpg

ROCArea between 17hr vs. 40hr hybridization duration (10 RPM)

Slight enhancement in ROC area by increasing hybridization time.

17 h

40 h


Slide20 l.jpg

Array Images at 17hr vs. 40hr hybridization duration (10 RPM)

17hr hybridizations

40hr hybridizations

251270012482

251270012408

251270012417

251270012420
