Constructing Perpendicular Bisectors

Constructing Perpendicular Bisectors. During this lesson, we will: Construct the perpendicular bisector of a segment Determine properties of perpendicular bisectors. Daily Warm-Up Quiz. A point which divides a segment into two congruent segments is a(n) _____.

sahkyo
Download Presentation

Constructing Perpendicular Bisectors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

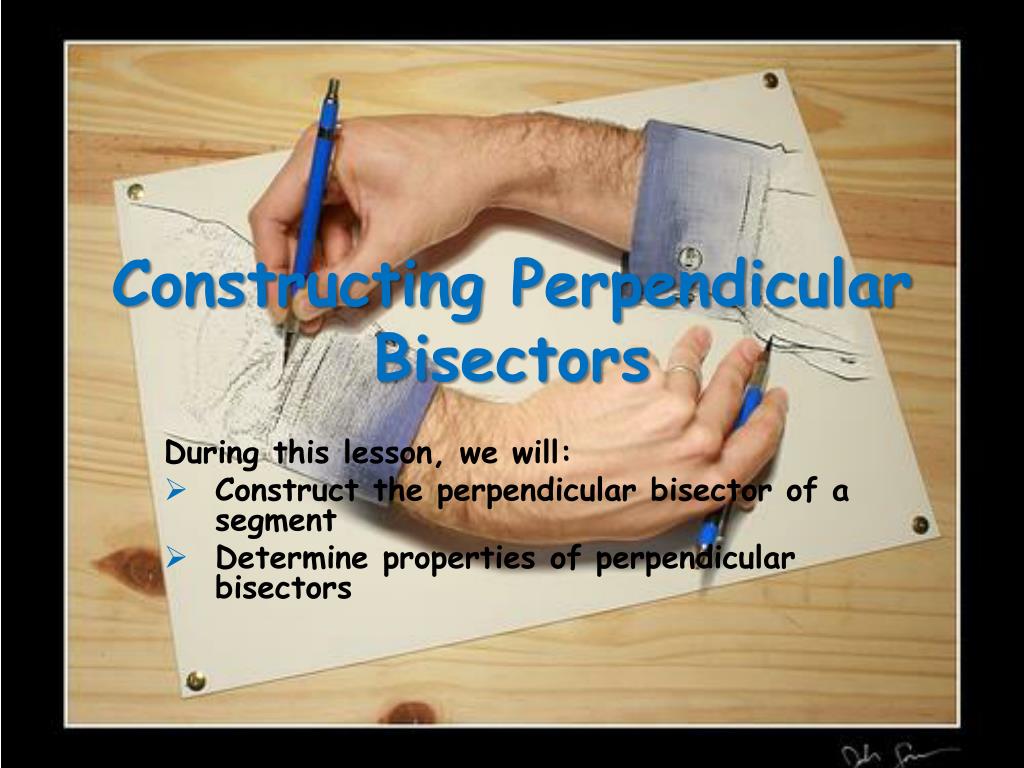

  1. Constructing Perpendicular Bisectors During this lesson, we will: Construct the perpendicular bisector of a segment Determine properties of perpendicular bisectors

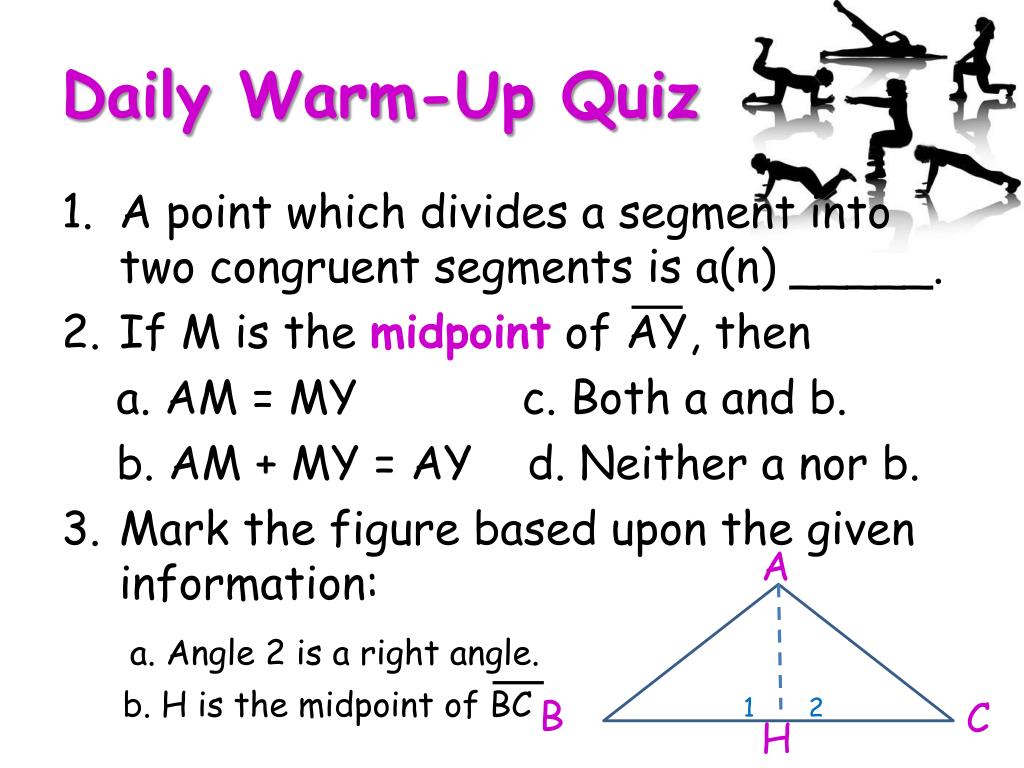

  2. Daily Warm-Up Quiz • A point which divides a segment into two congruent segments is a(n) _____. • If M is the midpoint of AY, then a. AM = MY c. Both a and b. b. AM + MY = AY d. Neither a nor b. • Mark the figure based upon the given information: a. Angle 2 is a right angle. b. H is the midpoint of BC A B 1 2 C H

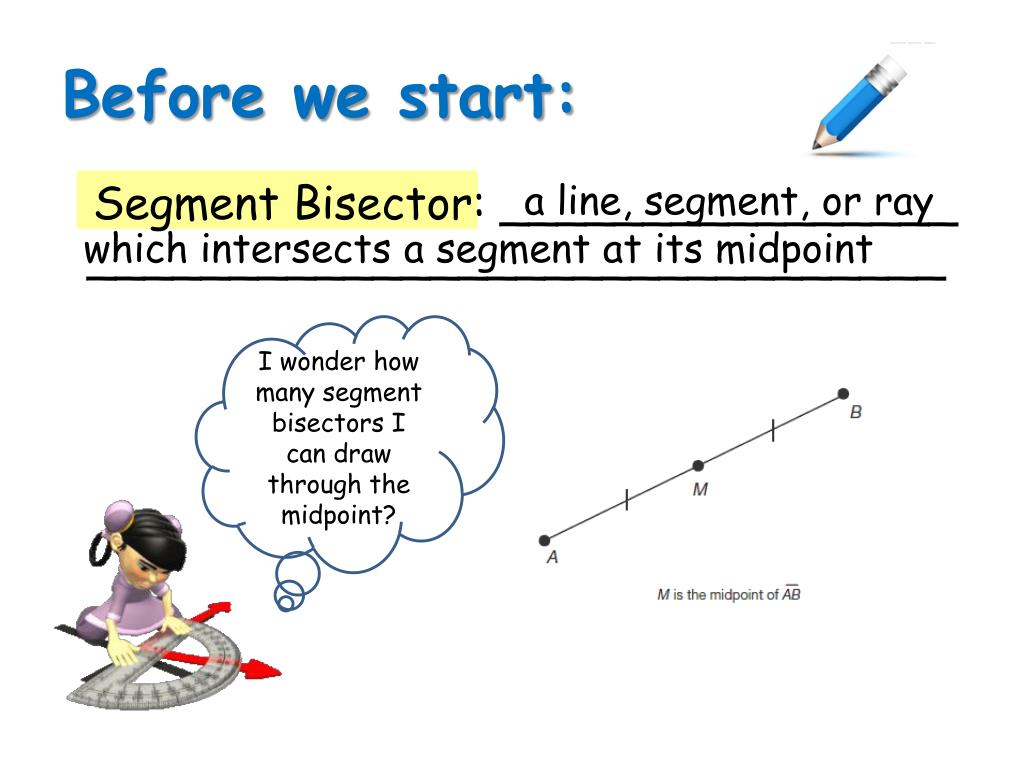

  3. Before we start: Segment Bisector: ______________________________________________ a line, segment, or ray which intersects a segment at its midpoint I wonder how many segment bisectors I can draw through the midpoint?

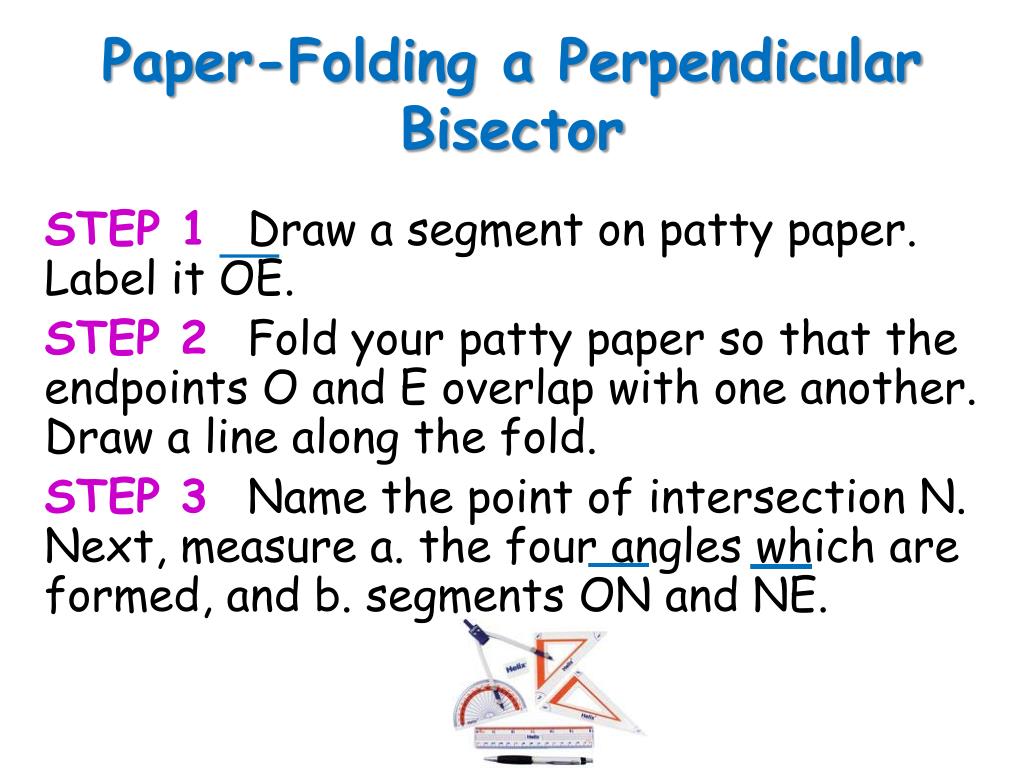

  4. Paper-Folding a Perpendicular Bisector STEP 1 Draw a segment on patty paper. Label it OE. STEP 2 Fold your patty paper so that the endpoints O and E overlap with one another. Draw a line along the fold. STEP 3 Name the point of intersection N. Next, measure a. the four angles which are formed, and b. segments ON and NE.

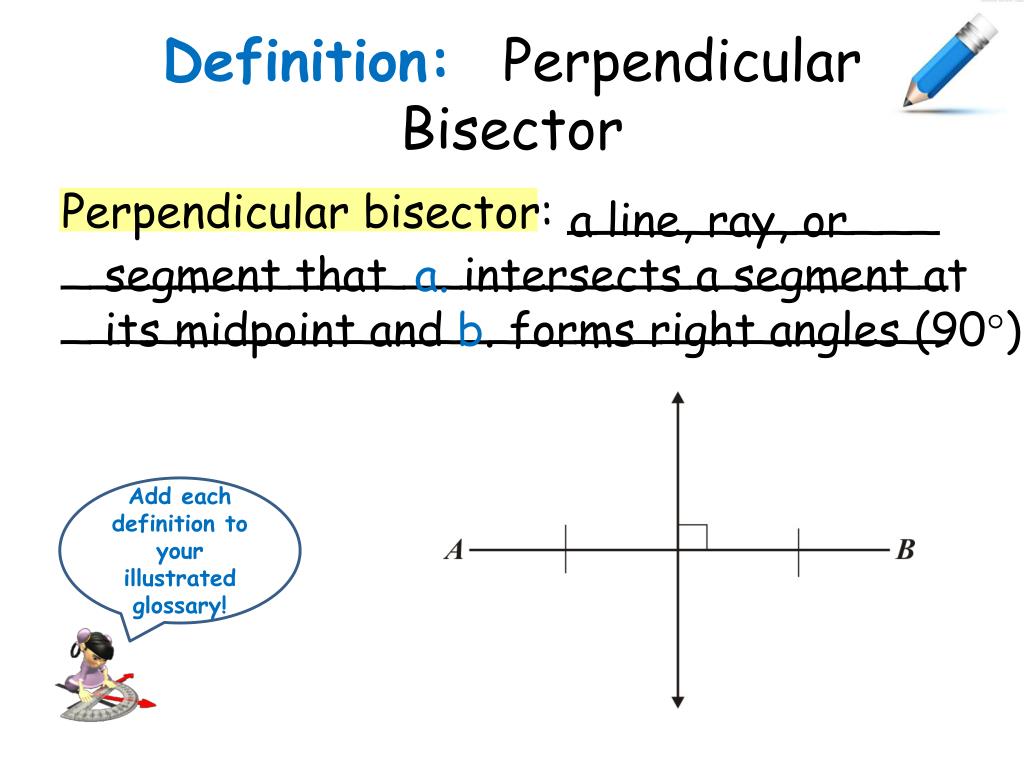

  5. Definition: Perpendicular Bisector Perpendicular bisector: ___________________________________________________________________________ a line, ray, or segment that a. intersects a segment at its midpoint and b. forms right angles (90) Add each definition to your illustrated glossary!

  6. Investigation 1: Perpendicular Bisector Conjecture STEP 1 Pick three points X, Y, and Z on the perpendicular bisector. STEP 2 From each point, draw segments to each of the endpoints. STEP 3 Use your compass to compare the following segment: a.) AX and BX, b.) AY and BY, and c.) AZ & BZ. Z Y X

  7. Investigative Results: Perpendicular Bisector Conjecture Converse: If a point is equidistant from the endpoints of a segment, then it is on the __________________. If a point lies on the perpendicular bisector of a segment, then it is _______ from each of the endpoints. equidistant perpendicular bisector Shortest distance measured here!

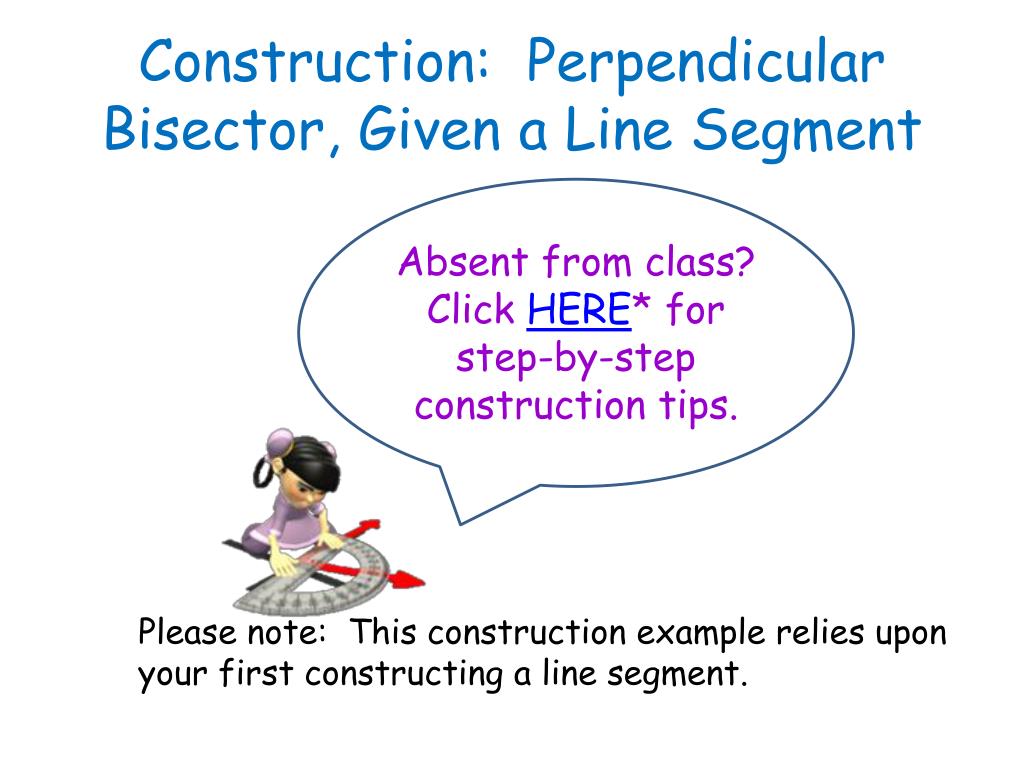

  8. Construction: Perpendicular Bisector, Given a Line Segment Absent from class? Click HERE* for step-by-step construction tips. Please note: This construction example relies upon your first constructing a line segment.

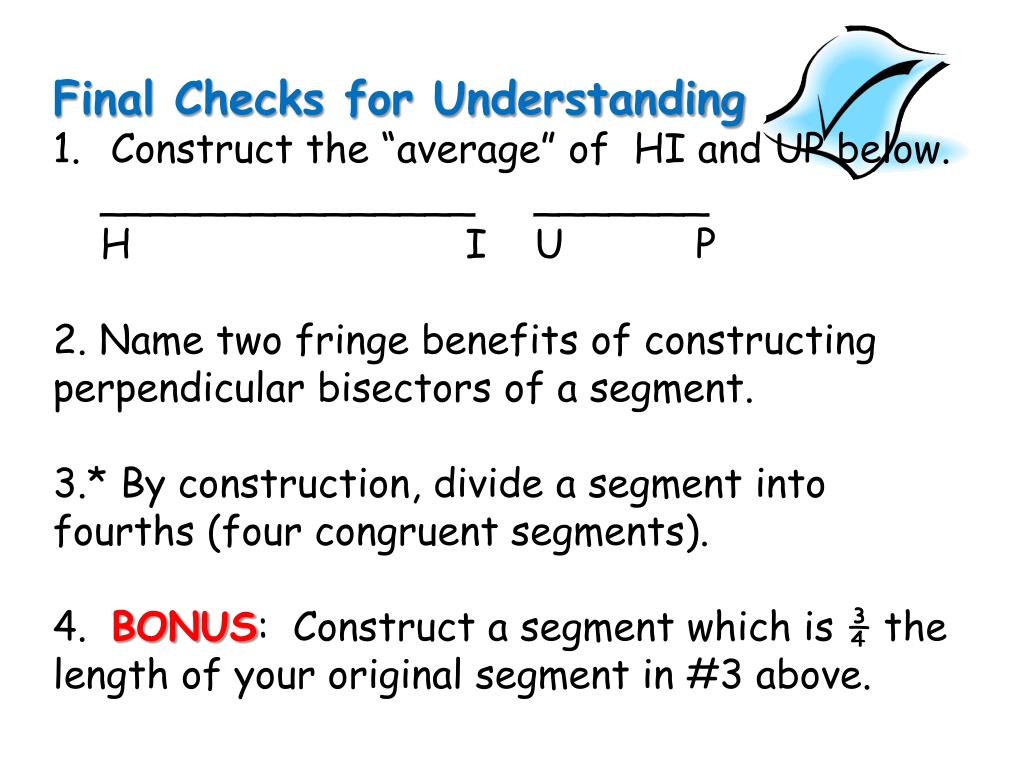

  9. Final Checks for Understanding Construct the “average” of HI and UP below. _______________ _______ H I U P 2. Name two fringe benefits of constructing perpendicular bisectors of a segment. 3.* By construction, divide a segment into fourths (four congruent segments). 4. BONUS: Construct a segment which is ¾ the length of your original segment in #3 above.

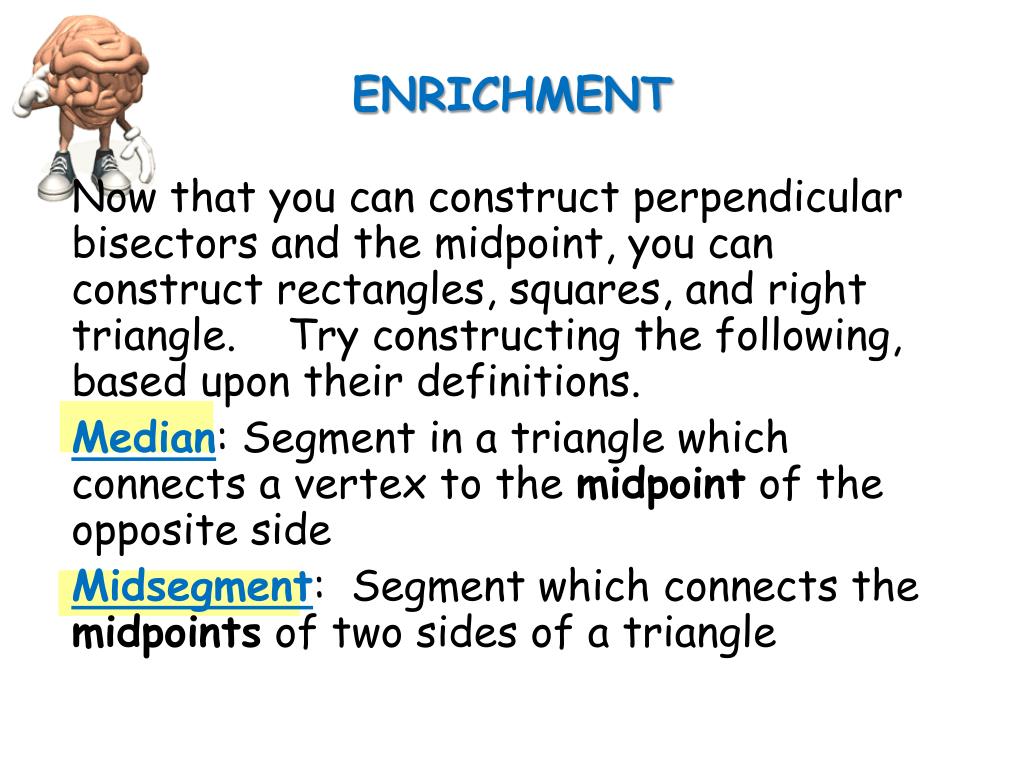

  10. ENRICHMENT Now that you can construct perpendicular bisectors and the midpoint, you can construct rectangles, squares, and right triangle. Try constructing the following, based upon their definitions. Median: Segment in a triangle which connects a vertex to the midpoint of the opposite side Midsegment: Segment which connects the midpoints of two sides of a triangle
