Provably Correct Compilers (Part 2)

1. Provably Correct Compilers (Part 2) Nazrul Alam and Krishnaprasad Vikram April 21, 2005

2. Today’s Focus… Automated Soundness Proofs for Dataflow Analyses and Transformations via Local Rules (Rhodium Paper) Sorin Lerner, Todd Millstein, Erika Rice, Craig Chambers

3. Rhodium: Successor of Cobalt • Increased expressiveness • New model for expressing opts: local propagation rules with explicit dataflow facts • Heap summaries • Infinite analysis domains • Flow-sensitive and -insensitive • Intraprocedural and interprocedural • Some Rhodium opts not expressible in Cobalt: • Arithmetic invariant detection, integer range analysis, loop-induction-variable strength reduction, Andersen's may-point-to analysis with allocation-site summaries

4. Recap from Last Class • Optimization needs analysis. • Each analysis is formulated as a global path condition in Cobalt. • In Rhodium it is done with local rules.

5. Similarities with Cobalt… (Also helpful for refreshing your memory..:)

6. Rdm Opt Rdm Opt Rdm Opt Given Rhodium Execution engine Checker Written by programmer

7. Rdm Opt Rdm Opt Rdm Opt Given Rhodium Execution engine Checker Written by programmer

8. Checker Checker Checker Rdm Opt Rdm Opt Rdm Opt

9. if (…) { x := …; } else { y := …; } …; Checker Checker Checker Checker Checker Checker Compiler Rhodium Execution engine Exec Rdm Opt Rdm Opt Rdm Opt

10. Automatic Theorem Prover Verification Task Rdm Opt Verification Task Checker Show that for any original program: behavior of original program = behavior of optimized program Verification Task

11. Automatic Theorem Prover Verification Task Rdm Opt Verification Task Verification Task

12. Automatic Theorem Prover Verification Task Rdm Opt Verification Task Verification Task

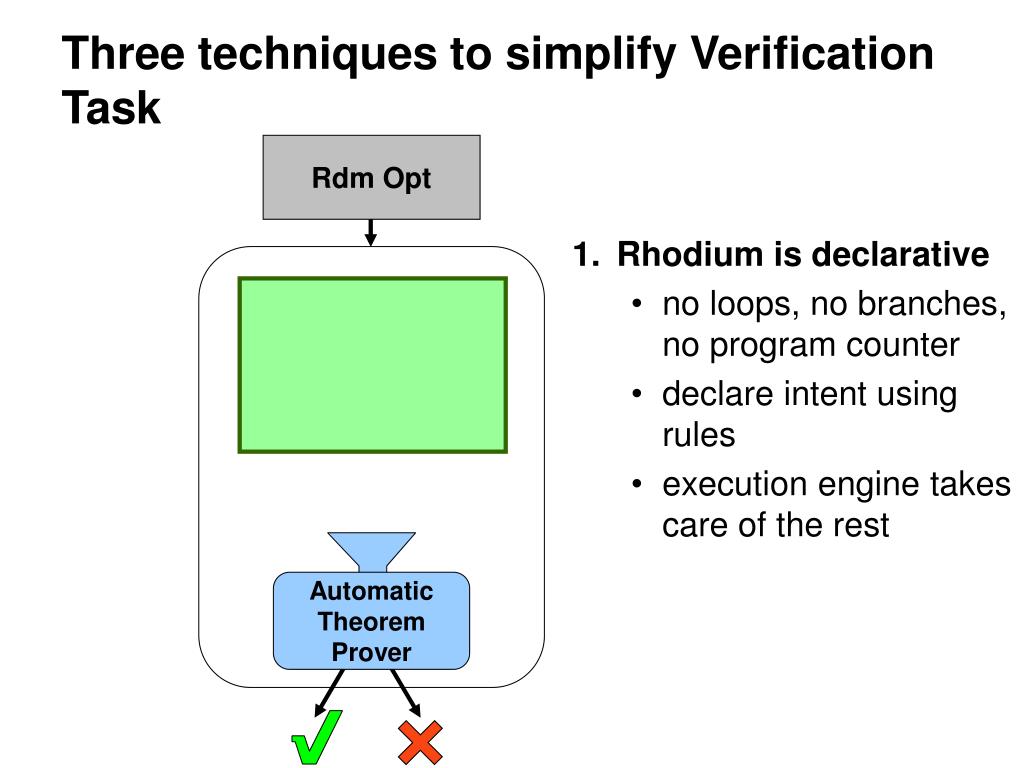

13. Automatic Theorem Prover Three techniques to simplify Verification Task Rdm Opt • Rhodium is declarative • no loops, no branches, no program counter • declare intent using rules • execution engine takes care of the rest

14. Automatic Theorem Prover Three techniques to simplify Verification Task Rdm Opt • Rhodium is declarative • no loops, no branches, no program counter • declare intent using rules • execution engine takes care of the rest

15. Automatic Theorem Prover Three techniques to simplify Verification Task Heuristics not affecting correctness Part that must be reasoned about Rdm Opt • Rhodium is declarative • Factor out heuristics • legal transformations • vs. profitable transformations

16. Automatic Theorem Prover Three techniques to simplify Verification Task Heuristics not affecting correctness Part that must be reasoned about • Rhodium is declarative • Factor out heuristics • legal transformations • vs. profitable transformations

17. Automatic Theorem Prover Three techniques to simplify Verification Task • Rhodium is declarative • Factor out heuristics • Split verification task • opt-dependent • vs. opt-independent opt-dependent opt-independent

18. Automatic Theorem Prover Three techniques to simplify Verification Task • Rhodium is declarative • Factor out heuristics • Split verification task • opt-dependent • vs. opt-independent

19. Automatic Theorem Prover Three techniques to simplify Verification Task • Rhodium is declarative • Factor out heuristics • Split verification task • opt-dependent • vs. opt-independent

20. Automatic Theorem Prover Three techniques to simplify Verification Task • Rhodium is declarative • Factor out heuristics • Split verification task • Result: • Expressive language • Automated correctness checking

21. Where is the difference? Rohodium’s local rules are different from Cobalt’s global condition Then how exactly Rhodium works?

22. a b a b c MustPointTo analysis a = &b c = a d = *c d = b

23. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c MustPointTo info in Rhodium a = &b c = a d = *c

24. mustPointTo(a, b) mustPointTo(a, b) mustPointTo(c, b) mustPointTo(c, b) mustPointTo(a, b) mustPointTo(a, b) a a b b a a b b c c MustPointTo info in Rhodium a = &b a = &b c = a c = a d = *c d = *c

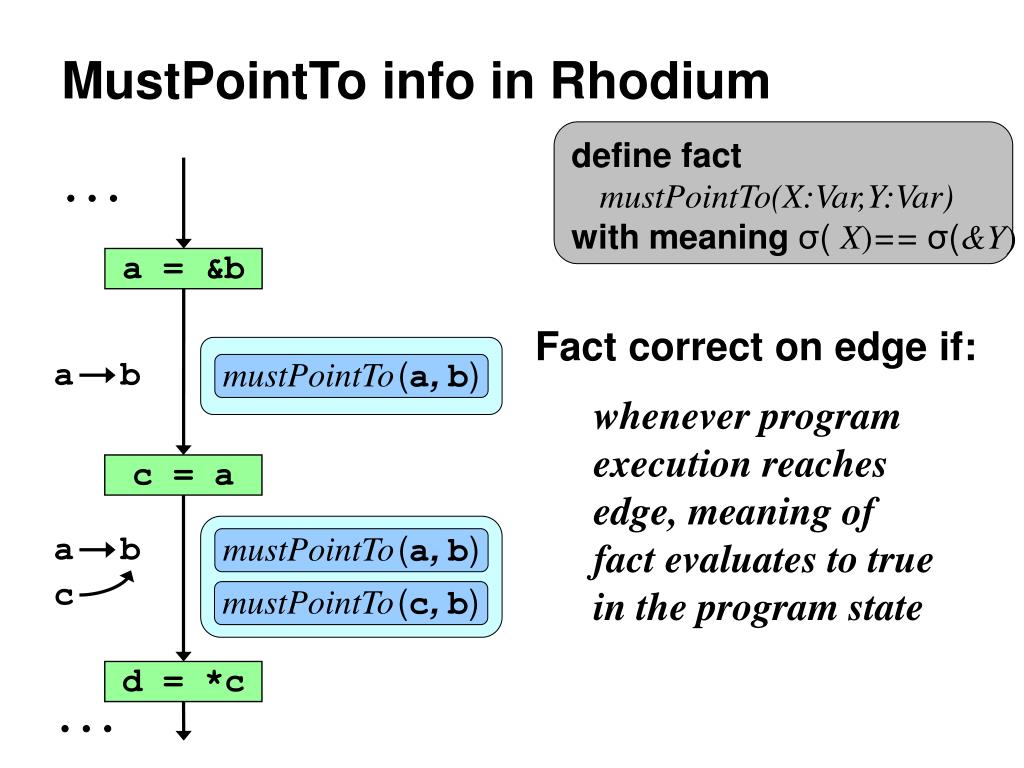

25. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c MustPointTo info in Rhodium define fact mustPointTo(X:Var,Y:Var) with meaning σ(X)== σ(&Y) a = &b Fact correct on edge if: whenever program execution reaches edge, meaning of fact evaluates to true in the program state c = a d = *c

26. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c Propagating facts define fact mustPointTo(X:Var,Y:Var) with meaning σ(X)== σ(&Y) a = &b c = a d = *c

27. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c Propagating facts define fact mustPointTo(X:Var,Y:Var) with meaning σ(X) == σ(&Y) a = &b a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out if currStmt == [X = &Y] then mustPointTo(X,Y)@out c = a d = *c

28. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c Propagating facts define fact mustPointTo(X:Var,Y:Var) with meaning σ(X) == σ(&Y) a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out c = a d = *c

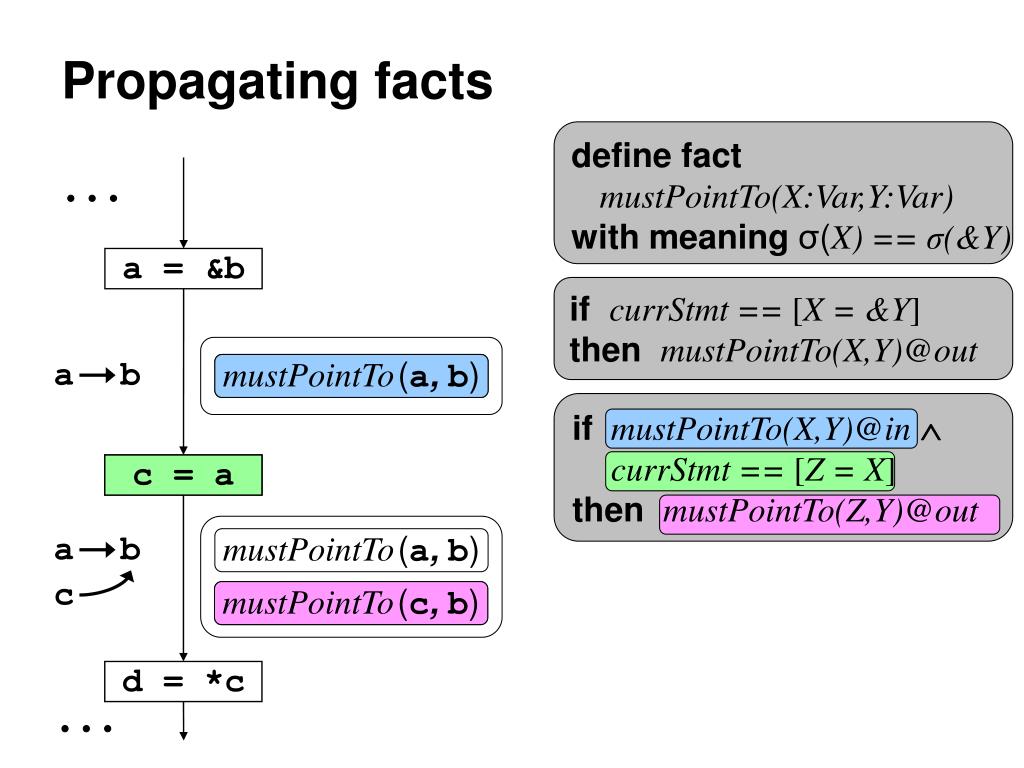

29. a b a b c Propagating facts define fact mustPointTo(X:Var,Y:Var) with meaning σ(X) == σ(&Y) a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out mustPointTo(a, b) mustPointTo(a, b) if mustPointTo(X,Y)@in currStmt == [Z = X] then mustPointTo(Z,Y)@out c = a c = a mustPointTo(a, b) mustPointTo(c, b) mustPointTo(c, b) d = *c

30. mustPointTo(a, b) mustPointTo(c, b) mustPointTo(a, b) a b a b c Propagating facts define fact mustPointTo(X:Var,Y:Var) with meaning σ(X )== σ(&Y) a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out if mustPointTo(X,Y)@in currStmt == [Z = X] then mustPointTo(Z,Y)@out c = a d = *c

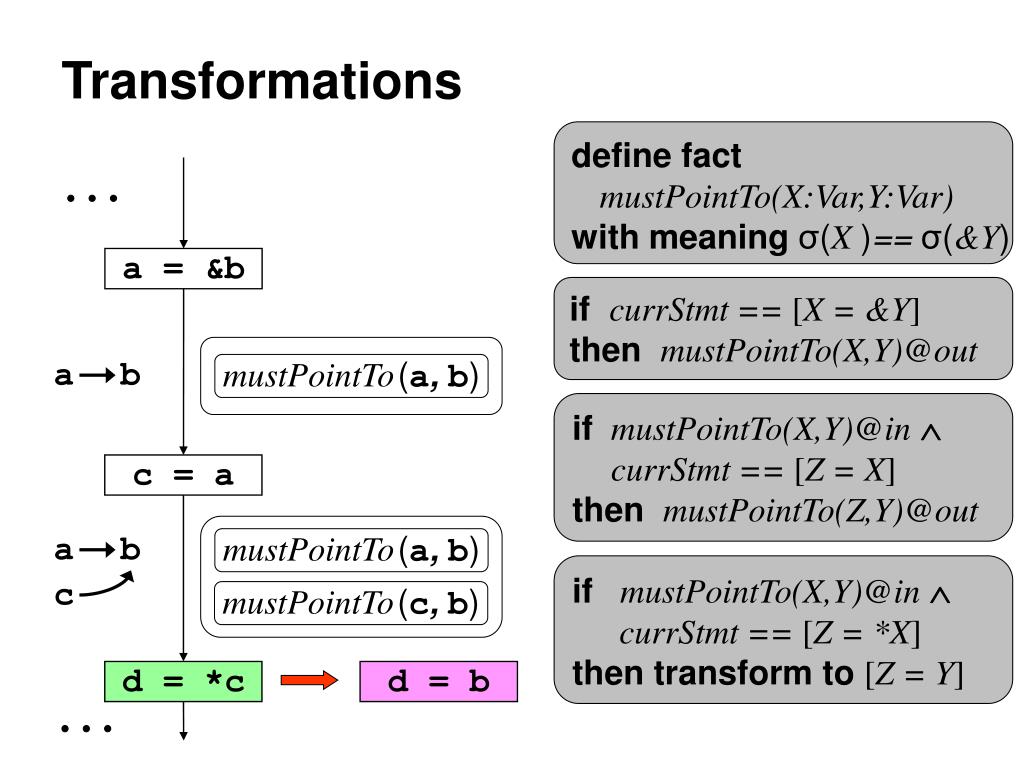

31. mustPointTo(a, b) a b a b c Transformations define fact mustPointTo(X:Var,Y:Var) with meaning σ(X )== σ(&Y) a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out if mustPointTo(X,Y)@in currStmt == [Z = X] then mustPointTo(Z,Y)@out c = a mustPointTo(a, b) if mustPointTo(X,Y)@in currStmt == [Z = *X] then transform to [Z = Y] mustPointTo(c, b) mustPointTo(c, b) d = *c d = *c d = b

32. mustPointTo(a, b) a b a b c Transformations define fact mustPointTo(X:Var,Y:Var) with meaning σ(X )== σ(&Y) a = &b if currStmt == [X = &Y] then mustPointTo(X,Y)@out if mustPointTo(X,Y)@in currStmt == [Z = X] then mustPointTo(Z,Y)@out c = a mustPointTo(a, b) if mustPointTo(X,Y)@in currStmt == [Z = *X] then transform to [Z = Y] mustPointTo(c, b) d = *c d = b

33. Semantics of a Rhodium opt • Run propagation rules in a loop until there are no more changes (optimistic iterative analysis) • Then run transformation rules • Then run profitability heuristics • For better precision, combine propagation rules and transformations rules.

34. Rhodium is more expressive

35. Cobalt: Simple Pointer Analysis

36. Rhodium version..

37. And Rhodium can do more… …..Can not be expressed in Cobalt

38. Arithmetic Simplification Optimization

39. Arithmetic Simplification Optimization (Cont.)

40. Loop induction-variable strength reduction

41. Loop induction-variable strength reduction (cont.)

42. Checking Rhodium optimizations

43. Compiler Rhodium Execution engine Exec if (…) { x := …; } else { y := …; } …; Rdm Opt Rdm Opt Checker Checker Checker Rhodium correctness checker Rdm Opt

44. Checker Checker Rhodium correctness checker Rdm Opt

45. Checker Rhodium correctness checker Rdm Opt Checker Automatic theorem prover

46. Rhodium correctness checker Rhodium optimization define fact … if … then … if … then transform … Profitability heuristics Checker Automatic theorem prover

47. Rhodium correctness checker Rhodium optimization define fact … if … then … if … then transform … Checker Automatic theorem prover

48. Lemma For any Rhodium opt: If Local VCs are true Then opt is correct Proof «¬  $  \ r t  l Rhodium correctness checker Rhodium optimization Opt-independent define fact … if … then … if … then transform … Checker VCGen VCGen LocalVC LocalVC Opt-dependent Automatic theorem prover

49. Local correctness of prop. rules Fact correct on edge iff: define fact mustPointTo(X,Y) with meaning σ(X) == σ(&Y) whenever program execution reaches edge, meaning of fact evaluates to true in the program state if mustPointTo(X,Y)@in  currStmt == [Z = X] then mustPointTo(Z,Y)@out
