Presentation Transcript

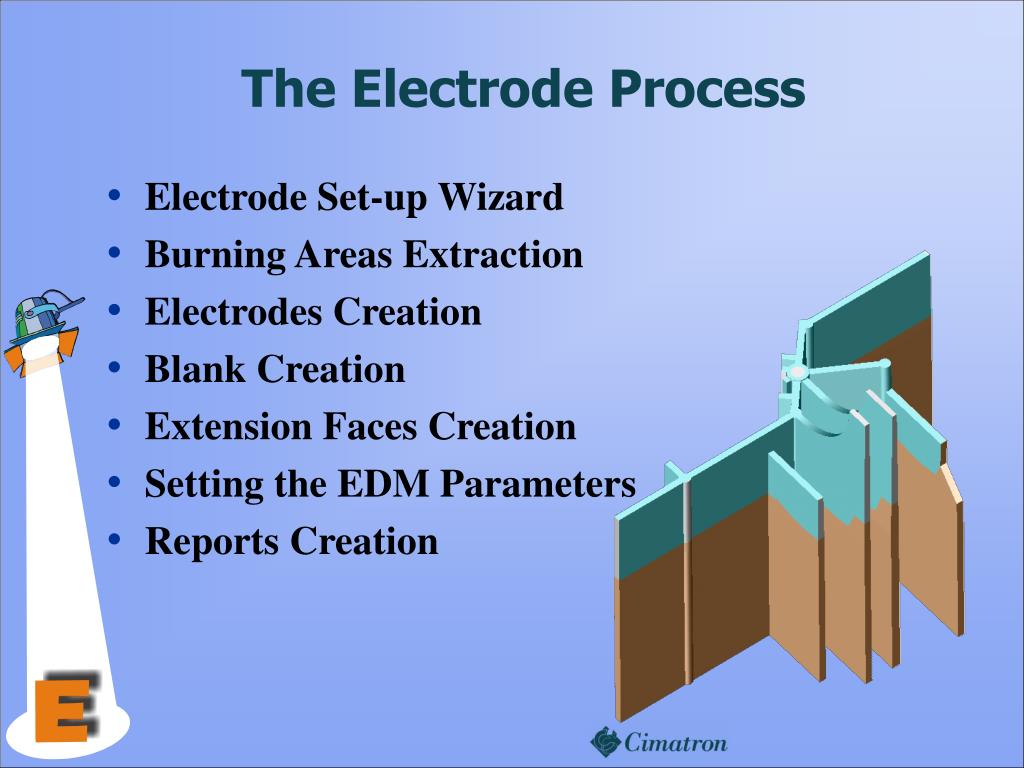

the electrode process
The Electrode Process
  • Electrode Set-up Wizard
  • Burning Areas Extraction
  • Electrodes Creation
  • Blank Creation
  • Extension Faces Creation
  • Setting the EDM Parameters
  • Reports Creation
electrode set up wizard
Electrode Set-up Wizard
  • Select mold component
  • New assembly created in a new folder

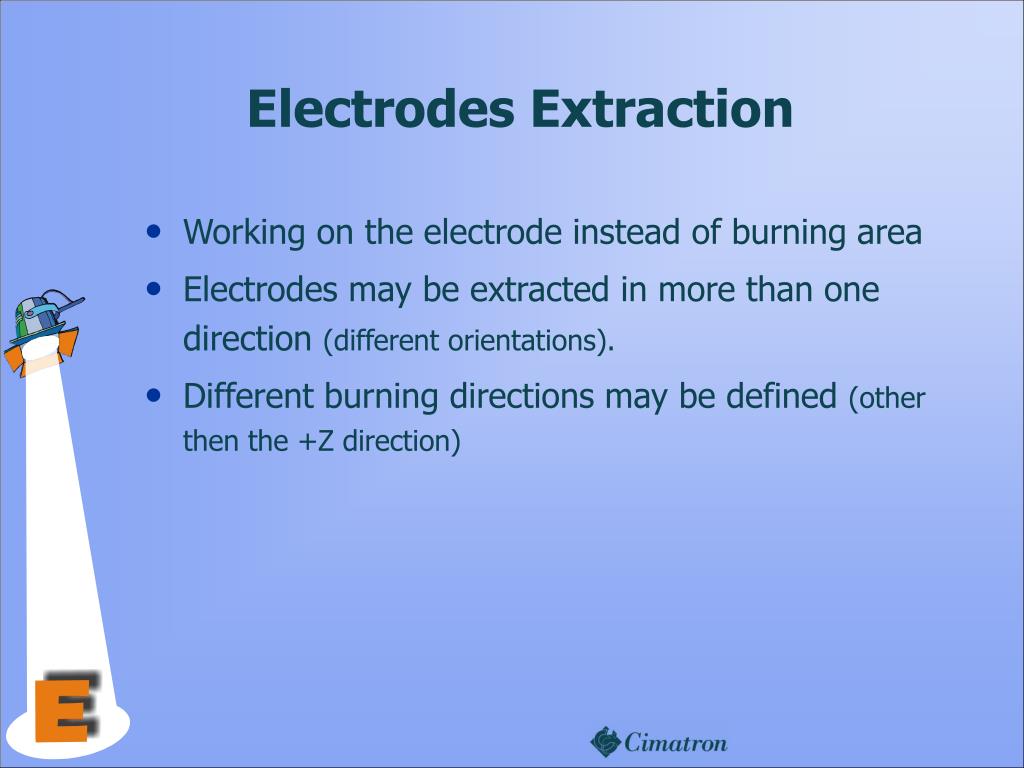

electrodes extraction
Electrodes Extraction
  • Working on the electrode instead of burning area
  • Electrodes may be extracted in more than one direction (different orientations).
  • Different burning directions may be defined (other then the +Z direction)

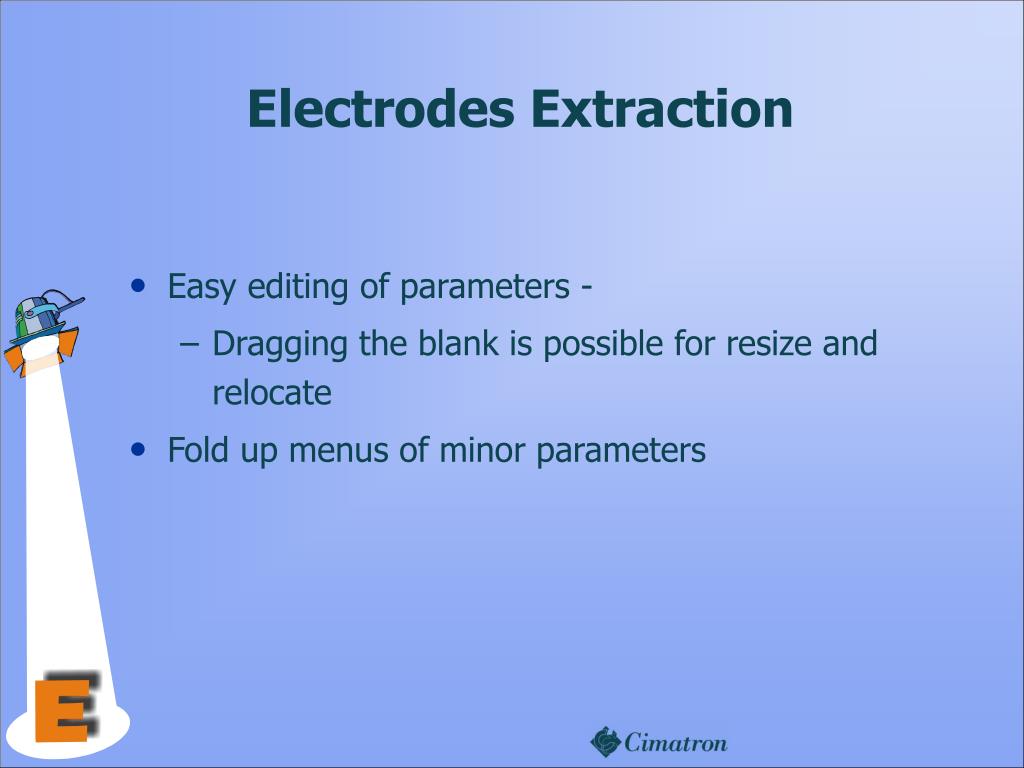

electrodes extraction1
Electrodes Extraction
  • Easy editing of parameters -
    • Dragging the blank is possible for resize and relocate
  • Fold up menus of minor parameters

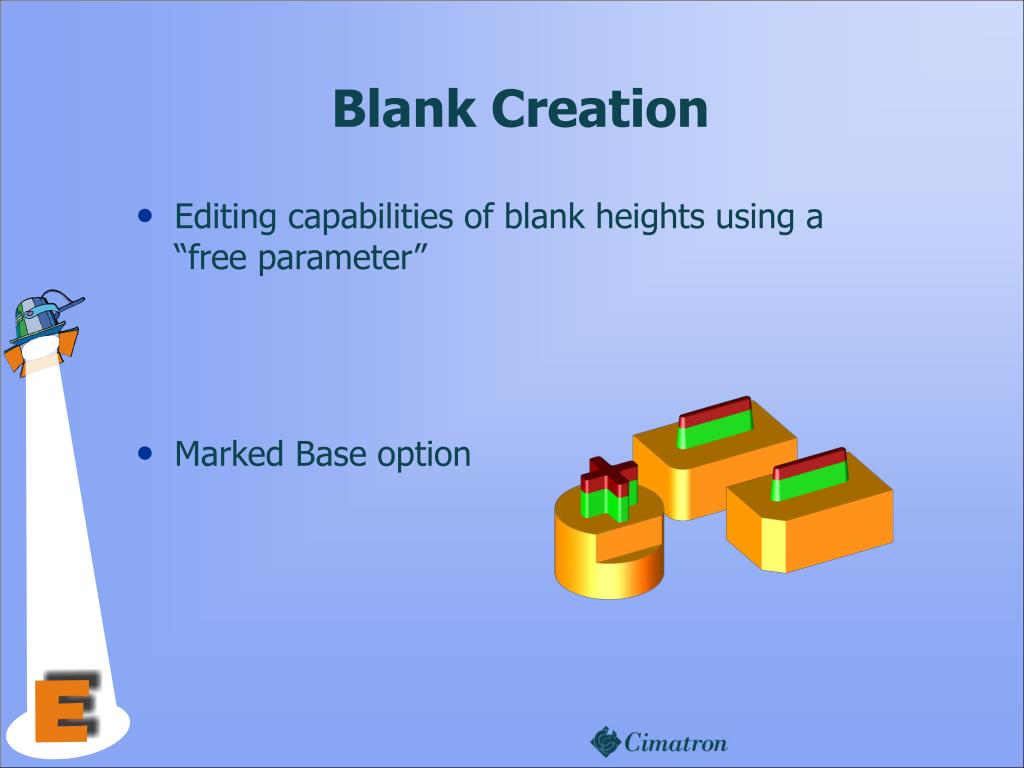

blank creation
Blank Creation
  • Editing capabilities of blank heights using a “free parameter”
  • Marked Base option

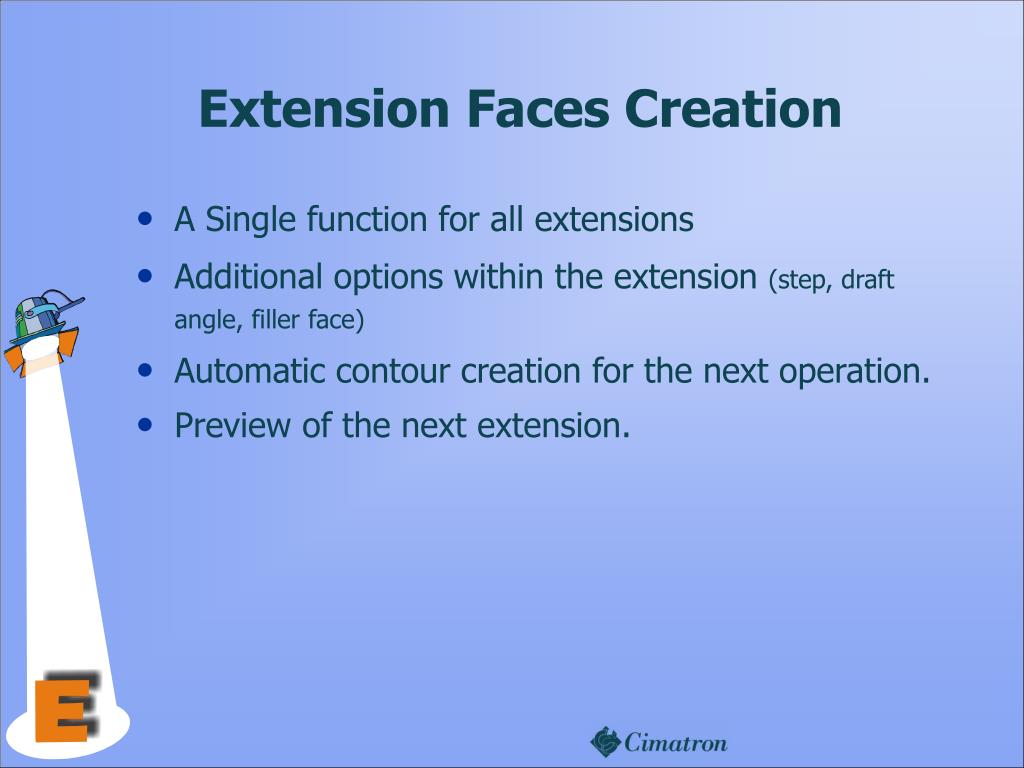

extension faces creation
Extension Faces Creation
  • A Single function for all extensions
  • Additional options within the extension (step, draft angle, filler face)
  • Automatic contour creation for the next operation.
  • Preview of the next extension.

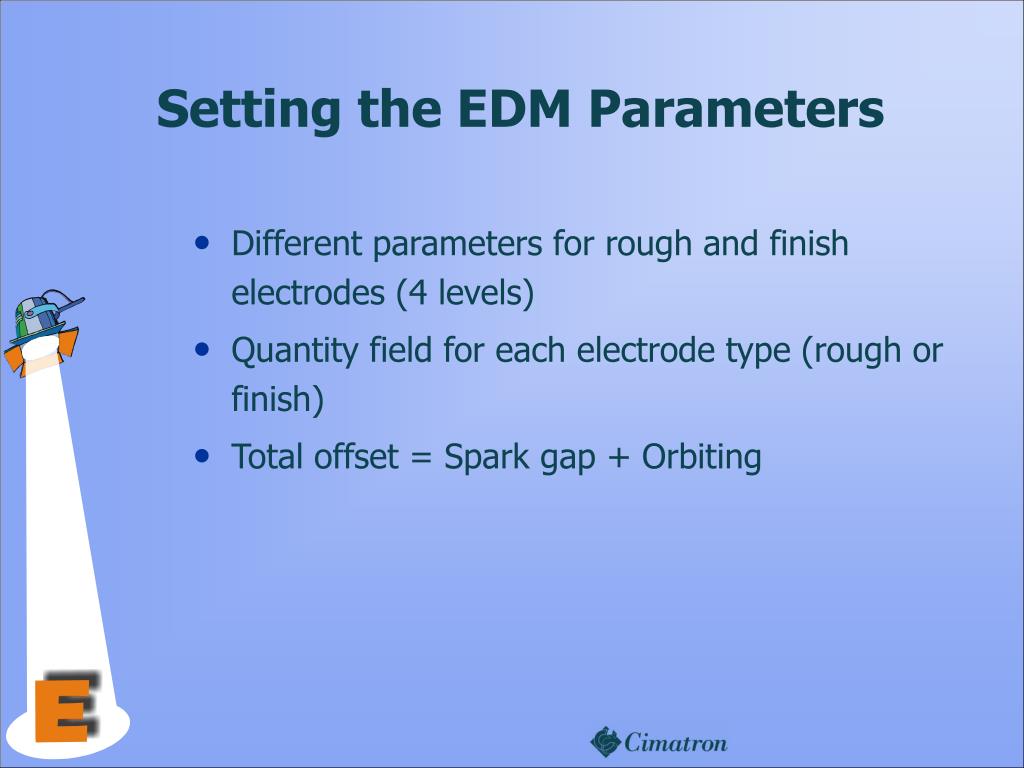

setting the edm parameters
Setting the EDM Parameters
  • Different parameters for rough and finish electrodes (4 levels)
  • Quantity field for each electrode type (rough or finish)
  • Total offset = Spark gap + Orbiting

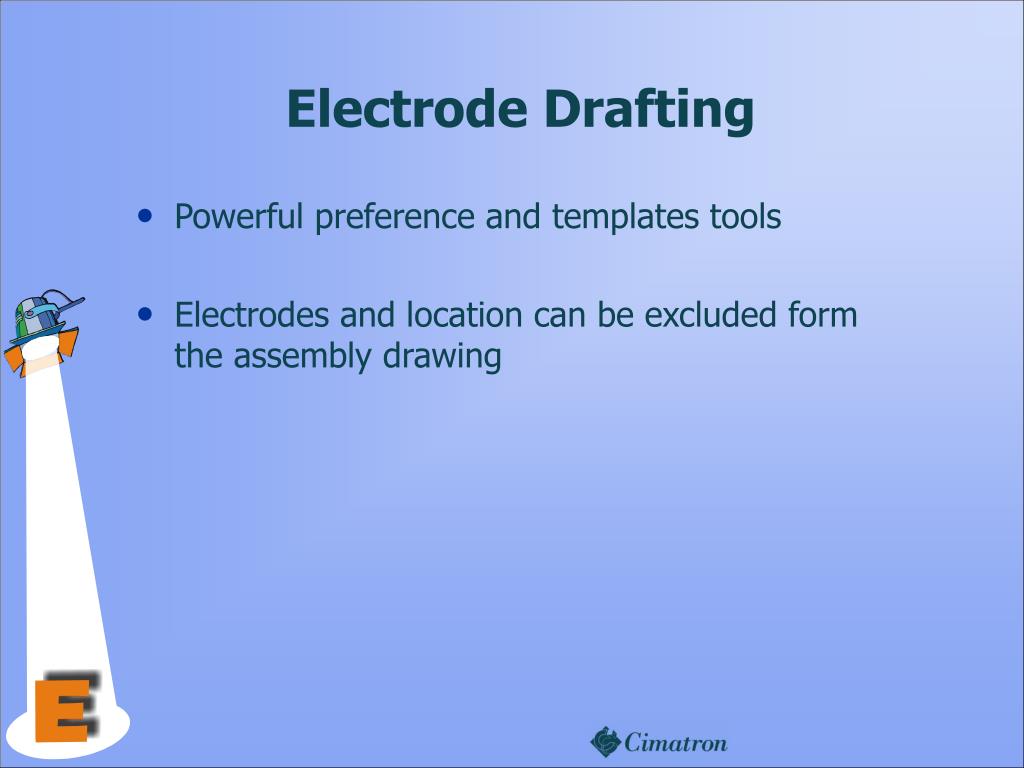

electrode drafting
Electrode Drafting
  • Powerful preference and templates tools
  • Electrodes and location can be excluded form the assembly drawing

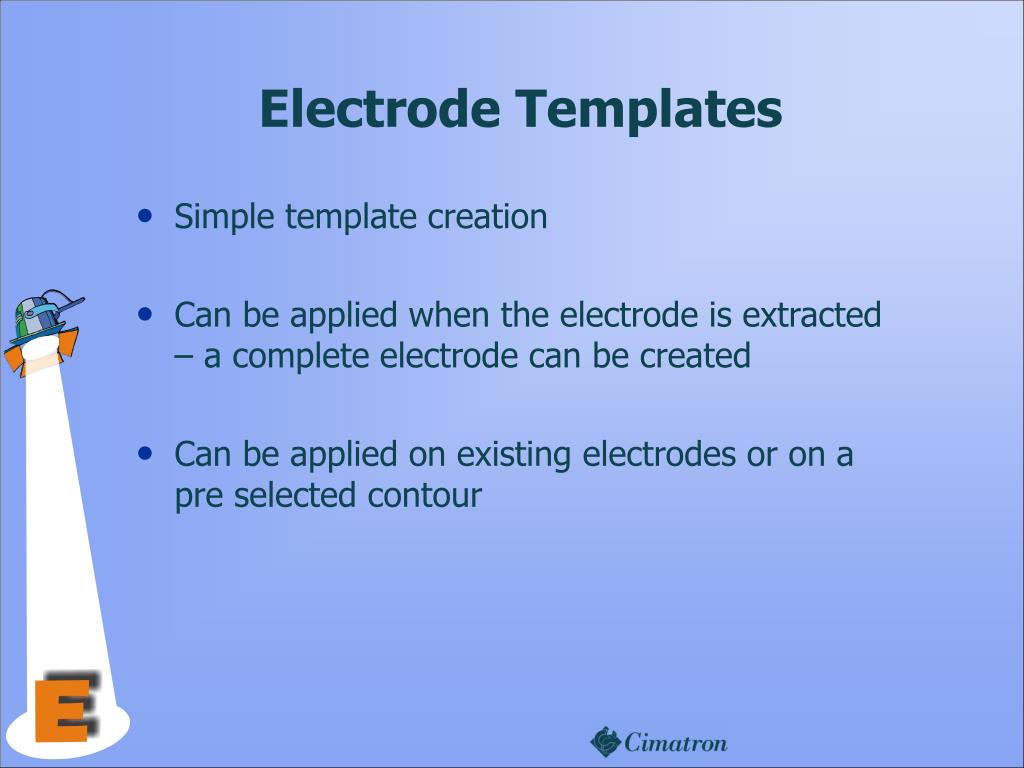

electrode templates
Electrode Templates
  • Simple template creation
  • Can be applied when the electrode is extracted – a complete electrode can be created
  • Can be applied on existing electrodes or on a pre selected contour

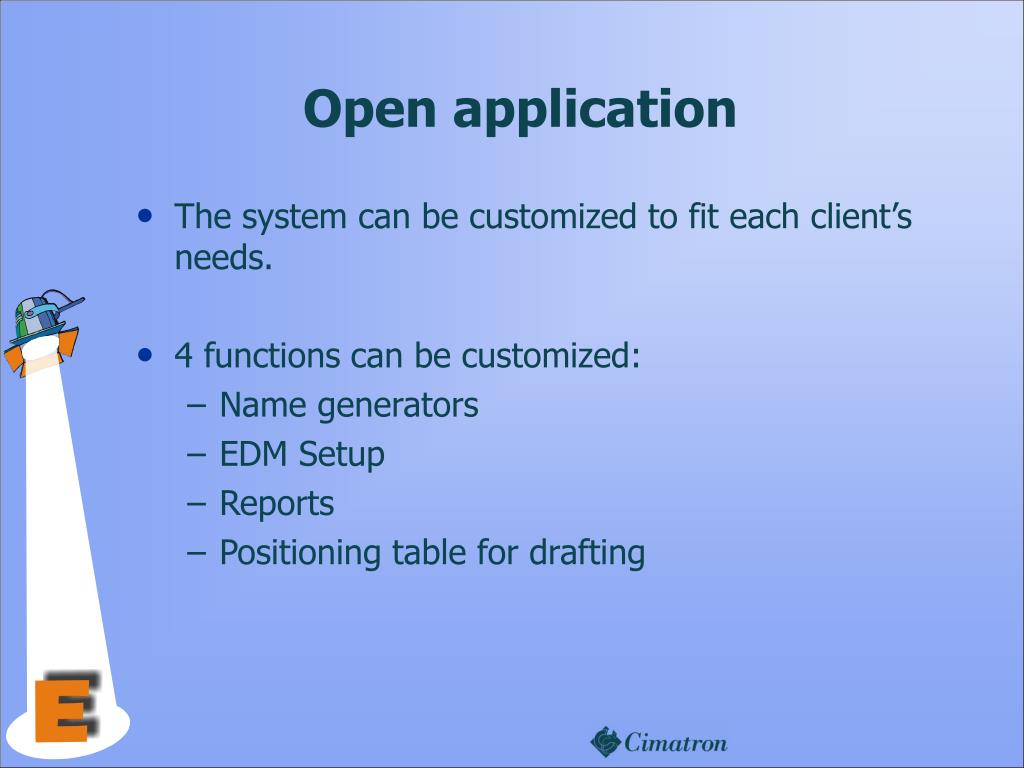

open application
Open application
  • The system can be customized to fit each client’s needs.
  • 4 functions can be customized:
    • Name generators
    • EDM Setup
    • Reports
    • Positioning table for drafting
