  1. Fire Safety Todd Hays Assistant Fire Marshal Enid Fire Department

  2. Fire Safety Introduction The Chemistry & Physics of Fire Preventing Fires Burns Handling Fire Safely Fire Safety Outdoors Fire Safety Resources

  3. Fire Safety Introduction The ability to use fire safely is essential to human survival. Goal: Develop knowledge & skills necessary to prevent & to survive fires and burns.

  4. Fire Safety Chemistry Fire is a chemical reaction between oxygen and vapors known as “volatiles”. Fire produces two types of energy. Heat & Light What causes something to give off volatile vapors? (decompose) Heat Light is a byproduct of heat (only about 5% is visible from a fire)

  5. Fire Safety Chemistry The Fire Tetrahedron Oxygen Heat Fuel Sustained Chain Reaction Also called the Fire Diamond

  6. Fire Safety Chemistry The Fire Tetrahedron Oxygen Oxygen is an invisible gas in the air that fire consumes as part of the burning process. The oxygen sustains the fire and as it is used up must be replaced. Otherwise the fire will go out due to its removal from the fire tetrahedron model. Heat To initially start a fire it is necessary to apply heat to the fuel in the form of a flame or spark. This heat must raise the fuel to its ignition temperature. Continued heat is then needed to keep the fuel at its ignition temperature and therefore keep the fire going. This heat is usually supplied by the fire itself. If too much heat is removed the fire tetrahedron model breaks down and the fire will become extinguished.

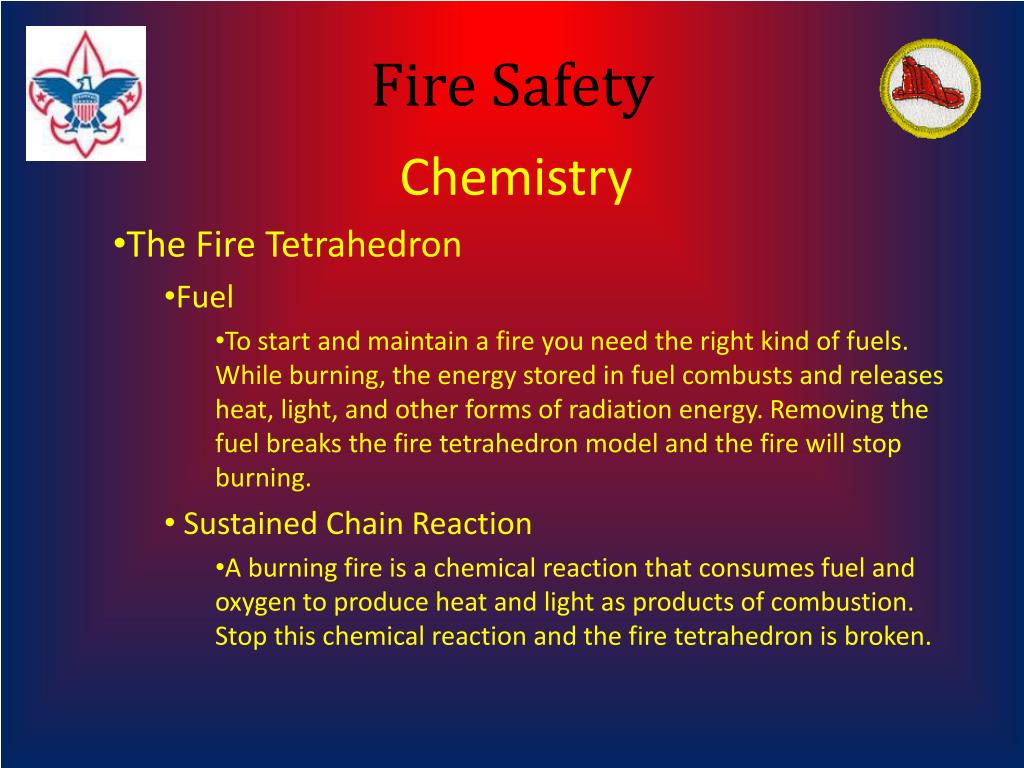

  7. Fire Safety Chemistry The Fire Tetrahedron Fuel To start and maintain a fire you need the right kind of fuels. While burning, the energy stored in fuel combusts and releases heat, light, and other forms of radiation energy. Removing the fuel breaks the fire tetrahedron model and the fire will stop burning. Sustained Chain Reaction A burning fire is a chemical reaction that consumes fuel and oxygen to produce heat and light as products of combustion. Stop this chemical reaction and the fire tetrahedron is broken.

  8. Fire Safety Chemistry Products of Combustion - Smoke Heat Skin starts to burn at about 115 . If inhaled, lungs and the airway can be injured. Gas The most commonly produced gas from fire is Carbon Monoxide Odorless, Colorless & Tasteless Causes disorientation, drowsiness, unconsciousness & ultimately, death Many others – most are hazardous to our health Particles - Soot Mostly carbon particles of incompletely burned fuels

  9. Fire Safety Chemistry Fire Dynamics Fire dynamics or fire behavior is based on the fundamental relationship between fuel, oxygen and heat.  The type of fuel, the location of fuel in the room, the geometry of the fuel, building construction and ventilation can have a significant effect on the speed of fire growth and spread. Simply put, it is how a fire acts, related to the amount of fuel, the space it is in, how it is shaped and how well it is ventilated.

  10. Fire Safety Preventing Fires Sources of Fire Smoking Furnaces Space Heaters Fireplaces Cooking Kitchen Camping Electrical Appliances Electrical Distribution Equipment Arson

  11. Fire Safety Preventing Fires Seasonal & Holiday Fire Safety December – February Trees & decorations (candles, lights, etc.) Heating appliances Frozen water pipes March – May Outdoor cooking Camping Fire Safety Outdoors pg. 57 September – November Heating appliances Jack-O-Lantern candles

  12. Fire Safety Preventing Fires Home Safety Inspection Complete the checklist in your Fire Safety book to help you understand what hazards exist in your home. Then, with the help of your family, you can try to eliminate any of the hazards that you have found. Fun Facts! Who was the first Volunteer Fire Chief in America? Along with founding a newspaper, signing the Declaration of Independence and flying famous kites, Benjamin Franklin is also known for forming the first volunteer fire company in America.  That's right! In 1736, in Philadelphia, Pennsylvania, Benjamin Franklin formed the first volunteer fire company, called the Union Fire Company. Of course, its only fitting that he be Fire Chief of the new fire company ... and so he was!

  13. Fire Safety Home Fire Escape Planning Planning Sketch a floor plan of your house Include all windows & doors Label each room Primary Exits Doors Secondary Exits Windows Shelter in Place Close doors between you & the fire Plug air vents & cracks around doors Open the window & signal with something big Call 911 if possible

  14. Fire Safety Home Fire Escape Planning Planning (continued) Decide on a meeting place Landmark near the road Tree, Mailbox, Light pole, etc… Choose a place to call 911 from or use a cell phone Practice the Plan! Once every two or three months Day time Night time Evaluation Check for any problem using the secondary exits If something didn’t work well, test some other methods until the escape plan works smoothly

  15. Fire Safety Smoke Detectors Activated by smoke particles Installing Smoke Detectors At least one on every level of the home In every sleeping area The space adjacent to the sleeping areas Mount on the ceiling, at least 12 inches from a wall if possible Testing & Maintenance Test at least once a month Remove dust from the detector monthly with “canned air” or a vacuum Change the batteries at least once a year – Choose an important date, like when you change the clock, a birthday or holiday Track the smoke detector’s age and replace them if they are more than 10 years old.

  16. Fire Safety Reporting a Fire Alarm A fire in your home Get Out & Stay Out! Call 911 from a neighbor’s phone or use a cell phone A fire outside your home You can call from inside your home What to say when you call 911 Name Address Tell if you know everyone is out of the house Where the fire is inside the house The telephone number you are calling from

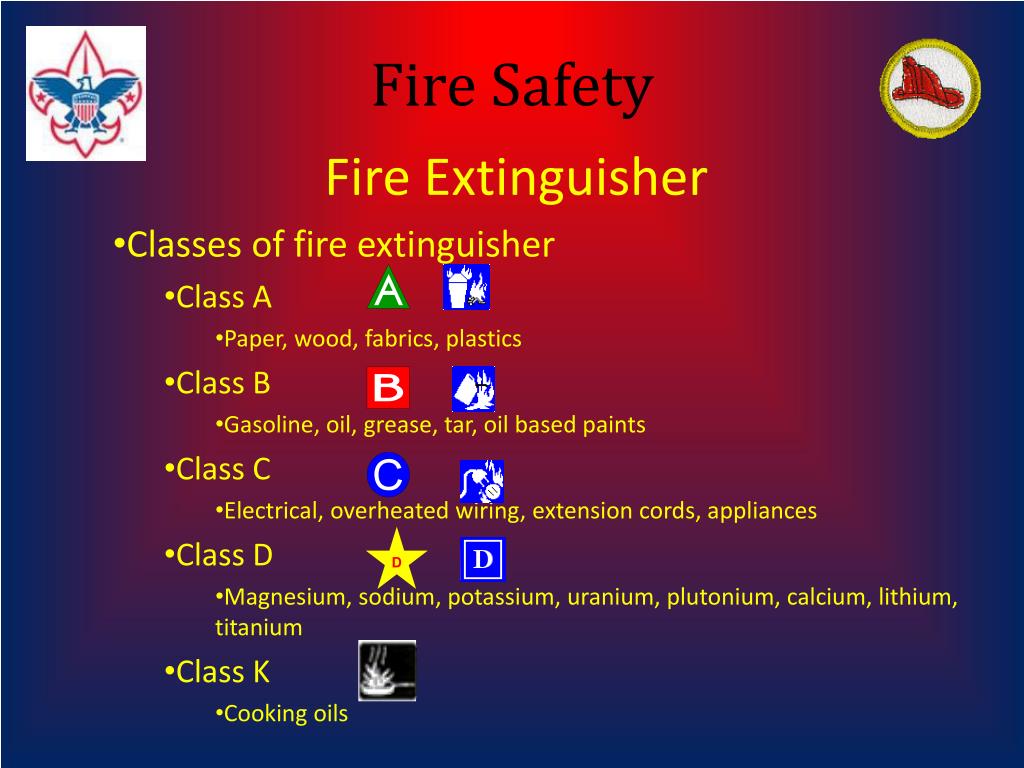

  17. Fire Safety Fire Extinguisher Classes of fire extinguisher Class A Paper, wood, fabrics, plastics Class B Gasoline, oil, grease, tar, oil based paints Class C Electrical, overheated wiring, extension cords, appliances Class D Magnesium, sodium, potassium, uranium, plutonium, calcium, lithium, titanium Class K Cooking oils D

  18. Fire Safety Fire Extinguisher P.A.S.S. Pull the PIN AIM the nozzle SQUEEZE the handle SWEEP the nozzle

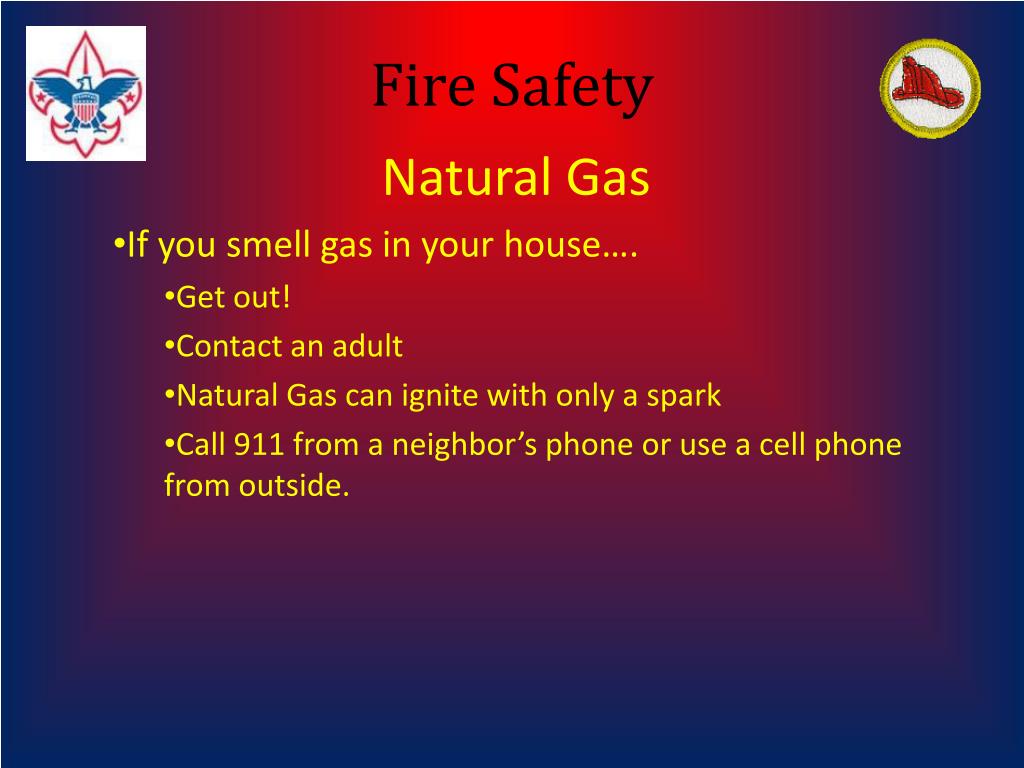

  19. Fire Safety Natural Gas If you smell gas in your house…. Get out! Contact an adult Natural Gas can ignite with only a spark Call 911 from a neighbor’s phone or use a cell phone from outside.

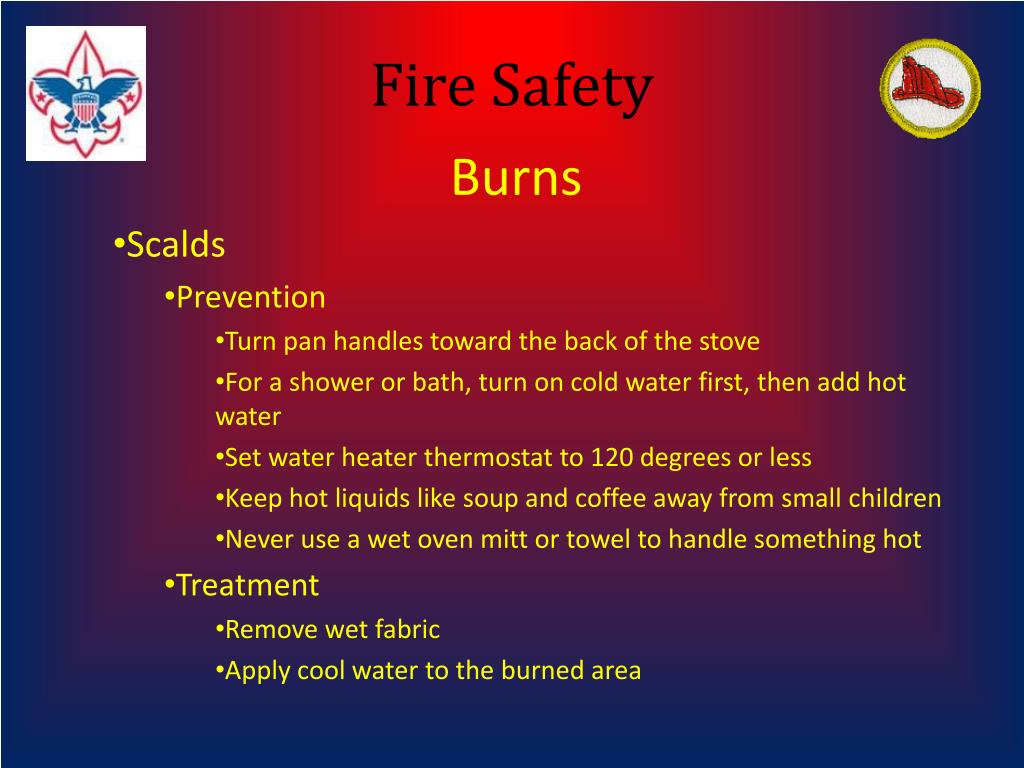

  20. Fire Safety Burns Scalds Prevention Turn pan handles toward the back of the stove For a shower or bath, turn on cold water first, then add hot water Set water heater thermostat to 120 degrees or less Keep hot liquids like soup and coffee away from small children Never use a wet oven mitt or towel to handle something hot Treatment Remove wet fabric Apply cool water to the burned area

  21. Fire Safety Burns Flame Burns Prevention Don’t wear loose fitting sleeves when cooking over an open fire Use an oven mitt or leather gloves to protect your hands Stop - Cover - Drop - Roll Treatment Apply cool water to the burned area for 10 – 15 minutes If clothing sticks to a person’s body, do not remove it If it is a large or serious burn, get professional help immediately

  22. Fire Safety Handling Fire Safely Matches Use Remove one match from container then close the container. Hold the match firmly, away from your head, and identify what you want to light. Make sure no one is in front of you, then strike the match by drawing it quickly across the striking surface. Move the match away from your body when striking. Light the object, then extinguish the match. Dispose of the match, only when you know it is out, or you may drop the match into a camp fire.

  23. Fire Safety Handling Fire Safely Charcoal Fires For outdoor use ONLY! Charcoal lighter fluid Read all directions Close lid after use Set the container well away from the fire area Heap charcoal into a pyramid or use a fire starter can

  24. Fire Safety Handling Fire Safely Melting Wax Hot wax is extremely flammable Boil water in a pan, then remove from fire Place pan of wax into boiling water to melt wax Use pliers or tongs while wearing gloves to avoid being scalded or burned Pan Fires Keep a lid and oven mitt nearby while cooking If grease ignites, place lid or cover on pan, then turn off heat. If cooking over a campfire, slide the pan off the fire. Wait at least 5 minutes before removing cover.

  25. Fire Safety Heaters Kerosene Heaters Keep at least 3 feet from combustible materials Use only UL listed heaters that have tip-over protection Only use K1 kerosene (recommended by manufacturer) Refill appliance only when it has cooled for a few minutes Use only in well ventilated rooms Ask fire department if local codes allow this type of heater use

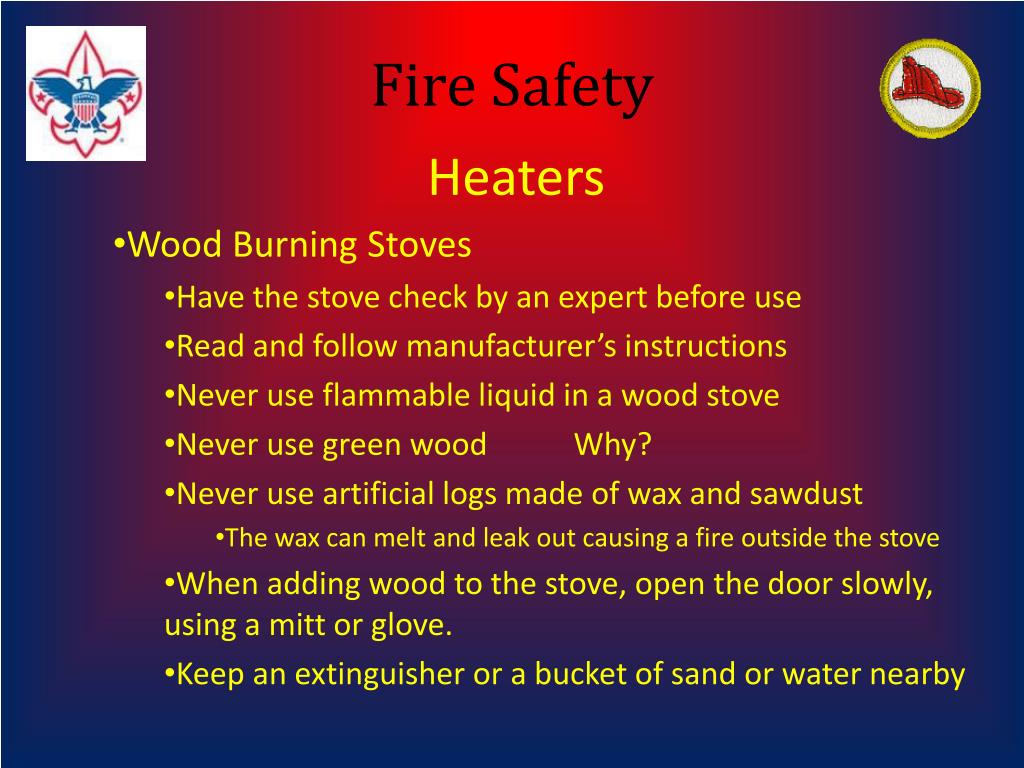

  26. Fire Safety Heaters Wood Burning Stoves Have the stove check by an expert before use Read and follow manufacturer’s instructions Never use flammable liquid in a wood stove Never use green wood Why? Never use artificial logs made of wax and sawdust The wax can melt and leak out causing a fire outside the stove When adding wood to the stove, open the door slowly, using a mitt or glove. Keep an extinguisher or a bucket of sand or water nearby

  27. Fire Safety Heaters Coal Burning Stoves Do not overload a coal stove. Ignite the coal with paper and wood first. Use coal stoves in well ventilated areas, as the produce high levels of carbon monoxide.

  28. Fire Safety Heaters Fireplaces Do not overload a fireplace Burn only one or two logs at a time Burn artificial logs one at a time and don’t split or break them apart Don’t use flammable or combustible liquids on the fire, as an explosive flash can occur. Once the fire is started, close the screen or doors securely.

  29. Fire Safety Flammable Liquids A liquid with a flashpoint below 100 degrees Fahrenheit Gasoline Adhesive remover Some cleaning products Mineral spirits?? Use only with proper ventilation Most vapors are heavier than air

  30. Determining flammability of material • Weight • Heavier fabrics are less likely to burn • Weave • Dense fabrics are less likely to burn • Construction • Smooth fabrics are less likely to burn • Style • Loose fitting garments can ignite more easily than tight fitting ones. Fire Safety Proper Clothing Natural Wool Cotton Silk – Synthetic Polyester Acrylic Acetate Nylon Rayon

  31. Fire Safety Fueling How – To’s General Safety Precautions Ensure the equipment is cool prior to fueling Fill the equipment’s fuel tank outdoors, at least 6’ from any building Position the equipment on firm level ground Use a pour spout or funnel Pour slowly from an approved safety can Take care not to overfill or spill the fuel Replace fuel tank cap Ensure any spillage is dry Place fuel can several feet away before starting equipment

  32. Fire Safety Fire Safety Outdoors Wildland Fires Types of Wildland Fires Grass fire Wheat, pasture, yards Surface fire Leaf litter, underbrush Ground fire Below the surface – peat, duff, etc… Crown fire Treetops What is the cost of a wildland fire?

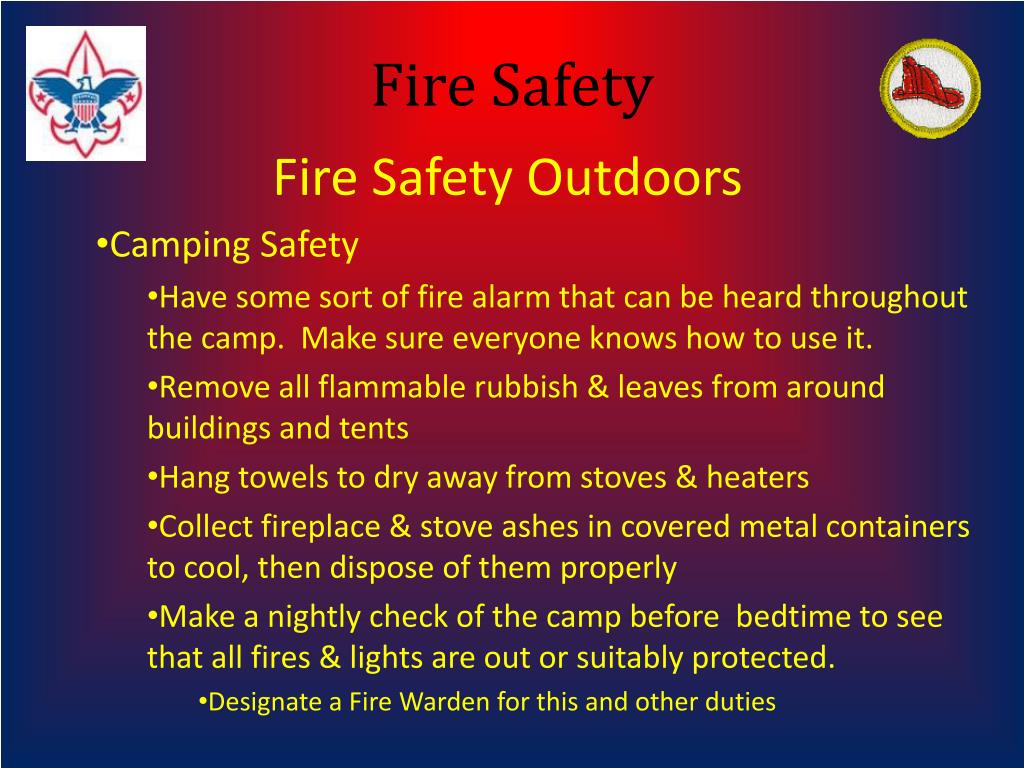

  33. Fire Safety Fire Safety Outdoors Camping Safety Have some sort of fire alarm that can be heard throughout the camp. Make sure everyone knows how to use it. Remove all flammable rubbish & leaves from around buildings and tents Hang towels to dry away from stoves & heaters Collect fireplace & stove ashes in covered metal containers to cool, then dispose of them properly Make a nightly check of the camp before bedtime to see that all fires & lights are out or suitably protected. Designate a Fire Warden for this and other duties

  34. Fire Safety Fire Safety Outdoors Campfires Campfires should only be built in sand, rocks, or other mineral soils, never near trees or brush All flammable materials should be cleared away at least 10 feet from the fire. Never leave a fire unattended Campfires should be kept small, approximately3’ across by 2’ high Discard matches into the fire or make sure they are cool to touch before they are discarded. Select the location with regard to the wind direction and speed and where sparks could blow Appoint an older member as Fire Warden Keep buckets of water near each tent that is used only for fire control

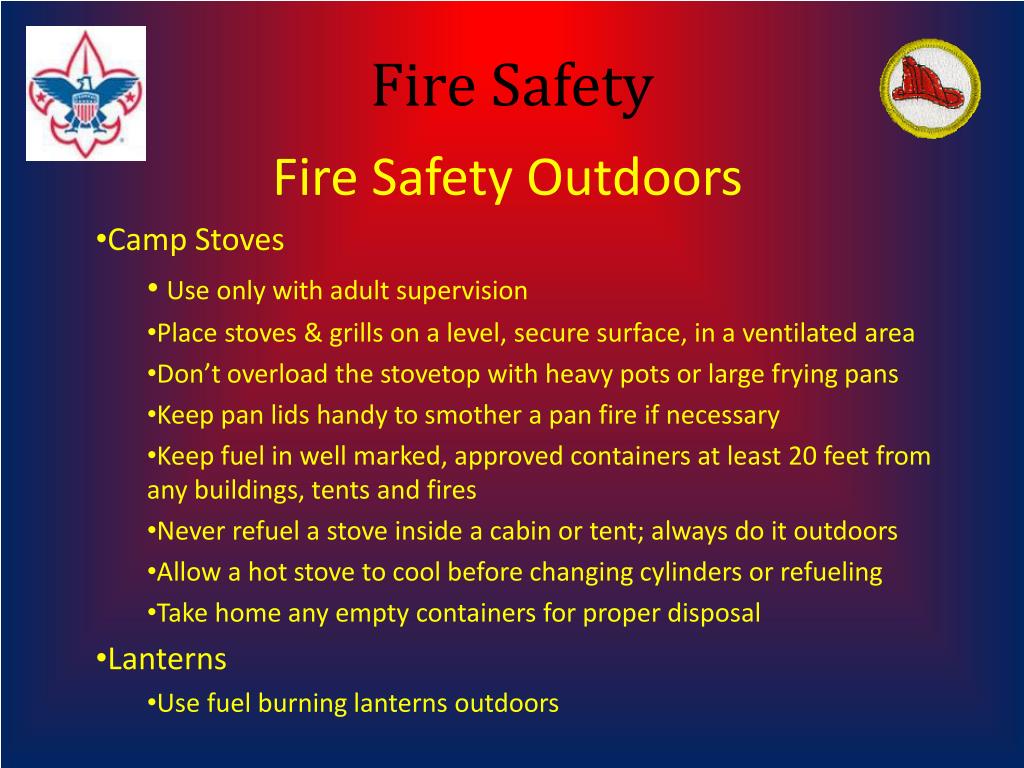

  35. Fire Safety Fire Safety Outdoors Camp Stoves Use only with adult supervision Place stoves & grills on a level, secure surface, in a ventilated area Don’t overload the stovetop with heavy pots or large frying pans Keep pan lids handy to smother a pan fire if necessary Keep fuel in well marked, approved containers at least 20 feet from any buildings, tents and fires Never refuel a stove inside a cabin or tent; always do it outdoors Allow a hot stove to cool before changing cylinders or refueling Take home any empty containers for proper disposal Lanterns Use fuel burning lanterns outdoors

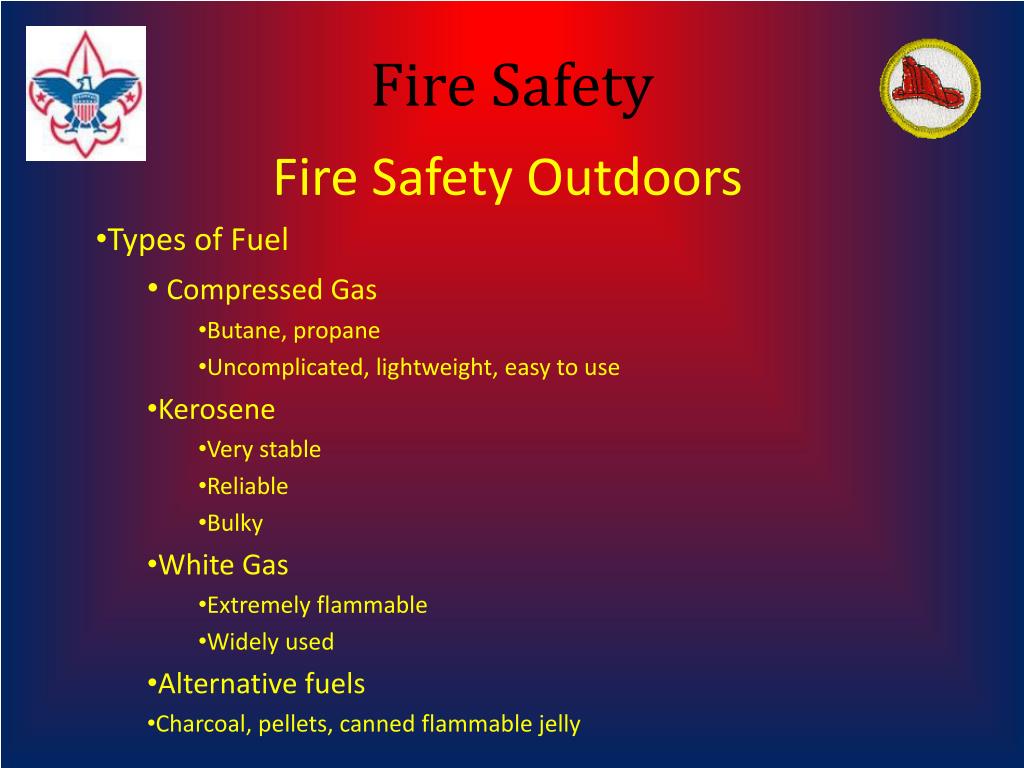

  36. Fire Safety Fire Safety Outdoors Types of Fuel Compressed Gas Butane, propane Uncomplicated, lightweight, easy to use Kerosene Very stable Reliable Bulky White Gas Extremely flammable Widely used Alternative fuels Charcoal, pellets, canned flammable jelly

  37. Fire Safety Fire Safety Outdoors Carrying fuel Compressed Gas Just pack as they are Kerosene, White Gas Carry only in a container made for that purpose Metal fuel bottle with a secure lid Different color that water bottle and clearly marked Store & carry separately from food items Breaking Camp Ensure all fires are completely out Sprinkle water on fire & spread the coals with a stick until all coals are out cold

  38. Fire Safety Careers in Fire Safety Your Fire Department Roles Suppression Training Prevention Inspections / Code Enforcement Public Education Fire / Arson Investigation Approximately 90% of all fire departments in the U.S. are volunteer Paid fire departments protect the greatest number of people Good physical shape Maximum pace for long periods in difficult conditions Leap into action without warming up Subject to extreme heat and sometimes cold

  39. Fire Safety Careers in Fire Safety Types of Trucks Engine (pumper) Ladder Tanker Rescue Wildland Specialty

  40. Fire Safety Fire Department Survey Career 80 21 2007 – 3601 2008 – 3959 Accidental Fire Prevention Division Fire Prevention Division Fire Prevention Division Training 18 Fire, Medical, Rescue, Haz-Mat, Prevention Recent Changes in the fire service Favorite pieces of equipment Community & Fire department goals

  41. Fire Safety Questions?
