aids immunology

Immunopathogenesis of AIDS

Chief speaker: 董玉雷

郑 瑞

basic conception
Basic conception
  • AIDS Acquired Immuno

-deficiency Syndrome

  • HIV Human Immuno

-deficiency Virus

    • HIV-1 : worldwide
    • HIV-2 : west Africa & India
the problem we will mention
The problem we will mention:

the structure of HIV

1 . Brief introduction the gene group

of HIV replication period and mutation rate

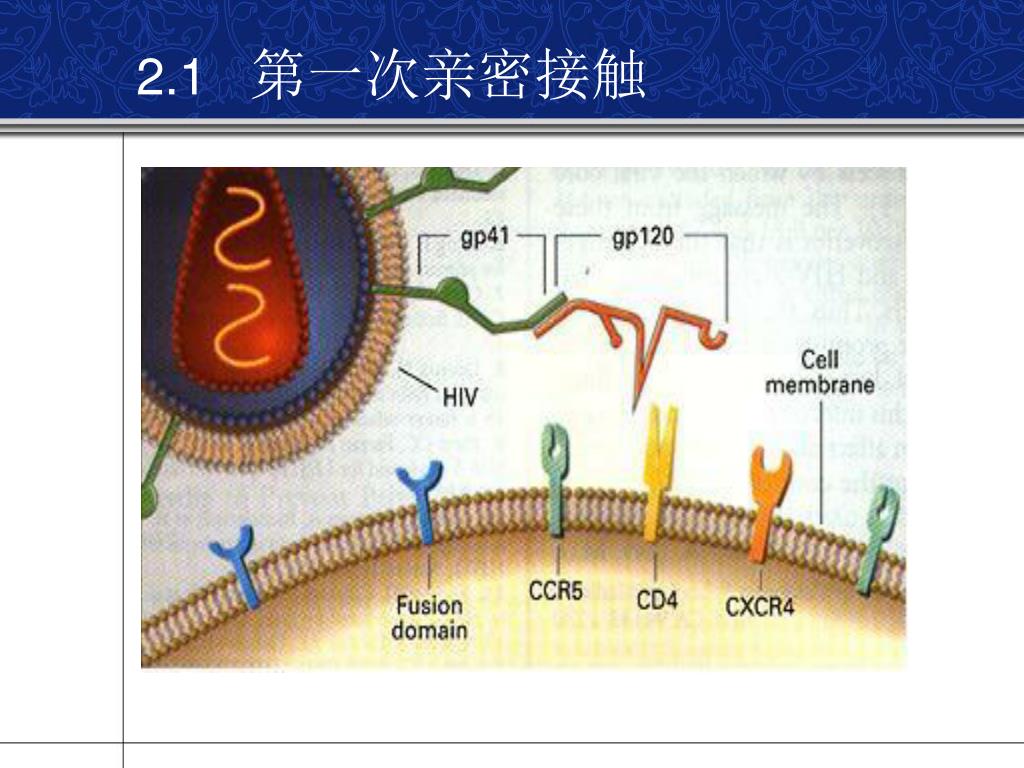

classical way mediated by gp120 binding to CD4

2. How does HIV

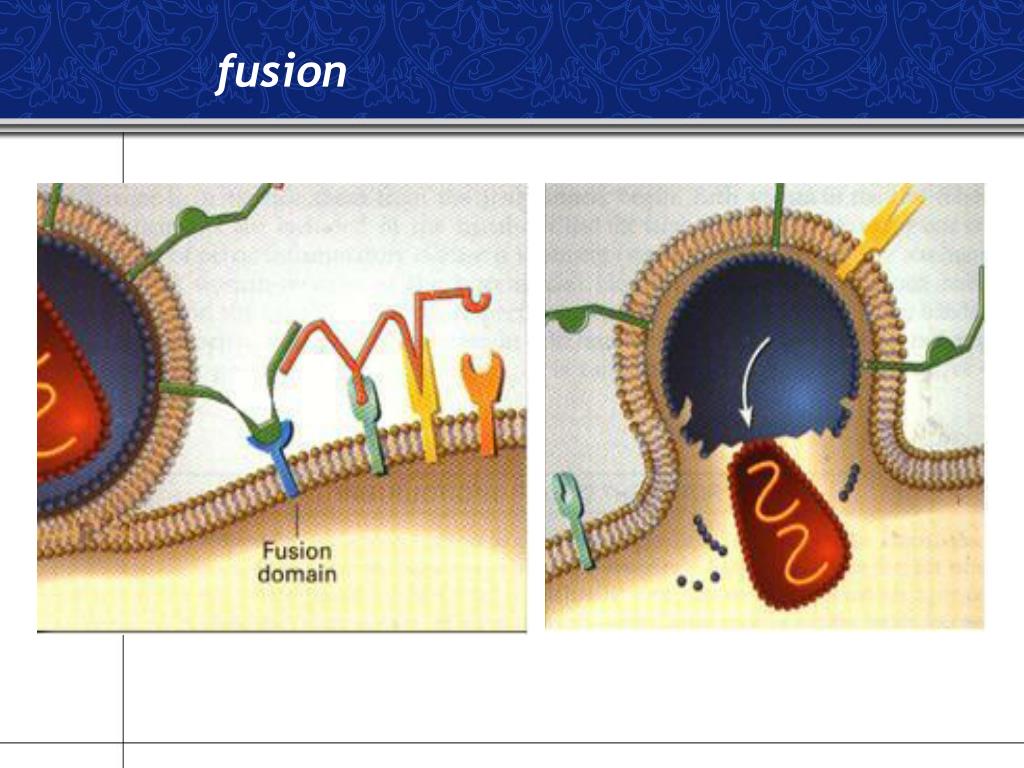

infect cells other ways HIV enter into cells

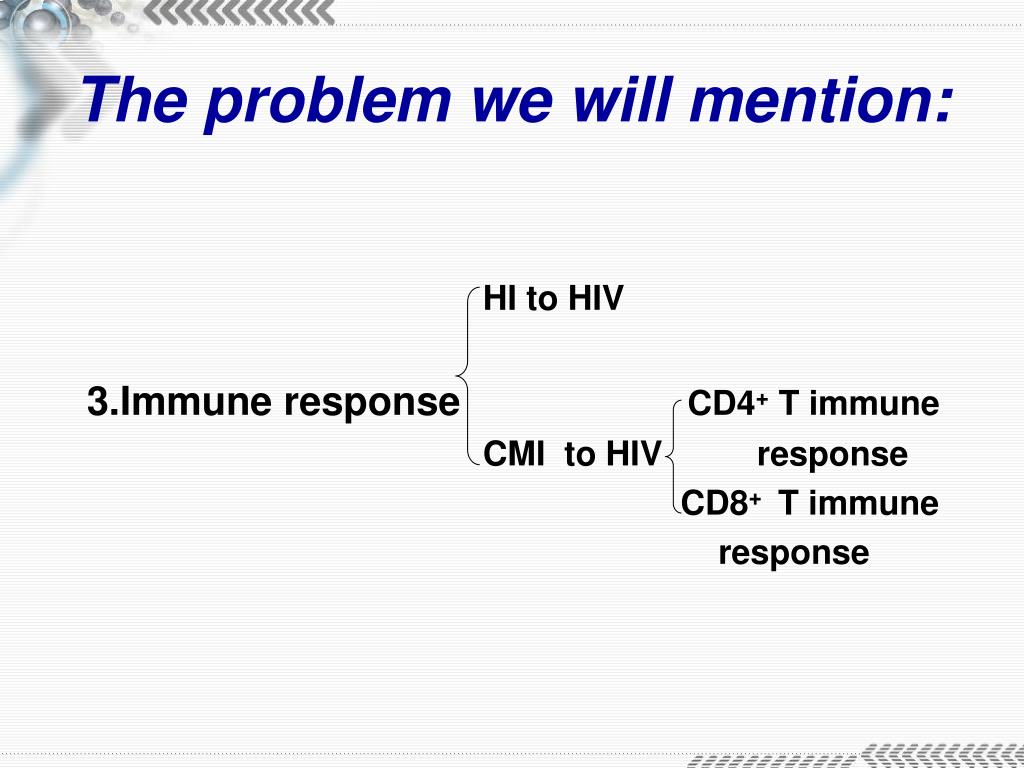

the problem we will mention4
The problem we will mention:


3.Immune response CD4+ T immune

CMI to HIV response

CD8+ T immune

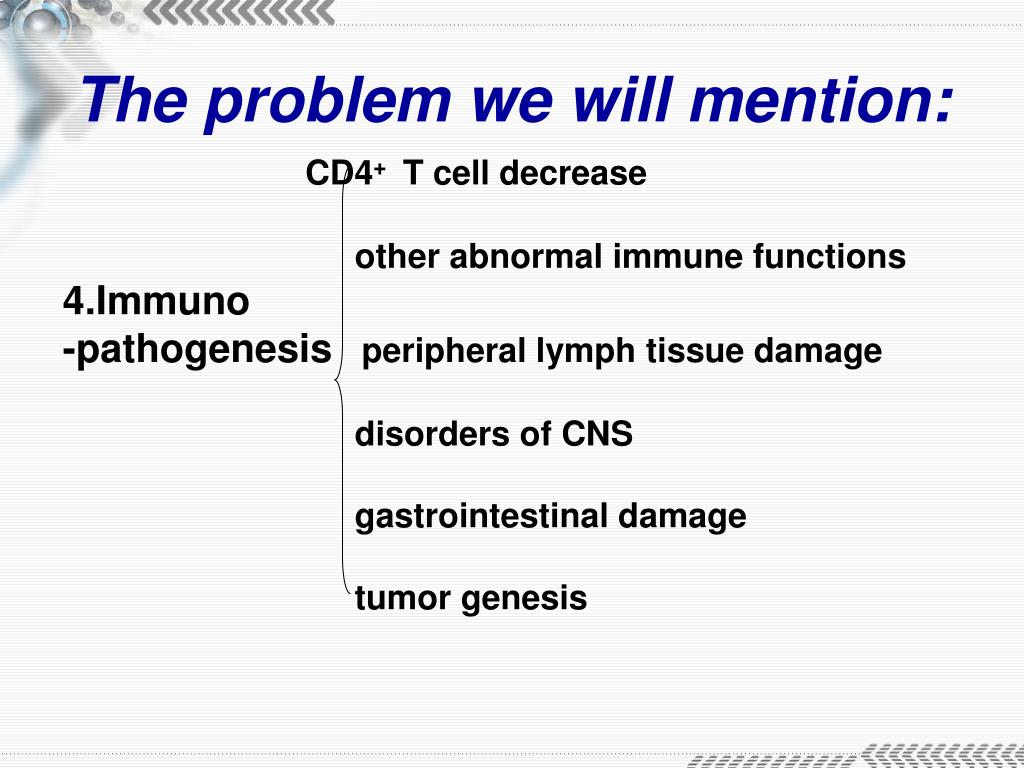

the problem we will mention5
The problem we will mention:

CD4+ T cell decrease

other abnormal immune functions


-pathogenesis peripheral lymph tissue damage

disorders of CNS

gastrointestinal damage

tumor genesis


1.3 The replication and mutation

  • HIV的复制周期为1.2~2.6 d。
  • 在每个复制周期中,HIV的每个位点发生变异的概率是3.4×105。
  • 这使HIV成为一种高变异率的病毒,为HIV逃避免疫监视,产生耐药性提供基础,并为疫苗的制备带来困难。
1 4 target cells
1.4 Target cells
  • The HIV chiefly attack CD4 cells,including CD4+T cell,Mφ,DC,etc
  • CD4 is the specific affinity receptor of gp120
  • Coreceptors: CCR-5&CXCR-4


The cycle of HIV


3. Immune response to HIV

3. Immune response to HIV

3 1 specific humoral immunity to hiv

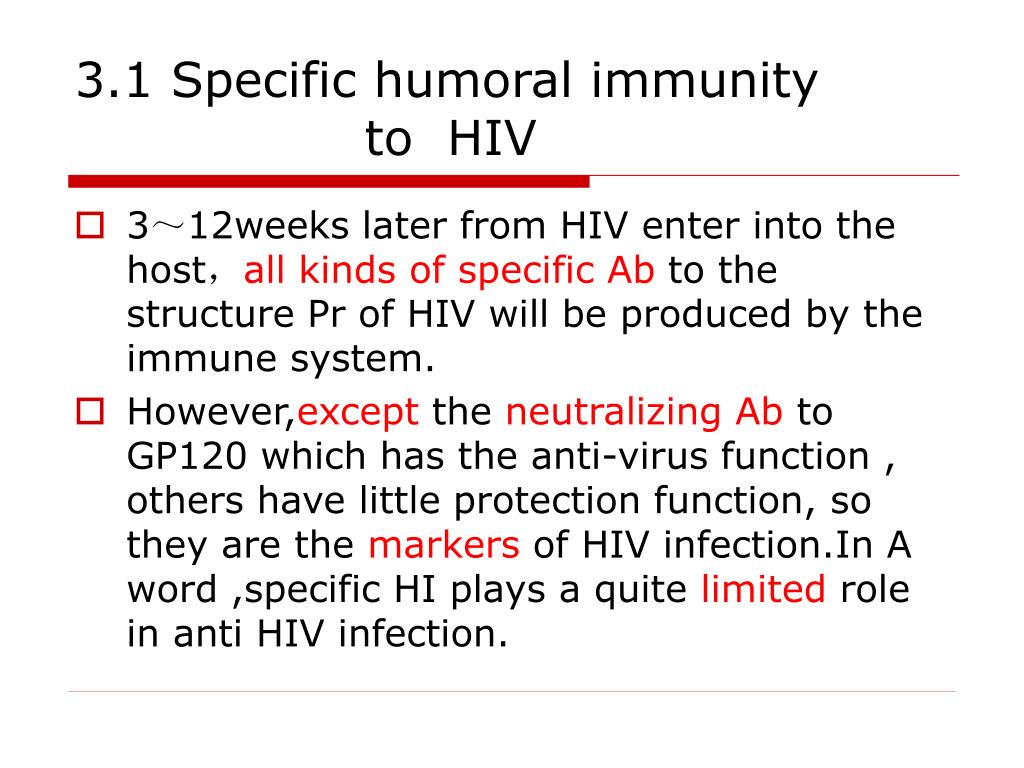

3.1 Specific humoral immunity to HIV
  • 3~12weeks later from HIV enter into the host,all kinds of specific Ab to the structure Pr of HIV will be produced by the immune system.
  • However,except the neutralizing Ab to GP120 which has the anti-virus function ,others have little protection function,so they are the markers of HIV infection.In A word ,specific HI plays a quite limited role in anti HIV infection.
3 2 specific cmi to hiv
3.2 Specific CMI to HIV
  • CD4+Tcell immune response:

As the central cells of immune system, CD4+T cells plays a vital role in specific immunity to HIV

CD8+Tcell & CTL is the most important immune cell to HIV.
  • 90%以上处于原发感染期的HIV感染者.体内能检测出特异性的抗HIV CTL,急性感染期HIV血浆病毒载量的减少与这类细胞的产生具有密切关系。这些抗HIV的CD8+T细胞不能完全清除HIV,可能与HIV的高度变异、HIV抗原的特异性CD4+T细胞的丧失有关。
4 1 cd4 t lymphocyte decrease

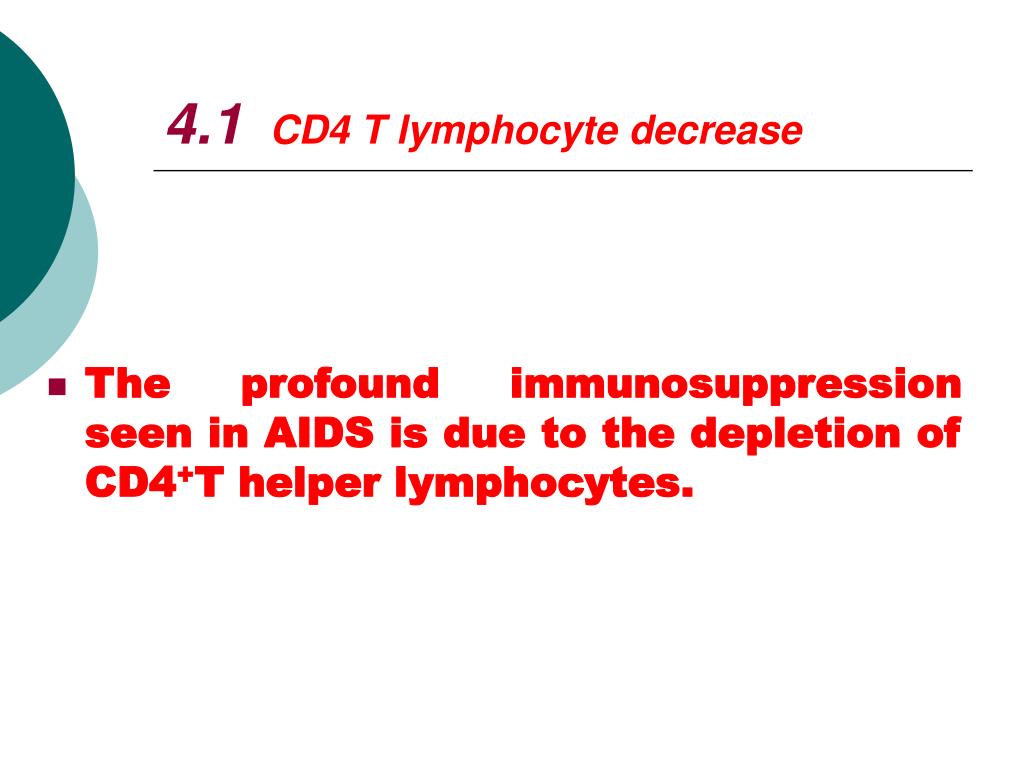

4.1 CD4 T lymphocyte decrease
  • Theprofoundimmunosuppression seen in AIDS is due to the depletion of CD4+Thelper lymphocytes.
In the immediate period following exposure, HIV is present at a high level in the blood (as detected by HIV Antigen and HIV-RNA assays).

  • It then settles down to a certain low level (set-point) during the incubation period. During the incubation period, there is a massive turnover of CD4+Tcells, whereby CD4+T cells killed by HIV are replaced efficiently.

  • Eventually, the immune system succumbs and AIDS develop when killed CD4+T cells can nolonger bereplaced (witnessed by high HIV-RNA, HIV-antigen, and low CD4 counts).
mechanisms on decrease of cd4 t

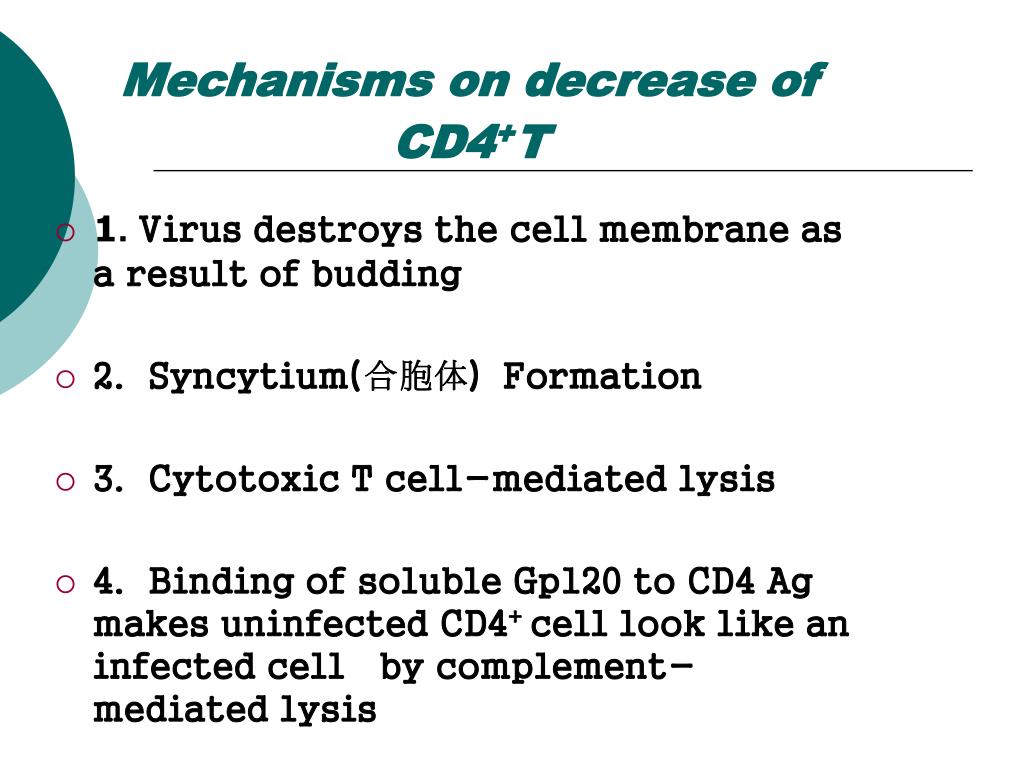

Mechanisms on decrease of CD4+T
  • 1. Virus destroys the cell membrane as a result of budding
  • 2. Syncytium(合胞体)Formation
  • 3. Cytotoxic T cell-mediated lysis
  • 4. Binding of soluble Gp120 to CD4 Ag makes uninfected CD4+cell look like an infected cell by complement-mediated lysis
5. Involvement of a precursor CD4+T cell population.
  • 6. Autoimmunity. We can detect self-antibody to CD4 during HIV infection
  • 7. Replication of HIV may interfere the synthesis of CD4 T cell protein
4 2 abnormal of other immune function
4.2 Abnormal of other immune function
  • HIV inhibit the activity of bone marrow.
  • Persistent lymphadenopathy of the whole body.
  • Function of NK cell come down.
  • Count of DC decease & function deficiency.

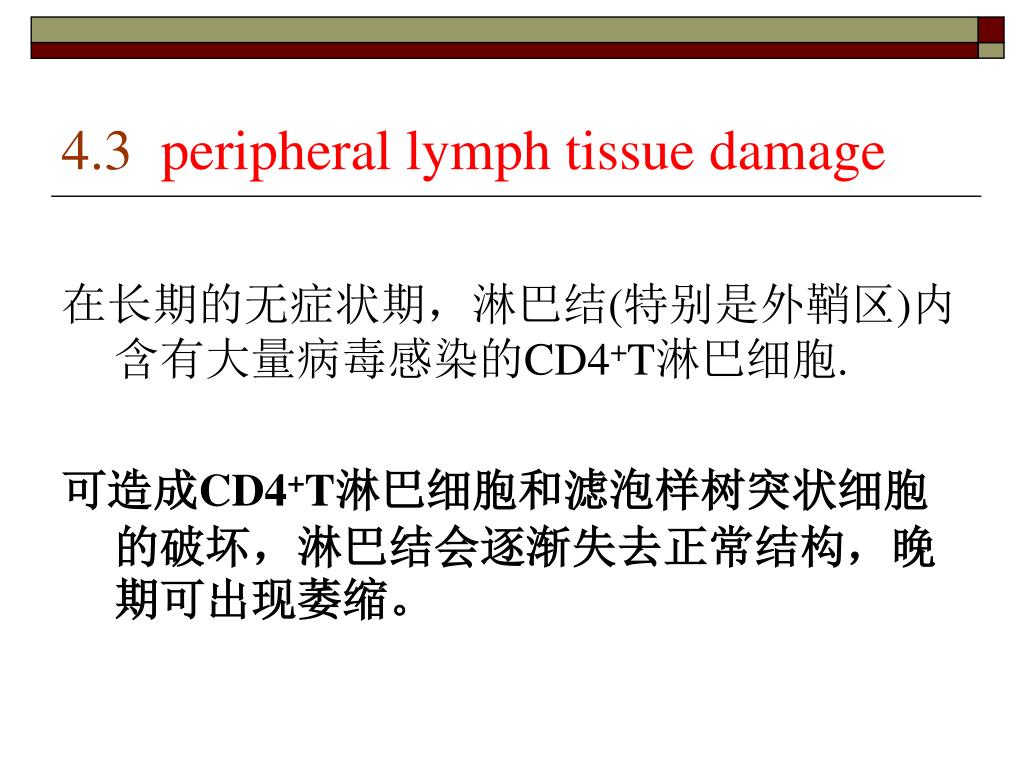

4 3 peripheral lymph tissue damage
4.3 peripheral lymph tissue damage



4 4 disorder of cns
4.4 Disorder of CNS
  • 大脑的病毒是通过外周血中感染的巨噬细胞和CD4+T淋巴细胞所带入,诱导产生高水平毒性细胞因子和病毒蛋白,导致中枢神经系统病变。
4 5 gastrointestinal damage
4.5.Gastrointestinal damage
  • HIV感染数年后可出现慢性吸收不良、营养不良和腹泻,多数研究认为,是由于免疫缺陷所致机会性感染的后果,但也有研究发现,这些胃肠道病变可能与HIV的直接作用有关。
4 6 tumor genesis

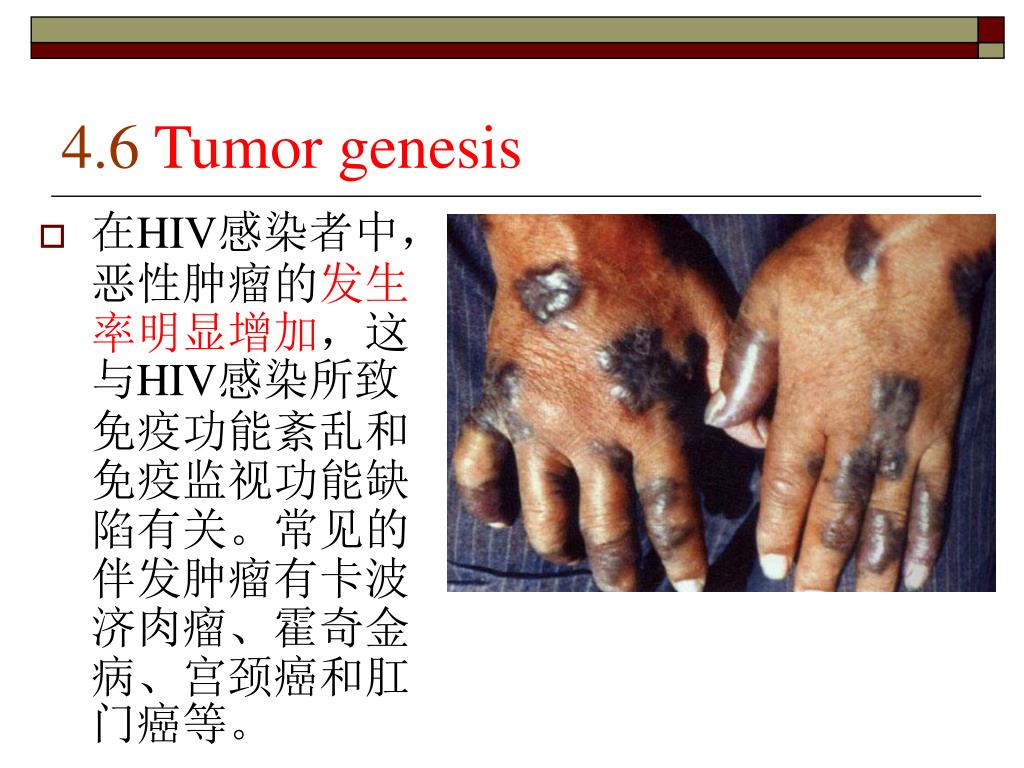

4.6 Tumor genesis
  • 在HIV感染者中,恶性肿瘤的发生率明显增加,这与HIV感染所致免疫功能紊乱和免疫监视功能缺陷有关。常见的伴发肿瘤有卡波济肉瘤、霍奇金病、宫颈癌和肛门癌等。




AIDS in China

  • 首例AIDS 4例 感染者
  • 149例感染者
  • 492例感染者 AIDS 5例
  • 50000左右感染者
  • 2005 840000感染者 AIDS 80000
  • 更多感染者未知
  • Now 每天增加190例感染者
  • ···········
  • 2010 Maybe 10,000,000
  • But we hope ……Zero
  • Let’s fight!




资料整合 贾正虎


PPT 制作 杜阳


Thank you for your listening!
