timing attack paper by paul kocher

Timing Attack Paperby Paul Kocher

presented by

Greg Fletcher and

Jef Considine

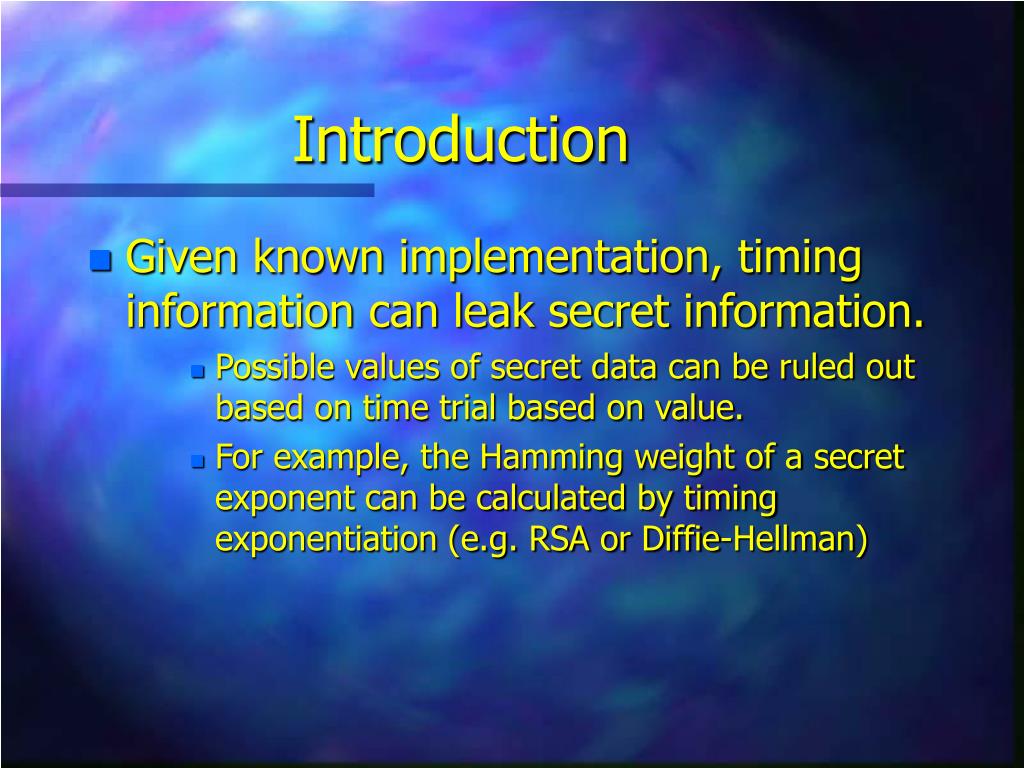

  • Given known implementation, timing information can leak secret information.
      • Possible values of secret data can be ruled out based on time trial based on value.
      • For example, the Hamming weight of a secret exponent can be calculated by timing exponentiation (e.g. RSA or Diffie-Hellman)

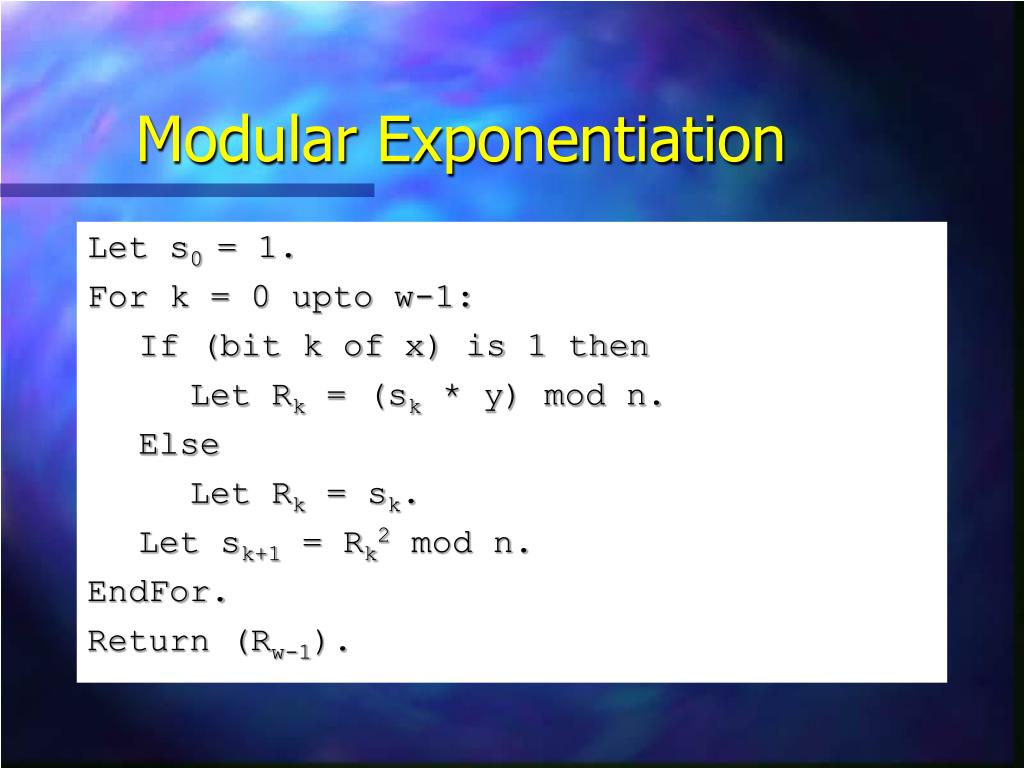

modular exponentiation
Modular Exponentiation

Let s0 = 1.

For k = 0 upto w-1:

If (bit k of x) is 1 then

Let Rk = (sk * y) mod n.


Let Rk = sk.

Let sk+1 = Rk2 mod n.


Return (Rw-1).

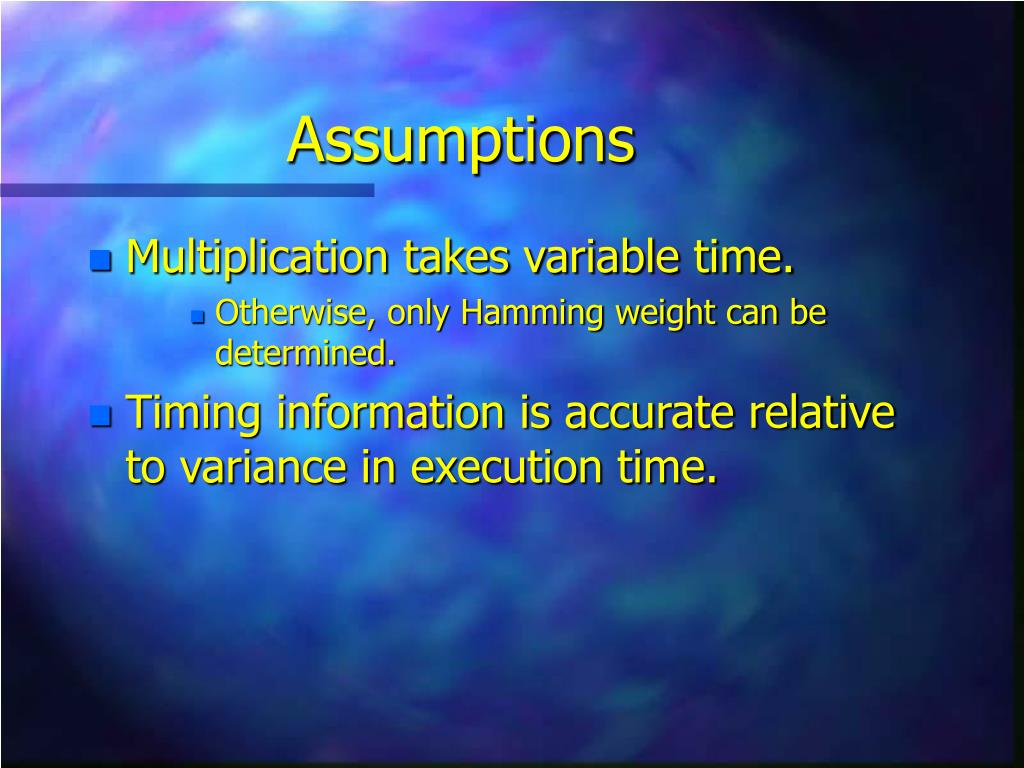

  • Multiplication takes variable time.
      • Otherwise, only Hamming weight can be determined.
  • Timing information is accurate relative to variance in execution time.

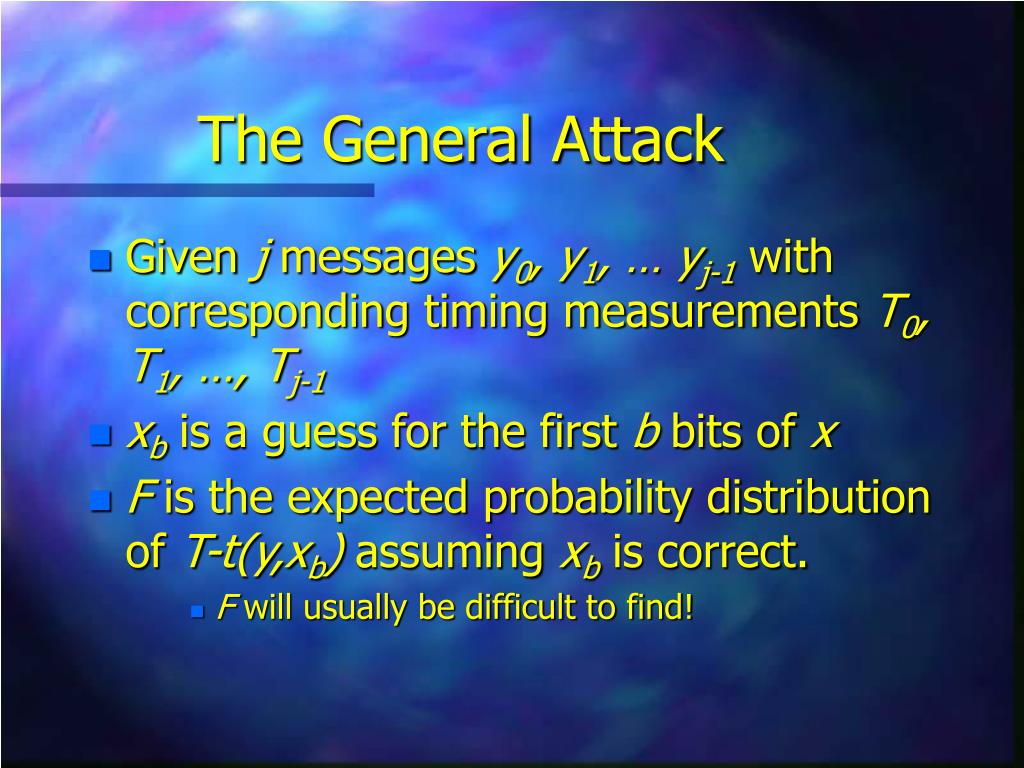

the general attack
The General Attack
  • Given j messages y0, y1, … yj-1 with corresponding timing measurements T0, T1, …, Tj-1
  • xb is a guess for the first b bits of x
  • F is the expected probability distribution of T-t(y,xb) assuming xb is correct.
      • F will usually be difficult to find!
the general attack continued
The General Attack continued
  • Probability that xb is correct.
  • If xb-1 is correct, probability that xb is correct and xb’ is incorrect.

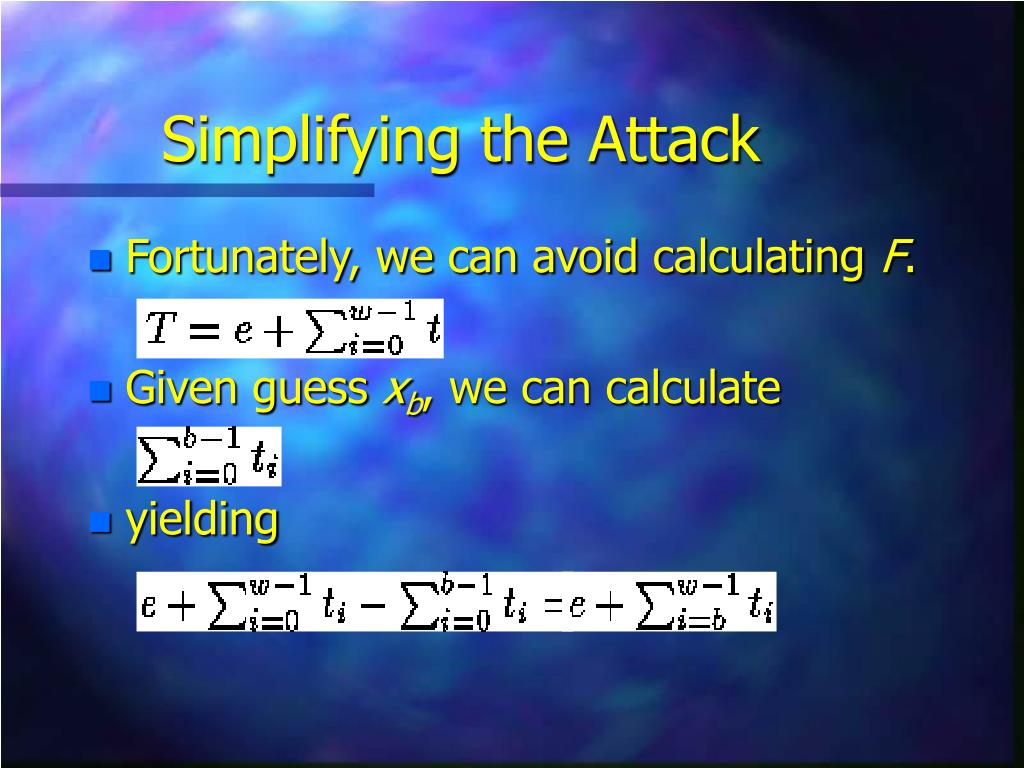

simplifying the attack
Simplifying the Attack
  • Fortunately, we can avoid calculating F.
  • Given guess xb, we can calculate
  • yielding
analysis of variance

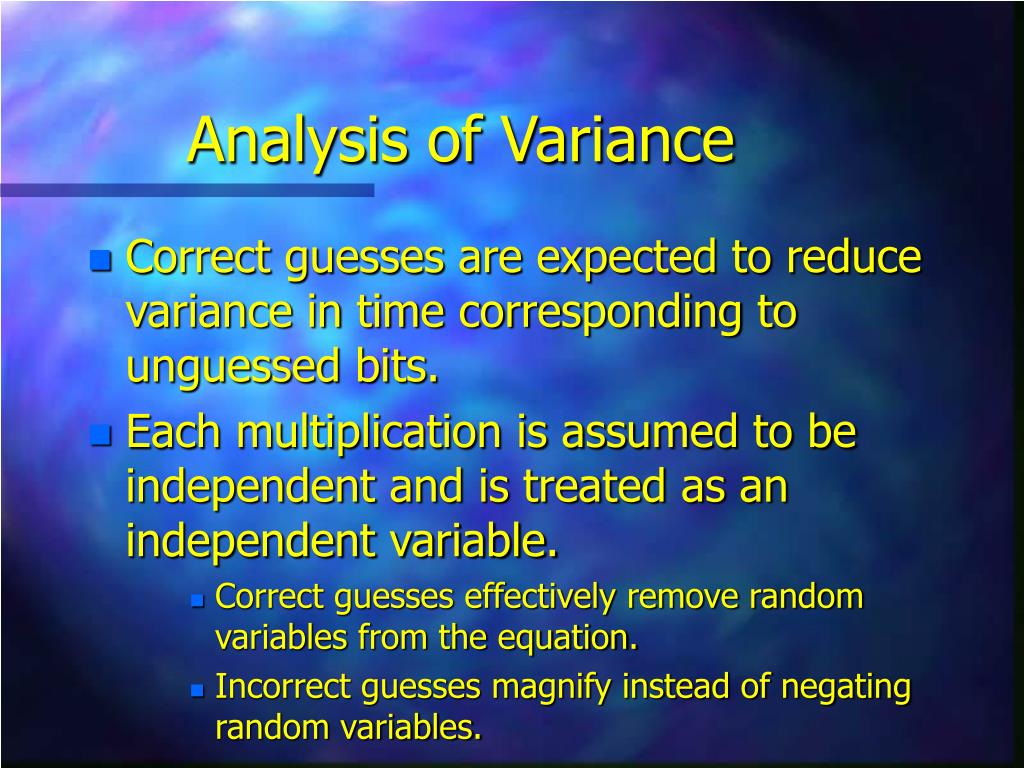

Analysis of Variance
  • Correct guesses are expected to reduce variance in time corresponding to unguessed bits.
  • Each multiplication is assumed to be independent and is treated as an independent variable.
      • Correct guesses effectively remove random variables from the equation.
      • Incorrect guesses magnify instead of negating random variables.
analysis of variance continued
Analysis of Variance continued
  • var(e) = error in timing measurements
  • var(t) = typical variation in each pass through the main loop
  • If xb is a correct guess,
      • var() = var(e)+(w-b)var(t)
  • If xc is a correct guess and the next bit is wrong,
      • var() = var(e)+(w-b+2(b-c))var(t)

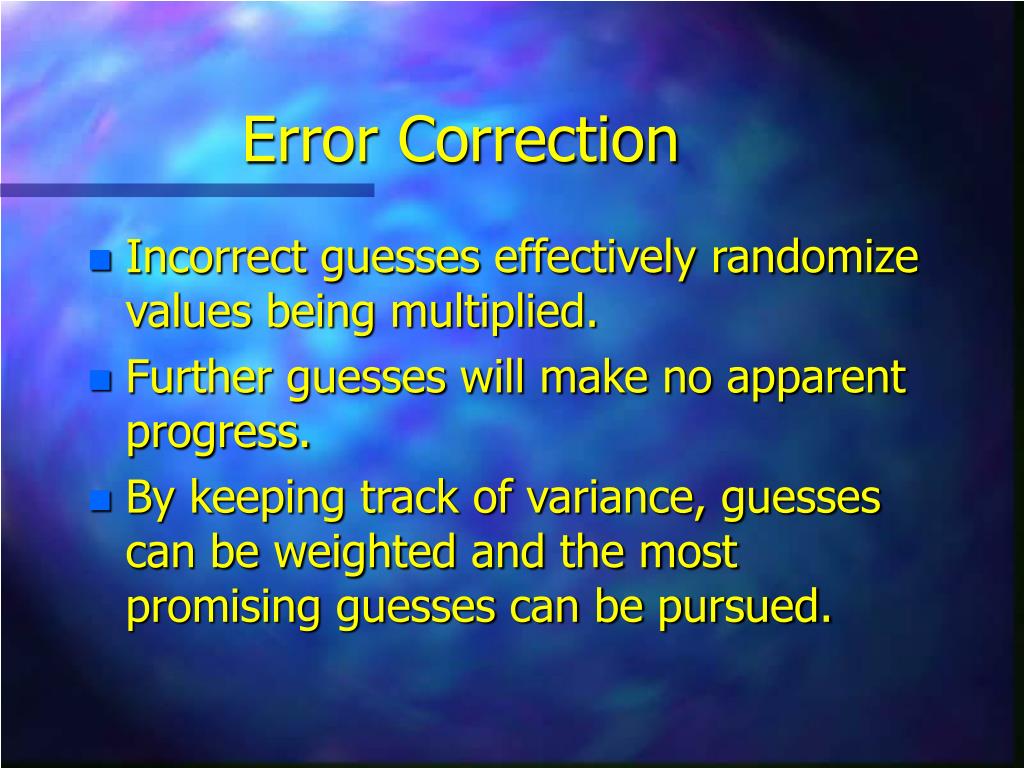

error correction
Error Correction
  • Incorrect guesses effectively randomize values being multiplied.
  • Further guesses will make no apparent progress.
  • By keeping track of variance, guesses can be weighted and the most promising guesses can be pursued.

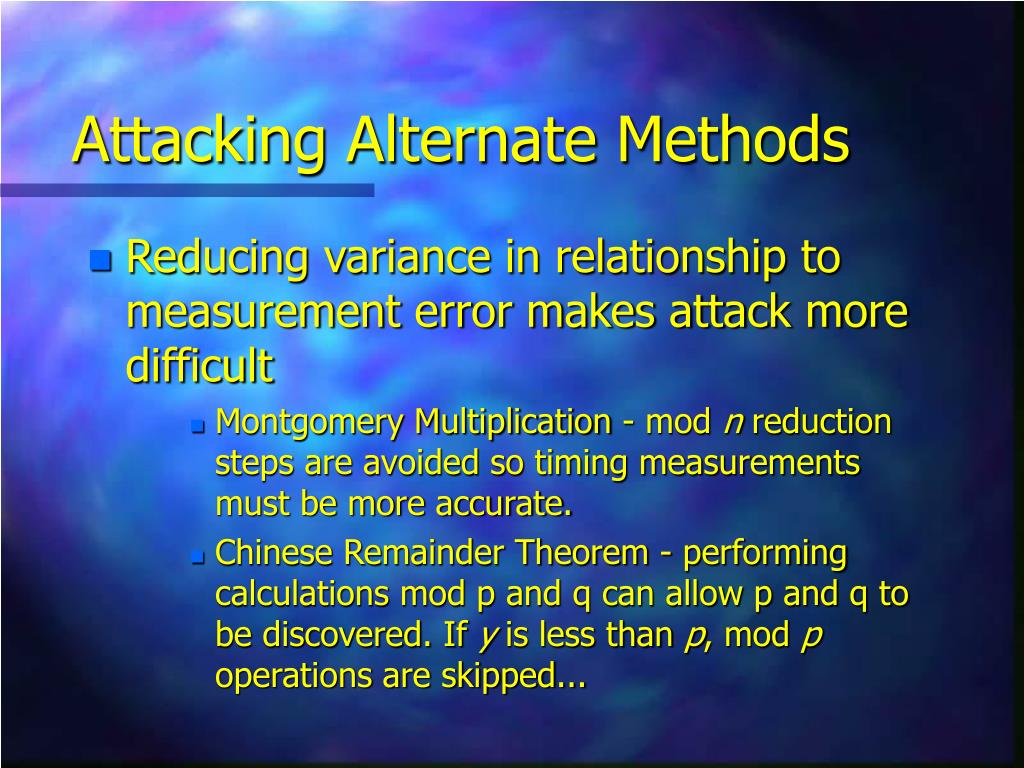

attacking alternate methods
Attacking Alternate Methods
  • Reducing variance in relationship to measurement error makes attack more difficult
      • Montgomery Multiplication - mod n reduction steps are avoided so timing measurements must be more accurate.
      • Chinese Remainder Theorem - performing calculations mod p and q can allow p and q to be discovered. If y is less than p, mod p operations are skipped...
masking timing characteristics

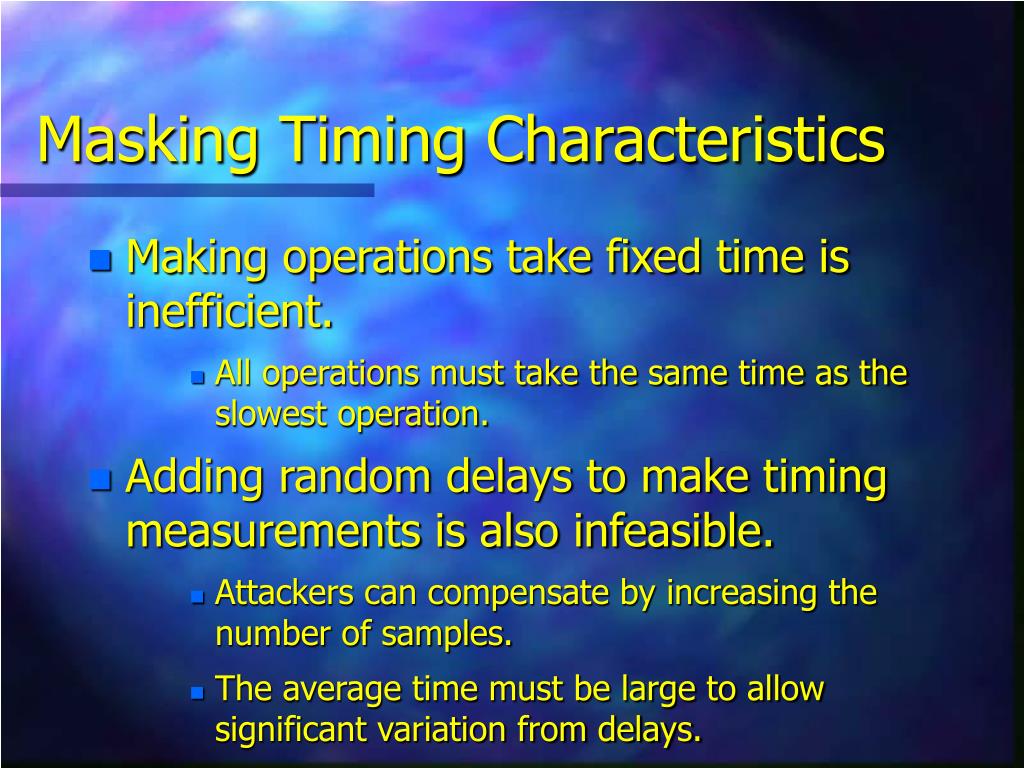

Masking Timing Characteristics
  • Making operations take fixed time is inefficient.
      • All operations must take the same time as the slowest operation.
  • Adding random delays to make timing measurements is also infeasible.
      • Attackers can compensate by increasing the number of samples.
      • The average time must be large to allow significant variation from delays.
preventing the attack

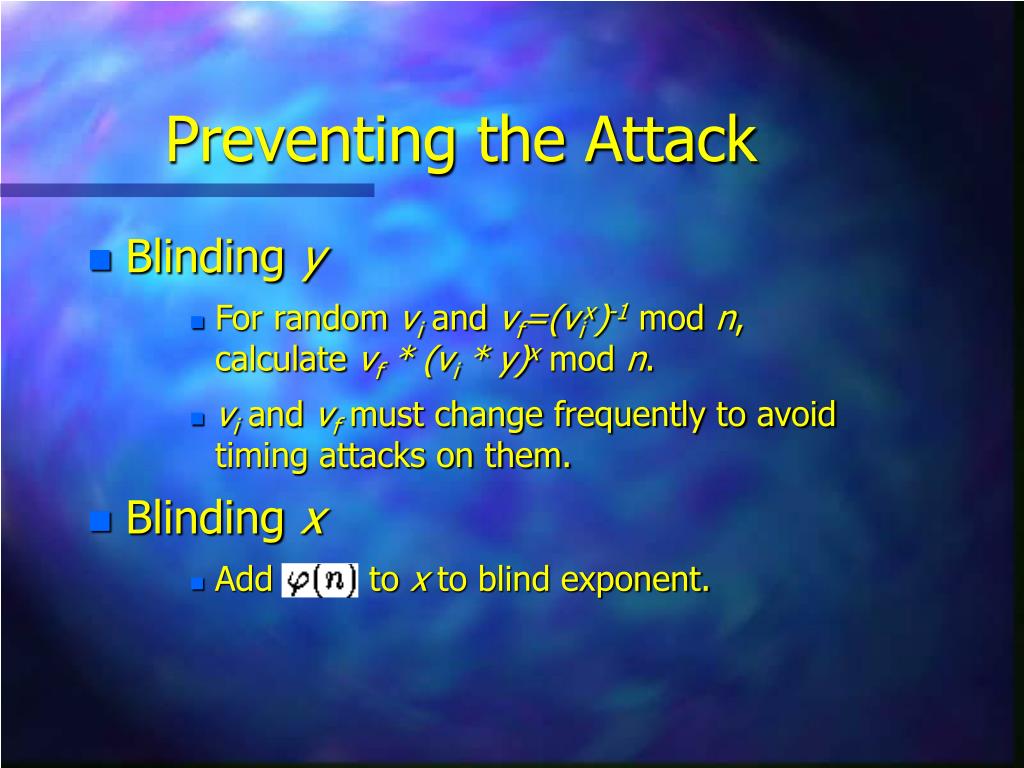

Preventing the Attack
  • Blinding y
      • For random vi and vf=(vix)-1 mod n, calculate vf * (vi * y)x mod n.
      • vi and vf must change frequently to avoid timing attacks on them.
  • Blinding x
      • Add to x to blind exponent.

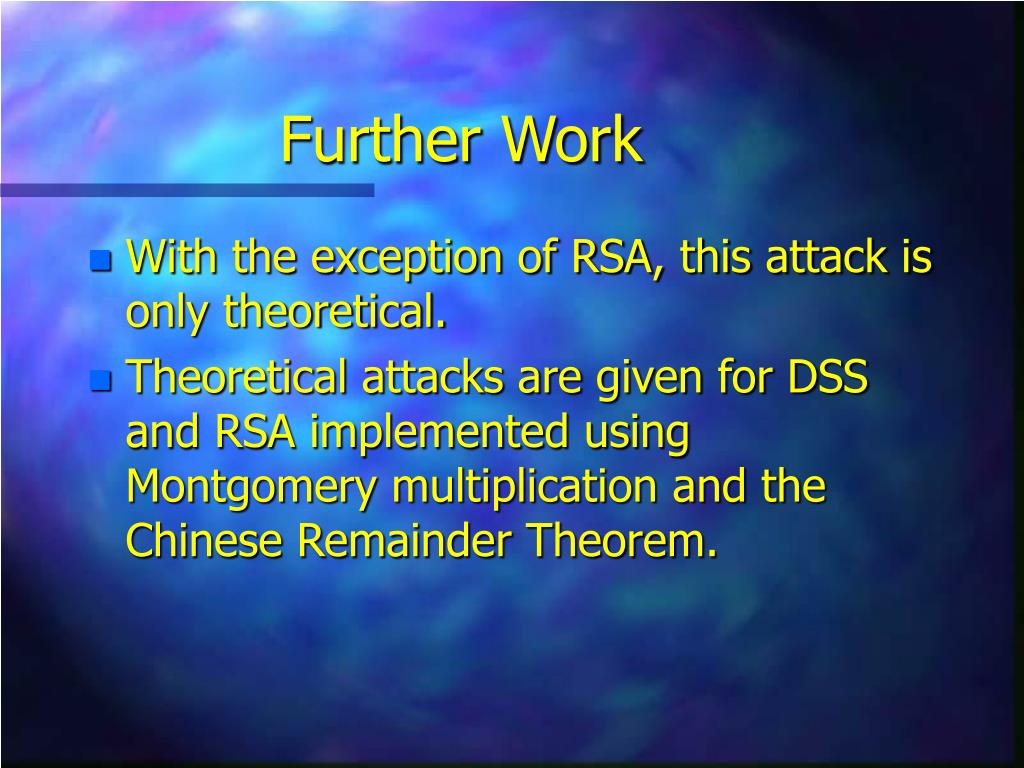

further work
Further Work
  • With the exception of RSA, this attack is only theoretical.
  • Theoretical attacks are given for DSS and RSA implemented using Montgomery multiplication and the Chinese Remainder Theorem.

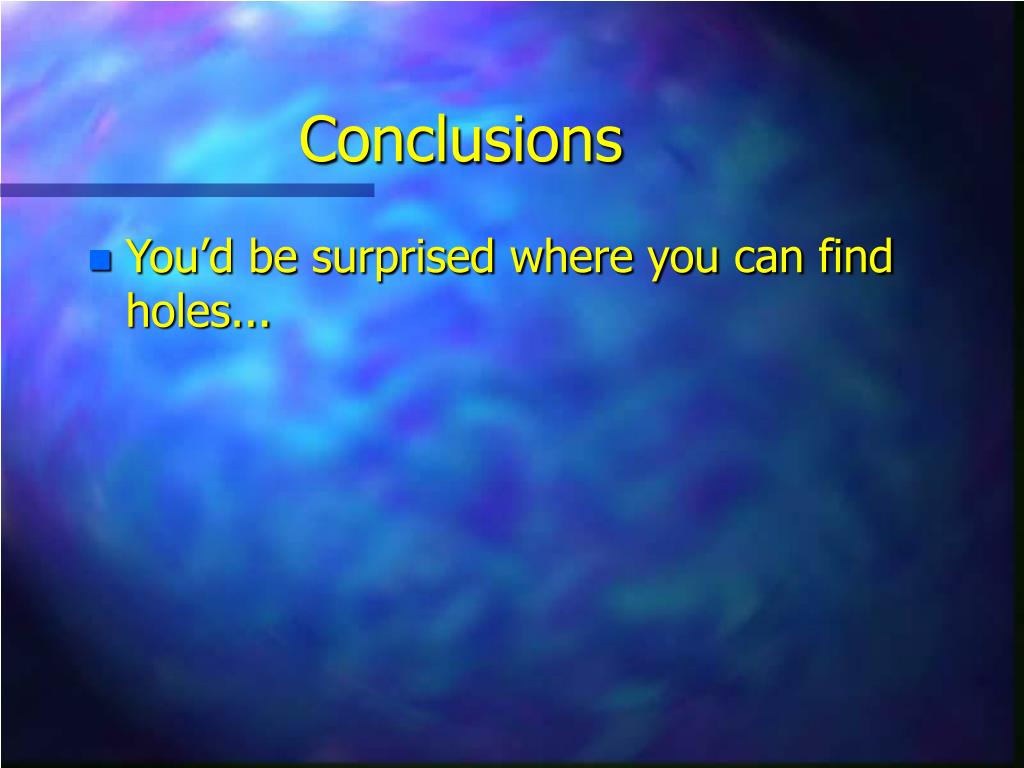

  • You’d be surprised where you can find holes...

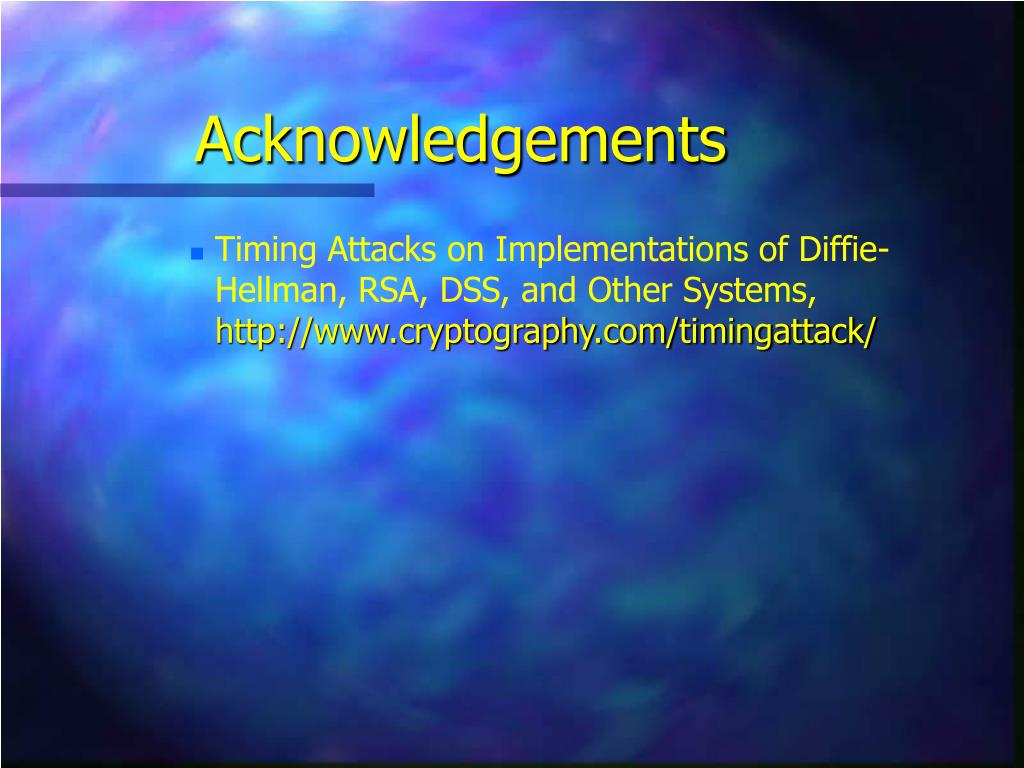

  • Timing Attacks on Implementations of Diffie-Hellman, RSA, DSS, and Other Systems, http://www.cryptography.com/timingattack/
