extensible distributed tracing from kernels to clusters

Fay

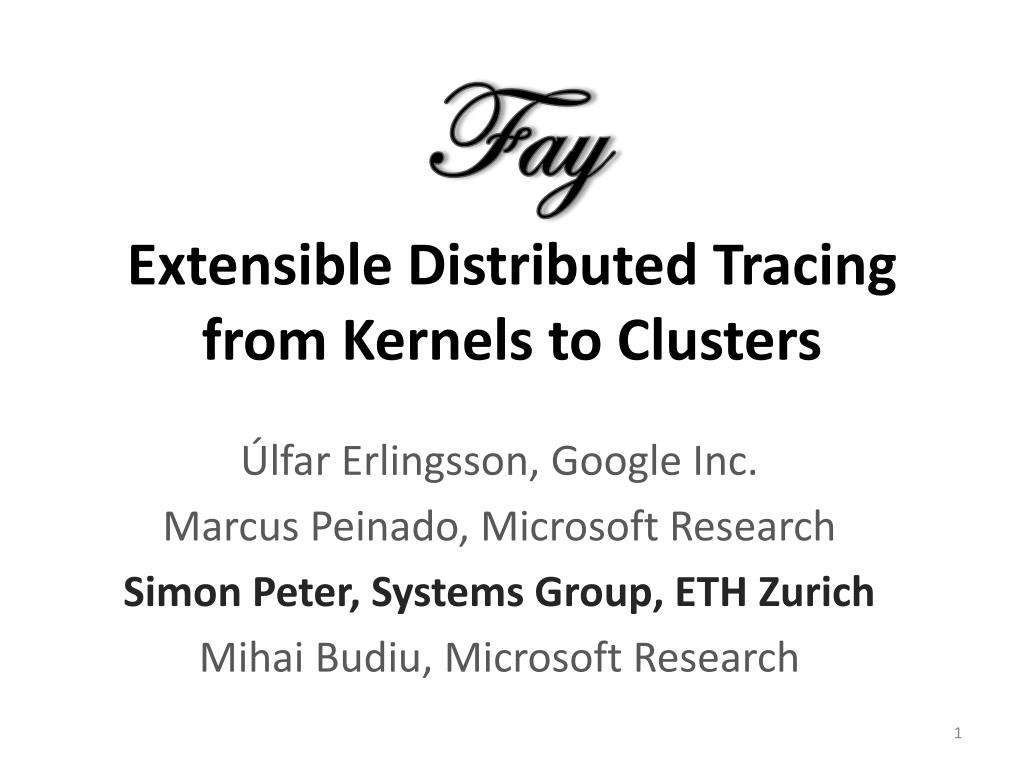

Extensible Distributed Tracing from Kernels to Clusters

Úlfar Erlingsson, Google Inc.

Marcus Peinado, Microsoft Research

Simon Peter, Systems Group, ETH Zurich

MihaiBudiu, Microsoft Research

wouldn t it be nice if
Wouldn’t it be nice if…
  • We could know what our clusters were doing?
  • We could ask any question, … easily, using one simple-to-use system.
  • We could collect answers extremely efficiently … so cheaply we may even ask continuously.

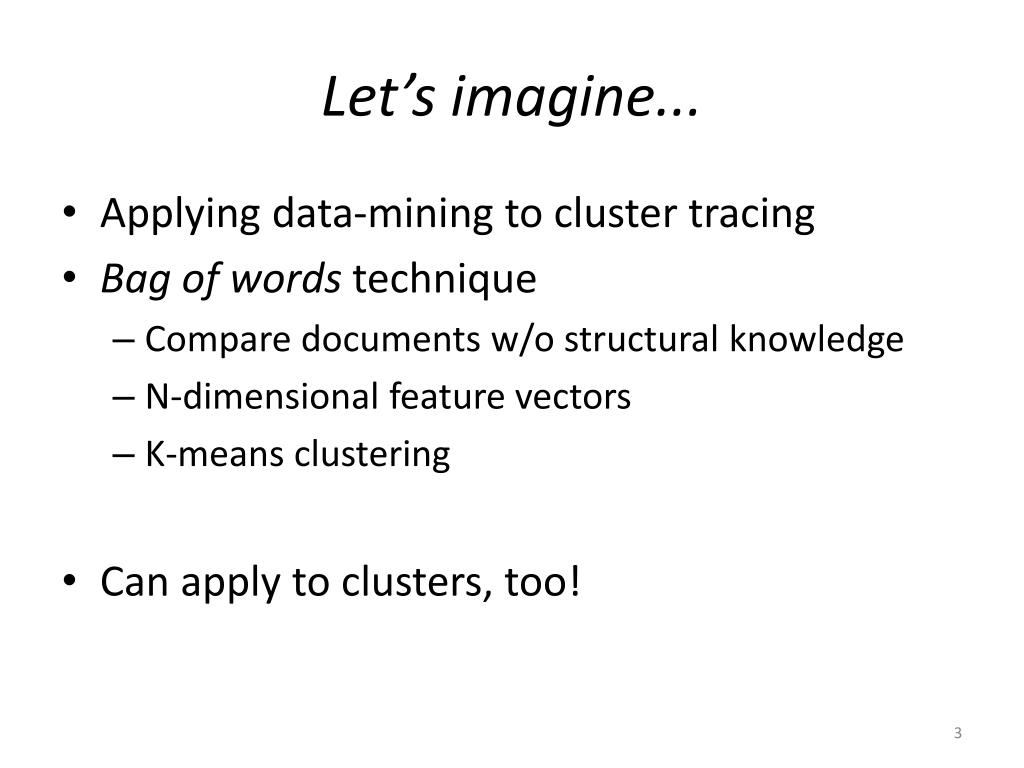

let s imagine
Let’s imagine...
  • Applying data-mining to cluster tracing
  • Bag of words technique
    • Compare documents w/o structural knowledge
    • N-dimensional feature vectors
    • K-means clustering
  • Can apply to clusters, too!

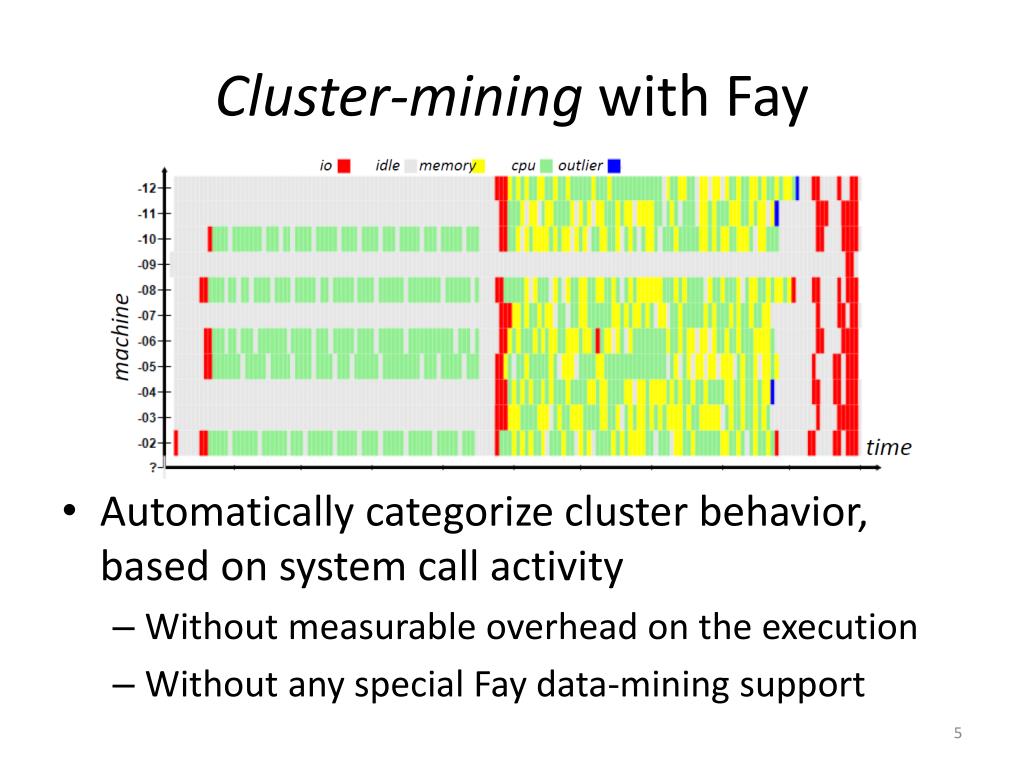

cluster mining with fay
Cluster-mining with Fay
  • Automatically categorize cluster behavior, based on system call activity
cluster mining with fay5
Cluster-mining with Fay
  • Automatically categorize cluster behavior, based on system call activity
    • Without measurable overhead on the execution
    • Without any special Fay data-mining support
fay k means behavior analysis code

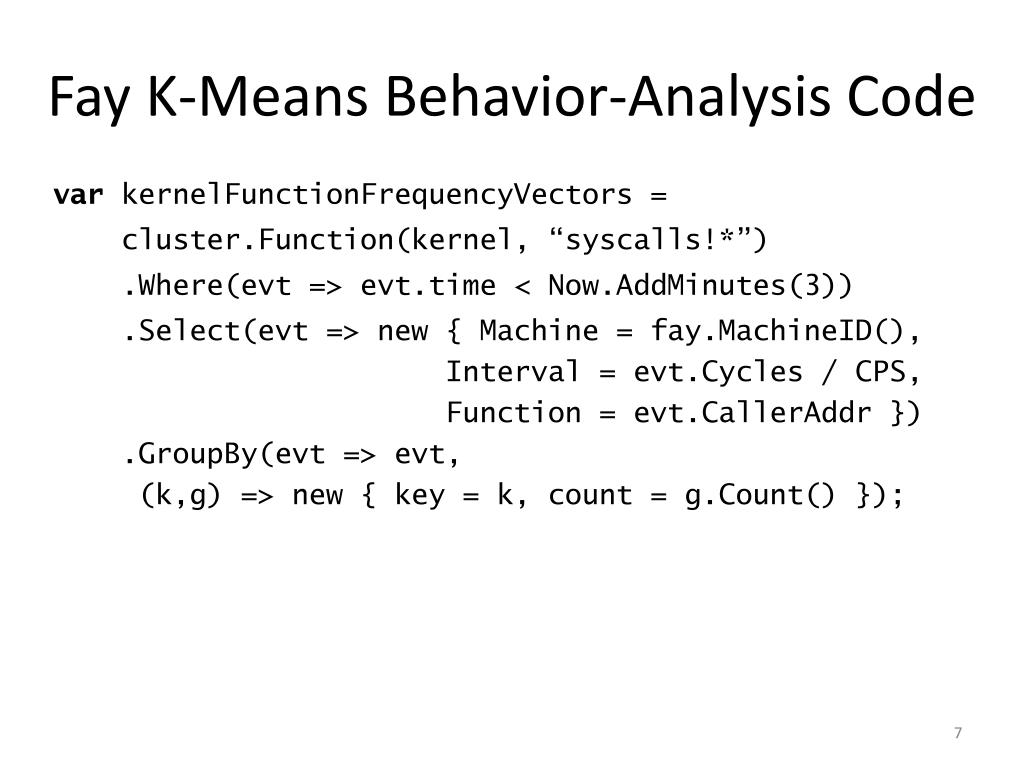

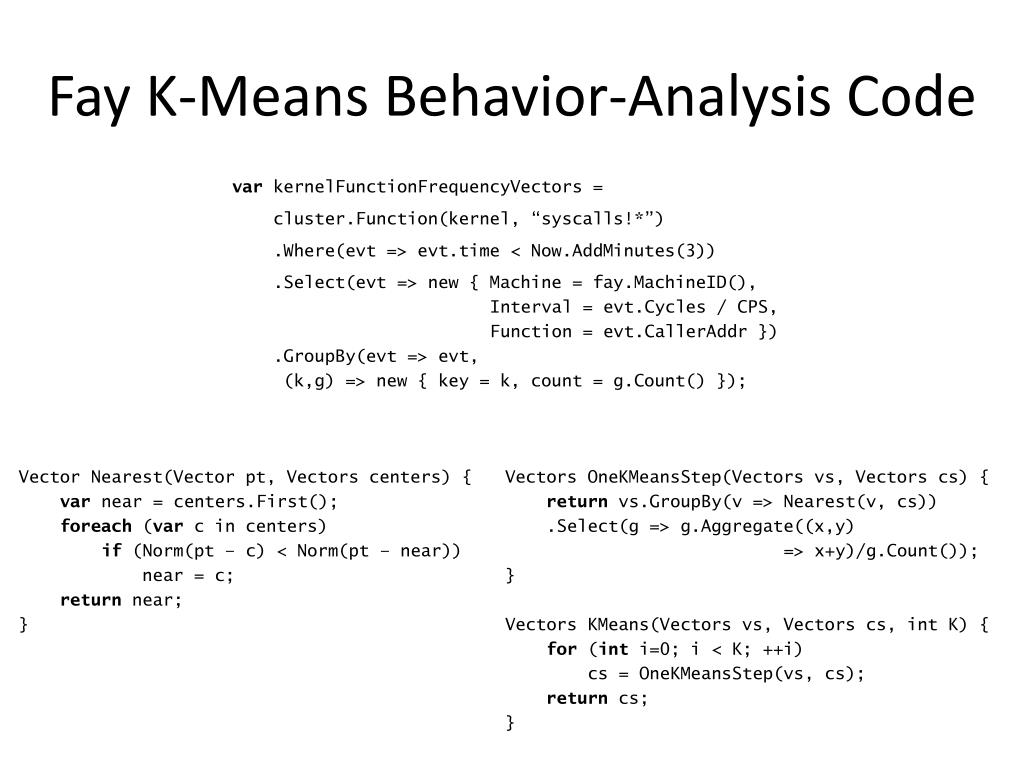

Fay K-Means Behavior-Analysis Code

var kernelFunctionFrequencyVectors =

cluster.Function(kernel, “syscalls!*”)

.Where(evt => evt.time < Now.AddMinutes(3))

.Select(evt => new { Machine = fay.MachineID(),

Interval = evt.Cycles / CPS,

Function = evt.CallerAddr })

.GroupBy(evt => evt,

(k,g) => new { key = k, count = g.Count() });

Vector Nearest(Vector pt, Vectors centers) {

var near = centers.First();

foreach (var c in centers)

if (Norm(pt – c) < Norm(pt – near))

near = c;

return near;

}

Vectors OneKMeansStep(Vectors vs, Vectors cs) {

return vs.GroupBy(v => Nearest(v, cs))

.Select(g => g.Aggregate((x,y)

=> x+y)/g.Count());

}

Vectors KMeans(Vectors vs, Vectors cs, int K) {

for (int i=0; i < K; ++i)

cs = OneKMeansStep(vs, cs);

return cs;

}

fay k means behavior analysis code7
Fay K-Means Behavior-Analysis Code

var kernelFunctionFrequencyVectors =

cluster.Function(kernel, “syscalls!*”)

.Where(evt => evt.time < Now.AddMinutes(3))

.Select(evt => new { Machine = fay.MachineID(),

Interval = evt.Cycles / CPS,

Function = evt.CallerAddr })

.GroupBy(evt => evt,

(k,g) => new { key = k, count = g.Count() });

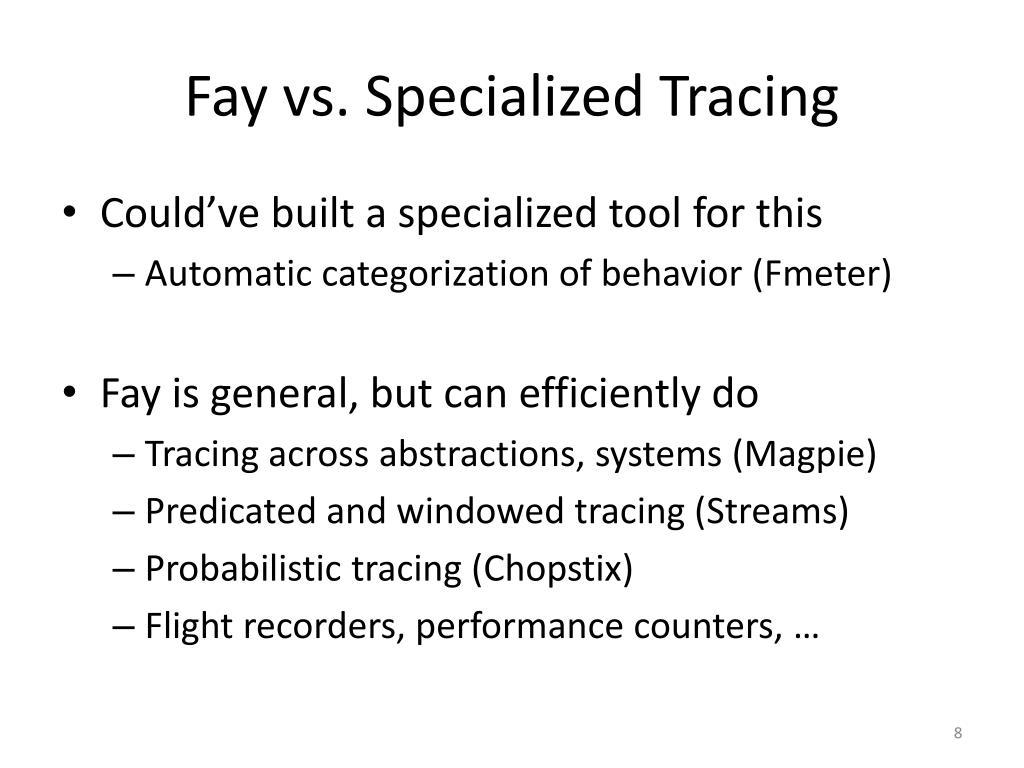

fay vs specialized tracing
Fay vs. Specialized Tracing
  • Could’ve built a specialized tool for this
    • Automatic categorization of behavior (Fmeter)
  • Fay is general, but can efficiently do
    • Tracing across abstractions, systems (Magpie)
    • Predicated and windowed tracing (Streams)
    • Probabilistic tracing (Chopstix)
    • Flight recorders, performance counters, …

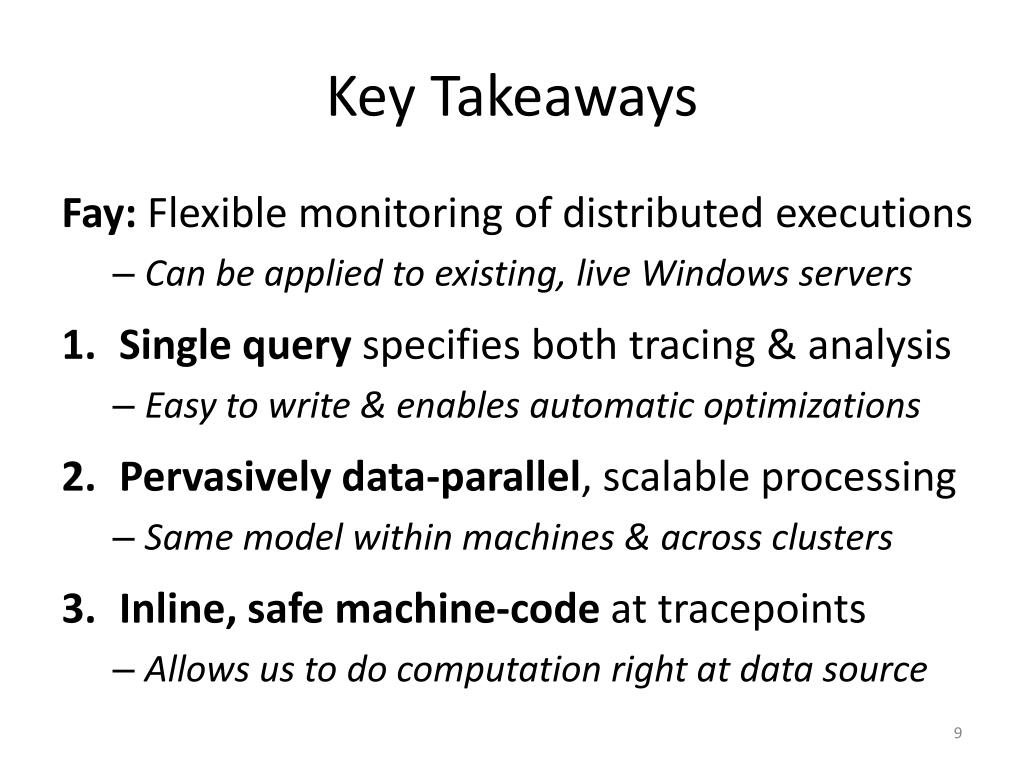

key takeaways
Key Takeaways

Fay: Flexible monitoring of distributed executions

    • Can be applied to existing, live Windows servers
  • Single query specifies both tracing & analysis
    • Easy to write & enables automatic optimizations
  • Pervasively data-parallel,scalable processing
    • Same model within machines & across clusters
  • Inline, safe machine-code at tracepoints
    • Allows us to do computation right at data source
k means single unified fay query

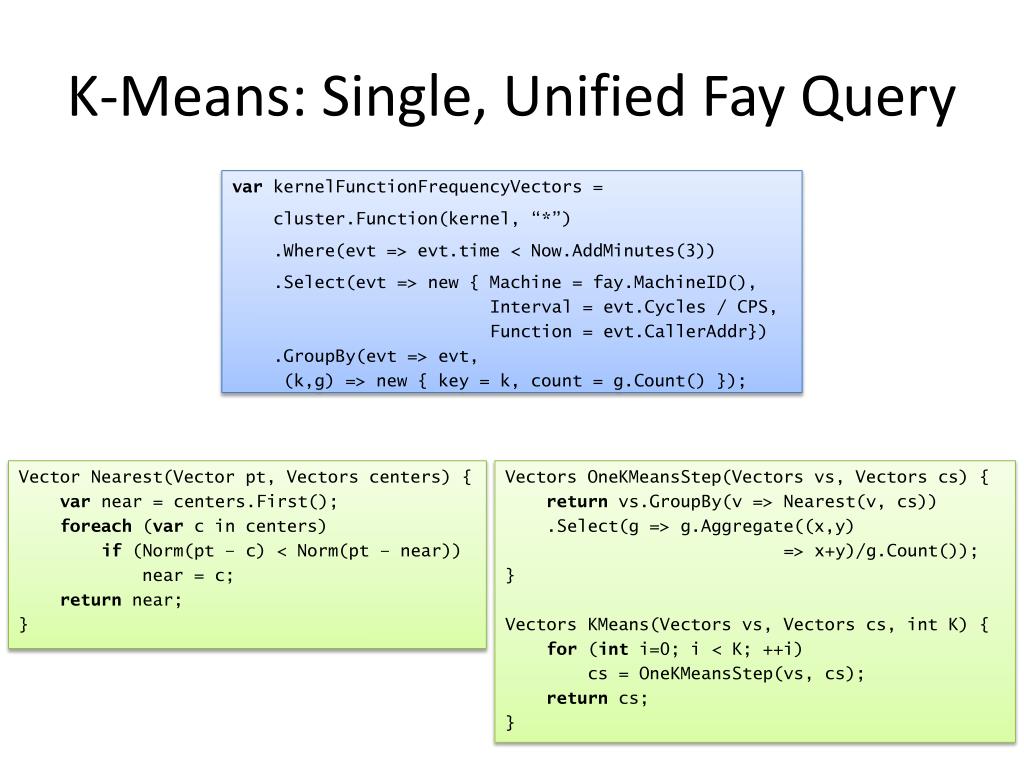

K-Means: Single, Unified Fay Query

var kernelFunctionFrequencyVectors =

cluster.Function(kernel, “*”)

.Where(evt => evt.time < Now.AddMinutes(3))

.Select(evt => new { Machine = fay.MachineID(),

Interval = evt.Cycles / CPS,

Function = evt.CallerAddr})

.GroupBy(evt => evt,

(k,g) => new { key = k, count = g.Count() });

var kernelFunctionFrequencyVectors =

cluster.Function(kernel, “*”)

.Where(evt => evt.time < Now.AddMinutes(3))

.Select(evt => new { Machine = MachineID(),

Interval = w.Cycles / CPS,

Function = w.CallerAddr})

.GroupBy(evt => evt,

(k,g) => new { key = k, count = g.Count() });

Vector Nearest(Vector pt, Vectors centers) {

var near = centers.First();

foreach (var c in centers)

if (|pt – c| < |pt – near|)

near = c;

return near;

}

Vector Nearest(Vector pt, Vectors centers) {

var near = centers.First();

foreach (var c in centers)

if (Norm(pt – c) < Norm(pt – near))

near = c;

return near;

}

Vectors OneKMeansStep(Vectors vs, Vectors cs) {

return vs.GroupBy(v => Nearest(v, cs))

.Select(g => g.Aggregate((x,y)

=> x+y)/g.Count());

}

Vectors KMeans(Vectors vs, Vectors cs, int K) {

for (int i=0; i < K; ++i)

cs = OneKMeansStep(vs, cs);

return cs;

}

Vectors OneKMeansStep(Vectors vs, Vectors cs) {

return vs.GroupBy(v => Nearest(v, cs))

.Select(g => g.Aggregate((x,y)

=> x+y)/g.Count());

}

Vectors KMeans(Vectors vs, Vectors cs, int K) {

for (int i=0; i < K; ++i)

cs = OneKMeansStep(vs, cs);

return cs;

}

fay is data parallel on cluster

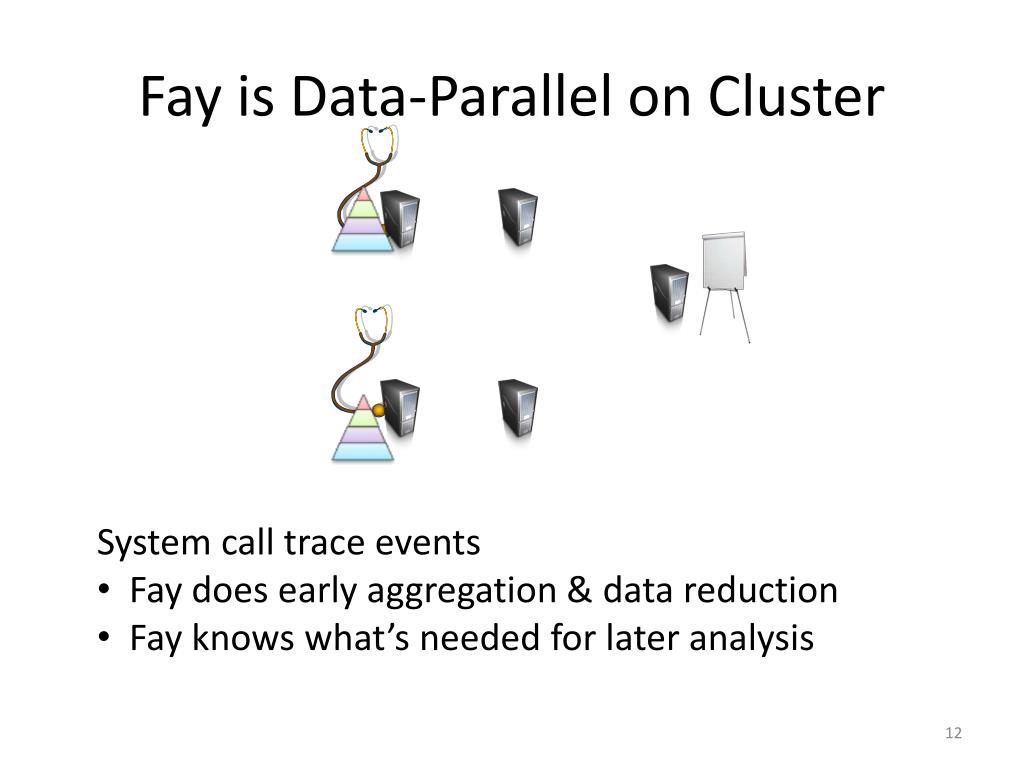

Fay is Data-Parallel on Cluster
  • View trace query as distributed computation
  • Use cluster for analysis
fay is data parallel on cluster12
Fay is Data-Parallel on Cluster
  • System call trace events
  • Fay does early aggregation & data reduction
  • Fay knows what’s needed for later analysis
fay is data parallel on cluster13

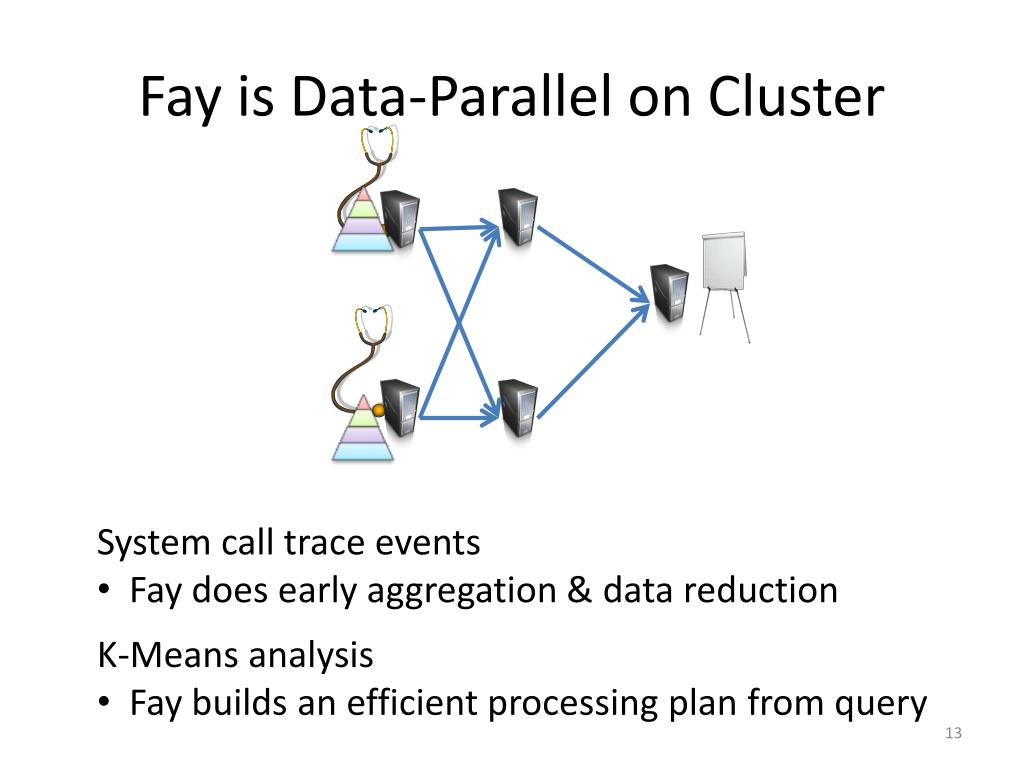

Fay is Data-Parallel on Cluster
  • System call trace events
  • Fay does early aggregation & data reduction
  • K-Means analysis
  • Fay builds an efficient processing plan from query

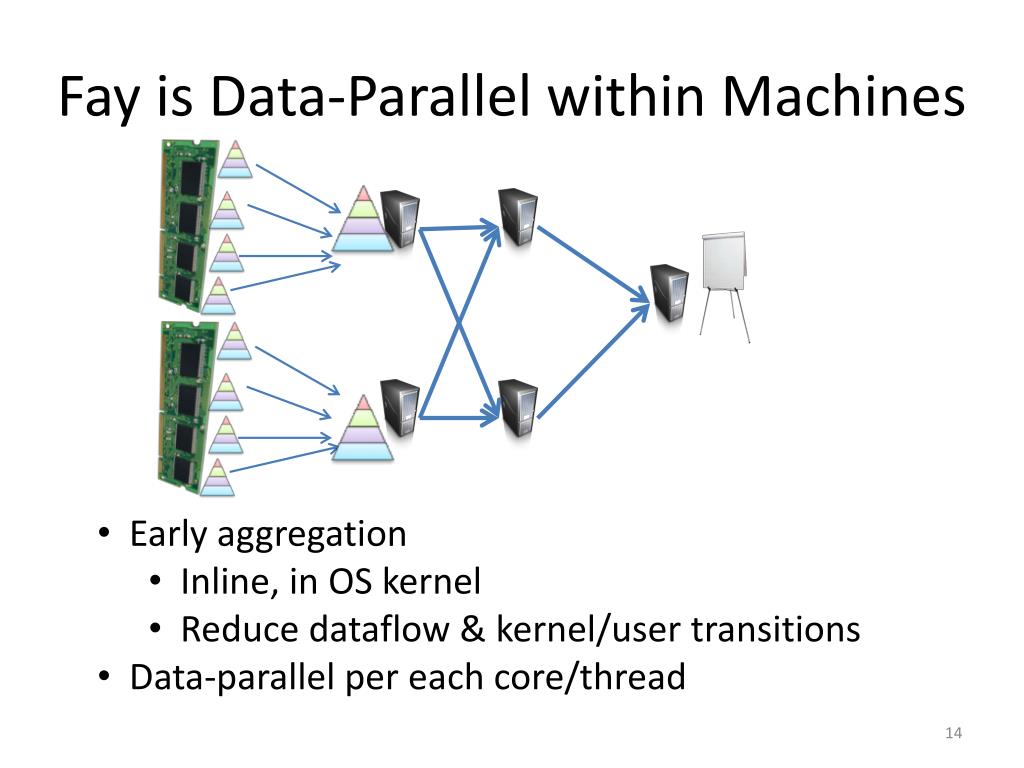

fay is data parallel within machines
Fay is Data-Parallel within Machines
  • Early aggregation
    • Inline, in OS kernel
    • Reduce dataflow & kernel/user transitions
  • Data-parallel per each core/thread

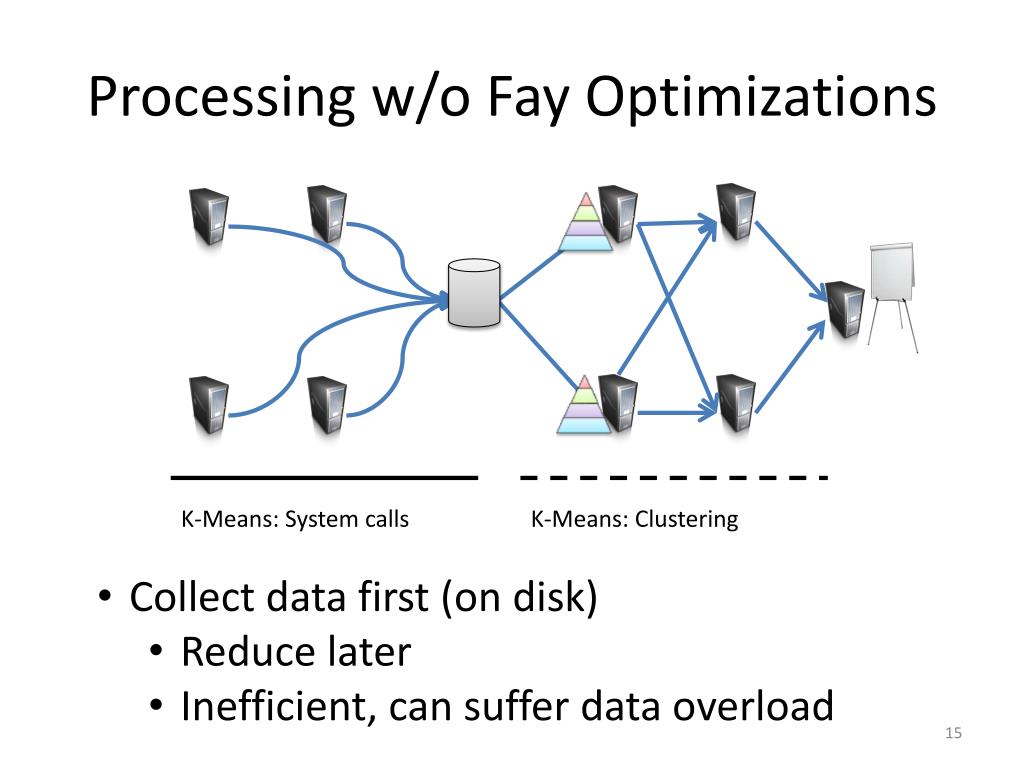

processing w o fay optimizations
Processing w/o Fay Optimizations

K-Means: System calls

K-Means: Clustering

  • Collect data first (on disk)
    • Reduce later
    • Inefficient, can suffer data overload
traditional trace processing

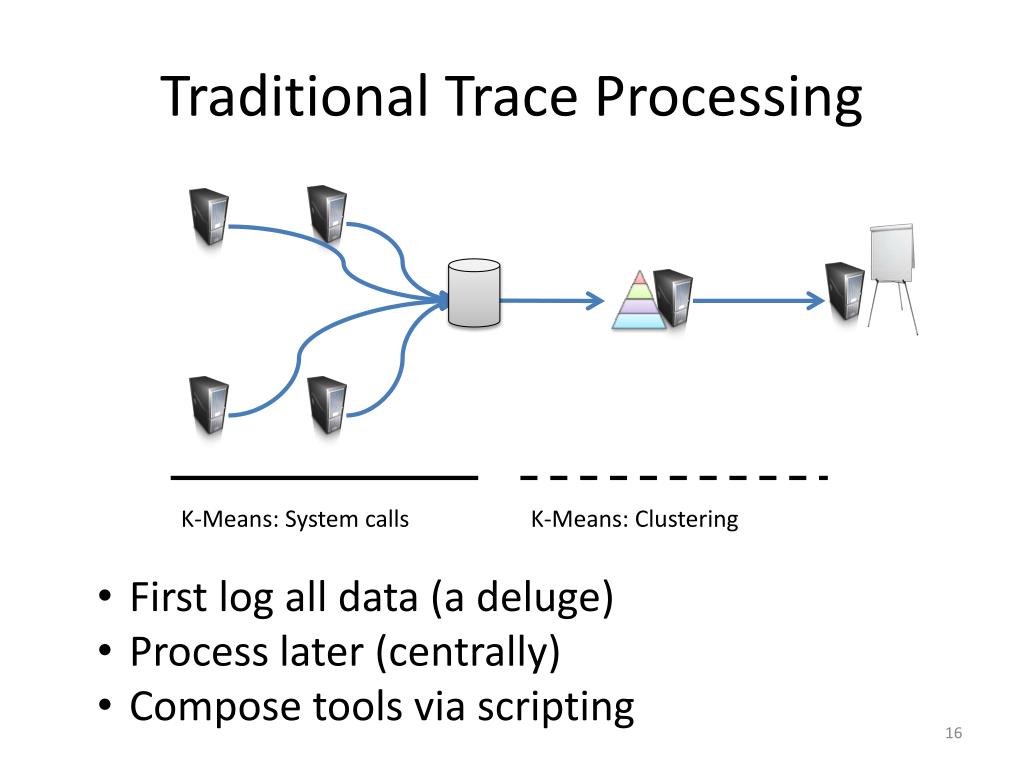

Traditional Trace Processing

K-Means: System calls

K-Means: Clustering

  • First log all data (a deluge)
  • Process later (centrally)
  • Compose tools via scripting
takeaways so far

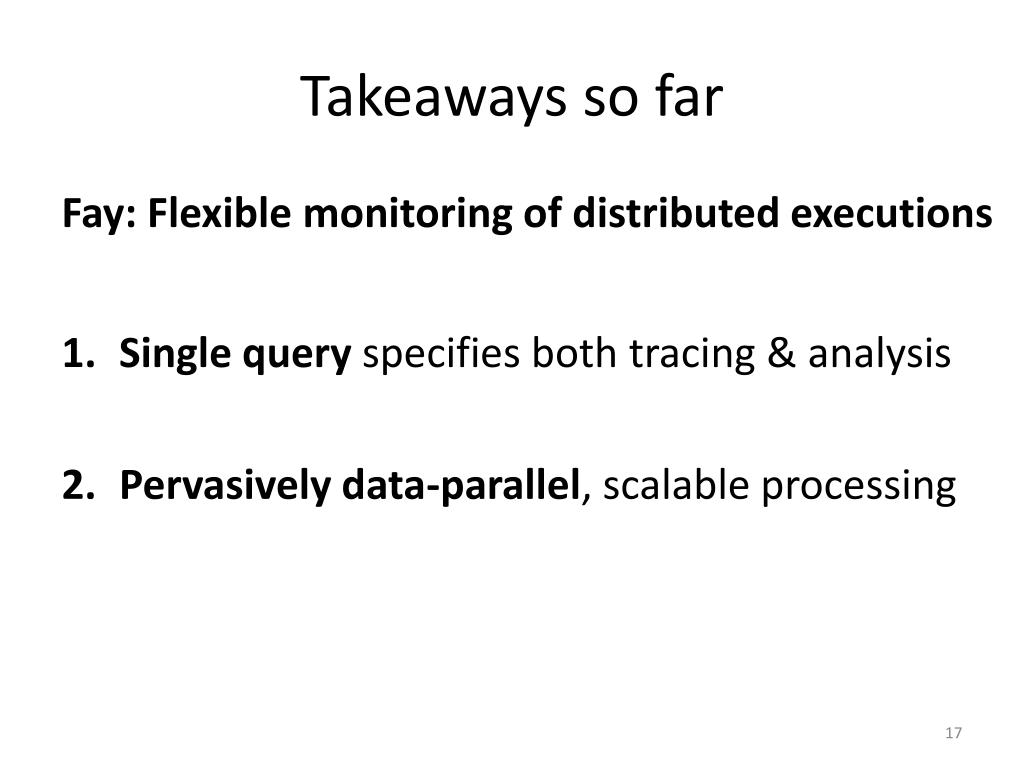

Takeaways so far

Fay: Flexible monitoring of distributed executions

  • Single query specifies both tracing & analysis
  • Pervasively data-parallel,scalable processing
safety of fay tracing probes

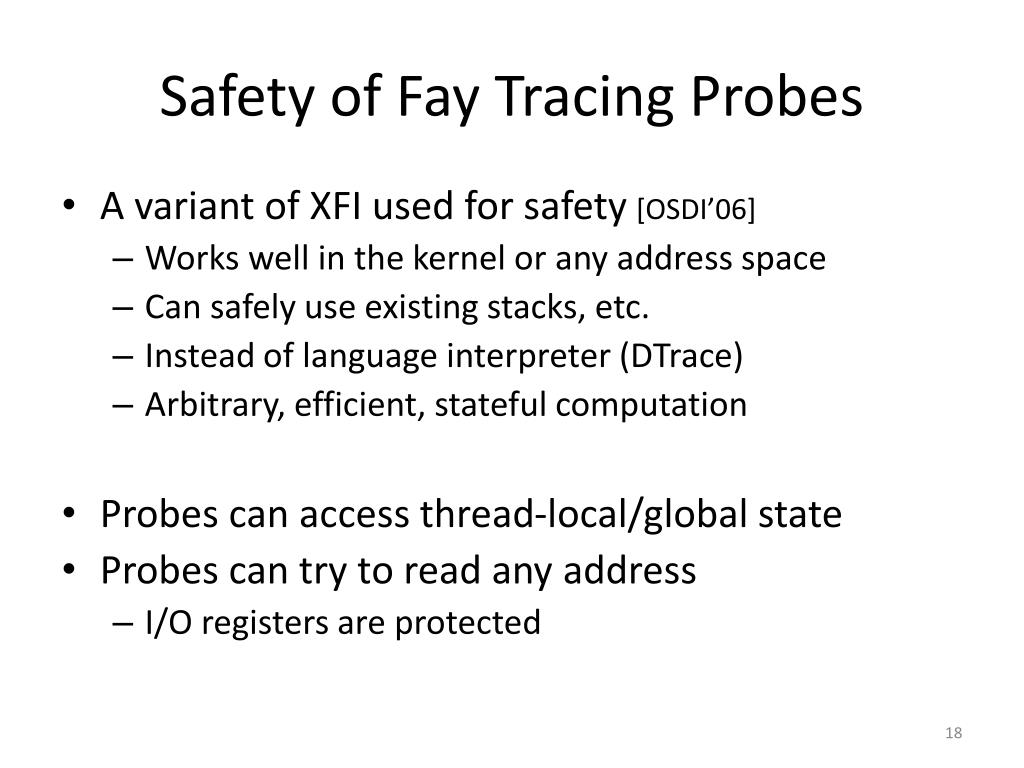

Safety of Fay Tracing Probes
  • A variant of XFI used for safety [OSDI’06]
    • Works well in the kernel or any address space
    • Can safely use existing stacks, etc.
    • Instead of language interpreter (DTrace)
    • Arbitrary, efficient, statefulcomputation
  • Probes can access thread-local/global state
  • Probes can try to read any address
    • I/O registers are protected
key takeaways again
Key Takeaways, Again

Fay: Flexible monitoring of distributed executions

  • Single query specifies both tracing & analysis
  • Pervasively data-parallel,scalable processing
  • Inline, safe machine-code at tracepoints
installing and executing fay tracing

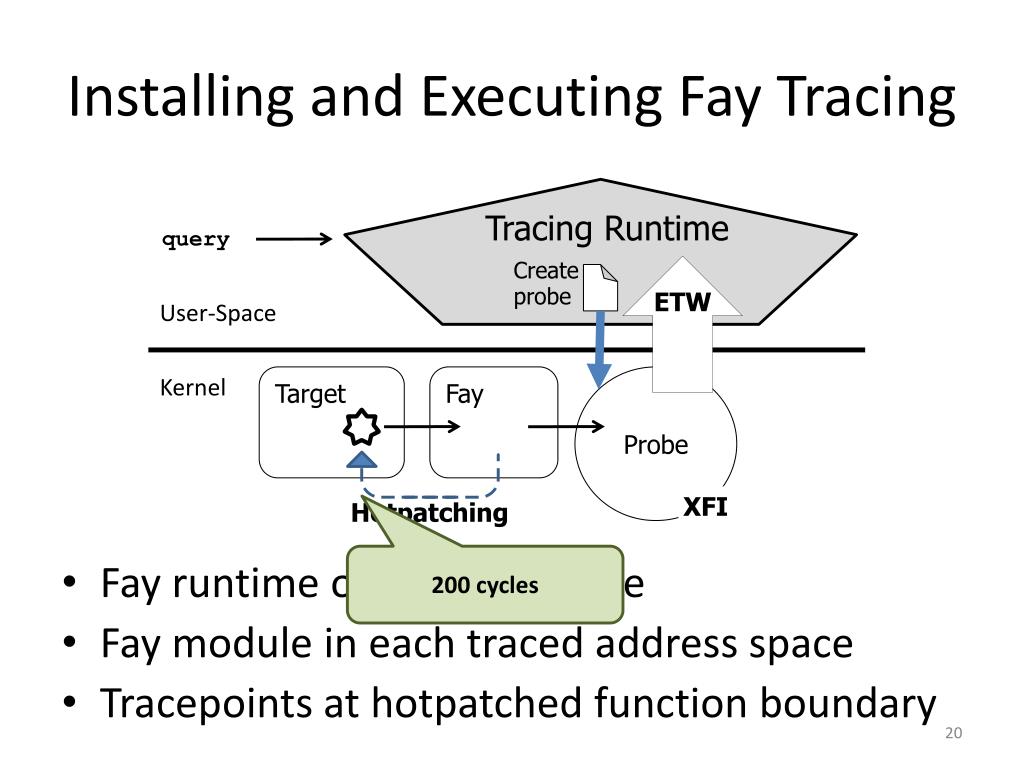

Installing and Executing Fay Tracing
  • Fay runtime on each machine
  • Fay module in each traced address space
  • Tracepoints at hotpatched function boundary

Tracing Runtime

query

Createprobe

ETW

User-Space

Kernel

Target

Fay

Probe

XFI

Hotpatching

200 cycles

low level code instrumentation

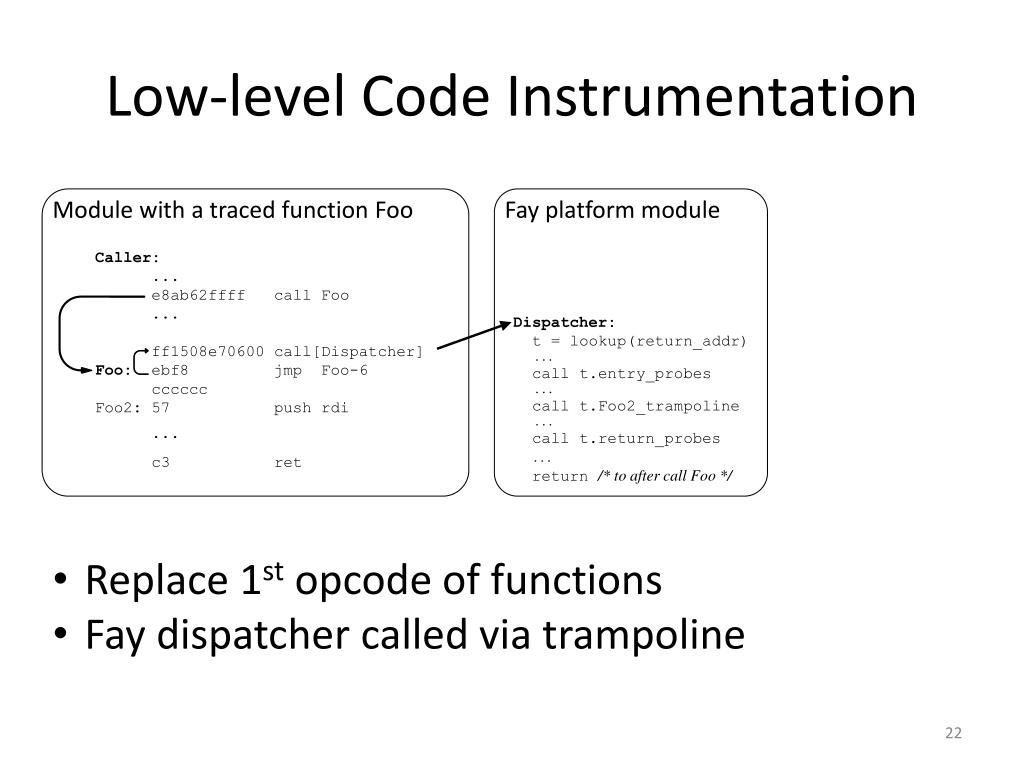

Low-level Code Instrumentation

Module with a traced function Foo

Caller:

...

e8ab62ffff call Foo

...

ff1508e70600 call[Dispatcher]

Foo: ebf8 jmp Foo-6

cccccc

Foo2: 57 push rdi

...

c3 ret

  • Replace 1stopcode of functions
low level code instrumentation22
Low-level Code Instrumentation

Module with a traced function Foo

Fay platform module

Dispatcher:

t = lookup(return_addr)

...

call t.entry_probes

...

call t.Foo2_trampoline

...

call t.return_probes

...

return /* to after call Foo */

Caller:

...

e8ab62ffff call Foo

...

ff1508e70600 call[Dispatcher]

Foo: ebf8 jmp Foo-6

cccccc

Foo2: 57 push rdi

...

c3 ret

  • Replace 1stopcode of functions
  • Fay dispatcher called via trampoline
low level code instrumentation23
Low-level Code Instrumentation

Module with a traced function Foo

Fay platform module

Fay probes

Dispatcher:

t = lookup(return_addr)

...

call t.entry_probes

...

call t.Foo2_trampoline

...

call t.return_probes

...

return /* to after call Foo */

Caller:

...

e8ab62ffff call Foo

...

ff1508e70600 call[Dispatcher]

Foo: ebf8 jmp Foo-6

cccccc

Foo2: 57 push rdi

...

c3 ret

PF3

XFI

PF4

PF5

XFI

XFI

  • Replace 1stopcode of functions
  • Fay dispatcher called via trampoline
  • Fay calls the function, and entry & exit probes
what s fay s performance scalability
What’s Fay’s Performance & Scalability?
  • Fay adds 220 to 430 cycles per traced function
  • Fay adds 180% CPU to trace all kernel functions
  • Both approx 10x faster than Dtrace, SystemTap

Slowdown (x)

Null-probe overhead

Cycles

fay scalability on a cluster

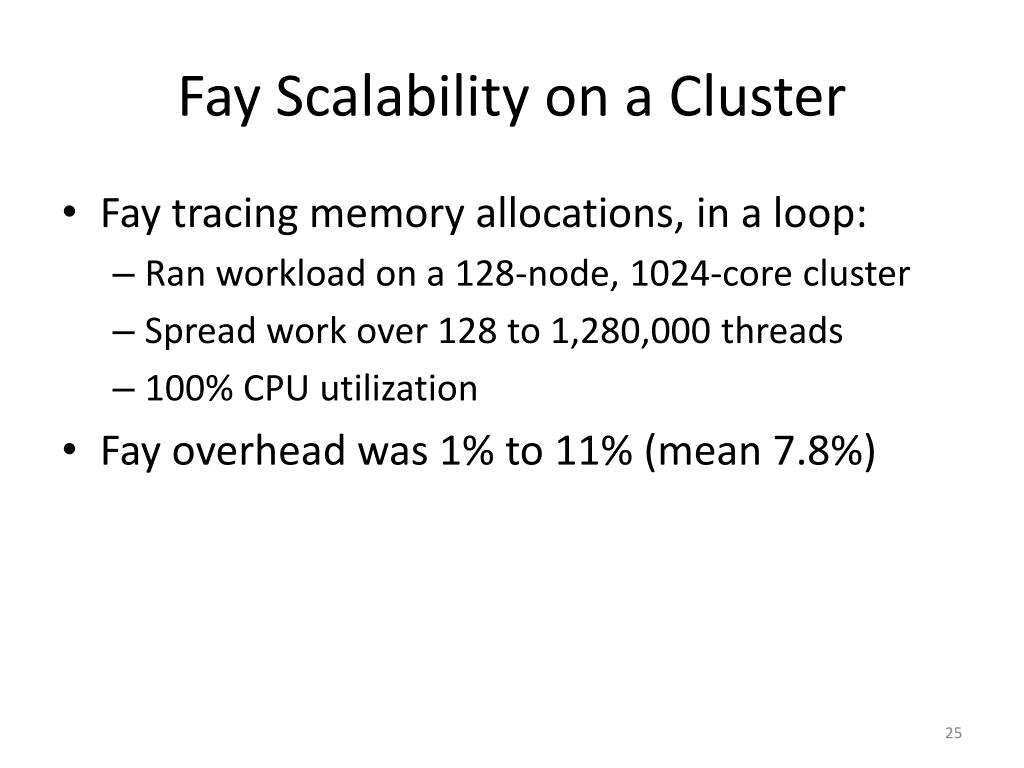

Fay Scalability on a Cluster
  • Fay tracing memory allocations, in a loop:
    • Ran workload on a 128-node, 1024-core cluster
    • Spread work over 128 to 1,280,000 threads
    • 100% CPU utilization
  • Fay overhead was 1% to 11% (mean 7.8%)

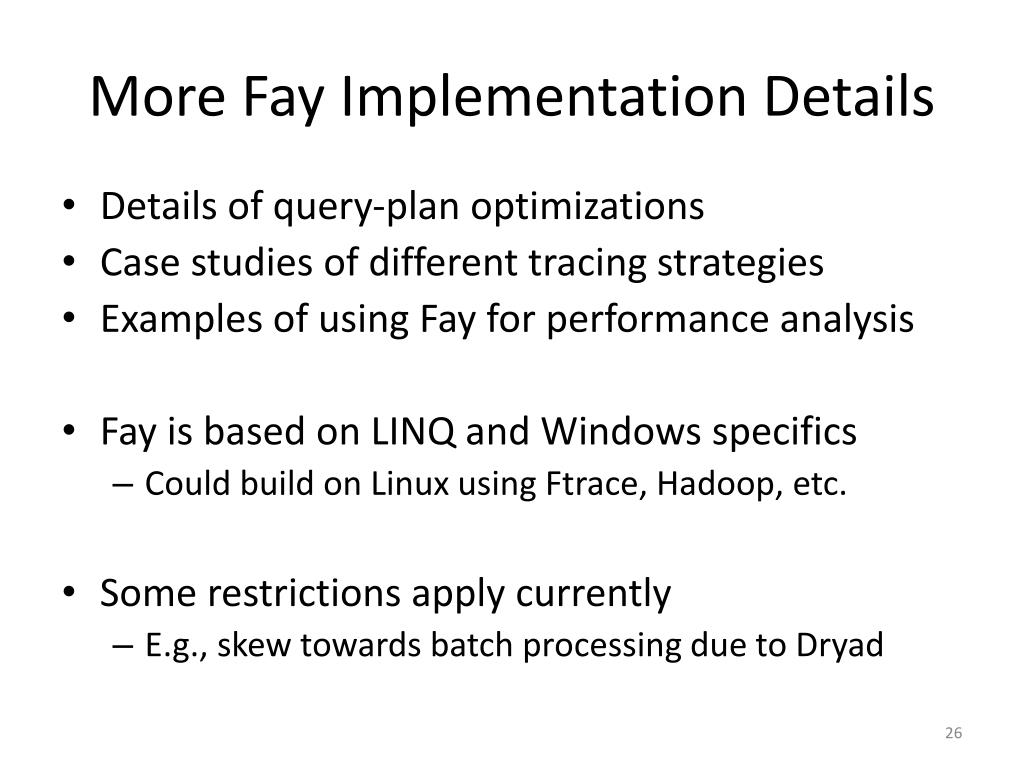

more fay implementation details
More Fay Implementation Details
  • Details of query-plan optimizations
  • Case studies of different tracing strategies
  • Examples of using Fay for performance analysis
  • Fay is based on LINQ and Windows specifics
    • Could build on Linux using Ftrace, Hadoop, etc.
  • Some restrictions apply currently
    • E.g., skew towards batch processing due to Dryad
conclusion
Conclusion
  • Fay: Flexible tracing of distributed executions
  • Both expressiveand efficient
    • Unified trace queries
    • Pervasive data-parallelism
    • Safe machine-code probe processing
  • Often equally efficient as purpose-built tools
a fay trace query
A Fay Trace Query

from ioin cluster.Function("iolib!Read")

where io.time < Now.AddMinutes(5)

let size = io.Arg(2) // request size in bytes

group ioby size/1024 into g

select new { sizeInKilobytes = g.Key,

countOfReadIOs = g.Count() };

  • Aggregates read activity in iolib module
    • Across cluster, both user-mode & kernel
    • Over 5 minutes
a fay trace query30
A Fay Trace Query

from ioin cluster.Function("iolib!Read")

where io.time < Now.AddMinutes(5)

let size = io.Arg(2) // request size in bytes

group ioby size/1024 into g

select new { sizeInKilobytes = g.Key,

countOfReadIOs = g.Count() };

  • Specifies what to trace
    • 2nd argument of read function in iolib
  • And how to aggregate
    • Group into kb-size buckets and count
