  1. Online Kml Generator(ppt by Ray Hara) SAR Mission 11-A-4195 at Tuscaloosa (TCL) • Web Link to Search Pattern Kml Generator: • http://redstone119.alwg.cap.gov/scripts/SearchPatternKMLgenerator.php • Next

  2. Screen Menus Opening screen gives you choices on types of searches to generate kml files. • Click Data Screen 2 allows you to enter data for search pattern. Note data entry Screen 1 • Click Screen 2 Screen 3 generates Kml file and launches Google Earth or Generate another Search Pattern Kml file Screen 3 Close Internet Explorer and reopen for new pattern • Next

  3. Creepling Search using Kml Generator Route Path: TCL to AIV Route Points: 5m Sw TCL, 18m Sw of TCL Spacing: 1m Leg Length: 13m Altitude: 1000 AGL Speed: 90 kts Next

  4. Screen Menus Screen 1 Screen 2 How do we generate our information to draw the creeping line search using this program? Screen 3 • Next

  5. Drawing the Creeping LineSearch data in Google Earth • Click • Click 5nm, 260˚ 13nm DirectionPath at 260˚ • Click You need to save each dot marker and the final line in order to display them together on the map 18nm,260˚ • Next

  6. Creeping Line Search Patternfrom Generator • Next

  7. Route Search using Kml Generator • Click SAR Mission 11-A-4195 (TCL) Route: Path form KEET to KNJW, WPT''s A1 & A2 Route Paths: 6 paths equal spacing from (A1 & A2) Spacing: 0.8 (between paths) Leg Length: 13 Altitude: 2000 ft AGL Speed: 90 kts • Next

  8. Screen 1 Screen 2 Note: Enter distance from start point to near Segment boundary andEnter distance from end point to far Segment boundary is reallythe length of the route path A1 to A2. Search Pattern Kml creates file and launches Google Earth with patternGenerate another will create a new route. Screen 3 • Next

  9. Next

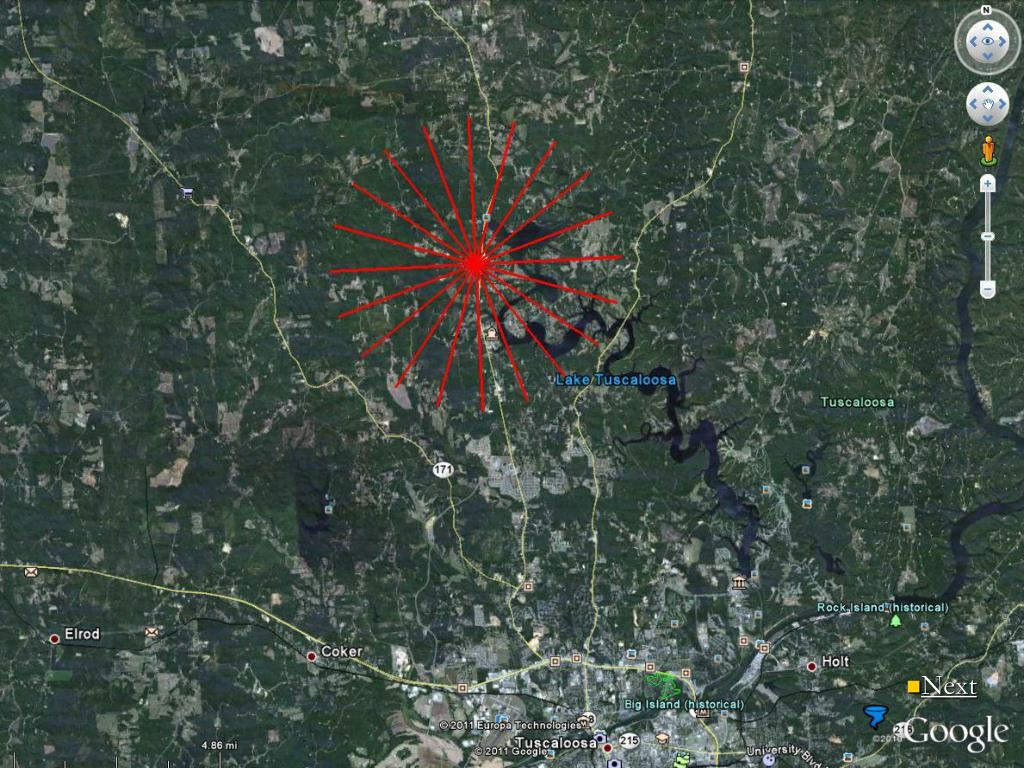

  10. Sector Search using Kml Generator • Click SAR Mission 11-A-4195 (TCL) Search: 20 Sectors (18˚ sector seperation) Radius: 3m User WPT: Lat/Long(T0) Altitude: 2000 ft Speed: 90 kts Initial Heading: 360 ˚ • Next

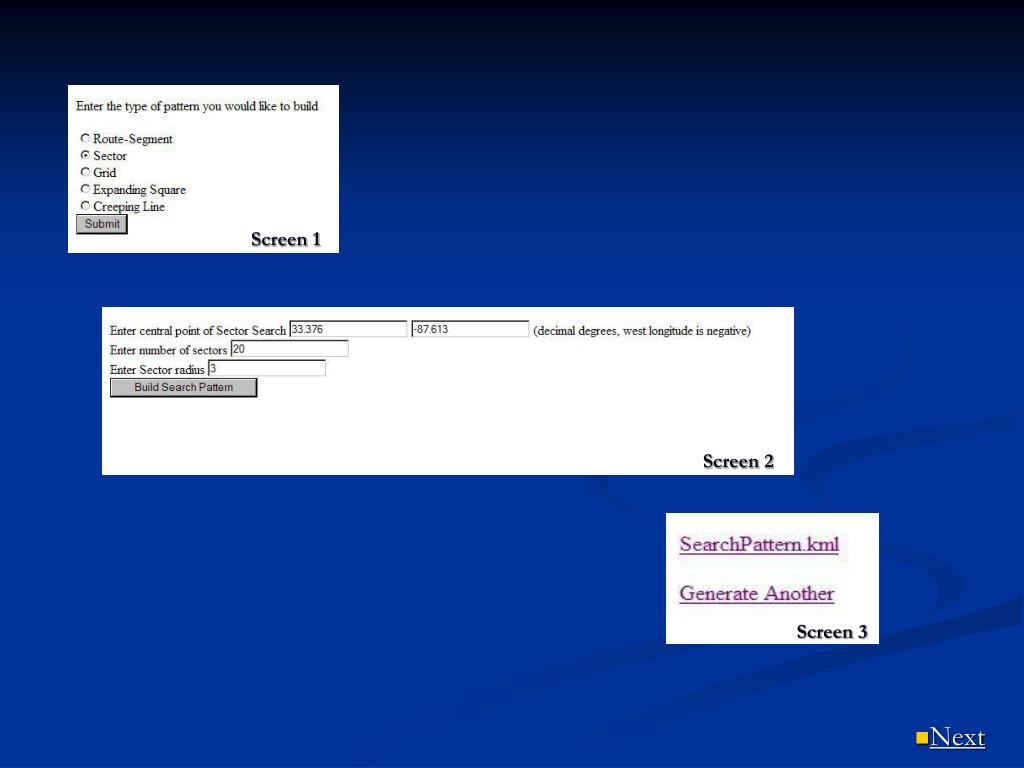

  11. Screen 1 Screen 2 Screen 3 • Next

  12. Next

  13. Parallel Grid Search using Kml Generator SAR Mission 11-A-4195 (TCL) Grid Type: N / S Legs of Grid 253A Track Spacing: 0.5m Search Grid: Use North to South legs, search from East/West Altitude: 1000 ft Speed: 90 kts • Next

  14. Screen 1 Screen 2 Screen 3 • Next

  15. Next

  16. Expanding Square Search using Kml Generator Program Example Start Location: User defined WPT (5nm West of TCL) Heading: 360˚ Track Spacing: 1m Track Leg Length: 5m Altitude: 1500 ft Speed: 90 kts • Next

  17. Screen 1 Screen 2 Screen 3 • Next

  18. Next
