survival analysis

Survival Analysis

A Brief Introduction

1 survival function hazard function
1. SurvivalFunction, Hazard Function
  • In many medical studies, the primary endpoint is time until an event occurs (e.g. death, remission)
  • Data are typically subject to censoring (e.g. when a study ends before the event occurs)
  • Survival Function - A function describing the proportion of individuals surviving to or beyond a given time. Notation:
    • T: survival time of a randomly selected individual
    • t: a specific point in time.
    • Survival Function:
hazard function rate
Hazard Function/Rate
  • Hazard Function l(t): instantaneous failure rate at time t given that the subject has survived upto time t. That is
  • Here f(t) is the probability density function of the survival time T. That is,
  • where F(t) is the cumulative distribution function of T:


2 the key word is censoring
2. The Key Word is ‘Censoring’
  • Because of censoring, many common data analysis procedures can not be adopted directly.
  • For example, one could use the logistic regression model to model the relationship between survival probability and some relevant covariates
    • However one should use the customized logistic regression procedures designed to account for censoring


key assumption independent censoring

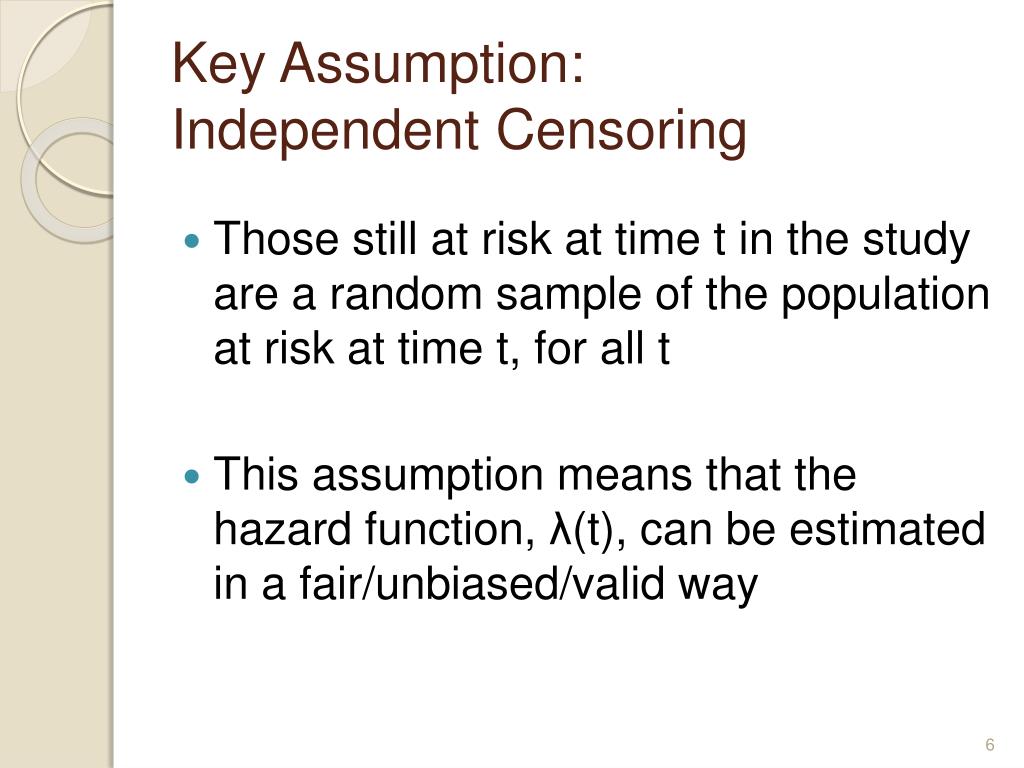

Key Assumption: Independent Censoring
  • Those still at risk at time t in the study are a random sample of the population at risk at time t, for all t
  • This assumption means that the hazard function, λ(t), can be estimated in a fair/unbiased/valid way
3a kaplan meier product limit estimator of the survival curve

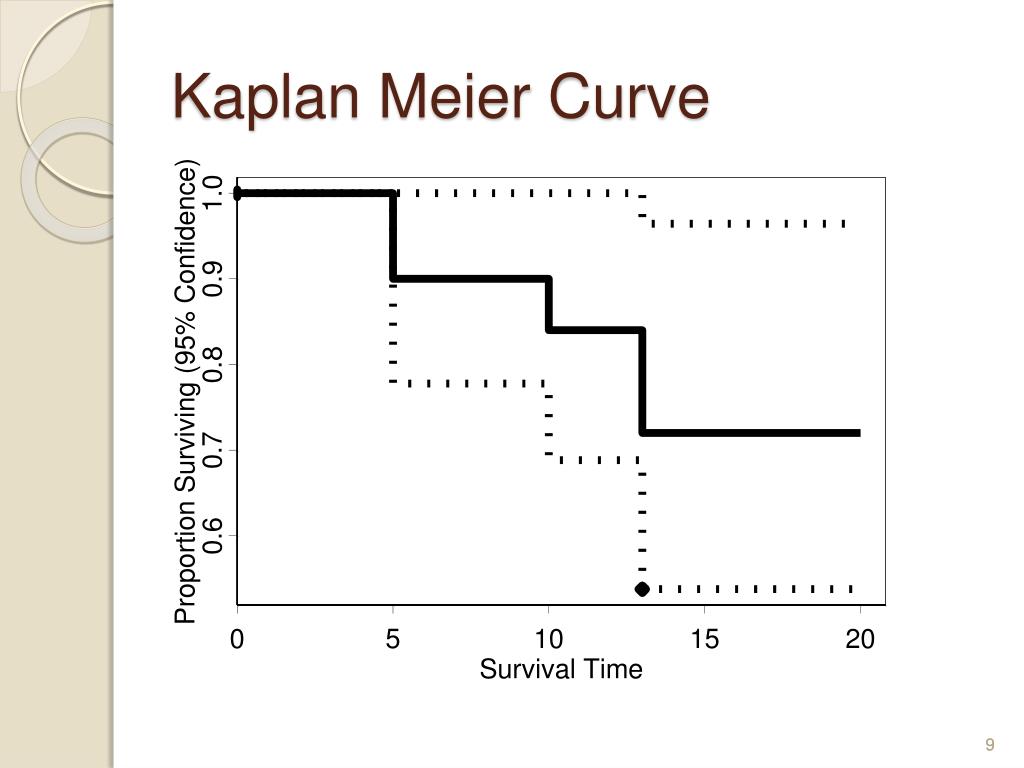

3A. Kaplan-Meier (Product-Limit) Estimator of the Survival Curve
  • The Kaplan–Meier estimator is the nonparametric maximum likelihood estimate of S(t). It is a product of the form
  • is the number of subjects alive just before time
  • denotes the number who died at time

Figure 1. Plot of survival distribution functions for the NCI and the SCI Groups. The Y-axis is the probability of not declining to GDS 3 or above. The X-axis is the time (in years) to decline.

(Barry Reisberg et al., 2010; Alzheimer & Dementia; in press.)

3b comparing survival functions
3B. Comparing Survival Functions




Survival Distribution Function














log rank test

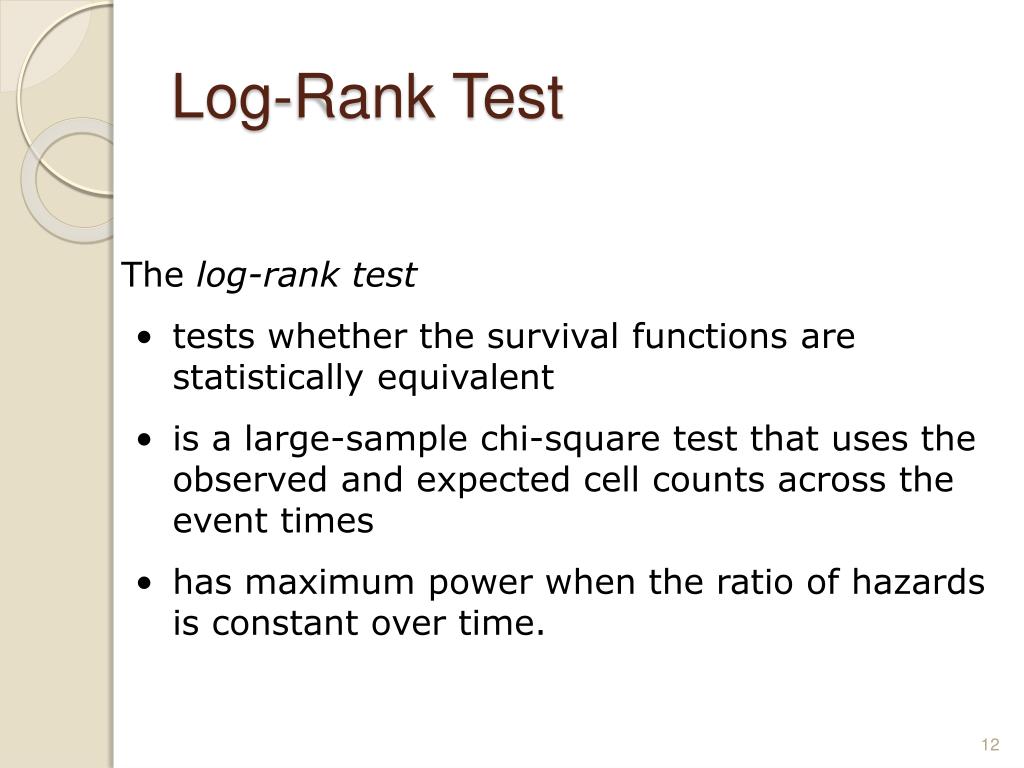

Log-Rank Test
  • The log-rank test
    • tests whether the survival functions are statistically equivalent
    • is a large-sample chi-square test that uses the observed and expected cell counts across the event times
    • has maximum power when the ratio of hazards is constant over time.
wilcoxon test

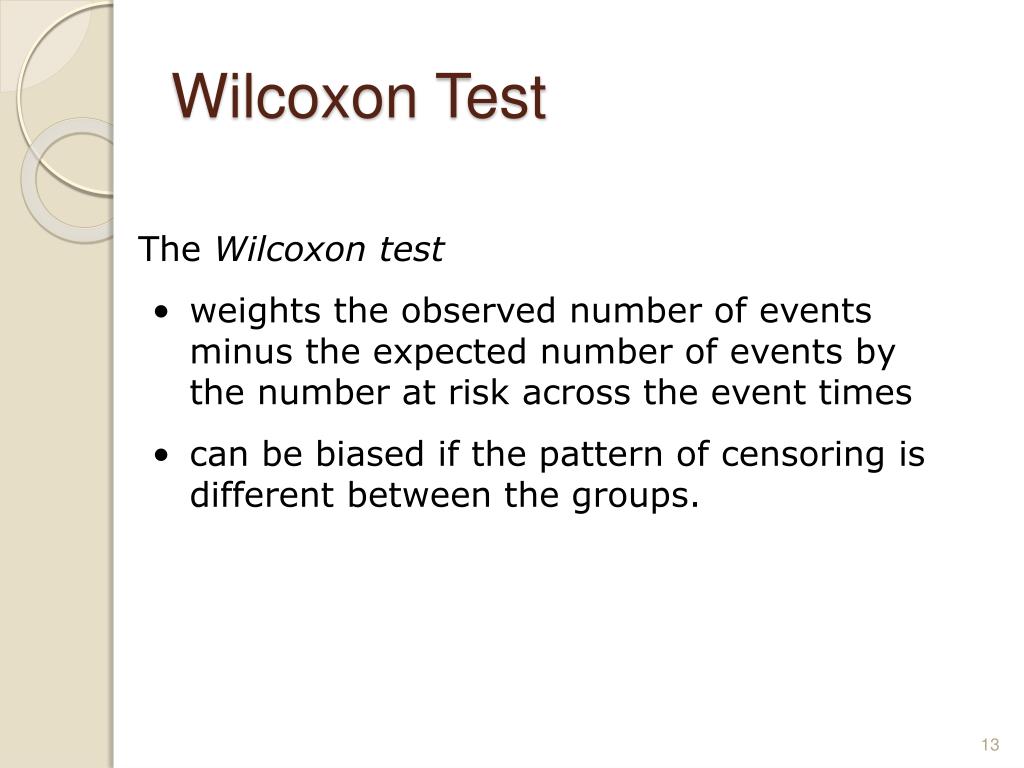

Wilcoxon Test
  • The Wilcoxon test
    • weights the observed number of events minus the expected number of events by the number at risk across the event times
    • can be biased if the pattern of censoring is different between the groups.
log rank versus wilcoxon test

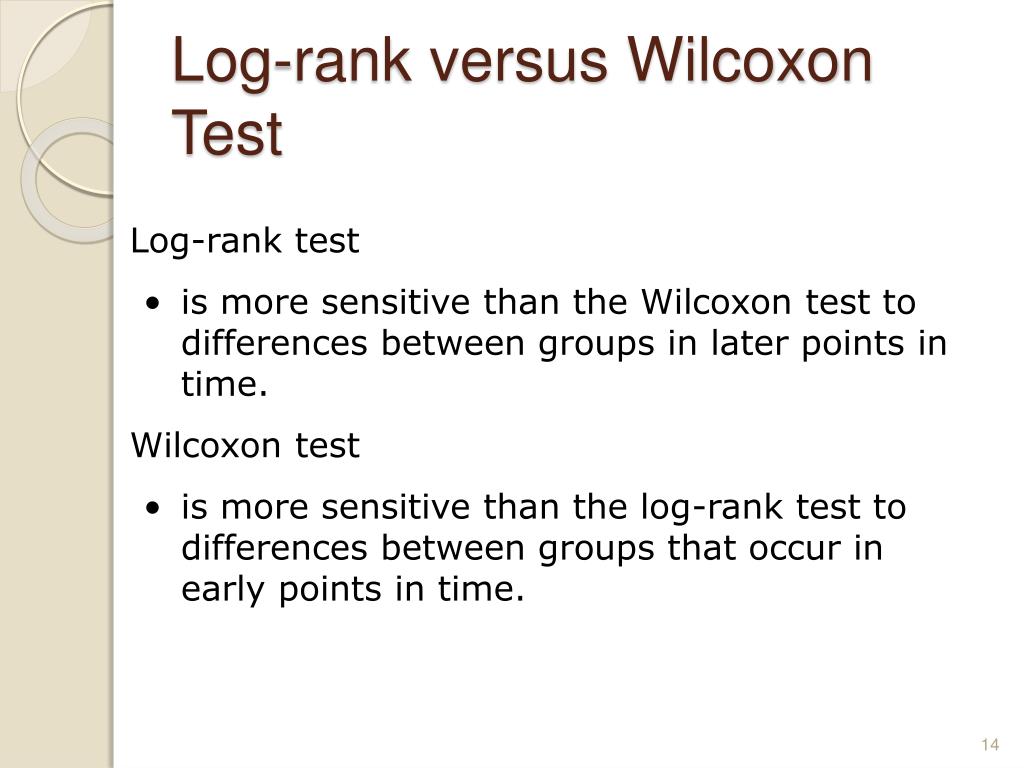

Log-rank versus Wilcoxon Test
  • Log-rank test
    • is more sensitive than the Wilcoxon test to differences between groups in later points in time.
  • Wilcoxon test
    • is more sensitive than the log-rank test to differences between groups that occur in early points in time.
4 two parametric distributions

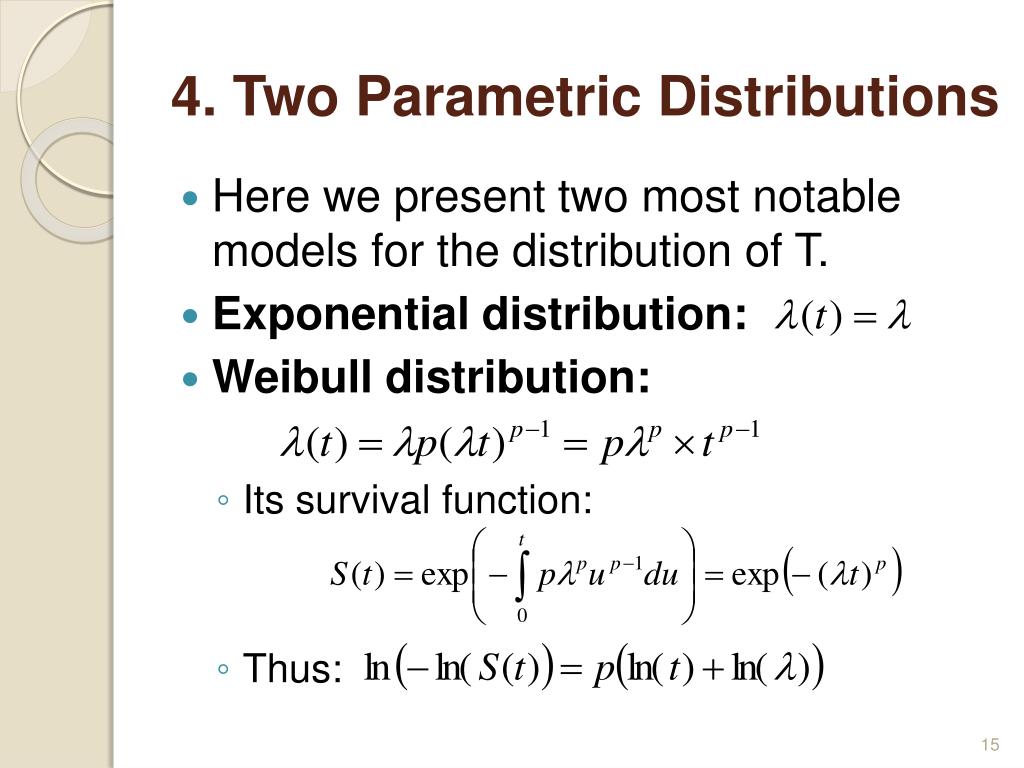

4. Two Parametric Distributions
  • Here we present two most notable models for the distribution of T.
  • Exponential distribution:
  • Weibull distribution:
    • Its survival function:
    • Thus:
5 regression models
5. Regression Models
  • The Exponential and the Weibull distribution inspired two parametric regression approaches:
  • Parametric proportional hazard model – this model can be generalized to a semi-parametric model: the Cox proportional hazard model
  • Accelerated failure time model
proportional hazard model

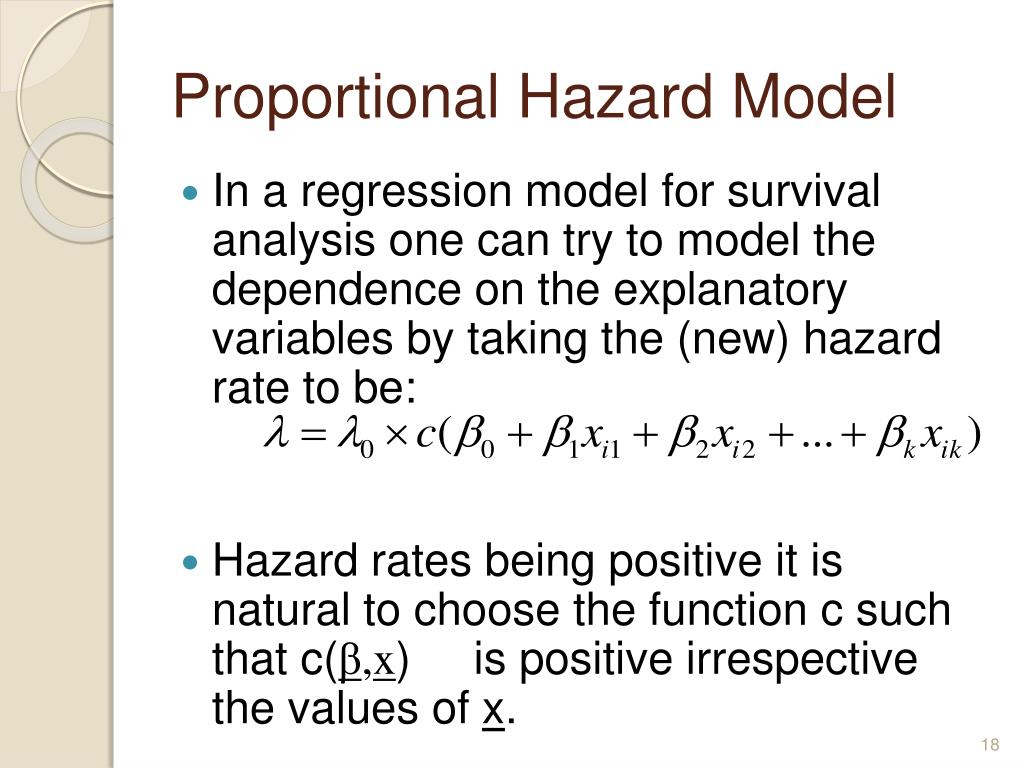

Proportional Hazard Model
  • In a regression model for survival analysis one can try to model the dependence on the explanatory variables by taking the (new) hazard rate to be:
  • Hazard rates being positive it is natural to choose the function c such that c(β,x) is positive irrespective the values of x.
proportional hazard model19
Proportional Hazard Model
  • Thus a good choice is:
  • The resulting proportional hazard model is:
  • For the Weibull distribution we have:
  • For the Exponential distribution we have:
accelerated failure time model
Accelerated Failure Time Model
  • For the Weibull distribution (including the Exponential distribution), the proportional hazard model is equivalent to a log linear model in survival time T:
  • Here the error term can be shown to follow the 2-parameter Extreme Vvalue distribution
apply both models simultaneously
Apply Both Models Simultaneously
  • If the underlying distribution for T is Weibull or Exponential, one can apply both regression models simultaneously to reflect different aspects of the survival process. That is
  • Prediction of degree of decline using the Weibull proportional hazard model
  • Prediction of time of decline using the accelerated failure time model
an example

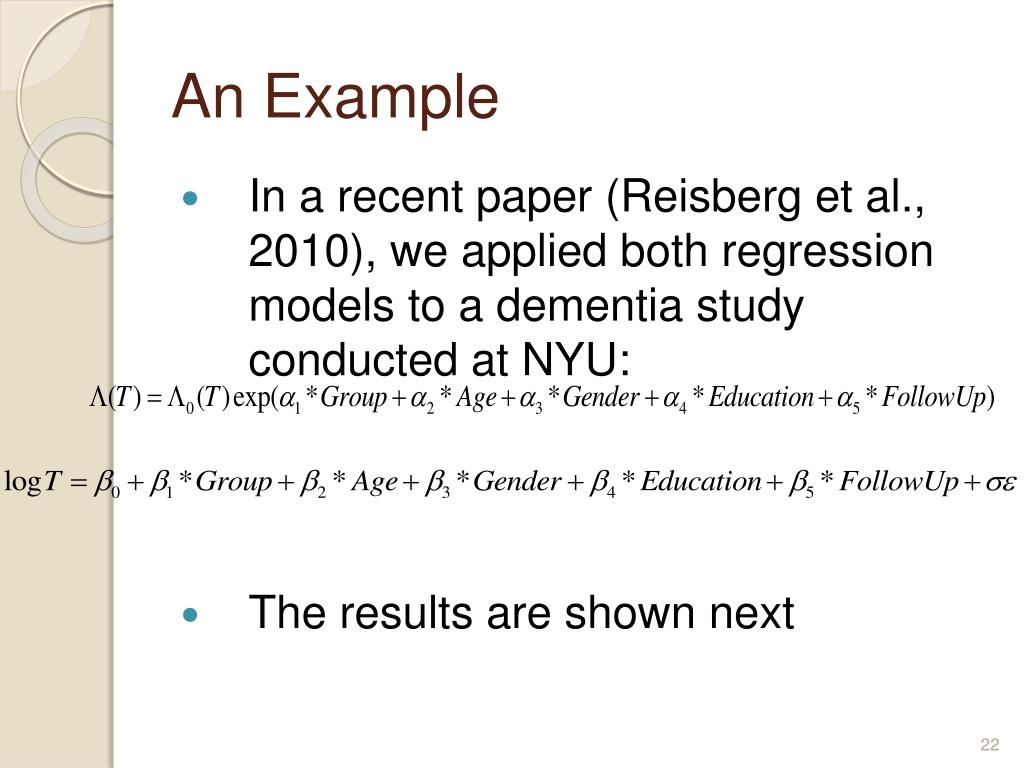

An Example
  • In a recent paper (Reisberg et al., 2010), we applied both regression models to a dementia study conducted at NYU:
  • The results are shown next
parametric versus nonparametric models
Parametric versus Nonparametric Models
  • Parametric models require that
    • the distribution of survival time is known
    • the hazard function is completely specified except for the values of the unknown parameters.
  • Examples include the Weibull model, the exponential model, and the log-normal model.
parametric versus nonparametric models26
Parametric versus Nonparametric Models
  • Properties of nonparametric models are
    • the distribution of survival time is unknown
    • the hazard function is unspecified.
  • An example is the Cox proportional hazards model.
cox proportional hazards model


Linear function of a set of predictor variables - does not involve time

Baseline Hazard function - involves time but not predictor variables

Cox Proportional Hazards Model
  • β = 0 → hazard ratio = 1
    • Two groups have the same survival experience
popularity of the cox model
Popularity of the Cox Model
  • The Cox proportional hazards model
    • provides the primary information desired from a survival analysis, hazard ratios and adjusted survival curves, with a minimum number of assumptions
    • is a robust model where the regression coefficients closely approximate the results from the correct parametric model.
partial likelihood
Partial Likelihood
  • Partial likelihood differs from maximum likelihood because
    • it does not use the likelihoods for all subjects
    • it only considers likelihoods for subjects that experience the event
    • it considers subjects as part of the risk set until they are censored.
partial likelihood30

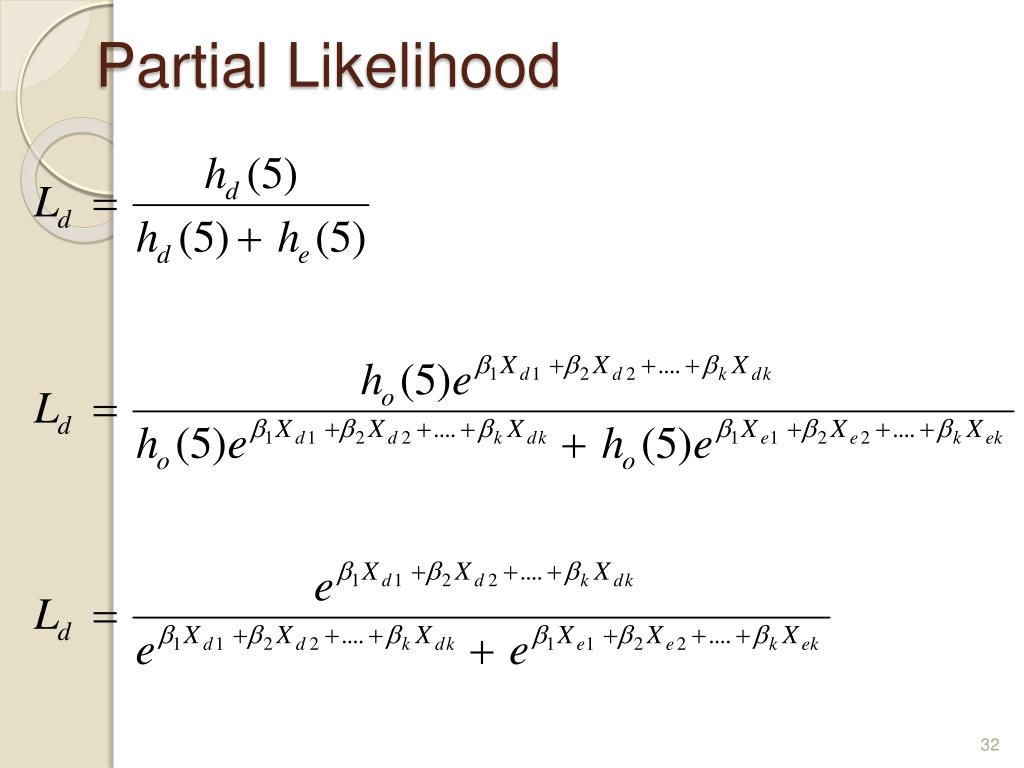

Partial Likelihood


Survival Time

















partial likelihood33

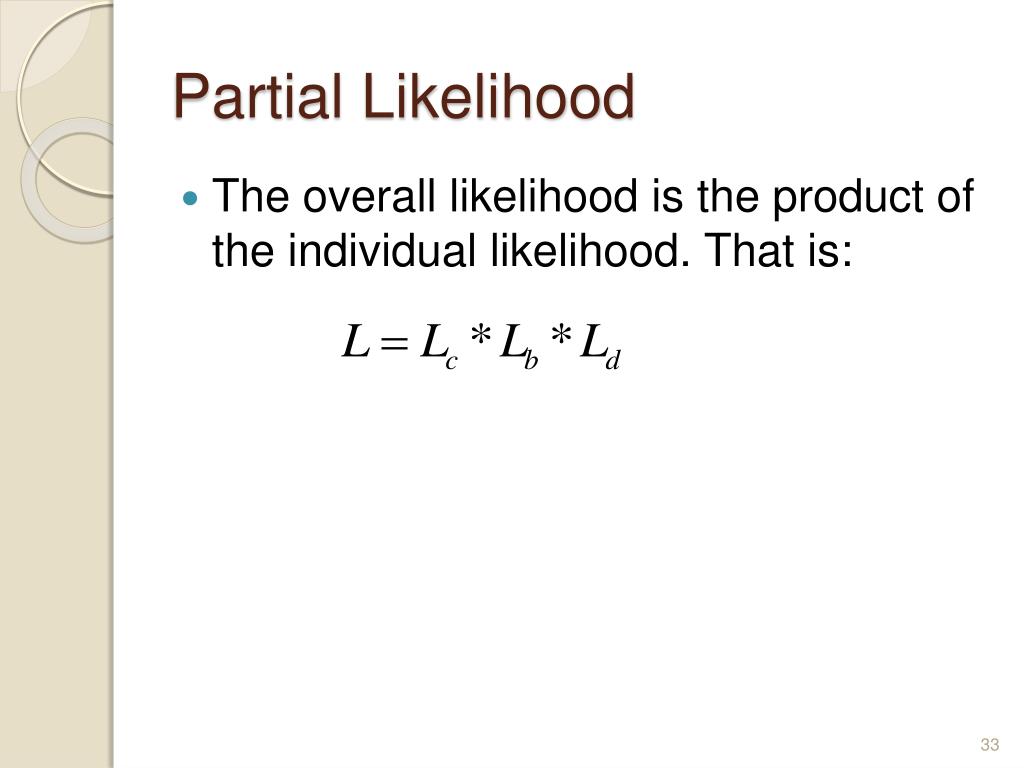

Partial Likelihood
  • The overall likelihood is the product of the individual likelihood. That is:
7 sas programs for survival analysis
7. SAS Programs for Survival Analysis
  • There are three SAS procedures for analyzing survival data: LIFETEST, PHREG, and LIFEREG.
  • PROC LIFETEST is a nonparametric procedure for estimating the survivor function, comparing the underlying survival curves of two or more samples, and testing the association of survival time with other variables.
  • PROC PHREG is a semiparametric procedure that fits the Cox proportional hazards model and its extensions.
  • PROC LIFEREG is a parametric regression procedure for modeling the distribution of survival time with a set of concomitant variables.
proc lifetest
  • The Kaplan-Meier(K-M) survival curves and related tests (Log-Rank, Wilcoxon) can be generated using SAS PROC LIFETEST

PROC LIFETEST DATA=SAS-data-set <options>;

TIME variable <*censor(list)>;

STRATA variable<(list)> <...variable <(list)>>;

TEST variables;


proc phreg

The Cox (proportional hazards) regression is performed using SAS PROC PHREG

proc phreg data=rsmodel.colon;

model surv_mm*status(0,2,4) = sex yydx / risklimits;


proc lifereg
  • The accelerated failure time regression is performed using SAS PROC LIFEREG

proc lifereg data=subset outest=OUTEST(keep=_scale_);

model (lower, hours) = yrs_ed yrs_exp / d=normal; output out=OUT xbeta=Xbeta; run;

selected references
Selected References
  • PD Allison (1995). Survival Analysis Using SAS: A Practical Guide. SAS Publishing.
  • JD Kalbfleisch and RL Prentice (2002).The Statistical Analysis of Failure Time Data. Wiley-Interscience.
