Summation Notation. Summation Notation. Shorthand way of expressing a sum Uses the Greek letter sigma : ∑. n is called the upper limit of the summation. a k is the formula used to generate each term of the sum. k is called the index of summation. Summation Notation.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Summation Notation' - russ


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
summation notation2
Summation Notation
  • Shorthand way of expressing a sum
  • Uses the Greek letter sigma: ∑

n is called the upper limit of the summation

ak is the formula used to generate each term of the sum

k is called the index of summation

summation notation3
Summation Notation
  • Any letter can be used to index a summation
summation notation4
Summation Notation
  • Ex: Evaluate the following sum:
  • Sol:
summation notation5
Summation Notation

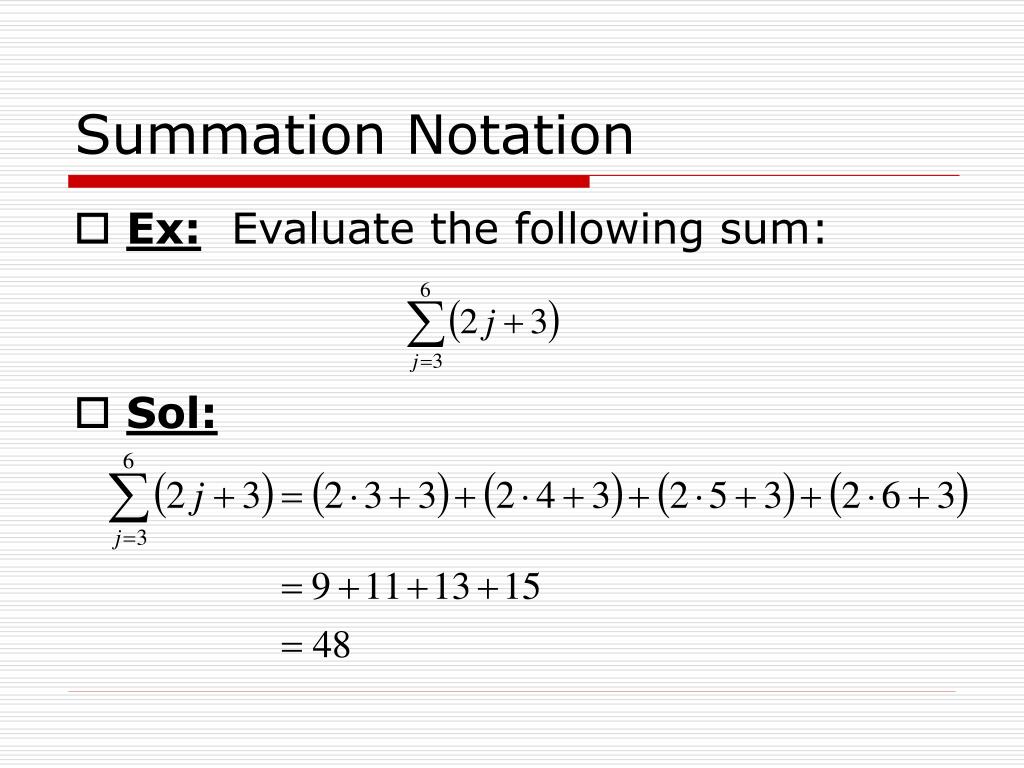

  • Ex: Evaluate the following sum:
  • Sol:
summation notation6
Summation Notation

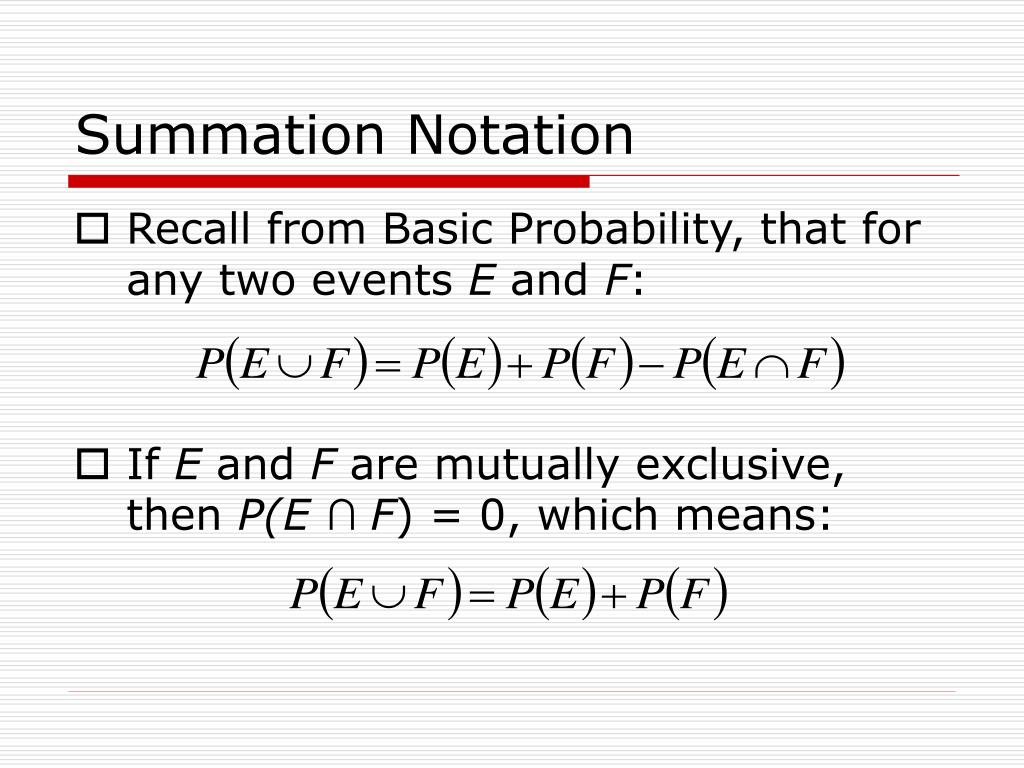

  • Recall from Basic Probability, that for any two events E and F:
  • If E and F are mutually exclusive, then P(E ∩F) = 0, which means:
summation notation7
Summation Notation

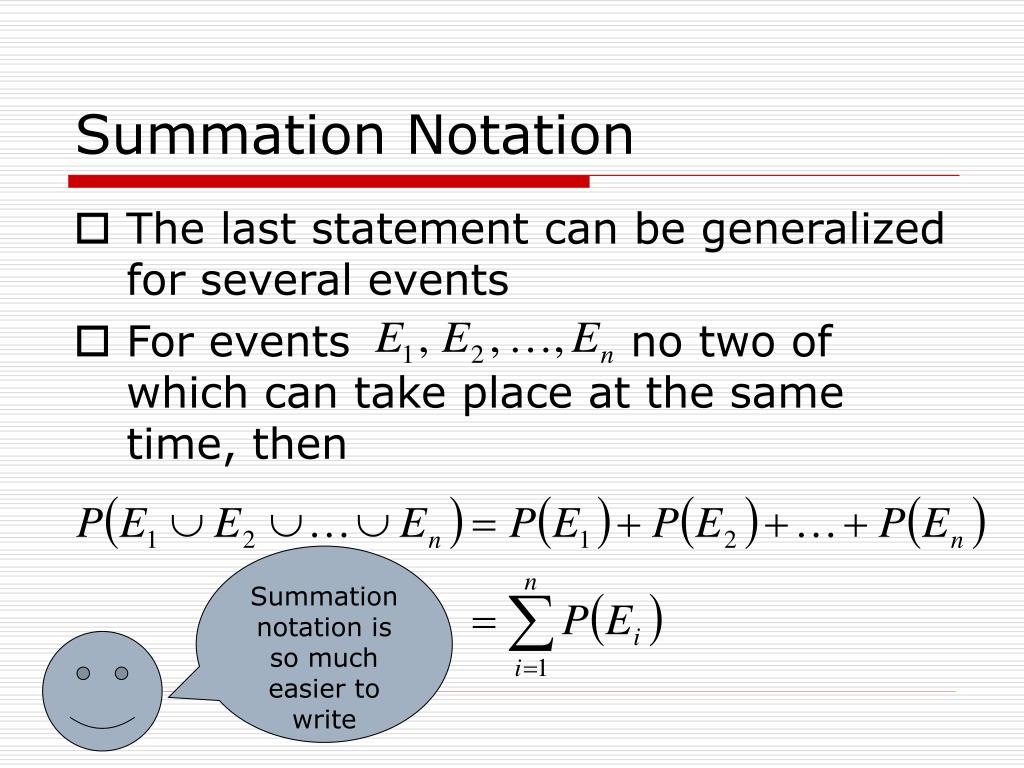

  • The last statement can be generalized for several events
  • For events no two of which can take place at the same time, then

Summation notation is so much easier to write

summation notation8
Summation Notation
  • Properties

(i)

(ii)

Note: Not true

summation notation9
Summation Notation
  • Properties (cont)

(iii) for

(iv)

summation notation10
Summation Notation

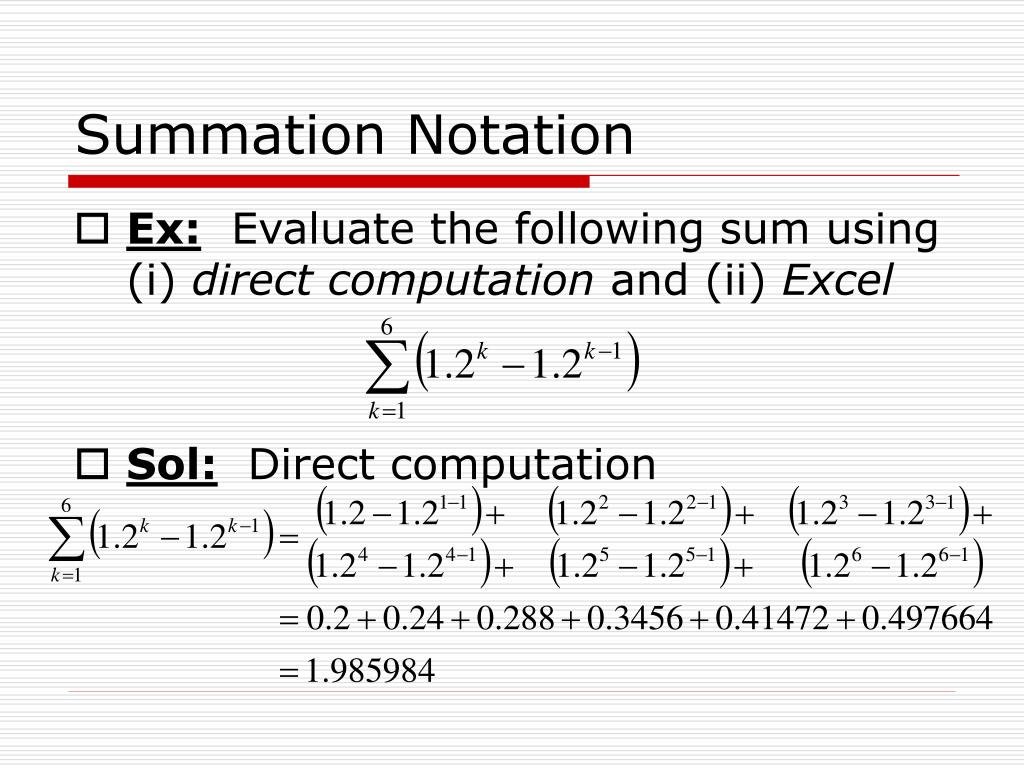

  • Ex: Evaluate the following sum using (i) direct computation and (ii) Excel
  • Sol: Direct computation
summation notation12
Summation Notation

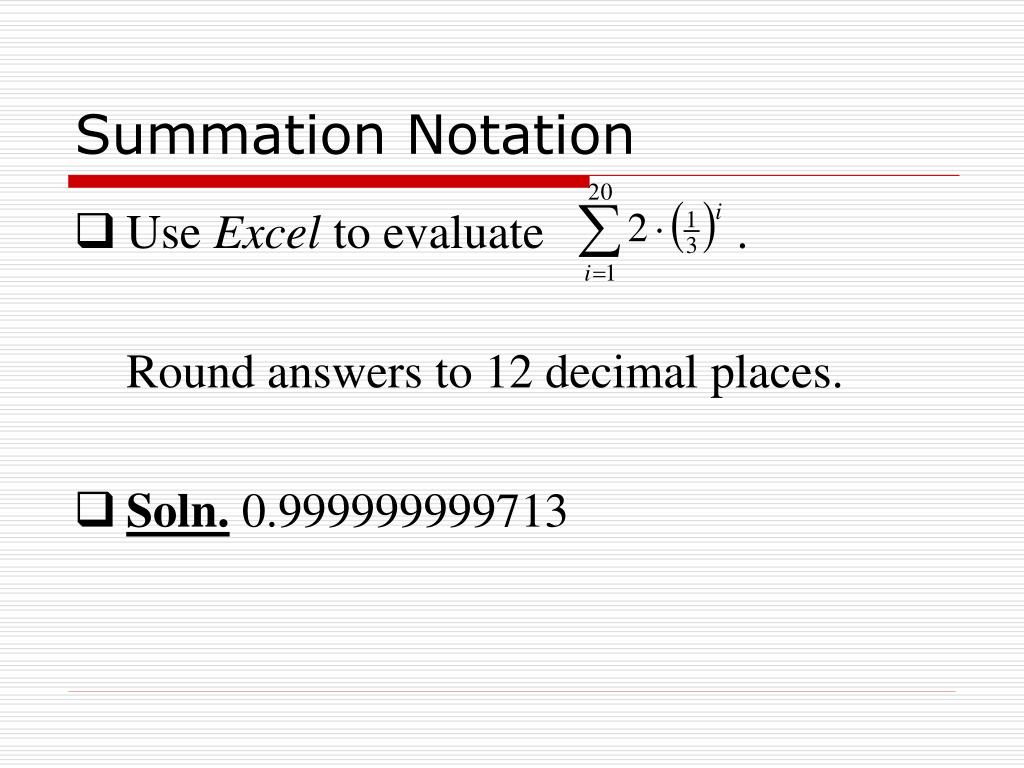

  • Use Excel to evaluate .

Round answers to 12 decimal places.

  • Soln. 0.999999999713
