Presentation Transcript
slide1

Module 9

PS-M4110 Overview

<Place supporting graphic here>

module objectives
Module Objectives:
  • Describe the PS-M4110 solution
  • Describe the features of the PS-M4110
  • Install the PS-M4110 in the M1000 Chassis
  • Operate the drawer of the PS-M4110
  • Describe the airflow features of the M1000
  • Identify whether the M1000 chassis has a version 1.1 Midplane
  • Describe how the PS-M4110 connects to the Servers via the Fabric modules

.

ps series
PS Series

PS6000

Series

PS6010

Series

PS5000

Series

PS4000

Series

PS-M4110

PS6510

FS7500

PS6500

PS4100/4110

PS6100/6110

Series

PS5500

Early releases

PS100

PS3000

Sync Rep

IPSEC

SED

Data Center Bridging (DCB)

Core File Capability

VMware® vStorage

ASM/ME for Hyper-V™

SAN Headquarters

Auto-Snapshot Manager/ VMware® Edition

2003 +

Continuous advancements ofinclusive software features

VMware®

Site Recovery Manager

Thin Provisioning

Start of Solution innovation

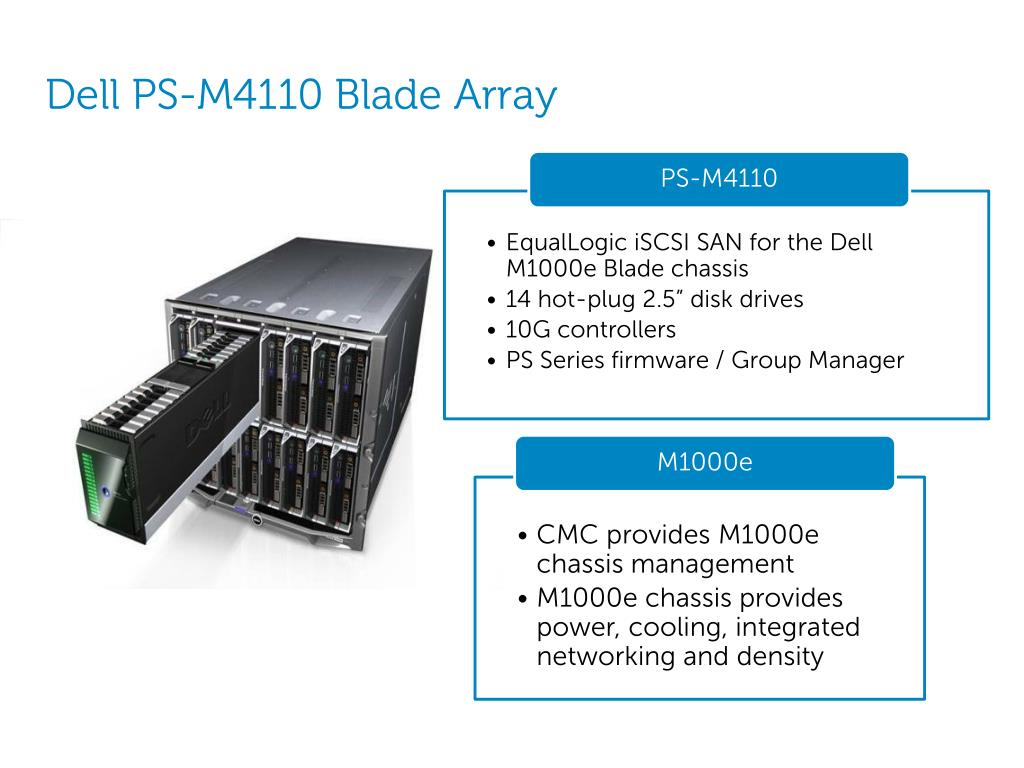

dell ps m4110 blade array

EqualLogic iSCSI SAN for the Dell M1000e Blade chassis

  • 14 hot-plug 2.5” disk drives
  • 10G controllers
  • PS Series firmware / Group Manager
Dell PS-M4110 Blade Array
  • PS-M4110
  • M1000e
  • CMC provides M1000e chassis management
  • M1000e chassis provides power, cooling, integrated networking and density
ps m4110 blade array
PS-M4110 Blade Array

- Installed in the M1000e blade chassis.

  • Two control modules
  • Two 10 GbE ports

- Configurable Management port

- 14 hot pluggable 2.5” disks

- 6Gb/s SAS drives

dell ps m4110 and the poweredge m1000e 12g enclosure
Dell PS M4110 and the PowerEdge M1000e 12G Enclosure
  • PS M4110 inserts into two M1000e slots.
  • M1000e chassis provides power, cooling, and management for the M4110 and server blades.
ps m4110 blade array1
PS-M4110 Blade Array
  • Two 10Gbe iSCSIPorts wired internally to the M-series Ethernet fabrics
  • M-series Blade Server and M4110 Chassis Environment
    • Chassis provides power, cooling, Ethernet switch configuration
    • CMC provides chassis management, configuration and monitoring.
    • 10G Ethernet fabric selection
      • - M4110 defaults to B fabric
      • - Can be on the A fabric with version 1.1 midplane
  • Support’s DCB (Data Center Bridging)
  • M4110 performance is similar to PS6100E
t he power to do more in less space m1000e and the ps m4110 equallogic blade array
The power to do more in less spaceM1000e and the PS-M4110 EqualLogic Blade Array

32 U

4 Switches

2 PS Series Array’s

24 Servers

10 U

2 PS-M4110’s

4 Switches

24 Servers

Physical Convergence = 3x space savings

installing the ps m4110
Installing The PS M4110
  • The PS M4110 installs in the top slots using the rail guides on the top.
  • The PS M4110 installs in the bottom slots using the slot guides on the bottom.
  • Slide the array into the M1000e available slots.
  • Seat the array by sliding the handle firmly in place
ps m4110 drawer
PS M4110 Drawer
  • To open the array inner drawer:
    • Push the array's front panel and release it quicklyto unlatch the array’s inner drawer.
  • When the drawer is unlatched will be a “Caution” label visible
ps m4110 drawer1
PS M4110 Drawer
  • When the PS-M4110 is out of the M1000 enclosure, the array's drawer cannot be opened unless its safety locking mechanism is released.
slide15

EqualLogic PS-M4110 Ecosystem

Dell Force10 or PowerConnect Switch

PS-M4110 Components

EqualLogic Host Software

M1000E Chassis

  • Dual, hot-pluggable 10GbE controllers
  • 4GB of memory per controller
  • 1 x dedicated 10/100 management port – accessible through CMC
  • 6Gb/s SAS backend
  • 14x 2.5” drives
  • Auto-Snapshot Manager – Microsoft®, VMware®, Linux®
  • Multi-Path I/O
  • PowerShell Tools
  • Datastore manager
  • SAN HQ

PS-M4110

PowerEdge Blades 11G or 12G

PS-M4110 Design

PS-M4110 Scalability

EqualLogic Array Software

  • Drawer in Drawer
  • Double-wide, half-height storage blade
  • Operate/interoperate with servers inside/outside chassis
  • Up to 4 PS-M4110 per blade chassis
  • Up to 2 PS-M4110 per EqualLogic group
  • Scale up to 16 EqualLogic arrays per group by joining arrays outside chassis
  • Peer storage architecture
  • Advanced load balancing
  • Snapshots, cloning, replication
  • Thin provisioning
  • Thin clones
ps m4110 configuration option 1 fabric b switch default
PS-M4110 Configuration Option #1Fabric B Switch (Default)

Half-Height Blade Server (16 of 16)

Fabric A1 Ethernet I/O Module

Midplane

External Fabric Connections

PS-M4110

Fabric Interface

Module

Fabric A E’net LOM

CM0

(Active)

Fabric A2 Ethernet I/O Module

Fabric B Mezz

CM1

Fabric C Mezz

Fabric B1 Switch

Fabric B2 Switch

Fabric C1 I/O Module

Server Logic

Fabric C2 I/O Module

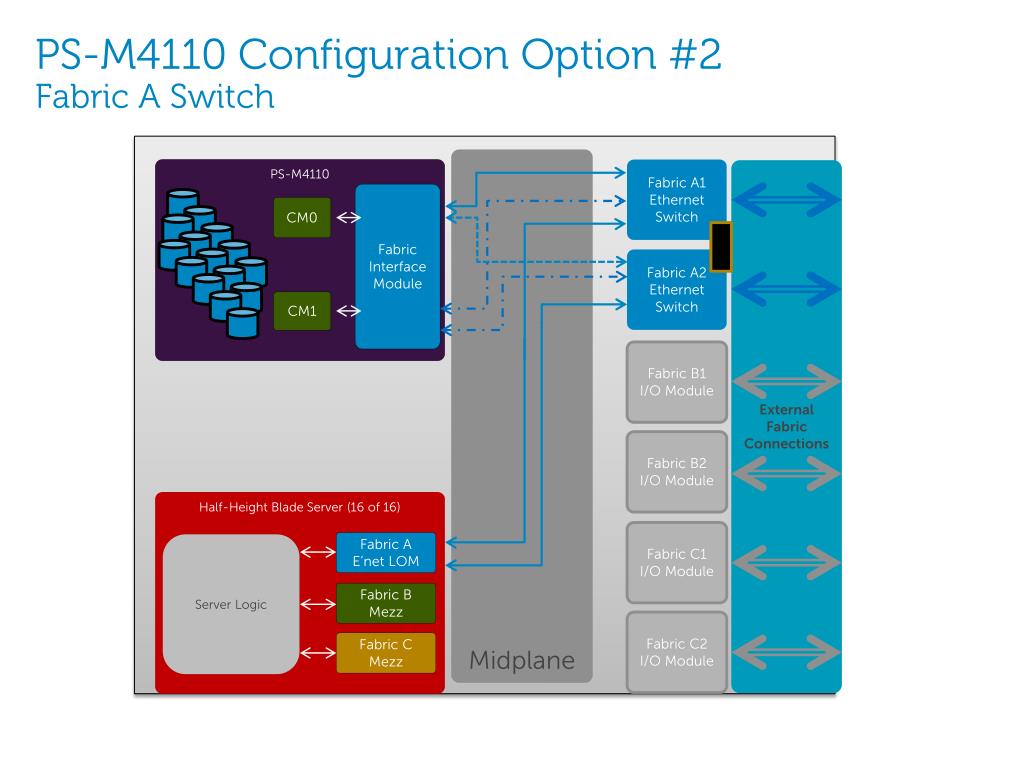

ps m4110 configuration option 2 fabric a switch
PS-M4110 Configuration Option #2Fabric A Switch

Half-Height Blade Server (16 of 16)

Fabric A1 Ethernet Switch

Midplane

External Fabric Connections

PS-M4110

Fabric A E’net LOM

Fabric Interface

Module

CM0

Fabric A2 Ethernet Switch

Fabric B Mezz

Fabric C Mezz

CM1

Fabric B1 I/O Module

Fabric B2 I/O Module

Fabric C1 I/O Module

Server Logic

Fabric C2 I/O Module

ps m4110 configuration option 3 4 fabric a b pass thru to external switch stack
PS-M4110 Configuration Option #3/4Fabric A/B Pass-Thru to External Switch Stack

Half-Height Blade Server (16 of 16)

Fabric A1 Pass-Thru

Midplane

External Fabric Connections

Ethernet Switch

PS-M4110

Fabric Interface

Module

Fabric A E’net LOM

CM0

Fabric A2 Pass-Thru

Fabric B Mezz

Ethernet Switch

Fabric C Mezz

CM1

Fabric B1 I/O Module

Fabric B2 I/O Module

Fabric C1 I/O Module

Server Logic

Fabric C2 I/O Module

ps m4110 configuration
PS-M4110 Configuration

PS-M4110 provides a single 10Gb Ethernet port that can be connected

to one of two redundant Fabrics (A or B) in the M1000e chassis.

m1000e i o module placement options
M1000e I/O Module Placement Options

Blade Server

Blade Server

Mezz B

Mezz B

Mezz C

Mezz C

Single Fabric

Split Fabric

10g iom fabric
10G IOM fabric
  • 10G K supports PS-M4110
    • Pass through KR with top of rack (TOR) 8024F or TOR NX-5020
    • Force 10 (Navasota MLX)
    • M8024-K (10 gig) (Lavaca)
    • Brocade M8428-K (Brazos)
  • Other M-Series IOM fabrics – not supported for PS-M4110
    • 10G XAUI
    • 1GE
    • FC
    • Infiniband
switch configurations
Switch Configurations
  • Stack or create a LAG between switches
multiple m1000e chassis switch iom s
Multiple M1000e Chassis Switch IOM’s

m1000e

Stacked IOMs

  • For multiple chassis
    • Stacking should be done in two rings, a left side ring and a right side ring
    • LAGs should be connected between the rings so that each port on the storage devices and can communicate to any other port on the storage devices.
  • DCB Support Requires:
    • DCB external switch (B8000)
    • IOM: Navasota only
    • Intel or Brocade CNA Mezz

LAG

m1000e

module summary
Module Summary
  • Now that you have completed this module you should be able to:
    • Describe the PS-M4110 solution
    • Describe the features of the PS-M4110
    • Install the PS-M4110 in the M1000 Chassis
    • Operate the drawer of the PS-M4110
    • Describe the airflow features of the M1000
    • Identify whether the M1000 chassis has a version 1.1 Midplane
    • Describe how the PS-M4110 connects to the Servers via the Fabric modules
