transactional mobility in distributed content based publish subscribe systems

MIDDLEWARE SYSTEMS

RESEARCH GROUP

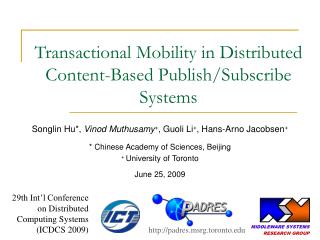

Transactional Mobility in Distributed Content-Based Publish/Subscribe Systems

Songlin Hu*, Vinod Muthusamy+, Guoli Li+, Hans-Arno Jacobsen+

* Chinese Academy of Sciences, Beijing

+ University of Toronto

June 25, 2009

29th Int’l Conference on Distributed Computing Systems(ICDCS 2009)

  • http://padres.msrg.toronto.edu
many adaptive distributed applications require reprovisioning of software components
Many adaptive distributed applications require reprovisioning of software components

Grid computingplatforms

Stream processingengines

Multiplayer onlinegames

Distributed content-based publish/subscribe

Mobileenvironments

Mobile agentframeworks

Process executionengines

Transactional Mobility in Pub/Sub

movement reprovisioning of software components should be well behaved
Movement (reprovisioning) of software components should be well-behaved
  • No lost or duplicated messages
  • Other components not disrupted
  • Movement is transparent to both moving and stationary components
  • Isolated from operations by other components

Transactional Mobility in Pub/Sub

contributions
Contributions
  • Define properties for mobile clients in a distributed publish/subscribe system
  • Develop protocols that achieve efficient movement
  • Evaluate proposed and traditional movement protocols

Transactional Mobility in Pub/Sub

review of distributed publish subscribe routing

Publisher

Subscriber

Review of distributed publish/subscribe routing

1. Advertise

3. Publish

2. Subscribe

Advertisement:

item = computer

brand = ibm

price < 2000

Subscription:

item = computer

brand = ibm

price < 1500

Publication:

item = computer

brand = ibm

price = 1400

Transactional Mobility in Pub/Sub

a movement operation relocates a client including its state
A movement operation relocates a client (including its state)

Client Container 1

Client Container 7

MOVE (to Broker 7)

Client A

Client A

B1

B7

∙∙∙

B2

B8

Client B

  • Movement may fail because target broker rejects it, etc.
  • During movement, there may be multiple copies of a client, but only one should be “running” at any time
  • Client container helps coordinate the movement

Transactional Mobility in Pub/Sub

slide7

Transactional Movement Properties

Transactional Mobility in Pub/Sub

modular transactional properties simplify reasoning and implementation
Modular transactional properties simplify reasoning and implementation

Client

Application

Pub/Sub Stub

Notifications

Ads/Subs/Pubs

Routing

(Considered in this work)

(Out of scope)

Messaging

Broker

Transactional Mobility in Pub/Sub

acid like transactional properties for various layers
ACID-like transactional properties for various layers

Atomicity

Consistency

Isolation

Client layer

A moving client must be exclusively either at its source or target broker.

There must be at most one running instance of each client.

Only the initial or final states of a moving client should be observable.

Notifications layer

Notifications are delivered exactly once to either the source or target client.

A moving client (whether successful or not) should receive the same set of notifications as one that did not move.

The set of notifications delivered to stationary clients from a moving publisher should be independent of whether the publisher successfully moves.

Routing layer

Either all or none of the set of routing table updates required for an operation (adv, sub, etc.) should all be applied.

Each broker should have the minimal set of routing table entries for a set of advs and subs.

A movement should only modify those routing table entries associated with the moving client.

  • Durability is omitted but can be achieved by persisting all state to stable storage
  • Refer to the paper for formal definitions

Transactional Mobility in Pub/Sub

slide10

Movement Protocol

Transactional Mobility in Pub/Sub

the source and target brokers negotiate the movement of a client
The source and target brokers negotiate the movement of a client
  • The intermediate broker routing tables are reconfigured along with message (2)

Transactional Mobility in Pub/Sub

the client and coordinator at the source and target are modelled with state diagrams
The client and coordinator at the source and target are modelled with state diagrams
  • Coordinators are based on the three-phase commit protocol
  • Global reachable state graph is used to prove some properties
    • E.g., in the commit state, the source client is clean, and the target client is started
the broker routing tables must be reconfigured when the client moves
The broker routing tables must be reconfigured when the client moves
  • Routing tables should be correct whether movement succeeds or fails
  • Reconfiguration should be efficient
    • Network traffic
    • Broker computation
    • Isolated from operations

Transactional Mobility in Pub/Sub

traditional end to end movement can be expensive

Publisher

Subscriber

Unadv

Traditional end-to-end movement can be expensive

Bi

Bl

Bj

Transactional Mobility in Pub/Sub

traditional end to end movement can be expensive1
Traditional end-to-end movement can be expensive

Publisher

Subscriber

Adv

Bi

Bl

Bj

Transactional Mobility in Pub/Sub

proposed protocol reconfigures routing tables hop by hop
Proposed protocol reconfigures routing tables hop-by-hop

Publisher

Subscriber

1

Routing entry

1

2

Routing shadow copy

1

1

1

1

2

2

2

Bi

Bj

1

(2) Approve message

Transactional Mobility in Pub/Sub

proposed protocol reconfigures routing tables hop by hop1
Proposed protocol reconfigures routing tables hop-by-hop

Publisher

Subscriber

  • Only brokers between Bi and Bj are updated
  • Predictable number of messages
  • Advertisement entries are simply reversed
  • Subscription entries are more complicated

1

Routing entry

1

2

Routing shadow copy

1

1

1

1

1

2

2

1

2

1

Bi

Bj

1

(3) Ack + State message

Transactional Mobility in Pub/Sub

slide20

Evaluations

Transactional Mobility in Pub/Sub

experimental setup
Experimental setup
  • Two movement algorithms: proposed reconfiguration, traditional covering-based
  • Deployments in dedicated LAN and shared WAN (PlanetLab) environments
  • 400 clients repeatedly move between brokers 1,13 and 2,14
    • Pause for 10 seconds at each broker
  • Five subscription workloads: covered, chained, tree, distinct, random
  • Metrics: network message traffic, movement duration, and throughput

Default topology

Subscriptions

Transactional Mobility in Pub/Sub

the reconfiguration protocol is much faster than the covering protocol
The reconfiguration protocol is much faster than the covering protocol
  • Movement of “root” subscriptions is more expensive in the covering protocol

Transactional Mobility in Pub/Sub

the reconfiguration protocol scales with the number of moving clients
The reconfiguration protocol scales with the number of moving clients
  • The reconfiguration protocol achieves better movement latency despite more total messages because it is less bursty

Transactional Mobility in Pub/Sub

the reconfiguration protocol is more stable and efficient with respect to the workload
The reconfiguration protocol is more stable and efficient with respect to the workload
  • Covered workload experiences high latency despite relatively few messages due to bimodal behaviour of covering protocol

Transactional Mobility in Pub/Sub

the covering protocol is very sensitive to the movement of root subscriptions
The covering protocol is very sensitive to the movement of “root” subscriptions
  • Only one client is moving, confirming the effect of the pathological case for the covering protocol

Transactional Mobility in Pub/Sub

the presence of stationary clients has little effect on moving clients
The presence of stationary clients has little effect on moving clients
  • Each additional set of moving clients: 10 roots from covered, tree, chained workloads, 10 leaves from previous workloads, 10 from distinct workload

Transactional Mobility in Pub/Sub

keeping the length between source and target brokers constant the topology size has little effect
Keeping the length between source and target brokers constant, the topology size has little effect
  • The covered workload is used here to exaggerate the effects

Transactional Mobility in Pub/Sub

experiments on planetlab wan support the earlier conclusions
Experiments on PlanetLab WAN support the earlier conclusions
  • Longer latencies are due to more limited network and compute resources
  • Same relative performance and trends are seen

Transactional Mobility in Pub/Sub

conclusions
Conclusions
  • Distributed publish/subscribe systems lack well-defined guarantees for the movement of clients
  • ACID-like transactional properties were defined for this problem
    • Properties are modularized to simplify reasoning and implementation
  • Client layer movement and routing layer hop-by-hop reconfiguration protocols were developed
  • Evaluations show proposed protocol is more efficient and stable with respect to various parameters
    • End-to-end movement using covering negatively affects performance
  • Future work includes more efficient failure resilience in the publish/subscribe routing layer
  • Use cases for supporting transactions that span multiple operations would be interesting

Transactional Mobility in Pub/Sub

slide30
Q&A

Transactional Mobility in Distributed Content-Based Publish/Subscribe Systemshttp://padres.msrg.toronto.edu

Transactional Mobility in Pub/Sub

slide31

Extra slides

Transactional Mobility in Pub/Sub

client and coordinator states at the source and target
Client and coordinator states at the source and target
  • Coordinators are based on the three-phase commit protocol
  • The failure and timeout transitions are omitted for brevity
the global reachable state graph can be used to prove some of the transactional properties
The global reachable state graph can be used to prove some of the transactional properties
  • E.g., in the commit state, the source client is clean, and the target client is started
  • Refer to the paper for proofs
proposed protocol reconfigures routing tables hop by hop2
Proposed protocol reconfigures routing tables hop-by-hop

Bi

Bl

Bj

  • Only brokers between Bi and Bj are updated
  • Advertisement entries are simply reversed
  • Subscription entries are more complicated
