Grasslands: NBP, NPP and GPP

CarboEurope, Poznan meeting, October 9, 2007. Grasslands: NBP, NPP and GPP. Jean-François Soussana Katja Klumpp, Nicolas Vuichard INRA, Clermont-Ferrand, France. Uncertainty in calculation of NPP in grasslands (Lauenroth et al., 2006).

rupali
Download Presentation

Grasslands: NBP, NPP and GPP

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CarboEurope, Poznan meeting, October 9, 2007. Grasslands: NBP, NPP and GPP Jean-François Soussana Katja Klumpp, Nicolas Vuichard INRA, Clermont-Ferrand, France

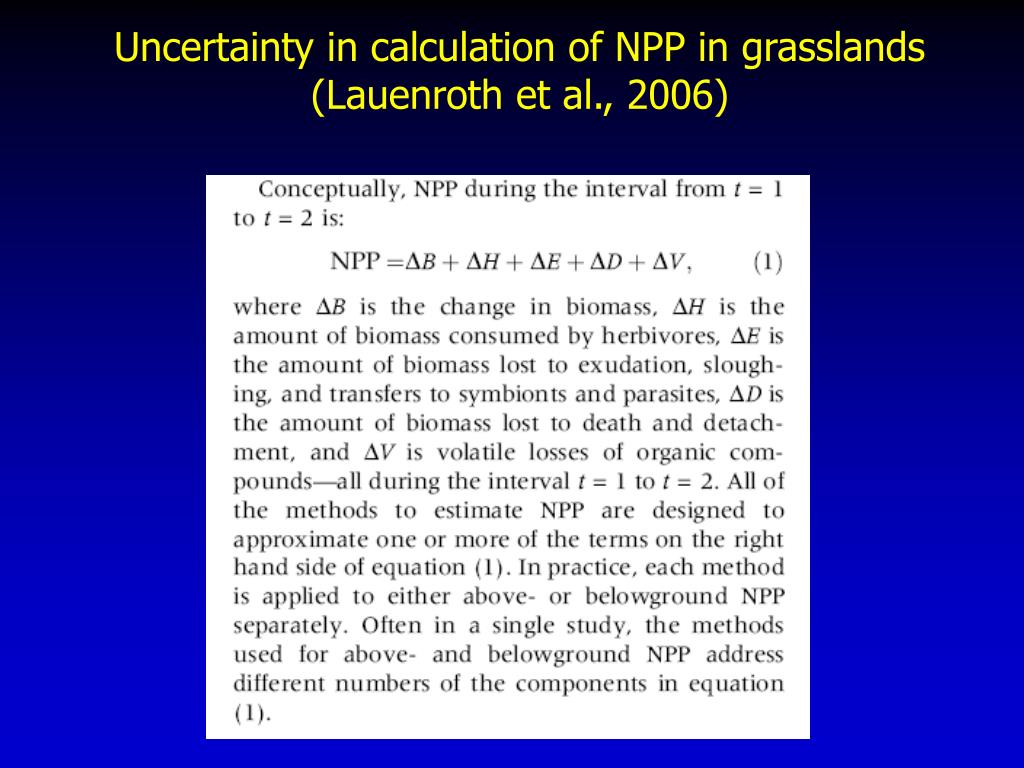

  2. Uncertainty in calculation of NPP in grasslands(Lauenroth et al., 2006)

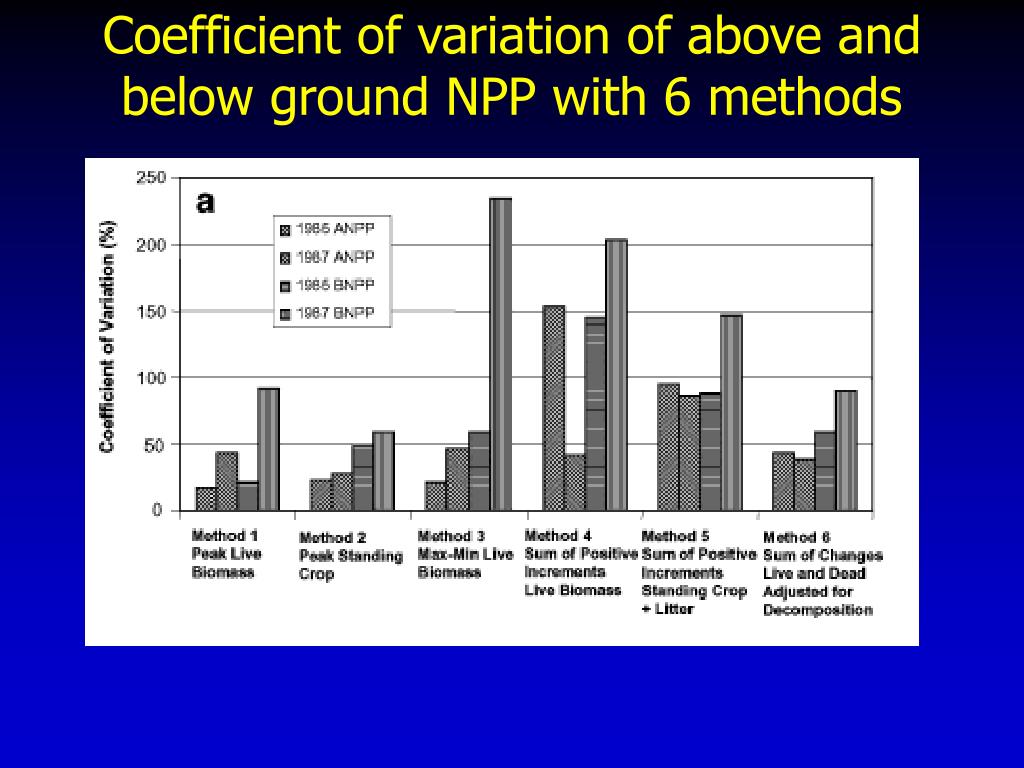

  3. Coefficient of variation of above and below ground NPP with 6 methods

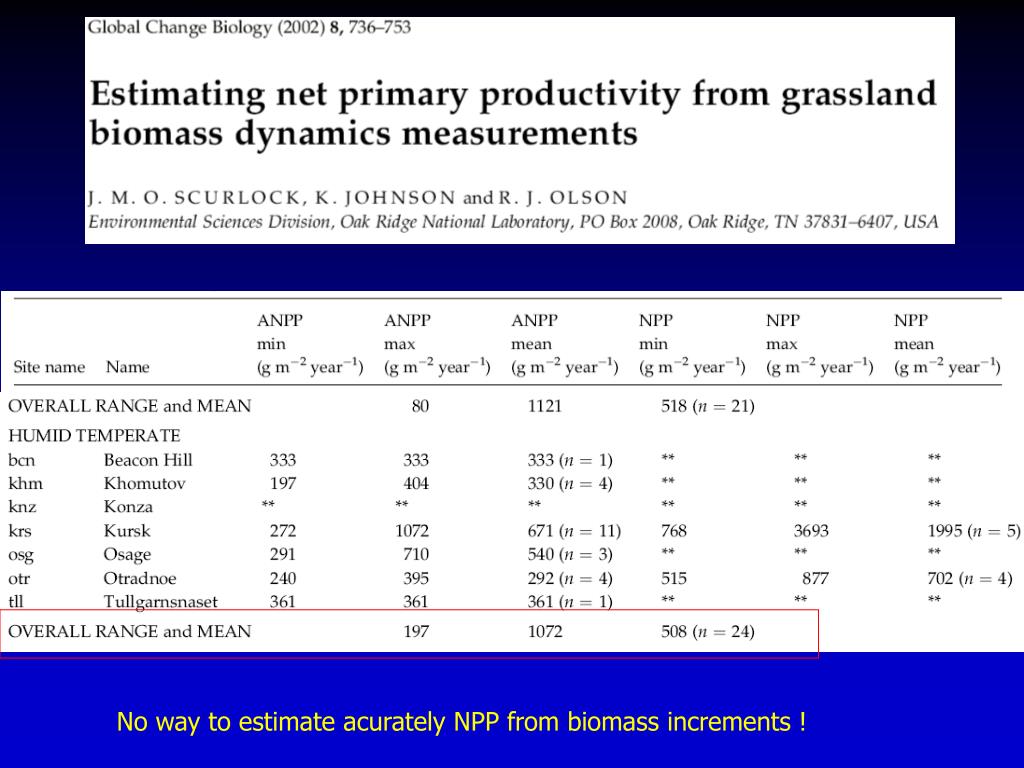

  4. No way to estimate acurately NPP from biomass increments !

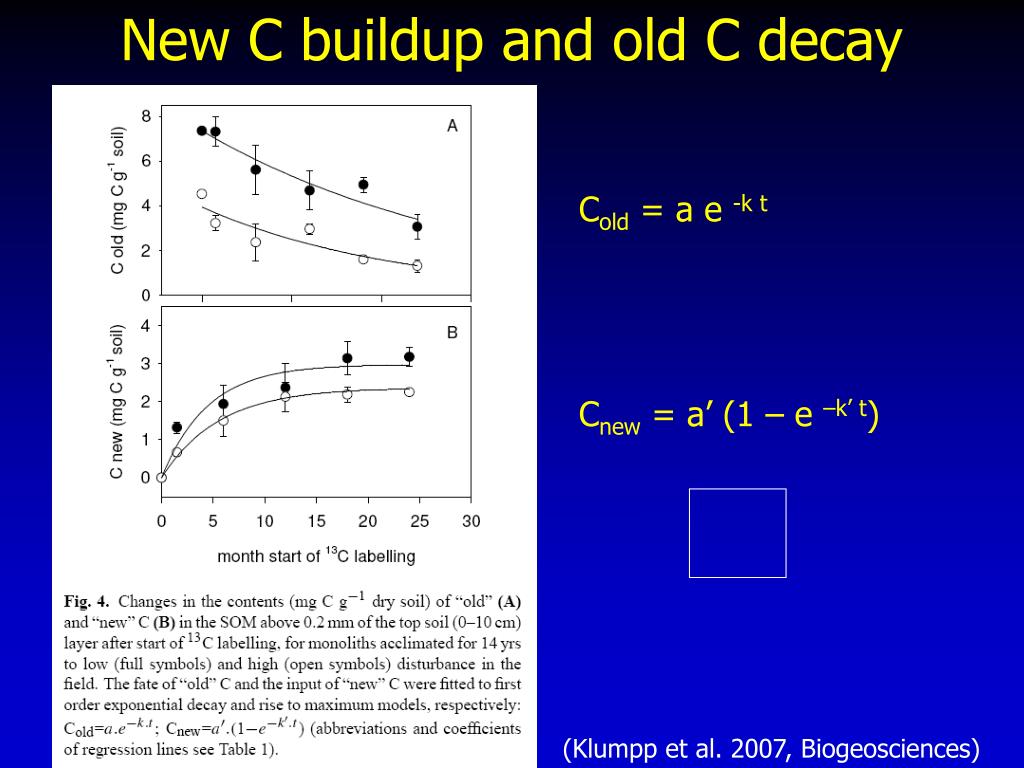

  5. New C buildup and old C decay Cold = a e -k t Cnew = a’ (1 – e –k’ t) (Klumpp et al. 2007, Biogeosciences)

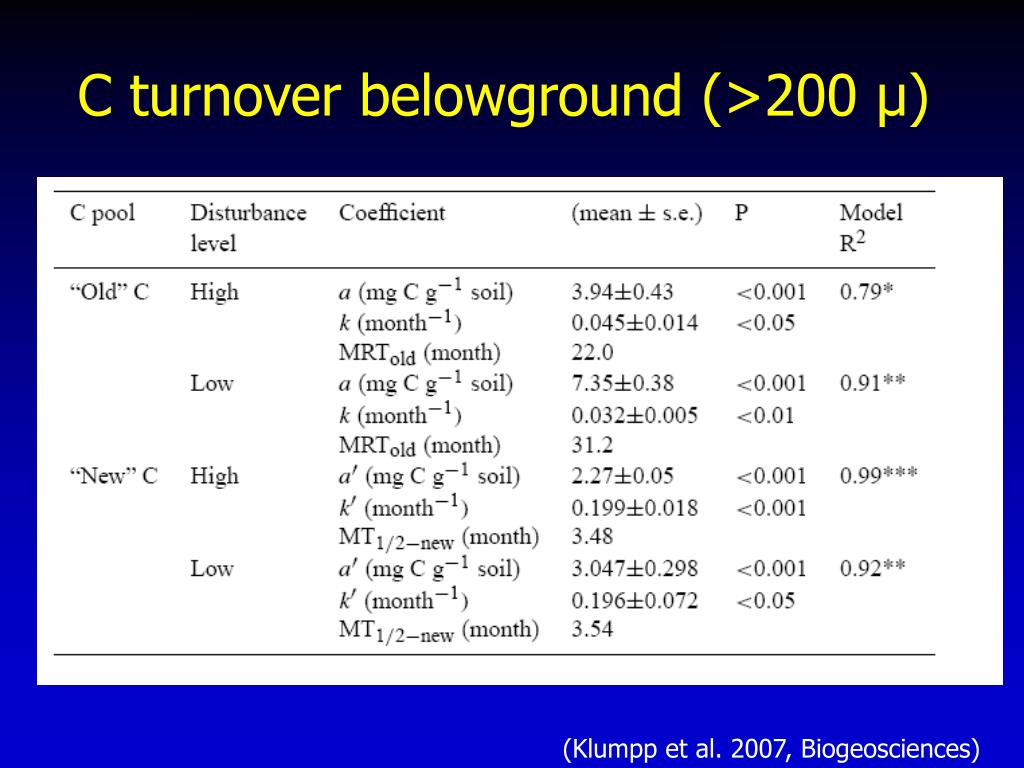

  6. C turnover belowground (>200 µ) (Klumpp et al. 2007, Biogeosciences)

  7. Rate of C deposition Cnew = a’ (1 – e –k’t) For t -> 0, initial slope : dCnew/dt = k’ a’ = 0.45 (mg C g soil month-1) Initial slope represents the below-ground C deposition (not including fastly respired exudates) When integrated over total soil gives the below-ground NPP: First estimate: BNPP 78 g C m-2 month-1during spring-summer ANPP: 200 gC m-2 month-1 NPP = 278 gC m-2 month-1 GPP was 600 gC m-2 month-1 (Klumpp et al. 2007, AGEE) NPP/GPP = 0.46 (first cut, needs checks on deep soil layers)

  8. Rhetero. Herbivore 46 Rhetero. SOM 89 Rhetero. Litter 294 GPP 1228 Rauto. 615 K3 = 83 Q10 =1.21 K1=0.50 K2=0.43 Digest.=0.65 NBP 128 Intake 70 Enteric fermentation 3.4 Cut 75 Manure 16 Mean C fluxes (gC m-2 yr-1) at CarboEurope grassland and wetland sites NBP = K2 (K1 GPP – Cut – Digest . Intake + Manure)– K3 e LN(Q10).Tsoil/10 –FCH4-C (n=43, R2=0.52, P<0.001) (Soussana et al., unpub.)

  9. Fate of NPP and manure (at C sink sites) Cut Cut & Grazed Grazed Abandoned & Wet

  10. Role of grazing and cutting management for NBP Maximal grazing Maximal cutting

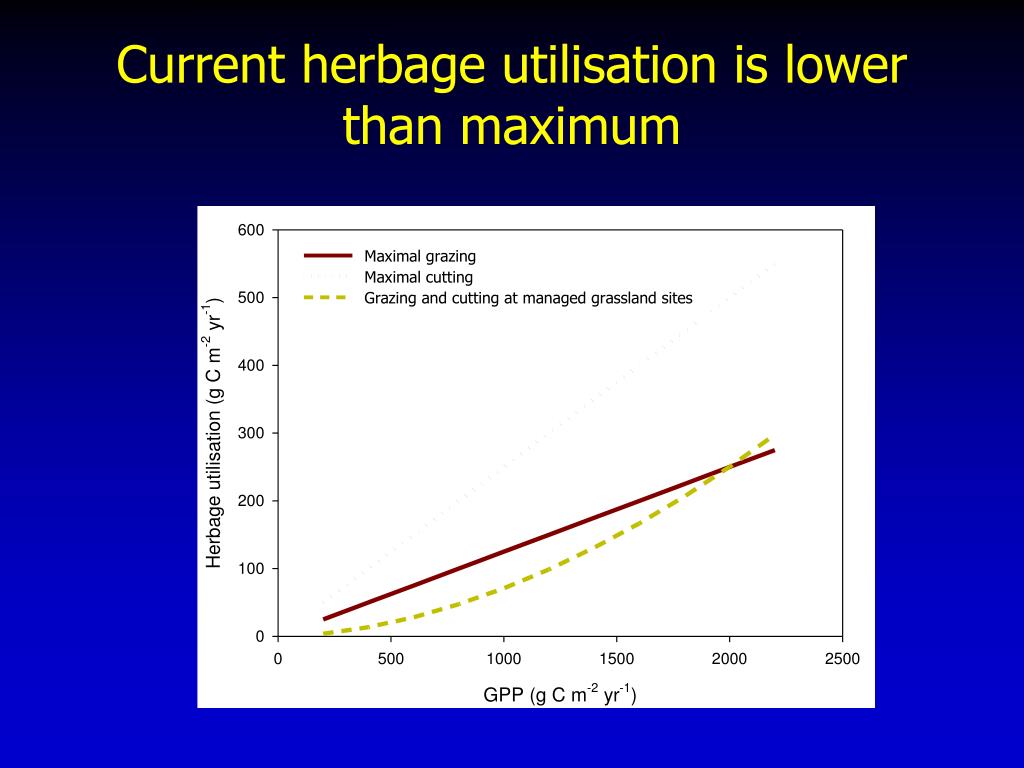

  11. Current herbage utilisation is lower than maximum
