Presentation Transcript
local version control
Local Version Control
  • Old-school version control like RCS

Image stolen from http://progit.org/book/ which is really good, go read it.

centralized version control

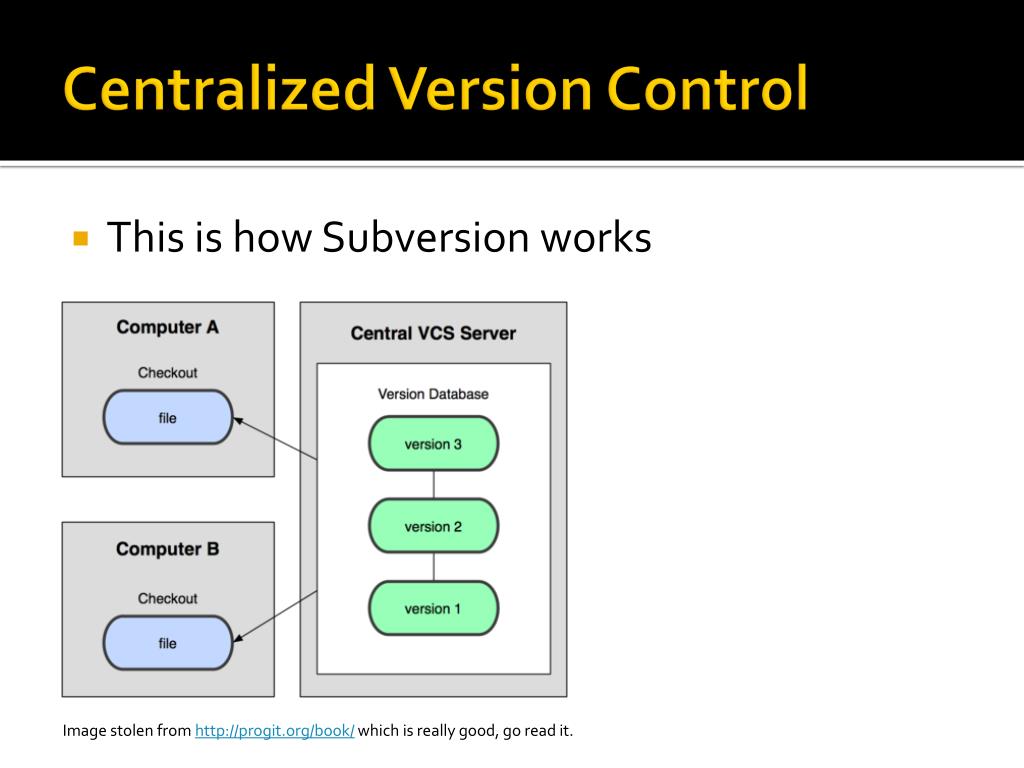

Centralized Version Control
  • This is how Subversion works

Image stolen from http://progit.org/book/ which is really good, go read it.

distributed version control1
Distributed Version Control
  • This is how Git works

Image stolen from http://progit.org/book/ which is really good, go read it.

why do i care
Why Do I Care?
  • Because it has been mandated that you care about version control by Prof. Laurendeau
  • Because you will use version control at every single coding job you get in the real world
    • If your company doesn’t have version control in place, that’s a huge warning sign
  • Because it will change the way you think about programming, for the better
  • Because it stops you from completely screwing yourselves the day before an iteration is due

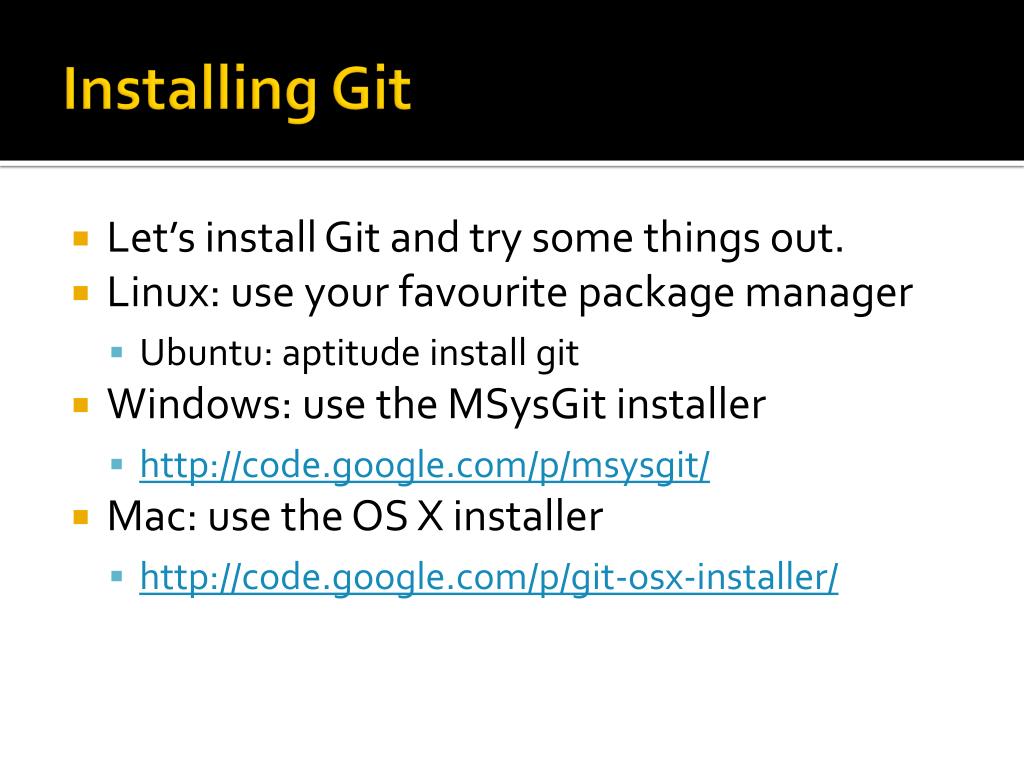

installing git
Installing Git
  • Let’s install Git and try some things out.
  • Linux: use your favourite package manager
    • Ubuntu: aptitude install git
  • Windows: use the MSysGit installer
    • http://code.google.com/p/msysgit/
  • Mac: use the OS X installer
    • http://code.google.com/p/git-osx-installer/
learning git
Learning Git
  • Read Pro Git, it’s excellent and free
    • http://progit.org/book/
  • Git is extraordinarily powerful and you’ll be a better programmer if you take the time to understand it
  • If in doubt, always use the built in manual
    • Every git command has a --help flag
    • e.g. git cherry-pick --help

Seriously go read http://progit.org/book/.

getting started
Getting Started
  • Let’s tell Git our name and email address
    • It attaches these to any commits we make so people know who to kill for breaking the build an hour before an iteration is due
  • gitconfig --global user.name “Your Name”
  • gitconfig --global user.email“you@place.tld”
    • --global sets the variable for your OS user
      • --system sets the variable for all users on your machine
    • Omit the --global and --system flags to set a gitconfig variable for just this repository
creating a repository
Creating a Repository
  • git init
    • Creates a local, empty git repository in the folder where the command is run
    • Creates a .git folder for the guts of the repository
      • Only one .git folder, at the root of your repository
      • This is way nicer than creating a new .svn folder for every single subfolder in your repository
  • We’ll go over how to work with other people on a remote repository soon
anatomy of a repository
Anatomy of a Repository

Image stolen from http://progit.org/book/ which is really good, go read it.

anatomy of a repository1
Anatomy of a Repository
  • Crazy important! Memorize this!
    • The working directory consists of the actual files and folders on your machine
    • The staging area lets you build commits out of snapshots taken of the files and folders in your working directory
    • The repository maintains a collection and complete hierarchical history of all commits
oh god what s happening
Oh God, What’s Happening?
  • git status
    • Shows you the state of your staging area and of your working directory
  • git log
    • Shows a commit history of your repository
  • git diff
    • Shows changes between commits, your working directory, the staging area, etc.
    • git diff --help to learn more

Or you could just go read http://progit.org/book/ and you’ll be an expert.

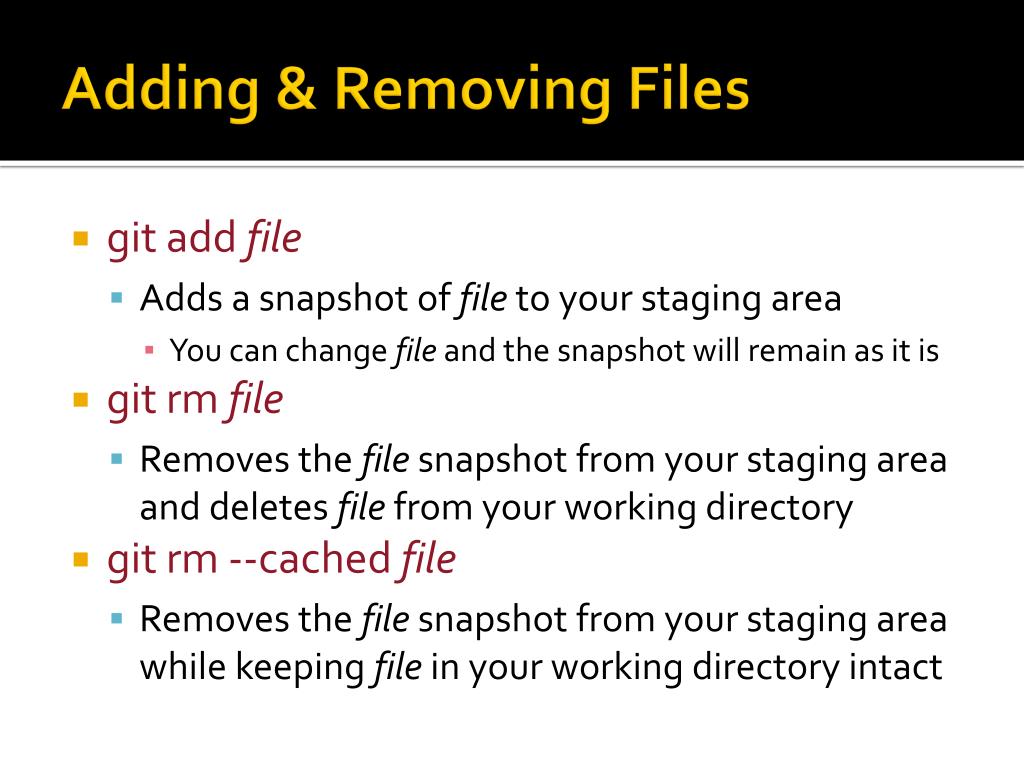

adding removing files
Adding & Removing Files
  • git add file
    • Adds a snapshot of file to your staging area
      • You can change file and the snapshot will remain as it is
  • gitrmfile
    • Removes the file snapshot from your staging area and deletes file from your working directory
  • gitrm --cached file
    • Removes the file snapshot from your staging area while keeping file in your working directory intact
gitignore

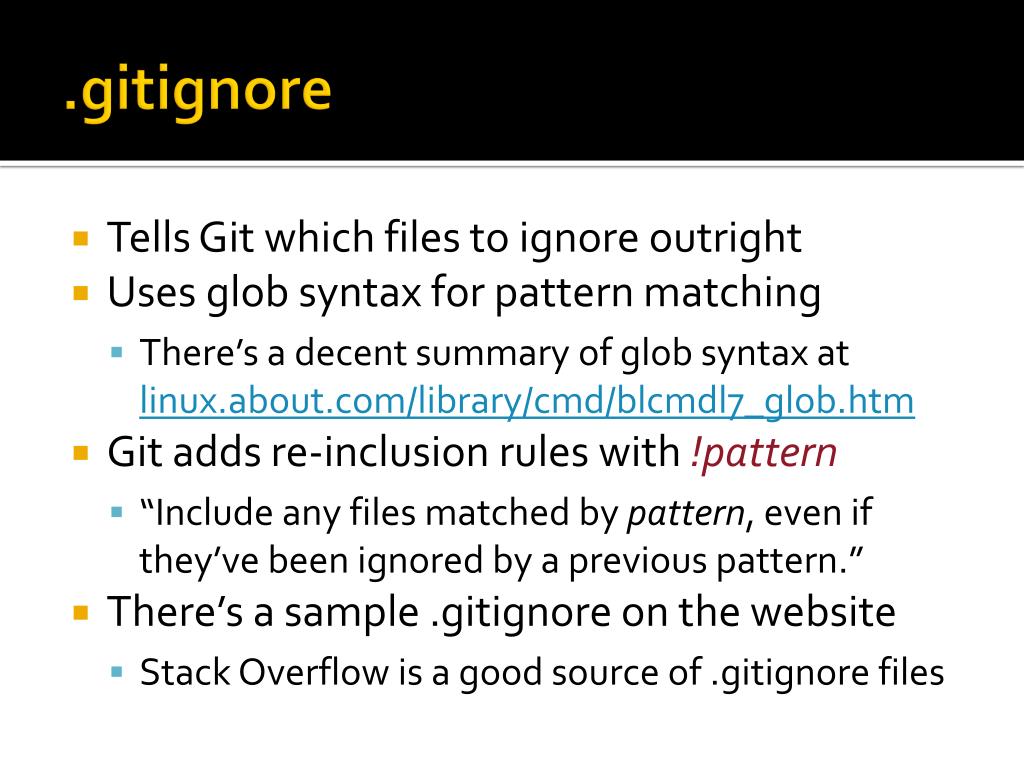

.gitignore
  • Tells Git which files to ignore outright
  • Uses glob syntax for pattern matching
    • There’s a decent summary of glob syntax at linux.about.com/library/cmd/blcmdl7_glob.htm
  • Git adds re-inclusion rules with !pattern
    • “Include any files matched by pattern, even if they’ve been ignored by a previous pattern.”
  • There’s a sample .gitignore on the website
    • Stack Overflow is a good source of .gitignore files

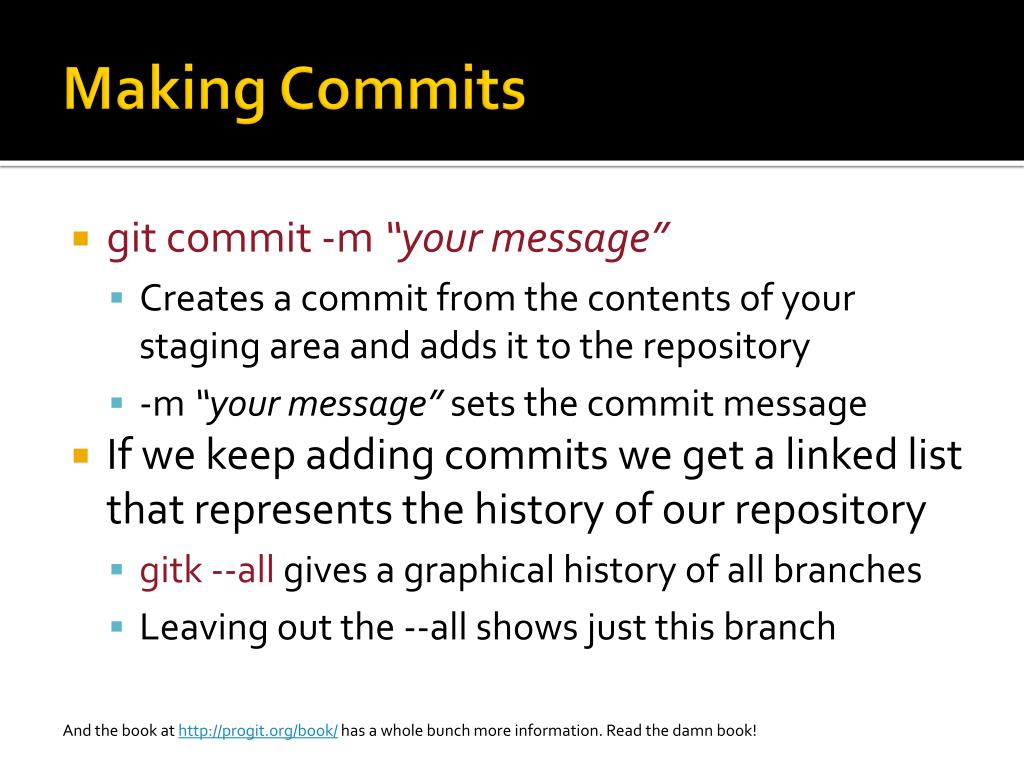

making commits
Making Commits
  • git commit -m “your message”
    • Creates a commit from the contents of your staging area and adds it to the repository
    • -m “your message” sets the commit message
  • If we keep adding commits we get a linked list that represents the history of our repository
    • gitk --all gives a graphical history of all branches
    • Leaving out the --all shows just this branch

And the book at http://progit.org/book/ has a whole bunch more information. Read the damn book!

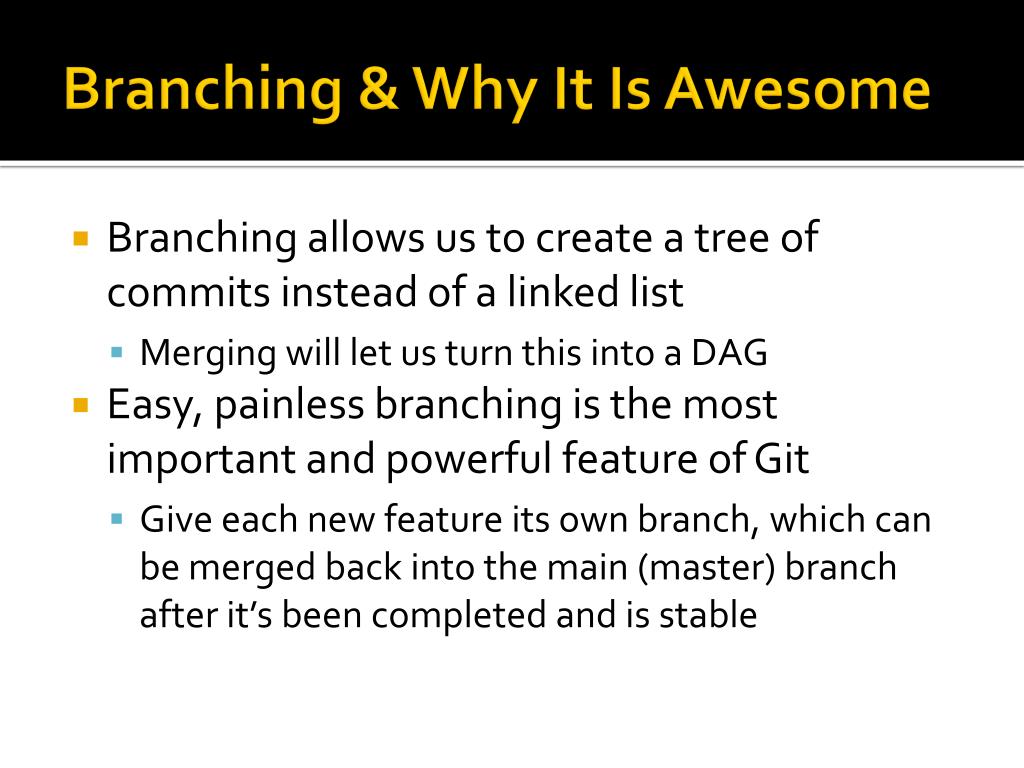

branching why it is awesome
Branching & Why It Is Awesome
  • Branching allows us to create a tree of commits instead of a linked list
    • Merging will let us turn this into a DAG
  • Easy, painless branching is the most important and powerful feature of Git
    • Give each new feature its own branch, which can be merged back into the main (master) branch after it’s been completed and is stable
creating branches

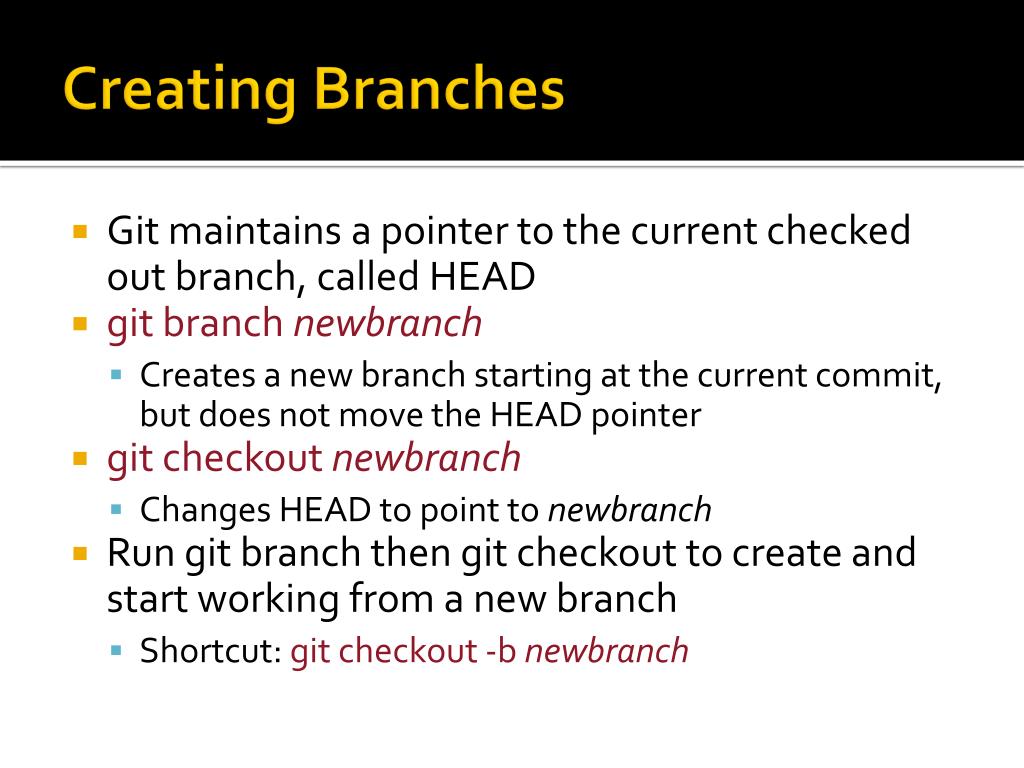

Creating Branches
  • Git maintains a pointer to the current checked out branch, called HEAD
  • git branch newbranch
    • Creates a new branch starting at the current commit, but does not move the HEAD pointer
  • git checkout newbranch
    • Changes HEAD to point to newbranch
  • Run git branch then git checkout to create and start working from a new branch
    • Shortcut: git checkout -b newbranch
branching example

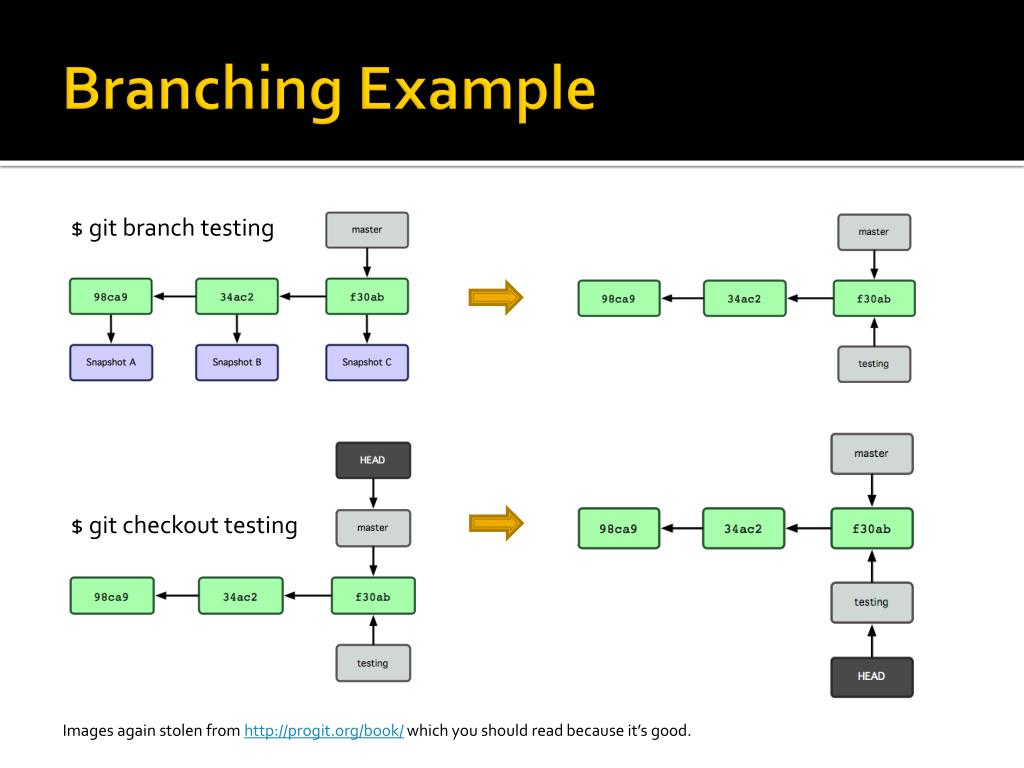

Branching Example

$ git branch testing

$ git checkout testing

Images again stolen from http://progit.org/book/ which you should read because it’s good.

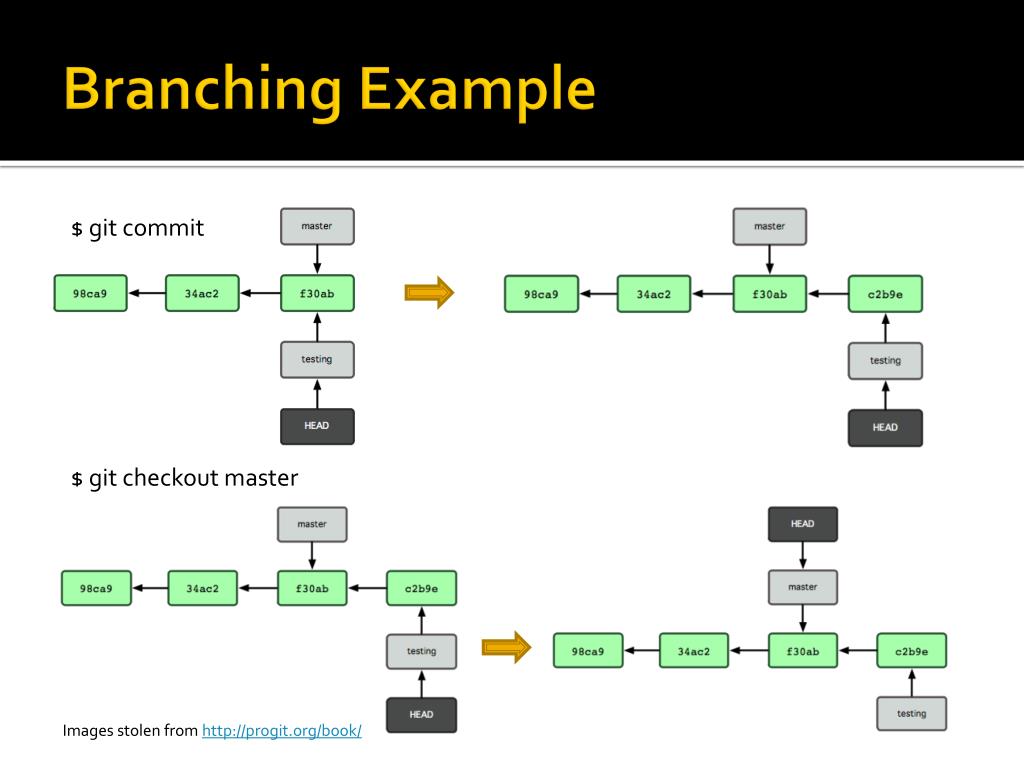

branching example1
Branching Example

$ git commit

$ git checkout master

Images stolen from http://progit.org/book/

branching example2

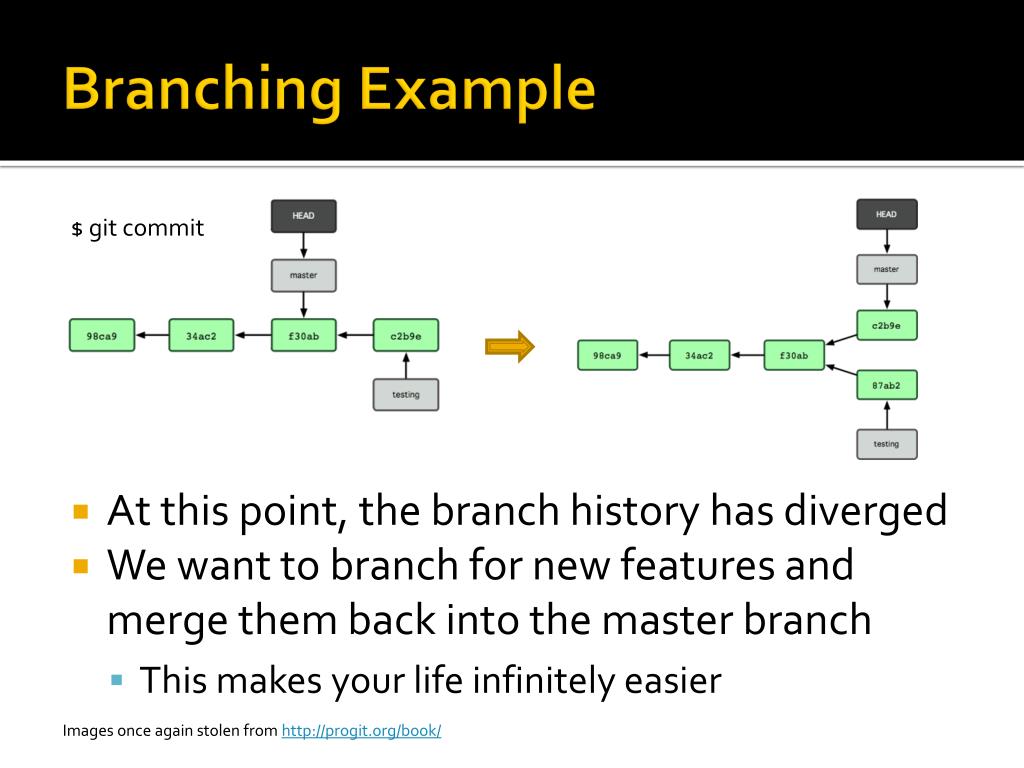

Branching Example
  • At this point, the branch history has diverged
  • We want to branch for new features and merge them back into the master branch
    • This makes your life infinitely easier

$ git commit

Images once again stolen from http://progit.org/book/

merge tools

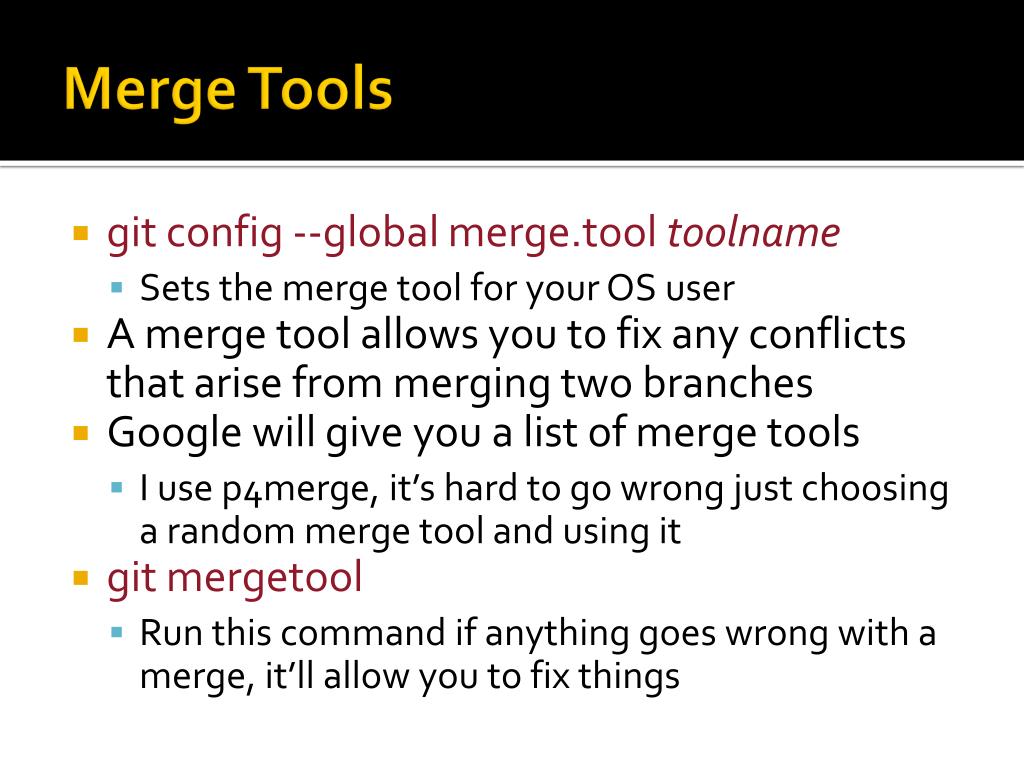

Merge Tools
  • gitconfig --global merge.tooltoolname
    • Sets the merge tool for your OS user
  • A merge tool allows you to fix any conflicts that arise from merging two branches
  • Google will give you a list of merge tools
    • I use p4merge, it’s hard to go wrong just choosing a random merge tool and using it
  • gitmergetool
    • Run this command if anything goes wrong with a merge, it’ll allow you to fix things
merging
Merging
  • git merge branchname
    • Allows you to take another branch and merge its changes into the currently checked out branch
  • Git has hyper-intelligent algorithms that track your content, not your files
    • If you move or rename a file and make changes to it, it will still be detected as the same content

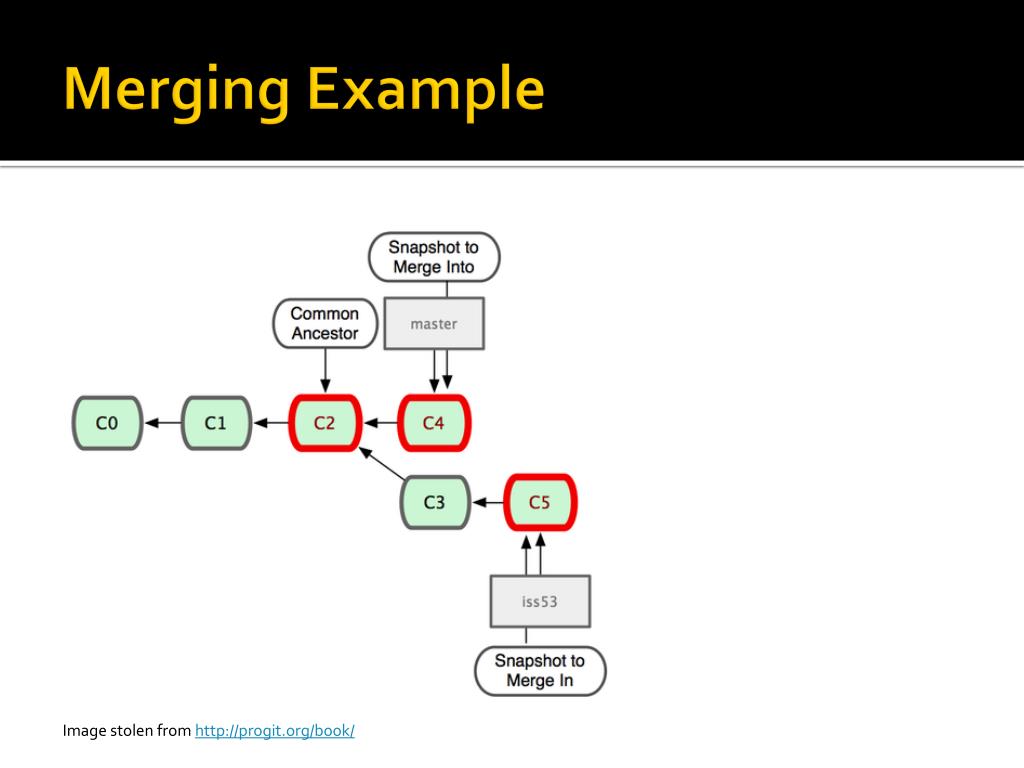

merging example
Merging Example

Image stolen from http://progit.org/book/

merging example1
Merging Example

Image stolen from http://progit.org/book/

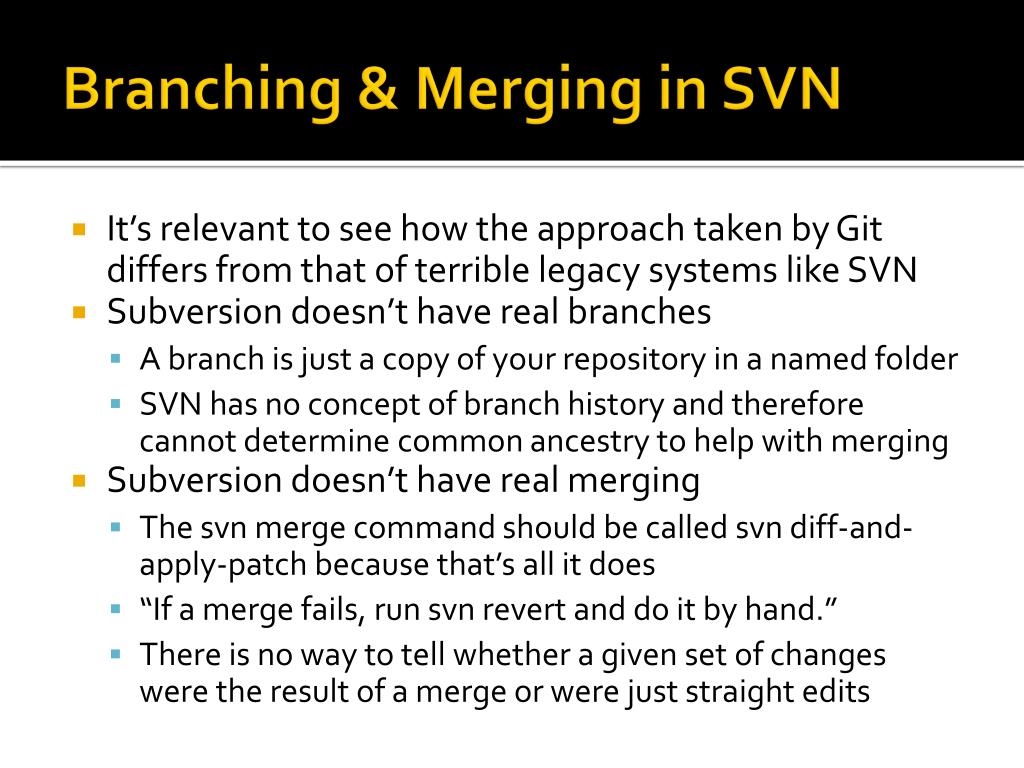

branching merging in svn
Branching & Merging in SVN
  • It’s relevant to see how the approach taken by Git differs from that of terrible legacy systems like SVN
  • Subversion doesn’t have real branches
    • A branch is just a copy of your repository in a named folder
    • SVN has no concept of branch history and therefore cannot determine common ancestry to help with merging
  • Subversion doesn’t have real merging
    • The svn merge command should be called svn diff-and-apply-patch because that’s all it does
    • “If a merge fails, run svn revert and do it by hand.”
    • There is no way to tell whether a given set of changes were the result of a merge or were just straight edits
remote repositories
Remote Repositories
  • git remote add reponameurl
    • Adds an external Git repository called name
  • git fetch reponame
    • Fetches updated branches from reponame including all updated data
      • A remote branch shows up as reponame/branchname
  • Your local information about remote repositories isn’t updated automatically
    • You need to run git fetch periodically on your remotes to get new branch/commit information
remote repositories1
Remote Repositories

Image stolen from http://progit.org/book/

pushing
Pushing
  • git push reponamebranchname
    • Adds a local branch to a remote Git repository
      • You need to have write access to the remote repository
    • Alternatively, merges your local branch into a remote branch of the same name
  • git push reponamelocalbranch:remotebranch
    • Explicit syntax for merging your changes from localbranchinto remotebranch
  • Always fetch and merge before you push
    • Save yourself grief and error messages
pulling
Pulling
  • git pull reponamebranchname
    • Fetches from reponame then merges the remote branchnameinto your local branchname
  • git pull reponamelocalbranch:remotebranch
    • Fetches from reponame then merges reponame/remotebranch into localbranch
  • Syntactic sugar for fetching and merging
    • Your workflow should be “git pull; git push”
tracking branches

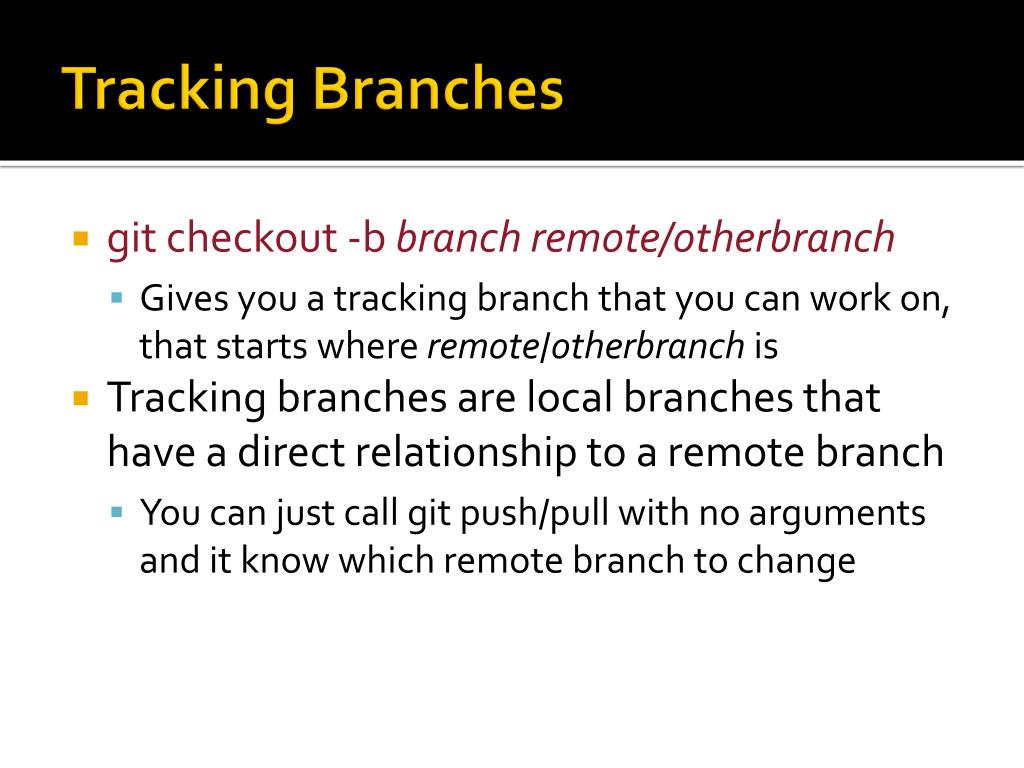

Tracking Branches
  • git checkout -b branch remote/otherbranch
    • Gives you a tracking branch that you can work on, that starts where remote/otherbranch is
  • Tracking branches are local branches that have a direct relationship to a remote branch
    • You can just call git push/pull with no arguments and it know which remote branch to change
cloning a repository

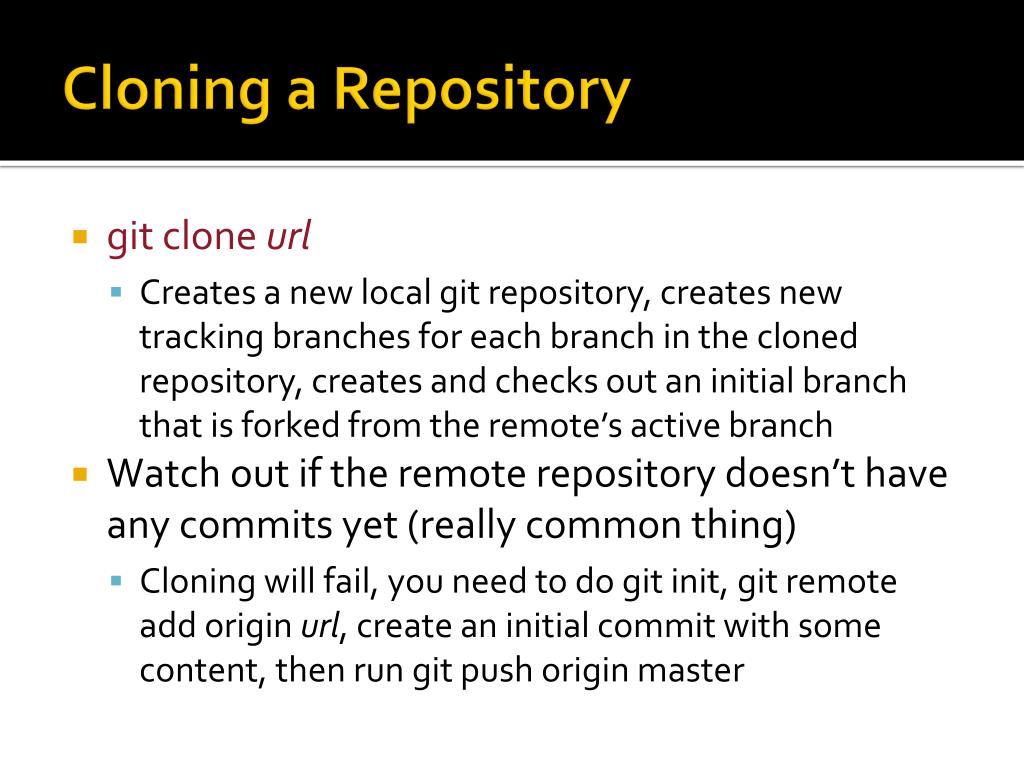

Cloning a Repository
  • git clone url
    • Creates a new local git repository, creates new tracking branches for each branch in the cloned repository, creates and checks out an initial branch that is forked from the remote’s active branch
  • Watch out if the remote repository doesn’t have any commits yet (really common thing)
    • Cloning will fail, you need to do git init, git remote add origin url, create an initial commit with some content, then run git push origin master
and we re done
And We’re Done!
  • There’s some stuff I didn’t get to cover due to time constraints
  • Look up git stash, gitsubmodule
  • TortoiseGit is a Windows-only frontend for Git
    • It’s a knockoff of TortoiseSVN and is really easy to use
  • Go read the Pro Git book because it’s short, awesome, free, etc.
    • Reading it will make you taller and more popular with members of your preferred gender
  • Thanks for your time :)
