Presentation Transcript

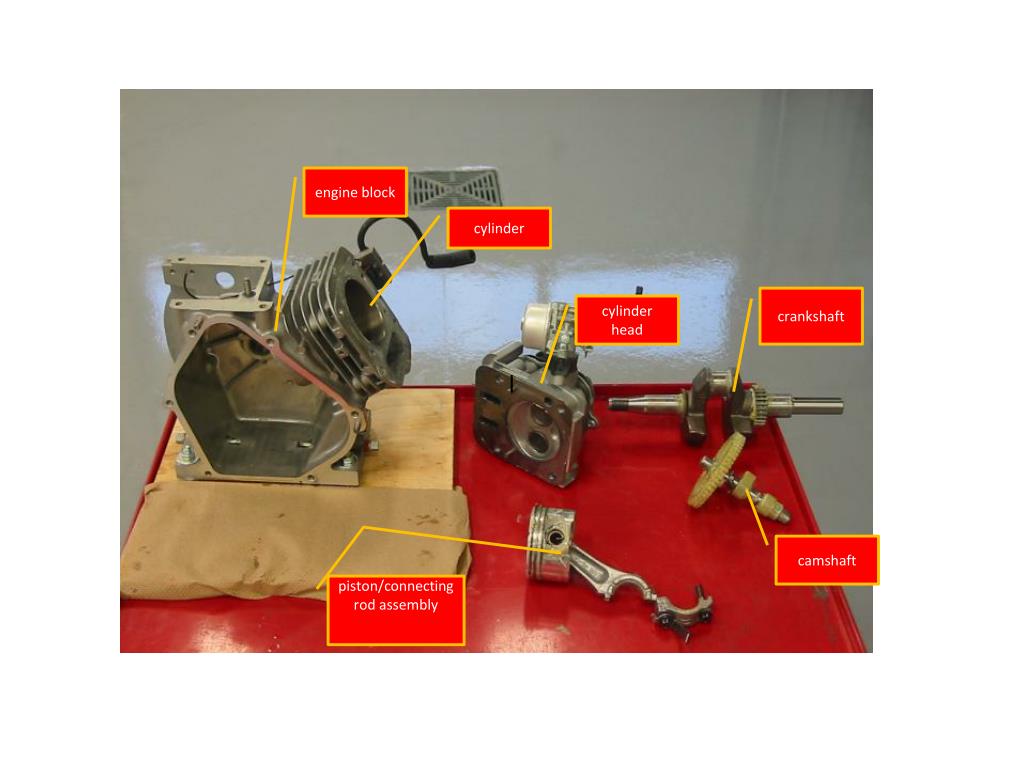

  1. engine block cylinder crankshaft cylinder head l camshaft piston/connecting rod assembly

  2. Crankpin crankpin centerline crank centerline Throw Main bearing journal Main bearing journal

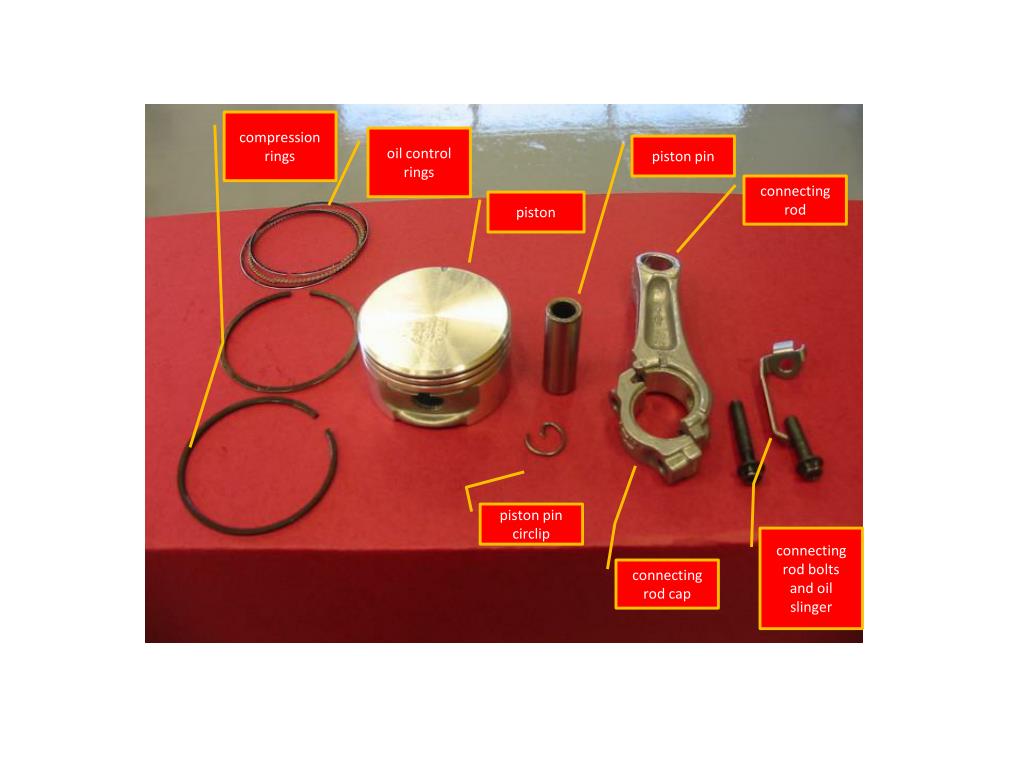

  3. compression rings oil control rings piston pin connecting rod piston piston pin circlip connecting rod bolts and oil slinger connecting rod cap

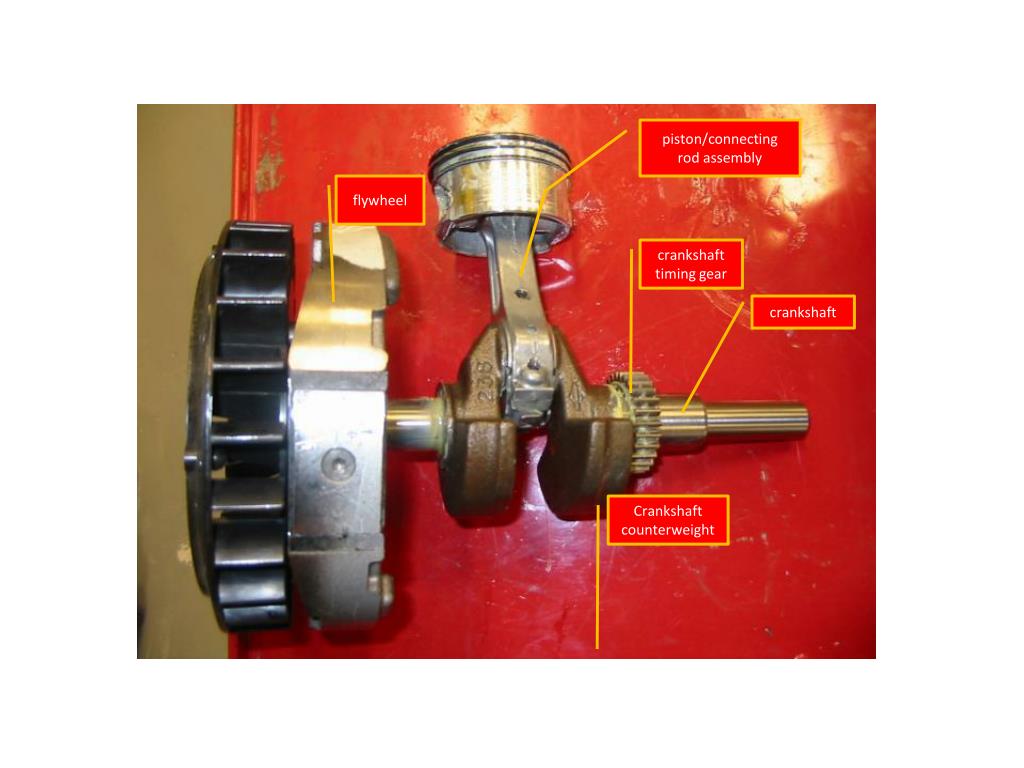

  4. piston/connecting rod assembly flywheel crankshaft timing gear crankshaft Crankshaft counterweight

  5. camshaft gear camshaft camshaft lobe

  6. crankshaft piston piston rings camshaft gear engine block

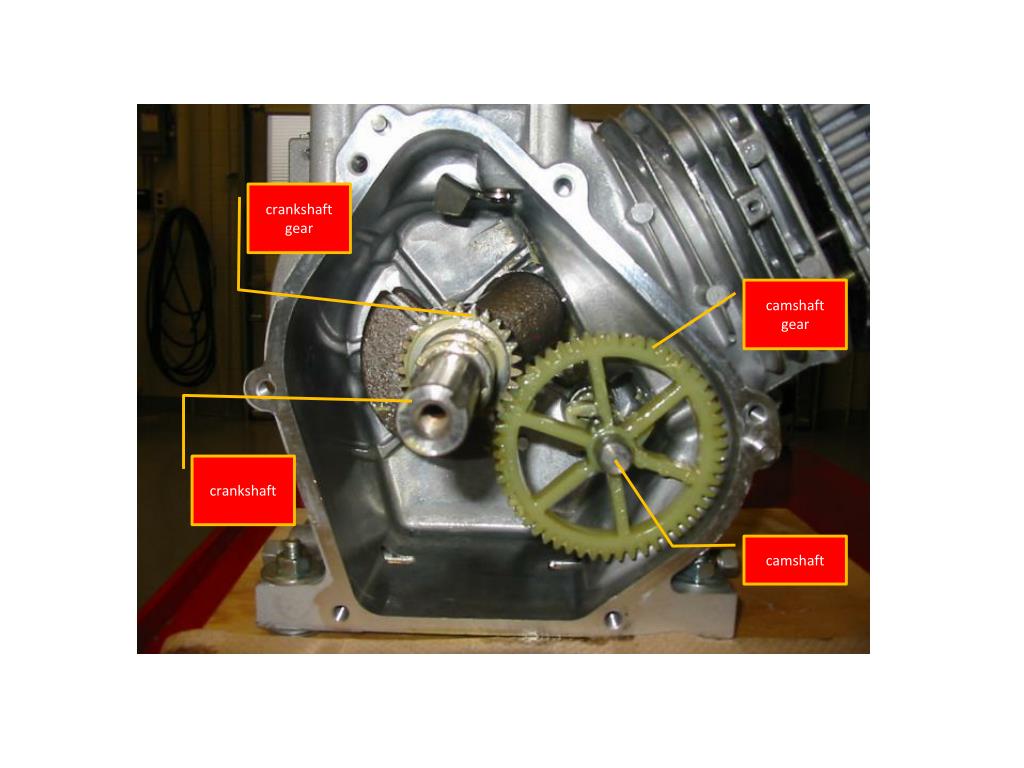

  7. crankshaft gear camshaft gear crankshaft camshaft

  8. spark plug location exhaust valve cooling fins intake valve combustion chamber head gasket

  9. valve spring engine block crankcase rocker arm cylinder head

  10. cooling fins magnet flywheel bore for crankshaft mounting
