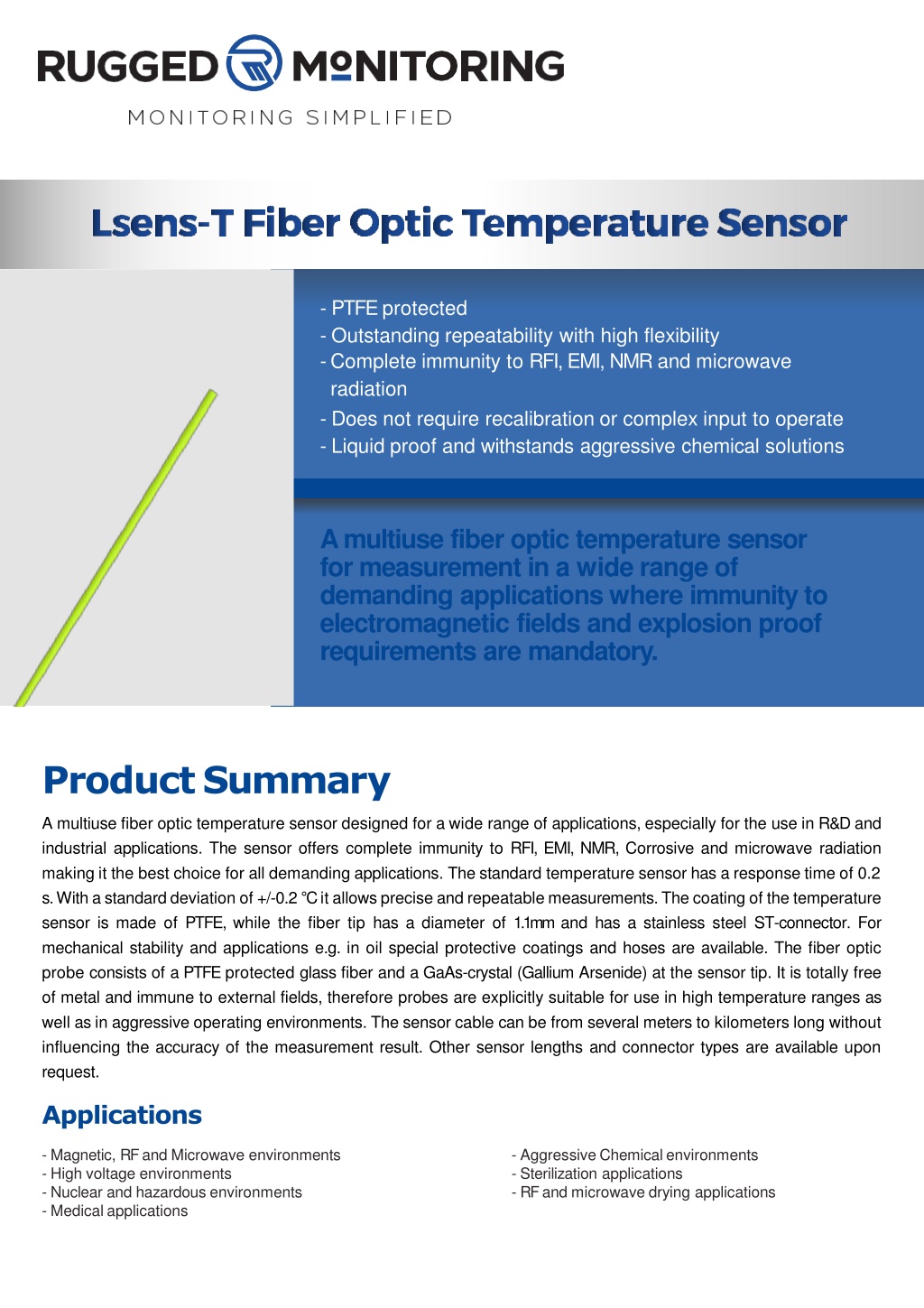

  1. T301 • PTFEprotected • Outstandingrepeatabilitywithhighflexibility • CompleteimmunitytoRFI,EMI,NMRandmicrowave radiation • Doesnotrequirerecalibrationorcomplexinputtooperate • Liquidproofandwithstandsaggressivechemicalsolutions Amultiusefiberoptictemperaturesensor formeasurementina wide rangeof demandingapplicationswhereimmunityto electromagneticfieldsandexplosionproof requirementsaremandatory. ProductSummary Amultiusefiberoptictemperaturesensor designedforawiderangeof applications,especiallyforthe useinR&Dand industrial applications. The sensor offers complete immunity to RFI,EMI, NMR, Corrosive and microwave radiation makingitthebestchoicefor alldemanding applications. The standardtemperature sensorhasaresponsetimeof0.2 s.Withastandarddeviationof+/-0.2°Citallowspreciseandrepeatablemeasurements.Thecoatingofthetemperature sensor is made of PTFE,while the fiber tip has a diameter of 1.1mmand has a stainless steel ST-connector. For mechanical stability and applications e.g. in oil special protective coatings and hoses are available. The fiber optic probe consists of a PTFE protected glass fiber and a GaAs-crystal (Gallium Arsenide) at the sensor tip. It is totally free of metal and immune to external fields, therefore probes are explicitly suitable for use in high temperature ranges as wellasinaggressiveoperatingenvironments.Thesensorcablecanbefromseveralmeterstokilometerslongwithout influencing the accuracy of the measurement result. Other sensor lengths and connector types are available upon request. Applications • Magnetic,RFandMicrowaveenvironments • Highvoltageenvironments • Nuclearandhazardousenvironments • Medicalapplications • AggressiveChemicalenvironments • Sterilizationapplications • RFandmicrowavedryingapplications

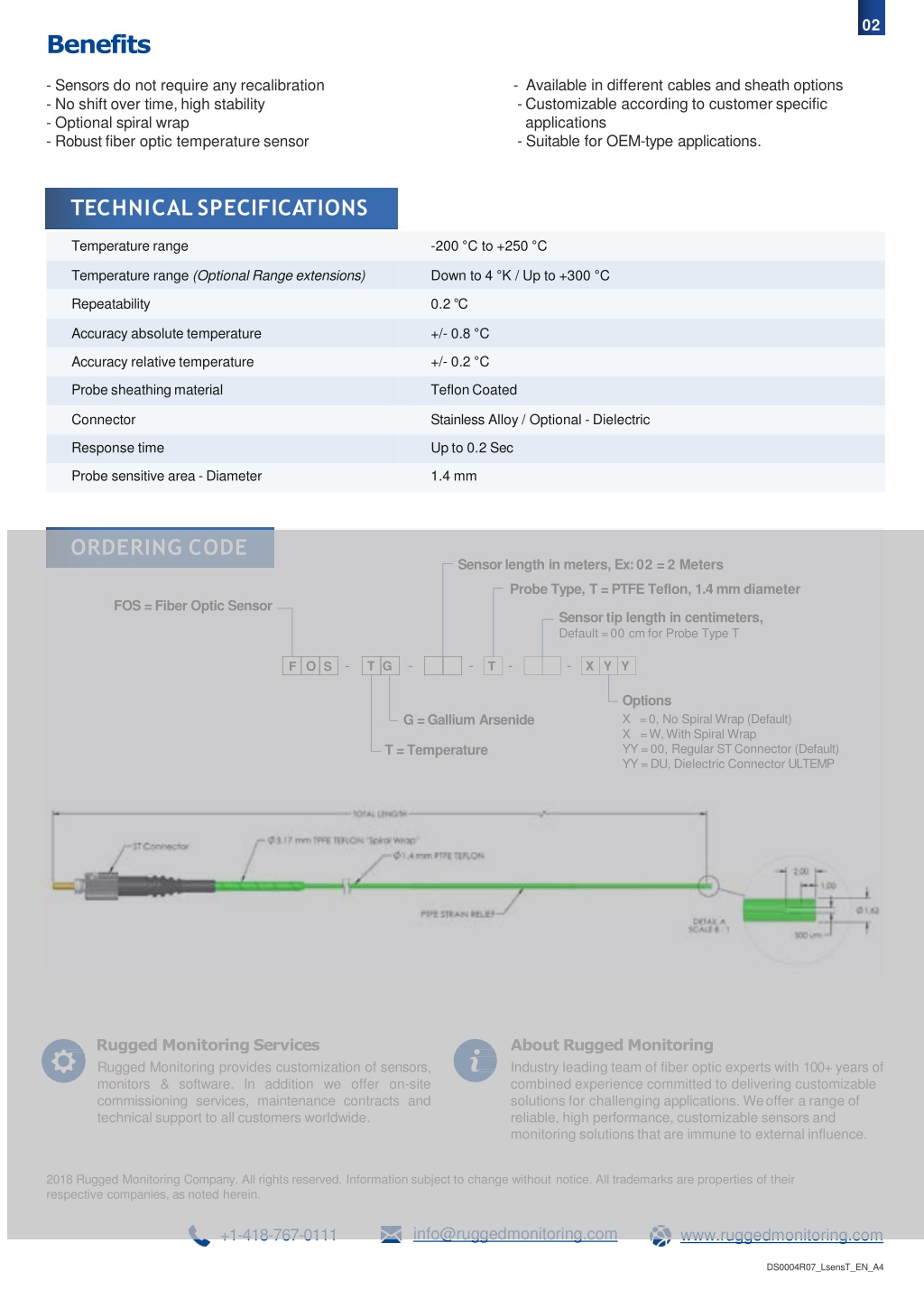

  2. 02 • Benefits • Sensorsdonotrequireanyrecalibration • Noshiftovertime,highstability • Optionalspiralwrap • Robustfiberoptictemperaturesensor • Availableindifferentcablesandsheathoptions • Customizableaccordingtocustomerspecific applications • SuitableforOEM-type applications. TECHNICALSPECIFICATIONS ORDERINGCODE Sensor length inmeters,Ex:02=2Meters ProbeType,T=PTFETeflon,1.4mmdiameter FOS=FiberOpticSensor Sensortip length incentimeters, Default=00cmforProbeTypeT - -T - - F OS - TG XYY Options G=GalliumArsenide X=0,NoSpiralWrap(Default) X=W,WithSpiralWrap YY=00,RegularSTConnector(Default) YY=DU,DielectricConnectorULTEMP T=Temperature RuggedMonitoringServices RuggedMonitoringprovidescustomizationofsensors, monitors&software.Inaddition weofferon-site commissioningservices, maintenance contractsand technicalsupporttoallcustomersworldwide. AboutRuggedMonitoring Industryleadingteamoffiberopticexpertswith100+ years of combined experience committed to delivering customizable solutions for challenging applications. We offer a range of reliable, high performance, customizable sensors and monitoringsolutionsthatareimmunetoexternalinfluence. 2018 Rugged Monitoring Company. All rights reserved. Information subject to change without notice. All trademarks are properties of their respective companies,asnotedherein. +1-418-767-0111 info@ruggedmonitoring.comwww.ruggedmonitoring.com DS0004R07_LsensT_EN_A4
