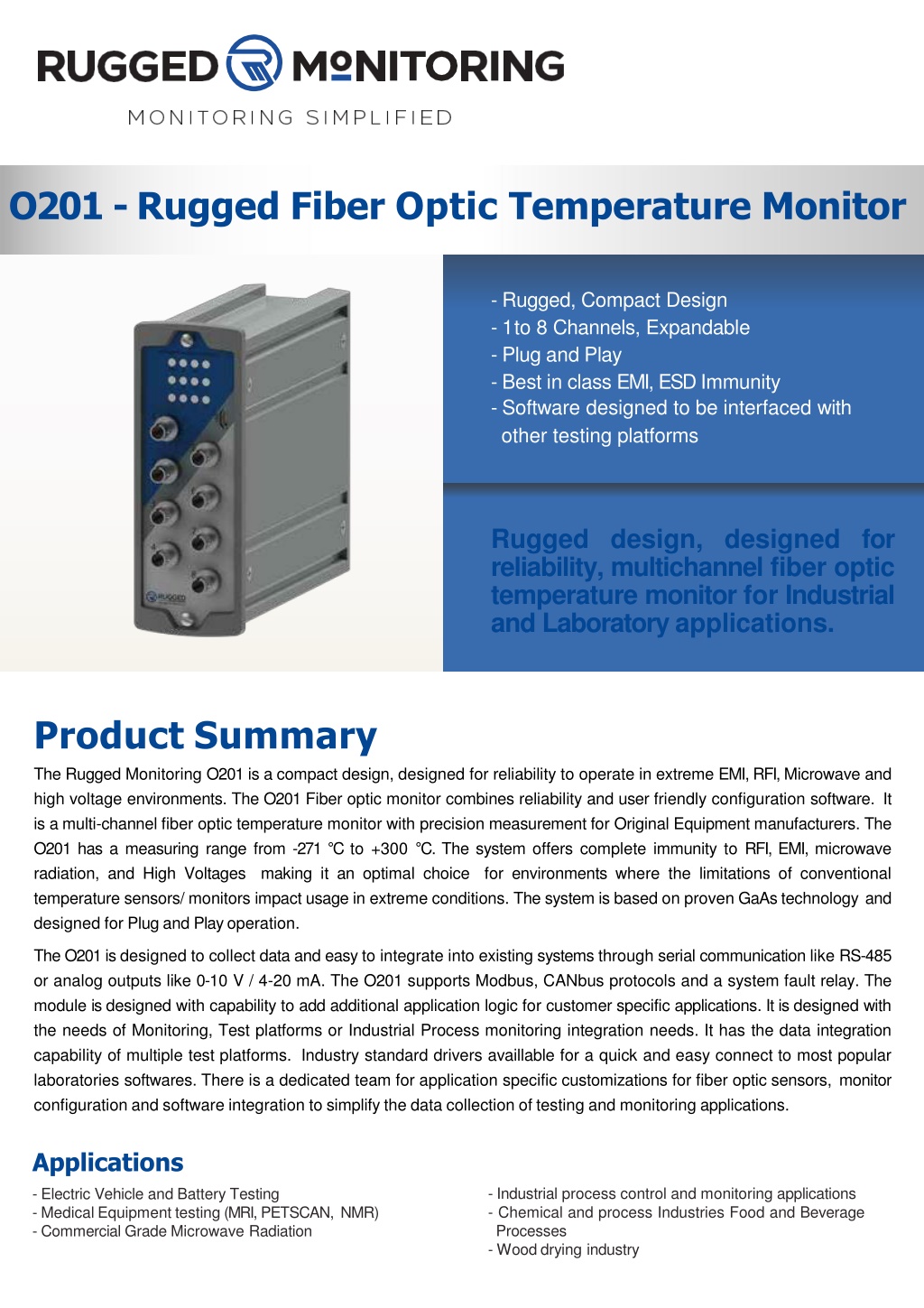

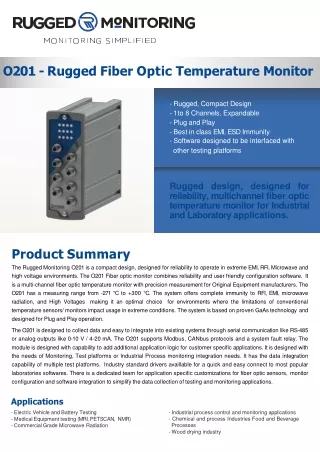

  1. T301 O201-RuggedFiberOpticTemperatureMonitor • Rugged,CompactDesign • 1to8Channels,Expandable • PlugandPlay • BestinclassEMI,ESDImmunity • Softwaredesignedtobeinterfacedwith othertestingplatforms Ruggeddesign,designedfor reliability,multichannelfiberoptic temperature monitorforIndustrial andLaboratoryapplications. ProductSummary TheRuggedMonitoringO201isacompactdesign,designedforreliabilitytooperateinextremeEMI,RFI,Microwaveandhighvoltageenvironments. The O201Fiberopticmonitorcombinesreliabilityand user friendlyconfigurationsoftware.It isamulti-channelfiberoptictemperaturemonitorwithprecisionmeasurementforOriginalEquipmentmanufacturers.TheO201hasameasuringrangefrom-271°Cto+300°C.ThesystemofferscompleteimmunitytoRFI,EMI,microwave radiation,andHighVoltagesmakingitanoptimalchoiceforenvironmentswherethelimitationsofconventional temperaturesensors/monitorsimpactusageinextremeconditions.ThesystemisbasedonprovenGaAstechnologyanddesignedfor Plug andPlayoperation. TheO201isdesignedtocollectdataandeasytointegrateintoexistingsystemsthroughserialcommunicationlikeRS-485 oranalogoutputslike0-10V/4-20mA.TheO201supportsModbus,CANbusprotocolsandasystemfaultrelay.The moduleisdesignedwithcapabilityto addadditionalapplicationlogicforcustomerspecificapplications. Itisdesigned with theneedsofMonitoring,TestplatformsorIndustrialProcessmonitoringintegrationneeds.Ithasthedataintegration capabilityofmultipletestplatforms.Industrystandarddriversavaillableforaquickandeasyconnecttomostpopular laboratoriessoftwares.Thereisadedicatedteamforapplicationspecificcustomizationsforfiberopticsensors,monitor configurationandsoftwareintegrationtosimplifythedatacollectionoftestingandmonitoringapplications. • Applications • ElectricVehicleandBatteryTesting • MedicalEquipmenttesting(MRI,PETSCAN,NMR) • CommercialGradeMicrowaveRadiation • Industrial processcontrolandmonitoringapplications • ChemicalandprocessIndustriesFoodandBeverage Processes • Wooddrying industry

  2. 02 • Benefits • SuitableforOEM-type applications. • Sensorsdonotrequireanyrecalibration • Noshiftovertime,highstabilityandrepeatability • Robustpackaging • EachMonitorcomeswithacompleteNISTcalibration certificate • Softwaredesigned forintegration intotest platforms • RobustdataloggingandAnalytics • Customizableaccordingtocustomerspecificapplications • SuitableforOEM-type applications. TECHNICALSPECIFICATIONS ORDERINGCODE O201=OriginalEquipmentModule, 201 Series NumberofAnalog Ex:08=8Channels(Available00,08) - O201- NumberofChannels, Ex: 08 = 8 Channels(Available 02, 04, 06,08) RuggedMonitoringServices Rugged Monitoring providescustomization ofsensors, monitors&software.Inadditionweofferon-site commissioningservices,maintenancecontractsand technicalsupporttoallcustomersworldwide. AboutRuggedMonitoring Industry leading team offiber optic expertswith 100+yearsof combinedexperiencecommittedtodeliveringcustomizable solutionsforchallengingapplications.Weofferarangeof reliable,highperformance,customizablesensorsand monitoringsolutionsthatareimmunetoexternalinfluence. 2018RuggedMonitoringCompany.Allrights reserved.Informationsubjecttochange withoutnotice.Alltrademarksarepropertiesoftheirrespectivecompanies, asnotedherein. www.ruggedmonitoring.com DS0025R02_O201_EN_A4 +1-418-767-0111info@ruggedmonitoring.com
