Comprehensive Monitoring System R501 Rugged Monitoring

R501 - Rugged, Most Versatile and Multi-Channel monitoring solution, Capable of Monitoring One or Multiple Assets: Basic Asset Monitoring, Fiber Optic Temperature Monitoring, Partial Discharge, Bushing, OLTC, Load, Power, and more.

rugged2
Download Presentation

Comprehensive Monitoring System R501 Rugged Monitoring

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MONITORINGSIMPLIFIED R501 MostVersatile,MultiChannelandRuggedFiberOpticTemperatureMonitor Robust|Reliable|Responsive Ruggeddesignandextensivemultichannelsystemforvarious,fibreoptic temperaturesensors(GaAs,Fluro),RTD,pressure,current,voltage,etc. Supportforcentralizedanddistributedinstallationmakesitmostviable optionforvarietyof applications. Applications

  2. R501 Expandabletoadddifferent analogor digital inputsandoutputs Bestin class EMI,ESDImmunity;range of communicationoptions and protocol support Rangeof communicationoptionsforthirdparty system integration KeyFeaturesof R501 SupportsFiberOpticGaAs&FiberOpticFluro technologiesfortemperaturemonitoring Scalableandfieldupgradablefrom02channels to256channelswithplugandplay modules Intuitivesoftwareforrealtimedataacquisition, visualizationandanalysis WideRangeOfInput/OutputModules DesignedToCaterForVarietyOfApplicationAcrossAllIndustries 1.RangeofFiberOptic TemperatureModule basedonGaAstechnology 2,4,6,8FiberOpticchannelspermodule SupportsGaAs 62.5u - 200u Fiber Optic Sensors Internalsensorforselfintegritycheck BuiltinLEDindicatorsforpowercommunication&channelstatus 8-Channels6-Channels 2.RangeofFiber optic temperature monitor basedon Fluorescence technology 2,4,6,8FiberOpticchannelspermodule Supports Fluro62.5u-200uFiberOpticsensors BuiltinLEDindicatorsforpowercommunication&channelstatus 4-Channels2-Channels 4.DigitalInputModule 8,16Digitalinputchannels per module Supportsconnectionfrom dry contactdigitalsignal. Built-InLEDindicatorsforPower, Communication,andStatus 3.AnalogInputModule 5,10Analoginput channels per module Supportsvarioussensorswitha nalog output(resistive,4-20mA, current,voltage) Built-InLEDindicatorsforPower, Communication,andallChannelstatus 5. Analog OutputModule 8,16 channels Analog outputsperModule Current (4-20mA), Voltage(0-5V/0-10V)outputs Built-InLEDindicatorsforCurrent (4-20mA),Voltage (0-5V/0-10V) outputs Usercustomizableandconfigured 6.RelayOutput Module 4,8Channelspermodule FormCrelays(NO-C-NC) Usercustomizableand configurablefordifferent alarm conditions 02

  3. R501 R501 BenefitsofR501 Improvedassetreliability Accesstemperaturedatafromanywhere Onemonitoringsolutionformultipleassets Highestreturnoninvestment Fieldupgradablewithnodevicedowntime TechnicalSpecifications 03

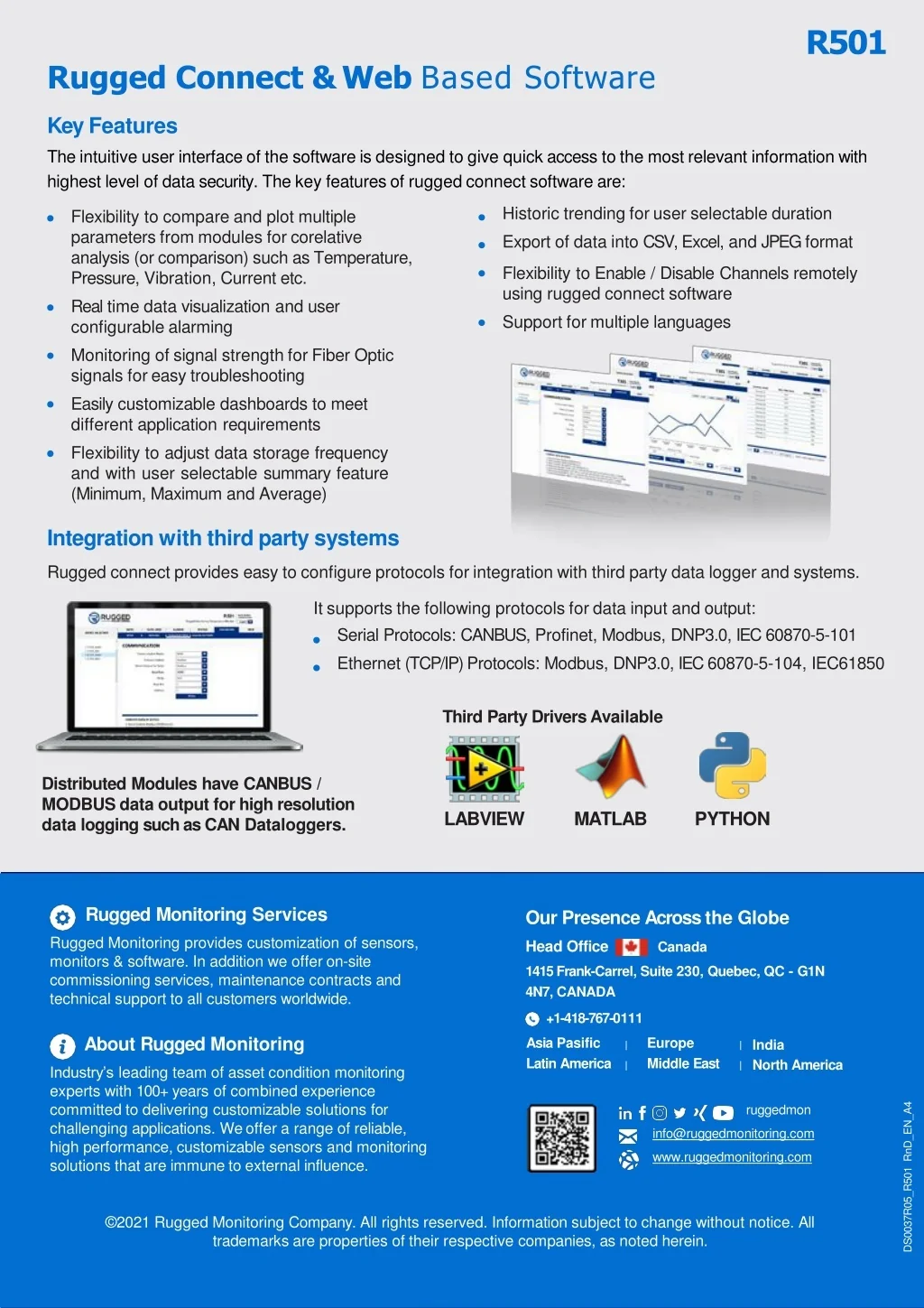

  4. R501 RuggedConnect& WebBasedSoftware KeyFeatures Theintuitiveuserinterfaceofthesoftwareisdesignedtogivequickaccesstothemostrelevantinformationwith highestlevelofdata security.Thekeyfeaturesofruggedconnectsoftwareare: Historictrendingforuserselectableduration ExportofdataintoCSV,Excel,andJPEGformat Flexibility toEnable/DisableChannels remotely usingruggedconnectsoftware Supportformultiplelanguages Flexibilitytocompareandplotmultiple parametersfrommodulesforcorelative analysis(orcomparison)suchasTemperature, Pressure, Vibration,Currentetc. Realtimedata visualization anduser configurablealarming MonitoringofsignalstrengthforFiberOptic signalsforeasytroubleshooting Easilycustomizabledashboardsto meet differentapplicationrequirements Flexibilitytoadjustdatastoragefrequency andwithuserselectablesummaryfeature (Minimum,MaximumandAverage) Integrationwiththirdpartysystems Ruggedconnectprovideseasytoconfigureprotocolsforintegrationwiththirdpartydataloggerandsystems. Itsupportsthefollowingprotocolsfordatainputandoutput: SerialProtocols:CANBUS,Profinet,Modbus,DNP3.0,IEC60870-5-101 Ethernet(TCP/IP)Protocols:Modbus, DNP3.0,IEC60870-5-104,IEC61850 Third PartyDriversAvailable DistributedModuleshaveCANBUS/ MODBUSdataoutputforhighresolution dataloggingsuchasCANDataloggers. LABVIEW MATLAB PYTHON RuggedMonitoring Services Rugged Monitoring provides customization ofsensors, monitors&software.Inadditionweofferon-site commissioning services, maintenancecontractsand technicalsupporttoallcustomersworldwide. OurPresenceAcrosstheGlobe HeadOffice Canada 1415Frank-Carrel,Suite 230, Quebec, QC - G1N 4N7,CANADA +1-418-767-0111 About RuggedMonitoring Industry’sleadingteamofassetconditionmonitoring expertswith100+yearsofcombinedexperience committedto delivering customizable solutions for challengingapplications.Weoffer a rangeof reliable, high performance,customizablesensors and monitoring solutionsthatareimmunetoexternalinfluence. AsiaPasific LatinAmerica Europe MiddleEast India NorthAmerica ruggedmon info@ruggedmonitoring.comwww.ruggedmonitoring.com DS0037R05_R501RnD_EN_A4 ©2021RuggedMonitoringCompany.Allrightsreserved. Informationsubjecttochangewithoutnotice.All trademarks arepropertiesoftheirrespective companies,asnoted herein.
