Clamp-On Current Transformer | CTCLAMP | High Circuit Isolation

Split-core current transformer for the measurement of AC currents from 1 to 200Amps. The Clamp-On CT easily snaps around the conductor and ideal for installation on electrical wiring. It has output in voltage form, 0.333V that is proportional to the RMS value of the primary current.

rugged2
Download Presentation

Clamp-On Current Transformer | CTCLAMP | High Circuit Isolation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

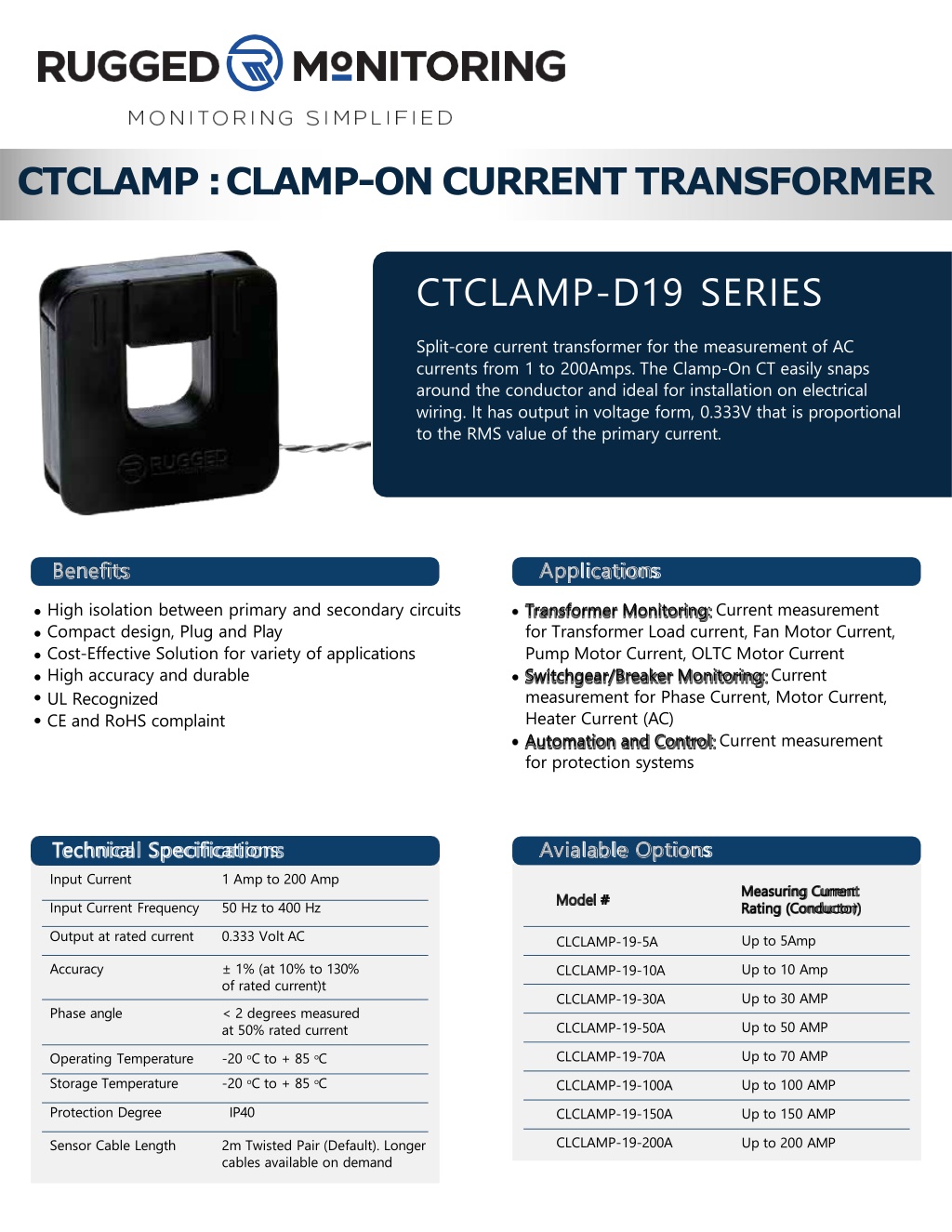

  1. CTCLAMP:CLAMP-ONCURRENTTRANSFORMER CTCLAMP-D19SERIES Split-corecurrenttransformerforthemeasurementofAC currentsfrom1to200Amps.TheClamp-OnCTeasilysnaps aroundtheconductorandidealforinstallationonelectrical wiring.Ithasoutputinvoltageform,0.333Vthatisproportional totheRMSvalueoftheprimarycurrent. Benefits Applications Highisolationbetweenprimaryandsecondarycircuits Compactdesign,PlugandPlay Cost-EffectiveSolutionforvarietyofapplications Highaccuracyanddurable ULRecognized CEandRoHScomplaint TransformerMonitoring:Currentmeasurement for TransformerLoad current,FanMotor Current, Pump MotorCurrent, OLTCMotorCurrent Switchgear/BreakerMonitoring:Current measurementforPhaseCurrent,MotorCurrent, HeaterCurrent(AC) AutomationandControl:Currentmeasurement forprotectionsystems AvialableOptions TechnicalSpecifications InputCurrent 1Ampto200Amp InputCurrentFrequency 50Hzto400Hz Outputatratedcurrent 0.333VoltAC MeasuringCurrent Rating(Conductor) Model# Upto5Amp CLCLAMP-19-5A Accuracy ±1%(at10%to130% ofratedcurrent)t Upto10Amp CLCLAMP-19-10A Upto30AMP CLCLAMP-19-30A Phaseangle <2degreesmeasured at50%ratedcurrent Upto50AMP CLCLAMP-19-50A Upto70AMP CLCLAMP-19-70A OperatingTemperature -20oCto+85oC StorageTemperature -20oCto+85oC ProtectionDegreeIP40 Upto100AMP CLCLAMP-19-100A Upto150AMP CLCLAMP-19-150A CLCLAMP-19-200A Upto200AMP SensorCableLength 2mTwistedPair(Default).Longer cablesavailableondemand

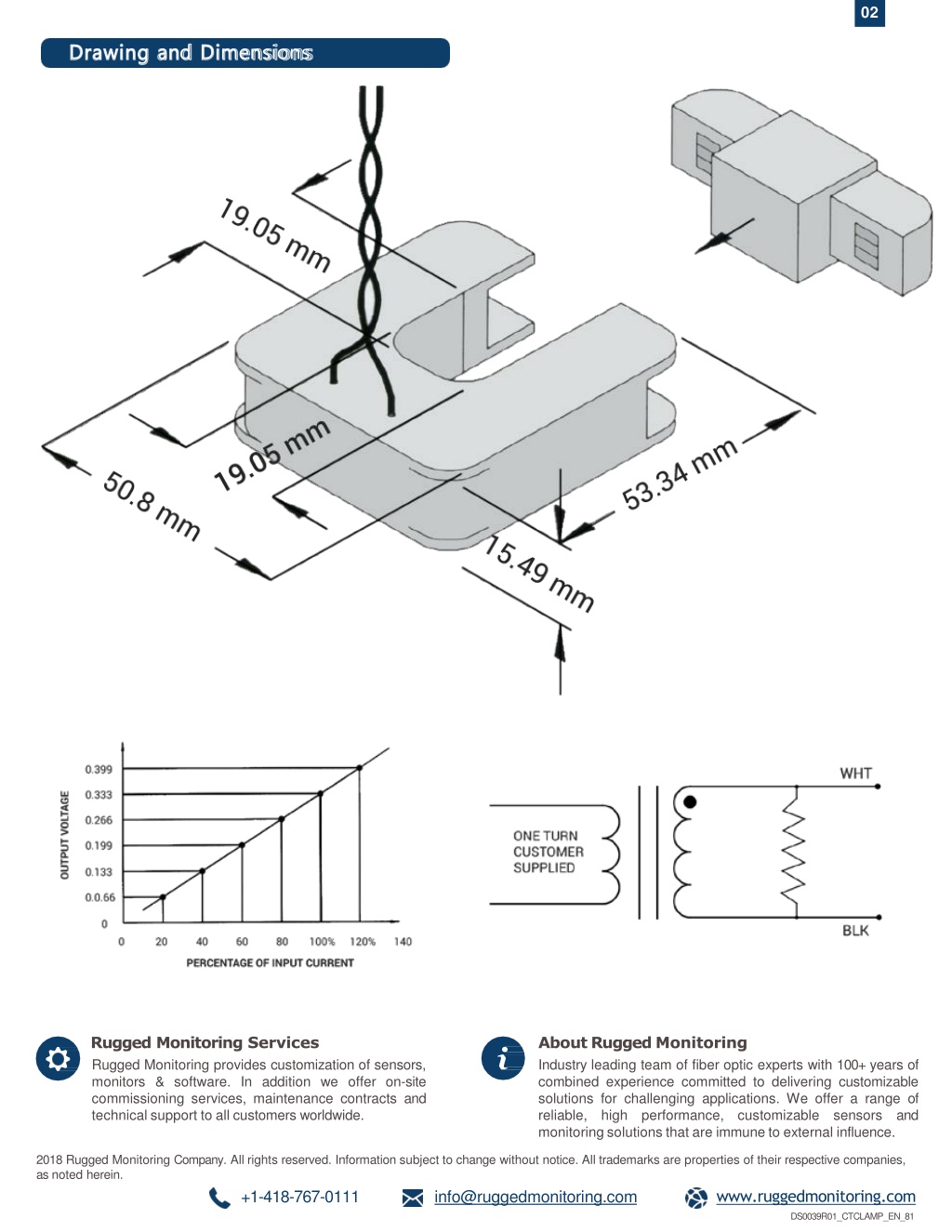

  2. 02 02 DrawingandDimensions RuggedMonitoringServices Rugged Monitoring providescustomization ofsensors, monitors&software.Inadditionweofferon-site commissioningservices,maintenancecontractsand technicalsupporttoallcustomersworldwide. AboutRuggedMonitoring Industry leading team offiber optic expertswith 100+yearsof combinedexperiencecommittedtodeliveringcustomizable solutionsforchallengingapplications.Weofferarangeof reliable,highperformance,customizablesensorsand monitoringsolutionsthatareimmunetoexternalinfluence. 2018RuggedMonitoringCompany.Allrights reserved.Informationsubjecttochange withoutnotice.Alltrademarksarepropertiesoftheirrespectivecompanies, asnotedherein. www.ruggedmonitoring.com DS0039R01_CTCLAMP_EN_81 +1-418-767-0111info@ruggedmonitoring.com
