Clamp-On Current Transformer | CTCLAMP | High Circuit Isolation

Split-core current transformer for the measurement of AC currents from 1 to 200Amps. The Clamp-On CT easily snaps around the conductor and ideal for installation on electrical wiring. It has output in voltage form, 0.333V that is proportional to the RMS value of the primary current.

rugged2
Download Presentation

Clamp-On Current Transformer | CTCLAMP | High Circuit Isolation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

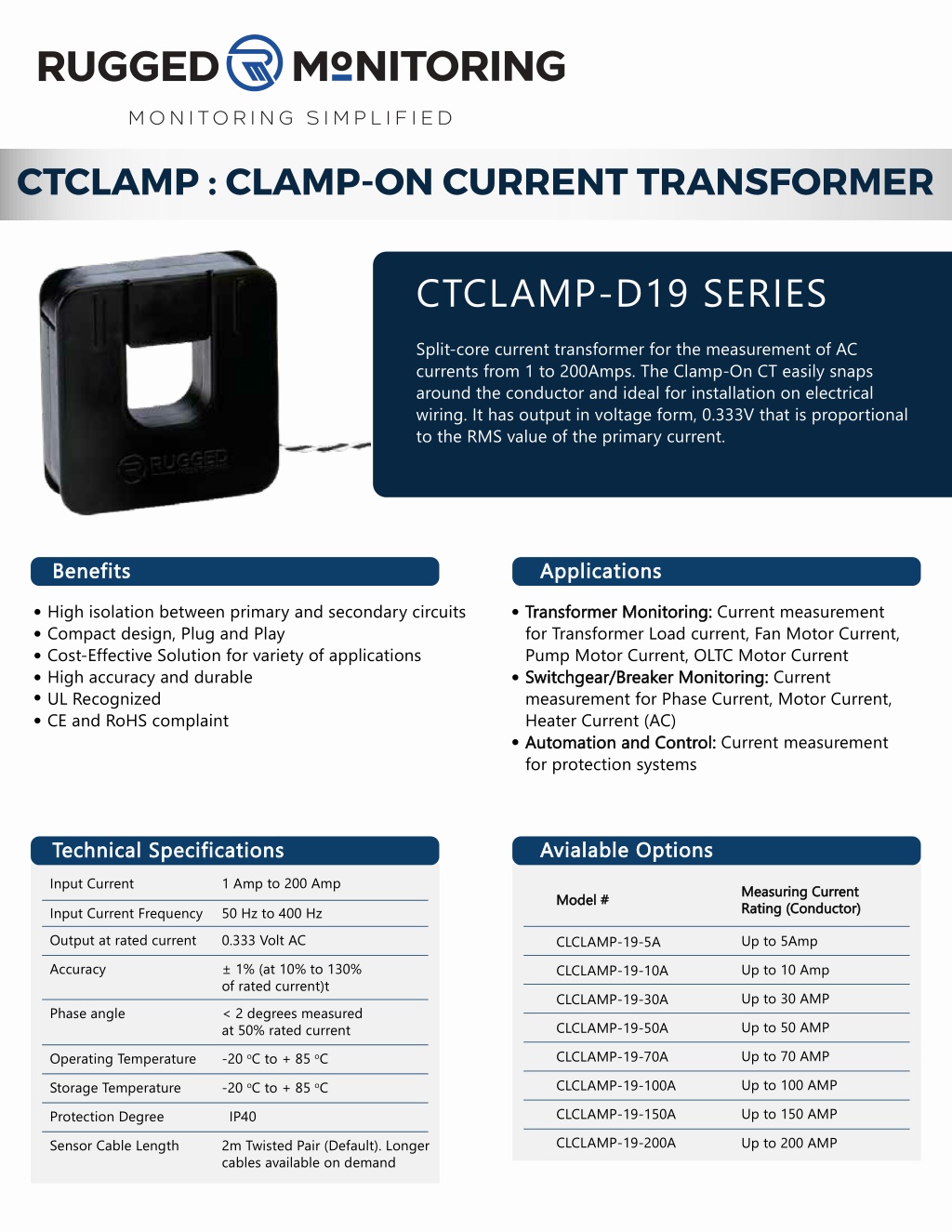

  1. CTCLAMP : CLAMP-ON CURRENT TRANSFORMER CTCLAMP-D19 SERIES Split-core current transformer for the measurement of AC currents from 1 to 200Amps. The Clamp-On CT easily snaps around the conductor and ideal for installation on electrical wiring. It has output in voltage form, 0.333V that is proportional to the RMS value of the primary current. Benefits Applications High isolation between primary and secondary circuits Compact design, Plug and Play Cost-Effective Solution for variety of applications High accuracy and durable UL Recognized CE and RoHS complaint Transformer Monitoring: Current measurement for Transformer Load current, Fan Motor Current, Pump Motor Current, OLTC Motor Current Switchgear/Breaker Monitoring: Current measurement for Phase Current, Motor Current, Heater Current (AC) Automation and Control: Current measurement for protection systems Avialable Options Technical Specifications 1 Amp to 200 Amp Input Current Measuring Current Rating (Conductor) Model # Input Current Frequency 50 Hz to 400 Hz Output at rated current 0.333 Volt AC Up to 5Amp CLCLAMP-19-5A Accuracy ± 1% (at 10% to 130% of rated current)t Up to 10 Amp CLCLAMP-19-10A Up to 30 AMP CLCLAMP-19-30A Phase angle < 2 degrees measured at 50% rated current Up to 50 AMP CLCLAMP-19-50A Up to 70 AMP CLCLAMP-19-70A -20 oC to + 85 oC Operating Temperature Up to 100 AMP CLCLAMP-19-100A -20 oC to + 85 oC Storage Temperature Up to 150 AMP CLCLAMP-19-150A Protection Degree IP40 CLCLAMP-19-200A Up to 200 AMP Sensor Cable Length 2m Twisted Pair (Default). Longer cables available on demand

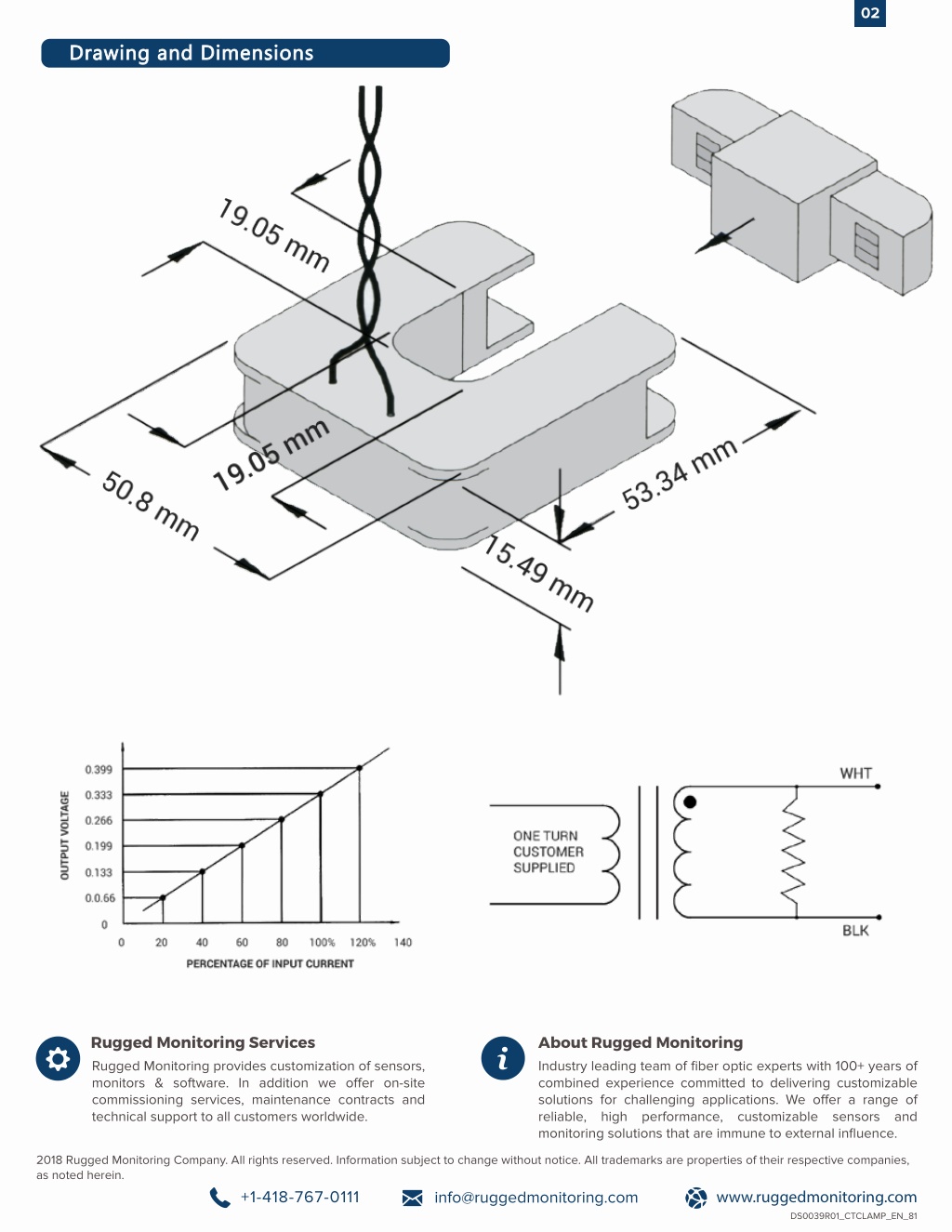

  2. 02 02 Drawing and Dimensions Rugged Monitoring Services Rugged Monitoring provides customization of sensors, monitors & software. In addition we ofer on-site commissioning services, maintenance contracts and technical support to all customers worldwide. About Rugged Monitoring Industry leading team of fiber optic experts with 100+ years of combined experience committed to delivering customizable solutions for challenging applications. We ofer a range of reliable, high performance, customizable sensors and monitoring solutions that are immune to external influence. 2018 Rugged Monitoring Company. All rights reserved. Information subject to change without notice. All trademarks are properties of their respective companies, as noted herein. info@ruggedmonitoring.com +1-418-767-0111 www.ruggedmonitoring.com DS0039R01_CTCLAMP_EN_81
